Pentruder RS2 User manual

Operator’s manual for Pentruder RS2 wall saw and
Pentpak®3 HFi power pack

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 2
Safety icons in this manual
Note! Technical specifics and methods to facilitate the job.
! Important!
Risks connected with use of the machine. Failure to comply with the safety
precautions can result in damage to property and injury to persons in the machine’s
proximity.
WARNING!
Life-threatening dangers connected with use of the machine. Examples of potential
injuries given in italic type. Failure to comply with safety precautions can result in
serious or fatal injuries to persons in the machine’s proximity.
Introduction
Thank you very much for your confidence in our product! You have chosen to invest in a product which will give you
many years of efficient and profitable production. The Pentruder RS2 HFi wall saw has been developed based on
more than 25 years of experience in this specialized field. The machine is state of the art and follows present
regulations. With correct handling it offers outstanding performance, safety, and reliability.
The Pentruder HF-wall saws represent a very modern and safe type of concrete wall saw. It is developed and
manufactured by Tractive AB in Sweden in a process where safety awareness, performance and reliability are the
most important design parameters.
We are confident that your investment in this equipment and its many design features will enhance your competitive
edge and profitability!
It is essential that all personnel working with or in the proximity of the machine
have read and understood all contents of this manual before commencing
operations. Please take careful note of the Safety instructions.
The operator’s manual must always be available to the operator of the machine.
To reduce the risk for serious or fatal injuries to the operator and persons in the
proximity of the machine, it is an absolute requirement that the machine only is
operated by trained, responsible personnel.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 3
Validity
This operator’s manual is only valid for the Pentruder RS2 wall saw as described in Chapter 1 Description of the
machine.
Tractive AB always strives to improve the products. Therefore, we reserve the right to make technical changes
without previous notice.
In this operator’s manual, the terms “the machine”, “wall saw”, “Pentruder HFi wall saw”, “Pentruder RS2” are used
to refer to the complete machine as listed in 1. Description of the machine.
Should questions arise, please contact our sales distributor. The address can be found at www.pentruder.com.
Product Description Serial number
Category: Wall Saw
Make and type: Pentruder RS2 _______________
Drive system: Pentpak HFi Power Pack
Type of drive system: High frequency drives _______________
Drive motor: Pentruder high frequency motor
Type of drive motor: Permanent magnet motor _______________
Accessories: As stated in Chapter 1
Remote control: Wireless and cable Remote Control _______________
Manufacturer: Pentruder Distributor
Tractive AB
Gjutargatan 54
S-781 70 Borlänge
Sweden
Phone: +46 (0)243 - 22 11 55
Fax: +46 (0)243 - 22 11 80
E-mail: [e-mail]
Web: www.tractive.se

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 4
Operator’s manual for Pentruder RS2 wall saw and
Pentpak®3 HFi power pack
Version: 1.0
Support & Service document
Original instructions
Copyright © 2021 Tractive AB.
Pentruder and Pentpak are registered trademarks belonging to Tractive AB.
Contents
Safety icons in this manual ........................................................................................................................................2
Introduction...............................................................................................................................................................2
Validity ......................................................................................................................................................................3
Description ........................................................................................................................................................5
Complete machine ....................................................................................................................................5
Signs and symbols .....................................................................................................................................6
Safety instructions.............................................................................................................................................8
Intended use .............................................................................................................................................8
General safety...........................................................................................................................................9
Preparational safety..................................................................................................................................9
Operating safety .....................................................................................................................................11
Transport, preparations and mounting............................................................................................................12
Equipment ..............................................................................................................................................12
Transport ................................................................................................................................................12
Mounting of track feet and tracks ...........................................................................................................15
Mounting the saw head on the track ......................................................................................................18
Mounting of saw blade ...........................................................................................................................19
Mounting the blade guard ......................................................................................................................23
Connecting the RS2 to Pentpak 3 ............................................................................................................24
Pentpak 3, Power pack – connections and functions, input side .............................................................25
Radio remote control ..............................................................................................................................27
Peripheral cutting speed and spindle speeds ..........................................................................................29
Cutting.............................................................................................................................................................30
Ready to cut? ..........................................................................................................................................30
When cutting is finished..........................................................................................................................33
Storage of the machine ...........................................................................................................................33
Trouble shooting and menu functions..............................................................................................................34
Saw blade issues .....................................................................................................................................34
The Pentpak, RRC or RS2 do not work properly.......................................................................................34
Menu functions.......................................................................................................................................36
Maintenance ...................................................................................................................................................39
Every day / week maintenance ...............................................................................................................39
Technical data .................................................................................................................................................42

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 5
Description
Complete machine
A complete Pentruder RS2 HFi wall saw is comprised of at least:
a. One Pentruder RS2 saw head
b. One complete Blade flange
c. One TS Track
d. Two TF2S Track feet
e. Two TP3 track stop
f. One Blade guard guide
g. One Blade guard
h. One Pentpak 3, HFi power pack
i. One Machine cable
j. One Water hose (attached to Machine cable)
k. One RRC Remote control
l. One CE-RRC Cable for Remote control
m. One Operator’s manual: Pentruder® RS2 HFi wall saw and Pentpak® 3 HFi power pack (not pictured)
As described in this Operator’s manual, and on our website www.pentruder.com. Please note that a Pentruder HFi
wall saw is not complete without the modules and accessories listed in this paragraph.
For more accessories, see www.pentruder.com.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 6
Signs and symbols
For symbols used on the RRC display, see chapter 4 and 5.
1.2.1 Symbols
See rpm chart in Operator’s manual to choose correct spindle speed.
Refer to the Operator’s manual.
This product is in accordance with applicable EC-directives.
Warning sign
The trash bin symbol is an environmental marking and indicates that this machine
contains electrical/electronical equipment which should be recycled. Please contact your
Pentruder Distributor for more information
Risk of serious or fatal cut from saw blade. Extreme Danger may occur from concrete
chips, reinforcement bar fragments, debris or saw blade diamond segments thrown out
from the cut at very high and potentially lethal speed.
Make sure a blade guard is always fitted during the cutting process
High voltage triangle. Warning – danger of life
Safety helmet, safety glasses and hearing protection should be worn.
Protective shoes should be worn.
Protective gloves should be worn.
An appropriate safety dust mask or adequate respiratory protection should be worn
depending on the material cut and the environment.
1.2.2 Signs on the machine

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 7
1. Machine sign for RS2 saw head
a. Serial number of Pentruder RS2
b. Year of Manufacture
c. Max blade diameter
d. Maximum output power 18 kW
e. Connect to 380 – 480 V input power, see chapter 3.8
f. Blade speed range is between 500 and 1150 RPM
Symbols, see 1.2.1
2. Information sign about locking mechanism for blade
quick disconnect coupling
See symbols above and chapter 3.5 for instructions.
3. Sign on Track
Track stops should be mounted at both ends of the track. See
chapter 3.3 for instructions.
4. High voltage warning sign on Pentpak 3
Symbol, se 1.2.1. See also chapter 2.2 general safety and 3.8
for description
5. Information about radio, and warning sign about
high voltage
.
b.
Disconnect power supply before working on or servicing the
machine
.
Connect to 380 – 480V 3-phase 50/60 Hz
d.
Current draw at max output: 50 A, 30 kW
e.
Contains: list of radio modules
.
Symbols, see 1.2.1
g.
6. Residual Current Circuit Breaker
The RCCB is situated under the cover to the right.
7. Machine sign for Pentpak 3
8. Sign for Green button and Voltage indicator
9. Radio remote control (RRC) type sign
a. Serial number of Radio remote control
b. Manufacturing year
c. Contains: list of radio modules
Symbols, see 1.2.1
10. Warning sign, blade guard
Symbols, see 1.2.1
11. and 12. Signs on trolley
Shows position of Emergency stop on Pentpak 3
Max permissible total weight 170 kg. Blade guard must be
mounted if trolley is loaded with saw blade (see also 3.2).
Symbols, see 1.2.1.
a. Serial number of Pentpak 3
b. Manufacturing year
Symbols, see 1.2.1
Symbol for Green button
(upper button) and Voltage
indicator (lower lamp).
See 3.8 for description.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 8
Safety instructions
Intended use
See safety icon description on page 2. This wall saw must not be used unless all persons operating, or in any way
working on the machine has full knowledge and understanding of the whole Operator’s manual and all its safety
instructions. They must also have had training in its operation by an authorized distributor of Tractive AB’s products.
The operator must accept and take full responsibility for the correct operation of the machine. It is the obligation,
and responsibility of the employer/purchaser of the machine that the operator has received the information needed
to operate and take care of the machine in a safe and correct way.
Good working practice should always be used along with common sense. Tractive cannot foresee every possible
situation and this manual is not a substitute for the required professional skills and experience.
All other use than mentioned in this manual is non-intended and therefore forbidden.
•A Pentruder HFi wall saw must be used together with a Pentpak HFi power pack and cannot and may not be
used with any other type of power pack.
•The Pentpak HFi power pack may only be used to power Pentruder HFi machines.
•The track feet must be mounted on a completely rigid, and stable structure, not on any type of moving or
mobile device.
•Always use diamond blades well suited for the power output of the machine. Always follow the diamond
blade manufacturer’s recommendations. For maximum saw blade specifications, see 7 Technical Data.
The Pentruder HFi wall saw may only be used for cutting of:
•Concrete
•Stone material
•Masonry
Tractive AB disclaims all responsibility for damages to persons and / or property resulting from use of the machine,
whether they are caused by faulty handling or from damages occurring as a consequence of negligent or faulty
maintenance, or as a consequence of failure to check and control the machine with regard to damages and / or
faults. The described injuries in the warnings are not conclusive but should be considered as examples of what may
happen when safety instructions are not followed. Failure to comply may also result in other types of injuries.
WARNING!
Do not use the machine for cutting other materials than listed above. Do not
attempt to fix the machine on fragile or loose materials of any kind. The safe
fastening of the track feet can only be performed on materials with integrity and
strength high enough to securely and positively hold the fastening anchors in place
under load, all the way up to their specified load limit. Se anchor manufacturers
specifications.
!Important!
Tractive’s responsibility for the product is only accepted when the Pentruder saw
head is used according to instructions, together with power packs and accessories
described in this Operator’s manual. If the machine is used with non-original
replacement parts or any other non-Tractive equipment, Tractive’s CE-marking will
automatically be rendered void and any warranty will also be void.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 9
General safety
WARNING - DANGER OF LIFE!
Cutting into an energized power line can make the wall saw and its accessories
conductive of high voltage and current which can result in serious or fatal injuries. A
circuit breaker cannot protect against this danger.
WARNING!
Failure to understand and comply with the safety instructions in this manual can
expose the operator and persons in proximity of the machine to extreme danger
and can result in serious or fatal injury.
WARNING!
•The machine may only be operated and serviced by authorised and trained
personnel. The personnel must be trained by personnel authorised by Tractive.
•To maintain the warranty and level of safety inherent in the design of this
machine, only Tractive original replacement parts may be fitted. Tractive AB
disclaims all responsibility for damage occurring as a result of using non-
original parts.
•Any kind of modifications or changes on the machine are not allowed.
•The machine may not be used in an environment where explosion protected
equipment is demanded.
•Safety and health regulations at the workplace must be followed along with
the safety instructions in this manual.
•Never use a diamond tool for materials it is not intended for.
•The user is responsible for and liable that the machine and diamond tools are
in faultless condition and all functions in perfect order before work is
commenced. Cracked saw blades must never be used.
•
Dry cutting without water cooling to the saw blade is prohibited.
Preparational safety
WARNING! CAUTION WHILE TRANSPORTING AND LIFTING
Risk of crushing from falling objects.
•Use the lifting handles on the saw head or place it in the transport trolley for
safe handling. Make sure the machine modules are secured to the transport
trolley and that the transport trolley is placed on a stable, flat surface. If placed
on a slope or uneven surface, instability may occur and it can fall or roll away.
•Always lift the machine ergonomically correct and in a safe way.
•Avoid lifting and carrying heavy objects alone and use appropriate lifting
equipment when necessary.
•If the machine needs to be lifted with a crane, this can only be done after
permission and instructions have been given by a person responsible for safety
on the site.
•For lifting and transportation of the machine in the transport trolley, see 3.2.
BEFORE MOUNTING AND USING
Fatal injury may be caused by sudden machine start-up. Risk of electric shock from
live cables and connectors. Uncontrolled movements of the saw may result in injury
or death.
•Before any kind of service or mounting of, or on the machine is commenced,
the Pentpak 3 power pack must always be disconnected from the electric
power supply.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 10
WARNING!
If the machine does not stop running after an accident it may result in fatal injury.
Uncontrolled movements of the saw may result in injury, death, and material
damage. Cutting in a power line may result in serious injury or sudden death.
Before cutting is commenced, make sure:
•there are no power lines, gas pipes or other piping which can be damaged or
cut off by the saw blade.
•the statics of the building are not compromised because of the cut openings.
•no damage is done on the other side of the concrete when cutting through.
•you check with a person responsible for site safety that all necessary
precautions have been performed before commencing work and await the
approval of the safety precautions and mounting position of the machine
before work is commenced.
•to not commence any work which cannot be judged safe. Always use common
sense and best working practice.
•all persons involved know where the emergency stop button is located and
how it works.
•that the emergency stop button can be reached quickly.
•there is always sufficient lighting and visibility.
WARNING!
Before cutting is commenced, make sure the saw blade rotational speed is correctly
set. Do NOT start at and/or cut at a too high speed. See 3.10 “How to choose
correct cutting speed”.
WARNING! WEAR SAFETY EQUIPMENT
Risk of cut from saw blade, crushing injuries, permanent hearing disorders and
chronic respiratory problems. Risk of frostbite in cold temperatures or burn injuries
from hot parts.
•All persons working with, or in the proximity of the machine must wear safety
equipment, i.e., safety helmet, safety shoes, safety gloves, safety glasses and
hearing protection. Note that protective equipment does not provide complete
protection from injury. All other safety precautions must also be followed.
•Wear appropriate safety dust mask or adequate respiratory protection
depending on the material cut and the environment. Cutting in hazardous
material can be very dangerous for operator health and is prohibited without
adequate protection.
•The operator may not wear any kind of loose clothing or any object that can be
easily trapped. Always follow and respect the construction site safety guide.
WARNING! WHEN THE MACHINE IS WORKING, THE BLADE GUARD MUST ALWAYS BE FITTED
Risk of serious or fatal cut from saw blade. Extreme Danger may occur from
concrete chips, reinforcement bar fragments, debris or saw blade diamond
segments thrown out from the cut at very high and potentially lethal speed.
•A blade guard must always be fitted during the cutting process.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 11
Operating safety
WARNING! STAY OUT OF RISK AREA
Risk of serious or fatal cut from saw blade. Risk of being drawn in by rotating and
moving parts, getting trapped resulting in cutting and crushing injuries. Danger
from concrete chips or other debris or even saw blade segments thrown out from
the cut at lethal speed. Uncontrolled movements of the saw may result in injury or
death. Risk of crushing from falling concrete blocks or objects. Risk of fire if
disconnecting cables while the saw is in operation.
•The operator shall keep a minimum safety margin of 2.0 m to all working and
moving parts during the operation. Should the machine fall from the wall or
ceiling it could cause severe injuries or death.
•The operator should have perfect vision over the machine.
•The risk area must be roped off and the operator must make sure that no
unauthorized person enters the risk area.
•Clear the working area and make sure no persons or objects are within the risk
area (see drawing below) before the machine is started.
•To avoid slip and fall accidents, make sure to cover openings immediately after
they are cut.
•Do not mount the wall saw onto any object which is not completely rigid
and/or securely fixed.
•Cut off concrete blocks must never be allowed to fall without control. If a cut of
concrete (or other material) block is allowed to fall without control, this will
potentially cause great danger to the operator and any people in the proximity
of the machine and damage or destroy the machine and/or the saw blade. If
blocks must be allowed to fall, guards must be places outside the risk area to
prevent other people to enter the risk area.
•Always switch off the wall saw before disconnecting or connecting cables.
•The blade does not stop immediately after shutting down the saw. Do not
approach the machine before the blade has come to a complete stop.
•Ensure that the system is switched off and cannot be switched on again when
leaving it unsupervised, i.e., remove the cable between Pentpak and wall saw.
•If the visibility is not sufficient (for example because of water mist) the
machine must be stopped, and the cut area controlled.
Never stand in
the cut line!
Never stand in
the cut line!
RISK AREA:
•Within 2 meters of machine.
•
Cut line

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 12
!
Important! •The power pack is water cooled and must be drained from water when the
ambient temperature is in the proximity of or below 0 degrees Celsius.
See Connection to water supply.
•Maximum water pressure during operation is 6 bar.
•The water supply may only be connected to the input side of the Pentpak 3.
The quick disconnect couplings may not be replaced with couplings that are not
fully open when disconnected.
•The power pack should only be operated when it is standing on its feet.
•Connect the HFi-power pack only to the Pentruder RS2 HFi-wall saw.
Transport, preparations and mounting
Equipment
In addition to the modules of a complete machine the operator should have the following at hand:
Equipment
Used to
Hammer drill
Drill holes to secure the track feet
Hammer
Secure anchors
Anchors and bolts
Mount the track feet
Tool set for mounting
Mount the wall saw
Pentruder mounting templates
Simplify the positioning of track feet and setup of the Pentruder wall saw
Level
Mount the track correctly at set up.
Set square
Make sure the blade is 90° to the concrete (or at the angle required)
Measuring tape
Position track feet in relation to cut line.
Industrial vacuum cleaner
Collection of concrete slurry and water retention
Securing equipment
Secure the cut concrete slabs
Personal protection equipment. For
example: Safety helmet, safety
goggles and hearing protection, dust
protection in dusty environments,
protective clothes, shoes and gloves
Provide personal safety
Transport
All parts of the complete wall saw can be transported on the
transport trolley, with extra space for an up to Ø 800 mm saw blade
and optional equipment in the lower tool box. When the transport
trolley is used, the Pentpak can preferably stay on the trolley during
cutting.
It is recommended to use the transport trolley to transport the
machine in an ergonomic and safe way.
See also 4.3 Storage of the machine.
Unloaded transport trolley

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 13
3.2.1 Transport trolley
The lid of the remote box may also be
opened for extra workspace.
Loaded transport trolley front Loaded transport trolley back
1. Provision for two tracks with track stop.
Slide on from the side with the upper hook in the T-slot on the track. Let it rest on the support.
2. Box with locking mechanism for Radio remote control and cable.
Lock with the eccentric lock on the box.
3. Two lifting eyelets
4. Bracket for max Ø800 mm saw blade and hooks for the blade guard (max Ø800)
Put the blade flange (which is fitted on the saw blade) on the bracket from above. Slide the blade guard over the
saw blade from above and let it rest on the two hooks. Lock the blade guard in place with the blade guard locking
mechanism (see 3.6)
5. Hook for machine cable, water hose and blade guard holder
Roll up cables and hoses in safe way and hang them on the hook. The blade guard holder can also be put here.
6. Bracket for two track feet
7. Bracket for Pentpak with two rubber straps.
The power pack should be positioned as in the picture and fastened with two rubber straps from the hooks on the
middle part, through the holes to the front plastic hooks on the bracket.
8. Tool box for two track feet and extra equipment
The tool box must be lifted slightly upwards and out to open. Extra space for drilling machine.
9. Safety strap for track and tool box
Pull the long rubber strap from the hook on the side bracket behind the track, over the tracks, under the handle on
the tool box, and fasten on the little hook on the foot.
10. Bracket for saw unit
The saw unit is fastened at the back by clamping it with its locking device.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 14

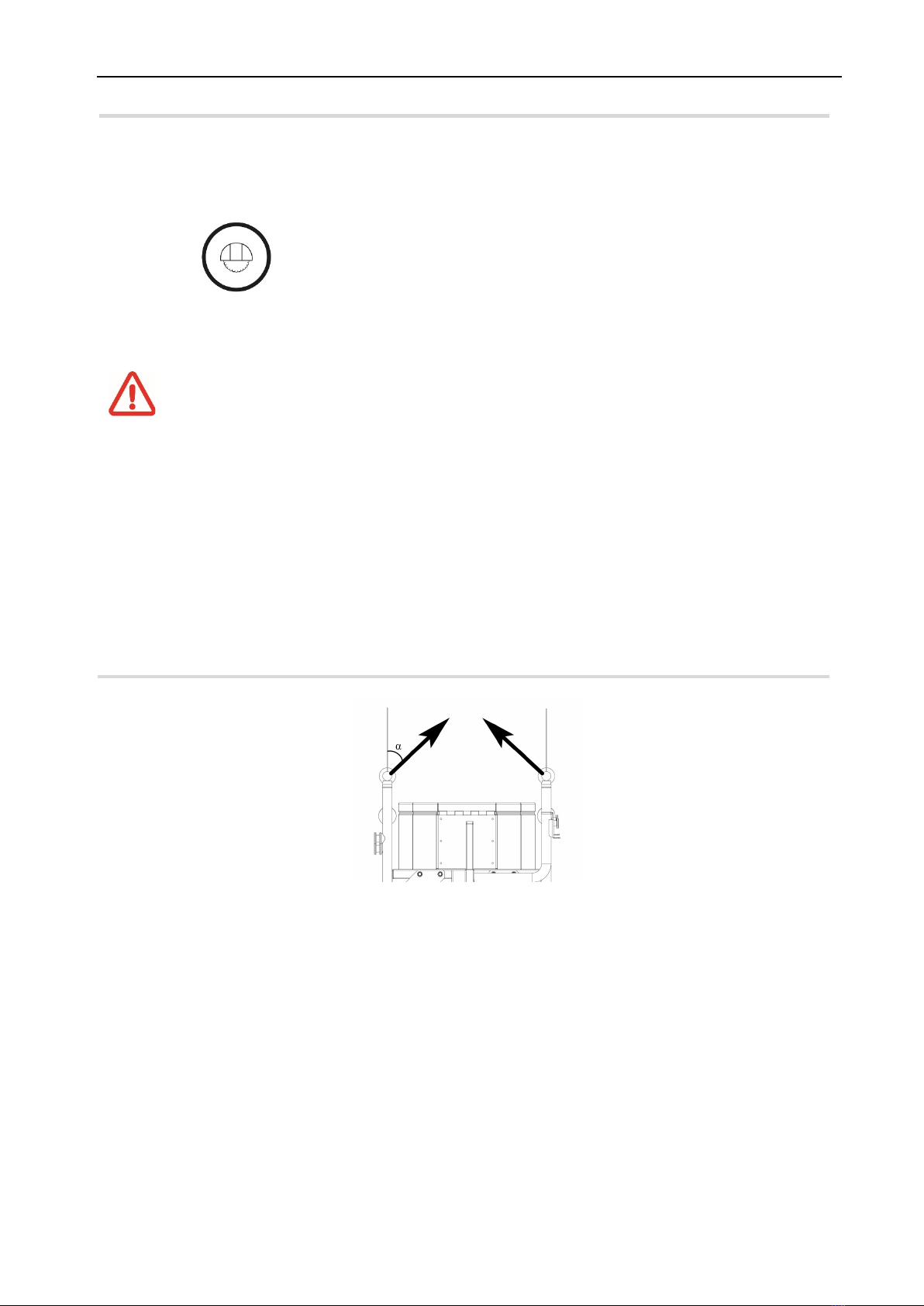

3.2.2 Safety instructions for transport trolley
WARNING!
Risk of falling items causing serious personal injury if not used correct and with
caution.
•If the transport trolley is to be lifted the blade guard must be correctly fitted
and secured over the saw blade. Never lift the transport trolley with only the
saw blade fitted! If the trolley tilts over during lifting, the saw blade can fall out
of the trolley can cause fatal injury.
•The total weight of the trolley including load may not exceed 170 kg to be able
to drive and lift it securely.
•The transport trolley may only be loaded with the machine and accessories as
instructed in 3.2.1. Extra equipment may be stored in the lower tool box. Other
use is not intended.
•Tracks longer than 2.3 m can rend the transport trolley unstable and make it tilt
over, which can damage equipment and property. Never load more than 2 pcs
of 2.3 m track. The track must be long enough to reach the upper hooks.
•The transport trolley should be placed on a stable, flat surface. If placed on a
sloping surface, it may become unstable (slope <5 °). Also consider the stability
if the trolley is loaded unevenly.
•Do not lift or move the transport trolley unless all loaded parts are positioned
correctly in the specified location and securely fastened without risk of
something falling off. Always use the locking functions and safety straps.
•Lifting with a crane may only take place by using the two lifting eyelets at the
same time and the lifting force must then be as vertical as possible. When lifting
at an angle, it must not exceed 45 ° (See picture below). The lifting equipment
must have been tested and approved.
•Never stand below of near the load during lifting.
•The power pack should always be shut off and disconnected from the mains
before moving the transport trolley.
•
See also 2.3
Instruction lifting with lifting eyelets. 0 ≤α ≤45°

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 15
Mounting of track feet and tracks
3.3.1 Positioning of track feet
1. Use the Pentruder templates to simplify the setup of the wall saw. It will help position the track feet to avoid
re-aligning them when cutting a rectangular opening. The track foot can swivel, so it only needs to be set up
once at each corner, for example when cutting a door opening.
2. Minimum two track feet are required to mount one track. The distance between the track feet may not
exceed 2.0 meters (79”). If blades larger than 1200 mm / 48” are used, set the track feet closer than 2.0
meters / (79”).
3. If tracks with only one gear rack are used, make sure all of them are positioned correctly to engage with the
travel gear on the wall saw.
The distance from the edge of the feet to the cut line is
127 mm (5”). The distance from anchor bolt to the cut
line is 217 +- 25 mm (8.54 +- 1”).
Setup examples
!Important!
The feet must be fixed with M12 (1/2”) screws of 8.8 quality or higher of adequate
length, depending on anchor depth, using a thick washer and anchors of type HKD
M12 (1/2”) or equivalent.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 16
WARNING! MOUNT ACCORDING TO INSTRUCTIONS
Risk of serious or fatal cut from saw blade. Uncontrolled movements of the saw or
an escaping or falling saw blade may result in injury or death. Risk of injury from
falling parts.
Uncontrolled movements of the saw or an escaping or falling saw blade may result
in injury or death. Risk of injury from falling parts.
•Track feet may only be mounted according to instructions given in this manual.
•Ensure that the surface where the track feet are fastened is stable, free of
obstacles and adequately lit.
•The track feet and the tracks should be mounted in such a way that they
cannot become detached when the machine is working, or at sudden changes
in load on the anchor bolts.
•Track stops must always be securely mounted at each end of the track(s) to
prevent the saw head from being run off the track unintentionally.
•If HKD type anchors or other high-quality expansion anchors cannot be fixed
securely, the track feet must be securely fixed with through bolts and large
washers to achieve the required level of safety.
•Do not use the machine if the track feet cannot be fastened properly.
•Make sure that the fork is not threaded all the way out before the track is
mounted. Leave at least one turn from the fully out or in position of the fork.
3.3.2 Track system parts
a. Track stop
b. Knurled knob
c. T-slot piece
d. Fork
e. Sleeve nut
f. Levelling screws x 3
Note!
The track feet should preferably be mounted in the position shown in the picture
above, with the base plate of the track foot under the track. If the track feet must
be mounted differently due to the circumstances, this will affect the stability of the
track and more track feet should be fitted to spread the load for increased stability.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 17
3.3.3 Fastening track feet, and mounting the track on to the track feet
1. Drill anchor holes for each track foot. Follow the
manufacturer’s instructions for the anchors that are
used.
2. Clean the holes and insert the anchors. Fix them
according to the manufacturer’s instructions.
3. Place both track feet over the anchor holes and
tighten the bolts loosely.
4. The height of the fork can be adjusted totally 12 mm
by turning the fork Clockwise or Counter Clockwise
to compensate for irregularities on the wall. Adjust
if necessary.
5. When the fork is completely turned in, turn the fork
about 5 turns Counter Clockwise to make sure the
saw arm doesn’t touch the concrete.
6. Align and position the first track foot with the help
of a template, set square, level or measuring tape.
7. Adjust the levelling screws if necessary and tighten the anchor bolt for the first track foot.
8. Slide in the T-slot pieces from both track feet into the T-slot of the track.
If you are using very old tracks with only one gear rack, make sure it is positioned
correctly to engage with the travel gear on the wall saw, see 3.4 Mounting the
saw head on the track.
9. To make sure the knurled knobs are not lost, tighten them securely.
10. Slide the sleeve nut into the fork of the first track foot in any chosen position
longitudinally on the track.
11. Tighten the sleeve nut on the second track foot to 50 Nm. The hex is 19 mm (3/4”).
12. Slide the sleeve nut into the fork of the second track foot in any chosen position longitudinally on the track.
Do not tighten at this point.
13. Adjust the levelling screws on the second track foot so that the track is not warped due to unevenness of
the concrete.
14. Fasten the sleeve nut on the second track foot to 50 Nm. Make sure there is no or a very small gap between
the track foot fork and the track.
15. Track stops should always be fitted at the end of the track.
WARNING!
•Be careful to position the sleeve nut in the bottom of the fork on the track foot.
This countersink at the bottom of the track foot is to prevent the track coming
off the track foot in case the sleeve nut is not tightened properly.
•If tracks with only one gear rack are used, make sure all of them are
positioned correctly to engage with the travel gear on the wall saw.
•Track stops must always be fitted at the end of the track.
!Important!
The distance between the track feet should be no more than 2 meters / 79”. When
bigger blades than 1200 mm / 48” are used, we recommend setting the track feet
closer than 2 meters / 79”.
Note! Be sure to check that the fork is aligned with the track and that there is no gap
which can cause the track to be warped and the blade to cut un-straight.
No gap!

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 18
3.3.4 Joining two or more track tracks together
If tracks are to be joined without a joint block the fork of the track foot should be positioned centrally under the
joint. True up the tracks carefully using a spirit level or a straightedge.
When using joint blocks, a track foot must be placed within 60 cm (2 ft) of the joint Block.
WARNING!
•Joint Blocks are for connecting two tracks together and are not designed to
alone handle the full load of the saw when cutting, therefore, one track foot
must be mounted within 60 cm (2 ft) of all Joint Blocks).
•If tracks with only one gear rack are used, make sure all of them are positioned
correctly to engage with the travel gear on the wall saw.
Mounting the saw head on the track
a. Lifting handle x 2
b. Locking pin x 2
c. Upper track rollers
d. Lower track rollers
The saw head runs on the track on four track rollers. The upper track rollers are fitted on eccentric shafts, opened
and locked by moving the handles sideways.
1. To open the lifting handles, lift up the locking pins
using the index fingers, and fold the handles outward
from the saw until they lock the most outward, open
position.
2. Fold the saw head onto the track, the bottom track
rollers engaged first, and second the upper track
rollers.
3. Move saw head slightly along the track to engage the
travel gear with the gear rack.
4. Lift up the locking pins, slightly move the locking pins
and move the lifting handles toward the saw, until
they are engaged in locked position.
WARNING!
Before the saw is operated, always make absolutely sure that the lifting handles
are locked in position to prevent the saw from falling off the track.
Note that if a track with only one gear rack is used, it must be positioned in the
right direction to engage with the travel gear on the wall saw. Failure to fulfil this
requirement may lead to the saw head traveling along the track which potentially
could cause severe bodily injury or death.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 19
Mounting of saw blade
3.5.1 Function principle of quick disconnect coupling for the saw blade
Inner blade flange
a. Internal toothing (on inner blade flange)
b. Radial t-slot
c. Outer collar
Outer blade flange
d. Bolts x 3
Spindle parts on wall saw head
e. Internally toothed drive hub
f. Pull stud
g. Tapered guide cone
The saw blade is clamped between the inner and outer blade flanges. Three bolts clamp the blade between the
flanges. For flush cutting, the blade is attached on a flush cutting flange by means of six (6) countersunk screws, and
self-locking type nuts,on the back side of the flange.
The blade flange, regardless of type, is provided with a radial T-slot to the center of the flange. The flange, with blade
fitted, is mounted on the machine spindle and its pull stud which fits in the T-slot in the flange. By turning a Locking
Screw clockwise, the flange coupling can be locked and unlocked.
The flange is driven by the spindle by means of an internally toothed drive hub which grips into a corresponding
external toothing in the flange. This hub is also provided with a tapered guide cone part which centers the flange on
the spindle and at the same time interlocks the coupling.
3.5.2 Diamond saw blade
Only a diamond blade suited for the power of the machine and the material to be cut, concrete, stone material or
masonry, may be used. Never attempt to use a higher spindle speed than the saw blade is intended for. Always
follow the diamond blade manufacturer’s recommendations.
For best cutting performance, check that the correct rotation direction for the saw blade is used.
WARNING!
Failure to respect these requirements may lead to serious or fatal injury to persons in
the surroundings of the machine.
•Never attempt to use a higher spindle speed than the saw blade is intended for.
•
Always follow the diamond blade manufacturer’s recommendations.

Operator’s manual Pentruder RS2 wall saw and Pentpak 3 HFi power pack – Original instructions Page 20
3.5.3 How to fit a saw blade on a standard blade flange:
Centre bore and thickness
•The saw blade bore should be Ø 60 mm -0 +0.1 mm.
•The thickness of the saw blade core must be within 2.9 - 5.0 mm to ensure safe and proper clamping of the
blade.
See picture below.
Checks and maintenance before use
1. Before use, carefully inspect the saw blade and the saw blade bore. The steel core must be completely free
from cracks, dents, burrs and dirt and corrosion, or any kind of mechanical damage.
2. Make sure the friction surfaces of both flanges are undamaged and clean, free from grease and dirt. This is
extremely important to allow the blade flange to be able to securely transmit the torque of the spindle
without slippage. Slippage will cause irreparable damage to the flanges and the blade.
3. Inspect and grease the threads on the three bolts. Usea high-quality grease, preferably a Molybdenum
Disulfide grease. No parts of the blade flange or bolt may ever start to corrode.
Clamping
4. Fit the blade on the inner flange and clamp it with the outer flange by tightening the three bolts to 60 - 70
Nm. A torque wrench must be used.
WARNING!
Failure to respect these requirements may lead to serious or fatal injury to persons in
the surroundings of the machine.
•The three bolts are manufactured from a very high grade aerospace quality
stainless steel. The threads on the bolts may never be allowed to be dry. They
must always be greased with a high-quality grease, preferably a Molybdenum
Disulfide grease. Tightening dry fasteners may cause loss of bolt tension which
can result in several serious problems: Lack of clamping force on the blade,
which in turn can result in serious injury, and even fatal injury to persons in the
surroundings of the machine, as well as bolt fatigue due to low bolt preload.
•To avoid danger, the saw blade must always be fitted correctly, and a torque
wrench must be used to tighten the bolts to the correct torque. The instructions
given above must always be followed to avoid incorrect and dangerous
mounting of the blade.
The blade and flange are now ready to be fitted on to the machine spindle by using the quick coupling.
Blade core
thickness
Min 2.9 mm
Max 5.0 mm
Bolts x 3
60-70 Nm
