Standard Configuration

3
©2001 Directed Electronics, Inc.
What is Included
■A control module
■A two-button transmitter
■A push-button programming switch
■Your warranty registration
■A shut-down toggle switch
Important Information
Congratulations on the purchase of your remote start keyless entry
system. This system has been designed to provide years of trouble-
free operation. By carefully reading this owner's guide prior to
using your system, you will maximize the use of this system and
its features.
The system requires no specific maintenance. Your remote is pow-
ered by a small, lightweight 3-volt lithium battery that lasts
approximately one year under normal use. When the battery
weakens, the LED on the remote will dim and operating range will
be reduced.
System Maintenance

4©2001 Directed Electronics, Inc.
Your warranty registration must be completely filled out and
returned within 10 days of purchase. Your product warranty
will not be validated if your warranty registration is not returned.
Make sure you receive the warranty registration from your dealer.
It is also necessary to keep your proof of purchase, which reflects
that the product was installed by an authorized dealer.
This device complies with Part 15 of FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interfer-
ence received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to oper-
ate this device.
This product is designed for fuel injected, automatic transmission
vehicles only. Use of this product in a standard transmission
vehicle is dangerous and contrary the product's intended use.
Caution
FCC/ID Notice
Your Warranty

5
©2001 Directed Electronics, Inc.
Transmitter Functions
The receiver uses a computer-based learn routine to learn the
transmitter buttons. This makes it possible to assign any specific
transmitter button, or combination of buttons, to any receiver
function. The transmitter initially comes programmed with the
Standard Configuration, but may also be customized by an autho-
rized dealer. Unless otherwise specified, the buttons used in all of
the instructions in this manual correspond to a Standard
Configuration transmitter.
Button
The door locking and unlocking functions are controlled by press-
ing .
Button
Timer Mode is controlled by .
Button and
The remote start function of your system is controlled by pressing
and simultaneously.
Standard Configuration

6©2001 Directed Electronics, Inc.
Using Your System
The following safety warnings must be observed at all times:
■Due to the complexity of this system, installation of this
product must only be performed by an authorized DEI dealer.
■When properly installed, this system can start the vehicle via
a command signal from the remote control transmitter.
Therefore, never operate the system in an enclosed area or
partially enclosed area without ventilation (such as a garage).
When parking in an enclosed or partially enclosed area or
when having the vehicle serviced, the remote start system
must be disabled using the installed toggle switch. It is the
user's sole responsibility to properly handle and keep out of
reach from children all remote control transmitters to assure
that the system does not unintentionally remote start the
vehicle. THE USER MUST INSTALL A CARBON MONOXIDE
DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE
VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING
AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE
STORAGE AREA MUST AT ALL TIMES REMAIN CLOSED. These
precautions are the sole responsibility of the user.
■Use of this product in a manner contrary to its intended mode
of operation may result in property damage, personal injury,
or death. (1) Never remotely start the vehicle with the vehicle
Warning! Safety First

7
©2001 Directed Electronics, Inc.
in gear, and (2) Never remotely start the vehicle with the keys
in the ignition. The user must also have the neutral safety
feature of the vehicle periodically checked, wherein the
vehicle must not remotely start while the car is in gear. This
testing should be performed by an authorized DEI dealer in
accordance with the Safety Check outlined in the product
installation guide. If the vehicle starts in gear, cease remote
start operation immediately and consult with the authorized
DEI dealer to fix the problem.
■After the remote start module has been installed, contact your
authorized dealer to have him or her test the remote start
module by performing the Safety Check outlined in the
product installation guide. If the vehicle starts when per-
forming the Neutral Safety Shutdown Circuit test, the remote
start unit has not been properly installed. The remote start
module must be removed or the installer must properly rein-
stall the remote start system so that the vehicle does not start
in gear. All installations must be performed by an authorized
DEI dealer. OPERATION OF THE REMOTE START MODULE IF
THE VEHICLE STARTS IN GEAR IS CONTRARY TO ITS
INTENDED MODE OF OPERATION. OPERATING THE REMOTE
START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN
PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMME-
DIATELY CEASE THE USE OF THE UNIT AND SEEK THE
ASSISTANCE OF AN AUTHORIZED DEI DEALER TO REPAIR OR
DISCONNECT THE INSTALLED REMOTE START MODULE. DEI
WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLA-
TION OR REINSTALLATION COSTS.

8©2001 Directed Electronics, Inc.
Pressing for one second will lock the doors. The parking
lights will flash once (if connected) to confirm that the doors are
locked.
NOTE: Power door lock control is an optional feature. Extra parts and
labor may be necessary for your system to interface with your vehicle’s
power door locks.
NOTE: Parking light flash is also an optional feature and may require
additional parts.
To unlock the doors press for one second. The parking lights
will flash twice (if connected) to confirm that the doors are
unlocked.

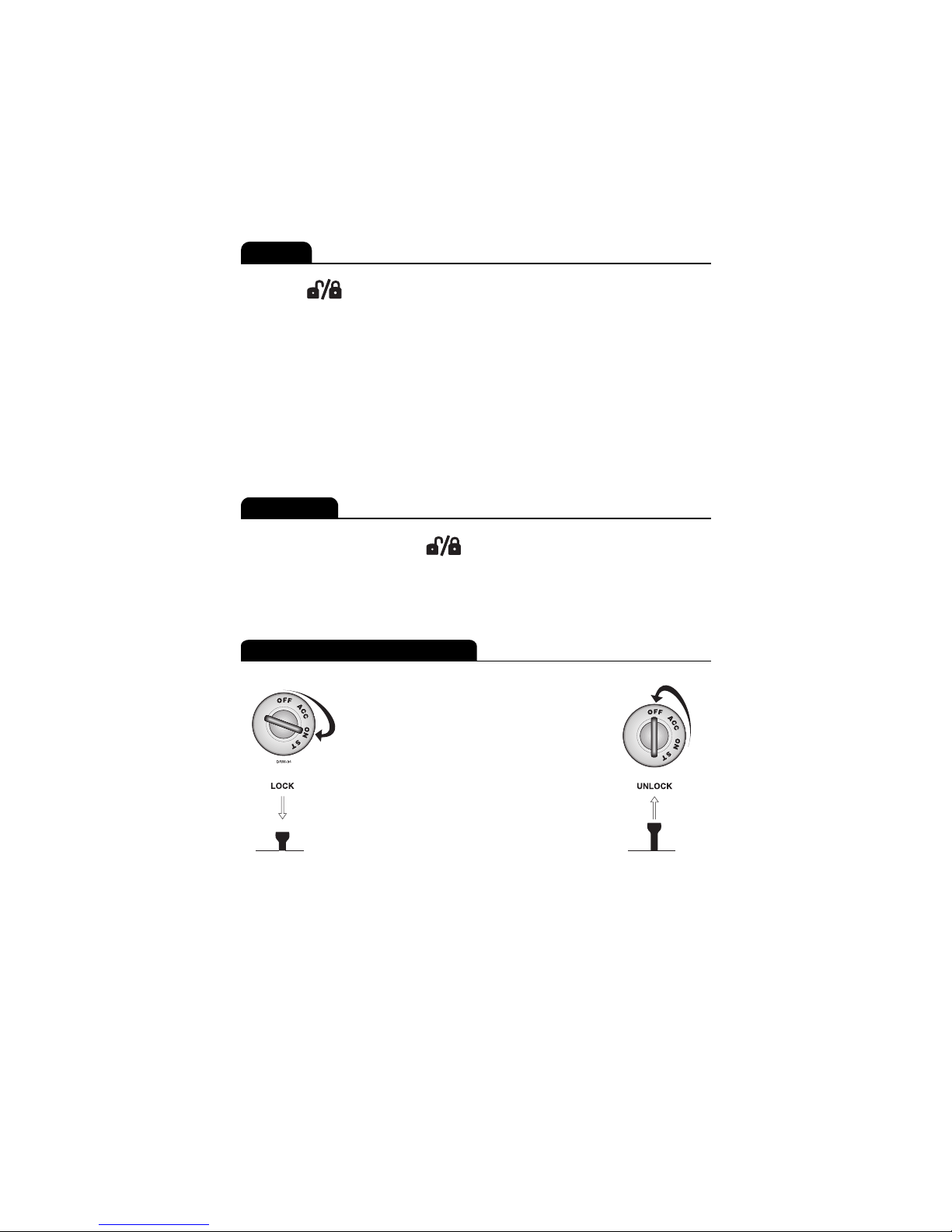

If power door locks have been
connected to your system,
the vehicle's door will lock
three seconds after the
ignition has been turned on
and unlock when the ignition
is turned off.
NOTE: If the ignition is turned on while the vehicle is remote started the
doors will not lock until the remote start shuts off. To avoid being locked
out of the vehicle, do not turn the ignition on until you are ready to drive
the vehicle.
Ignition Controlled Door Locks
Unlocking
Locking

9
©2001 Directed Electronics, Inc.
This feature allows you to remotely start and run your vehicle for
a programmable period of time. This makes it possible to warm up
the engine, as well as adjust the interior temperature of the vehi-
cle with the climate control system. If interior heating or cooling
is desired, the climate controls must be preset, and the fan blower
must be set to the desired level prior to remote starting the
vehicle.
IMPORTANT! (1) Never remotely start the vehicle with the vehicle in gear,
and (2) Never remotely start the vehicle with the key in the ignition.
To remote start the vehicle:
1. Simultaneously press and on the transmitter for one
second.
2. The parking lights will flash (if connected) to confirm remote
start operation.
3. Once the vehicle has started, it will run for the pre-program-
med period of time (12, 24, or 60 minutes) or until a shut-
down input is triggered.
When you are ready to drive the vehicle:
1. Insert the ignition key and turn it to the ON
(not the START) position.
2. Press the brake pedal.
NOTE: If the brake pedal is pressed before the key is
in the ON position, the engine will shut down.
Remote Start

10 ©2001 Directed Electronics, Inc.
While the vehicle is running during remote start operation, the
system will monitor the vehicle and will automatically shut down
the engine if the system receives any of the following shut-down
inputs:
■The brake pedal is pressed.
■The hood is opened.
■The shutdown toggle switch is put into the ON position.
■The pre-programmed run time has elapsed.
■Buttons and are pressed again.
To shut down the remote start and turn off the engine:
■Step on the brake pedal, or
■Press and for one second.
Timer Mode automatically starts the engine and runs it for a pre-
programmed time period, every three hours for a total of six
operation cycles. This feature helps to ensure that your engine will
start in the morning after a night of extremely cold temperatures.
IMPORTANT! This feature must only be used in open areas, never in an
enclosed area such as a garage.
To enter Timer Mode:
1. Start the vehicle by pressing and releasing and .
2. Press and release .
3. Within two seconds press and release and again.
Timer Mode

11
©2001 Directed Electronics, Inc.
The engine will shut down and the parking lights will flash (if con-
nected) four times. The engine will then restart to confirm that
Timer Mode has been entered.
The engine may be allowed to run for its preset time or can be
shut down by pressing Buttons and again. Either way,
it will restart every three hours for a total of six cycles. If the unit
receives a shutdown input while operating in the timer mode the
engine will stop, but will restart, on schedule, again in three hours!
To exit Timer Mode:
Timer Mode can be exited by turning the ignition on with the key
any time the engine is not running. You can also exit Timer Mode
manually from the transmitter by following these steps:
1. Start the engine by pressing and .
2. Press and release .
3. Within two seconds press and release and again.
4. The engine will shut down and the parking lights will flash
(if connected) four times to confirm that Timer Mode has
been exited. If the car has already been remote started, skip
Step One.
The Valet®Take-Over feature allows the vehicle to remain running
after the key has been removed from the ignition. This feature is
useful for occasions when you wish to exit and lock the vehicle for
short periods of time, but would like to leave the motor running
and the climate controls on.
Valet®Take-Over

12 ©2001 Directed Electronics, Inc.
To perform Valet Take-Over:
1. Before turning off the engine, press and release and
on the transmitter (or press and release the optional Mo-
mentary switch).
2. Turn the ignition key to the OFF position.
(The engine will stay running.)
3. The engine will run until the pre-programmed
time elapses or a shut-down input is
received. (See the previous Remote Start section for a com-
plete list of shut-down inputs.)
NOTE: This feature will not work if the brake pedal is being pressed.
This remote start system is also designed to interface with most
original equipment from manufacturer (OEM) factory remote
systems. The Remote Start/Valet Take-Over sequence can be pro-
grammed to initiate with one to three (1-3) presses of one of the
OEM transmitter buttons. Consult with your dealer to determine
the transmitter button and the number of presses (1-3) that have
been programmed for this sequence. Spaces are provided below for
writing in the button and number of button presses.
OEM transmitter button used for Remote Start/Valet Take-Over
sequence____________________________________________
Number of presses required to initiate Remote Start/Valet
Take-Over sequence___________________________________
Using Remote Start with Factory Remote Systems

13
©2001 Directed Electronics, Inc.
Programming Options
Programming options control your system's normal, operational
set-up. Most options do not require additional parts, but some may
require installation labor.
The following is a list of the programmable options, with the
factory settings in Bold.
■12, 24, or 60 minute run time. Your system can be pro-
grammed to allow the vehicle to run for 12, 24, or 60 minutes
when remote started.
■Parking lights flashing or constant. Your system can be pro-
grammed to turn on the parking lights for the entire remote
start operation.
Glossary of Terms
Control Unit: The “brain” of your system. Usually hidden under-
neath the dash area of the vehicle. It houses the microprocessor
which monitors your vehicle and controls all the system functions.
Transmitter: A hand-held, remote control which operates the
various functions of your system.

14 ©2001 Directed Electronics, Inc.
QUICK REFERENCE GUIDE:
To lock the doors using your remote
■Pressing for one second will lock the doors. The parking lights will
flash once (if connected) to confirm the doors are locked. NOTE: Control
of power door locks is optional. Extra parts and labor may be necessary
to interface with power door locks.
To unlock the doors using your remote
■To unlock the doors, press for one second. The parking lights will
flash twice (if connected) to confirm the doors are unlocked.
To remote start the vehicle
■Press and on the transmitter for one second. The parking
lights will flash (if connected) to confirm remote start operation. Once
the remote start has been activated, the vehicle will run for the prepro-
grammed period or until a shutdown input is triggered.
Using Remote Start with Factory Remote Systems
■If this remote start system has been interfaced with an original equip-
ment from manufacturer (OEM) factory remote system, the Remote
Start/Valet Take-Over sequence can be programmed to initiate with one
to three (1-3) presses of one of the OEM transmitter buttons.
OEM transmitter button used for Remote Start/Valet Take-Over
sequence______________________________________________
Number of OEM transmitter button presses required to initiate
Remote Start/Valet Take-Over sequence____________________
Cut along dotted line and fold for a quick and easy reference to keep in your purse or wallet.
✂
✂

The company behind this system is Directed Electronics, Inc.
Since its inception, DEI®has had one purpose, to provide consumers with the finest
vehicle security and car stereo products and accessories available. The recipient of
nearly 100 patents and Innovations Awards in the field of advanced electronic
technology, DEI is ISO 9001 registered.
Quality Directed Electronics products are sold and serviced throughout North America
and around the world.
Call [phone] for more information about our products and services.
Directed Electronics, Inc.
Vista, CA 92083
www.directed.com
© 2001 Directed Electronics, Inc. - All rights reserved
G3000 7/01
Rev. N/C 1.0
Directed Electronics is committed to delivering world class quality products
and services that excite and delight our customers.
®
