Directed Electronics 3200HS User manual

33220000HHSS
➤
OOwwnneerr’’ssGGuuiiddee

i
© 2002 directed electronics, inc.
lliimmiitteeddlliiffeettiimmeeccoonnssuummeerrwwaarrrraannttyy
Directed Electronics, Inc. ("Directed") promises to the original purchaser to repair or
replace with a comparable reconditioned model any Directed unit (hereafter the "unit"),
excluding without limitation the siren, the remote transmitters, the associated sensors and
accessories, which proves to be defective in workmanship or material under reasonable use
during the lifetime of the vehicle provided the following conditions are met: the unit was
professionally installed and serviced by an authorized Directed dealer; the unit will be pro-
fessionally reinstalled in the vehicle in which it was originally installed by an authorized
Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy
of the bill of sale or other dated proof of purchase bearing the following information: con-
sumer's name, telephone number and address; the authorized dealers name, telephone
number and address; complete product description, including accessories; the year, make
and model of the vehicle; vehicle license number and vehicle identification number. All
components other than the unit, including without limitation the siren, the remote trans-
mitters and the associated sensors and accessories, carry a one-year warranty from the date
of purchase of the same. This warranty is non-transferable and is automatically void if: the
original purchaser has not completed the warranty card and mailed it within ten (10) days
of the date of purchase to the address listed on the card; the unit's date code or serial num-
ber is defaced, missing or altered; the unit has been modified or used in a manner con-
trary to its intended purpose; the unit has been damaged by accident, unreasonable use,
neglect, improper service, installation or other causes not arising out of defects in materi-
als or construction. The warranty does not cover damage to the unit caused by installa-
tion or removal of the unit. Directed, in its sole discretion, will determine what consti-
tutes excessive damage and may refuse the return of any unit with excessive damage. TO
THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUD-
ING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY,
WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE
AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY,
ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,
OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.
DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY
AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-
ERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS
UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT
OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAM-
AGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND
HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-
ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR
VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR
MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY

ii © 2002 directed electronics, inc.
CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM
OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER
VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY
AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY
CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE
AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT.
DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEV-
ER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF
EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER
DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-
TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or con-
sequential damages. This warranty gives you specific legal rights and you may also have
other rights that vary from State to State.
This product may be covered by a Guaranteed Protection Plan ("GPP"). See your autho-
rized Directed dealer for details of the plan or call Directed Customer Service at 1-800-
876-0800. Directed security systems, including this unit, are deterrents against possible
theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft
of the automobile, its parts or contents; and hereby expressly disclaims any liability what-
soever, including without limitation, liability for theft, damage and/or vandalism.
Directed does not and has not authorized any person or entity to create for it any other
obligation, promise, duty or obligation in connection with this security system.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
➤Date of purchase
➤Your full name and address
➤Authorized dealer's company name and address
➤Type of alarm installed
➤Year, make, model and color of the automobile
➤Automobile license number
➤Vehicle identification number
➤All security options installed on automobile
➤Installation receipts

1
© 2002 directed electronics, inc.
ttaabblleeooffccoonntteennttss
ssttaannddaarrddttrraannssmmiitttteerrccoonnffiigguurraattiioonn..............................................................................22
wwhhaattiissiinncclluuddeedd..........................................................................................................33
iimmppoorrttaannttiinnffoorrmmaattiioonn................................................................................................33
system maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
your warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ttrraannssmmiitttteerrffuunnccttiioonnss..................................................................................................55
standard configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
uussiinnggyyoouurrssyysstteemm......................................................................................................66
locking/arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
unlocking/disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
disabling the system without a transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
oowwnneerrrreeccooggnniittiioonn......................................................................................................1100
rraappiiddrreessuummeellooggiicc......................................................................................................1100
pprrooggrraammmmiinnggooppttiioonnss................................................................................................1111
gglloossssaarryyoofftteerrmmss........................................................................................................1122
sseeccuurriittyy&&ccoonnvveenniieenncceeeexxppaannssiioonnss............................................................................1122
qquuiicckkrreeffeerreenncceegguuiiddee................................................................................................1144

2© 2002 directed electronics, inc.
ssttaannddaarrddttrraannssmmiitttteerrccoonnffiigguurraattiioonn
controls the AArrmmfunction.
controls the DDiissaarrmmfunction.
controls SSiilleennttMMooddee™™and an AAuuxxiilliiaarryyOOuuttppuutt.
controls the PPaanniiccfunction.
and pressed together control an AAuuxxiilliiaarryyOOuuttppuutt.

3
© 2002 directed electronics, inc.
wwhhaattiissiinncclluuddeedd
➤The control module
➤An XHF receiver/antenna
➤A pair of four-button transmitters
➤The red status LED indicator light
➤A push-button Valet®switch
➤Your warranty registration
➤Failsafe®Starter Kill Relay
iimmppoorrttaannttiinnffoorrmmaattiioonn
Congratulations on the purchase of your remote start keyless
entry system. Due to the complexity of this system, it must be
installed by an authorized dealer only. Installation of this product
by anyone other than an authorized dealer voids the warranty. All
dealers are provided with a preprinted dealer certificate to verify
that they are authorized.
By carefully reading this Owner's Guide prior to using your
system, you will maximize the use of this system and its features.
You can print additional or replacement copies of this manual by
accessing the Directed web site at www.directed.com.

4© 2002 directed electronics, inc.
system maintenance
The system requires no specific maintenance. Your remote is
powered by a small, lightweight 3-volt lithium battery that will
last approximately one year under normal use. When the battery
begins to weaken, operating range will be reduced and the LED
on the remote will dim.
your warranty
Your warranty registration must be completely filled out and
returned within 10 days of purchase. Your product warranty
will not be validated if your warranty registration is not returned.
Make sure you receive the warranty registration from your dealer.
It is also necessary to keep your proof of purchase, which reflects
that the product was installed by an authorized dealer.
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is
subject to the following conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this device.
➜
➜
➜

5
© 2002 directed electronics, inc.
ttrraannssmmiitttteerrffuunnccttiioonnss
The receiver uses a computer-based learn routine to learn the
transmitter buttons. This makes it possible to assign any specific
transmitter button, or combination of buttons, to any receiver
function. The transmitter initially comes programmed with the
Standard Configuration, but may also be customized by an
authorized dealer. The transmitter buttons indicated in all of the
instructions in this manual correspond to a Standard
Configuration transmitter.
standard configuration
Button
The locking/arming function is controlled by pressing this
button for one second.
Button
The unlocking/disarming function is controlled by pressing this
button for one second.
Button
Silent Mode™ and an optional auxiliary function are controlled
by this button. (Silent Mode works by pressing this button for
less than one second before arming or disarming. An optional
auxiliary function, such as trunk release, can be controlled by
pressing this button for 1.5 seconds.)
The auxiliary output controls __________________________.
➜

6© 2002 directed electronics, inc.
Button
The panic feature is controlled by pressing this button for one
second.*
and Buttons
An optional auxiliary convenience or expansion function that
you have added to your system can be activated by pressing these
buttons simultaneously.
The auxiliary output controls_________________________.
uussiinnggyyoouurrssyysstteemm
locking/arming
Pressing for one second arms the system by activating the
starter kill and locking the doors (if connected). The horn will
honk (if connected) and the parking lights will flash once to
confirm arming of the system. While the system is armed, the
status LED will flash once per second. The Failsafe®Starter Kill
(if installed) will also prevent the vehicle’s starter from cranking.
The system can also be programmed to arm the optional Failsafe®
Starter Kill automatically (called Passive Mode). If the system has
been programmed for Passive Mode, the Failsafe®Starter Kill will
automatically activate 30 seconds after the ignition has been
note: Manually locking the vehicle does not arm the sys-
tem; it will only lock the doors.
➜

7
© 2002 directed electronics, inc.
turned off. After the ignition has been turned off, the status LED
will flash rapidly to indicate that the system is in Passive Mode.
If Passive Mode has been programmed on, then it is also possible
to program the system for Passive Locking. With Passive Locking,
the vehicle doors lock automatically at the same time that the Failsafe®
Starter Kill is activated. If Passive Locking is programmed on, care
must be taken to prevent the keys from being locked in the vehicle.
unlocking/disarming
Pressing for one second disarms the system and unlocks the
doors (if connected). The horn will honk twice (if connected) and
the parking lights will flash twice to confirm disarming of the
system. The optional Failsafe®Starter Kill will be deactivated. The
status LED will turn off, unless the system is programmed for
Passive Mode. In Passive Mode, the status LED will flash rapidly
when the system is disarmed. This indicates that the system will re-
engage the starter kill and re-lock the doors (if Passive Locking has
been programmed) in 30 seconds unless the ignition is turned on.
note: If the system has been armed with the remote trans-
mitter, you must use the transmitter or the Valet switch
to disarm the system and deactivate the starter kill.
Manually unlocking the vehicle does not disarm the sys-
tem; it will only unlock the doors.
➜
note: For Passive Mode to be effective, the Failsafe®
Starter Kill relay must be installed.

8© 2002 directed electronics, inc.
disabling the system without a transmitter
If your remote transmitter is lost or damaged, you can manually
override the system. To do this, you must have the vehicle's igni-
tion key and know where the Valet®switch is located. Be sure to
check with the installer for the location of the Valet®switch.

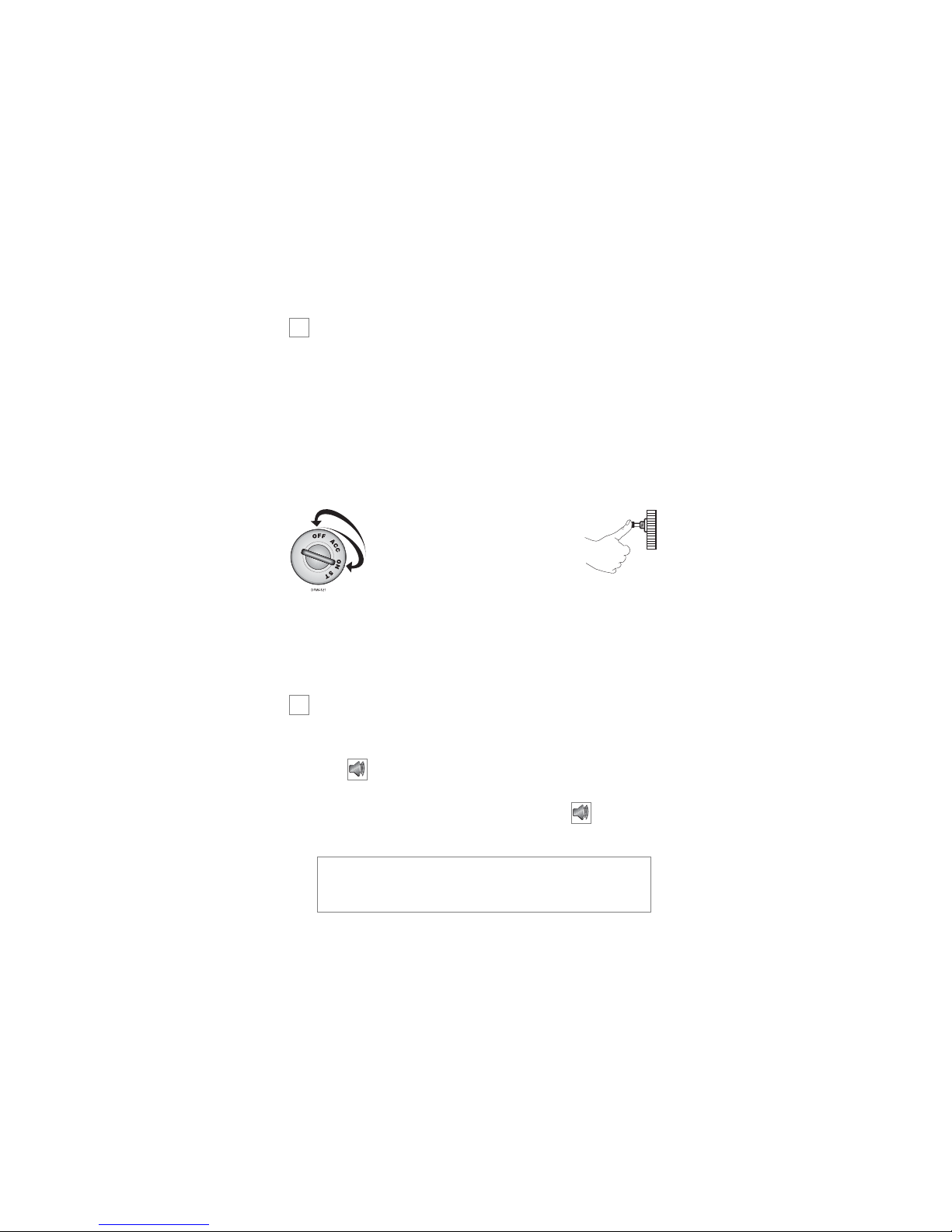

To disarm the security system, turn
the ignition to the ON posi-
tion. Press and release the
Valet switch within 10
seconds. The status LED will
stop flashing and the vehicle
should start. If the vehicle
does not start, you may have
waited too long; turn the igni-
tion off and repeat the process.
Location of Valet Button_________________________________
silent mode
To temporarily turn off the arm or disarm chirps, use Silent
Mode™. Simply press for less than one second before
arming or disarming, and the confirmation chirp(s) will be elim-
inated for that one operation only. If you want the arm/disarm
chirps turned off permanently, your dealer can do this for you.
➜
DRW-35
➜

9
© 2002 directed electronics, inc.
valet mode
You can prevent your system from automatically activating the
Failsafe®Starter Kill and locking the doors by using Valet®Mode.
This is very useful when washing the vehicle or having it serviced.
In Valet®Mode, the starter kill cannot be activated, even with the
transmitter, but all convenience functions (door locks, remote
start, etc.) will continue to work normally.
To enter or exit Valet®Mode:
1. Turn the ignition on.
2. Turn the ignition off.
3. Press and release the Valet®
switch within 10 seconds.
The status LED will light steadily if you are entering Valet®Mode
and will turn off if you are exiting Valet®Mode.
panic mode
If you are threatened in or near your vehicle, you can attract
attention by triggering the system with your transmitter. Just
press for two seconds to enter Panic Mode. In Panic Mode,
the horn will honk and the parking lights will flash for 30
seconds. To stop Panic Mode at any time, press on the trans-
mitter again.
note: In order for Panic Mode to be effective, the vehicle’s
horn (or optional siren) as well as the vehicle's parking
lights must be connected.
➜
DRW-35
➜

10 © 2002 directed electronics, inc.
oowwnneerrrreeccooggnniittiioonn
Owner Recognition is a feature available exclusively from Directed.
Using the Directed Bitwriter, a hand-held programming tool, your
dealer can program many of the system settings. The programmer
makes it possible to program different settings for each transmitter
that is used with the system. Then, whenever a specific transmitter
is used, the system will recall the settings assigned to that trans-
mitter. Owner Recognition lets up to four users of the system have
different settings that meet their specific needs. It is almost like
having four separate alarms in your vehicle, one for each user.
rraappiiddrreessuummeellooggiicc
This Directed system will store its current state to non-volatile
memory. If power is lost and then reconnected, the system will
recall the stored state from memory. This means if the unit is in
Valet Mode and the battery is disconnected for any reason, such
as servicing the car, when the battery is reconnected the unit will
still be in Valet Mode. This applies to all states of the system
including arm, disarm, and panic mode.
note: Owner Recognition cannot be programmed with-
out a Directed Bitwriter and the necessary software.
Check with your dealer for more information.

11
© 2002 directed electronics, inc.
pprrooggrraammmmiinnggooppttiioonnss
Programming options control your system's normal, operational
set-up. Most options do not require additional parts, but some may
require additional installation labor. This system's programming
options are listed below, with the factory default settings in bboolldd:
➤Passive Mode or AAccttiivveeMMooddee. In Passive Mode the Failsafe®
Starter Kill will automatically activate 30 seconds after the
ignition has been turned off.
➤Ignition switch-controlled door-locking oonnor off. With this
feature on, the doors will lock 3 seconds after the ignition
key is turned on, and unlock when the ignition key is turned
off.
➤Passive Locking or AAccttiivveeLLoocckkiinngg(doors lock only with the
transmitter). With Passive Locking, the vehicle doors lock
automatically 30 seconds after the ignition has been turned
off. Passive Locking can only be selected when the system
has been programmed for Passive Mode.
➤The horn honk confirmations for locking and unlocking can
be programmed oonnor off. In order for this feature to work
properly, the horn must be connected to the system.
➤Domelight supervision when the key is turned off can be pro-
grammed on or off. If programmed on, the domelight will
turn on for 30 seconds each time the ignition is turned off.

12 © 2002 directed electronics, inc.
gglloossssaarryyoofftteerrmmss
Control Unit: The “brain” of your system. Usually hidden under
the dash area of the vehicle. It houses the microprocessor that
monitors your vehicle and controls all system functions.
LED: A red light mounted at a discretionary location inside the
vehicle. It is used to indicate the status of your system.
Starter Interrupt: An automatic switch controlled by your system
which prevents the vehicle’s starter from cranking whenever the
system is armed. The vehicle is never prevented from cranking
when the system is disarmed, in Valet Mode, or if the starter
interrupt switch itself fails. Your system has feature-ready
circuitry for the starter interrupt, however installation may
require additional labor.
Transmitter: A hand-held, remote control which operates the
various functions of your system.
Valet Switch: A small button mounted at a discretionary location
inside the vehicle. It is used to override the starter interrupt when
a transmitter is lost or damaged, or to enter or exit Valet Mode.
sseeccuurriittyy&&ccoonnvveenniieenncceeeexxppaannssiioonnss
Listed below are some of the many expansion options available
for use with your system. Some options may require additional
parts and/or labor. Please consult with your dealer for a complete
list of options available for use with this system.

13
© 2002 directed electronics, inc.
Domelight Supervision: The domelight will illuminate for 30
seconds each time the system is disarmed using the remote. This
is useful for seeing inside the vehicle at night prior to entering it.
Power Door Lock Control: Your system is capable of controlling
many types of power door lock systems; however, some door lock
systems may require extra parts. Consult with your dealer to
determine which type of locks your vehicle uses. If power locks
are connected, the system can be programmed to lock the doors
automatically 30 seconds after the ignition has been turned off.
The system can also be programmed to lock the doors when the
ignition is turned on and to unlock them when the ignition is
turned off.
Power Trunk Release: The system’s auxiliary output can be
programmed to operate a factory power release for the vehicle's
trunk or hatch. If the factory release is not power-activated,
Directed®'s 522T trunk-release solenoid can often be added.
Power Window Control: Power window control is provided with
Directed®'s 529T or 530T systems. The 529T system will roll up
two windows automatically when the system is armed, or roll
two windows down by using the transmitter. The 530T will roll
two windows both up and down. The 530T also provides one
touch switch operation.
Progressive Door Unlocking: For added security, your system can
be configured to unlock the driver’s door only, leaving the
passenger doors locked. Pressing the unlock button an additional
time will unlock the passenger doors. This option requires addi-
tional parts and labor.

QUICK REFERENCE GUIDE
To lock/arm using your remote
➤To arm the system press for one second. The doors will lock (if
connected). The LED will begin to flash. The Failsafe® Starter Kill will
prevent the vehicle’s starter from cranking if it has been installed. The vehi-
cle’s horn (if connected) will honk and the parking lights will flash once to
confirm arming of the system.
To unlock/disarm using your remote
➤To disarm the system press for one second. The doors will unlock (if
connected). The Failsafe®Starter Kill will be deactivated and the vehicle’s
horn (if connected) will honk twice and the parking lights will flash twice.
Disabling the Failsafe
®
Starter Kill without a transmitter
➤Turn on the ignition. Press and release the Valet®switch within 10 seconds.
The LED will stop flashing and the vehicle should start.
To enter or exit Valet
®
Mode
➤Turn the ignition to the ON position. Turn the ignition back off. Press and
release the Valet®switch within 10 seconds. The status LED will light steadily
if you have entered Valet®Mode. To exit Valet®Mode, repeat the steps above.
The LED will turn off when exiting Valet®Mode.
To activate Panic Mode
➤Press and hold for 2 seconds.
To exit Panic Mode
➤Press on the transmitter.
Location of Valet Switch___________________________________
Cut along dotted line and fold for a quick and easy reference to keep in your purse or wallet.
✂
✂

The company behind this system is Directed Electronics, Inc.
Since its inception, Directed Electronics has had one purpose, to provide consumers with
the finest vehicle security and car stereo products and accessories available. The recipient of
nearly 100 patents and Innovations Awards in the field of advanced electronic
technology, DIRECTED is ISO 9001 registered.
Quality Directed Electronics products are sold and serviced throughout North America
and around the world.
Call ((880000))227744--00220000for more information about our products and services.
Directed Electronics, Inc.
Vista, CA 92083
www.directed.com
© 2002 Directed Electronics, Inc. - All rights reserved
G416S 12-02
Directed Electronics is committed to delivering world class quality products
and services that excite and delight our customers.
