Directed DBALL-GM10 XPRESSKIT User manual

Index
† Buick, Chevrolet and GMC are registered trademarks and property of .their respective companies.
Vehicle Application Guide................................................................................................................................................
Installation
Type 1..............................................................................................................................................................................
Vehicle Wiring Reference Chart - Type 1 (pages 4-6).....................................................................................................
Type 2..............................................................................................................................................................................
Vehicle Wiring Reference Chart - Type 2.........................................................................................................................
Installation with T-Harness...............................................................................................................................................
Module Reset & Hard Reset............................................................................................................................................
Feature & Option List.......................................................................................................................................................
02
03
04
07
08
09
Programming
..................................................................................................................... 10
11
12
Feature Programming...................................................................................................................................................... 13
LED Diagnostics & Troubleshooting................................................................................................................................ 14
Limited One-Year Consumer Warranty............................................................................................................................ 15

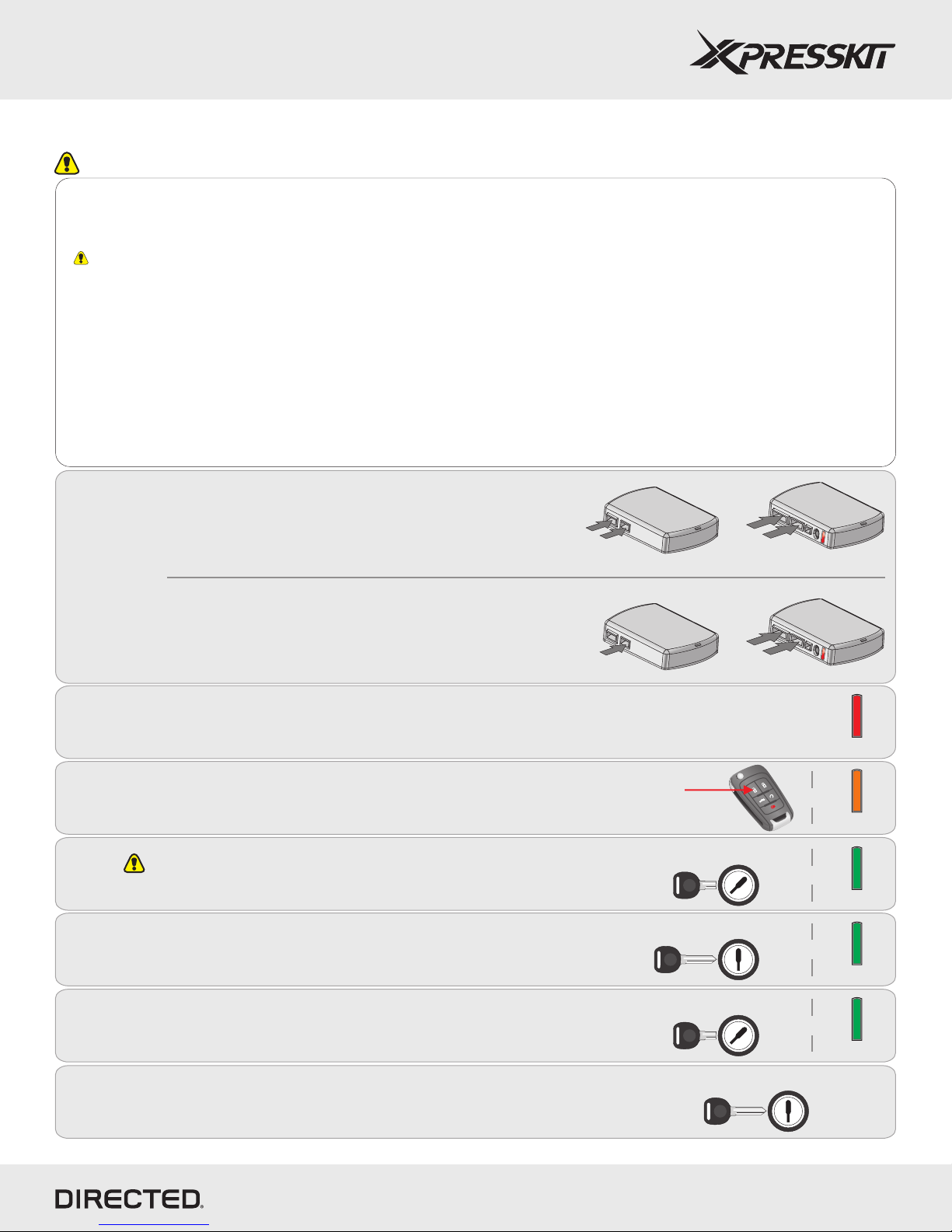

Module Programming.................................
Data override and door lock interface compatible with new generation GM vehicles with a
BLADE-type key (i.e. Camaro, Equinox and Lacrosse). The available features include:
Transponder override (no key required); door lock control; factory security control; trunk
release; door, hood and trunk sensing; tach sensing; and much more.
Refer to Quick Reference Guide (QRG) at the end of this guide for more information on how
to use the various features offered with this product.
Installation Guide
Update Alert: Firmware updates are posted on the web on a regular basis. We recommend
that you check for firmware and/or install guide updates prior to installing this product.
Important:
This guide is compatible with the GM10 firmware version 2.08 and higher.
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

Vehicle Application Guide Page 2
The following table lists the vehicles and features which are compatible with this product. The number assigned to each
year allows you to determine which installation type should be used for your vehicle.
Vehicles
2013 2012 2011 2010 CC-Heated Seats Activation DL-Arm Factory Security DL-Disarm Factory Security DL-Door Lock Control DL-Door Unlock DL-Driver Priority Unlock FOB-Control of aftermarket alarm with OEM remote PK-Immobilizer Bypass-Data No Key Req'd RS-Ignition Activation RS-RAP Shut Down (Retained ACC Power) RS-Tach / RPM Output SS-Entry Monitoring ALL Door Pins SS-Entry Monitoring Driver Door Pin SS-Entry Monitoring Hood Pin SS-Entry Monitoring Trunk/Hatch Pin ST-Brake Status (foot brake) ST-Hand Brake Status ST-Ignition Status
Buick
Encore 1 • • • • • D • • • • D • • • •
LaCrosse 1 • • • • • D • • • • D • • • •
LaCrosse 1 1 1 • • • • • D • • • • D • • • • D
Regal 1 • • • • • D • • • • D • • • •
Regal 1 1 • • • • • D • • • • D • • • • D
Verano 1 1 • • • • • D • • • • D • • • •
Chevrolet
Camaro 1 • • • • • • D • • • • D • • • •
Camaro 1 • • • • • • D • • • • D • • • • D
Camaro 1 1 • • • • • D • • • • D • • • • D
Cruze 1 • • • • • D • • • • D • • • •
Cruze 1 • • • • • D • • • • • D • • • • D
Cruze 1 • • • • • D • • • • D • • • • D
Equinox 1 1 • • • • • • D • • • • D • • • • D
Equinox 1 1 • • • • • D • • • • D • • • • D
Malibu 1 • • • • • D • • • • D • • • •
Orlando 2 • • • • • D • • • • D • • • •
Orlando 2 • • • • • D • • • • D • • • • D
Sonic 2 2 • • • • • D • • • • D • • • •
Spark 1 • • • • • D • • • • D • • • •
Trax 1 • • • • • D • • • • D • • • •
GMC
Terrain 1 1 1 1 • • • • • D • • • • D • • • • D
Legend:
D: Data-to-Data (D2D) only CC: Comfort & Convenience Controls RS: Remote Start & Engine Controls
•: D2D and W2W DL: OE Door Lock & Alarm Controls SS: Integrated Security & Monitoring
FOB: Sync CAN Interface w/ FOB Remote ST: Function/Feature Status
PK: Transponder & Immobilizer Override
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

BA C

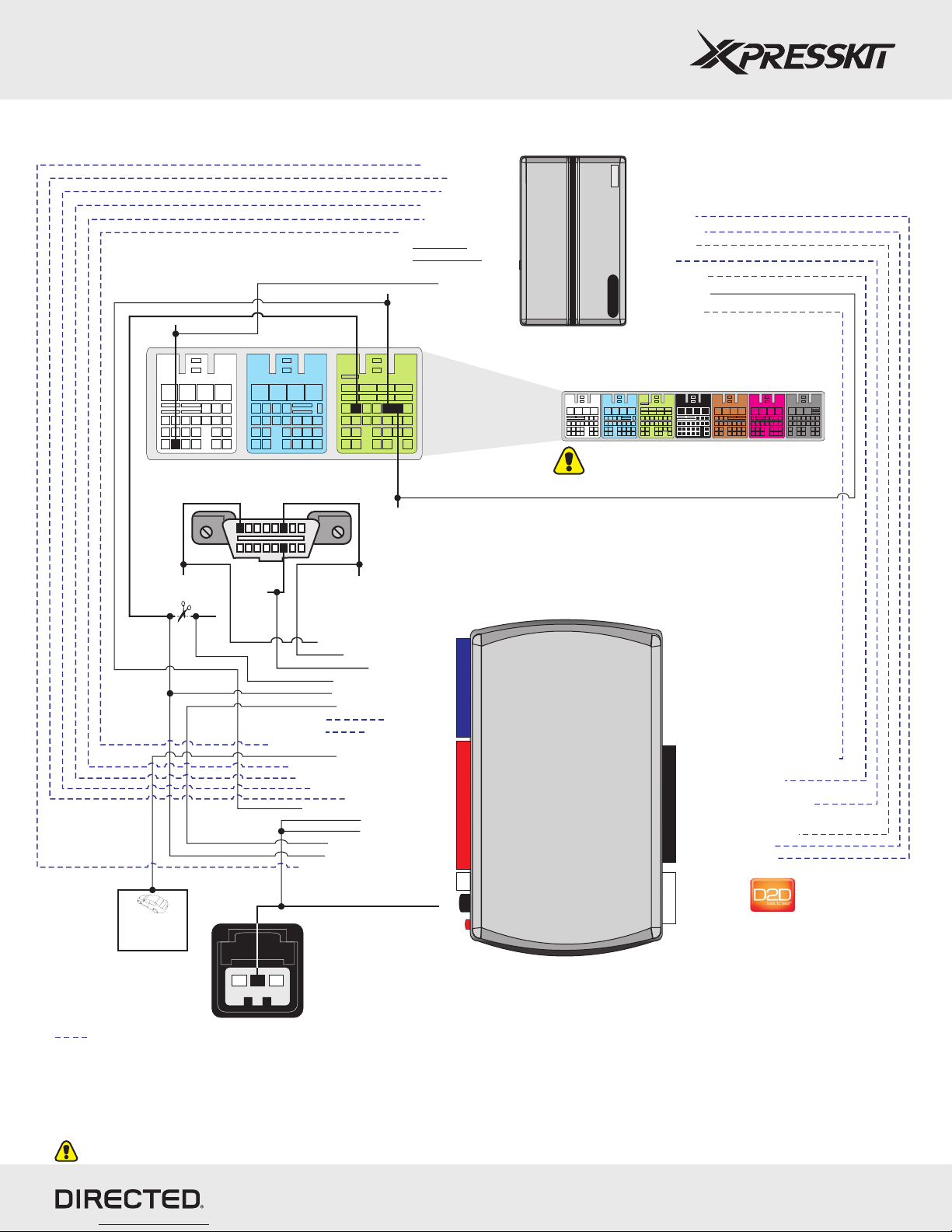

Installation Type 1 Page 3
Not required in D2D mode.
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
* These wires are optional connections required on some remote starters, which do not support the signals in D2D.
** If the RAP OFF wire is not connected, the radio will turn OFF but some lights will remain ON in the central console for 10 minutes. Connect this wire
(Green/Black, pin 2/12) to the driver door sense trigger to avoid the issue.
*** Use (-) Aux or any (-) trigger to activate the heated seats function during run time.
† Heated seat feature must be enable, see Feature Programming (page 12).
(-) Parking Lights
(AC) Tach Input*
(+) Brake Input
(-) Trunk Status Input
(-) Door Status Input
Remote
Starter
(-) GWR (Status)
(+) Starter Output
(+) Ignition Output
(-)Trunk Output
(-) Lock Output
(-) Unlock Output
(-) Aux3***
(+) 12v(+) 12v
(-) Ground
(-) Hood Status Input
1: Green: (-) Lock Input
2: Blue: (-) Unlock Input
3: Red/White: (-) Trunk Input
10: Blue/White: (-) GWR (Status) Input
†
6: White/Black: (-) Heated Seats
8: Violet: (+) Starter Input
TX
(-) Ground
RX
(+)12v
10
DBALL
RF
Programming button
LED
4
14 12 2
1: Light Green: Single Wire CAN
11: Yellow/Red: Relay 2 Com
12: Brown/Red: Relay 2 NO
10: Orange/Red: Relay 2 NC
5: Violet/White: (AC) Tach Output*
6: Gray: (+) Brake Output
12: Blue/Red: (-) Hood Status Output
3: Green/White: (-) Door Status Output
1: Black/White: (-) Handbrake Status Output*
4: Red/Black: (-) Trunk Status Output
2: Green/Black: RAP OFF**
11: Orange/Black: Data Bypass
Clutch Switch
(black connector)
For manual
transmission
vehicles only.
10: Yellow/Black: Data Bypass
Yellow
(On the Camaro and Cruze vehicles)
8: Purple/Green: MUX
7: Gray/Black: (+) Accessory Output
9: Purple/Brown: MUX
XKD2D65
(-) Ground
14: Black: (-) Ground(-) Ground
13: Red: (+) 12v (+) 12v
(-) Driver
Door Sense
Trigger**
Cut
(-) Handbrake Status Input*
White
Lt. Blue
Lt. Green
Pin 22 Pin 5
Pin 6
Pin 2
Refer to pages 4-6 for information
on the BCM connections for each
vehicle.
BCM (under driver-side of dash)
1 8
169
3:Tan/Black: HSCAN High
4:Tan: HSCAN Low
Pin 6
Pin 14
Pin 1
OBDII
Diagnostic Connector
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

Color Pin Color No. Pins Location
Ignition Pink or Blue 6 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Brown or Violet 5 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Lt Blue or Lt. Green 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Lt Blue or Green/Violet 2 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray 6 Black 7 Driver Window Switch, in driver's door
SW CAN Dk Green 1 Black 16 OBDII
CAN High Tan/Black or Blue 6 Black 16 OBDII
CAN Low Tan or White 14 Black 16 OBDII
Description ConnectorWire
Page 4
Vehicle Wiring Reference Charts - Type 1
Buick LaCrosse
Wire colors should only be used as a reference. You should always test a wire's function and pin location before
connecting to it.
Color Pin Color No. Pins Location
Ignition Violet/Yellow or Violet/Black 6 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Brown/Yellow or Violet/Yellow 5 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Lt. or Dk. Green/Gray 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Lt. Blue or Dk. Green/Violet 2 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray 6 Black 7 Driver Window Switch, in driver's door
SW CAN Dk. Green 1 Black 16 OBDII
CAN High Tan/Black or Blue 6 Black 16 OBDII
CAN Low Tan or White 14 Black 16 OBDII
Description ConnectorWire
Buick Regal
Color Pin Color No. Pins Location
Ignition Violet/Black 6 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Violet/Yellow 5 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Green/Gray 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Green/Violet 2 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray 6 Black 7 Driver Window Motor, in driver's door
SW CAN Dk Green 1 Black 16 OBDII
CAN High Blue 6 Black 16 OBDII
CAN Low White 14 Black 16 OBDII
Description ConnectorWire
Buick Encore
Color Pin Color No. Pins Location
Ignition Violet/Black 6 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Violet/Yellow 5 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Green/Gray 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Green/Violet 2 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray 6 Black 7 Driver Window Motor, in driver's door
SW CAN Dk Green 1 Black 16 OBDII
CAN High Blue 6 Black 16 OBDII
CAN Low White 14 Black 16 OBDII
Description ConnectorWire
Buick Verano
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

Color Pin Color No. Pins Location
Ignition Pink 6 Lt. Green 25 BCM, under driver-side dash, above accelerator pedal
Accessory Brown 5 Lt. Green 25 BCM, under driver-side dash, above accelerator pedal
Parking Lights Lt. Blue 22 White 26 BCM, under driver-side dash, above accelerator pedal
Data Lt. Blue 2 Lt. Green 25 BCM, under driver-side dash, above accelerator pedal
RAP OFF Gray/Black 6 Black 7 Driver Window Switch, in driver's door
SW CAN Dk. Green 1 Black 16 OBDII
CAN High Tan/Black or Blue 6 Black 16 OBDII
CAN Low Tan or White 14 Black 16 OBDII
Description ConnectorWire
Chevrolet Camaro
Color Pin Color No. Pins Location
Ignition Pink 6 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Brown 5 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Lt. Blue 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Lt. Blue 2 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray/Black 6 Black 8 Driver Window Switch, in driver's door
SW CAN Dk. Green 1 Black 16 OBDII
CAN High Tan/Black or Blue 6 Black 16 OBDII
CAN Low Tan or White 14 Black 16 OBDII
Description ConnectorWire
Color Pin Color No. Pins Location
Ignition Violet 6 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Yellow 5 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Gray 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Green/Violet 2 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray 6 Black 8 or 7 Driver Window Switch or Motor, in driver's door
SW CAN Dk Green 1 Black 16 OBDII
CAN High Blue 6 Black 16 OBDII
CAN Low White 14 Black 16 OBDII
Description ConnectorWire
Chevrolet Equinox
Chevrolet Malibu
Color Pin Color No. Pins Location
Ignition Violet/Black 6 Lt Green 25 BCM, under passenger-side of center dash
Accessory Violet/Yellow 5 Lt Green 25 BCM, under passenger-side of center dash
Parking Lights Dk Green/Gray 22 White 26 BCM, under passenger-side of center dash
Data Dk Green/Violet 2 Lt Green 25 BCM, under passenger-side of center dash
RAP OFF Gray 6 Black 8 Driver Window Switch, in driver's door*
SW CAN Dk Green 1 Black 16 OBDII
CAN High Tan/Black or Blue 6 Black 16 OBDII
CAN Low Tan or White 14 Black 16 OBDII
* On vehicles with express up and down windows, the wire is at the driver window motor, black 7-pin plug, pin 6.
Description ConnectorWire
Chevrolet Cruze
Page 5
Vehicle Wiring Reference Charts - Type 1
Wire colors should only be used as a reference. You should always test a wire's function and pin location before
connecting to it.
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

Color Pin Color No. Pins Location
Ignition Pink 6 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Brown 5 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Lt. Blue 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Lt. Blue 2 Lt. Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray/Black 6 Black 8 Driver Window Switch, in driver's door
SW CAN Dk. Green 1 Black 16 OBDII
CAN High Tan/Black or Blue 6 Black 16 OBDII
CAN Low Tan or White 14 Black 16 OBDII
Description ConnectorWire
Color Pin Color No. Pins Location
Ignition Violet/Black 6 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Violet/Yellow 5 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Green/Gray 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Green/Violet 2 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray 6 Black 7 Driver Window Motor, in driver's door
SW CAN Dk Green 1 Black 16 OBDII
CAN High Blue 6 Black 16 OBDII
CAN Low White 14 Black 16 OBDII
Description ConnectorWire
Color Pin Color No. Pins Location
Ignition Violet/Black 6 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Accessory Violet/Yellow 5 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
Parking Lights Green/Gray 22 White 26 BCM, under driver-side dash, above driver-kick panel
Data Green/Violet 2 Lt Green 25 BCM, under driver-side dash, above driver-kick panel
RAP OFF Gray 22 Pink 27 BCM, under driver-side dash, above driver-kick panel
SW CAN Dk Green 1 Black 16 OBDII
CAN High Blue 6 Black 16 OBDII
CAN Low White 14 Black 16 OBDII
Description ConnectorWire
GMC Terrain
Chevrolet Trax
Chevrolet Spark
Page 6
Vehicle Wiring Reference Charts - Type 1
Wire colors should only be used as a reference. You should always test a wire's function and pin location before
connecting to it.
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

Installation Type 2 Page 7
Not required in D2D mode.
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
* Tach wire is an optional connection required on some remote starters, which do not support a tach signal in D2D.
*** Use (-) Aux or any (-) trigger to activate the heated seats function during run time.
** If the RAP OFF wire is not connected, the radio will turn OFF but some lights will remain ON in the central console for 10 minutes. Connect this wire
(Green/Black, pin 2/12) to the driver door sense trigger (Gray/Black) to avoid the issue.
(-) Parking Lights
(AC) Tach Input*
(+) Brake Input
(-) Trunk Status Input
(-) Door Status Input
Remote
Starter
(-) GWR (Status)
(+) Ignition Output
(-)Trunk Output
(-) Lock Output
(-) Unlock Output
(-) Aux3***
(+) 12 V
(+) 12 V
(-) Ground
(-) Hood Status Input
10
DBALL
RF
Programming button
LED
1: Green: (-) Lock Input
2: Blue: (-) Unlock Input
3: Red/White: (-) Trunk Input
10: Blue/White: (-) GWR (Status) Input
6: White/Black: (-) Heated Seats†
4
TX
(-) Ground
RX
(+)12v
14 12 2
1: Light Green: Single Wire CAN
Pin 1
Pin 6
11: Yellow/Red: Relay 2 Com
12: Brown/Red: Relay 2 NO
10: Orange/Red: Relay 2 NC
5: Violet/White: (AC) Tach Output*
6: Gray: (+) Brake Output
12: Blue/Red: (-) Hood Status Output
3: Green/White: (-) Door Status Output
4: Red/Black: (-) Trunk Status Output
2: Green/Black: RAP OFF**
11: Orange/Black: Data Bypass
10: Yellow/Black: Data Bypass
XKD2D65
(-) Ground
14: Black: (-) Ground(-) Ground
13: Red: (+) 12v (+) 12v
OBDII
Diagnostic Connector
Light Switch
Connector
(-) Driver Door
Sense Trigger
(Gray/Black)**
Refer to the Vehicle Wiring
Reference Chart (page 8)
for wire color and location.
654321
Accessory, Pin 3
Ignition, Pin 1
Ignition
Control
Switch
321
Data Bypass, Pin 2
Immobilizer Control
Module (K89)
Cut
(-) Parking Lights
Refer to the Vehicle
Wiring Reference Chart
(page 8) for wire color
and location.
654321
121110987
1: Black/White: (-) Handbrake Status Output*
(-) Neutral Safety Input/(-) Handbrake Status Input*
7: Gray/Black: (+) Accessory Output
1 8
169
3:Tan/Black: HSCAN High
4:Tan: HSCAN Low
Pin 14
(+) Starter Output
8: Violet: (+) Starter Input
† Heated seat feature must be enable, see Feature Programming (page 12).
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

Page 8
Locating Components in the Vehicle
Ignition Barrel
Immobilizer Control
Module ( )K89
Ignition Control
Switch
Color Pin Color No. Pins Location
Ignition Violet/Black 1 Black 6 Ignition Control Switch
Accessory Violet/Yellow 3 Black 6 Ignition Control Switch
Parking Lights Green/Gray 3 Black 12 Light Switch Connector
Data Green/Black 2 Violet 3 Immobilizer Control Module
RAP OFF Gray 6 Black 7 Driver Window Motor
SW CAN Dk. Green 1 Black 16 OBDII
CAN High Tan/Black or Blue 6 Black 16 OBDII
CAN Low Tan or White 14 Black 16 OBDII
Description ConnectorWire
Chevrolet Orlando
Vehicle Wiring Reference Chart - Type 2
Color Pin Color No. Pins Location
Ignition Violet/Black 1 White 6 Ignition Control Switch
Accessory Violet/Yellow 3 White 6 Ignition Control Switch
Parking Lights Green/Gray 3 Black 12 Light Switch Connector
Data Green/Violet 2 Violet 3 Immobilizer Control Module
RAP OFF Gray 22 Pink 27 BCM Under Driver Dash (Express Down Windows)
RAP OFF Gray 6Black 7Driver Window Motor (Express Up/Down Windows)
SW CAN Dk Green 1 Black 16 OBDII
CAN High Tan/Black or Blue 6 Black 16 OBDII
CAN Low Tan or White 14 Black 16 OBDII
Description ConnectorWire
Chevrolet Sonic
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

Light Switch
Connector
(-) Parking Lights
Refer to the Vehicle
Wiring Reference Chart
(pages 4, 5, 6, and 8) for
wire color and location.
Installation with T-Harness
(for all GM10 vehicles)
Page 9
Wires are listed by pin numbers. This display is not representative of connector pin layouts, which are often stacked.
* If the RAP OFF wire is not connected, the radio will turn OFF but some lights will remain ON in the central console for 10 minutes. Connect this wire
(Green/Black, pin 2/12) to the driver door sense trigger (Gray/Black) to avoid the issue.
(-) Parking Lights
Remote
Starter
(+) Ignition Output
(-) Hood Status Input
(+) 12v(+) 12v
(-) Ground
(-) Ground
10
DBALL
RF
Programming button
LED
4
14 12 2
TX
(-) Ground
RX
(+) 12v
Remote Start Safety
Override Switch
Theft
Deterrent
Module (TDM)
connector
Vehicle side
to vehicle
6-pin connector
Ignition
Connector
To Theft Deterrent Module (TDM)
(under ignition switch,
black connector)
Use connectors
labeled GM10
NOT USED
NOT USED
2: Green/Black: (-) RAP OFF *
Black/White: NC
Cut away the 4-pin
connector and connect
the three wires to the
OBDII 16-pin connector.
(-) Driver
Door Sense
Trigger*
Diagnostic connector
OBDII (connector side view)
1 8
169
Can HIGH
Tan/Black or Blue: pin 6
Can LOW
Tan or White: pin 14
SW CAN Lt. Green: pin 1
3
1
9: Purple/Green: N.C.
8: Purple/Brown: N.C.
Pink: Ignition Output.
White/Black: N.C.
BA C
Clutch Switch
(black connector)
For manual
transmission
vehicles only.
Yellow
(On the Camaro and Cruze vehicles)
T-Harness
THGM610
(Optional)
6
12
1
7
GM10 GM10
Ignition
Barrel
T-01
T-02
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.

Remove the key from the ignition. Key OUT
OFF
START
IGN
Page 10
Module Programming
Refer to the LED Diagnostics section for more information and for troubleshooting purposes.
Important
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to
ensure everything is correct prior to moving onto the next step.
To take advantage of advanced features, you must use XpressVIP 4.5 or higher. Using version 2.9 or 3.1 will limit
available functions and features.
1. Connect the interface module to your computer using the XKLoader2.
2. Open an Internet Explorer browser (version 6 or higher), and go to www.xpresskit.com. The detail of the platform and firmware
that is currently saved on the interface module will be indicated in the top left corner of the page.
3. Select the year, make and model of the vehicle; the page will refresh to display the compatible firmware.
4. In the search result page, select one of the available install options (config for RSR, RXT or Standard install), and follow the
instructions provided on the screen.
5. Once you have configured your options, click on the FLASH button to upload the firmware onto the interface module.
6. The following message will be displayed when the upload is completed:
“The flashing is successfully completed. You may now unplug the kit.”
You can now proceed with the programming instructions below.
Warning!
2Solid
The LED turns ON solid red.
1OR
If required for your installation, connect the 10-pin, 12-pin
and 14-pin harnesses to the module, then connect the 4-pin
D2D harness.
D2D Installation
If required for your installation, connect the 10-pin and 12-pin
harnesses to the module, then connect the 14-pin harness to
the module.
W2W Installation
10-pin
D2D
st
1
12-pin
14-pin
nd
2
rd
3
10-pin
D2D
st
1
th
4
12-pin
14-pin
nd
2
rd
3
5
4
3
6
Press the Unlock button on the OEM remote and wait until the
LED starts to flash orange.
Make sure the driver’s door is open.
Remove the key from the ignition barrel. The LED will keep flashing green.
Turn the key to the IGN position. The LED will start to flash green.
Steps 5 to 7 must be executed within 5 seconds. &
&
&
Key IN
OFF
START
IGN
Key OUT
OFF
START
IGN
Flashes
Flashes
Flashes
7
Insert and turn the key back to the IGN position. The LED will
change to solid green for 3 sec. then OFF. &
Key IN
OFF
START
IGN
Solid
Press
Unlock button
Rev.: 20130304
Platform: DBALL
Firmware: GM10 v. 2.08+
© 2012 Directed. All rights reserved.
