DIREKT-TEK DTAIO238-1-BK User manual

DTAIO238-1-BK
USER GUIDE
Please read this manual before operating your
device and keep it for future reference.
23.8" All-in-One Desktop PC
Please read this manual before operating your
device and keep it for future reference.

1
Introduction and Table of Contents
This User Guide is designed to assist you through the key functions and features
of your new Direkt-Tek 23.8" All-in-One Desktop PC. Please read carefully to
ensure an optimal user experience and keep it handy for future reference.
1.0 Introduction........................................................................
1.2 Overview ...........................................................................
2.0 Notes..................................................................................
2.1 User Guide.........................................................................
2.2 Introduction to Desktop......................................................
2.3 Introduction to App Interface .............................................
2.6 Introduction to App Interface (Cont’d)...............................
3.0 Start Menu .........................................................................
3.1 Basic Operations ................................................................
3.1 Sleep, Restart and Shut Down............................................
4.0 Specifications.....................................................................
Thank you for purchasing the Direkt-Tek 23.8" All-in-One Desktop PC
For more information, or to learn about other Direkt-Tek products, please
visit us at: www.direkt-tek.com
1.1 TABLE OF CONTENTS
1.0 INTRODUCTION
Page
1
2
2
3
4
4
5
6
7
9
10

2
The new Direkt-Tek 23.8" All-in-One Desktop PC is the new-generation of it’s
class. It features a 23.8” High Resolution HD Screen (1280 x 800) equipped
with an Intel® Apollo Lake N3350 Dual-Core 1.3GHz Processor providing
access to the web for news, weather or local business info; downloading
thousands of apps from the Google Play Store, such as games, movie clips,
music, and videos. With 4GB of memory, you can store plenty of pictures,
movies, and documents. Expansion storage is available via Micro SD Card
Reader slot, up to 32GB (sold separately).
Overview and Notes
1.2 OVERVIEW
2.0 NOTES
• The new Direkt-Tek 23.8" All-in-One Desktop PC is a high-density
electronic product. DO NOT attempt to disassemble the device.
• Please do not drop or bang the device.
• Avoid using this product in the following environments: extreme high or low
temperatures, high humidity, dusty areas or long-term exposure to the sun.
• The product may be cleaned with a damp cotton cloth; the use of any
chemical cleaning fluid is prohibited. Please keep the product away from
water at all times.
• Using the headphones for long periods of time at high volume may cause
permanent hearing damage.
• Please use approved accessories only. The use of any other type of products
would be a breach of warranty and may be dangerous.
• If you have any questions regarding the use of this product, please contact
your local dealer or contact Direkt-Tek customer service center directly at
• Direkt-Tek will not be held responsible for any files lost due to product
damage, repair or other causes. Please be sure to follow instructions in the
User Guide and backup your files in a timely manner.

3
2.1 USER GUIDE
User Guide
MIC/LED Indicator
Speaker
Wireless Keyboard Wireless Mouse
USB 3.0 x 2 Port
USB 2.0 x 2 Port
Ethernet RJ-45 Port
USB 2.0
(Under)
Micro SD Slot
(Under)
Mic
Headphone
DC-in
HDMI Port
Base

4
Introduction to Desktop
2.2 INTRODUCTION TO THE DESKTOP
2.3 INTRODUCTION TO APP INTERFACE
On the Windows 10 fixed startup screen (displayed below) you will see many
programs and applications shown. These applications are displayed in a “magnet”
format. Clicking the applications on the start screen provides easy accessibility to
your commonly used programs.
Note: You must log on to your Microsoft account before the start up application can run.
In addition to the pinned applications on the startup screen, you are also able to
access other attached software applications.

5
Introduction to Desktop (Cont’d)

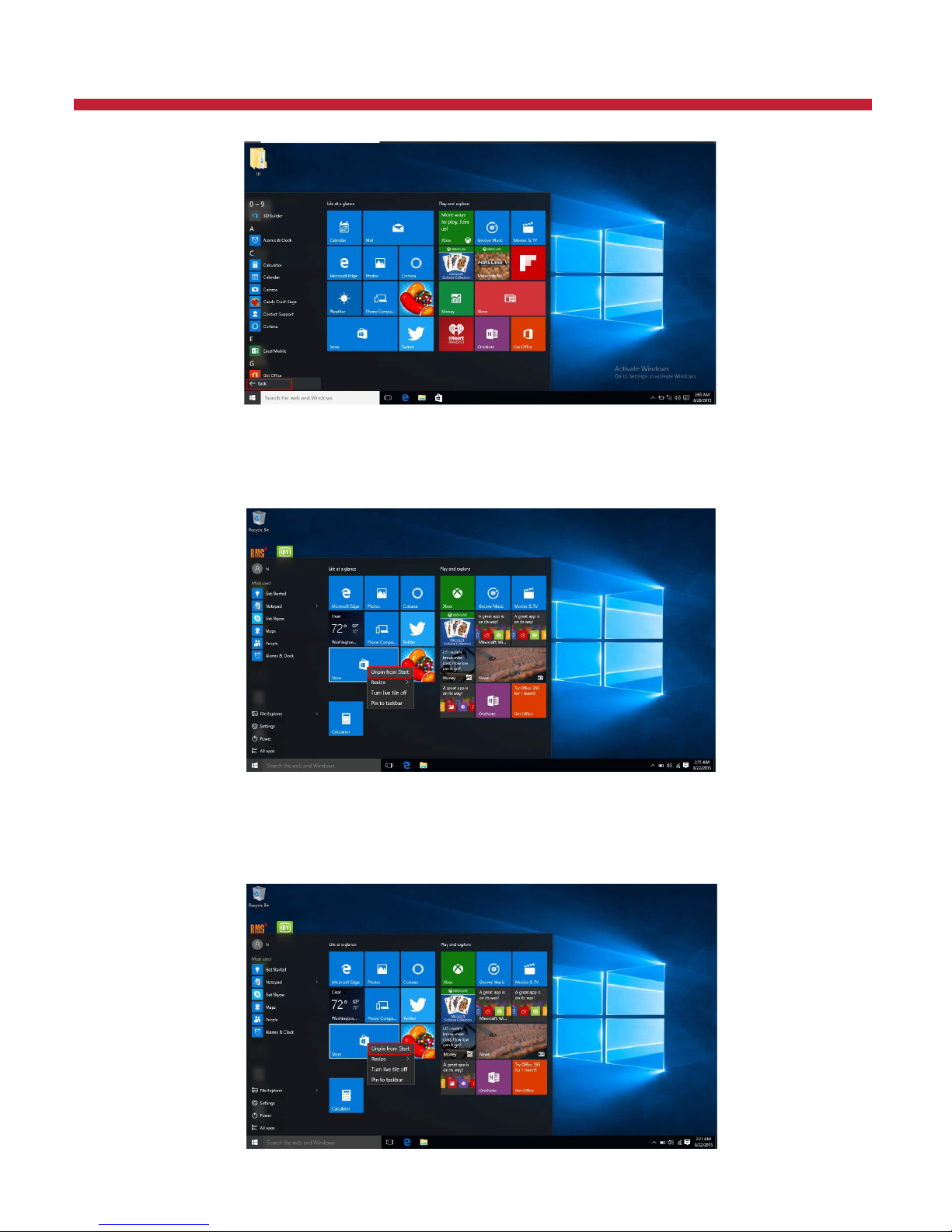

If you want to pin additional application programs to the start interface or
taskbar, see the operation in the figure below, (1) Click the properties icon (2)
Right click the application (3) Click the Pin to start or pin to taskbar, as follow:
To cancel or delete a certain application in the start screen or taskbar, (1) Right
Click the application, (2) Click the “Unpin from Start” or “Unpin this program
from taskbar”

6
Start Menu
3. 0 Start Menu
Under PC mode, press the start icon, which will display the following programs:
Start, Device, Setup, Share, and Search.

7
Basic Operations
Sleep/Shut down/Restart
Search files and application.
Change user setting and customize
user experience.
Can scan more apps

8
Basic Operations (Cont’d)
Action Center Setup Menu
Action Center is a notification center that allows for quick user settings
such as Tablet / PC mode, and Wi-Fi.
Multitasking operating interface
If you click the Task View, the running applications will be displayed.

9
Basic Operations (Cont’d)

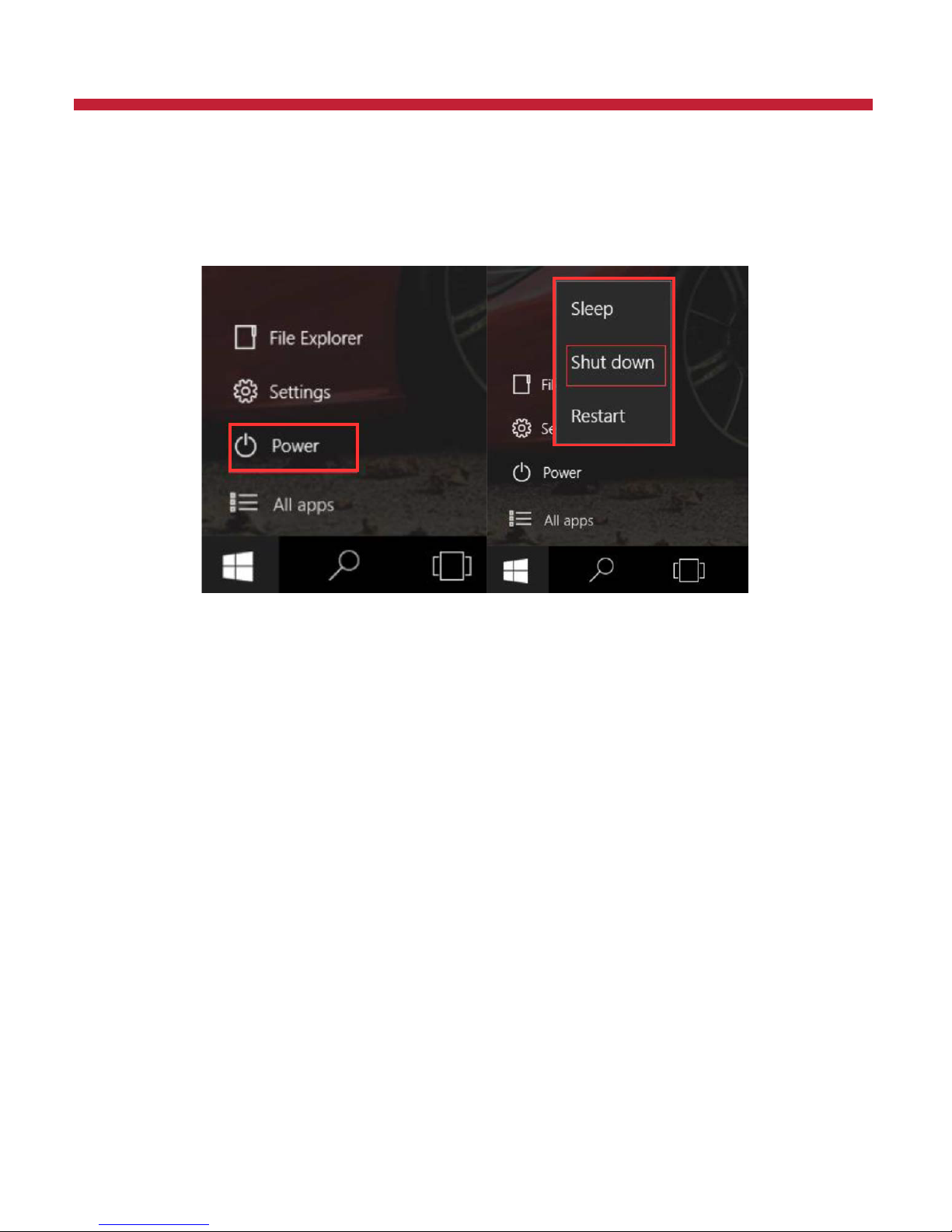

Shut down / Sleep / Restart
Click Power
• Sleep - Device will enter “Sleep Mode”
• Shut down - Device will power off
• Restart - Device will Reboot

10
Specifications
*Actual user storage may be less
Processor: Intel® Apollo Lake N3350 Dual-Core 1.3GHz
Office 365 Personal 1-year Included
1TB of Microsoft OneDrive Cloud Storage
3.5MM Headphone Jack & Microphone Jack
Micro SD Slot
HDMI output
USB 2.0 x 3 & USB 3.0 x 2
Wireless Connection: WIFI 802.11 b/g/n
Storage: 32GB*
Memory: 4GB*
Windows®10 Home
Screen: 23.8" 1920 x 1080 Resolution / 16:9
