RCA Cambio W101SA23T1 User manual

Tablet PC User’s Manual
Product Name：２ｉｎ１
version ：1.0
Release Date：2014.10

Announcement
Dear users:
Thank you for purchasing and using our products. For the sake of your safety and interests, before using the
products, please carefully read the product specifications as well as all the materials attached to the PC. If you
don’t operate and use the products according to the product specifications, we shall not assume any
responsibility for any personal harmony, assets or other losses incurred.
The product specifications (hereinafter referred to a specifications ):
zThe proprietary of the specifications belongs to our company;
zThe proprietary of trademark and trade name mentioned in the specifications belongs to their respective
owners;
zIf the content of specifications doesn’t conform to that of the actual product, the actual product shall be
binding.
If you have any misunderstanding or objection about any content or article & clause in the specifications,
please put forward a written objection within 7days after purchasing the PC. Otherwise, it shall be deemed
that you have agreed to, understood and accepted all the contents of the specifications.

Catalogue
1.0Productoverview.......................................................................................................................................4
1.1Introduction...............................................................................................................................................4
1.2 Unpacking and inspection.........................................................................................................................4
1.3 Introduction to parts & components..........................................................................................................5
2.0Basiccommonknowledgeoncomputeroperation......................................................................................8
2.1 Stop the computer......................................................................................................................................8
2.2 Function of keyboard.................................................................................................................................8
2.4 Display screen...........................................................................................................................................9
2.5 Electromagnetic-screen..........................................................................................................................9
2.6 The use of the electromagnetic pen......................................................................................................10
2.7 Multimedia Dock.....................................................................................................................................10
3.0SetupofBIOS(basicinput&outputsystem)..............................................................................................12
3.1 Method on use of BIOS setup.................................................................................................................12
3.2 Boot Option.............................................................................................................................................13
3.3 Main.........................................................................................................................................................14
3.4 Advanced.................................................................................................................................................15
3.5 Security......................................................................................................................................................0
3.6 Exit............................................................................................................................................................1

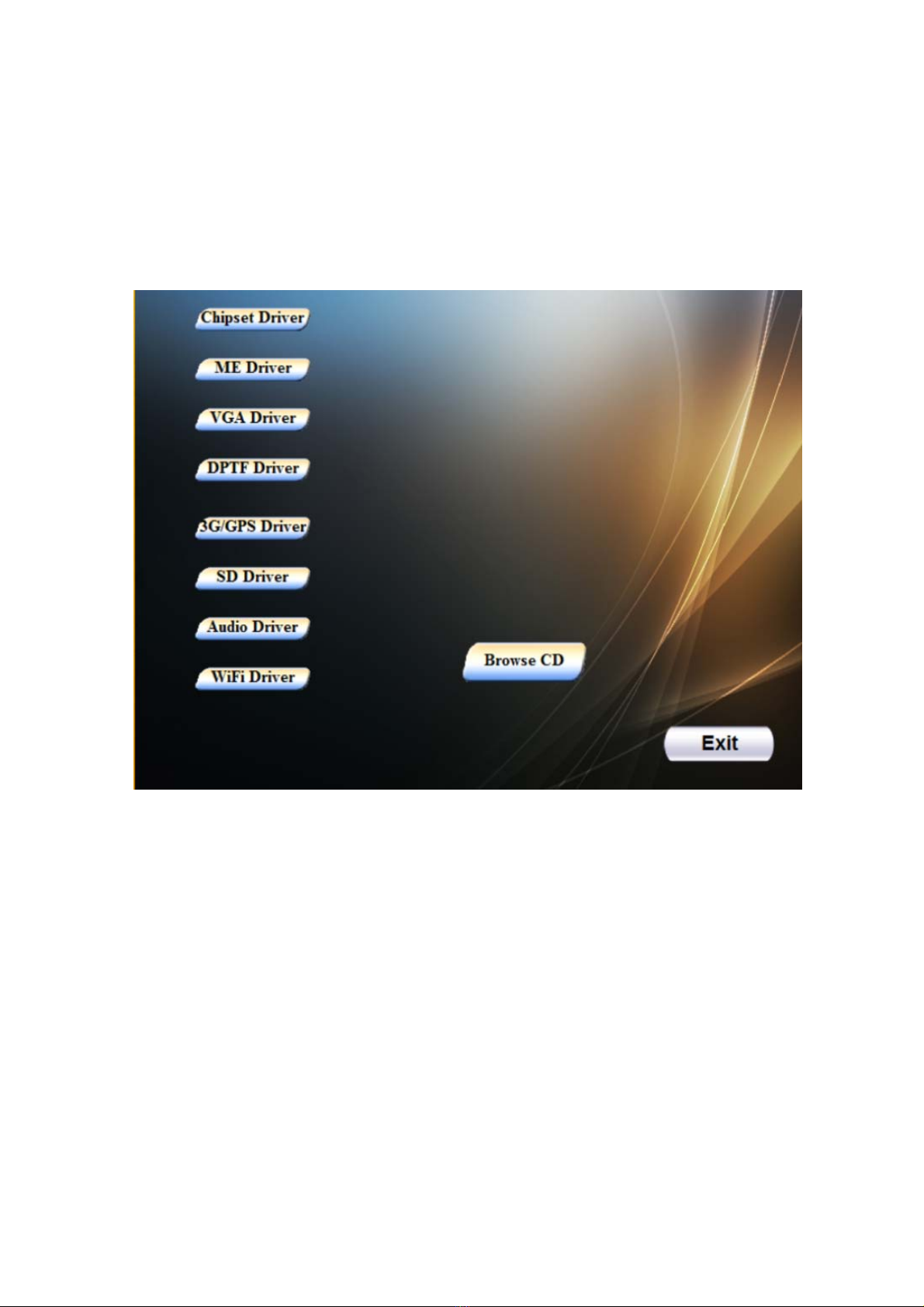

4.0Installationofdriverprogram.......................................................................................................................2
5.0Specialnotice.................................................................................................................................................3
5.1 Special hint................................................................................................................................................3
5.2Please be sure to read the important hints for using Tablet PC..................................................................3
5.3 Special notice.............................................................................................................................................4
5.4 Please be sure to read the instructions on the Power of Tablet PC............................................................5
5.5 Instructions on safety.................................................................................................................................6
6.0Faultanalysisandelimination......................................................................................................................7
6.1 Problem on sound......................................................................................................................................7
6.2 Problems on monitor.................................................................................................................................7
7.0SpecialDeclaration........................................................................................................................................8
8.0AnnexA:ProductSpecifications.....................................................................................................................9

1.0 Product overview
1.1 Introduction
zProduct name: Tablet PC
zSeries and type: W23
zCharacteristics of product performance: The Tablet PC adopts the latest mobile computation technology
of INTEL and has a better performance.
zClear LCD：The Tablet PC has a TFT, which brings you clear and bright colorful words and images.
zUse only the power adapter that comes with your device. Using a different power adapter may damage your
device.
zThe input voltage range between the wall outlet and this adapter is AC 110V–240V, and the output voltage of
this adapter is DC 12V, 3.0A.
zTo prolong battery life, fully charge the battery ,when using the tablet PC for the first time and whenever
the battery, power is fully depleted.
zThe tablet PC uses the Windows 8.1 system, Specific about the Windows 8.1 operating system and
application, please refer to Microsoft's release of 《Windows 8.1 User's Guide》
1.2 Unpacking and inspection
Please carefully remove the package and take out the tablet PC and other accessories. If any loss and missing are
found, please immediately contact distributors .Please store the original packing materials for replacing goods
Generally, you will have the following parts& components
1. Laptop computer
2. Keyboard
3. Power adaptor
4. User’s manual
5. Disk on driver program
6. Warranty card
7. Quality certificate

1.3 Introduction to parts & components
(Note: The following images are schematic diagrams and the real objects shall be binding)

NO. NAME NO. NAME NO. NAME
1 Front camera Light 12 Electromagnetic Pen 23 Volume Decrease key
2 Front camera 13 Power adapter jack 24 Back camera Light
3 Light Sensor 14 Micro HDMI 25 Back camera
4 Screen+Touch Panel 15 USB port 26 Built-in microphone
5 HOME KEY 16 Earphone input port 27 Reset
6 Right key of mouse 17 3G Socket(Option) 28 Speaker
7 Magnetic strip（UP) 18 Power button 29 Micro SD Port
8 Magnetic strip（DW) 19 Power Indicators 30 Speaker
9 Touchpad 20 Charge Indicators 31 Support
10 Right click button 21 Rotary locking button 32 Multimedia dock
11 Left click button 22 Volume Increase key

2.0 Basic common knowledge on computer operation
2.1 Stop the computer
When you finish your work, you can shut off the computer power or let the computer enter the mode of
Sleeping or hibernation.
Mode of stopping method Method on re-starting or usage
Directly shut off the
power
Please follow the program for shutting the operating
system. By doing so, you can avoid the losses of data or
damages of software. If the system is halted due to the
problems on hardware or software , you can use the
power button to shut off the computer.
Using the power button
Sleeping
According to your setup of Windows, the system will
enter the sleeping status according to following method:
A, Close the Keyboard button;
B, Use the power button.
Using the power button
Hibernation
According to your setup of Windows, the system will
enter the hibernation status according to following
method:
A, Close the keyboard cover;
B, Use the power button.
Using the power button
2.2 Function of keyboard
Icon Function The function Icon Function The function
Windows key To return Windows 8.1
main screen Fn+F10 Volume Decrease key
Fn+F2 Play / Pause Fn+F11 Volume Increase key
Fn+F3 Stop playing Fn+F12 Close the touchpad
Fn+F4 Previous song Fn+ Open the num Lock
Fn+F5 Next song Fn+ Open the scroll Lock
Fn+F6 Play music Home FN+Home Skip to Home
Fn+F7 Open the Email End FN+End Skip to footer
Fn+F8 Open the IE browser Page Up FN+Page Up Page up
Fn+F9 Mute key Page
Down FN+Page Down Page down

2.3 Touch pad
The built-in touch pad of keyboard is a position device. You can fell the movement on its surface. Move your
finger on the surface of touch pad, the cursor will follow.
2.4 Display screen
In order for the comfort of your eyes, your laptop computer is equipped with LED LCD, which supports high
resolution and real color function. It brings marvelous visual excitement.
To prolong the lifespan of lifespan of display screen.
To obey the following rules can prolong the lifespan of display screen.
zTo adjust the brightness of screen into the minimum brightness, which is comfortable to you eyes.
zWhen using it on the table, please connect an external monitor and shut off the display screen of the laptop
computer.
zDon’t close the option of entering the pause mode in shutting off the power management.
zIf the AC power is used and there is no external monitor, please don’t switch to the pause mode when not
using it.
[Note]
In order to prolong the life time, adjust the brightness to the minimum degree under the precondition of
comfortable visual enjoyment. In this way, the internal light source can use less power.
2.5 Electromagnetic-screen
The Tablet PC has a new electromagnetic-screen technology to bring us back to basics "original handwriting”
input experience, and integrated electromagnetic board to write on the screen by an electromagnetic pen, whether it
is E-mail or meeting shorthand and classroom, can be done it. In addition, the electromagnetic screen technology
can bring us the real paintings, drawings and other applications.
Unlike ordinary capacitive screen technology, the electromagnetic screen technology with a rear-mounted
design, make the picture quality and brightness is completely free from electromagnetic board with a precise touch,
is to ensure the performance of the best screen image display.
The high transmittance for the art drawing, photography, production and other areas of expertise, can bring the
most realistic color quality, and better able to provide better and more intuitive operation support. Electromagnetic
pen directly on the screen, as obtained in the paper on the real painting experience, allowing users to hand from the
eye can be the most intuitive operating experience.
The electromagnetic plate includes highly sensitive reaction speed, zero delay shows the precise handwriting
speed, and every inch of the 2048 line wide pen diameter thickness recognition performance, precision depict the
different thickness of the pen diameter. Echo each other with the Z-axis detection sensing capabilities, in addition
to the simulation include writing, signature, can provide natural, real hand-painted experience, to better meet the

needs of professional drawing, digital animation field.
In addition, the electromagnetic pen with the mainstream 2048 Order handwriting pressure sensitivity, able to
pass a more accurate handwriting mode, simulate more real pen to write pen diameter thickness effect. We will
experience the most realistic, accurate original handwriting input experience.
2.6 The use of the electromagnetic pen
zThe use of the electromagnetic pen:
Before using the electromagnetic pen, touch the pen tip for the display screen, the electromagnetic pen to
enter the working state. When the electromagnetic pen stopped working 5 minutes will be automatically
converted to hibernation.
zLeft key of mouse
Click touch screen, then the electromagnetic pen will be enter the left mouse button functions.
zRight key of mouse
A) The electromagnetic pen nib long-pressure touch screen for about 3 seconds，the electromagnetic pen
will be switched to the right mouse button.
B) When the electromagnetic pen in working condition, Press the button of the electromagnetic pen, the
electromagnetic pen will be switched to the right mouse button
zWorking indicator:
Electromagnetic pen in working condition, the blue indicator point is on.
zLow voltage indicator:
Electromagnetic pen in working condition, the red indicator point is on, indicating the battery voltage is
low, and please immediately charged.
zIndicator charge:
Electromagnetic pen is charging, the red indicator point is on, The electromagnetic pen will stop working.
When the battery is fully charged, the electromagnetic pen charging indicator light will go off
2.7 Multimedia Dock
Multimedia dock is a extended functions of the Tablet PC , It is a collection of USB storage, USB data
connection, HDMI high-definition large-screen display, LAN connection and other multimedia features.

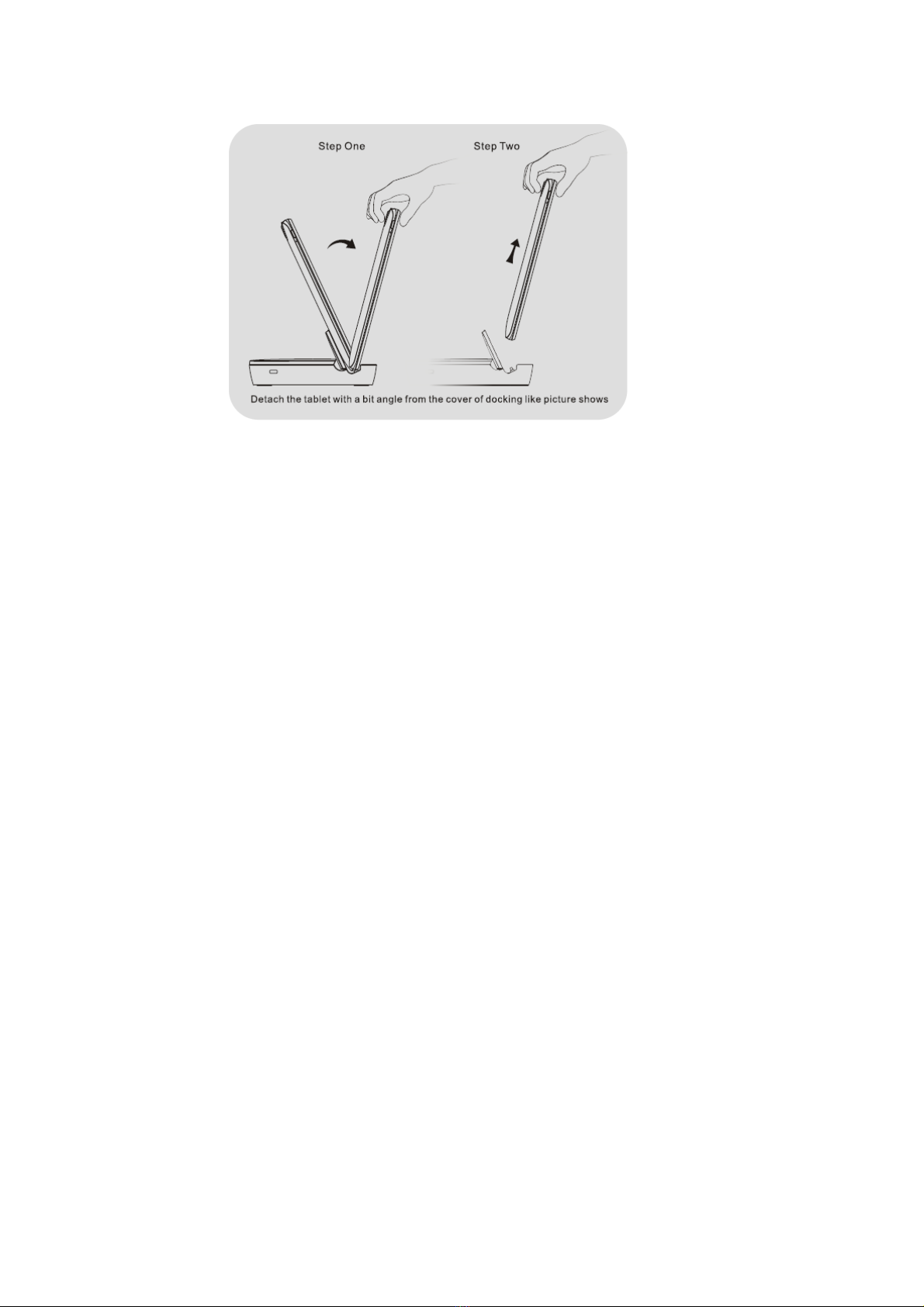

Pull the Tablet PC up directly, maybe the Multimedia Dock will be follow up and drop down. So, please
turn the Tablet PC over 45 degree angle and pull it.’

zNOTE: The tablet PC uses the Multimedia Dock, Operations related to the Multimedia Dock please
refer to the company release of 《DK02 Multimedia Dock User's manual》

3.0 Setup of BIOS (basic input & output system)
In this chapter, we will teach you how to enter the BIOS setup program as well as the setup of control options for
all kinds of hardware. You will also learn how to use the setup of the built-in protection.
The setup of common program is a hardware status program built in the BIOS of the laptop computer. It can
execute and maintain many hardware functions. It’s a software enabling operation with the menu mode and
allowing the easy setup and change of set value.
BIOS contains with the ex-works pre-set values of laptop computer. However, you still have a lot of opportunity to
modify the pre-set values in BIOS. When the hardware is altered, such as upgrading , in case of temporary
conditions, or when you decide to self-determine the set value of hardware so as to meet the special needs, it may
be necessary for you to start the BIOS setup program.
BIOS can restrict the access by uses by setting up passwords. This is important function because the laptop
computer usually keeps a lot of materials and the unauthorized access can be prevented.
3.1 Method on use of BIOS setup
The cases where you must execute the BIOS setup:
zIn case of any problem founding in the booting test, some information will appear on the screen, requiring you
to execute the BIOS setup.
zYou need to resume the default value.
zYou need to change the setup value according to the specific hardware.
zYou need to change the setup value in order to acquire the optimum system
zIf you plan to execute the BIOS setup, when starting the computer , press the " ESC"key
How to select
For one option, you only complete the setup through two-level options. The majority of these options must pass
three-level options: menu title, drop-down menu and sub-menu.
Use the keyboard to move and to choose. You can see the information on keyboard at the right lower corner of the
screen.

3.2 Boot Option
Continue: Continue, and normal startup
Boot Manager: Boot option
Device Management: UEFI options
Boot from File: Select a UEFI file to startup
Secure Boot Option: Secure Boot Option
SCU: BIOSsettings

3.3 Main
Language：Selects the display language
System Time: Setup of the system time
System Date: Setup of the system data

3.4 Advanced
SATA Configuration: SATA Configuration

0
3.5 Security
TPM availability：TPM Setup
Set Supervisor Password: Set Supervisor Password

1
3.6 Exit
Exit Saving Changes: Save Settings exit
Save Changes: Save Settings
Exit Discarding Changes: Do not save your settings and exit
Load Setup Defaults: Import the default settings
Load Custom Defaults: Load Custom Defaults
Save Custom Defaults: Save Custom Defaults
Discard Changes: Do not save your settings

2
4.0 Installation of driver program
The laptop computer support Windows8.1
Open CD on any external CD-drive via USB, operation procedures, illustrated as follows:
(Note: The following images are schematic diagrams and the real objects shall be binding)
Driver installation of WIN8.1
Click on the corresponding chart icon, and then follow the prompts to complete installation.

3
5.0 Special notice
5.1 Special hint
In order to facilitate understanding and arouse your attention, as for product safety or information needing special
attention to, we will give you the hints in this chapter or the chapters that follows according to the following levels
and special warning words. These special warning words are expressed as follows:
[Danger]---indicating cautions against high risks;
[Warning]---indicating cautions against medium risks;
[Note]---indicating that attention should be paid to light risks;
[Prohibition]---indicating that dangerous operation should be prohibited;
[Reminder]---indicating that attention should be paid to safety or other contents;
This chapter doesn’t provide all the safety information. For the sake of your safety and interests, we put the safety
information on parts of the products in the subsequent chapters as needed. No matter where these safety information
are located, you should carefully read them.
Similarly, besides the special notices expressed with special warning words, you should give same attention to other
contents and introduction in the specifications.
5.2Please be sure to read the important hints for using Tablet PC
Tablet PCs belong to high-tech and precision products. Please be sure to carefully read the following use hints.
1) Maintenance of LCD
zDon’t put any heavy things on the Tablet PC.
zWhen using suitcase or backpack, please make sure that there aren’t too much things inside and no
additional pressure is put on the Tablet PC bag and the back part of LCD.
zPlease don’t scratch, twist or strike the touch panel.
zDon’t place the screen of LCD in an environment where the temperature exceeds 40 Celsius degrees or the
humidity exceeds 90%.
zDon’t expose the screen of LCD to direct sunlight or strong fluorescence.
zDon’t place any things on the touch panel, such as pencil, documents and so on, which will destroy or
scratch LCD screen.
zPlease don’t use corrosive detergent to wipe LCD screen, which will destroy screen.
2）Please don’t open the Tablet PC shell when the system is running because this will lead to data loss or destruction.
The formatting of HD can delete all the data in HD. Please back up the data in advance. As for important data,
please make sure that they have been timely backed up in other storage mediums. The company shall not assume
any responsibility for the data losses incurred.
3）The safe use of power
zThe power supply should be stable and be free from interference. When you are not clear about the local
specifications on electric appliance, please consult your distributors or your local power company.
zWhen plugging off the power, you should avoid pulling off the electric wire directly by pulling.
zPlease make sure to pull from the root of socket so as to guarantee safety.

4
zPlease don’t disconnect the power adaptor.
zPlease don’t use the power adaptor not attached to the Tablet PC because this will damage the Tablet PC.
4）This product can only be disassembled by authorized service staff of agent company. Please make sure to keep
the sealing strip intact. Otherwise, the warranty or three guarantees service may be influenced.
5）If you have set up a password, please keep it in mind. Otherwise, your Tablet PC can not be started. If you have
forgotten the password, please contact the supplier or authorized maintenance station. However, this may destroy
all of your data.
5.3 Special notice
1) Applicable group
[Note]You should master a certain basic common language on Tablet PC in order to operate the Tablet PC.
Meanwhile, the Tablet PC is not suitable for independent operation by children. If necessary, children must be
accompanied by adults.
2) Working environment
[Danger] In order to prevent accidental failure, the Tablet PC should run within the following defined environmental
scope:
Content Scope of application Remarks
Temperature of storage and transportation -20℃- 50℃
Relative humidity of storage and transportation 20% - 93%（40℃）
Atmospheric pressure 86kPa – 106kPa
Adaptation capability of power 100V-240V，50Hz-60Hz
Working humidity 35% - 80%
Working temperature 10℃- 35℃
[Warning] In order to prevent the Tablet PC from being harmed by the environment (dampness, dust, food, liquid,
direct exposure to sunlight etc ), the Tablet PC should be placed in a dry place with good ventilation.
In order to prevent the Tablet PC from being disturbed and damaged by the magnetic field, please keep it away from
other household electric appliances (such as Television set, air conditioner etc).
[Warning]Please don’t splash liquid or other impurities into the Tablet PC. Otherwise, it may lead to short-circuiting
of its internal components, which will further give rise to electric shock or fire accidents.
[Note] If the Tablet PC is switched on and started when the low temperature condition hasn’t been resumed, it may
lead to unrepairable faults on the Tablet PC. Therefore, before using the Tablet PC, please firstly make sure that the
Tablet PC is resumed for over 2 hours under the room temperature (above 10 Celsius degrees).
[Note]Ask an airline personnel if you want to use your Tablet PC onboard an aircraft. Most airlines have restrictions
for using electronic Tablet PCs. Most airlines allow electronic use only between and not during takeoffs and landings.
3）Before being used
[Warning] After the Tablet PC is stored and transported under the environment of lower than 10℃, the Tablet PC
should be placed for over 2 hours under the room temperature condition of 10℃- 35℃before being used in order
to prevent the Tablet PC temperature from getting excessively low, which thus give rise to electrified damages. Please
don’t disassemble the package during the period. Let the Tablet PC resume its temperature naturally and avoid the
temperature increasing excessively quickly, which thus leads to electrified damages.
[Note] Before using the Tablet PC, please make sure that the Tablet PC connection, power use and other affairs
