About this Instruction Manual
Please read the safety instructions and the operating instructions carefully before
use. Keep these instructions for renewed use at a later date. When the device is
sold or given to someone else, the instruction manual must be provided to the new
owner/user of the product.
Intended Use
This product is intended only for private use. It was developed as an electronic medium
for the use of multimedia services.
General Warnings
• Risk of choking — Keep packaging material, like plastic bags and rubber bands, out of
the reach of children, as these materials pose a choking hazard. This product contains
small parts that could be swallowed by children.
• Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with
skin, eyes and mucous membranes. In the event of contact, rinse the affected region
immediately with a plenty of water and seek medical attention.
• Risk of electric shock — Never bend, pinch or pull the power and connecting cables,
extensions and adapters. Protect the cables from sharp edges and heat. Before
operating, check the device, cables and connections for damage. Never use a damaged
unit or a unit with damaged power cables. Damaged parts must be exchanged
immediately by an authorised service centre.
• Risk of property damage! — Do not disassemble the device. In the event of a defect,
please contact your dealer. The dealer will contact the Service Centre and can send the
device in to be repaired, if necessary.
• Do not expose the device to high temperatures. Use only the supplied power adapter.
Do not short-circuit the device or throw them into a fire. Excessive heat or improper
handling could trigger a short-circuit, a fire or an explosion.
• Do not interrupt an on-going data connection to a computer before all data has been
transferred. This could lead to data loss for which the manufacturer is not liable.

3
Notes on Cleaning
Turn off the camera. Clean the eyepieces and/or lenses only with a soft, lint-free cloth, (e.g.
microfibre cloth). To avoid scratching the lenses, use only gentle pressure with the cleaning
cloth. Only use a dry cloth to clean the exterior of the device. To avoid damaging the elec-
tronics, do not use any cleaning fluid. Clean the protective case after each use with clear,
clean water and dry it thoroughly.
Disposal
Dispose of the packaging materials properly, according to their type, such as paper or
cardboard. Contact your local waste-disposal service or environmental authority for
information on the proper disposal.
The integrated battery must only be removed for disposal. Opening the device housing
can damage the unit. Drain the battery completely before disposal. Remove all the
screws in the housing and open the device housing. Remove the connections to the
battery and remove it. Cover the open contacts with tape and package the battery in such a
way that it cannot shift in the packaging.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

4
CONTENTS
01
02
04
06
05
08
09
10
11
07
03

5
1080p Camera
Waterproof Case
Flat Adhesive Mounts
Handle Bar/Pole Mount
Frame Housing Mount
Velcro Straps
Long Thumb Screw
Quick Release Buckle
Pivot Mounts
Short Thumb Screw
USB Cable
01
02
03
04
05
06
07
08
09
10
11

6
Product Features
• A water-resistant casing that allows you to film fascinating water sports:
Water-resistant up to 100 ft. (30 metres) underwater.
• High definition screen that displays and replays fascinating videos that have been
recorded.
• Rechargeable battery that is easy to replace and prolongs your camera’s service life.
• Video recording while charging.
• Video recording with battery.
• 12 mega pixel (HD) wide-angle lens.
• HDMI HD output.
• Supports Micro SD/TF Memory cards up to 32 GB maximum.
INSTRUCTIONS

7
Operating
1. Inserting Micro SD card
Note: For best performance, please choose a branded Micro SD card and format it on
your computer before use.
Insert a microSD card with the label facing the screen.
Use brand name memory cards that meet these
requirements:
a) microSD, microSDHC, or microSDXC
b) Class 10 speed rating
c) capacity up to 32GB
Battery Door
Shutter/Select Button Status Light
Power/Mode Button
Zoom
In/Up
Button
Zoom
Out/Down
Button
Microphone
MicroSD
Slot
Charging
Status Light
Micro USB
Port

8
2. Installing or removing the battery
A. Press on the battery cover to open it.
B. Correctly install the battery into the camera.
C. Remove Battery: Simply open battery cover to take the battery out.
3. Charging
A. Charging can be done with the power adapter or by connecting the action camera to a
computer via the usb cable.
B. The action camera can record video while charging
C. Charging of the action camera can be done even when it’s powered off.
4. Turning camera on and off
A. Press and hold the power switch for three to five seconds to turn the camera on or off.
B. Switch the display screen on or off by pressing the [DOWN] button to save battery life
during use.
5. Mode Switching
A. Press the [Power On-Off / mode] button [] repeatedly to cycle through the camera
modes.
INSTRUCTIONS

9
Camera mode Description
Video recording
mode Video, Loop Recording, Motion detect
Photo shooting mode Single, Photo timer, Burst, Time lapse
Play back mode Play back content on the TFT display or
on a TV via HDMI cable.
Settings Adjust all camera settings
6. How to record videos and configure recording setting
6.1. Video Recording
Turn the camera on. You will start with the video recording mode. There will be an
icon in the upper left corner. Insert a SD card and start recording by pressing “OK”.
Press “OK” again if you want to stop the recording.
6.2. Photo shooting & Settings
Switch to photo shooting mode by pressing []. There will be an icon in the upper
left corner. Press ”OK” to take photos.
6.3. File Storage & Play back
After you have finished recording use a USB cable to export the videos onto a computer
for play back. You can also take the Micro SD card out and access the image data with a
card reader.

10
MOUNTING THE CAMERA

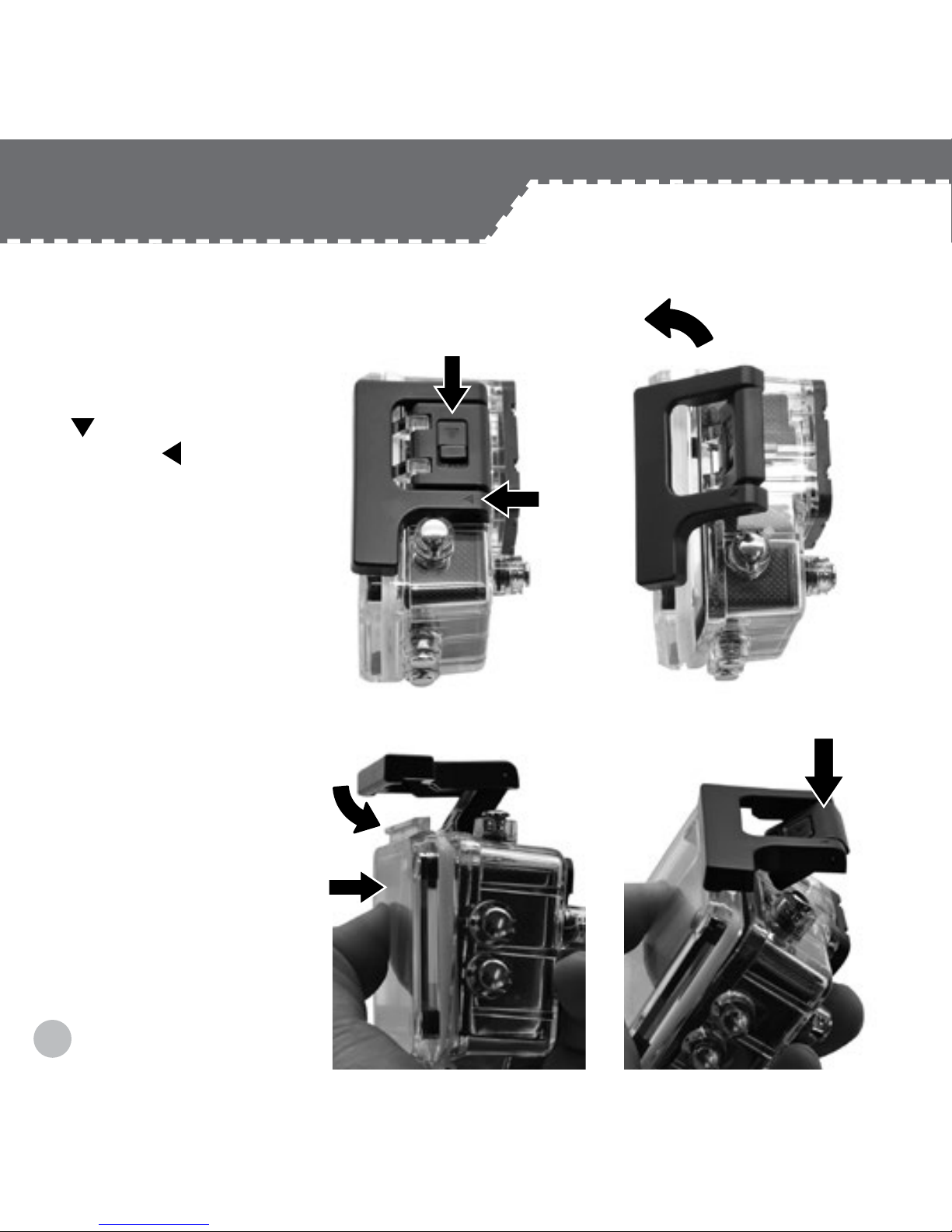

How to Open and Close the Waterproof Case
How to Open:
Press and hold down
the switch (1) and
then use the arrow
(2) to open the clamp
(3).
How to Close:
Press the case
door all the way
down (1) and then
snap the clamp to
the hinge (2).
Now, simply press
the clamp down
(3) to close.
1
2
3
2
1
3

11
=
=
01
02
Base Mount Example

12
=
01
=
02
Helmet Mount Example
MOUNTING THE CAMERA

13
=
01
=
02
Pole/Bicycle Mount Example

14
Settings
Video Resolution Change video resolution
(1920X1080 recommended)
Picture Resolution Change Picture resolution
(12M - 4032X3024 recommended)
Photo Timer Off / 2s / 5s / 10s
Burst Off / 3 Picture / 5 Picture
Time-lapse Single / 3s / 5s / 10s
Time Stamp Off / On
Motion Detect Off / On (video mode only)
Loop Recording Off / 1 Min. / 2 Min. / 3 Min. (video mode
only)
INSTRUCTIONS

15
Audio Record Off / On
EV (Exposure value) +2/3 / +1/3 / +0.0 / -1/3
- 2/3 / -1.0 / -4/3 / -5/3 / - 2.0
Delete Delete One / Delete All
Protect Lock One / Unlock One
Lock All / Unlock All
Format All data on the sd card will be
deleted
Language Choose OSD language
Volume Change OSD volume
Auto Off Off / 1 Min. / 3 Min. / 5 Min.
LCD Off (Auto screen off) Off / 3 Min. / 5 Min. / 10 Min.
System Reset Reset system to default settings
Refresh rate 50 Hz / 60 Hz
Date/Time Set current date and time
Panel Rotate Off / On
Version View current firmware version

16
INSTRUCTIONS
Technical Data
TFT Display 1.5 in. (3.81 cm) display
Lens 140° wide angle
Waterproof case Resistant up to 100 ft. (30 m)
Language options English / German / French /
Spanish / Italian / Portuguese /
Chinese Traditional / Chinese
Simplified / Japanese / Russian
Resolution of photos 12 MP (4032x3024),
10 MP (3648x2736),
8 MP (3264x2448),
5 MP (2592x1944),
3 MP (2048x1536),
2 MP (1920x1080),
1.3 MP (1280x960),
VGA (640x480),
Resolution of videos 1920x1080, 1440x1080,
1280x720, 848x480, 640x480
Video format AVI
Compressed format of videos mjpeg

17
Storage Micro SD card up to 32 GB
possible
Shooting mode Single shot / Self-timer
(2s/5s/10s)
Frequency of optical source 50Hz/60Hz
USB interface USB 2.0
Power source interface 5 V
4
1000 mA
Battery capacity 800 mAh
Power dissipation [email protected]
Recording time About 70 minutes (at 1080p)
Charging time About 3 hours
Operating systems (OS) Window XP / Vista / Win 7 /
Mac OS X
Dimensions 2.33 x 1.62 x 0.97 in.
( 59.3x41.1x24.6 mm )
Weight 60 grams
Note: Specifications could be subject to change due to upgrading or updating.
