SERVICE MANUAL
DT1900-C
Design and specifications are subject to change without notice.
COLORTELEVISION RECEIVER
ORIGINAL
MFR'S VERSION A
6. AVOID AN X-RAY1. KEEP THE NOTICES
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
In the condition that an explosion-proof cathode-
ray tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.
Safety is secured against an X-ray by consider-
ing about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage pe-
ripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode-
ray tube.
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
HOWTO ORDER PARTS
SERVICING NOTICES ON CHECKING
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.
3. USE THE DESIGNATED PARTS
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
4.
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
7.PERFORM A SAFETY CHECK AFTER
SERVICING
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
2.
3.
4.
Unplug the plug from the AC outlet.
Remove the antenna terminal on TV and turn
on the TV.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal: Antenna terminal
Earphone jack
A1-1
Inferior silicon grease can damage IC's and transistors.
When replacing an IC's or transistors, use only specified silicon grease (YG6260M).
Remove all old silicon before applying new silicon.
IMPORTANT
A1-1
A1-1
A1-1
A2-1
A3-1~A3-4
B1-1
B2-1, B2-2
C-1
C-1
C-1
D-1~D-5
E-1, E-2
F-1~F-4
G-1, G-2
G-3, G-4
G-5, G-6
G-7, G-8
G-9, G-10
H-1, H-2
I-1
J1-1
J2-1, J2-2
CONTENTS
A2-1
SERVICING NOTICES ON CHECKING..........................................................................................................
HOW TO ORDER PARTS ...............................................................................................................................
IMPORTANT....................................................................................................................................................
CONTENTS .....................................................................................................................................................
GENERAL SPECIFICATIONS ........................................................................................................................
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF ANODE CAP .................................................................................................................

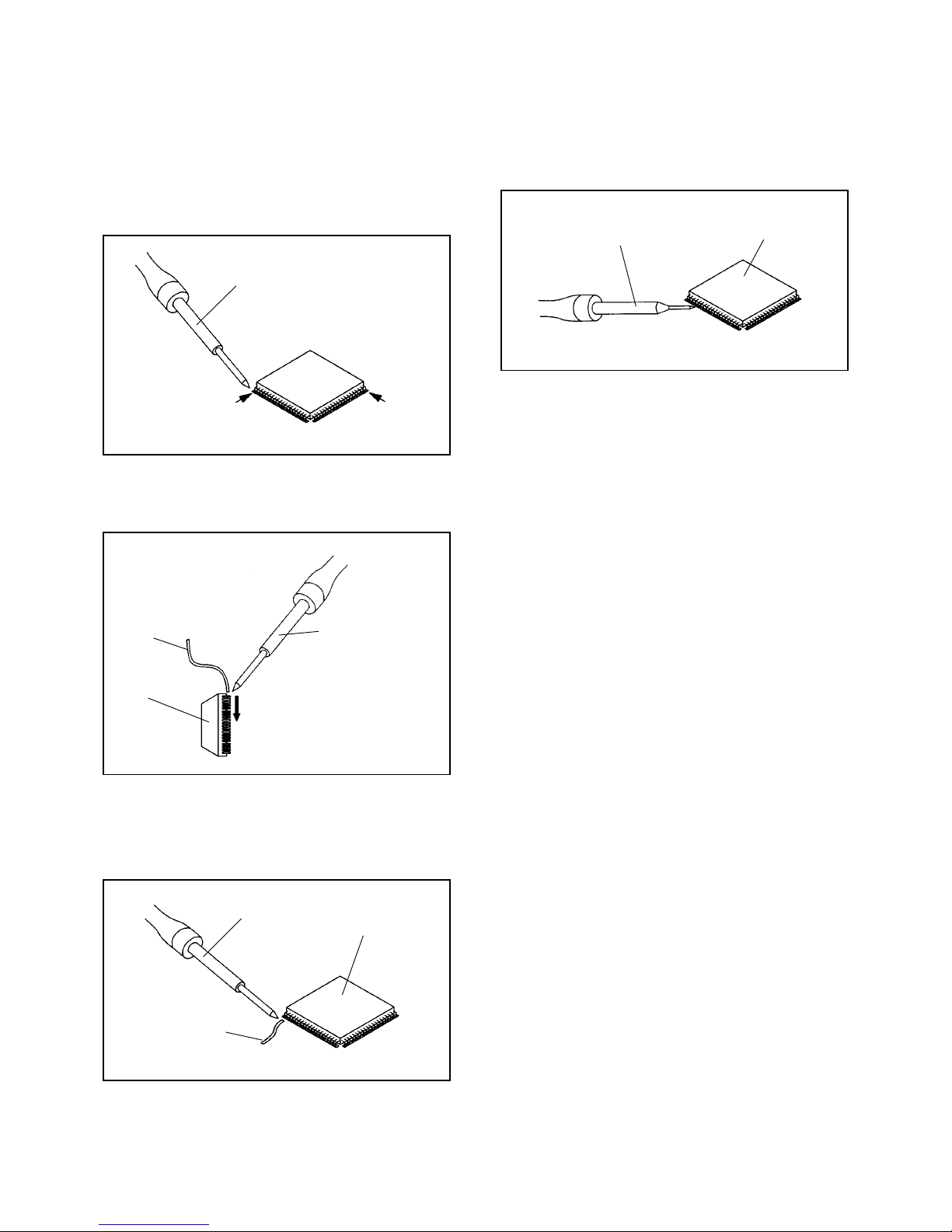

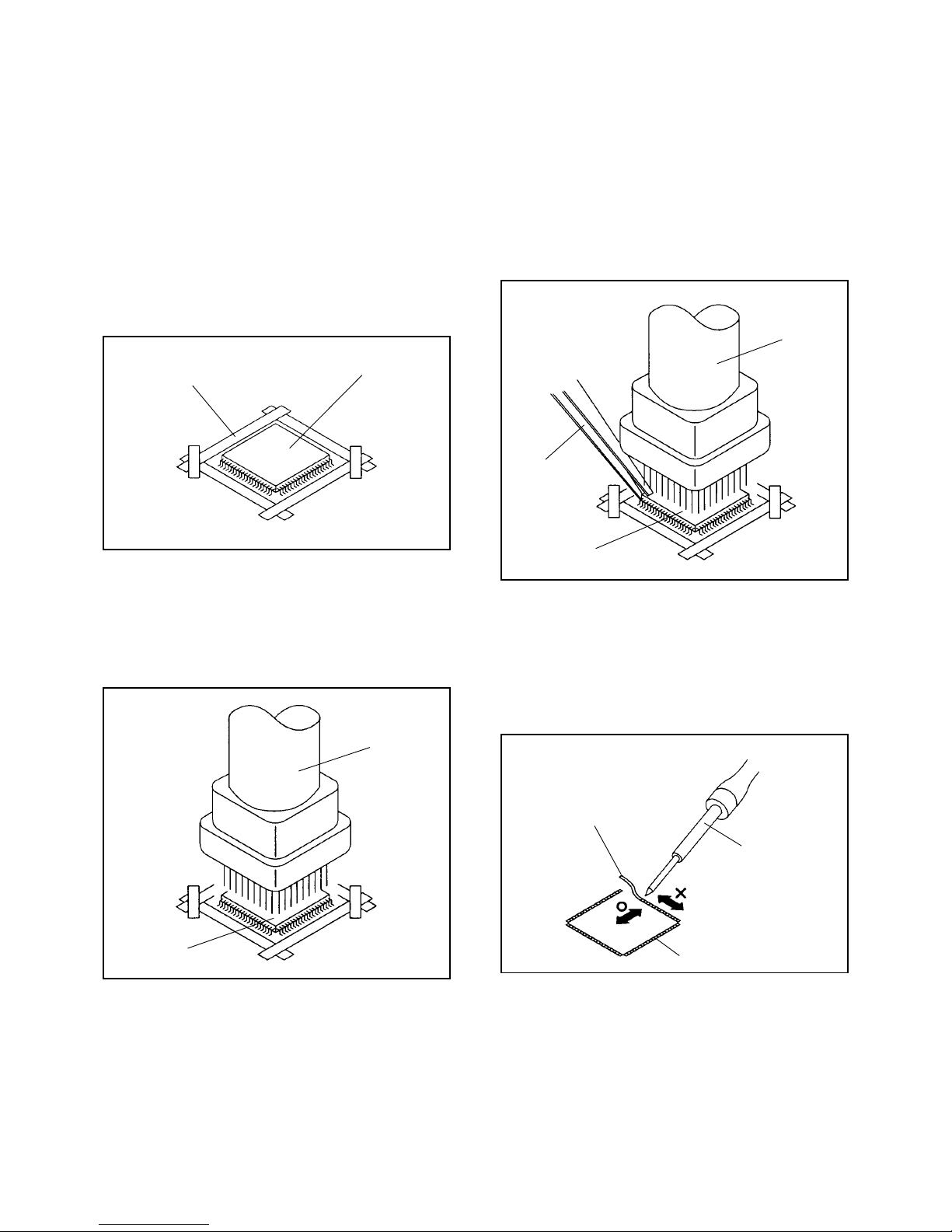

2. REMOVAL AND INSTALLATION OF FLAT PACKAGE IC ...................................................................
SERVICE MODE LIST.....................................................................................................................................
CONFIRMATION OF HOURS USED ..............................................................................................................
WHEN REPLACING EEPROM (MEMORY) IC ...............................................................................................

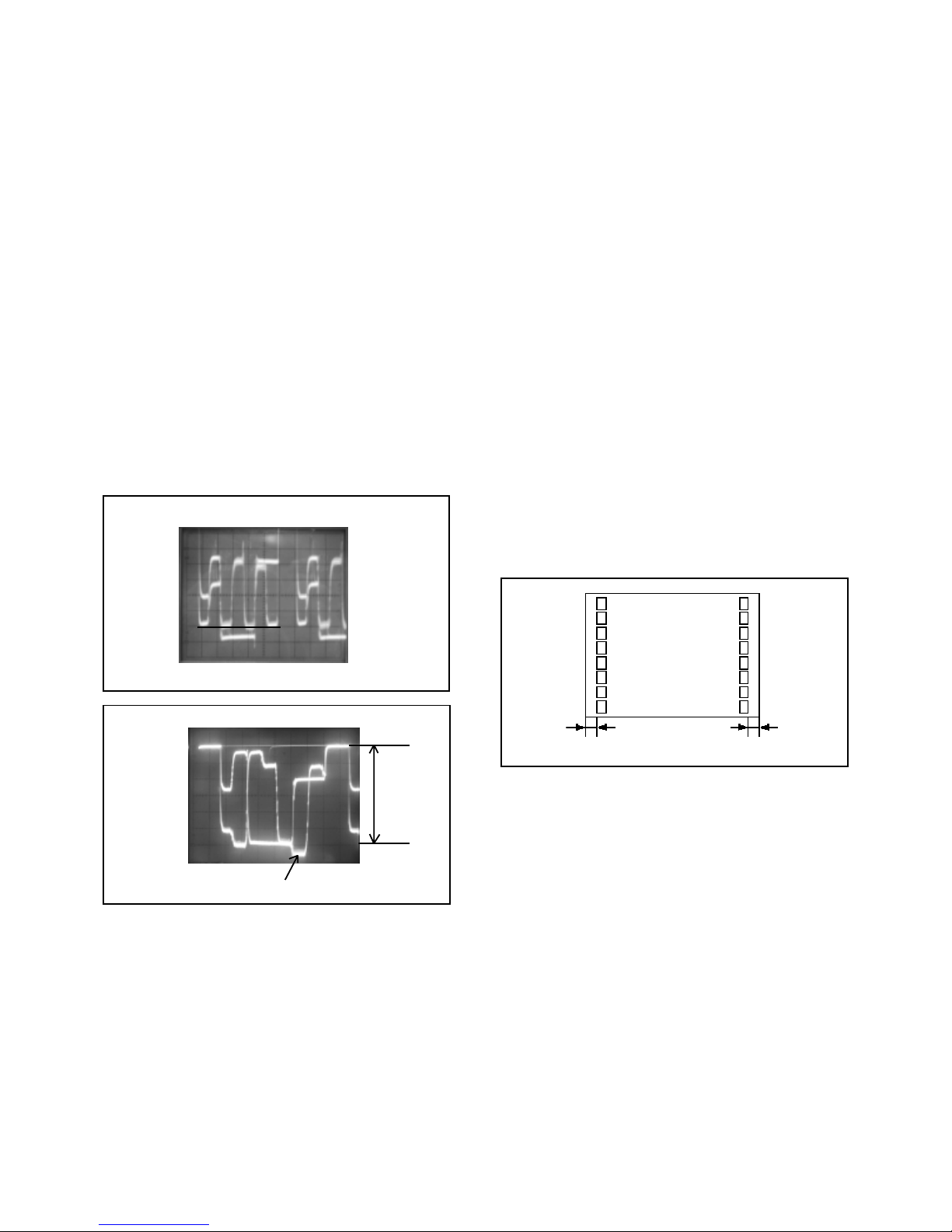

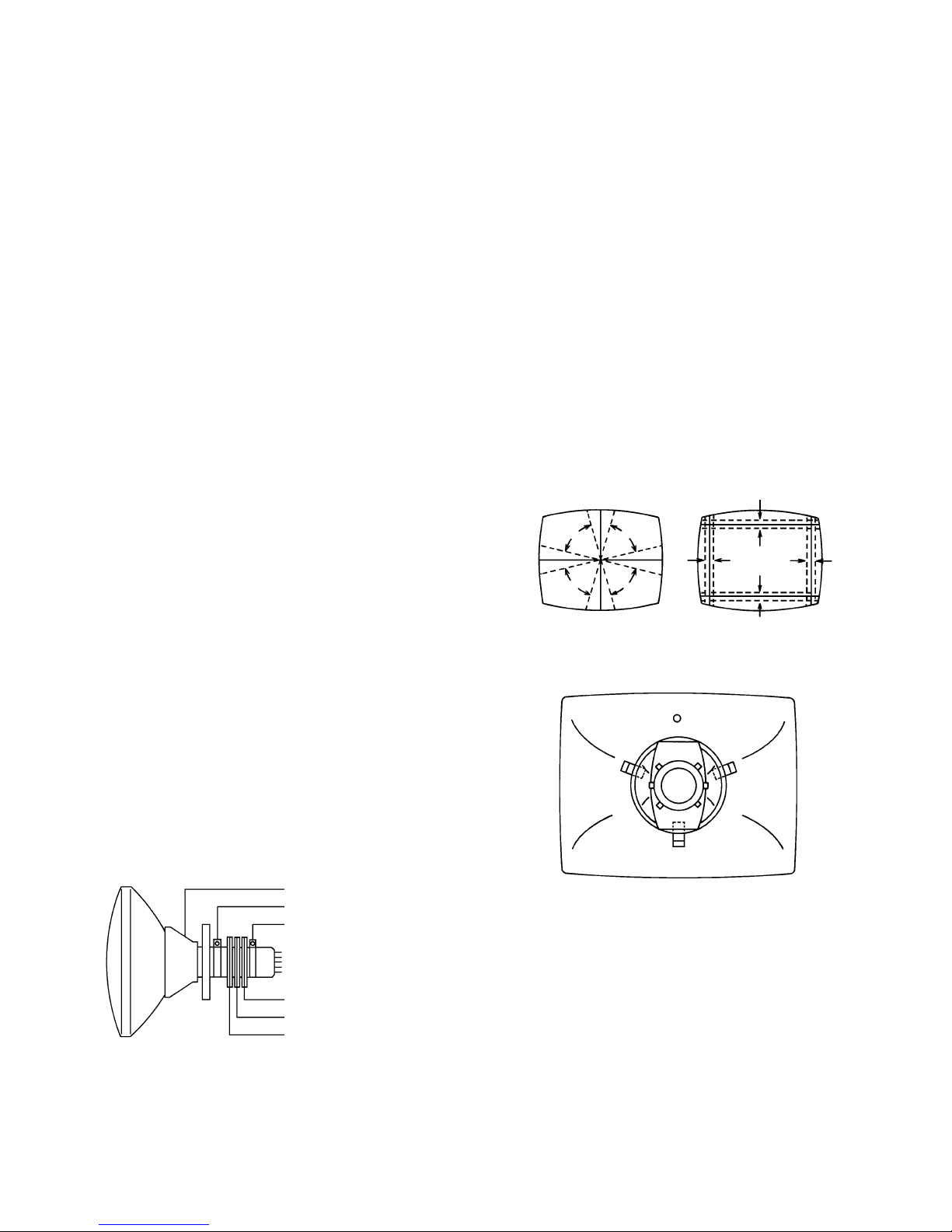

ELECTRICAL ADJUSTMENTS .......................................................................................................................

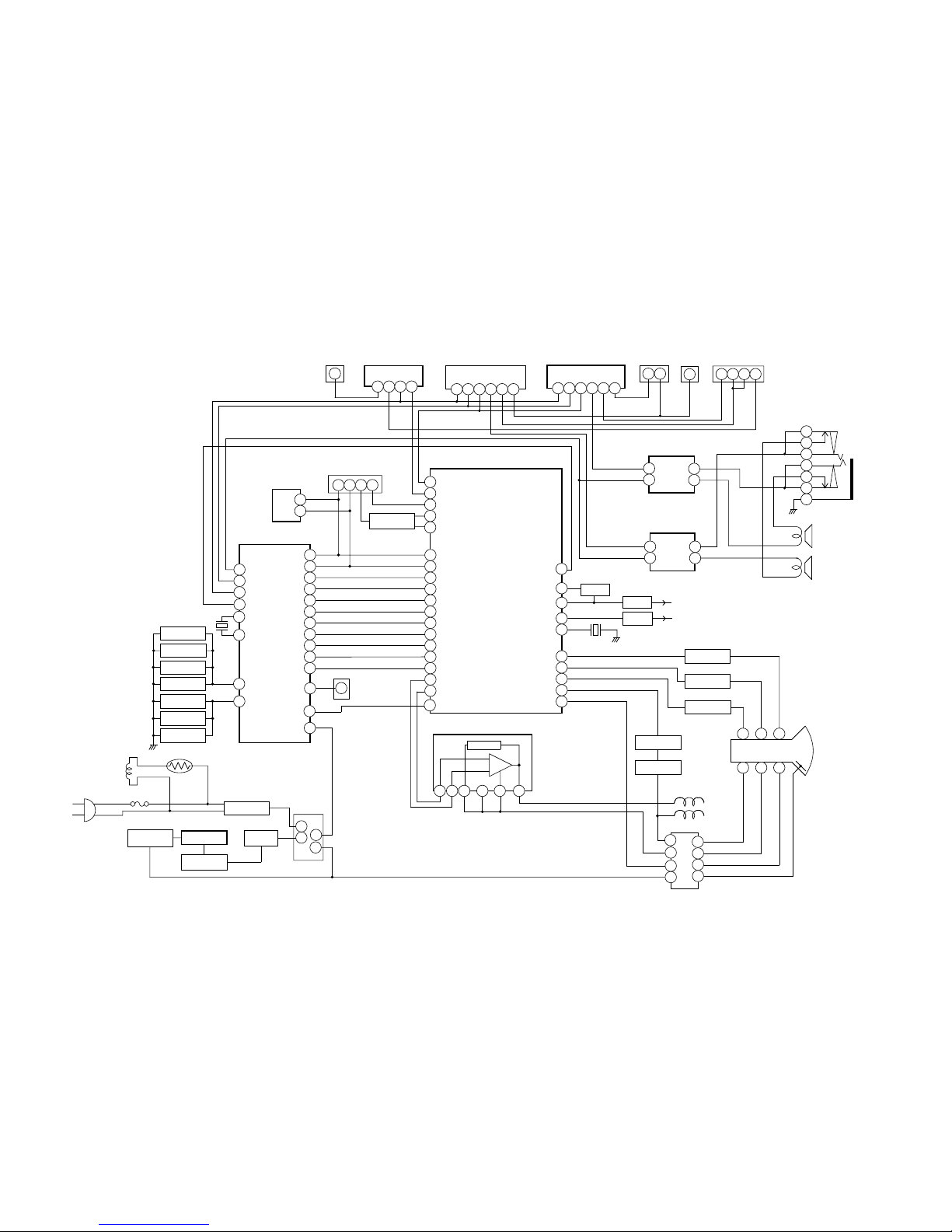

BLOCK DIAGRAM ...........................................................................................................................................

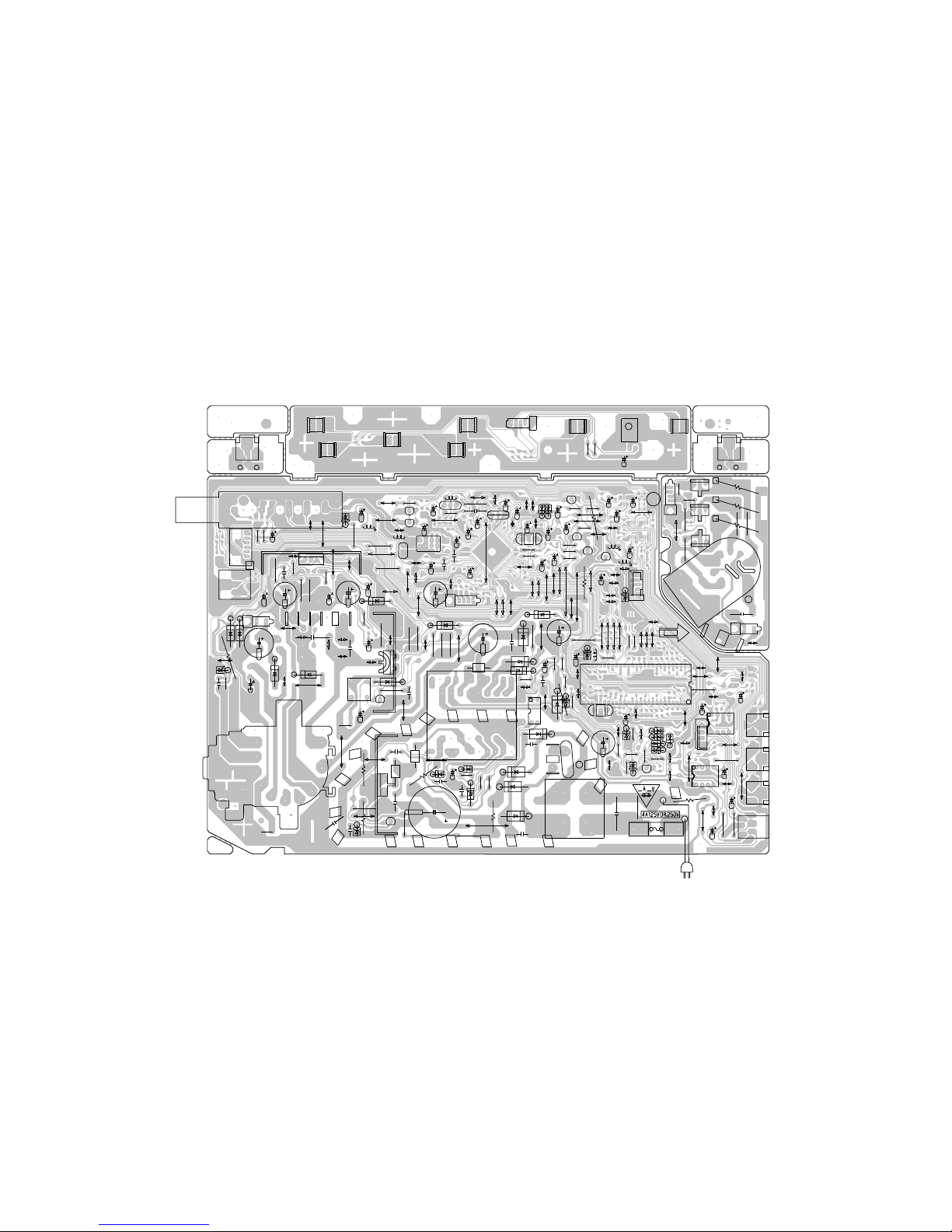

PRINTED CIRCUIT BOARDS
MAIN/CRT/OPERATION/FRONT JACK ......................................................................................................
SCHEMATIC DIAGRAMS
MICON/TUNER............................................................................................................................................
CHROMA .....................................................................................................................................................
TV POWER ..................................................................................................................................................
DEFLECTION/CRT ......................................................................................................................................
SOUND/AV ..................................................................................................................................................
WAVEFORMS ..................................................................................................................................................
MECHANICAL EXPLODED VIEW ...................................................................................................................
MECHANICAL REPLACEMENT PARTS LIST ...............................................................................................
ELECTRICAL REPLACEMENT PARTS LIST .................................................................................................
GENERAL SPECIFICATIONS
G-1 TV CRT CRT Size / Visual Size 19 inch / 480mmV
System CRT Type Normal
Deflection 90 degree
Magnetic Field BV/BH +0.45G/0.18G
Color System NTSC
Speaker 2Speaker
Position Ext
Size 3 Inch
Impedance 8 ohm
Sound Output MAX 0.5+0.5 W
10%(Typical) -- W
NTSC3.58+4.43 /PAL60Hz No
G-2 Tuning Broadcasting System US System M
System Tuner and System 1Tuner
Receive CH Destination USA(W/ CATV)
Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm
2 - 69, 4A, A-5 - A-1,
CH Coverage A - I, J - W, W+1 - W+84
Intermediate Picture(FP) 45.75MHz
Frequency Sound(FS) 41.25MHz
FP-FS 4.50MHz
Preset CH No
StereoTV Sound (Ext Audio Input Only) Yes
Tuner Sound Muting Yes
G-3 Power Power Source AC 120V AC 60Hz
DC
Power Consumption at AC 73 W at AC 120 V 60 Hz
Stand by (at AC) 5 W at AC 120 V 60 Hz
Per Year -- kWh/Year
Protector Power Fuse Yes
Safety Circuit Yes
IC Protector(Micro Fuse) No
G-4 Regulation Safety UL / CSA
Radiation FCC / IC
X-Radiation DHHS / HWC
G-5 Temperature Operation +
5
o
C
~ +4
0
o
C
Storage -2
0
o
C
~ +
60
o
C
G-6 Operating Humidity Less than 80% RH
G-7 On Screen Menu Yes
Display Menu Type Disney Charecter
Picture Yes
Contrast Yes
Brightness Yes
Color Yes
Tint Yes
Sharpness Yes
Reset Yes
Audio No
Bass No
Treble No
Balance No
BBE On/Off No
Stable Sound On/Off No
CH Set Up Yes
TV/CATV Yes
Auto CH Memory Yes
Add/ Delete Yes
Language Yes
V-chip Yes
CH Label No
Favorite CH No
Color Stream DVD/DTV No
CAPTION Yes
Control Level Yes
Sound Yes
Brightness Yes
Contrast Yes
- Color Yes
Tint Yes
Sharpness Yes
Tuning No
Bass No
Treble No
Balance No
Back Light No
A3-1
GENERAL SPECIFICATIONS
Stereo,Audio Output,SAP No
Video Yes
Color Stream No
Channel(TV/Cable) Yes
CH Label No
Sleep Timer Yes
Sound Mute Yes
V-chip Rating Yes
G-8 OSD Language English French Spanish
G-9 Clock and Sleep Timer Max Time 120 Min
Timer Step 10 Min
On/Off Timer Program(On Timer / Off Timer) No
Wake Up Timer No
Timer Back-up (at Power Off Mode) more than -- Min Sec
G-10 Remote Unit RC-JK
Control Glow in Dark Remocon No
Format NEC
Custom Code 86-05 h
Power Source Voltage(D.C) 3V
UM size x pcs UM-4 x 2 pcs
Total Keys 23 Keys
Keys Power Yes
1 Yes
2 Yes
3 Yes
4 Yes
5 Yes
6 Yes
7 Yes
8 Yes
9 Yes
0 Yes
100 No
CH Up Yes
CH Down Yes
Volume Up Yes
Volume Down Yes
TV/Caption/Text Yes
CH1/CH2 Yes
TV/Video(TV/AV) Yes
CH RTN/CH ENT(Quick View) Yes
Sleep Yes
RE Call(Call) Yes
Reset No
Menu Yes
Enter No
Mute Yes
Exit No
MTS(Audio Select) No
Set + No
Set - No
Multi Brand Keys CH Up(VCR) No
CH Down(VCR) No
Pause/Still No
TV/VCR(VCR) No
Code No
FF No
Rew No
Rec No
Play No
Stop No
TV No
VCR No
Cable No
G-11 Features Auto Degauss Yes
Auto Shut Off Yes
Canal+ No
CATV Yes
Anti-theft No
Rental No
Memory(Last CH) Yes
Memory(Last Volume) Yes
V-Chip Yes
Type USA,ORION Type
BBE No
Auto Search No
A3-2
GENERAL SPECIFICATIONS
CH Allocation No
StereoTV Sound (Ext Audio Input Only) Yes
Channel Lock No
Just Clock Function No
Game Position No
CH Label No
VM Circuit No
Full OSD No
Premiere No
Comb Filter No
Lines
Auto CH Memory Yes
Hotel Lock No
Closed Caption Yes
Stable Sound No
Energy Star No
Power On Memory Yes
Favorite CH No
G-12 Accessories Owner's Manual Language English Spanish French
w/Guarantee Card No
Remote Control Unit Yes
Rod Antenna No
Poles
Terminal
Loop Antenna No
Terminal -
U/V Mixer No
DC Car Cord (Center+) No
Guarantee Card Yes
Warning Sheet No
Circuit Diagram No
Antenna Change Plug No
Service Facility List No
Important Safeguard No
Dew/AHC Caution Sheet No
AC Plug Adapter No
Quick Set-up Sheet No
Battery No
UM size x pcs
OEM Brand No
AC Cord No
AV Cord (2Pin-1Pin) No
Registration Card No
PTB Sheet No
300 ohm to 75 ohm Antenna Adapter No
Safety Strap Yes
Disney Leaflet Yes
G-13 Interface Switch Front Power Yes
System Select No
Main Power SW No
Sub Power No
Channel Up Yes
Channel Down Yes
Volume Up Yes
Volume Down Yes
MENU Yes
TV/Video Yes
Rear AC/DC No
TV/CATV Selector No
Degauss No
Main Power SW No
Indicator Power No
Stand-by No
On Timer No
Terminals Front Video Input RCA x 1
Audio Input RCA x 2
Other Terminal Head Phone
Rear Video Input(Rear1) RCA x 1
Video Input(Rear2) No
Audio Input(Rear1) RCA x 2
Audio Input(Rear2) No
Video Output No
Audio Output No
Euro Scart No
Color Stream No
Diversity No
Ext Speaker Yes
A3-3
GENERAL SPECIFICATIONS
DC Jack 12V(Center +) No
VHF/UHF Antenna Input F Type
AC Outlet No
G-14 Set Size Approx. W x D x H (mm) 510.0 x 442.5 x 572
w/o Speaker,Legs Approx. W x D x H (mm) 510.0 x 442.5 x 488.5
G-15 Weight Net (Approx.) 17.4kg ( 38.3lbs)
Net w/o Speaker,Legs Approx. 17.0 kg ( 37.4lbs )
Gross (Approx.) 21.3kg ( 46.9lbs)
G-16 Carton Master Carton No
Content ---- Sets
Material -- /--
Dimensions W x D x H(mm) -- x -- x --
Description of Origin No
Gift Box Yes
Material Double / Full Color
Dimensions W x D x H(mm) 596 x 575 x 580
Design As per Buyer's
Description of Origin Yes
Drop Test Natural Dropping At 1 Corner / 3 Edges
/ 6 Surfaces
Height (cm) 46
Container Stuffing 316 Sets/40' container
G-17 Cabinet Material Cabinet Cabinet Front PS 94V0 DECABROM
Cabinet Rear PS 94V0 DECABROM
PCB Non-Halogen Demand No
Eyelet Demand No
G-18 Environment Pb Free Lead-free Solder No
Other No
Cd Free No
A3-4
1. REMOVAL OF ANODE CAP
Read the following NOTED items before starting work.
After turning the power off there might still be a potential
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.
Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.
REMOVAL
1. Follow the steps as follows to discharge the Anode Cap.
(Refer to Fig. 1-1.)
Connect one end of an Alligator Clip to the metal part of
a flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated screwdriver,
touch the support of the Anode with the tip of the
screwdriver.
A cracking noise will be heard as the voltage is discharged.
Flip up the sides of the Rubber Cap in the direction of the
arrow and remove one side of the support.
(Refer to Fig. 1-2.)
2.
GND on the CRT
Screwdriver
Alligator Clip
Support CRT
GND on the CRT
Rubber Cap
CRT Support
Fig. 1-2
3. After one side is removed, pull in the opposite direction to
remove the other.
NOTE
Take care not to damage the Rubber Cap.
INSTALLATION
1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 1-3.)
Location of Anode Cap
NOTE
Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.
2.
3.
Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 1-4.)
4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 1-5.
5.
6. Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.
CRT Support
DISASSEMBLY INSTRUCTIONS
Fig. 1-3
Fig. 1-4
Fig. 1-5
*
*
Fig. 1-1
B1-1
B2-1
Masking Tape
(Cotton Tape)
DISASSEMBLY INSTRUCTIONS
2.
REMOVAL
IC
Put the Masking Tape (cotton tape) around the Flat
Package IC to protect other parts from any damage.
(Refer to Fig. 2-1.)
1.
Fig. 2-1
NOTE
REMOVAL AND INSTALLATION OF
FLAT PACKAGE IC
Some ICs on the PCB are affixed with glue, so be
careful not to break or damage the foil of each IC
leads or solder lands under the IC when removing it.
NOTE
Masking is carried out on all the parts located within
10 mm distance from IC leads.
Blower type IC
desoldering machine
IC
Heat the IC leads using a blower type IC desoldering
machine. (Refer to Fig. 2-2.)
2.
Fig. 2-2
NOTE
Do not add the rotating and the back and forth
directions force on the IC, until IC can move back and
forth easily after desoldering the IC leads completely.
When IC starts moving back and forth easily after
desoldering completely, pickup the corner of the IC using
a tweezers and remove the IC by moving with the IC
desoldering machine. (Refer to Fig. 2-3.)
3.
Blower type IC
desoldering
machine
IC Fig. 2-3
Tweezers
Peel off the Masking Tape.4.
Absorb the solder left on the pattern using the Braided
Shield Wire. (Refer to Fig. 2-4.)
5.
NOTE
Do not move the Braided Shield Wire in the vertical
direction towards the IC pattern.
Braided Shield Wire
Soldering Iron
Fig. 2-4
IC pattern
B2-2
DISASSEMBLY INSTRUCTIONS
Supply soldering
from upper position
to lower position
IC
Supply the solder from the upper position of IC leads
sliding to the lower position of the IC leads.
(Refer to Fig. 2-6.)
2.
Fig. 2-6
Soldering IronSolder
IC
Absorb the solder left on the lead using the Braided
Shield Wire. (Refer to Fig. 2-7.)
3.
Fig. 2-7
Soldering Iron
Braided Shield Wire
NOTE
Do not absorb the solder to excess.
IC
When bridge-soldering between terminals and/or the
soldering amount are not enough, resolder using a Thin-
tip Soldering Iron. (Refer to Fig. 2-8.)
4.
Fig. 2-8
Thin-tip Soldering Iron
NOTE
When the IC leads are bent during soldering and/or
repairing, do not repair the bending of leads. If the
bending of leads are repaired, the pattern may be
damaged. So, be always sure to replace the IC in this
case.
Finally, confirm the soldering status on four sides of the
IC using a magnifying glass.
Confirm that no abnormality is found on the soldering
position and installation position of the parts around the
IC. If some abnormality is found, correct by resoldering.
5.
Solder temporarily
Soldering Iron
INSTALLATION
Take care of the polarity of new IC and then install the
new IC fitting on the printed circuit pattern. Then solder
each lead on the diagonal positions of IC temporarily.
(Refer to Fig. 2-5.)
1.
Fig. 2-5
Solder temporarily
SERVICE MODE LIST
This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter the Service Mode, press both set key and remote control key for more than 1 second.
Set Key Remocon Key Operations
VOL. (-) MIN 0Releasing of V-CHIP PASSWORD and LOCK PASSWORD.
VOL. (-) MIN 1 Initialization of the factory.
NOTE: Do not use this for the normal servicing.
If you set a factory initialization, the memories are reset such as the clock
setting, the channel setting, the POWER ON total hours, and PLAY/REC
total hours.
VOL. (-) MIN 6
POWER ON total hours is displayed on the screen.
Refer to the "CONFIRMATION OF HOURS USED".
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".
VOL. (-) MIN Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).
9
CONFIRMATION OF HOURS USED
POWER ON total hours can be checked on the screen. Total hours are displayed in 16 system of notation.
NOTE: If you set a factory initialization, the total hours is reset to "0".
1.
2.
3.
Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel
button (6) on the remote control for more than 1 second.
After the confirmation of using hours, turn off the power.
FIG. 1
Initial setting content of MEMORY IC.
POWER ON total hours.
= (16 x 16 x 16 x thousands digit value)
+ (16 x 16 x hundreds digit value)
+ (16 x tens digit value)
+ (ones digit value)
ADDRESS DATA
INIT 00 00
CRT ON 0010
WHEN REPLACING EEPROM (MEMORY) IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
00 60 99 93 1B B3 24 3B 09 00
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F
INI
00 07 05 80 A8 00 08
C-1
Table 1
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Enter DATA SET mode by setting VOLUME to minimum.
While holding down VOLUME button on front cabinet, press key 6 on remote control for more than 1 second.
ADDRESS and DATA should appear as FIG 1.
ADDRESS is now selected and should "blink". Using the VOL. +/- button on the remote, step through the ADDRESS until
required ADDRESS to be changed is reached.
Press ENTER to select DATA. When DATA is selected, it will "blink".
Again, step through the DATA using VOL. +/- button until required DATA value has been selected.
Pressing ENTER will take you back to ADDRESS for further selection if necessary.
Repeat steps 3 to 6 until all data has been checked.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
After the data input, set to the initializing of shipping.
Turn POWER on.
While holding down VOLUME button on front cabinet, press key 1 on remote control for more than 1 second.
After the finishing of the initializing of shipping, the unit will turn off automatically.
0210
ELECTRICAL ADJUSTMENTS
D-1
1.
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.
CAUTION
Use an isolation transformer when performing any service
on this chassis.
Before removing the anode cap, discharge electricity
because it contains high voltage.
When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
When you exchange IC and Transistor for a heat sink,
apply the silicon grease (YG6260M) on the contract
section of the heat sink, Before applying new silicon grease,
remove all the old silicon grease. (Old grease may cause
damages to the IC and Transistor.)
2. BASIC ADJUSTMENTSBEFORE MAKING ELECTRICAL
ADJUSTMENTS
1. Oscilloscope
2. Digital Voltmeter
3. Multi-sound Generator
4. Pattern Generator
Prepare the following measurement tools for electrical
adjustments.
•
•
•
•
On-Screen Display Adjustment
In the condition of NO indication on the screen.
Press the VOL. DOWN button on the set and the
Channel button (9) on the remote control for more than
1 second to appear the adjustment mode on the screen
as shown in Fig. 1-1.
1.
Fig. 1-1
Use the Channel UP/DOWN button or Channel button
(0-9) on the remote control to select the options shown
in Fig. 1-2.
Press the MENU button on the remote control to end
the adjustments.
2.
3.
FUNCTION
OSD H
RF.AGC
V.VCO
H.VCO
H.PHAS
V.SIZE
V.SHIFT
R.DRIVE
B.DRIVE
R.BIAS
G.BIAS
B.BIAS
BRIGHT CENT
BRIGHT MAX
BRIGHT MIN
NO.
00
02
03
04
05
06
07
08
09
10
11
12
13
14
15 Fig. 1-2
FUNCTION
CONTRAST CENT
CONTRAST MAX
CONTRAST MIN
COLOR CENT
COLOR MAX
COLOR MIN
TINT
SHARPNESS
FM LEVEL
TEST MONO
NO.
16
17
18
19
20
21
22
23
24
28
TV
00 OSD H 30
2-3: CUT OFF
1.
2.
3.
4.
Adjust the unit to the following settings.
R.DRIVE=10, B.DRIVE=10, R.BIAS=64, G.BIAS=64,
B.BIAS=64, BRI CENT=115, CONT MAX=65.
Place the set with Aging Test for more than 15 minutes.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (01) on the remote control to
select "CUT OFF".
Adjust the Screen Volume until a dim raster is obtained.
2-4: FOCUS
1.
2.
3.
Receive the monoscope pattern.
Turn the Focus Volume fully counterclockwise once.
Adjust the Focus Volume until picture is distinct.
2-5: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.
Place the set with Aging Test for more than 15 minutes.
Receive the white 100% signal from the Pattern
Generator.
Using the adjustment control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (10) on the remote control to
select "R. BIAS".
Press the CH. UP/DOWN button on the remote control to
select the "R. BIAS", "G. BIAS", "B. BIAS", R. DRIVE or
"B. DRIVE".
Adjust the VOL. UP/DOWN button on the remote control
to whiten the R. BIAS, G. BIAS, B. BIAS, R. DRIVE, and
B. DRIVE at each step tone sections equally.
Perform the above adjustments 6 and 7 until the white
color is looked like a white.
1.
2.
3.
4.
5.
6.
7.
2-1: VIF VCO
1.
2.
3.
4.
5.
Place the set with Aging Test for more than 10 minutes.
Receive an 80dB monoscope pattern.
Connect the digital voltmeter between the pin 5 of
CP601 and the GND.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (03) on the remote control to
select "V. VCO".
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.5V.
2-2: RF AGC DELAY
Place the set with Aging Test for more than 15 minutes.
Receive an 63dB monoscope pattern.
Connect the digital voltmeter to TP001 or pin 5 of CP601.
Activate the adjustment mode display of Fig. 1-1 and press
the channel button (02) on the remote control to
select "RF AGC".
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.5V ±0.05V.
1.
2.
3.
4.
5.
ELECTRICAL ADJUSTMENTS
D-2
2-6: SUB TINT/SUB COLOR
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Receive the color bar pattern. (RF Input)
Connect the oscilloscope to pin 6 of CP601 or TP023.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (22) on the remote control to
select "TINT".
Press the VOL. UP/DOWN button on the remote control
until the section "A" becomes as straight line.
(Refer to Fig. 2-1)
Connect the oscilloscope to pin 7 of CP601 or TP022.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (19) on the remote control to
select "COL.CENT".
Adjust the VOLTS RANGE VARIABLE knob of the
oscilloscope until the range between white 100% and
0% is set to 4 scales
Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 120% ±10% of the
white level. (Refer to Fig. 2-2)
Receive the color bar pattern. (Audio Video Input)
Press the AV button on the remote control to set the AV
mode. Then perform the above adjustments 2~8.
Fig. 2-1
"A"
Fig. 2-2
100%
Red 120%
2-7: HORIZONTAL PHASE
1.
2.
3.
4.
Receive the monoscope pattern.
Using the adjustment control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (05) on the remote control to
select "H.PHAS".
Press the VOL. UP/DOWN button on the remote
control until the SHIFT quantity of the OVER SCAN
on right and left becomes minimum.
2-8: VERTICAL SHIFT
1.
2.
3.
Receive the monoscope pattern.
Activate the adjustment mode display of Fig. 1-1
and press the channel button (07) on the remote
control to select "V.SFT".
Press the VOL. UP/DOWN button on the remote
control until the horizontal line becomes fit to the
notch of the shadow mask.
2-9: VERTICAL SIZE
1.
2.
3.
4.
5.
Receive the monoscope pattern.
Using the adjustment control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (06) on the remote control to
select "V.SIZE".
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on upside
and downside becomes 10 ±2%.
Receive a broadcast and check if the picture is normal.
Receive the monoscope pattern.
Using the adjustment control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (13) on the remote control to
select "BRI.CENT".
Press the VOL. UP/DOWN button on the remote control
until the white 10% is starting to be visible.
Receive a broadcast and check if the picture is normal.
Press the TV/AV button on the remote to set to the
AV mode. Then perform the above adjustment 1~5.
2-11: SUB BRIGHTNESS
2-10: OSD HORIZONTAL
1.
2. Activate the adjustment mode display of Fig. 1-1.
Press the VOL. UP/DOWN button on the remote
control until the difference of A and B becomes
minimum. (Refer to Fig. 2-5)
BA
TV
00 OSD H 30
Fig. 2-5
1.
2.
3.
4.
5.
6.
ELECTRICAL ADJUSTMENTS
D-3
NO.
04
14
15
16
18
20
21
23
24
28
RF
03
150
50
34
17
70
00
45
107
00
2-12: SUB CONTRAST
1.
2.
3.
4.
5.
6.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select "CONT MAX".
Press the VOL. UP/DOWN button on the remote
control until the contrast step No. becomes "80".
Receive a broadcast and check if the picture is normal.
Press the TV/VIDEO button on the remote control to set
to the AV mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select "CONT MAX".
Press the VOL. UP/DOWN button on the remote
control until the contrast step No. becomes "84".
Please check if the fixed values of the each adjustment
items are set correctly referring below.
2-13: Confirmation of Fixed Value (step No.)
FUNCTION
H VCO
BRIGHT MAX
BRIGHT MIN
CONT CENT
CONT MIN
COLOR MAX
COLOR MIN
SHARPNESS
FM LEVEL
TEST MONO
AV
---
150
50
34
17
70
00
---
---
---
ELECTRICAL ADJUSTMENTS
D-4
3.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
8.
3-2: PURITY
NOTE
Adjust after performing adjustments in section 3-1.
1.
2.
3.
4.
5.
Receive the green raster pattern from color bar
generator.
Adjust the pair of purity magnets to center the
color on the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.
Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole
screen is green.
Confirm red and blue colors.
Adjust the slant of the deflection yoke while watching the
screen, then tighten the fixing screw.
DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW
PURITY MAGNETS
6 POLE MAGNETS
4 POLE MAGNETS
Fig. 3-1
PURITY AND CONVERGENCE
ADJUSTMENTS
NOTE
3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)
Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
Receive the green raster pattern from the color bar
generator.
Slide the deflection yoke until it touches the funnel
side of the CRT.
Adjust center of screen to green, with red and blue on the
sides, using the pair of purity magnets.
Switch the color bar generator from the green raster
pattern to the crosshatch pattern.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of
4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
Adjust the crosshatch pattern to change to white
by repeating steps 6 and 7.
Turn the unit on and let it warm up for at least 30
minutes before performing the following adjustments.
Place the CRT surface facing east or west to reduce the
terrestrial magnetism.
Turn ON the unit and demagnetize with a Degauss Coil.
3-3: STATIC CONVERGENCE
1.
2.
3.
3-4: DYNAMIC CONVERGENCE
Adjust after performing adjustments in section 3-3.
1.
2.
Adjust the differences around the screen by moving
the deflection yoke upward/downward and right/left.
(Refer to Fig. 3-2-a)
Insert three wedges between the deflection yoke
and
CRT funnel to fix the deflection yoke.
(Refer to Fig. 3-2-b)
R G B
R
G
B
Fig. 3-2-a
WEDGE WEDGE
WEDGE
WEDGE POSITION
Fig. 3-2-b
R G B
R
G
B
Receive the crosshatch pattern from the color bar
generator.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of
4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT
Adjust after performing adjustments in section 3-2.
NOTE
NOTE
ELECTRICAL ADJUSTMENTS

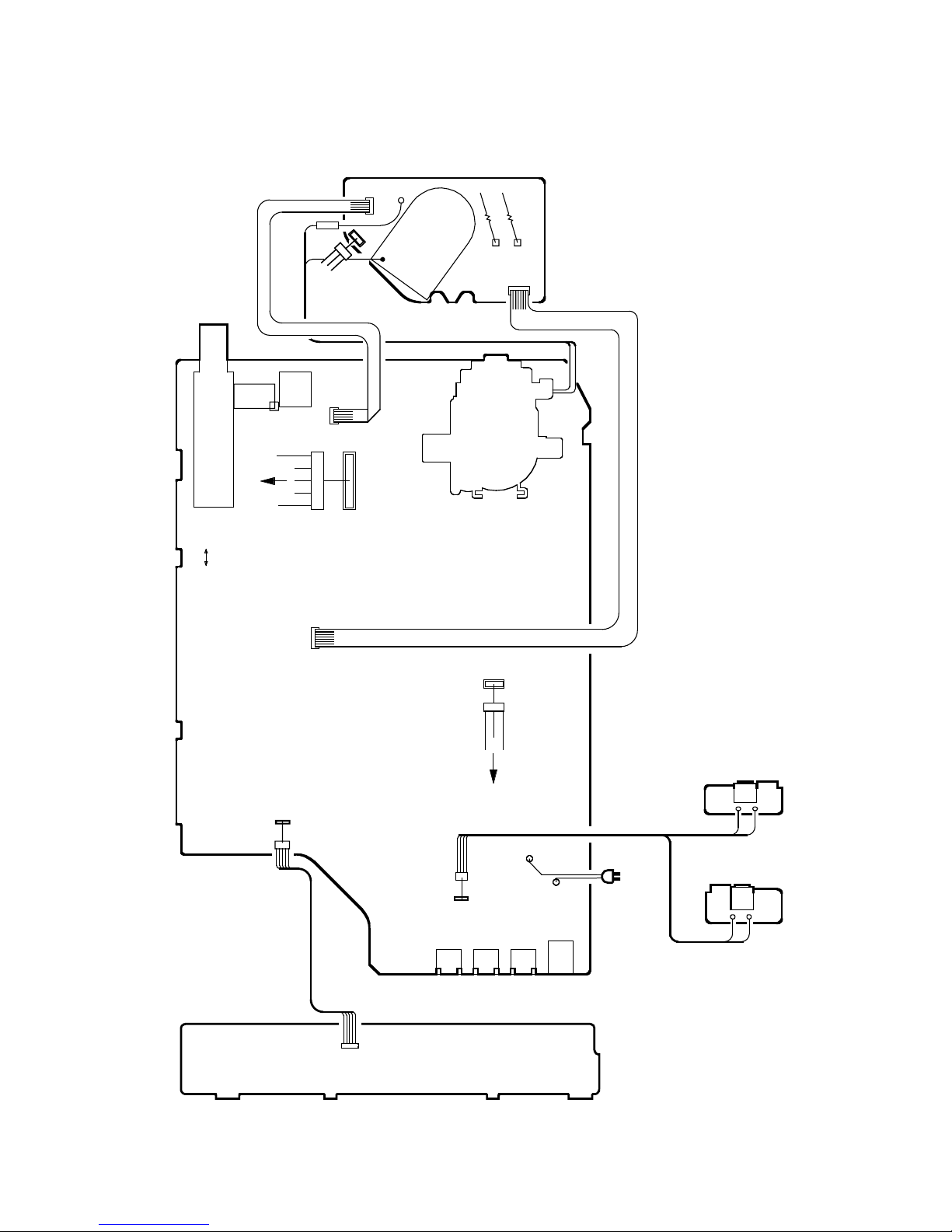

4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)
J801
CP806
CP803B
CP802B
FB401
TU001
CP601 J704
CP803A
TP001
CP802A
J701 J702 J703 J1001
S501B
S501A
AC IN
CRT DY
CP401
MAIN PCB
CP502
L503
DEGAUSS COIL
CRT PCB
CD803
CD802
CD2001
CP101
OPERATION PCB
J1151
S1152 S1153
J1150
S1150 S1151
CP1001
FRONT JACK PCB
FRONT JACK PCB
D-5
TP023
R807
R803
TP022
CP801
CRT
CD801
CHROMA IC
IC601 M61250BFP
MICON IC
IC101 OEC7108A
BLOCK DIAGRAM
38 EXT C IN
RF AGC OUT
FB401
FBT
9
397
RGB
15
14
Q801
RED OUT
Q802
GREEN OUT
Q803
BLUE OUT
R OUT
G OUT 16
B OUT
CRT
V801
Heater F8
4
10
HV
F
S
1
DY
PUMP UP
AMP
+
-
52
3
V-OUT IC
IC401
AN5522
6
7
1VCC
59
64
63
CF601
SAW FILTER VIF IN(1)
VIF IN(2)
TU001
51
SCL
26 SDA
27
37
SDA1 39
SCL1
114
MEMORY IC
IC199
S-24C02BFJ-TB
5SDA
6SCL
24 FAST BLK
52RED R 51
GREEN G
19
20
INV FBP OUT
V PULSE OUT
2V. SYNC
1
H. SYNC
50
BLUE B
G IN
23 R IN
B IN
49
BLANK
22
21
33POWER 28 POWER ON CONT
Q402
H. DRIVE
Q401
H. OUTPUT
H OUT 11
3
2
FBP IN 10
5V OUT
V RAMP FEEDBACK
MCU RESET
30RESET 30
Y SW OUT
22CVIN 31
REMOCON 15
OS2001
1
POWER
LINE
KEY1
8
CH UP
VOL DOWN
CH DOWN
MENU
VOL UP KEY29
X602
3.579545MHz
34
X' TAL
AC IN
F501
9
6
T501
L503
DEGAUSS COIL
TH501
14
18
RECTIFIER
FEED BACK
SW.
Q507
BUFFER
Q502
FET
Q501
IC501
PS2561AL1-1-V(W)
FEED BACK
D501~D504
AV2
44
51 AUDIO OUT
2
42
VIDEO SW IC
IC703 MM1501XNRE
612 4 13
57241
TUNER/AV1/AV2 Rch SW IC
IC702 NJM2534V(TE2)
3
57
J701
SOUND AMP IC(Rch) IC
IC1001 AN7513
8
6
2
4
2 3
J704
2
J703
32
J702
4 6
VOLUME
46
32
AT5.7V REG OUT REG
Q603 AT+5V
8.7V REG OUT 47
Q606
REG Q601
REG SW+8V
SOUND AMP IC(Lch) IC
IC1002 AN7513
2
48
6
SP1002
SP1001
2
6
3
4J1001
1
5
7
TUNER/AV1/AV2 Lch SW IC
IC701 NJM2534V(TE2)
E-1 E-2
X101
8MHz
AV1
43
Xout
24
Xin
25
AFT
6
44
HI VCC
2
AFT OUT
6
18 INTELLIGENT MONI
4
P.FAIL
5
SYNC
J1001
CP1001
IC1002
IC1001
J703
J702
J701
R1009
R1008
R500
F501
S501B
W018
W016
C1007
W010
C1005
R1002
W011
W017
W012
C1003
W006
W015
W803
C505
R503
FH501
FH502
CP502
CP501
D503
C503
D501
D504
C502
C526_1
HS501
Q501 R542
C506
R510
Q502
D509
B501 B502
R506
R520
D508
R509
C511
IC501
D512
R528
D506
C437
CP401
IC401
HS401
W074
R403
C406
C443
R421
D404
CP803A
D410
D408
C448
D405
C403
D411
C434
R410
R415
R416
C422
C418
C414
D403
W002
R424
R418 C417
C427
R422
W069
W070
W071
W079
R427
C446
R446
Q402
R449
R448
C519
R001
R445_1
R002
D605
D505
C518
B504
R517_1
C521
D510
W073
R526
D515
R502
C515
D516
R511
C516
R505
D406
Q507
D522
D514
R512
D511
R518
R513
R519
D528
R507
D517
W045
R408
D412
R409
R401
C501
T401
C514_1
C509
FB401
C517_1
C510
W808
W078
W810
W044
W080
R516
TU001
J704
C003
TP001
C002
D001
W077
C612
C635
R608
D601
R620
R623
R632
C619_1
R616
CF604
L607
R629
Q605
C628
C630
Q604
R606
CF601
X602
C625
D602
C605
C634
CF603
C604
C632
W065
C613
C603
R635
R648
W048
C645
W059
L601
R613
C624
Q603
C601_1
CP802A
W037
W034
W033
W036
Q606
W051
R145
R144
W049
IC101
W022
W061
Q610
W042
W038
W041
R604
W021
Q601
W003
CP101
W007
W008
W009
W005
W039
W029
W031
W025
W026
W027
W028
W019
R108
R107
W032
R447
W035
L101
C118
W030
C115
R111
C122
W014
W043
X101
L701
L702 C710
W020
W023
C647
W040
R626
W058
W024
R110
W062
W046
C627
R1003
CC001
L001
W055
W063
R641
W050
J1150
S1150 S1151
S1152 S1153
J1151
SW2001
OS2001
SW2005
SW2002
SW2003
SW2004
SW2006
SW2007
CD2001
C2001
R2009
R2008
J801
CP803B
CP806
CP802B
R807_1
R803_1
R811 R806
R802
R804
CP801_1
TP023
TP022
TP024
R814
C819
D104
D103
W908
W054
C1013
C1014
C440
C629_1
C638
D513
R429_1
W081
W082
CP601 C435
CF602
Q803_1
Q802_1
Q801_1
R805_1
R809
W013
S501A
C637
W047
W001
HS402
W052
D409
W072
W068
R423
W066
W075
Q401
C716_1
C715_1
C714
TH501
R501
R514
W083
T502_2
D502
W057
R508
W060 W084
W064
W053
W814
W898
W817
W820
R624
W811
W816
W815
W818
W821
W809
W843
W909
CD501
L501_1
R450_1
CD802A
CD802B
CD803A
CD803B
C527
D507
TEDB73A
TEDB74A
TEDB72A
TCD468A
TMD615A
PRINTED CIRCUIT BOARDS
MAIN/CRT/OPERATION/FRONT JACK (INSERTED PARTS)
SOLDER SIDE
F-1 F-2
RISK OF FIRE - REPLACE AS MARKED.
17
33
49
1
R701
R703
R705
R702
R704
R1005 R1011
C1008
R1006
C1004
R1004
R1010
R1001
R420
R419
R417
C513
R004
R005
R003
R709
R708
R707
C001
C004
IC701 IC702
R614
R619
R625
R617
R631
R627
R630
R642
R638
C616
R639
R615
R622
R612
C602
R646
C622_1
R633
R609
C606
C623
C618
C626
C621
C607
R605
R601
C639
IC601
C655
Q611
Q609
R131 R133
C120
IC199
R123
R122
R121
R120
R153 R151
R118
R152
R102
R103
R104
R124
R150
R116
R132
R105
R106
R149
C136
C139
C141
C101
R127
C119
C114
C113
R125 C138
R134
R129
C124
C102
C103
R138 C121
R130
R135
R136
R148
R147
R140
C140
R139
C711
C707
C712
C709
C705
C713
C706
C708
C008
R706
R602
R628
R2003
R2004
R2005
R2006
R2007
R2001
R2002
R816
R813
R815
C810
C808
C809
C631
C640
C1015
C1016
C1150
C1151
R711
R712
R141
R142
R143
R716
R717
R715
R713
R714
IC703
PRINTED CIRCUIT BOARDS
MAIN/CRT/OPERATION/FRONT JACK (CHIP MOUNTED PARTS)
SOLDER SIDE
F-3 F-4
TEDB74A
TEDB72A
TEDB73A
TMD615A
TCD468A
ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
X101
100CT8R005
8MHz
C102
27P CH
C103
27P CH
C138
560P B
C124
0.01 B
C008
68P CH
C114
12P CH
C113
12P CH
C120
0.001 CH
C136
0.1 F
C139
0.1 F
C141
0.1 F
C101
0.001 B
C004 0.022 F
C140
0.001 CH
C119
0.1 F
C121 220P CH
C001 0.1 F
C003
4.750V KA
C115
1050V KA
C2001
1025V KA
C122 150V KA
C002 4706.3V YK
R107
100 1/4W
R108
100 1/4W
R143
100
R141
100
R142
100
R135
4.7K
R134
470
R129
1M
R116
47K
R132
47K
R127
2.7K
R123
4.7K
R122
4.7K
R121
4.7K
R120
4.7K
R004
100K
R003
270
R005
270
R139 100
R102
680
R103
680
R104
680
R124
4.7K
R001
12K 1/2W
R002
12K 1/2W
R110
1K 1/4W
R131
4.7K
R133
4.7K
R136
4.7K
R130 1K
R138
4.7K
R140 4.7K
R147 4.7K
R148 4.7K
R144
100 1/4W
R145
100 1/4W
R149
4.7K
R150
4.7K
R151
4.7K
R2001
2.2K
R2003
560
R2002
2.2K
R2009
47 1/4W
R2008
47K
1/4W
R2007
1K
R2006
560
R2005
1.8K
R2004
1K
R125
47K
R111
47K 1/4W
R106 4.7K
R105 4.7K
R153
47K
R118
47K
R152
47K
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DANS LA NOMENCLATURE DES PIECES
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
:LES PIECES REPAREES PAR UN ETANT
ATTENTION :SINCE THESE PARTS MARKED BY
CAUTION
DESCRIBED IN PARTS LIST ONLY
CRITICAL FOR SAFETY,USE ONES
ARE
D001 MTZJ33B
D104
MTZJ5.6B
D103
MTZJ5.6B
W814
TP001
L101
3.3uH
L001
47uH 0305
SW2001
EVQ21505R
POWER
SW2007
EVQ21505R
LINE
SW2006
EVQ21505R
CH UP
SW2003
EVQ21505R
MENU
SW2002
EVQ21505R
VOL DOWN
SW2005
EVQ21505R
VOL UP
SW2004
EVQ21505R
CH DOWN
TU001 TECC1040PG38W
1
10
11
12 13
14 15
2
3
4
5
6
7
8
9
C118
3306.3V YK
IC199
S-24C02BFJ-TB
MEMORY IC
1234
5678
DEFLECTION SIGNAL
B.SIGNAL
G.SIGNAL
R.SIGNAL
TUNER VIDEO SIGNAL
CD2001
CU251801
1
2
3
4
5
CP101
A2001WV2-5P
1
2
3
4
5
TM101
RC-JK010
IC101 OEC7108AMICON IC
110111213141516171819 220212223242526
27 28 29
3
30 31 32 33 34 35 36 37 38 39
4
40 41 42 43 44 45 46 47 48 49
5
50 51 52
6789
GND
B+
Vout
OS2001
PIC-37143TH5
1
2
3
AT+5V
REMOCON REMOCON
KEY2 KEY2
KEY1 KEY1
GND
GND
IF
TUNER+5V
AGC
+B
POWER_FAIL
SCL_TP
SDA_TP
+B
X-RAY
OSD_R HD
OSD_G VD
OSD_B
OSD_BLK
SYNC
VOLUME AFT
AV2
AV1
POWER Y_VIDEO
SCL
SDA
I2C_OFF
AT+5V
POWER
PROTECT_H
H_CTL
RESET
G-2G-1
PCB010
TMD615
FROM CHROMA
NC
FROM/TO CHROMA
TO SOUND/AV
FROM/TO CHROMA
FROM/TO DEFLECTION/CRT
FROM TV POWER
MICON/TUNER SCHEMATIC DIAGRAM
(MAIN PCB)
I2C_OFF
RED R
GREEN G
BLUE B
BLANK
DEGAUSS
H.SYNC
V.SYNC
P.FAIL
SYNC
STANDBY_H
KEY1
KEY2
X-RAY
AV2
AV1
EXT MUTE
AUDIO MUTE
NC
SDA1
REMOCON
NC
X-RAY_TEST
POWER
PROTECT_H
H_CTL
RESET
V.HOLD
CVIN
CNVSS
Xin
Xout
VSSVCC
OSC1
OSC2
1
NC
NC
AFT
NC
NC
NC
NC
NC
NC
NC
HLF
NC
4.8
0000
4.904.8
VSS
E2
E1
E0 VCC
MODE
SCL
SDA
IF
BTL
BPL
V.S
SDA
SCL
ADRES
AGC
4.6
1.3
6.2
4.8
4.8
4.9
0
0
0
30.0
VOLUME
NC
NC
NCSCL1
NC
ACCESSORY
NC
AT+5V
KEY2
KEY1
GND
REMOCON
AT+5V
KEY2
REMOCON
KEY1
GND
OPE
NC
NC
4.8
4.8
4.7
4.9
0
0
0
0
0
0
2.4
0
0
0
4.9
0
5.0
0
0
0
4.9
4.9
4.9
2.7
2.7
4.8
4.0
4.8
0
4.9
2.1
0
2.8
2.1
5.0
4.9
0
0
0
0
4.5
0
0
0
0
0
2.1
2.0
0
0.3
2.5
3
4
TEDB72
NC
NC
NC
NC
NC
Other manuals for DT1900-C
1
Table of contents
Other Disney TV Receiver manuals
