Purpose and Scope

Please read User Manual prior to installation or operation of MoonBeamTM3 UV-C Disinfection device. This manual contains critical

information to allow for the safe and eective setup, use and maintenance of this device.

MoonBeam3 UV-C Disinfection devices require occasional maintenance and replacement of parts. Instructions for the performance,

maintenance and replacement operations are included in this manual.

Failure to adhere to the instructions and procedures in this User Manual may result in damage to the device and void the warranty.

Contact Information

For technical assistance with the MoonBeam3 Disinfection Technology, call Technical Support at the following numbers:

U.S. and Canada:

Customer Service: 800-668-7171

Tech Support: 800-558-2332

Emergency Number: 800-851-7154

In the U.S. and Canada, Technical Support is available weekdays from 8:00 AM to 5:00 PM EST (U.S. holidays excluded).

Website: www.sdfhc.com

General product information can also be requested by sending an email to:

Email: www.sdfhc.com/contact-us

Please include postal mailing address and telephone number in email message. Basic product information is returned via email unless

otherwise requested.

MoonBeamTM3

User's Manual

Warnings, Precautions and Limitations for Use

Cautions and Warnings

Cautions alert you to actions or situations that could cause harm to equipment. For example:

PRECAUTION: The product must be used in accordance with this User’s Manual.

Warnings alert you to actions or situations that could result in personal injury. For example:

WARNING: Ultraviolet bulbs contain mercury and therefore must be properly disposed of as a hazardous waste in accordance

with local, state and federal regulations or the lamps should be recycled.

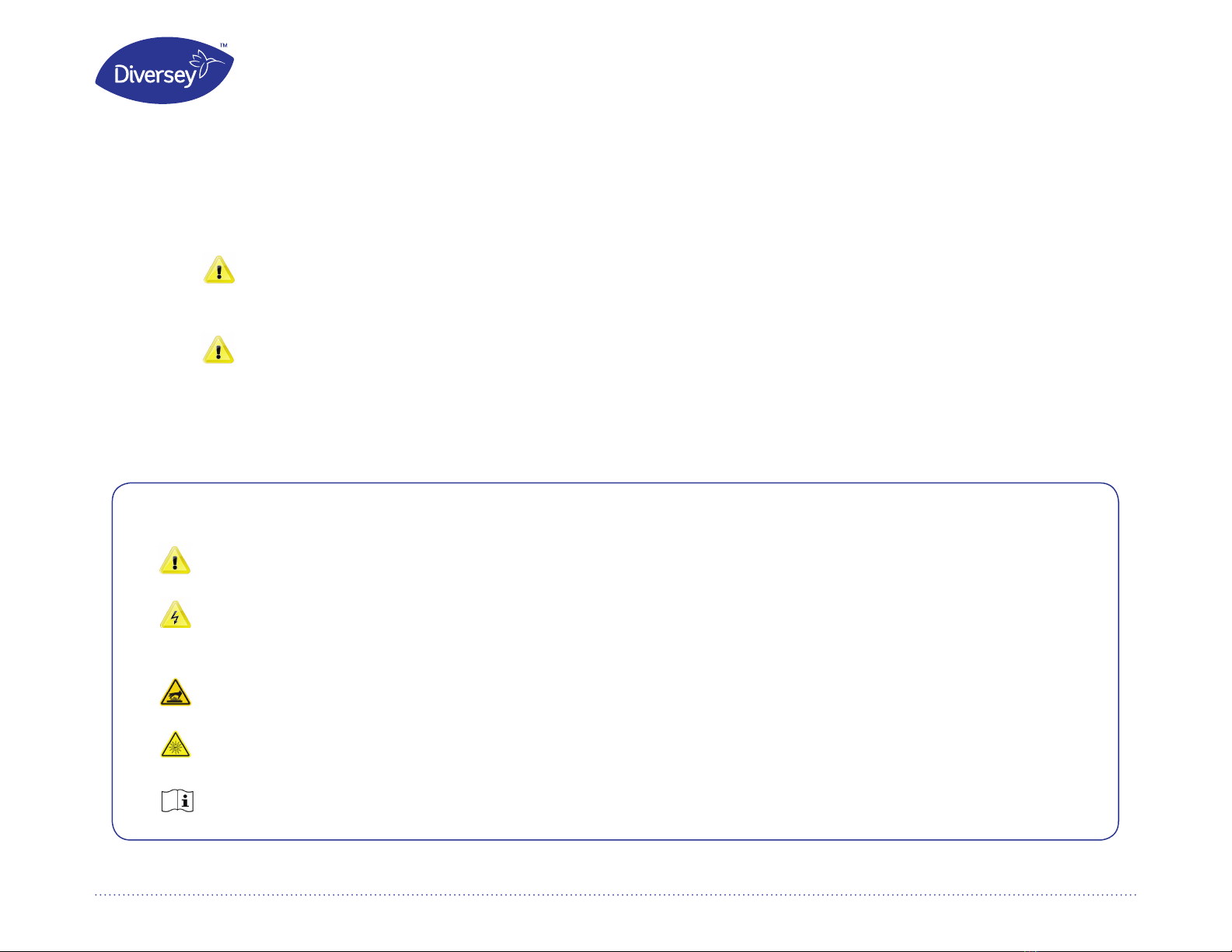

Warnings and Precaution Symbols

Legend:

Alerts the user to the presence of important operating and maintenance instructions in the literature accompanying the device.

Alerts the user to the presence of uninsulated “dangerous voltage” within the device’s enclosure that may be of sucient magnitude to

constitute a risk of electrical shock.

Alerts the user to the presence of components that may reach high temperatures that may be of sucient temperature to cause a burn.

Alerts the user to the presence of ultraviolet light.

Alerts the user to refer to the User's Manual.

MoonBeamTM3

User's Manual

Post-Disinfection Warnings

WARNING: The MoonBeam3 is intended to disinfect hard, non-porous surfaces and high-touch surfaces. The subsequent utilization of the

surfaces disinfected by the MoonBeam3 is the sole responsibility of the user.

Ultraviolet Light Bulb Warnings and Precautions

WARNING: Non-protected eyes or skin should never be exposed directly to UV-C.

WARNING: Ultraviolet bulbs contain mercury and therefore, must be properly disposed of as a hazardous waste in accordance with all

applicable laws and regulations in eect at the locality or the lamps should be recycled.

WARNING: Take precaution with broken UV-C bulbs to avoid inhalation, ingestion or contact with skin or eyes. See Chapter 4 for information

about Procedures for Disposal of Bulbs and Special Handling Information for Broken Bulbs.

Safety Warnings and Precautions

WARNING: Do not intentionally bypass any of the safety precautions built into the device. Failure to comply may result in exposing skin to

UV-C. Prolonged skin exposure may generate redness and an uncomfortable sunburn sensation.

WARNING: The MoonBeam3 should not be operated by children.

Label on UV-C Heads Indicating High-Temperatures Surfaces

WARNING: High Temperature – UV-C bulbs and assembly may develop high temperatures. The UV-C bulb reﬂector heads can reach high

temperatures during operation, but cool quickly upon completion of a disinfection cycle. If UV-C bulb reﬂector heads must be handled

immediately after a disinfection cycle, the user should handle them by holding the rubberized end cap or foam heat tape.

MoonBeamTM3

User's Manual

WARNING: All assembly, adjustment, modiﬁcation, maintenance and/or repair should be performed by qualiﬁed personnel authorized

by Diversey, Inc.

WARNING: Only MoonBeam3 approved replacement parts should be used when maintaining the device.

WARNING: Do not remove any warnings, cautions or descriptive labeling from the MoonBeam3.

WARNING: Do not cover, paint or block any of the motion or proximity sensors.

WARNING: Take care when collapsing the disinfecting heads or replacing the Remote Cover on the Base Unit to avoid ﬁnger pinching.

PRECAUTION: The product must be used in accordance with this User’s Manual.

PRECAUTION: Ensure that the Remote Cover is completely screwed onto the Base Unit prior to picking up MoonBeam3.

PRECAUTION: Avoid spilling ﬂuids on any part of the MoonBeam3.

PRECAUTION: If spills do occur, immediately disconnect MoonBeam3 from the power source and contact Technical Support for

guidance on cleaning the MoonBeam3.

WARNING: This device is intended for use on pre-cleaned, non-porous, hard surfaces and is not intended as a replacement for liquid

chemical disinfectants, sanitizers or sterilizers. See intended use under Indications for Use section.

PRECAUTION: Do not use any attachments not recommended by Diversey, Inc.

MoonBeamTM3

User's Manual

WARNING: Equipment is not to be used as a component of a life support system. Life support devices or systems are devices or systems

that support or sustain life and whose failure to perform can be reasonably expected to result in a signiﬁcant injury or death to a person.

A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or system or to aect its safety and eectiveness.

PRECAUTION: Firmly grasp the handles of the MoonBeam3 while rolling it.

Voltage Warnings and Precautions

No user-serviceable parts inside. Servicing to be performed by factory-authorized personnel only. Removal of labels, covers or encasement

fasteners voids the warranty.

WARNING: The power cord connected to the MoonBeam3 is the main disconnect for the system.

PRECAUTION: When positioning MoonBeam3 to ensure that the connection to the AC mains (wall outlet) is not obstructed, so that

disconnection is not blocked in the case of emergency.

WARNING: Disconnect the power cord from the wall outlet before servicing to avoid the possibility of electric shock.

WARNING: The MoonBeam3 must be connected to a grounded electrical outlet to maintain grounding reliability.

PRECAUTION: The electrical installation of the room in which MoonBeam3 will be operated must comply with the local electrical

wiring standards.

MoonBeamTM3

User's Manual

PRECAUTION: Never operate MoonBeam3 if it has a damaged power cord, power supply or plug. If the power cord, power supply or

plug is worn or damaged, contact Diversey, Inc.

WARNING: Any power extension cord used with MoonBeam3 must include a safety ground, meet ratings for the device and meet

all pertinent regional and local safety codes.

WARNING: Failure to use a correctly rated fuse (see Maintenance section), may prevent the system from protecting the operator.

Fuses are not covered under warranty.

WARNING: Explosion Hazard – Do not operate the MoonBeam3 in the presence of ﬂammable vapors.

WARNING: To prevent ﬁre or shock hazard, do not expose this device to rain or moisture.

WARNING: Always power o the system before cleaning. An electrical shock could occur if the system is powered on and liquid is

spilled into it.

Location Warnings and Precautions

PRECAUTION: When unpacking the MoonBeam3, hold under the front and rear of the system. Do not lift the system by the

foam packaging.

PRECAUTION: Keep the MoonBeam3 away from heated surfaces.

PRECAUTION: MoonBeam3 is intended for use on a level ﬂoor.For additional stability prior to operation, the caster wheels may be

positioned outwards and locked by depressing the foot pedal on each.

MoonBeamTM3

User's Manual

Cleaning Precautions

PRECAUTION: Refer to the Cleaning the Enclosure section for recommended cleaning of the MoonBeam3.

PRECAUTION: Apply the cleaner to a clean, lint-free cloth ﬁrst and then clean the device. Liquid applied directly to the device could

possibly leak inside and cause damage. Use extra caution when cleaning around the front panel display.

PRECAUTION: Allow the device to completely dry before operating again.

PRECAUTION: Never use abrasive materials.

PRECAUTION: Never use any disinfecting agents that are corrosive.

WARNING: Diversey makes no claims regarding the ecacy of the listed chemicals or methods as a means of controlling infection.

Consult your hospital’s infection control ocer or epidemiologist.

MoonBeamTM3

User's Manual

Potential for Radio Frequency Interference on Device Operation

Both portable and mobile RF communications equipment can aect electrical equipment, including the MoonBeam3. The MoonBeam3 is

intended for use in the electromagnetic environment speciﬁed in the Guidance and Manufacturer’s Declaration section.

Potential for Radio and Television Interference

The MoonBeam3 generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to comply with

Class A emission limits for a device in accordance with the speciﬁcations in Subpart B of Part 15 of FCC rules, which are designed to provide

reasonable protection against such interference when operating in a commercial environment. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will

be required to correct the interference at his own expense. The MoonBeam3 is not intended for use in a residential Class B environment.

The MoonBeam3 requires a grounded AC line cord. If your MoonBeam3 does cause interference to radio or television reception, you are

encouraged to try to correct the interference by one or more of the following measures:

nReorient the receiving antenna.

nRelocate the MoonBeam3 with respect to the receiver.

If necessary, you should consult Technical Support or an experienced radio/television technician for additional suggestions. You may ﬁnd

the following booklet prepared by the Federal Communications Commission helpful: How to Identify and Resolve Radio-TV Interference

Problems. This booklet is available from the U.S. Government Printing Oce, Washington, D.C. 20402, Stock No. 004-000-00345-4.

Guidance and Manufacturer’s Declaration – Electromagnetic Emissions & Immunity

MoonBeam3 needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information

provided in this manual. The customer or the user of the MoonBeam3 should assure that it is used in such an environment.

Portable and mobile RF communications equipment can aect MoonBeam3.

The use of accessories, transducers and cables other than those speciﬁed by Diversey may result in increased EMISSIONS or decreased

IMMUNITY of the MoonBeam3.

MoonBeamTM3

User's Manual

MoonBeam3 should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the

MoonBeam3 should be observed to verify normal operation in the conﬁguration in which it will be used.

MoonBeam3 receives radio frequency energy in the following band: 2402.0 - 2480.0 MHz.

MoonBeam3 may be interfered with by other equipment, even if that other equipment complies with CISPR EMISSION requirements.

MoonBeam3 transmits radio frequency energy within the band of 2402.0 - 2480.0 MHz using GFSK modulation and produces an

output power of 0.007 Watts.

MoonBeam3 is third-party tested and veriﬁed compliant with IEC 60601-1-2 Class A emissions and immunity for non-life

supporting equipment.

Guidance and Manufacturer’s Declaration – Electromagnetic Emissions

The MoonBeam3 is intended for use in the electromagnetic environment speciﬁed below.

The customer or the user of the MoonBeam3 should assure that it is used in such an environment.

Emissions Test Compliance Electromagnetic Environment – Guidance

RF emissions CISPR 11 Group 1 The MoonBeam3 uses RF energy only for its internal function. Therefore, its RF emissions are very

low and are not likely to cause any interference in nearby electronic equipment.

RF emissions CISPR 11 Class A The MoonBeam3 is suitable for use in all establishments other than domestic. It may be used

in domestic establishments and those directly connected to the public low-voltage power

supply network that supplies buildings used for domestic purposes, provided the following

warning is heeded:

Warning: This equipment/ system may cause radio interference or may disrupt the operation

of nearby equipment. It may be necessary to take mitigation measures, such as re-orienting or

relocating the MoonBeam3 or shielding the location.

Harmonic emissions

IEC 61000-3-2 Class A

Voltage Fluctuations/

Flicker emissions

IEC 61000-3-3

Complies

MoonBeamTM3

User's Manual

Guidance and Manufacturer’s Declaration – Electromagnetic Immunity

The MoonBeam3 is intended for use in the electromagnetic environment speciﬁed below.

The customer or the user of the MoonBeam3 should assure that it is used in such an environment.

Immunity Test IEC 60601 Test Level Compliance Level Electromagnetic Environment – Guidance

Electrostatic discharge (ESD)

IEC 61000-4-2

±6 kV contact

±8 kV air

±6 kV contact

±8 kV air

Floors should be wood, concrete or ceramic tile.

If ﬂoors are covered with synthetic material, the

relative humidity should be at least 30 %.

Immunity Test IEC 60601 Test Level Compliance Level Electromagnetic Environment – Guidance

Electrical fast transient/burst

IEC 61000-4-4

±2 kV for power supply lines

±1 kV for input/output lines

±2 kV for power supply lines

±1 kV for input/output lines

Mains power quality should be that of a typical

domestic, commercial or hospital environment.

Surge

IEC 61000-4-5

±1 kV dierential mode

±2 kV common mode

±1 kV dierential mode

±2 kV common mode

Mains power quality should be that of a typical

domestic, commercial or hospital environment.

Voltage dips, short

interruptions and voltage

variations on power supply

input lines

IEC 61000-4-11

<5 % UT (>95 % dip in UT)

for 0,5 cycle

40 % UT (60 % dip in UT)

for 5 cycles

70 % UT (30 % dip in UT)

for 25 cycles

<5 % UT (>95 % dip in UT)

for 5 sec

<5 % UT (>95 % dip in UT)

for 0,5 cycle

40 % UT (60 % dip in UT)

for 5 cycles

70 % UT (30 % dip in UT)

for 25 cycles

<5 % UT (>95 % dip in UT)

for 5 sec

Mains power quality should be that of a typical

domestic, commercial or hospital environment. If

the user of the MoonBeam3 requires continued

operation during power mains interruptions, it is

recommended that the MoonBeam3 be powered

from an uninterruptible power supply or a battery.

(50/60 Hz) magnetic ﬁeld

IEC 61000-4-8

3 A/m 3 A/m Power frequency magnetic ﬁelds should be at levels

characteristic of a typical location in a typical

domestic, commercial or hospital environment.

NOTE UT is the a.c. mains voltage prior to application of the test level.

MoonBeamTM3

User's Manual

Guidance and Manufacturer’s Declaration – Electromagnetic Immunity

The MoonBeam3 is intended for use in the electromagnetic environment speciﬁed below.

The customer or the user of the MoonBeam3 should assure that it is used in such an environment.

Immunity Test IEC 60601 Test Level Compliance Level Electromagnetic Environment – Guidance

Conducted RF

IEC 61000-4-6

Radiated RF

IEC 61000-4-3

3 Vrms 150 kHz to 80 MHz

3 V/m 80 MHz to 2.5 GHz

3 Vrms

3 V/m

Portable and mobile RF communications equipment should be used

no closer to any part of the MoonBeam3, including cables, than the

recommended separation distance calculated from the equation

applicable to the frequency of the transmitter.

Recommended separation distance

d = 1.2√P

d = 1.2√P 80 MHz to 800 MHz

d = 2.3√P 800 MHz to 2.5 GHz

where P is the maximum output power rating of the transmitter in

watts (W) according to the transmitter manufacturer and d is the

recommended separation distance in meters (m).

Field strengths from ﬁxed RF transmitters, as determined by an

electromagnetic site

survey a, should be less than the compliance level in each frequency

range. b

Interference may occur in the vicinity of equipment

marked with thefollowing symbol:

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reﬂection from structures, objects

and people.

aField strengths from ﬁxed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM

and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to ﬁxed

RF transmitters, an electromagnetic site survey should be considered. If the measured ﬁeld strength in the location in which the MoonBeam3 is

used exceeds the applicable RF compliance level above, the MoonBeam3 should be observed to verify normal operation. If abnormal performance is

observed, additional measures may be necessary, such as re-orienting or relocating the MoonBeam3.

bOver the frequency range 150 kHz to 80 MHz, ﬁeld strengths should be less than 3 V/m.

MoonBeamTM3

User's Manual

Portable and Mobile RF Communications Equipment and the MoonBeam3

The MoonBeam3 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MoonBeam3

can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the

MoonBeam3 as recommended below, according to the maximum output power of the communications equipment.

Rated

Maximum

Output

Power

Transmitter

Separation Distance According to Frequency of Transmitter

150 kHz to 80 MHz

d = 1.2√P

80 MHz to 800 MHz

d = 1.2√P

800 MHz to 2.5 GHz

d = 2.3√P

0.01 0.12 0.12 0.23

0.1 0.38 0.38 0.73

1 1.2 1.2 2.3

10 3.8 3.8 7.3

100 12 12 23

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable

to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reﬂection from structures, objects and people.
