Delivery
Your Deluxe Series hot tub will be delivered to the
curbside of your home. You will need to arrange
to have your hot tub placed in your desired loca-
tion and the connection of the electrical circuits. In
most cities, permits are required for the installation
of electrical circuits.
When your hot tub
delivery company
calls to set up a deliv-
ery appointment, you
may choose to make
arrangements with
them to place your
hot tub for an addi-
tional fee. If that is
not a service they can
provide, we recom-
mend consulting pro-
fessionals who have
experience moving
large items.
Review the path that your hot tub will take through
your property along with the size of the hot tub to en-
sure you have enough clearance. Refer to the chart
below for the height, width and depth of a packaged
hot tub on a pallet. If there are stairs or other ob-
stacles, the hot tub will have to travel over to get to
the site, additional clearances may be required. Use
the supplied measurements to help you determine
the best location for your new hot tub.
Hot Tub Size of Hot Tub Only
(Width, Length, Height)
Size of Hot Tub on Pallet
(Width, Length, Height)
DL-1040 DLX 39.5" x 92.5" x 92.5"
(100.33" x 235 x 235 cm)
41.5" x 95" x 98"
(105 x 241 x 249 cm)
DL-420 DLX 34.5" x 76" x 84"
(87.63 x 193 x 198 cm)
36" x 87" x 82"
(91 x 221 x 208 cm)
DL-5SE DLX 34.5" x 84" x 92.5"
(87.6 x 213 x 235 cm)
38" x 98" x 91"
(96.52 x 249 x 231.14 cm)
Site selection and preparation
The location of your hot tub is entirely up to you.
Carefully read these instructions for various ideas of
locations that your new hot tub may be placed.
By the time you have made your hot tub purchase,
you probably have a spot already picked out. Prior
to the hot tub delivery, please verify the following:
• Always place the hot tub on a compacted and level
surface. The best surface is a level concrete pad. A
hot tub, full of water, can weigh a great deal. Please
ensure the spot can support the weight.
• Make sure to level your hot tub before lling it.
• Locate the equipment panel. The system pack,
drain valve, owner’s manual and optional ozone
generator are usually located all in the same area.
Be sure that the connections are tightened during
draining. Water inside the system pack will cause
the pack to fail and the breaker to trip.
• The panels, on all four sides, are removable. Be
sure to have access on all four sides.
• Be sure to have easy access to the circuit breaker
in the sub panel (240 volt models).
• Never let water into the sub panel (240 volt models),
or into the electrical outlet that your hot tub is
plugged in to. Your 240 volt hot tub’s sub panel is
rain tight when installed correctly with the door
closed.
Outdoor and patio installation

3
© Copyright August, 2010. All rights reserved.
To position the hot tub correctly in your backyard is
very important. The reason is your hot tub’s warranty.
The warranty on a hot tub is voided if the site is not
level. If you install your hot tub outdoors, a concrete
pad is the best method for a stable and level surface.
The concrete pad should be four inches thick. All Di-
vine Hot Tubs Deluxe hot tubs may be installed on a
deck, providing the load rating can handle a full hot
tub with people in it.
Deck installation
When placing the hot tub on a deck, please ensure the
maximum load capacity of the deck. Consult a quali-
ed deck builder or structural engineer before you
place the hot tub on an elevated deck or indoors. To
determine the weight of your hot tub, please refer to
the specications on the website. This weight must
not exceed the structural weight of the deck.
Indoor installation
When installing a hot tub indoors, there are some
special considerations. The combination of heat
and moisture will accumulate on the oor and sur-
rounding the hot tub. The ooring material needs
to provide a grip when wet. The location also needs
proper drainage to prevent water build-up around
the hot tub. When building a room for your hot tub,
it is best to have a oor drain installed. The humidity
of a room with a hot tub can become a problem if
there is not enough proper ventilation. Otherwise,
problems such as dry rot, mildew or other problems
may occur.
Ground preparation
Your hot tub has been engineered to rest on a variety
of surfaces. The insulated hot tub oor base gives
you the ability to nd the perfect place. A concrete
slab is the best for long term. There are other options
available as long as the surface is level prior to deliv-
ery. The alternatives are 5/8 minus crushed packed
rock, or a deck that is rated for the load.
When placing a tub on crushed rock, the easiest way
to maintain its form is to build a frame and ll it with
the crushed packed rock. Remember, if the hot tub is
placed on grass or dirt, debris will get inside the hot
tub as the users enter and exit.
It is incredibly important to the operation and the
draining of the tub for the tub to be level once it is
installed. Failure to have the hot tub level prior to
adding water can aect the warranty.
Brick pavers
Cement
Decorative cement, stained
Packed/crushed gravel: 5/8” minus
Stone, slate, granite
Decking: wood, synthetic
Decorative cement & bricks
Marble, travertine

4
© Copyright August, 2010. All rights reserved.
Electrical requirements - 240V
To ensure you will have an opportunity to use your hot tub soon after delivery, it is very important that the re-
quired electrical service has been installed.
IMPORTANT: Electrical connections must be made by qualied, licensed personnel. Please contact a
licensed residential electrician for these services.
All models require a 50 amp single phase, 240 volt circuit breaker in the main electrical service panel. NOTE:
WE RECOMMEND THAT A SUB PANEL BE USED TO SUPPLY POWER AND PROTECT THE HOT TUB. All 240
volt Divine Hot Tubs™ Deluxe hot tubs must be wired in accordance with applicable local electrical codes,
and all electrical work must be done by a licensed electrician. A licensed electrician should install a four-
wire electrical service (two line voltages, one neutral, one ground) from the main electrical service panel to
the sub-panel, and from the sub-panel to
the hot tub per the appropriate wiring dia-
gram as illustrated below. The grounding
conductor must be at least #6 AWG. Your
electrician should mount the sub-panel in
the vicinity of the hot tub but it should not
be closer than ve (5) feet from the hot tub
water edge (NEC 680-38 to 41-A-3).
NOTE: Complete step-by-step installation
and Wiring Instructions for all 240 volt Di-
vine Hot Tubs™ Deluxe hot tubs are includ-
ed in the Owner’s Manual and with each
sub panel.
WARNING: Removing or bypassing the
GFCI breakers in the sub panel at any time
will result in an unsafe hot tub and will void
the warranty.
WIRE SPECIFICATION NOTE: Long electrical
runs may require a larger gauge feed wire
than stated. We recommend that a maxi-
mum voltage drop of 3% be used when cal-
culating the larger wire size.

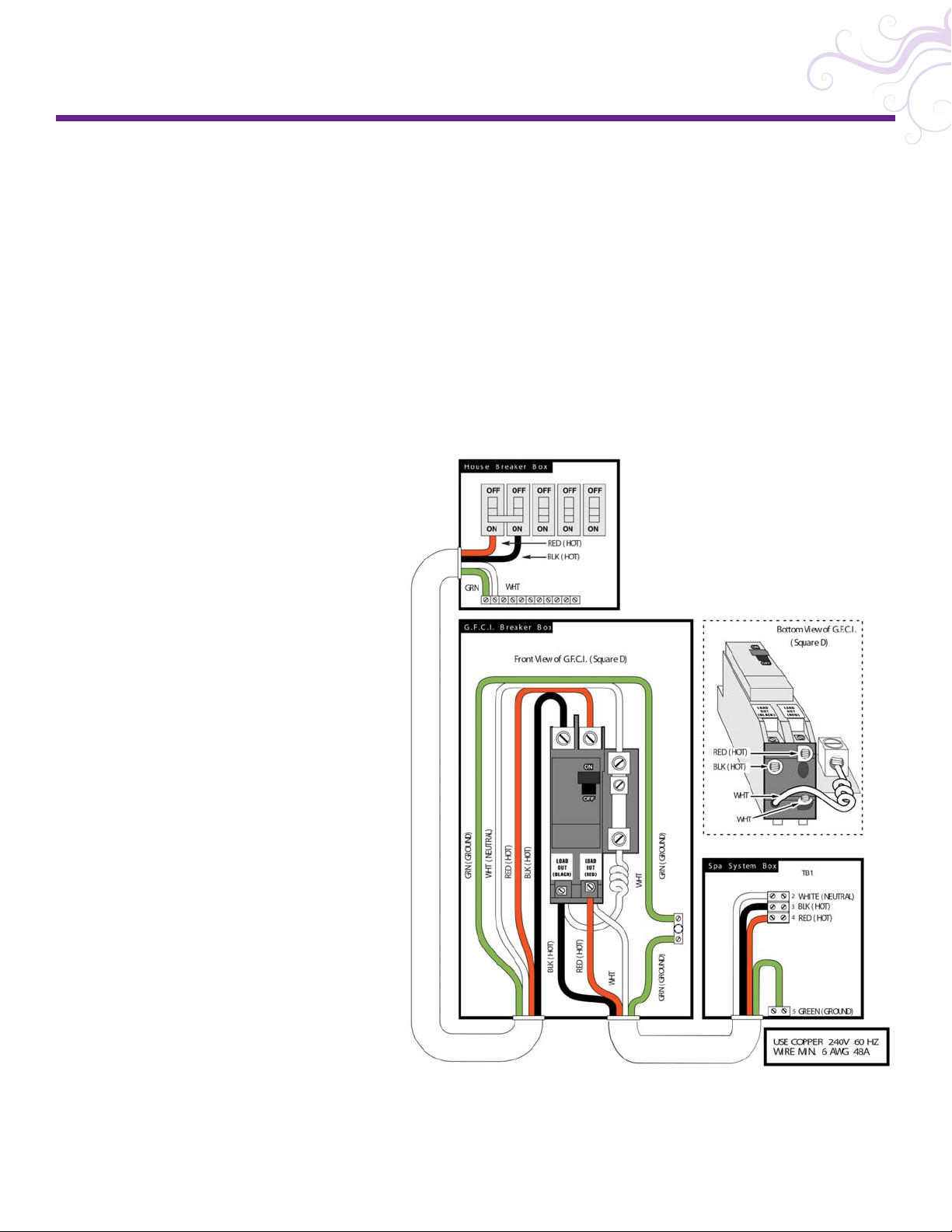

Refer to the Wiring Diagrams to the right
for the electrical requirements of the 240
volt models.
