Full HD Multiple Streams
Compact Bullet IP Camera
User’s Manual
Ver. 1.2

1
Table of Contents
1. Overview................................................................................................................................2
1.1 Features......................................................................................................................2
1.2 Package Contents .......................................................................................................3
1.3 Dimensions..................................................................................................................7
1.4 Connectors (Indoor Only).............................................................................................8
1.5 Function Cable Definition (Outdoor Only) ....................................................................9
1.6 Micro SD Card Slot / Default Button...........................................................................10
2. Camera Cabling...................................................................................................................11
2.1 Connect Power..........................................................................................................11
2.2 Connect Ethernet Cable.............................................................................................11
2.3 Connect Alarm I/O and RS-485 .................................................................................11
3. System Requirements ........................................................................................................12
4. Access Camera ...................................................................................................................13
5. Setup Video Resolution......................................................................................................18
6. Configuration Files Export / Import ...................................................................................19
Appendix A: Technical Specifications ......................................................................................20
Appendix B: Delete the Existing DC Viewer..............................................................................21
Appendix C: Setup Internet Security.........................................................................................22
Appendix D: Video Resolution...................................................................................................23
2M- Quad Streams................................................................................................................23
2M- Triple Streams................................................................................................................27
2M- Dual Streams.................................................................................................................29
2M- Single Stream ................................................................................................................29
2M Real time / 3M / 5M- Quad Streams................................................................................30
2M Real time / 3M / 5M- Triple Streams................................................................................35
2M Real time / 3M / 5M- Dual Streams..................................................................................38
2M Real time / 3M / 5M- Single Stream.................................................................................39

2
1. Overview
The Full HD Multiple Streams Compact Bullet IP Camera is a compact camera
with an easy setup design. High Power PoE is supported to reduce complicated
cabling without sacrificing performance. 5 Megapixel Resolution is available for
providing high definition images. Quad Streams Compression (H.264 Baseline /
Main / High Profile + MJPEG) are supported for efficient bandwidth and storage
management. Moreover, the camera is featured with functions such as WDR,
3D Noise Reduction, Day/Night ICR, RS-485, etc. For more camera features,
please see the feature list below.
1.1 Features
2MP Progressive Scan CMOS Sensor
Dual Streaming- Full HD 1080P Real Time + D1 Real Time
Quad Streams Compression- H.264 Baseline / Main / High Profile + MJPEG
Multi-language Support
Tampering Alarm
Remote Zoom & Focus (Motorized Lens)*
Wide Dynamic Range
Motion Detection
Privacy Masks
Smart Picture Quality / 3D Noise Reduction
Vertical View Mode (image rotation by 90 degrees)
Smart IR Mode
Network Failure Detection
Day/Night (ICR)
Micro SD Support
BNC Analog Output
Weatherproof (IP66 International)
High Power PoE (PoE+)
ONVIF Support
RS-485 Support

3
1.2 Package Contents
Please check the package contains the following items listed below.

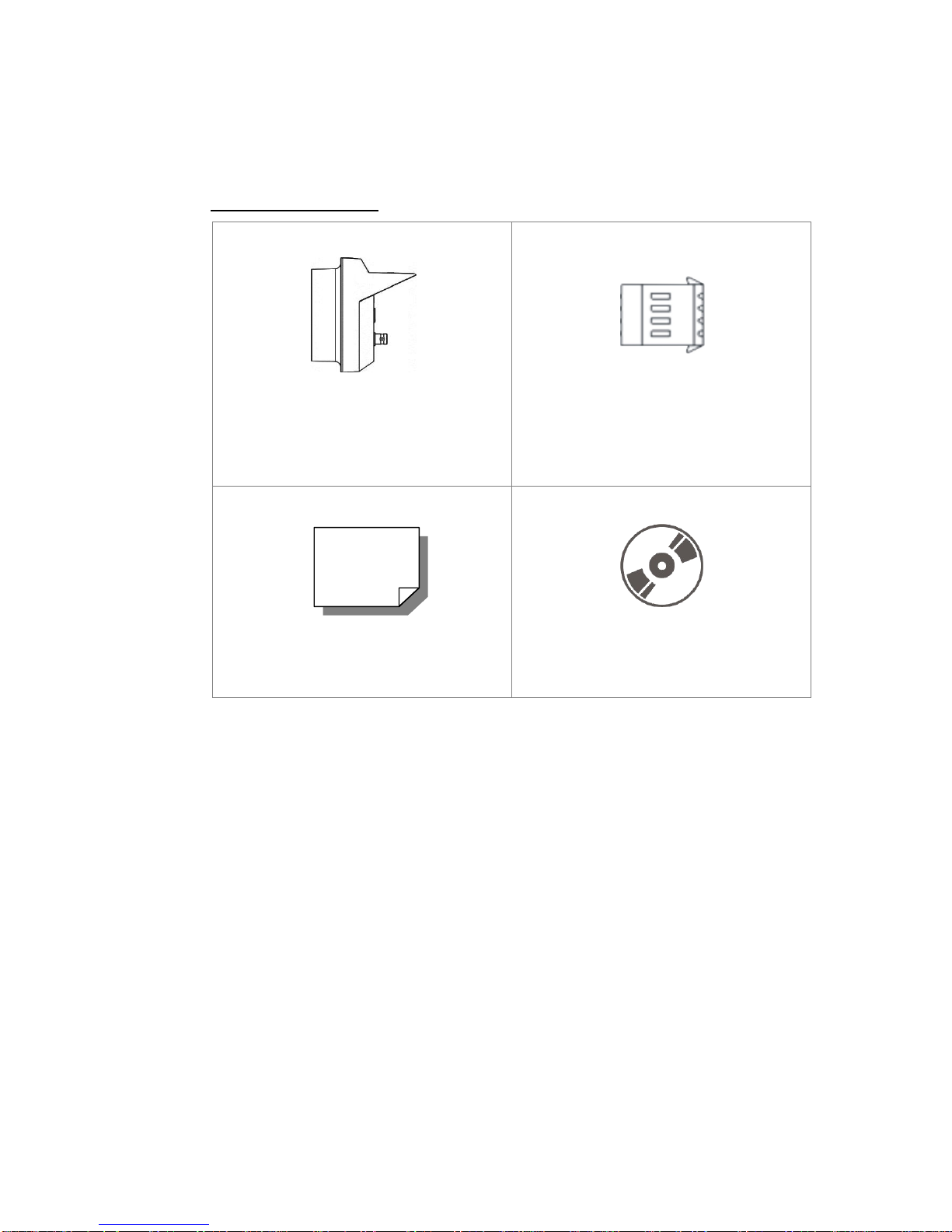

Indoor (Board Lens)
Full HD Multiple Streams
Compact Bullet IP Camera
4 Pins Terminal Block
Quick Guide
CD
(bundled software and documentation)

4
Indoor (Motorized Lens / Vari-focal Lens / 3x AF Lens)
Full HD Multiple Streams
Compact Bullet IP Camera
4 Pins Terminal Block
Quick Guide
CD
(bundled software and documentation)

5

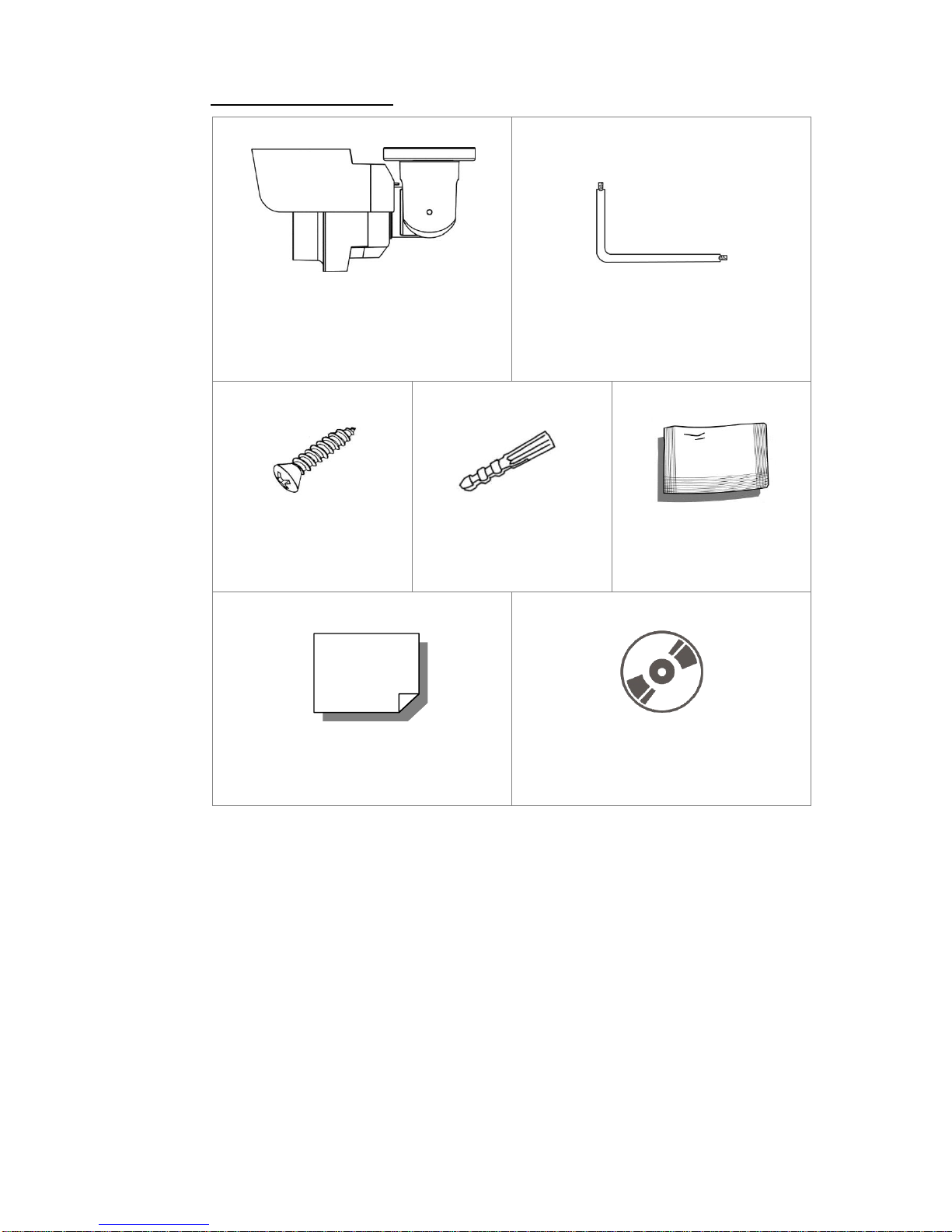

Outdoor (Board Lens)
Full HD Multiple Streams
Compact Bullet IP Camera
Security Torx
Self Tapping Screws
(x5)
Plastic Screw Anchors
(x5)
Desiccant
Quick Guide
CD
(bundled software and documentation)

6
Outdoor (Motorized Lens / Vari-focal Lens / 3x AF Lens)
Full HD Multiple Streams
Compact Bullet IP Camera
Security Torx
Self Tapping Screws
(x5)
Plastic Screw Anchors
(x5)
Desiccant
Quick Guide
CD
(bundled software and documentation)

7
1.3 Dimensions
The IP Camera’s dimensions are shown below.
Indoor (Board Lens)
Indoor (Motorized Lens / Vari-focal Lens / 3x AF Lens)
Outdoor (Board Lens)
Outdoor (Motorized Lens / Vari-focal Lens / 3x AF Lens)

8

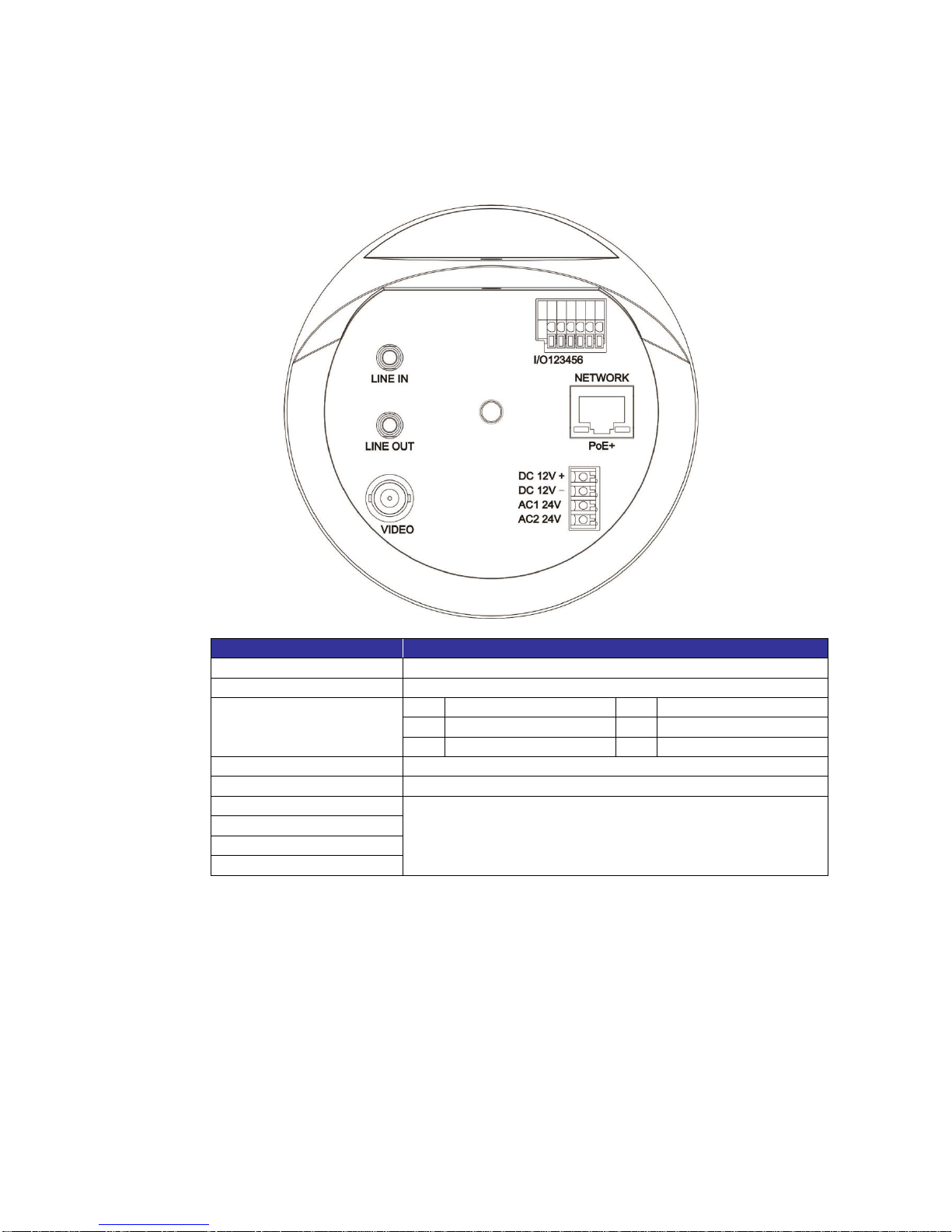

1.4 Connectors (Indoor Only)
The diagram below shows the connectors of the IP Camera. Definition for each
connector will be given as follows.
Connector
Definition
LINE IN & LINE OUT
Two-way audio transmission
VIDEO (BNC Connector)
For video output
Alarm I/O and RS-485
1
Input −
4
Output +
2
Input +
5
D +
3
Output −
6
D −
PoE NETWORK
For Ethernet Cable and PSE connection
Network LEDs
Network connection and activity indication
DC 12V +
DC 12V or AC 24V connectors
DC 12V −
AC1 24V
AC2 24V

9

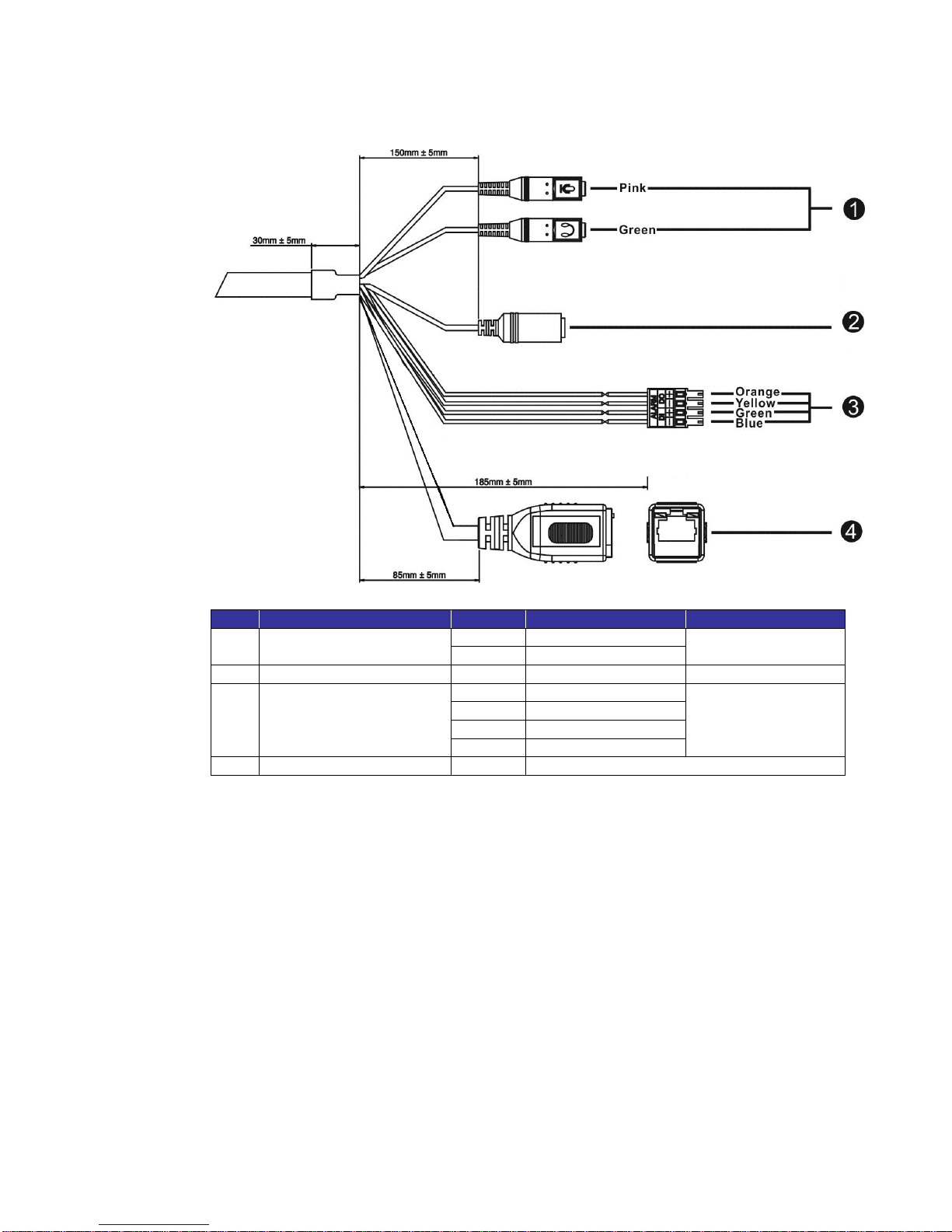

1.5 Function Cable Definition (Outdoor Only)
No.
Connector
Pin
Definition
Remarks
1
Audio I/O
Pink
Line In
Two-way audio
transmission
Green
Line Out
2
Power DC Jack
-
DC 12V
Power connection
3
Alarm I/O
(4-Pin Terminal Block)
Orange
Alarm Out (+)
Alarm connection
Yellow
Alarm Out (−)
Green
Alarm In (+)
Blue
Alarm In (−)
4
Network (with PoE)
-
For Ethernet Cable and PSE connection
*If the Function Cable is used, make sure the color pins are connected correctly.
