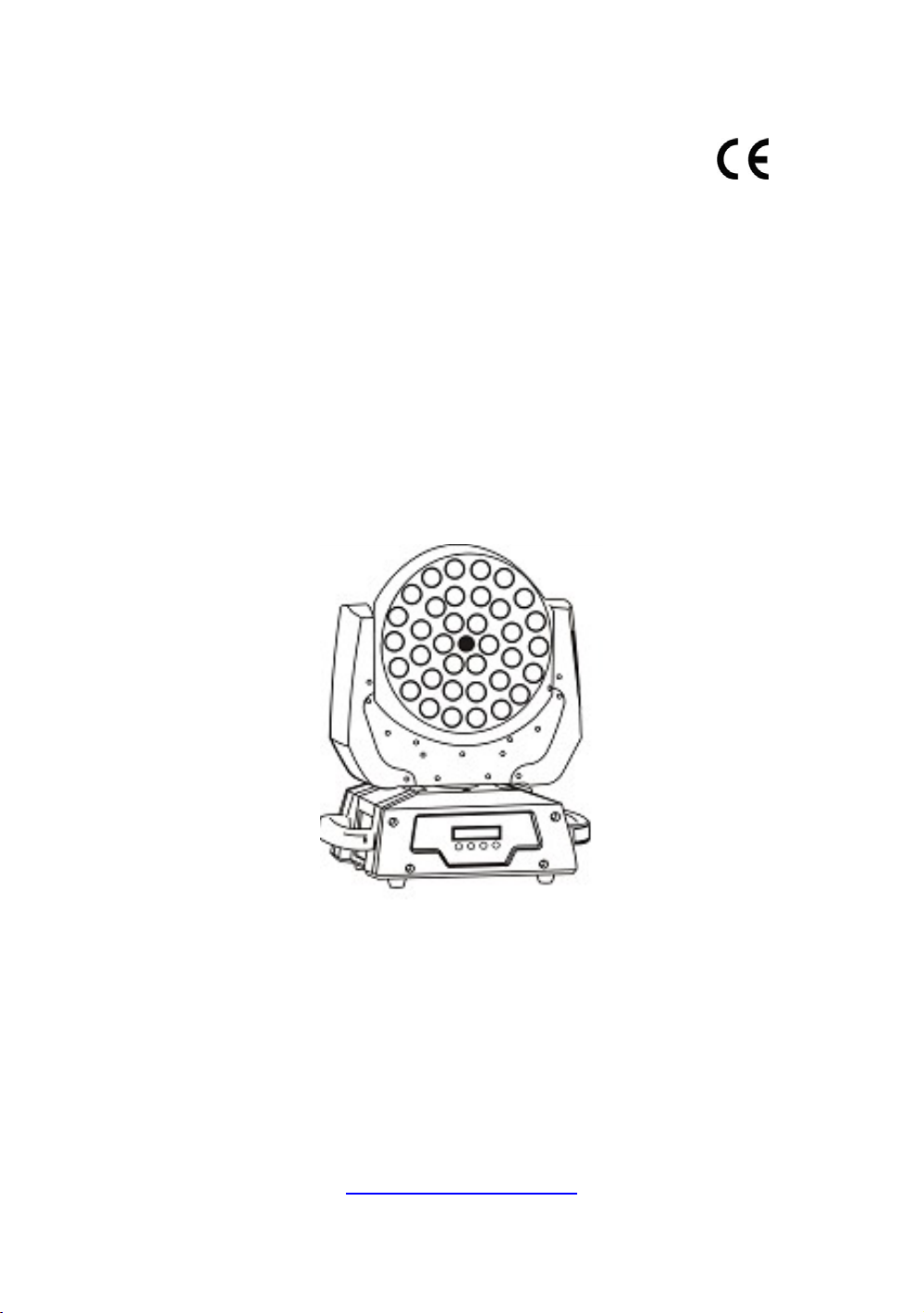

DJ'SLIGHTING DJS-LED631 User manual

DJS-LED631 Qwash LED
Plus
36*10w(ZOOM)
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
Version 20
http://www.djslighting.com/

1. Dispacking
Thank you for choosing our moving head. For your own safety, please read this
manual before installing the device. This manual covers the important information
on installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual well for future needs.
This moving wash is made of a new type of high temperature strength of
engineering plastics and cast aluminum casing with nice outlook. The fixture is
designed and manufactured strictly following CE standards, complying with
international standard DMX512 protocol. It’s available independently controlled and
linkable with each other for operation. And it is applicable for large-scale live
performances, theater, studio, nightclubs and discos.
The fixture adopts powerful LED lamps which features high brightness and
stability. Please carefully dispack it when you receive the fixture and check whether
it is damaged during the transportation. And please check whether the following
items are included inside the box:
Moving Head------- one Signal Cable----one
Omega Clamp------one User Manual----one
circus lifeline------one Hook-----one
-1-
http://www.djslighting.com/

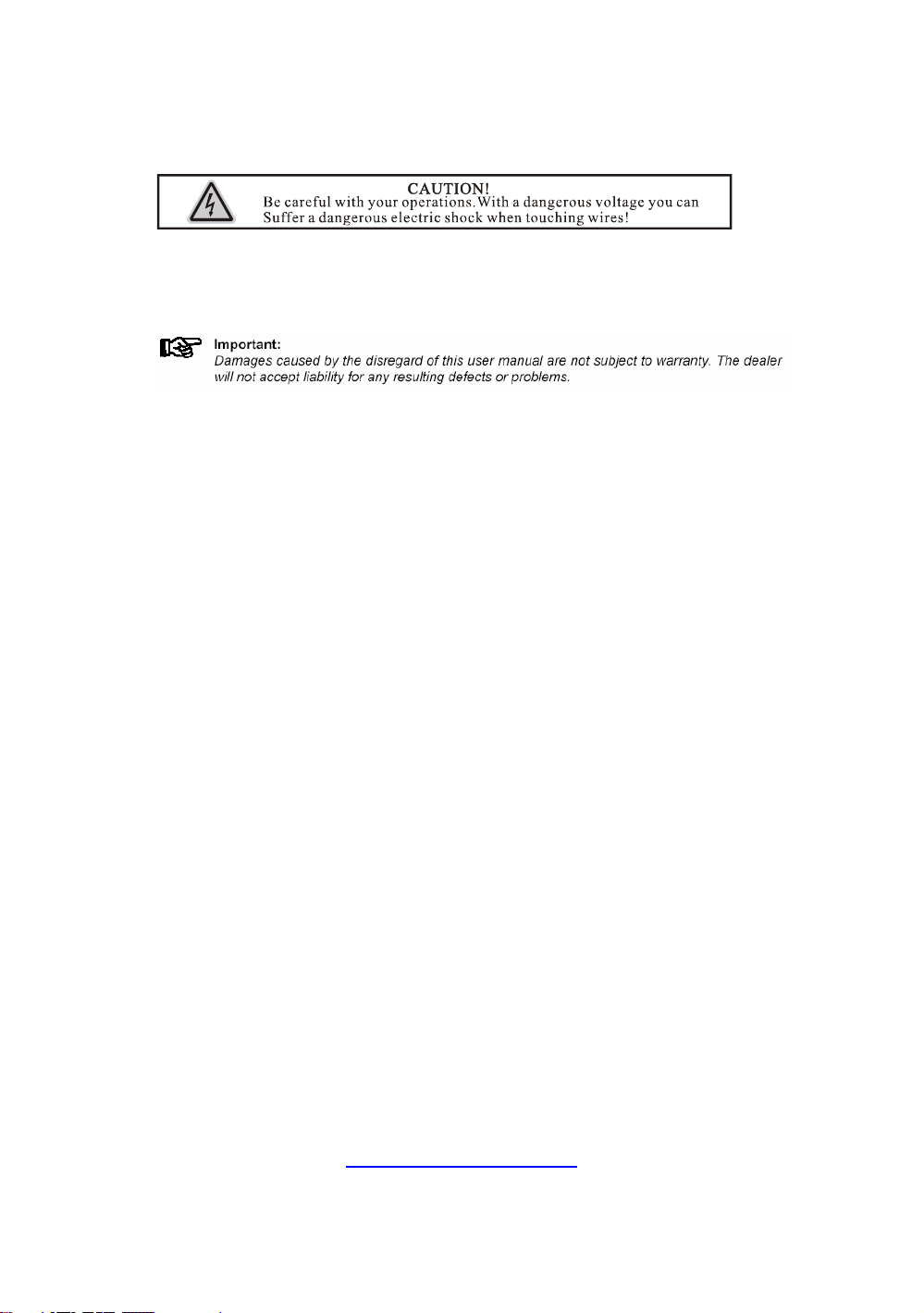

2. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage
the device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this
would be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning
it. Only handle the power cord by the plug. Never pull out the plug by tugging the
power cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease
gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall
be exclusively replaced by the manufacturer or his service agent or a similar
qualified person in order to avoid a hazard
-2-
http://www.djslighting.com/

3. Operation Instructions
-The moving head is an LED wash light for onsite decoration
purpose.
-Don’t turn on the fixture if it’s been through severe temperature
difference like after transportation because it might damage the light
due to the environment changes. So make sure to operate the fixture
until it is in normal temperature.
-This light should be keep away from strong shaking during any
transportation or movement.
-Don’t pull up the light by only the head, or it might cause damages
to the mechanical parts.
-Don’t expose the fixture in overheat, moisture or environment with
too much dust when installing it. And don’t lay any power cables
on the floor. Or it might cause electronic shock to the people.
-Make sure the installation place is in good safety condition before
installing the fixture.
-Make sure to put the safety chain and check whether the screws are
screwed properly when installing the fixture.
-Make sure the lens are in good condition. It’s recommended to
replace the units if there are any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows
the fixture before using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the
manufacturer or the appointed repairing agencies.
-It is not in warranty range if there are any malfunctions from not
following the user manual to operate or any illegal operation, like
shock short circuit, electronic shock, lamp broke, etc.
-3-
http://www.djslighting.com/

4. Installation via clamp
Please refer to the picture below:
Screw one clamp each via a M12 screw and nut onto the Omega holders.
Insert the quick-lock fasteners of the first Omega holder into the respective holes on
the bottom of the device. Tighten the quick-lock fasteners fully clockwise. Install the
second Omega holder.
Pull the safety-rope through the holes on the bottom of the base and over the
trussing system or a safe fixation spot. Insert the end in the carabine and tighten the
safety screw.
-4--
http://www.djslighting.com/

5. DMX-512 control connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller
and the other side to the male 3-pin XLR input of the moving head. You can chain
multiple
Moving head together through serial linking. The cable needed should be two core,
screened cable with XLR input and output connectors. Please refer to the diagram
below.
Address26 Address13 Address1
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an
electrically noisy environment, such as in a discotheque, it is recommended to use
a DMX terminator. This helps in preventing corruption of the digital control signal by
electrical noise. The DMX terminator is simply an XLR plug with a 120 Ωresistor
connected between pins 2 and 3,which is then plugged into the output XLR socket
of the last fixture in the chain. Please see illustrations below.
1
23
PIN 3
PIN 2
120 Ω
-5-
http://www.djslighting.com/

6. LCD Display Operations
The display will close after 30 seconds without operations.
-6-
http://www.djslighting.com/

http://www.djslighting.com/
Channel Function Value Description
1 PAN 0-255 0---540/630
2 PAN 16bit 0-255 1.8 degree
3 Tilt 0-255 0---280
4 Tilt 16bit 0-255 1.8 degree
5 Dimmer 0--255 0~100%
000-006 No function
007-065 Slow to fast strobe
066-069 No function
070-128 Pulse strobe from slow to fast
129-132 No function
133-191 Strobe fading from slow to fast
192-195 No function
6
Strobe
196-255 Strobe fading out from slow to fast
7 Red 0--255 0~100%
8 Green 0--255 0~100%
9 Blue 0--255 0~100%
10 White 0--255 0~100%
11 ZOOM 0--255 0~100%
12 Scan Speed 0--255 From fast slow
000-004 No macro function
005-044 Eight kinds of fixed color
045-049 No function
050-094 Eight skip loop change color
095-099 No function
100-149 Eight kinds of circle color
150-154 No function
155-166 Red+green from dark to bright
167-178 Green+red from bright to dark
179-190 Green+blue from dark to bright
191-202 Blue+green from bright to dark
203-214 Blue+red from dark to bright
215-226 Red+blue from bright to dark
227-238 Red ,green+blue from dark to bright
239-250 Blue+red from dark to bright at the same time
green from bright to dark
13
RGBW macro
function
251-255 Output 100%at the same time
14 Reset/Auto 0--255 125-127Reset(3s). 250-255Auto

8. Technical Specifications
36PCS 10W high power LEDs
50,000 hours lifespan and low power consumption
16 bit smooth and precise resolution for PAN/TILT movement
540°/630° pan and 280° tilt movement
Scan position memory, auto reposition after unexpected
movement
RGBW color mixing system
8.ZOOM:15 --60
LED dimming: DIM4 technology(adopt 4096 linearity dimmer)
LED rainbow effect
Macros effect
Strobe effect with 20 flashes per second and pulse effect
General dimming and blackout for all four colors
14 DMX channels
DMX512, master-slave and sound activated controllable or
auto operation
Blue background LCD display
Input Voltage: AC90-240V. 50-60Hz
Fan standard :size: 90X90X25 – 60X60X15
Fuse standard(at the bottom): 3.15A/250V :
Power Consumption: 360W
Dimensions: 350x260x350mm
Packing Dimensions: 425x295x400mm
Net Weight: 9kgs
Gross Weight: 11kgs
-8-
http://www.djslighting.com/

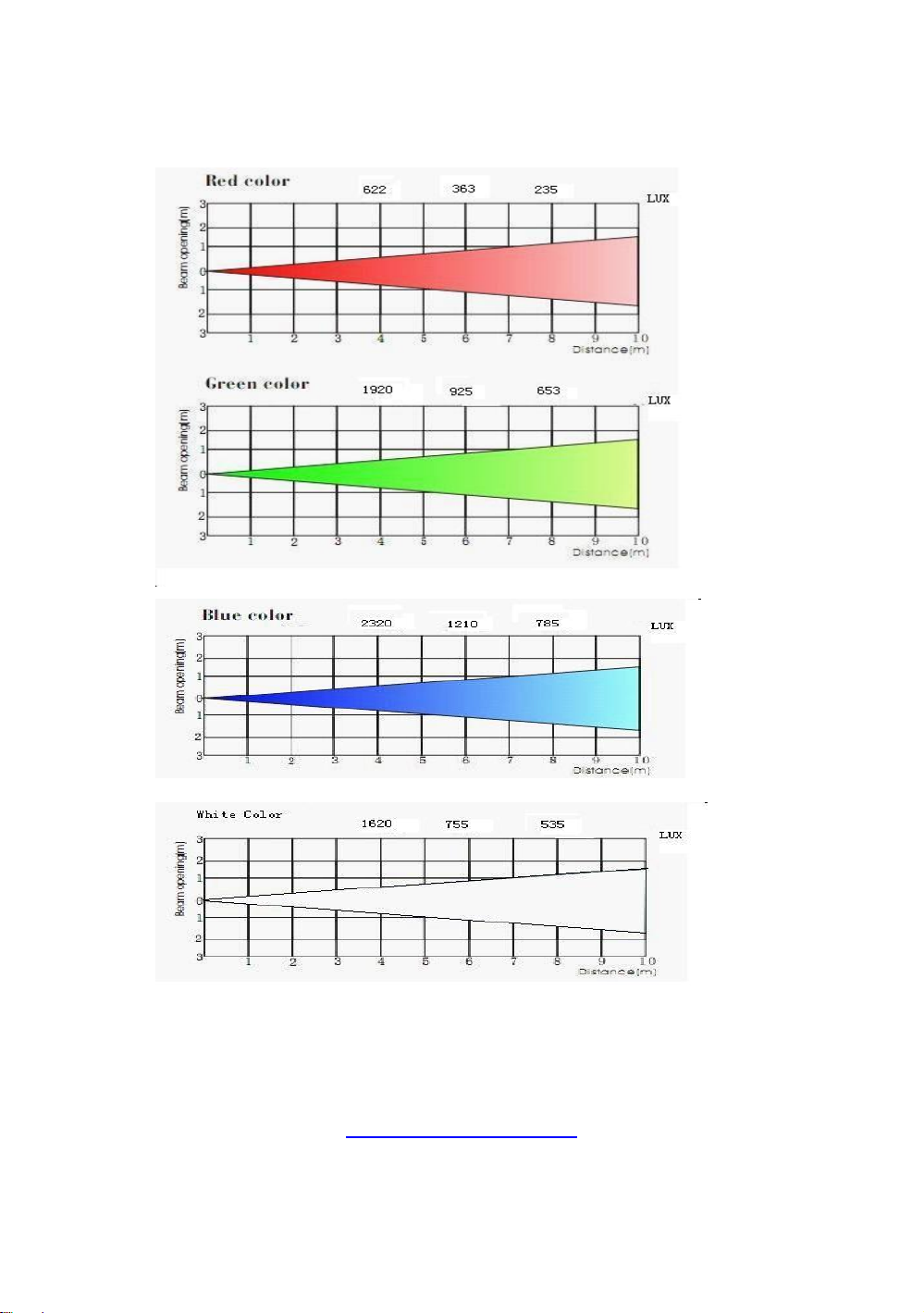

9. Wave Beam
-9-
http://www.djslighting.com/

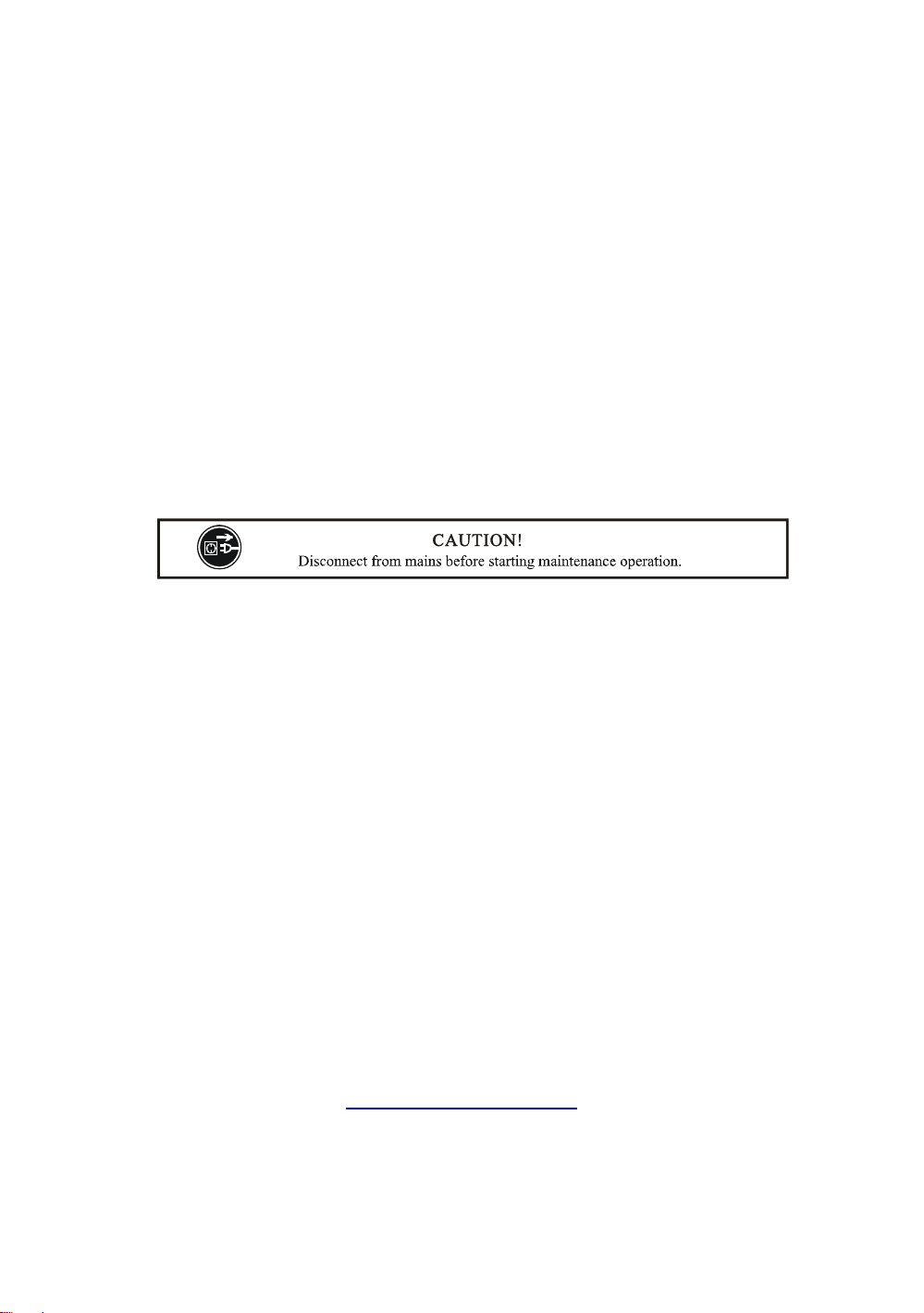

10. Maintenance and Cleaning
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3）Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4）The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be
adhered by a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakneness of the
lights due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month,
make sure that the circuit contacts are in good condition, prevent the poor
contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free
cloth. Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions
under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your
local dealer.
