Dk2 power Opg777 User manual

OPG777

COMMERCIAL STUMP GRINDER

3.5 WIDE CUT • OFFROAD TOWING ONLY • 14 HP KOHLER® ENGINE

ASSEMBLY GUIDE

PARTS AND SERVICE 702-331-5353

WWW.DK2POWER.COM

DK2 USA WEST

4301 S VALLEY VIEW BLVD. SUITE 10-11

LAS VEGAS, NEVADA

89103 USA

DK2 USA EAST

3750 SOUTH AVENUE, NORTH UNIT

TOLEDO, OHIO

43615 USA

DK2 CORPORATE HEAD OFFICE

5330 MAINWAY

BURLINGTON, ONTARIO

L7L6A4 CANADA

TABLE OF CONTENTS

Check the packing ....................................................................................................................................................... 3

Axle & Wheels ............................................................................................................................................................... 4

Handle Mounting .......................................................................................................................................................... 5

Securing the Throttle .................................................................................................................................................. 6

Tow Bar Assembly ........................................................................................................................................................ 7

Your Kohler 14HP CH440 Engine ............................................................................................................................. 8

SCHEMATICS AND PARTS

Checking the Schematics .......................................................................................................................................... 9

Parts List ......................................................................................................................................................................... 10

OPERATION

Before Starting .............................................................................................................................................................. 11

Quick Start and Troubleshooting ............................................................................................................................. 12

Adjusting the Drive Belts ............................................................................................................................................ 13

Do’s and Don’ts.............................................................................................................................................................. 14

Quick Start Guide.......................................................................................................................................................... 15

Warranty........................................................................................................................................................................... 16

STEP 1

CHECK THE PACKING

1. Open and unpack all items. Leave lots of working space.

2. Inspect all parts.

The Stump Grinder is shipped in a crate. Leave the sides folded down and use as your

work space.

NOTE: UPON INSPECTION OF PARTS, IF YOU FIND ANY DAMAGE OR MISSING PIECES

PLEASE CALL DK2 POWER AT 702-331-5353 OR CONTACT US VIA OUR WEBSITE

WWW.DK2POWER.COM.

WE WILL REPLACE ANY MISSING PARTS TO YOU FOR FREE.

PLEASE DO NOT RETURN TO THE STORE.

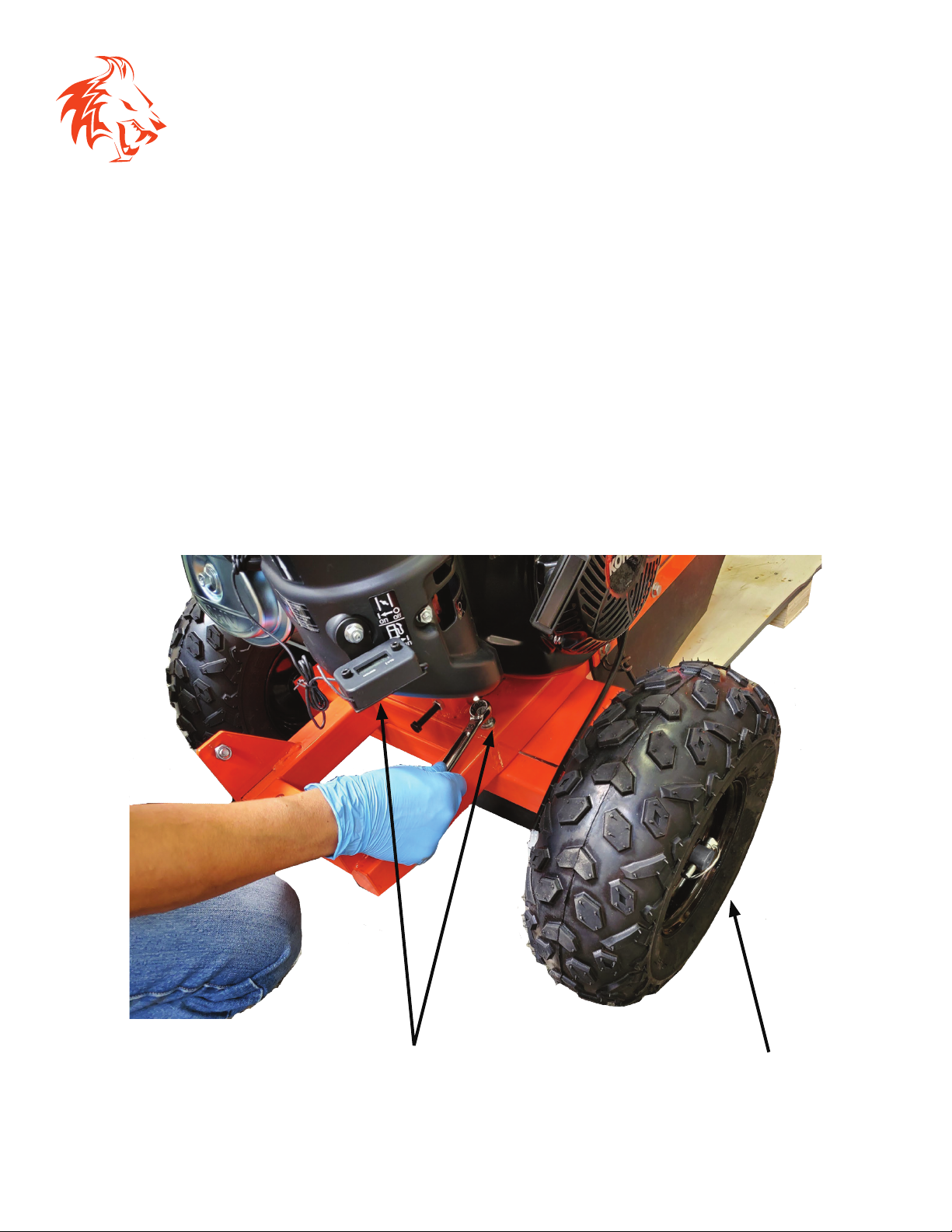

STEP 2

AXLE & WHEELS

1. Grease or OIL the axles (grease not included).

2. Pin ONLY the axle to allow the wheel to spin freely. PIN WHEEL AND AXLE FOR

WHEEL BRAKE DURING GRINDING ONLY.

3. During transport in trailer or pickup PIN BOTH WHEELS for dual wheel brakes.

4. Install axle onto frame with 2 bolts and hardware provided.

BOLT AXLE TO FRAME PIN FOR FREE ROLLING

STEP 3

HANDLE MOUNTING

1. Mount the handle tower with the bolts provided.

2. Connect the 2 wire connectors.

STEP 4

SECURING THE THROTTLE

1. SECURE THE THROTTLE CABLE WITH THE LOOP WIRE CLAMP PROVIDED ON

THE CHASSIS.

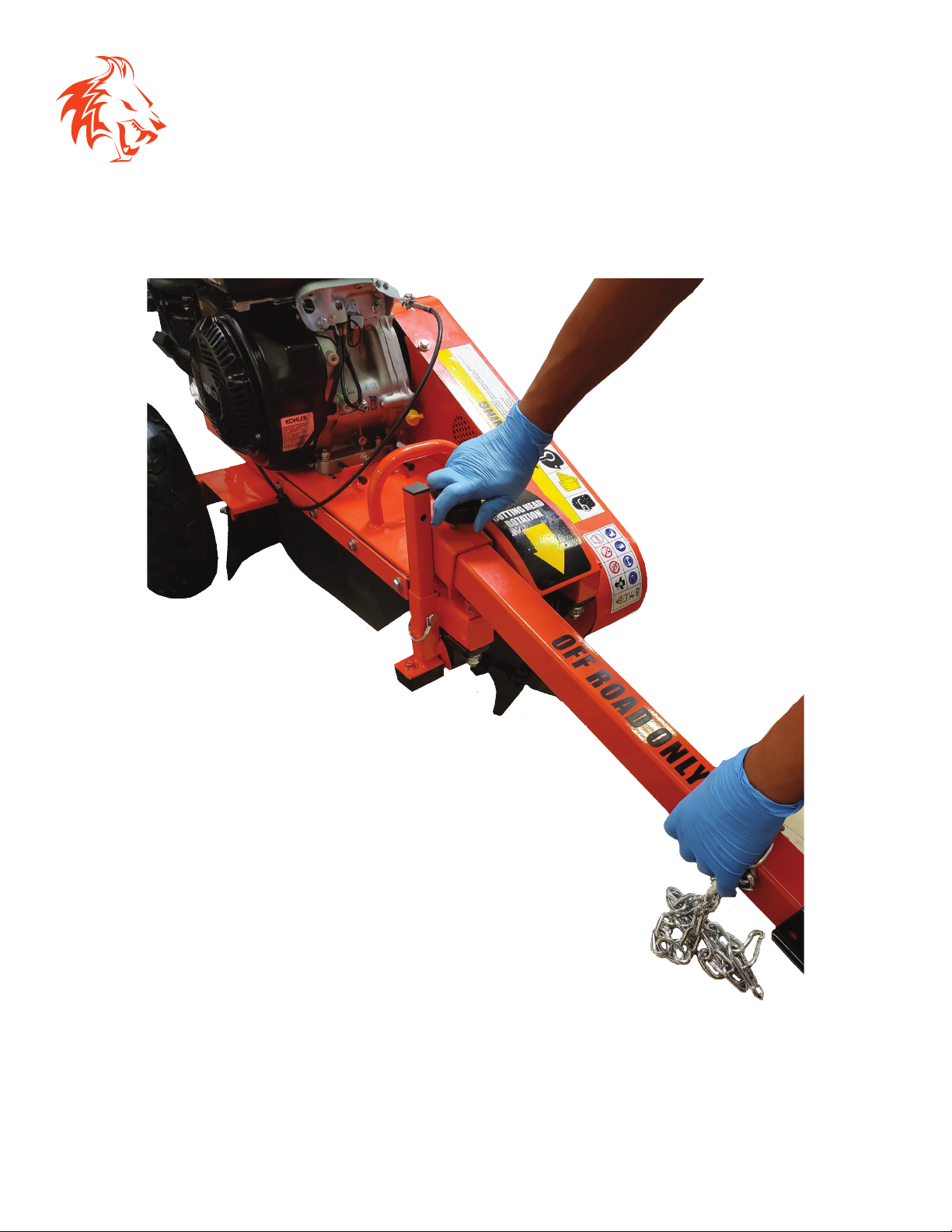

STEP 5

TOW BAR ASSEMBLY

1. INSTALL THE TOW BAR.

OFF ROAD ONLY

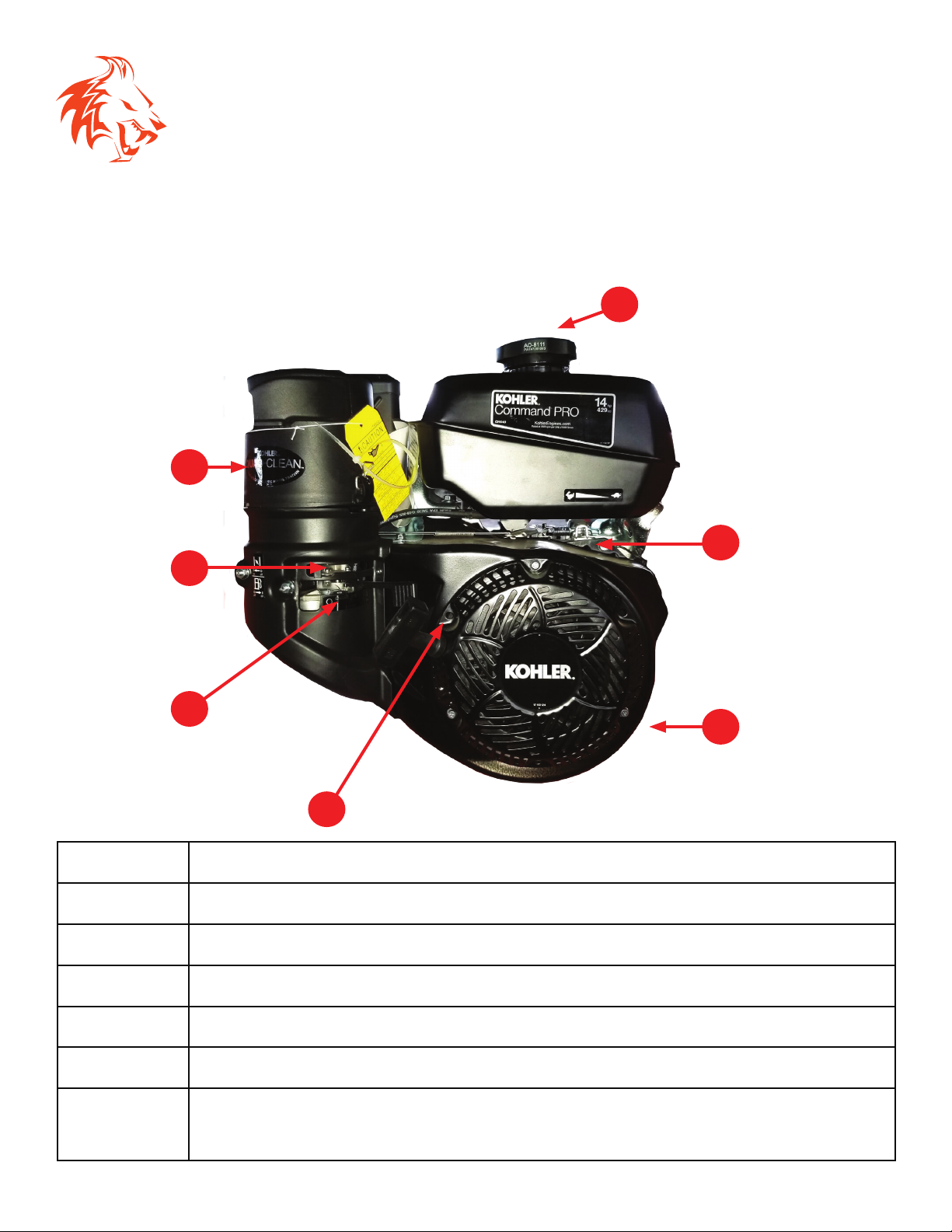

STEP 6

YOUR KOHLER® 14HP CH440 ENGINE

READ THE KOHLER ENGINE MANUAL SUPPLIED WITH YOUR UNIT FOR FULL ENGINE

OPERATION, SAFETY, AND MAINTENANCE.

1AIR FILTER - SUMMER AND WINTER POSITIONS

2GAS - USE MID GRADE OR HIGHER

3CHOKE - LEFT IS ON / RIGHT IS OFF (RUN POSITION)

4GAS ON / OFF SWITCH - LEFT IS OFF / RIGHT IS ON

5THROTTLE - RABBIT FAST / TURTLE SLOW

6PULL STARTER - PULL TIGHT - THEN PULL START

7OIL - FILL TO MARK 10W30, WILL NOT START IF OIL IS LOW, HAS LOW OIL

SHUTOFF PROTECTION. 2 YELLOW CAPS ARE OIL FILL CAPS. USE EITHER ONE TO

FILL OIL.

PARTS LIST

CHECKING THE SCHEMATICS

No. Speciﬁcation No. Speciﬁcation

1 engine 41 bolt M10*125

2 M10 locknut 42 leather protect sheet

3 dia. 10 lock washer 43 leather protect sheet ﬁxed plate

4 washer dia. 10* dia. 20*1.5 44 M8 locknut

5 Bolt M8*25 45 half-round head square neck bolt M10*45

6 dia. 8 lock washer 46 bolt M10*45 46 washer

7 washer dia. 8* dia 16*1.5 47 frame

8 protection sheet plate 48 inner six angle cylinder bolt M14*95

9 protection sheet 49 bolt M8*80

10 knob dia. 50 50 M8 nut

11 bolt M8*30 51 bolt M10*50

12 rubber 52 bolt M10*100

13 D-pin dia. 8*50 53 bolt M6*50

14 support foot 54 washer dia. 6* dia. 12*1.2

15 vertical seat bearing 55 M6 locknut

16 dia. 14 lock washer 56 lower part of handle

17 washer dia. 14* dia. 28*2 57 right tire

18 M14 locknut 58 left tire

19 M10 nut 59 ring type lock

20 bolt M10*35 60 handle adjusted bar

21 right cutter 61 bolt M16*310

22 left cutter 62 handle

23 straight cutter 63 key switch

24 cutter rotor 64 stop wire

25 side spacer 65 throttle

26 key 66 tow bar

27 belt cover accessory plate 67 hitch trailer

28 rotor pulley 68 bolt M10*80

29 belt 69 rubber ring

30 washer 70 pipe plug

31 bolt M10*25 71

32 bolt M8*16 72

33 belt cover 73

34 engine bolt 74

35 washer 75

36 engine pulley 76

37 key 77

38 engine spacer 78

39 bolt M8*65 79

40 wheel axle

PARTS LIST

CLEAR AREA OF ALL PEOPLE AND PROPERTY THAT COULD BE DAMAGED. THINK

SAFELY. CHIPS ARE FLYING PROJECTILES AND CAN CAUSE INJURY. WEAR SAFETY

GLASSES, HEARING PROTECTION, AND GLOVES. DO NOT WEAR LOOSE FITTING

CLOTHES THAT COULD GET STUCK IN THE MACHINE. MOVING PARTS, ONLY CHIP

WOOD, CHILDREN SHOULD NOT RUN THIS EQUIPMENT, STAY ALERT OF YOUR

SURROUNDING AND PERSONS THAT COULD APPEAR IN THE CHIP PATH WHILE YOU

ARE WORKING.

UNIT IS A DIRECT DUAL BELT DRIVE. NO CLUTCH TO SLIP OR BURN UP BUT YOUR

BELTS WILL NEED TO BE TIGHTENED AND CHECKED ON A REGULAR BASIS TO

MAINTAIN 100% CUTTING POWER.

• TIP THE STUMP GRINDER UP WITH THE CUTTERS OFF THE GROUND WHEN PULL

STARTING

PERFORMANCE OPERATION

APPROACH STUMP FROM THE TOP CUTTING STRAIGHT DOWN INTO THE STUMP

WITH THE 3.5 INCH WIDE CUTTING TEETH. RAISE UP OUT OF THE CUT, MOVE OVER,

PLUNGE AGAIN. REPEAT ACROSS THE ENTIRE STUMP. MOVE SIDE TO SIDE TO FACE

OFF THE STUMP. ADJUST YOUR BOW HANDLE FOR COMFORT.

SET ONE OF YOUR WHEEL BRAKES SO YOU CAN PIVOT THE MACHINE CUT.

TO MOVE THE MACHINE FORWARD WITH THE BRAKE ON, ALLOW THE ROTATING

TEETH AGAINST THE STUMP TO PULL THE UNIT FORWARD.

TIGHTEN ALL BOLTS AND TEETH BEFORE EACH USE. TEETH ARE NOT COVERED

UNDER WARRANTY. CLEAN ALL STONES AND ROCKS AWAY FROM CUTTING STUMP

AREA, CHECK FOR METAL STAKES AND OR NAILS IN THE TREE STUMP BEFORE

CUTTING.

KOHLER ENGINES HAVE A LOW OIL SHUTOFF TO PROTECT THE ENGINE, TILTING

THE GRINDER HIGHER THAN 12 INCHES AT AN ANGLE CAN CAUSE THE OIL TO ROLL

BACK AND THE LOW OIL SENSOR WILL SHUT THE ENGINE OFF. CUT YOUR STUMP 9

TO 10 INCHES OFF THE GROUND SO YOU DON’T TRIP THE SENSOR ON THE ENGINE.

READ AND OBEY ALL WARNING LABELS ON THIS MACHINE.

OPERATION

BEFORE STARTING

OPERATION

QUICK START & TROUBLESHOOTING

QUICK START SETUP

• Add 10W30 oil to engine

• Add gas

• Pin one wheel into pivot brake hole, other wheel free turning

• Raise up kick stand

• Turn key on

• Half throttle (choke optional for cold starts)

• Tip the unit back with the cutters o the ground

• Pull start the engine

STUMP CUTTING

• Engine on highest speed

• Hold tight on bow handle with both hands

• Lower cutters into top of stump, cut 3.5” wide to cutter depth

• Raise cutters up and move over for next cut, repeat

• Pivot cutters from side to side to face o remaining stump

TROUBLE SHOOTING

ENGINE WON’T START

• Turn key on - check engine oil level - check gas level

• Unplug key switch - if engine starts replace the key switch

• Follow your engine manual for further trouble shooting

UNIT VIBRATES

• Check your cutters for missing or loose teeth

• Check your cutter wheel pillar bearing mounting bolts

OPERATION

ADJUSTING THE DRIVE BELTS

POWER LOSS AT CUTTER WHEEL

• Check your belt tension - slipping belts cause power loss

• Worn belts - replace

• Belt tension should be set at .25 inch movement above and below belt normal

position

• Check your 4 engine mounting bolts, loose engine bolts will create loose belt tension

USE DK2 POWER OEM REPLACEMENT BELTS FOR TOP PERFORMANCE.

REMOVE 4

COVER BOLTS

AND REMOVE

BELT COVER

LOOSEN

4 ENGINE

MOUNTING

BOLTS

ADJUST

BOLTS TO

MOVE THE

ENGINE -

CHANGING

TENSION

ON BELTS

OPERATION

DO’S & DON’TS

DO’S

• Check your belt tension - slipping belts cause power loss

• Check your 4 engine mounting bolts, loose engine bolts will create loos belt tension

• Check your teeth bolts regularly, torque to 30 ft lbs

• Grease your tire axles

• Remove the tow bar when grinding

• Lift the kick stand when grinding

• Change your ﬁrst oil after 5 hours, then per the engine manual

• Use DK2 POWER OEM Replacement Parts for Top Performance

• Don’t grind sand, rocks or dirt, it will dull or damage your teeth

DON’TS

• Don’t lift the front end up in the air to work on teeth

• When you had the nose of your grinder up in the air for extended time the

oil from the oil pan has ﬂooded the piston cylinder and your cylinder is full of

oil. This creates compression and you can’t turn the engine over. So, remove

the spark plug, remove both oil caps, this allows air ﬂow. Let it sit for a day

over night is best. Replace the oil caps, give it a shot of starting ﬂuid in

the spark plug hole, replace the spark plug. Now start your engine. It

will smoke until all the oil burns o, but it will burn o. You may even see oil

from the muer until it burns o.

• Don’t grind anything but stumps

• Don’t pull on the road - high speed with no grease will damage your rims from heat.

Keep them greased

• Don’t pull start with the kick stand down

• Don’t start with your teeth on the ground

ALWAYS

• Always call DK2 POWER for and questions, technical advice and parts

USE DK2 POWER OEM REPLACEMENT BELTS FOR TOP PERFORMANCE.

702-331-5353 EXT 1

OPERATION

QUICK START GUIDE

THANK YOU FOR CHOOSING DK2 POWER.

1. Add gas mid grade and 10W30 oil to either one of the yellow plugs

2. Your grinder won’t start on low oil. Make sure your oil is full - halfway up the ﬁller

neck

3. Kick stand up

4. Engine gas paddle on full to the right (located on the air cleaner)

5. Choke in the middle

6. Speed on turtle

7. Turn your key on

8. Teeth on the ground

9. Pull start

WARRANTY

JUST IN CASE

PLEASE DO NOT RETURN TO THE STORE

CALL US AT 702-331-5353 FOR FAST WARRANTY PARTS AND QUESTIONS

WHAT IS COVERED - 3YR COMMERCIAL EXTENDED WARRANTY INCLUDED

Detail K2 Inc. warrants to the original purchaser that model OPG777 will be free and clearof manufacturing defects in workmanship and materials

under normal use and service fora period of one (1) year from the date of the original purchase after July 4th2020 and included two more years to

extend the warranty to three (3) years. Product registration is required to obtain the extended warranty.If within three (3) years from the original

date of purchase this OPG777 fails due to defect inmaterial or workmanship, Detail K2 will repair, replace, or supply any covered defective part at

ouroption. DK2 POWER OPG777 is 3-years parts only warranty no labor. Kohler 3 year warranty is PARTS and LABOR.

Upon expiry of three (3) years, Detail K2 will have no further liability related to theproduct. Detail K2 does not authorize any party, including its

authorized distributors ordealers, to oer any other warranty on behalf of Detail K2 Inc.

SERIAL NUMBERS MUST BE REGISTERED ONLINE AT WWW.DK2POWER.COM, WARRANTY NON-TRANSFERABLE.

KOHLER ENGINES - KOHLER CH SERIES ENGINES COMMERCIAL 3 YR PARTS AND LABOR WARRANTY

KOHLER ENGINES - KOHLER SH SERIES ENGINES RESIDENTIAL 2 YR PARTS AND LABOR WARRANTY

See your Kohler manual for speciﬁc warranty.

DK2 OPG777 STUMP GRINDER–3-Year parts only, no labor. 3-year commercial Kohler warranty.

THIS WARRANTY DOES NOT COVER OR APPLY TO:

(a) Damage to the product due to misuse, mishandling and abuse

(b) Improper installation, maintenance and storage

(c) Expendable parts such as nuts and bolts, pins and springs, wiring and switch components, hydraulic hoses and ﬁttings, cutting teeth, cutting

chains, cutting blades, throttles, belts and tires.

(d) Normal wear and tear

(e) Consequential damage & incidental damages such as damage to persons or property

PROCEDURE FOR OUTDOOR POWER EQUIPMENT WARRANTY

Within the three (3) year warranty period, the purchaser of the product can CALL 702-331-5353 DK2POWER or contact us on www.DK2Power.com.

Notify us of the claimed defect and provide proof of original purchase.At this time the validity of the claim will be determined, and if approved

replacement parts will be issued. No returned product will be accepted underwarranty unless accompanied by an RGA# issued by Detail K2 Inc.

DAMAGED FREIGHT

Damage to your product caused by freight mishandling is NOT covered under warranty. If your freight arrives damaged, REFUSE it. Inspect your

product when it arrives, otherwise if you accept it, you will be responsible for ﬁling any freight claims with the delivery company. Dk2 warranty

excludes damage to product.

RETURNS BEFORE GAS AND OIL

Follow the return policy from the retailer you purchased the equipment from.

RESOLUTION FOR A DEFECTIVE PRODUCT AFTER GAS AND OIL HAS BEEN ADDED

Call DK2Power at 702-331-5353 in Las Vegas between 8 AM - 4 PM M-F Paciﬁc Time.

This page is intentionally left blank.

OPG777

BROYEUR DE SOUCHE COMMERCIAL

LARGEUR DE COUPE 3.5 • REMORQUAGE HORS ROUTE SEULEMENT • MOTEUR KOHLER 14CV

GUIDE D’ASSEMBLAGE

PIÈCES ET SERVICE 702-331-5353

WWW.DK2POWER.COM

SIÈGE SOCIAL CORPORATIF DK2

5330 MAINWAY

BURLINGTON, ONTARIO

L7L6A4 CANADA

DK2 USA OUEST

4301 S VALLEY VIEW BLVD. SUITE 10-11

LAS VEGAS, NEVADA

89103 USA

DK2 USA EST

3750 SOUTH AVENUE, NORTH UNIT

TOLEDO, OHIO

43615 USA

TABLE DES MATIÈRES

Vériﬁez l’emballage ..................................................................................................................................................... 20

Essieu et roues ............................................................................................................................................................. 21

Montage de la poignée .............................................................................................................................................. 22

Sécurisation de l’accélérateur .................................................................................................................................. 23

Assemblé de barre de remorquage ........................................................................................................................ 24

Votre moteur Kohler 14HP CH440 ........................................................................................................................... 25

SCHÉMA ET PIÈCES

Vériﬁcation des schémas ........................................................................................................................................... 26

Liste des pièces ............................................................................................................................................................ 27

OPÉRATION

Avant de commencer .................................................................................................................................................. 28

Démarrage rapide et dépannage ............................................................................................................................ 29

Réglage des courroies d’entraînement .................................................................................................................. 30

À faire et à ne pas faire .............................................................................................................................................. 31

Guide de démarrage rapide ...................................................................................................................................... 32

Garantie .......................................................................................................................................................................... 33
