DLE JETBOARD User manual

USER MANUAL
DLE JETBOARD
Thank you for choosing a DLE Jetboard! The DLE Jetboard is a dedicated extreme sports device. It is made in full carbon fiber composite
and is driven by a high performance two stroke engine. Please read through this manual to learn about all parts and functions. For your own
safety, please check the Jetboard regularly and perform the maintenance as specified in this manual. It’s important to read and follow our safety
instructions and maintenance guide before and after use.
If you have any questions, please send email to us ([email protected]). We will provide the best - quality service. Please visit our website:
www.dlengine.com for latest news and information.

List of contents
1、User Instructions ........................................................................................................................................................................................1
2、Safety Instructions .........................................................................................................................................................................................2
3、Specification .........................................................................................................................................................................................4
4、Exploded View Drawings & Notes ...............................................................................................................................................................5
Engine Notes ...........................................................................................................................................................................................5
Crankcase ..........................................................................................................................................................................................7
Cylinder ...........................................................................................................................................................................................8
Impeller - Jet unit ............................................................................................................................................................................9
Muffler .........................................................................................................................................................................................11
Hull ......................................................................................................................................................................................... 12
Jetboard Internal ...................................................................................................................................................................................... 13
hrottle Control Handle ............................................................................................................................................................................ .14

Control System ...................................................................................................................................................................................16
Battery Charger ...................................................................................................................................................................................... 18
Fuel Tank ....................................................................................................................................................................................................19
5、User Guide .....................................................................................................................................................................................................20
6、Common Problems and Troubleshooting ..................................................................................................................................................27
Water in Engine ...........................................................................................................................................................................................28
Carburetor Tuning ........................................................................................................................................................................................29
Carburetor Cleaning .....................................................................................................................................................................................30
7、Engine Dis-assembly ......................................................................................................................................................................................31
8、Safety Warning .........................................................................................................................................................................................33
9、After-sales Service & Warranty ......................................................................................................................................................................34
10、Parts List ........................................................................................................................................................................................................36

1
1、User Instructions
The DLE Jetboard is a high performance power unit, IT IS NOT A TOY !
We strongly suggest that the user of the DLE Jetboard is over the age of 16. The Jetboard is not suitable for pregnant women, people with
hypertension, heart disease or other disabilities. Please always wear a helmet, proper safety gear, and try not to hurt anyone. This manual provides
most information about controlling the Jetboard, maintenance and safety. It can not cover everything you will experience, but it will help you to
correctly use the Jetboard and protect yourself from potential dangers. The drawing section shows the individual components.
As an owner of a DLE Jetboard, you should only surf on a water area that is suitable and where it is permitted by local authorities.
2、Safety Guide
2.1 Collision avoidance
The most common accident is a collision. Collisions cause more casualties than other accidents on the water, so practice your skills to
prevent collision accidents. The Jetboard doesn’t have a brake, you need to decrease the speed in advance before stopping. The Jetboard
can be steered at a very low speed,but you need to keep the engine running. A slow-moving deceleration will minimize the chance of
falling down from the board.
2.2 Precautions

2
Becoming familiar with the waterways and aware of people around you will help you to avoid accidents. Always keep a safe distance to
people, other boats and any obstacles around you. Remember, if you are on a collision course, you should slow down and make an appropriate
change in direction to avoid a collision.
2.3 Wearing a life vest
Always wear a certified life vest of proper size when you use the Jetboard. A life vest is the most important life saving insurance on the
water. A good life vest should fit properly, be rated for your weight and be bright in color. We also suggest that you wear some basic protective
clothing, such as a Neoprene(TM) swim suit, shoes and gloves to avoid orifice injuries.
2.4 Wearing a helmet
When a collision happens,a helmet can protect your head against impact trauma. But you will need to decide whether to wear a
helmet or not, helmets can also cause serious injury to your head at certain angles of impact. Please only use a helmet designed for water
sports.
2.5 Surfing at a controllable speed
When you use the Jetboard, Do not exceed the designed speed and keep it under positive control at all times. Loosing control of the board
can result in serious injuries. You should never use the Jetboard under the following circumstances: Being drunk or under the influence of

3
drugs, being exhausted or having problems to concentrate or keeping your balance.
2.6 Keep your Jetboard in good condition
Regular maintenance can keep your Jetboard in good condition. Check your Jetboard before every engine start. Do not overload it, remove
anything or do any modifications to the Jetboard, it will negatively change the performance.
Caution
1. Keep a safe speed and proper distance to people, property and other Jetboards.
2. Do not surf behind larger boats, as the wake can be very dangerous.
3. Do not surf closes to people or property, as the water jet can injure people.
4. Do not make sudden turns, it will confuse others about your moving direction.
5. Choose a proper water area, avoid diving or swimming areas and areas with shallow underwater objects or vegetation.
6. Prevent collisions and plan in advance. Remember, the Jetboard does not have any brakes.

4
3. Specification
Length*Width*Height
1800*600*150
Fuel
Unleaded Gasoline #92 or above
Weight
18KG
Fuel Mix Ratio
30:1
Engine
Two Stroke Water-cooled Engine
Fuel Tank Capacity
3.0L
Displacement
106CC
Recommended Lubricant
Full Synthetic 2T
Power
8KW/7500rpm
Ignition
CDI Ignition
Recommend RPM band
6700～7800rpm
Spark Plug
NGK MB6A
Maximum Speed
55km/h
Minimum Water Depth
50CM
Compression Ratio
13:1
Maximum User Weight
100KG
Bore*Stroke
52*50
Packing Dimensions
1900*700*300
Starting Mode
Electrical Starting

5
4. Exploded Drawings & Notice
Engine Notice：
1.User must be over 16 years of age.
2.Please use clean gasoline. The mixing ratio with lubricant is 30:1; Lubricant from different brands and grades should not be mixed, it will
seriously block the carburetor.
3.A long time running at idle will result in carbon build-up on spark plug.
4.Always check pipe line from fuel tank to carburetor, air leakage is not allowed.
5.Clean the filter inside the carburetor regularly, otherwise the dirt might cause rough running of the engine and oil needle will be failed.
6.Start the engine in an open area outdoors, Do not start the engine indoors.
7.Before starting the engine, make sure gasoline is filled and the battery is charged.
8.A new engine should run for 10-20 minutes for breaking-in (low speed). The engine should never run without water cooling for more than
5 seconds, otherwise it will lead to permanent damage to engine and exhaust system.
9. Do not touch the engine while it’s running or try to stop it by hand or with objects.

6
10. Do not touch the cylinder and muffler till it’s cooled down.
10.When starting the engine, keep audiences 5 meter away from it.
11.Make sure the fuel tank is empty for transportation.

7
Crankcase

8
Cylinder

9

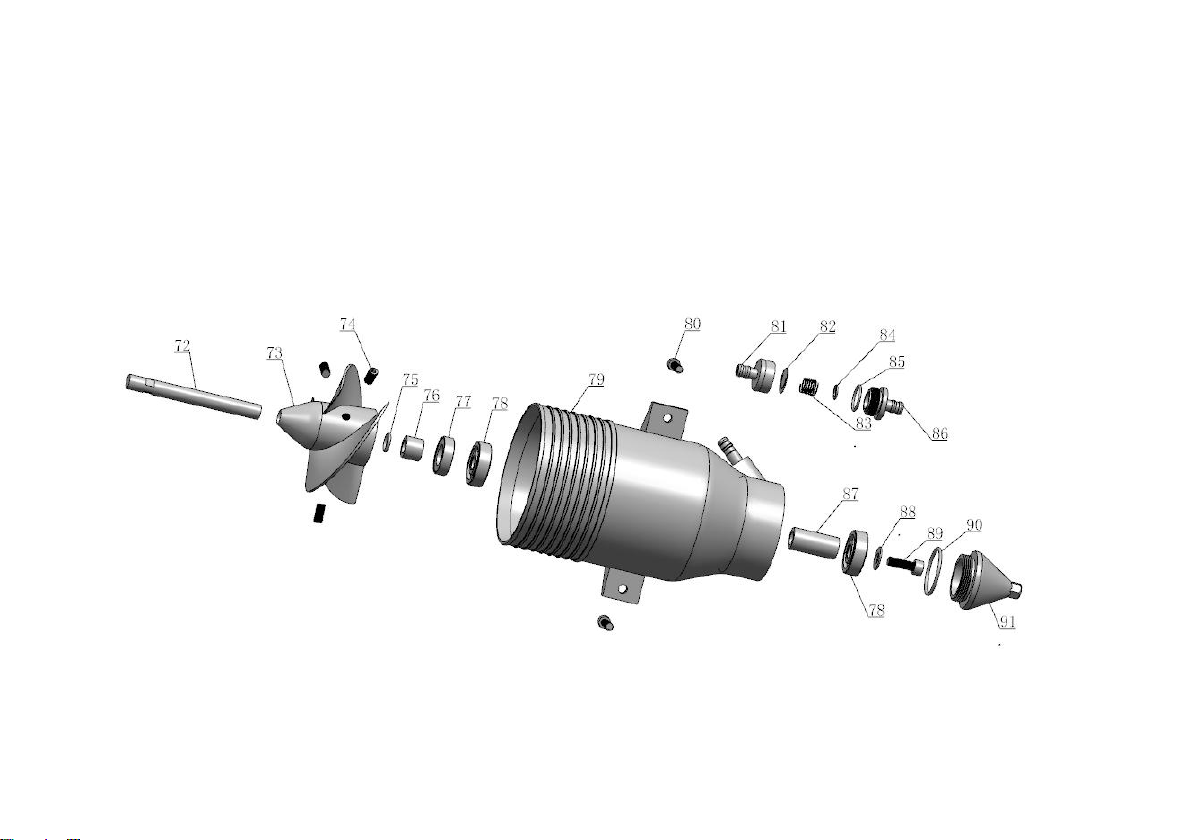

Impeller - Jet unit

10
Impeller Notice
Check and clean if there is any obstacle in the water inlet. The engine should be shutdown immediately if it is powering down by itself or
starts vibrating. Check the impeller and bolts, make sure there is no damage from ingested objects or loose or lost bolts.
Notice：
1.The outlet hose is RED, the Blue one is the cooling water intake hose.
The engine will overheat if the blue hose is disconnected.
2.Clean the one-way valve in the RED line regularly to prevent
blocking. The one-way valve must be mounted in the correct direction
when you put back after cleaning.

11

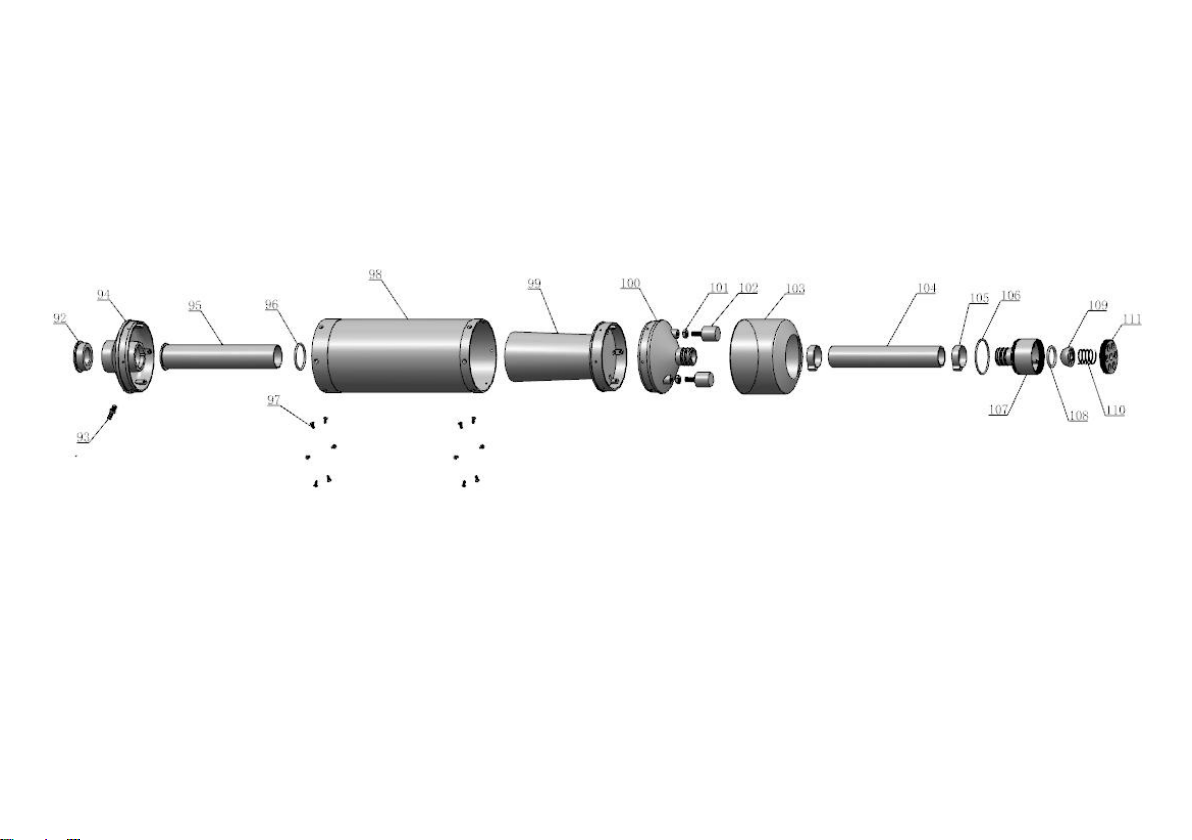

Muffler

12

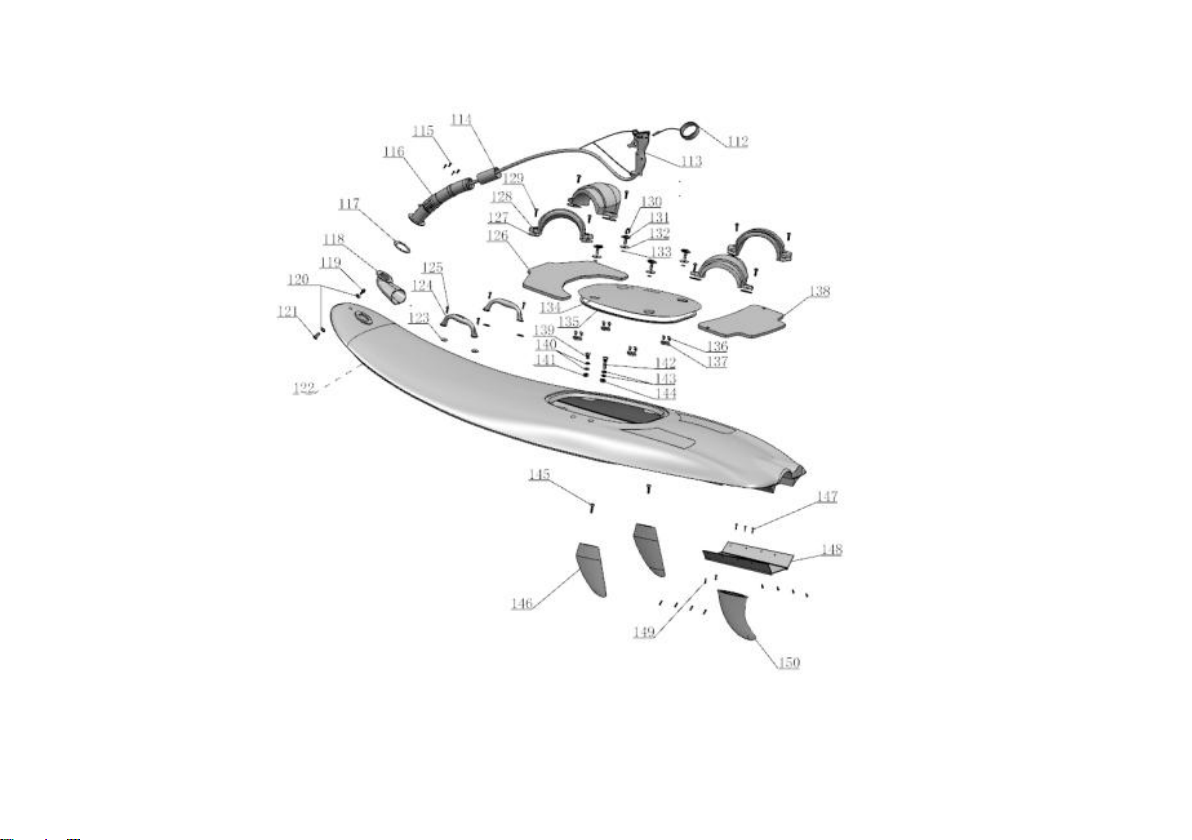

Hull

13
Jetboard Internal View

14

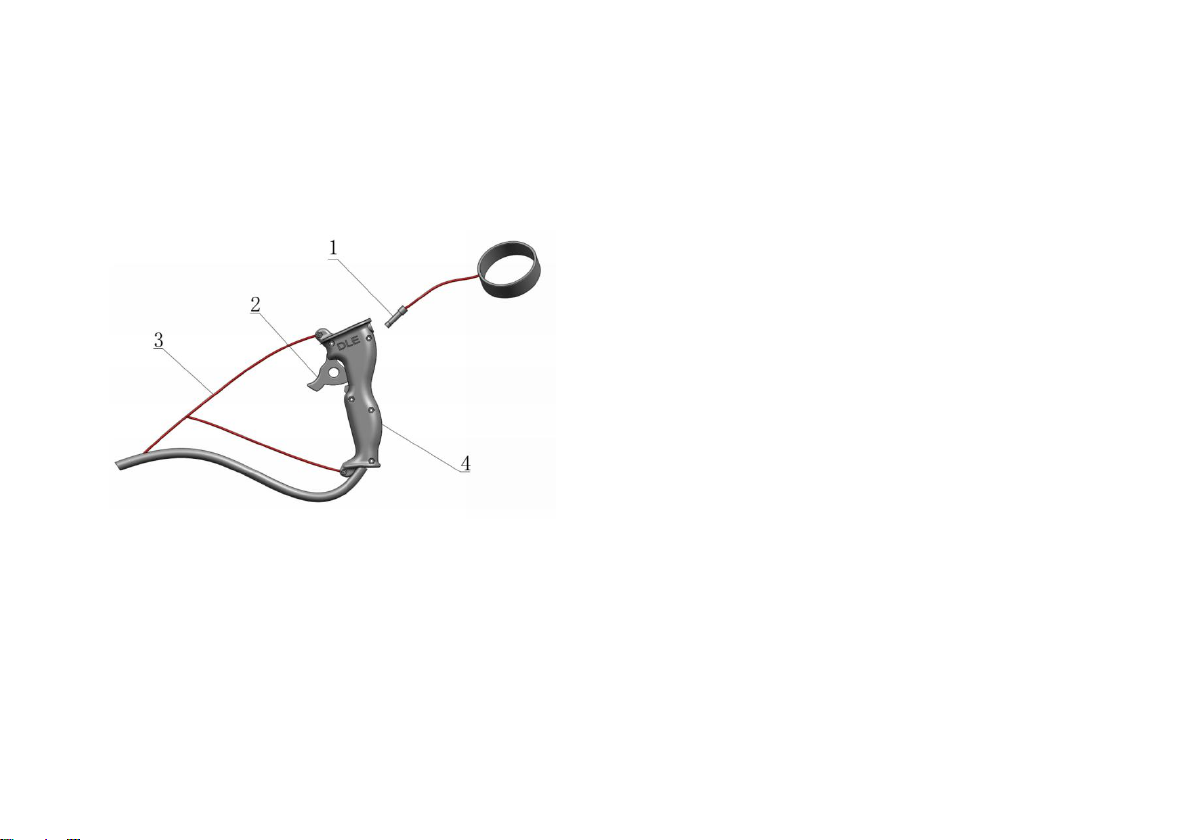

Throttle Control Handle
Throttle ：Always test the throttle before you start the engine, the
throttle trigger should have a smooth movement. The engine will move
to idle when the trigger is released.
Test Procedures：
1. Press the trigger to the end and release several times.
2. Check if the engine shows a steady idle speed.
3. If the throttle doesn’t move back to idle when the trigger
is released please stop using the Jetboard and check the
throttle wire and do not fold the end of throttle wire on the
1.Start Key 2.Throttle control handle 3.Stay cord 4.Handlehandle.

15
Throttle Control Handle maintenance
1. Hold the handle vertically and spray WD-40 to the trigger, press and
release trigger several times and keep it vertically for 5 minutes till the
throttle wire is fully lubricated.
2. Spray some WD-40 on the throttle wire that connects tothe carburetor, and
press and release the trigger several times.

16

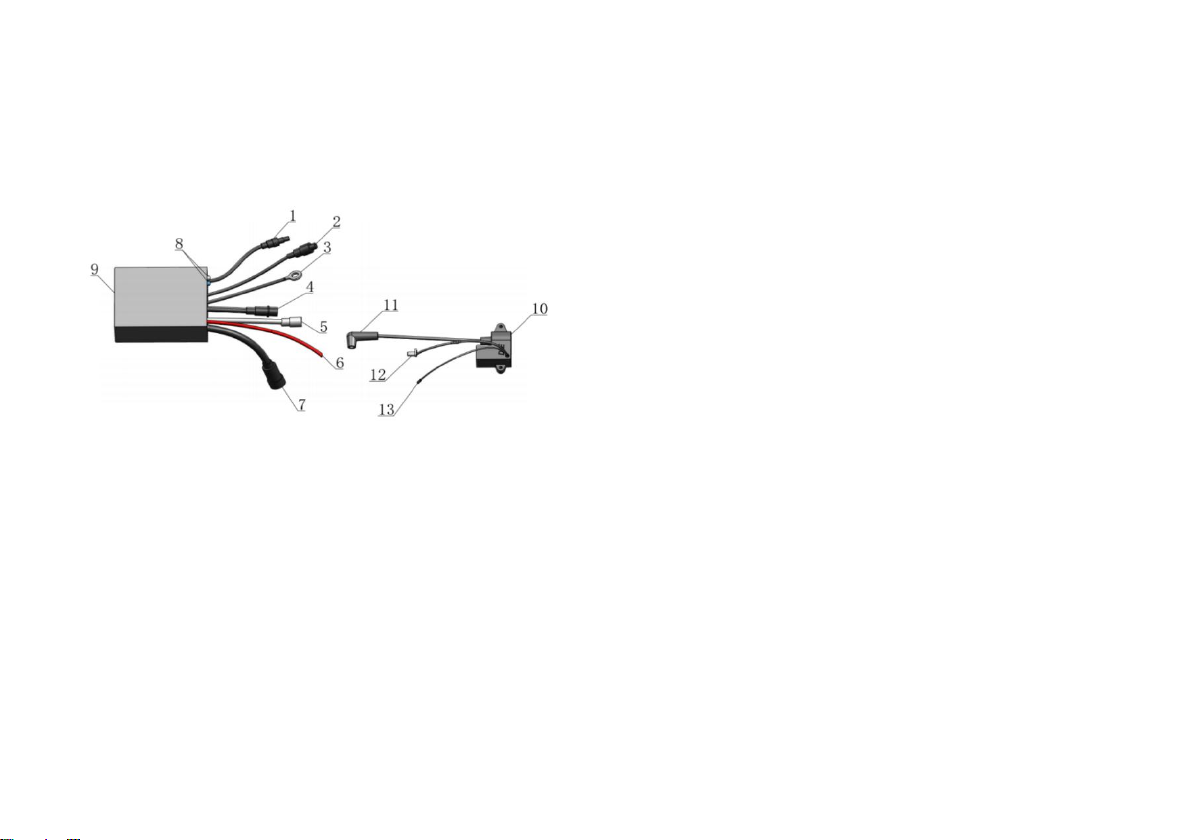

Control SystemNotice：
1.Make sure all wires are in good condition
with clean insulation and properly attached
connectors.
2.The Control Systems unit should not get
soaked in water for a long time.Dry out if
necessary.
3.Do not disassemble the control system.
Replace the unit if damaged.

17
Number
Name
Color/Type
Where to connect
Note
1
Pump connector
Black 4 cores(thin)
Pump
Blue and black are negative, Green and brown are positive
2
Ignition connector
Black 2 cores(wide)
Ignition 13
Brown is positive, blue is negative
3
Ground
#12 Black
Engine Hull
4
Throttle Control Handle connector
Black 4 cores（thin）
Throttle Control Handle
5
Cutoff switch connector
While 3 cores
Cutoff switch
Disconnect this connector for transportation or
when the Jetboard is not used for a long time.
6
Start Motor connector
#12 Red
Start up motor
7
Charger connector
Black 4 cores（wide）
Charger
8
Power LED
Red/Green
Red on(power on); Green on(standby), pump is on
Low voltage LED
Blinking
Low battery, need to charge asap
9
Control Box
10
Ignition
11
Spark plug cap
Spark plug
12
Sensor connector
Sensor
13
Ignition connector
Control system 2
