AT-D868UV
Operating Manual
Digital DMR and Analog
UHF/VHF Two Way Radio
DMR
DIGITAL MOBILE RADIO ASSOCIATION

THANK YOU!
Thank you very much for choosing our Dual Band Digital DMR
and Analog two way radio.
This radio adopts the latest advances in technology, providing reliable
communication in today’s demanding communication environment.
This radio offers both DMR digital and analog communication, introduces
innovative DMR digital processing system to achieve SMS, high-audio
quality and digital encryption. It offers great stability, and reliability, together
with long distance communication as well as fashionable design and
compant exterior lines. AT-D868UV has Text message, recording, voice
message, digital encryption, emergency alarm, Man down alarm, lone
work, GPS with APRS, Vibration and Analog DTMF, 2TONE, 5TONE,
CTCSS/DCS encode/decode functions.
»When programming the radio, start by reading the factory
software data, and then rewrite this data with your frequency etc.,
otherwise errors may occur because.
»You can use the programming cable with a PC to program the
frequency, channel type, power etc. your programming must
comply with your FCC (or other country)license certication.

ATTENTION:
»The above also applies to accessories for your AnyTone two way radio.
If any item is not working normally, please contact your local AnyTone
dealer.
»Accessories made by other companies are not guaranteed by AnyTone
to operate correctly and to keep the radio working safely.
1. Keep the radio and accessories away from children.
2. Please do not try to open or modify the radio unless authorized,
non-professionals repair may cause damage and void the warranty.
3. Please use the AnyTone battery and charger to avoid damage.
4. Please use the supplied antenna to ensure good communication.
5. Please do not expose the radio to direct sunlight for a long period
of time or place the radio near excessive heat.
6. Please do not put the radio in extremely dusty or humid areas.
7. Do not use harsh chemicals, cleaning solvents to clean the radio.
8. Absolutely do not transmit without the antenna installed on the
radio.
9. When using this radio, we recommend transmitting for 1 minute
then receiving for 4 minutes. Continuously transmitting for a long
time or working with the high power setting will heat the back of
the radio. Do not place the radio’s hot side close to any surface of
plastic.
10.If abnormal odor or smoke is detected from the radio, power off
the radio and remove the battery pack. Then contact your local
AnyTone dealer for advice.
Notice to the User

CONTENTS
1.UNPACKING AND CHECKING THE EQUIPMENT........................ 1
1.1 Supplied Accessories................................................................. 1
1.2 Standard Accessories ................................................................ 2
1.3 Optional Accessories ................................................................. 2
2.BATTERY INFORMATION.............................................................. 3
2.1 Charging the Battery Pack ......................................................... 3
2.2 Charger Supplied ....................................................................... 3
2.3 Use Caution with the Li-ion Battery............................................ 3
2.4 How to Charge ........................................................................... 4
2.5 Normal Charging Tips ................................................................ 5
2.6 How to Store the Battery............................................................ 6
3. PREPARATION.............................................................................. 7

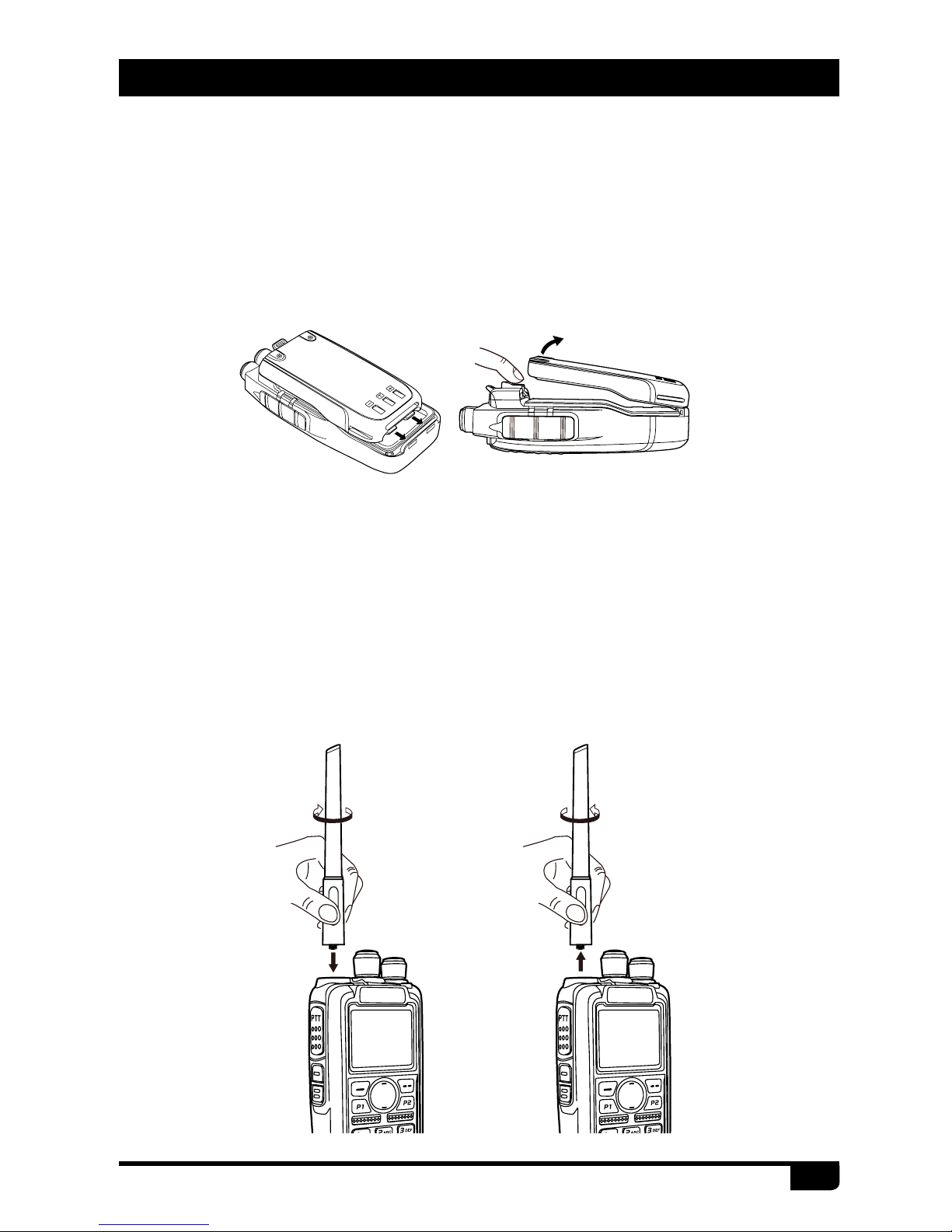

3.1 Installing / Removing the Battery ............................................... 7
3.2 Installing / Removing the Antenna ............................................. 7
3.3 Installing / Removing the Belt Clip ............................................. 7
3.4 Installing the Additional Speaker/Microphone (Optional) ........... 8
4. Radio Overview............................................................................. 9
4.1 LED Indications........................................................................ 10
4.2 Programmed Key ......................................................................11
4.3 Default function ........................................................................ 12
4.4 Hot Key .................................................................................... 12
5.BASIC OPERATIONS................................................................... 13
5.1 Power on the Radio ................................................................. 13
5.2 Adjust Volume .......................................................................... 12
5.3 Battery Voltage Test ................................................................. 13
5.4 Main band/Sub band switch..................................................... 13
5.5 VFO/Channel switch ................................................................ 13
5.6 Set up VFO frequency ............................................................. 13
5.7 Select a Zone........................................................................... 14
5.8 Select a Channel...................................................................... 14

5.9 Receiving and Responding to a Radio Call ............................. 15
5.10 Temporary Monitor ................................................................. 16
5.11 Monitor ................................................................................... 16
6. ADVANCED FEATURES ............................................................. 17
6.1 Advanced Features for Private Call ......................................... 17
6.2 Advanced Features .................................................................. 17
7.GPS POSITIONING FUNCTION................................................... 19
7.1 Turn on GPS ............................................................................ 19
7.2 Check the GPS Information ..................................................... 19
7.3 Send GPS Information ............................................................. 19
7.4 Man Down Alarm...................................................................... 20
8.RECORDING................................................................................. 21
8.1 Turn on/ off the Recording ....................................................... 21
8.2 Play the Record ....................................................................... 21
8.3 Send the Record ...................................................................... 21
8.4 Recording Manually ................................................................. 21
9.MAIN MENU.................................................................................. 23
9.1 Contacts................................................................................... 23
9.2 Messages................................................................................. 23
9.3 Call Log.................................................................................... 23
9.4 Scan List .................................................................................. 23
9.5 Settings .................................................................................... 24
9.5.1 Radio Set................................................................................... 24
9.5.2 Chan Set.................................................................................... 27
9.5.3 Device Info................................................................................. 30
10.TROUBLE SHOOTING GUIDE................................................... 31
11.PROGRAMMING GUIDE ............................................................ 32
12.ON-LINE SERVICE AND SUPPORT.......................................... 34
13.TECHNICAL SPECIFICATIONS................................................. 37

1
AT-D868UV Digital DMR and Analog UHF/VHF Two Way Radio
1. UNPACKING AND CHECKING THE EQUIPMENT
Unpack the radio carefully. We recommend that you identify the items listed
in the following table before discarding the packing materials. If any items
are missing or have been damaged during shipment, please contact the
carrier or the dealers immediately.
1.1 Supplied Accessories
Item Number Quantity
Antenna 1
Li-ion Battery Pack 1
Battery Charger 1
AC Adaptor 1
Belt Clip 1
Hand Strap 1
Instruction Manual 1
1. Unpacking and Checking the Equipment

2
AT-D868UV Digital DMR and Analog UHF/VHF Two Way Radio
1. UNPACKING AND CHECKING THE EQUIPMENT
1.2 Standard Accessories
Antenna*1Li-ion Battery Pack Charger AC Adaptor
Belt Clip Instruction Manual
* Note: For frequency band of antenna, please refer to label indicated in
the bottom of the antenna.
* Note: Car Charger and QBC-45L Charger should be used together.
Li-ion Battery Pack
1.3 Optional Accessories
USB Programming
Programming Software
Earphone
Car Charger

3
AT-D868UV Digital DMR and Analog UHF/VHF Two Way Radio
2.2 Charger Supplied
2.3 Use Caution with the Li-ion Battery
The Li-ion battery pack is not charged at the factory; please charge it
before use.
Charging the battery pack for the first time after purchase or extended
storage (more than 2 months) may not bring the battery pack to its normal
maximum operating capacity. Best operation will require fully charging/
discharging the battery two or three times before the operating capacity will
reach its best performance. The battery pack life may be depleted when
its operating time decreases even though it has been fully and correctly
charged. If this is the case, replace the battery pack.
Please use the specied charger provided by AnyTone. Other models may
cause explosion and personal injury. After installing the battery pack, and
if the radio displays low battery with a red ashing lamp or voice prompt,
please charge the battery.
a. Do not short the battery terminals or throw the battery into a re. Never
attempt to remove the casing from the battery pack, as AnyTone cannot
be held responsible for any accident caused by modifying the battery.
b. The ambient temperature should be between 5℃-40℃ (40˚F - 105˚F)
while charging the battery. Charging outside this range may not fully
charge the battery.
c. Please turn off the radio before inserting it into the charger. It may
otherwise interfere with correct charging.
d. To avoid interfering with the charging cycle, please do not cut off the
power or remove the battery during charging until the green light is on.
e. Do not recharge the battery pack if it is fully charged. This may shorten
the life of the battery pack or damage the battery pack.
f. Do not charge the battery or the radio if it is damp. Dry it before charging
to avoid damage.
2.1 Charging the Battery Pack
2. BATTERY INFORMATION
