Model：AC-Y4
Note:
AC-Y4 is an information technology equipment rather than medical facility. Temperature measurement is only
an auxiliary function and cannot be used as medical diagnosis basis.)
USER MANUAL

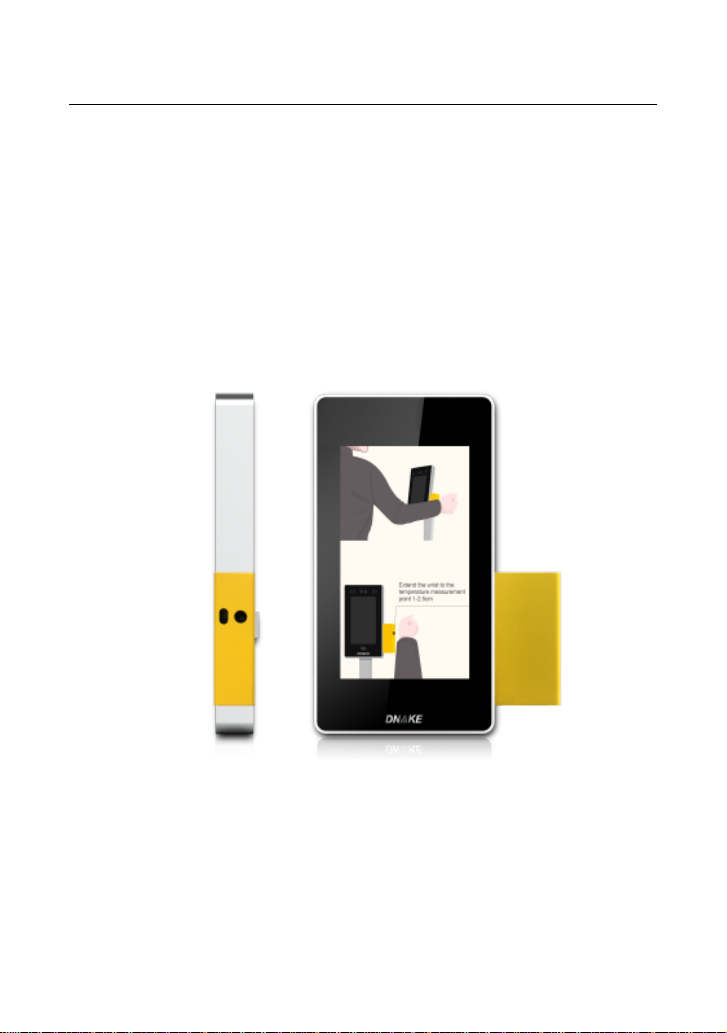

Wrist Temperature Measurement Terminal

2
Remark
Please follow the user manual for correct installation and testing.
It’s recommended to test the terminal after powering on for 15
minutes. The terminal is for indoor installation only. If there is any
doubt please call our tech-supporting and customer center.
Our company applies ourselves to reformation and innovation of
our products. No extra notice for any change. The illustration
shown here is only for reference. If there is any difference, please
take the actual product as the standard.
The product and batteries must be handled separately from
household waste. When the product reachesthe end of service life
and needs to be discarded, please contact the local administrative
department and put it in the designated collection points in order to
avoid the damage to the environment and human health caused by
any disposal. We suggest recycling and reusing the material
resources.

3
Temperature Measurement
Temperature Measurement
Extend the wrist to the temperature measurement module 1-2.5cm to measure the
temperature.

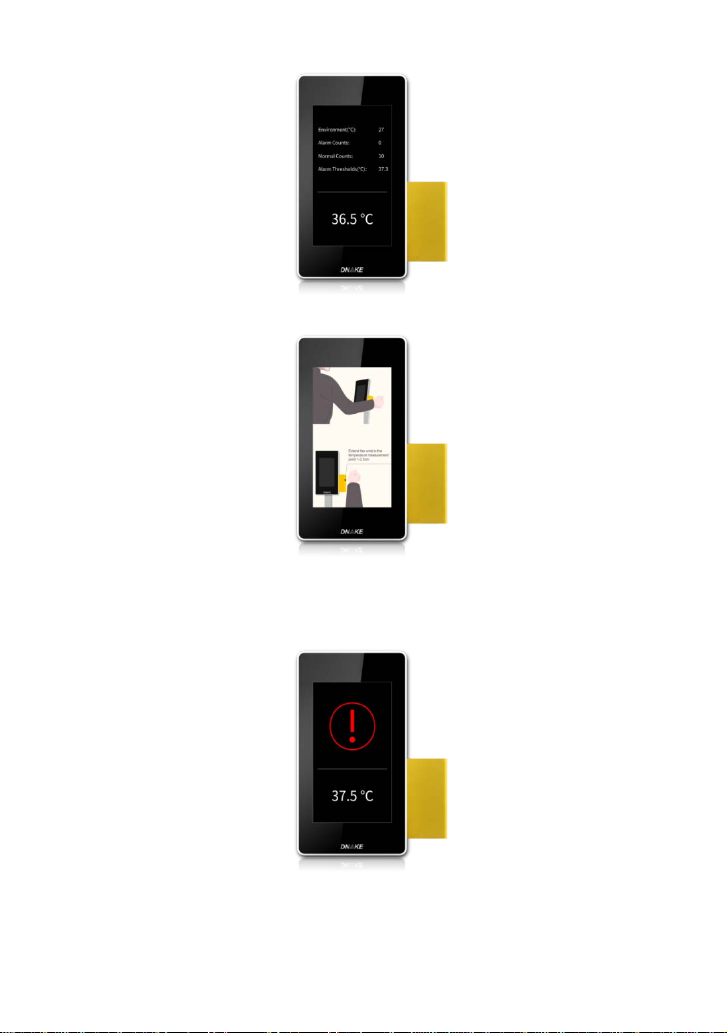

1. If the temperature is normal, device will have a voice prompt ‘Normal
Temperature’, and the screen will display as below picture. At the same time,
the door can be open if you enable Unlock feature in the webpage.
After 3 seconds, the screen will switch Counting page as below:

4
If there’s no any operation in 5 seconds, the screen will back to main page:
2. If temperature is abnormal, device will have an alarm voice, and prompt
‘Normal Temperature’, and the screen will display as below picture.
After 3 seconds, the screen will switch Counting page as below:

5
If there’s no any operation in 5 seconds, the screen will back to main page:
Web Settings
Web Settings

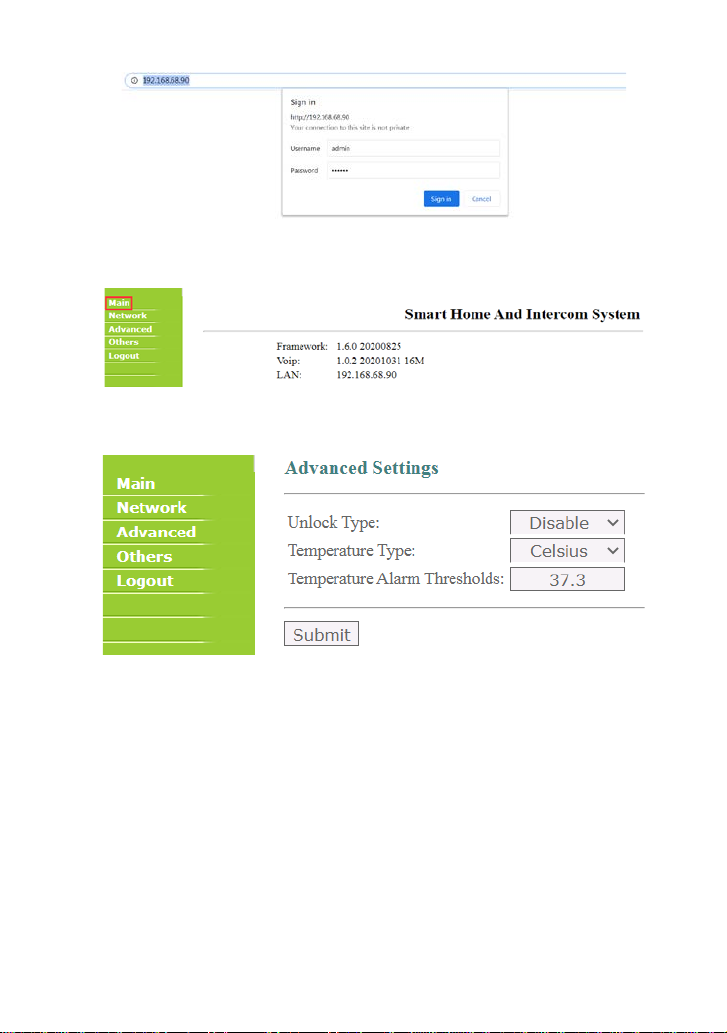

If you want to configure advance settings, please login webpage of AC-Y4. The
default IP address of AC-Y4 is 192.168.68.90, please change IP network segment
the same as AC-Y4 on your PC, then input 192.168.68.90 in your browser.
Username: admin, Password: 123456

6
1. Main
You can find the firmware version and IP address of device in the Main page:
2. Advanced Settings
Unlock Type
Disable: Device will not output unlock signal.
Normal: Device will output unlock signal when the temperature is normal.
Both: Device will output unlock signal when the temperature is normal or
abnormal.
Temperature Type
Celsius: Device will display the measured temperature as Celsius temperature.
Fahrenheit: Device will display the measured temperature as Fahrenheit
temperature.

7
Temperature Alarm Thresholds
The temperature alarm thresholds is configurable, you can set different
thresholds according to different environment.
3. Network Settings
You can change the network settings in Network page:
4. Other Settings
You can reboot the device by clicking Reboot button, and reset factorydefault by
clicking Default button.

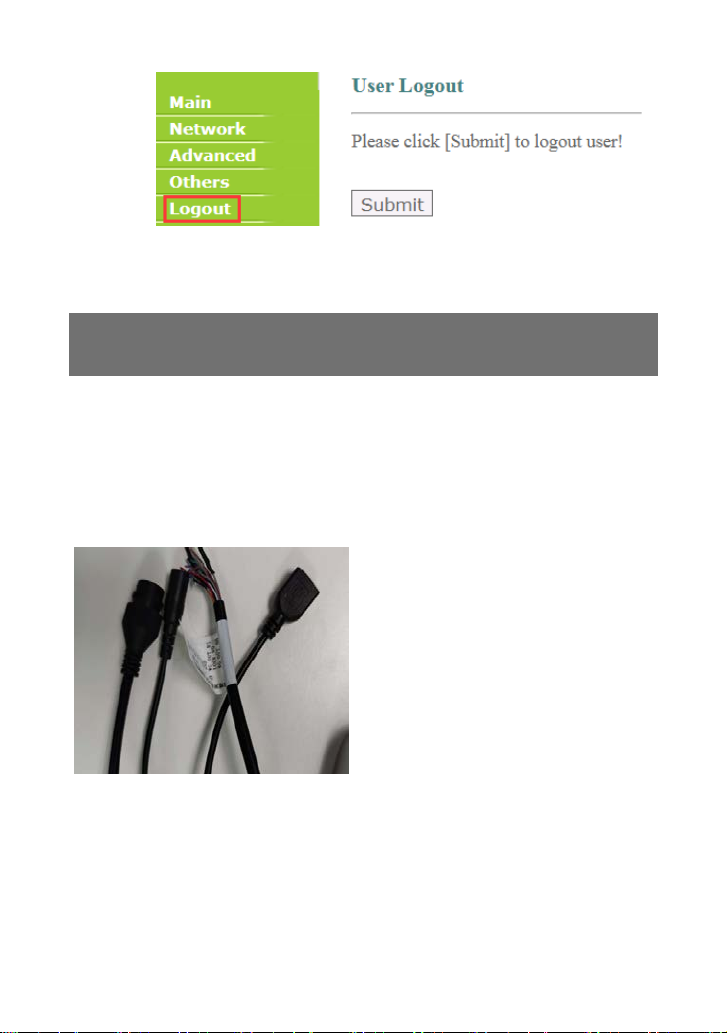

5. Logout
You can logout the webpage by clicking Submit button.

8
Equipment Interface
1. Interface Label
The equipment interfaces are shown in the figure below. Please refer to the real
object for details.
2. Interface Description (Please refer to the real object for details)
1. Interface of Y4 Terminal
Brown: SEN _INPUT
White/Brown: RS485+
White/Blue: ALARM_IN
Blue: RS485-
Black: GND
White/Green: WG_0UT_D1
Gray: LOCK_NO
Purple: WG_OUT_DO
Orange: LOCK_COM
Red: WG_IN_D1
White/Purple：LOCK_NC
White/Black: WG_IN_DO
5-2 Interface of Y4 Terminal

9
2. Interface of temperature sensor
Red: DC 12V+ input
Black: DC 12V- input
Blue: RS485_P
Brown: RS485_N
3. Wiring Diagram
Interface name No. Wiring color Wire name Description
USB2.0 / / / USB interface
Internet port / / / Access network
Power input(12V) / / / 12V power input
Wiegand input 1 White/Black WG_IN_D0 Wiegand input
Alarm output 2 White/Purple LOCK_NC Alarm output/door
lock signal (normally
closed)
Wiegand input 3 Red WG_IN_D1 Wiegand input
Alarm output 4 Orange LOCK_COM
Alarm output / door lock
signal(common)
Wiegand output 5 Purple WG_OUT_DO Wiegand output

10
Alarm output 6 Gray LOCK_NO Alarm output/door lock
signal (normally
opened)
Wiegand output 7 White/Green WG_OUT_D1 Wiegand output
GND 8 Black GND GND
GND 9 Black GND GND
GND
10
Black
GND
GND
RS485- 11 Blue RS485- RS485-
Alarm input 12 White/Blue ALARMJN Alarm input
RS485+ 13 White/Brown RS485+ RS485+
SENJN 14 Brown Door magnetic
signal
Alarm input/ door
sensor signal

-11-
Safety & Precautions
Safety & Precautions
To protect you and others from harm or protect your device from damage, please
read the following information before using your device.
Do not install equipment in the following areas:
• Do not install equipment in high temperature, humidity, near the magneticfield, such
as generators, transformers or magnets, etc.
• Do not place the equipment near the heating items such as the electric heater or the
liquid container.
• Do not place the device directly in the sun or near the heat source, whichmaycause
the body to be discolored or deformed.
• Do not install the equipment in an unstable position to avoid the property losses or
personal injury caused by the falling of device.
Prevent electric shock, fire and explosion
• Do not use damaged power cord, plug or loose power outlet.
• Do not touch the power cord with wet hands or unplug the power source by pulling
the power supply.
• Do not bend or damage the power cord.
• Do not touch the equipment with wet hands.
• Do not let the power slide, or cause a collision.
• Do not use power supply without manufacturer approval.
• Do not splash water or other liquids into the equipment.
Clean surface
• Use a soft cloth dipped in a small amount of water to clean the surface of the
machine and dry it with a dry cloth.
Other matters needing attention
• In order to prevent damage to the paint or housing, do not expose the device to
chemical products, such as thinner, gasoline, alcohol, insect repellant, sunscreen, or
pesticides, etc.
• Do not beat or hit the device with a hard object.
• Do not disassemble, refit or modify the device at your own discretion. The arbitrary
modification is not covered under warranty. When any repair required, please contact the
customer service center.
• When the device emits abnormal sound, smell or smoke, unplug the power
immediately and contact the customer service center in time.
