Domccy Hydroponic Grow Kit 4 Layers User manual

Hydroponic Grow Pipe
Model: 4 Layers
Please read the user manual before using the product

Table of Contents
Introduction.........................................................................................................................1
Important Tips.....................................................................................................................2
Machine Diagram/Parts List...............................................................................................3
Assembly...............................................................................................................................5
Seeding Instructions............................................................................................................7
Cleaning ...............................................................................................................................8
Customer Service.................................................................................................................9

1
Introduction
Congratulations on your purchase of the Hydroponic Grow Kit by Domccy
In the daily changing advancing world, people need to adapt to new reliable techniques for farming.
The Hydroponic system of growing plants is an ultimate technique for the home gardeners which
were seeking high yield in a small cultivating space. With numerous boons, the Hydroponic system
can be a farmers' or gardeners' best friend! With your new the Hydroponic Grow Kit, you will be
able to join the ranks of those who have used Domccy products to perfectly technology to enjoy their
own harvest.
The Hydroponic Grow Kit is designed by absorbing the advantages of similar products in foreign
country. All components of the product are supplied by reliable manufacturers, to ensure quality and
high level of safety and low energy consumption.Commercial growers have been using efficient
hydroponic methods for years. There's no worry about soil-born diseases or pests, and there's no
weeding. For professional growers, quicker harvests and higher yields are good reasons to use
hydroponics.
At Domccy we've adapted these proven techniques to convenient home gardening systems. We have
incorporated high performance technology with quality professional-grade materials, and designed a
full range of systems for your personal use.
Domccy hopes you will enjoy the use of your Hydroponic Grow Kit for many years to come. We
take great pride in providing you with the highest quality products and superior service and support.
Basic parameters:
Model
Product Size
Product
Specification
Pipe Length
Hole Diameter
Pipe Diameter
Water Pump
4
Layers
35*14.6*56.7 inch
(L*W*H)
4 Layers 108
Plant Sites
30.7 inch
1.18 inch
2.5 inch
2M/3W/12V/110-240V

2
Important Tips
Please read and understand the following tips prior to using your product
You may need to prepare one reservoir tank. Non-transparent tank and with cover is better. The capacity is
best 15-20L.
You need to bring your own power strip. Because of the big volume after the installation, for the
convenient transport, we didn't install it. You need to install by yourself. This will expend a little effort.
It takes up approx 0.48 square meters, the place must be under enough sunshine, at least up to 4 hours
every day. If there is no enough sunshine, it will result in the vegetables malnutrition.
Make sure that your power supply matches the product. The deviation is less than 10%.
Always locate the Water Pump away from any water source. Avoid water splashing on top of or into the
Water Pump.
If the power cord of the Water Pump is damaged, it must be replaced and fixed by the manufacturer or a
qualified person to avoid accidents.
Do NOT handle roughly or drop on a rough surface.
Do NOT mix with other utensils in the sink when washing.
Do NOT Force the machine if it jammed. Disassemble and remove any obstruction to prevent damage to
the plunger.
The instruction is not applicable for people (including children) who are reduced physical, sensory, or
mental capabilities, lack experience and knowledge.
Transportation and custody
During transportation, this product should be handled preciously to prevent violent vibration. Generally, the
packaged product should not be stored in the open air for a long time. It should be placed in a well-ventilated,
non-corrosive gas warehouse. It should not be placed upside down. Rainproof measures should be adopted
when storage temporarily.

3
Product Diagram/Parts List
Adjustable Pulley Feet
UType Water Inlet
Cuttable Sponge
Stopper
Planting Basket
Water Pump
2*Towel
Rubber Hammer
Power Connector
Adhesive Tape
Water Inlet Hose
Timer

4
Parts List
No.
Description
Quantity
1
Adjustable Pulley Feet
4
2
Bottom Stopper
4
3
Bottom Support Pipe
4
4
Connecting Pipe
12
5
PVC Planting Pipe
12
6
4 Way Connector
17
7
3 Way Connector
7
8
Transverse Connecting Pipe
17 (1 spare)
9
Stopper
13
10
Outlet Pipe
1
11
Planting Basket
108
12
Water Pump
1
13
Cuttable Sponge
1
14
U Type Water Inlet
1
15
Towel
2
16
Rubber Hammer
1
17
Power Connector
1
18
Timer
1
19
Adhesive Tape
1
20
Water Inlet Hose
1

5
Assembly

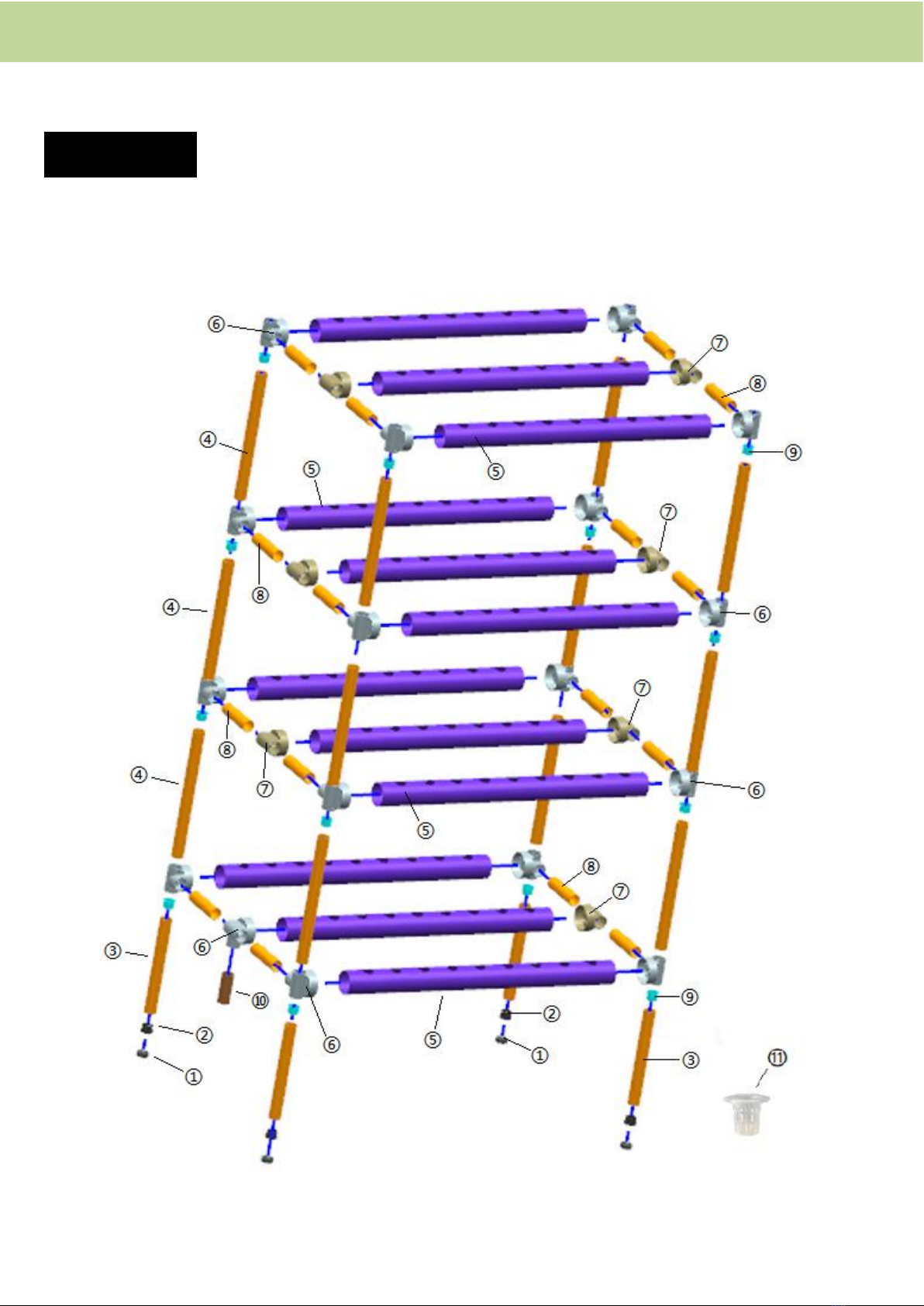

Assembly Diagram（Complete the connection of all components according to the diagram number）

6
Notes on assembly
Follow three steps to install the product:
1. Install all parts of the product.
2. Connect power to meet the requirements of the machine specified on the data plate.
3. The water level should be sufficient so that the pump is submerged at all times, otherwise it will run dry and
be damaged.
Demand of install
1. The voltage must accord with the controller’s demand.
2. The sequence of pipe must have been connected properly.
Accessories update:
1. The water inlet is newly equipped with a U-shaped tube to prevent the water flow from being squeezed by
the hose, which will cause the water flow to become smaller.
2. The updated product is equipped with two towel, and you can use the towel as a buffer during the
installation process. It can reduce noise and protect the pipeline from damage. You can use the supplied towel to
wipe the cultivation tube.
3. The adjustable foot pad is updated to an adjustable foot pad with pulleys, which makes it more convenient
to move the hydroponic grow kit.
4. The water pump is upgraded to a model with a distance of 2 meters to ensure that the water flow rises.

7
Seeding Instructions
01
Soak the seeds for a few hours, hold them in a
breathable gauze and keep them moist. Wait for the
seeds to germinate and then sow them. Place the
germinated seeds on the top end of the sponge and add
water to 1/3 of the sponge in the container. (Note: the
sponge should be moistened with water first.)
02
After the seeds emerge, replace the water with the
nutrient solution. Change the nutrient solution every
2-3 days.
03
When the seedlings grow to 3-4 leaves, start
transplanting. Use scissors to cut the sponge. Carry
out this step carefully and don't hurt the young plants.
04
Put the seedlings and sponge into the planting basket.
Take care to get the roots of the plants out of the
basket. Finally, put the planting basket into the
planting hole. Use a water pump and timer for water
circulation.
05
Wait a different time until the vegetables/fruits are ripe
and ready to be picked and eaten. You can enjoy fresh
food.

8
Application
Applicable for baking all the fresh and freeze bread.
Applicable for baking fresh and and flour products.
Cleaning & Maintenance
When cleaning your product, please note the following:
Cleaning:
For cleaning and maintenance, the power supply should be cut off.
Please don’t touch the switch or plug socket with wet hand.
Keep the children from touching or using the water pump.
We recommend cleaning the components after each planting.
