Dometic A552 User manual

Pub. Nr.: 599363886 --- REV.:A
Service Manual
MF 20-60 60-litre refrigerator with freezer compartment
Models : A552, EA0600 RH057 D3
A552E EA0601 RH060
A552EM EA0602 RH060 D
A552ESZ EA3200 RH060 D2
WA3200 RH060 DF

2
Table of Contents:
1. The appliance .................................................................................... 3
1.1. Specifications .................................................................................... 3
1.2. Important notes.................................................................................. 3
1.3. Spare parts, electrical wiring diagram................................................ 3
2. Installation and repair operations....................................................... 4
2.1. Tools.................................................................................................. 4
2.2. Cabinet, door ..................................................................................... 5
2.2.1. Adjusting right and left-hand swing door............................................ 5
2.2.2. Replacing legs ...................................................................................6
2.2.3. Replacing cowl ..................................................................................7
2.2.4. Replacing lock ...................................................................................7
2.2.5. Replacing door panel.........................................................................8
2.2.6. Replacing freezer door ......................................................................9
2.3. Electrical components......................................................................10
2.3.1. Replacing lighting device and bulb ..................................................10
2.3.2. Replacing bulb without dismounting lighting device.........................12
2.3.3. Replacing heating element (Cylindrical heating element) ................13
2.3.4. Replacing heating element [”Half-moon” heating element (as of May 2003)]15
2.3.5. Replacing temperature sensor.........................................................16
2.3.6. Replacing thermostat.......................................................................17
2.3.7. Replacing timer................................................................................20
2.3.8. Appliance with semi-automatic defrosting........................................21
2.3.9. Temperature controller ....................................................................21
2.4. Cooling aggregate ...........................................................................22
2.4.1. Replacing cooling aggregate ...........................................................22

3
1. The appliance
1.1.Specifications
The appliance is a 60-litre upright refrigerator, operating with a wet absorption cooling
system.
At ambient temperatures between +16°C and +32°C, the cooling compartment
temperature can be adjusted between 0°C and +6°C using the thermostat. The
minimum temperature of the freezer compartment is - 12°C.
You can make ice cubes using the ice tray placed in the freezer compartment.
Defrosting of the appliance is either automatic, where the appliance is switched off for
1,5 to 2 hours every 24 hour by the installed control, or it is semi-automatic and can
be initiated by pressing the defrost switch. Restart is done automatically in both
cases.
1.2. Important Notes
- Do not repair or clean the appliance with the power supply cord plugged in!
- The appliance may only be operated by adults!
- All instructions in the operating manual must be followed when operating
the appliance!
- Any repair or service of the appliance that involves disassembling electrical
parts may be carried out by authorized service technicians only!
- Certain parts of the aggregate remain hot for a while after shutdown;
service must be carried out with caution!
- After any repair that involves disrupting the electrical circuit or the
replacement of aggregate, an electrical insulation resistance test must be
carried out at all times! (see 2.3.3.)
- Only appliances with compliance qualifications may be connected to the
mains!
- It is recommended to wear protective gloves for operations with possible
hand injuries!
1.3. Spare parts, electrical wiring diagram
The lists of spare parts and electrical wiring diagrams by Product numbers can be
found on the web page http://www.electrolux-ti.com.
Attention!
Any functional parts that need to be replaced during repair may only be
replaced by parts identical to the originals and which were chosen based
on the list of spare parts!

4
2. Installation and repair operations
2.1.Tools
Recommended tools:
-Universal pliers 160-mm, 2 pc.
-magnetic screwdriver handle
-Pz 1 fitting-strip
-Pz 2 fitting-strip
-Phillips screwdriver Ph 1
-Standard screwdriver 120 * 5
-Standard screwdriver 100 * 4
-14-mm wrench
-Electric hand drill whit φ 3,2 mm drill
Figure 1

5
2.2.Cabinet, door
2.2.1. Adjusting right and left-hand swing door
- Unscrew top door mount screws. (Fig. 2)
- Unscrew door mount hole cover screws. (Fig. 3)
- Open door.
- Pull top door mount by tilting door. (Fig. 4)
- Set aside door mount, unhinge door from bottom door mount pin.
- Pull door mount hole cover. Help with standard screwdriver when pulling.
- Place cabinet on its back carefully so that the hinge is not damaged.
- Install bottom door mount on opposite side. (Fig. 5, 6)
- Unscrew door mount pin from top door mount, then screw from opposite
direction and tighten. (Fig. 7, 8, 9)
Figure 2 Figure 3 Figure 4
Figure 5 Figure 6
Figure 7 Figure 8 Figure 9

6
- Stand cabinet on its legs.
- Place door on bottom door mount.
- Place the replaced top door mount pin into top door mount bore of door,
then push door mount into left-hand-side opening of cabinet and secure
with 2 screws. (Fig. 10)
- Push door mount hole cover into upper right-hand-side opening, then
secure with a screw. (Fig. 11)
Make sure of unhindered opening and appropriate secure sealing of the door.
If needed, make corrections after loosening the screws that secure the door.
Re-fasten the screws.
- When only replacing the door, dismounting of the door mount hole cover
and door stop or the switching of the door mounts is not necessary.
2.2.2. Replacing legs
- Place unit on its back carefully so that the hinge is not damaged.
- Dismount outer legs by unscrewing 2-2 screws. (Fig. 12)
- Take out inner legs from outer legs. (Fig. 13)
- Mount inner legs by securing them using bores further apart from each
other. (Fig. 14)
- Screw remaining screws into appropriate bores, fasten.
- Set aside the outer legs (possible re-mounting).
- Place the refrigerator on its legs.
Figure 10 Figure 11
Figure 12 Figure 13 Figure 14

7
2.2.3. Replacing cowl
- Turn cabinet onto door using appropriate protection support.
- In case of curved door use support on both sides to avoid oscillation
(cardboard support).
- Unscrew the screw that secures cowl, while keeping the end of cowl from
folding down. (Fig. 15, 16)
- Lastly, remove screw next to boiler insulation.
(mounting ease) (Fig. 17)
- Lift up cowl, then put replacement part in place.
- Fasten screws starting with the screw next to boiler insulation, while
holding the unfastened end of cowl with your hand.
- Tighten screws. While fastening, check the leveling of cowl and plate.
Adjust as necessary.
2.2.4. Replacing lock
”Snap lock” model
- Open door.
- Pull down rosette using 2 standard screwdrivers. (Fig. 18)
- Pop up lock cover:
With the bolt in locked position, pull the rim of lock cover onto the bolt
using a standard screwdriver to keep it from snapping back. (Fig. 19)
Snap off lock cover lid using 2 standard screwdrivers. (Fig. 20)
Figure 15 Figure 16 Figure 17
Figure 18 Figure 19 Figure 20

8

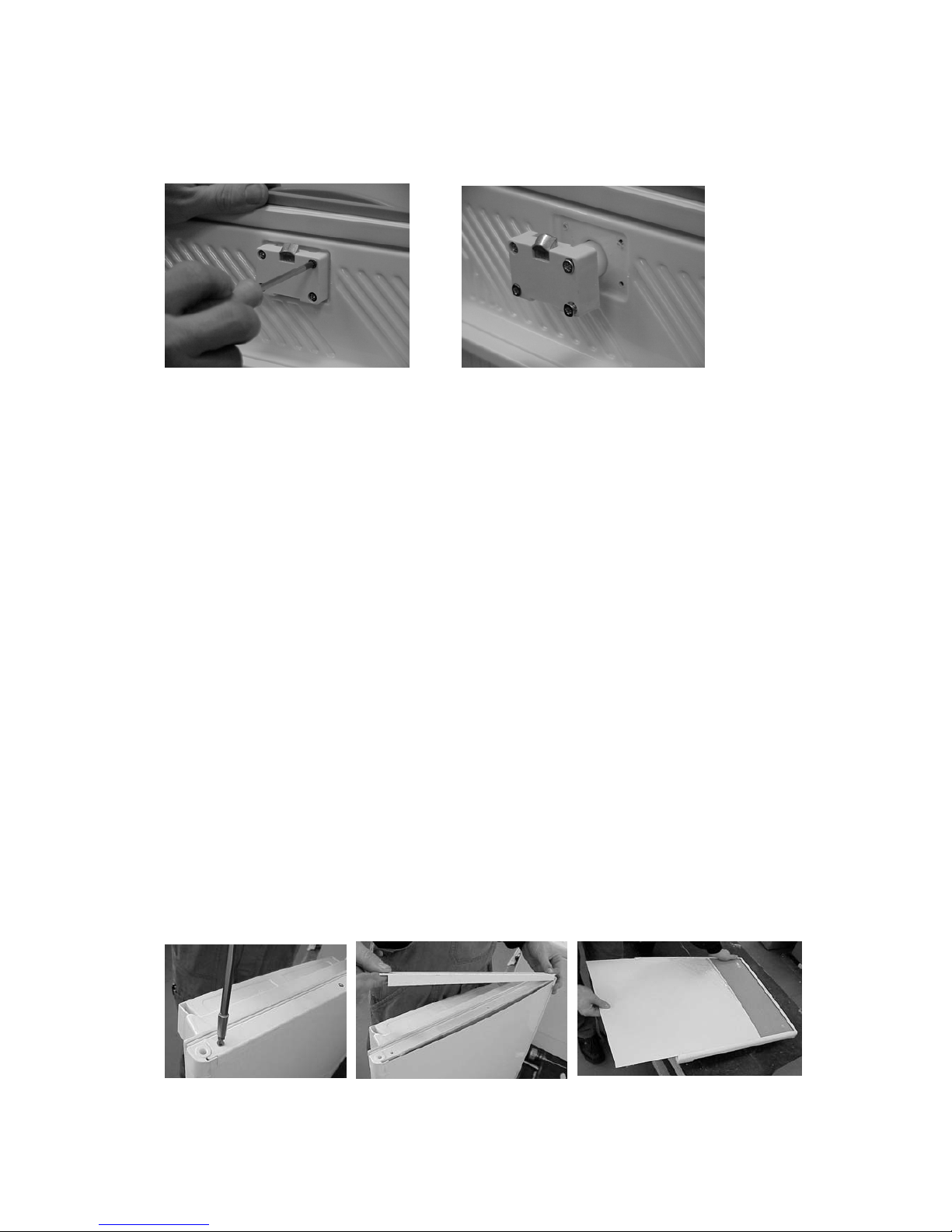

- Unscrew securing screws. (Fig. 21)
- Pull out lock. (Fig. 22)
- Reassembly is done in reverse order.
- Rosette and lock cover lid should be snapped in place applying slight
pressure.
When popping the lock cover lid open, the bolt must be in locked position.
”Turn lock” model
- Open door.
- Pull down rosette using 2 standard screwdrivers.
- Unscrew securing screws.
- Pull out lock toward door lining.
- Push new lock in lock bore of door.
- Reinsert and tighten securing screws.
- Push rosette in place applying slight pressure.
2.2.5. Replacing door panel
- Replacement of the door panel should be done with the door detached and
the lock dismounted.
- Remove door shelves. They can be removed by lifting the shelves.
- Place door – with door lining down – on protective support.
- Unscrew screws that secure locking-panel. (Fig. 23)
- Lift locking-panel from its nest. (Fig. 24)
- Pull out door panel. (Fig. 25)
Figure 21 Figure 22
Figure 23 Figure 24 Figure 25

9

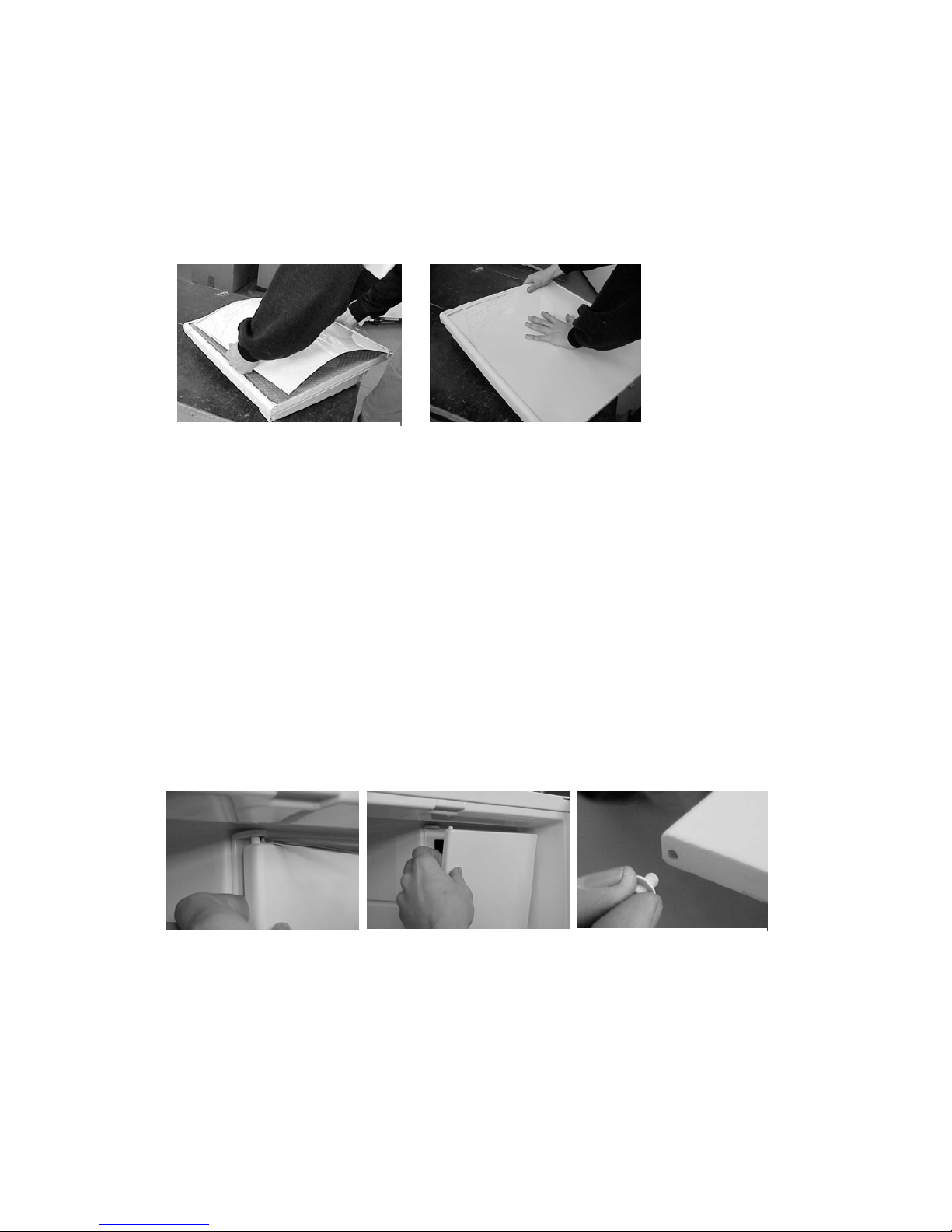

- Adjust foil lining.
- Place the the door panel up to the handle lath into groove on one side of
door.
- Slightly bend door panel. (Fig. 26)
- Snap door panel into place in groove on other side of door.
- Push door panel until cylindrical bores on the plate and on the door are
concentric. (Fig. 27)
- Insert locking-panel, secure with screws.
- Reinstall lock.
- Reinstall door.
2.2.6. Replacing freezer door
- Open refrigerator door.
- While the freezer door is shut, insert a standard 4*100 screwdriver
between the freezer’s top door mount and the freezer door, with slight
pressure lift the top door mount pin out from its bore. (Fig. 28)
- Tilt and remove the freezer door by a quick pull on the upper edge of the
freezer door. (Fig. 29)
- Lift out the freezer door from the bottom door mount bore, then remove the
bottom hinge pin from the freezer door bore. (Fig. 30)
- Insert the hinge pin into the bottom bore of the new freezer door. (Fig. 31)
- Insert the freezer door with the pin into the freezer’s door mount bore so
that the bolt secures the freezer door. (Fig. 32)
- Inserting a standard 4*100 screwdriver between the freezer door and the
upper freezer door mount, bend the freezer door mount upwards.
- Applying slight pressure on the upper part of the freezer door, snap the top
door mount pin in place. (Fig. 33)
Figure 26 Figure 27
Figure 28 Figure 29 Figure 30

10
- Check the unhindered operation and closing of the freezer door.
2.3. Electrical components
2.3.1. Replacing lighting device and bulb
- Remove screws securing lighting device. (Fig. 34)
- Detach blocking tab on reflector from the lighting device by pressing the
reflector plate. At the same time, push the light shield off of the casing.
(Fig. 35, 36)
- Unscrew bulb. (Fig. 37)
- Snap the lighting device open by detaching the tab behind the threaded
part of the casing with a screwdriver. (Fig. 38)
Figure 31 Figure 32 Figure 33
Figure 34 Fi
g
ure 35 Figure 36
Figure 37 Figure 38

11
- Disconnecting electrical wires, removing defective lighting device.
- Reconnecting electrical wires in new casing. Prior to wiring, wires must be
threaded in the appropriate bore of the reflector holder. (Fig. 39)
- Placement of the socket in the casing so that its securing rib fits in the
groove of casing. Screws securing the wires must stand outwards from
lighting device. (Fig. 40)
- Insert control switch while holding socket in place with your finger. Screw in
bulb while constantly holding down the socket. (Fig. 41)
The bulb holds the socket elements in place, then the reflector mount can
be popped open. When snapping shut, the blocking tab should be slightly
pressed with a screwdriver. (Fig. 42, 43)
- After snapping shut, fitting should be tested.
- Replacing light shield. Make sure that the groove fits correctly on the light
shield.
While pushing aside the blocking tab of the reflector plate with a
screwdriver, the casing can be pushed in place. (Fig. 44)
Figure 40
Figure 39
Figure 41 Figure 42 Figure 43

12
- Prior to installing the lighting device, the securing screws must be
reinserted into the lighting device so that the tips of the screws overhang
by 1-2 mm. These help positioning. (Fig. 45)
- Install lighting device, with attention to the placement of electrical wires.
- Tightening securing screws. Make sure it fits correctly. Then must be no
gap between the lighting device and the inner compartment.
2.3.2. Replacing bulb without dismounting the lighting device
- By pushing the reflector plate unhinge blocking tab on reflector from the
light shield. At the same time, push the light shield off of the casing with a
screwdriver. (Fig. 46)
- Unscrew defective bulb and replace with a new one; pay attention to
appropriate back-up power. Bulb needs to be tightened to an extent that
loose connection does not cause contact failure. (Fig. 47)
- Replacing the light shield. Make sure the groove fits correctly on the light
shield. (Fig. 48)
The light shield can be slid in place by slightly pressing the blocking tab
with a screwdriver.
Figure 44 Figure 45
Figure 46 Figure 47 Figure 48

13

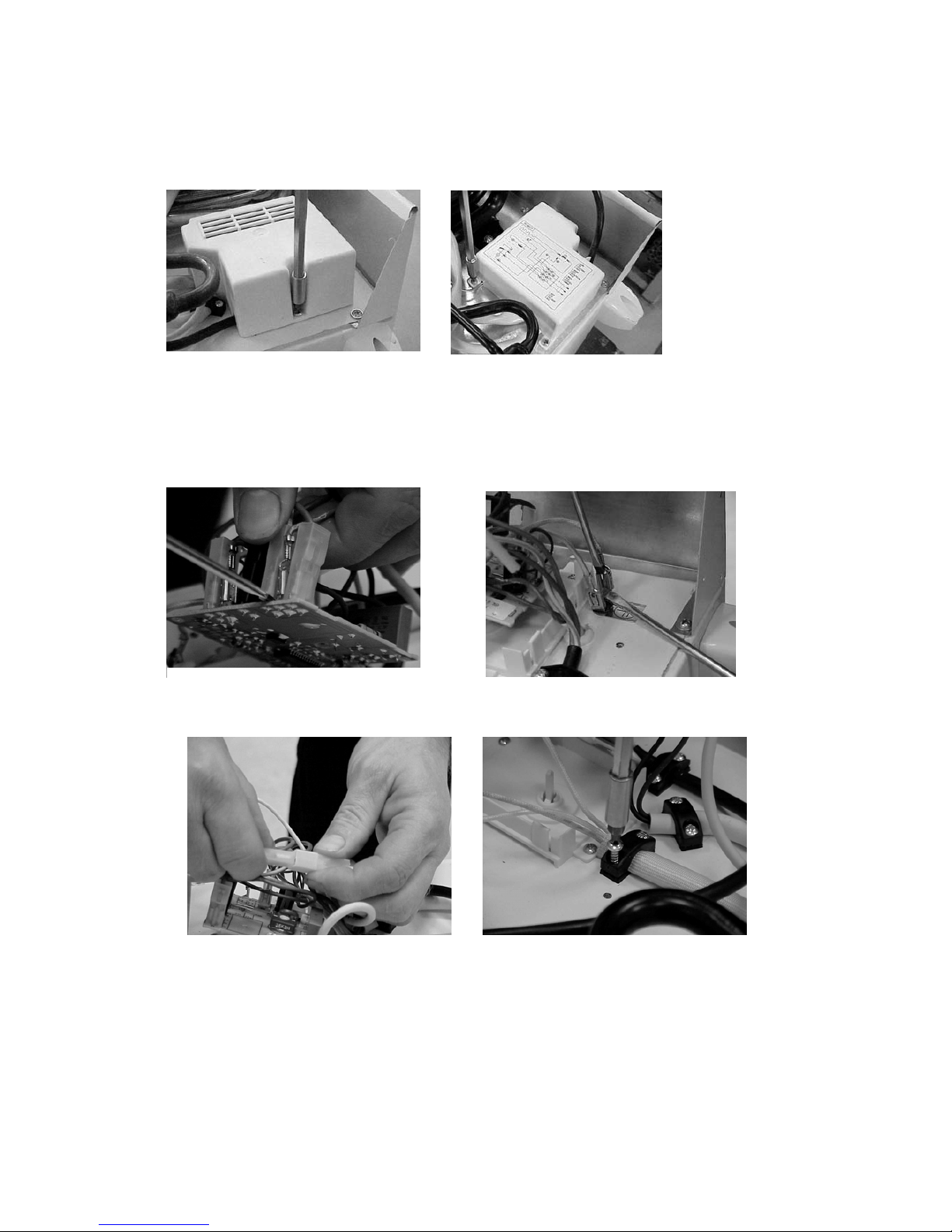

2.3.3. Replacing heating element (cylindrical heating element) :
- Remove screws of electrical cover. (Fig. 49, 50)
- Remove electrical cover.
- Disconnect electrical wires of heating element. (Fig. 51, 52, 53)
- Unscrew and remove the wire clamp. (Fig. 54)
Figure 49 Figure 50
Figure 51 Figure 52
Figure 53 Figure 54

14
- Turn metal casing of boiler-insulation so that the joint rim becomes visible.
- While slightly pressing the metal casing of the boiler-insulation, detach the
rims. (Fig. 55)
- Turn out insulation – metal casing and rock wool together – from under the
boiler. (Fig. 56)
- Loosen screw securing the element, pull out heating element upwards. If
the heating element is jammed in the heating tube, then push it out from
below with a screwdriver. (Fig. 57, 58)
- Installing the new heating element is done in reverse order. The
heating element must be securely fixed. (It must not slide out at 100 N
axially tractive effort.)
-Attention ! The electrical power of a heating element with ”fuzzy logic”
control is different from those with electromechanical control!
- The boiler-insulation can be reinserted by turning it in. The rims must be
snapped together by slightly pressing the metal casing.
- Turn in boiler-insulation so that the securing bore is in the correct position.
- Attach boiler-insulation to back panel with securing screw.
- Adjust wires.
- Connect electrical connections at the appropriate points.
- In appliances with ”fuzzy logic” control, snap back the printed circuit board
into the base board. When replacing, make sure that the driving shaft
jointing fits in the potentiometer’s bore.
- Secure wire clamp.
- Reinsert electrical cover, secure with screws.
Figure 55 Figure 56
Figure 57 Figure 58

15
- Place refrigerator in upright position. Check that the thermostat switch
turns freely in the entire control range.
- Check electrical insulation resistance (with 1000-V electrical insulation
resistance metering device.)
The insulation resistance RINS > 2Mohm

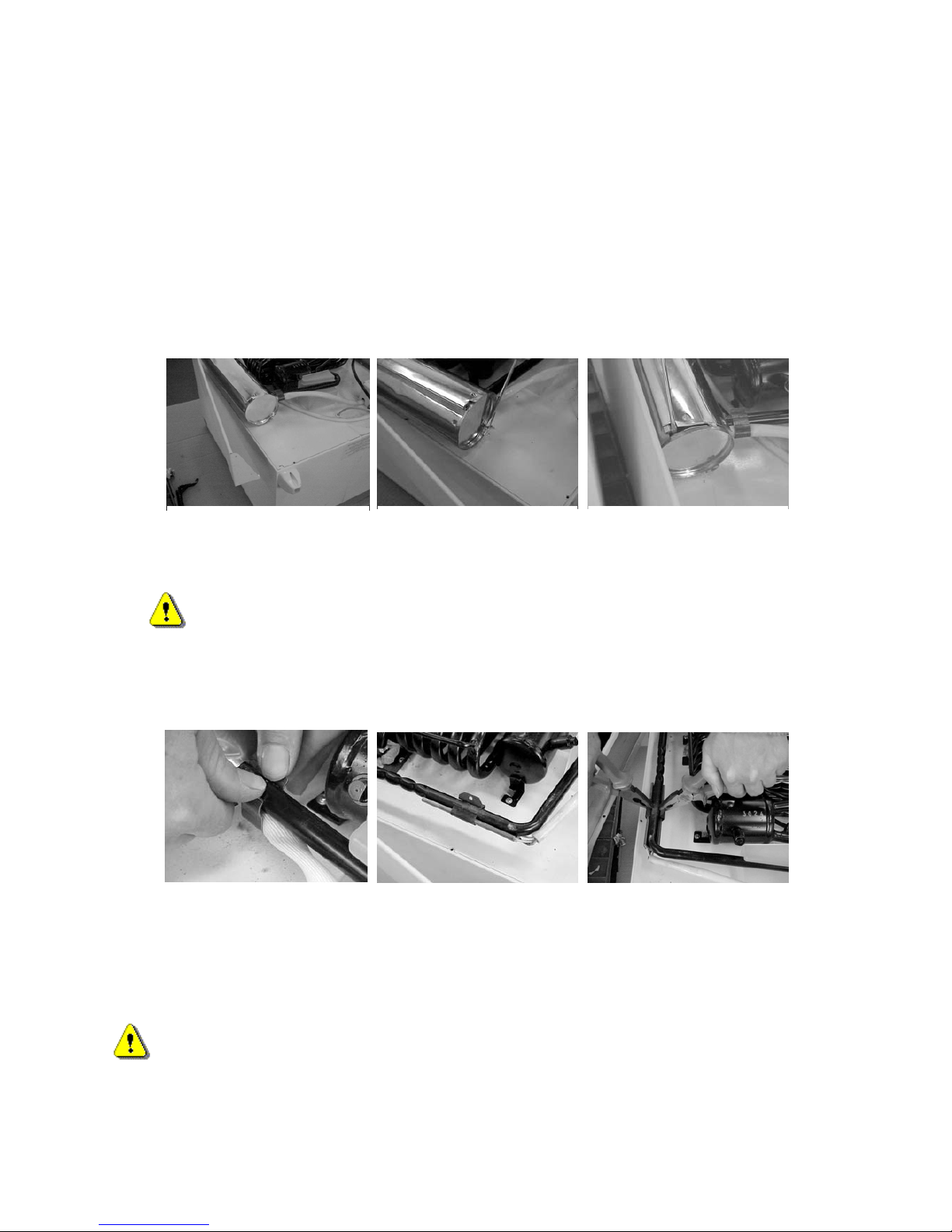

2.3.4. Replacing heating element (”Half-moon” shaped, as of May 2003):
- Unscrew hinge screw on boiler side, slightly bend out side wall of hinge.
(Fig. 59)
- Remove temperature controller from boiler
- Bend out tabs of boiler casing.
- Lift off boiler’s cover. (Fig. 60, 61)
- Remove boiler insulation.
- Mark securing position of the heating element on the boiler to help
reassembly. (marker)
- Push down clamp securing element wire. (Fig. 62)
- Rotate back heater element in the direction of back panel. (Fig. 63)
- Push down securing clamp of heater element using 2 universal pliers.
(Fig.64)
- Replace the heating element. Electronically, this operation is identical to
those described for cylindrical element.
- Attention! The electrical power of a heating element with ”fuzzy logic”
control is different from those with electromechanical control!
- Positioning the heating element. Place securing clamp in the middle of the
element.
Place upper edge of heating element at the marking of position.
- By applying firm pressure to the clamp, snap the heating element onto the
boiler.
Figure 59 Figure 60 Figure 61
Figure 62 Figure 63 Figure 64

16
- Position element, adjust its position. The element must be positioned in the
direction of hinge. (Fig. 65)
- Reinsert boiler-insulation, secure.
- Reinsert boiler-insulation cover, bend back blocking tabs. (Fig. 66)
- Reinsert temperature controller
- Snap back wire clamp of heating element. (Fig. 67)
- Reassemble loosened end of hinge
- Check electrical insulation resistance according to 2.3.3.
2.3.5 Replacing temperature sensor
- Remove electrical cover. (See 2.3.3)
- Push off flat sockets of temperature sensor from the flat connectors of
printed circuit board. (Sensor)
- Open refrigerator door, remove plugs from two bores of sensor cover in the
inner compartment, set aside. (Fig. 68)
- Unscrew screws of sensor cover, lift out sensor from cover. (Fig. 69, 70)
- Pull out sensor wire towards inner compartment carefully, so that the flat
sockets do not get jammed in the lead rubber gasket. (Fig. 71, 72)
Figure 65 Figure 66 Figure 67
Figure 68 Figure 69 Figure 70
Figure 71 Figure 72

17
- Thread back new sensor wire.
Practical way to do it:
From the back panel side, insert a 4x100 standard screwdriver through
the lead bore. Slightly push the flat connector of sensor insulation
socket onto the edge of the screwdriver, secure with insulating tape.
Fold back the end of wire with insulation socket by 180°. Using the
screwdriver, pull the wire through the bore, then using that pull through
the other end of the wire as well. (Fig 73, 74)
When pulling through, pay attention to the position of the lead rubber
gasket. If it falls out, it must be put back in the bore by all means.
- Place the sensor head in the nest of the sensor cover, screw the cover
back in place.
- Place the 2 plugs back in the bores of cover.
- Push back the sensor wires onto the flat connectors of the printed circuit
board (Sensor). The sensor is not sensible to the two wires reversed.
- Screw electrical cover back on.
- Check electrical insulation resistance according to section 2.3.3.
2.3.6 Replacing thermostat
- Dismount cooling flange by unscrewing its 4 securing screws. (Fig. 75)
- Pull out thermostat capillary from cooling flange bore, straighten.
(Fig. 76, 77)
Figure 73 Figure 74
Figure 75 Figure 76 Figure 77

18
- Pop out wire plug from thermostat switch, pull off thermostat switch from
the thermostat switch’s axis with a universal plier with protective coating.
(Fig. 78, 79)
- If the gasket slips off of the thermostat switch, remove it from the bore with
a magnetic screwdriver, detach it to the driving bolt. Reinsert the plug into
the bore, set aside switch. (Fig. 80, 81)
- Lay refrigerator onto door, support if necessary.
- Remove thermostat cover. (Fig. 82, 83)
- Remove electrical wire from thermostat.
- Unscrew securing screws from thermostat. (Fig. 84)
- Dismount thermostat case by loosening the locking nut. (Fig. 85)
- Pull out thermostat capillary from refrigerator cabinet, remove defective
thermostat.
Figure 78 Figure 79
Figure 80 Figure 81
Figure 82 Figure 83

19
- Reinstall thermostat case onto the new thermostat, secure with nut. During
assembly make sure that the navigation-securing pin of thermostat fits into
the bore of plate. (Fig. 86)
- Reinsert thermostat onto panel, secure with screws.
- Reassemble thermostat wires.
- Reinsert thermostat cover, secure.
- Insert thermostat capillary into cabinet approx. 200 mm deep. (Fig. 87)
- Place refrigerator in upright position.
- Insert thermostat capillary into cooling flange approx. 200 mm deep.
- Reinsert cooling flange, carefully positioning thermostat capillary, then
secure with 4 plate screws (the original corrosion-proof screws should be
used).
- Push thermostat switch back onto the shaft of thermostat. When
positioning, make sure that the shaft jointing fits with the switch bore
jointing. (Fig. 88)
Fi
g
ure 84 Fi
g
ure 85 Fi
g
ure 86
Figure 87
Figure 88

20
- Make sure that the thermostat can be turned within the entire control
range.
- Adjust the capillary spiral that remains outside of thermostat so that it does
not overhang from the outline of the cabinet.
- Seal the point of exit of capillary from the cabinet with rubber sealing.
- Check electrical insulation resistance according to 2.3.3.
2.3.7 Replacing timer
Paragon-type timer
- Remove timer cover. (Fig. 89)
- Remove wire clamp, push down electrical wire. (Fig. 90)
- Unscrew screws securing timer. (Fig. 91)
- Replace timer, set: turn defrost marking clockwise by 90º compared to
marking on the casing. Meanwhile, you should hear 2 clicks. This way the
timer is definitely turned on. (Fig. 92, 93)
- Reinsert timer, making sure that the rotating part sits in the bore of the
textile-bakelite housing. (Fig. 94)
- Secure timer with screws.
- Push back electrical wires according to the wiring diagram.
- Reinsert timer cover, secure.
- Check electrical insulation resistance according to 2.3.3.
Figure 89 Figure 90 Figure 91
Figure 92 Figure 93 Figure 94
