Dometic RM 5310 User manual

Absorber refrigerator
Operating manual . . . . . . . . . . . . . . . 9
EN
RM5310, RM5330,
RM5380, RM5385

RM5310 – RM5385
3
1
2
3
4
5
7
6
1
BRUTTOINHALT
TOTAL CAP.
VOLUME BRUT
VERDAMPFERFACH
FREEZER COMP.
VOLUME COMPT BT
MADE IN GERMANY
MLCPROD. NO.MOD. NO.
TYPE
C 40/110 CLIMATE CLASS SKU
SER. NO.
00094200762
008515
NUTZINHALT
USEFUL CAP.
VOLUME NET
AP
10R – 047358
2
4
5
13
2

RM5310 – RM5385
4
RM 5310, RM 5330, RM 5380
1234
3
RM 5310, RM 5330, RM 5380
1
2
3
4
4
RM 5385
1 2 3 4 5 6 7 8
5
RM 5310, RM 5330, RM 5380
ABC
6

RM5310 – RM5385
5
RM 5310, RM 5330,
RM 5380
RM 5385
11
7
1
3
2
4
7
6
5
8
9

RM5310 – RM5385
6
AB
0
A B
CD
2.
2.
1.
1.
4.
1.
2.
1.
2.
3.
3.
a

RM5310 – RM5385
7
AB
C
2.
1.
3. 3.
2.
1.
2.
3.
1.
b
c
d

RM5310 – RM5385
8
e
f
1
23
1.
2.
BA
2 – 3 mm
g

EN
RM5310 – RM5385
9
Please read this manual carefully before starting up and store it in a
safe place. If you pass on the device to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7 Operating the refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
9 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

EN
Explanation of symbols RM5310 – RM5385
10
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
zDamage to the product resulting from mechanical influences and excess
voltage
zAlterations to the product without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
zNever open the absorber unit. It is under high pressure and can
cause injury if it is opened.
zDo not operate the refrigerator if it is visibly damaged.
zIf the power cable for this refrigerator is damaged, it must be
replaced by the manufacturer, customer service or a similarly
qualified person in order to prevent safety hazards.
zThis refrigerator may only be repaired by qualified personnel.
Inadequate repairs may cause serious hazards.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
RM5310 – RM5385 Safety instructions
11
zThis refrigerator can be used by children aged 8 years or over,
as well as by persons with diminished physical, sensory or
mental capacities or a lack of experience and knowledge,
providing they are supervised or have been instructed how to
use the refrigerator safely and are aware of the resulting risks.
zCleaning and user maintenance must not be carried out by
unsupervised children.
zChildren must be supervised to ensure that they do not play with
the refrigerator.
zDo not store any explosive substances, such as spray cans with
propellants, in the refrigerator.
!CAUTION!
zDanger of crushing! Do not put your fingers into the hinge.
zFood may only be stored in its original packaging or in suitable
containers.
ANOTICE!
zDo not open the refrigerant circuit under any circumstances.
zThe refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
zCheck that the voltage specification on the type plate is the
same as that of the power supply.
zThe refrigerator is not suitable for storing substances which are
caustic or contain solvents.
zKeep the drainage outlet clean at all times.
zDo not use a high-pressure cleaner near the ventilation grille
when cleaning the vehicle.
zNever pull the plug out of the socket by the connection cable.
zThe refrigerator lighting may only be replaced by customer
service.
zThe refrigerator may not be exposed to rain.

EN
Safety instructions RM5310 – RM5385
12
2.2 Safe operation
!CAUTION!
zClose the refrigerator door before beginning a journey.
zThe refrigerator unit at the back of the refrigerator gets very hot
during operation. Protect yourself from coming into contact with
hot parts when removing ventilation grilles.
zOnly store heavy objects such as bottles or cans in the
refrigerator door or on the bottom shelf.
ANOTICE!
zDo not use electrical devices inside the refrigerator unless they
are recommended by the manufacturer for that purpose.
zDanger of overheating!
Always ensure sufficient ventilation so that the heat generated
during operation can dissipate. Make sure that the refrigerator
is sufficiently far away from walls and other objects so that the
air can circulate.
zEnsure that the ventilation openings are not covered.
zDo not fill the inner container with ice or fluid.
zProtect the refrigerator and the cable against heat and moisture.
zMake sure that foodstuffs do not touch the walls of the cooling
area.
2.3 Safety when operating with DC power
ANOTICE!
zOnly select DC operation (battery mode) if you are using a
battery monitor or if the alternator in your vehicle provides
sufficient voltage.
2.4 Safety when operating with AC power
ANOTICE!
zCheck that the voltage specification on the type plate is the
same as that of the power supply.
zOnly use the cable supplied to connect the refrigerator to the
AC mains.
zNever pull the plug out of the socket by the connection cable.

EN
RM5310 – RM5385 Scope of delivery
13
2.5 Safety when operating with gas
!WARNING!
zOnly operate the refrigerator at the pressure shown on the
type plate. Use a DIN-DVGW-approved pressure regulator with
a fixed setting in accordance with DIN EN 12864.
zNever store liquid gas cylinders in unventilated areas or below
ground level (funnel shaped holes in the ground).
zKeep liquid gas cylinders away from direct sunlight. The temper-
ature may not exceed 50 °C.
zNever operate the refrigerator with gas
– at petrol stations
– while driving
– while transporting the caravan or mobile home with a trans-
port vehicle or tow truck
zNever use a naked flame to check the refrigerator for leaks.
zIf you smell gas:
– Close the gas supply cock and the valve on the cylinder.
– Open all windows and leave the room.
– Do not press an electric switch.
– Put out any naked flames.
– Have the gas system checked by a specialist.
ANOTICE!
zOnly use propane or butane gas (not natural gas).
3 Scope of delivery
zRefrigerator
zIce cube tray
zOperating manual
zInstallation manual

EN
Accessories RM5310 – RM5385
14
4 Accessories
Available as accessories (not included in the scope of delivery):
If you have questions regarding the accessories, please contact your local
service partner.
5 Intended use
The refrigerator is designed for installation in caravans or motorhomes. It is
only suitable for cooling, freezing and storing foodstuffs. The refrigerator is
not intended for the proper storage of medicine.
!
The refrigerator is designed to be operated on a DC power supply and an
AC socket and can be independently powered by liquid gas (propane or
butane). The refrigerator may not be run on natural gas or city gas. The
RM5385 refrigerator also always requires a permanent DC supply.
Description Item no.
Ventilation grille LS100
with exhaust gas routing and winter cover
white 9105900012
beige 9105900011
Ventilation grille LS200
without exhaust gas routing, with winter cover
white 9105900014
beige 9105900013
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable
for storing the food you wish to cool.

EN
RM5310 – RM5385 Technical description
15
6 Technical description
6.1 Description
The refrigerator is an absorption refrigerator. The refrigerator is designed to
operate with different types of power and can be run on an AC power supply,
a DC power supply or with butane/propane gas. For DC operation, the
vehicle battery or a solar system built on the vehicle can be used. For AC
and gas operation, the thermostatic control ensures that the refrigerator
temperature is kept constant and as little power as possible is consumed.
The refrigerator has a locking mechanism to protect it during transport.
The refrigerator has a defrost water drain. The drain opening is located on
the rear panel of the refrigerator.
The refrigerator is equipped with an automatic pilot light which automatically
interrupts the gas supply after approx. 30 seconds if the flame goes out.
The RM5385 refrigerator has an automatic operating mode which selects the
most economical power mode connected.

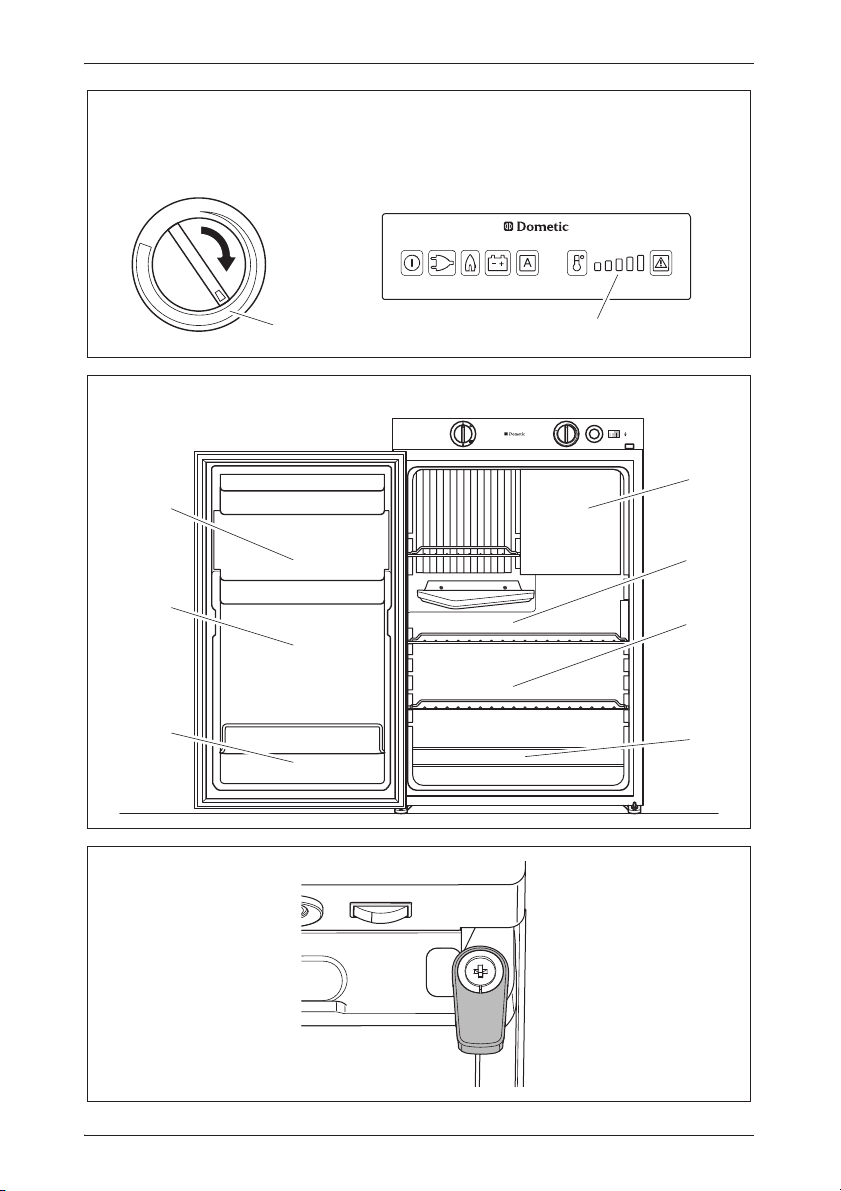

6.2 Components
No. in
fig. 1, page 3 Description
1 Control elements
2 Freezer compartment
3 Downstream evaporator for cooling chamber
4 Condensate draining channel
5Shelves
6 Bottom section with bottle holder
7 Top section

EN
Technical description RM5310 – RM5385
16
Inside the refrigerator you will find the type plate of the refrigerator. You can
read the model name, product number and serial number there. You will
require this information whenever you contact customer service or when
ordering spare parts:
6.3 Control elements
The RM5310, RM5330 and RM5380 refrigerators have the following control
elements:
The power selector (fig. 31, page 4) has the following setting options:
No. in
fig. 2, page 3 Description
1 Model number
2 Product number
3 Serial number
4 Electrical connection values
5 Gas pressure
No. in
fig. 3, page 4 Description
1 Energy selection switch
2 Temperature controller
3 Battery ignition (gas)
4 Flame indicator
No. in
fig. 4, page 4 Description
1OFF
2 Operating with AC power supply
3 Operating with DC power supply
4 Gas operation

EN
RM5310 – RM5385 Technical description
17
The RM5385 refrigerator has the following illuminated control elements:
No. in
fig. 5, page 4 Description
1 ON/OFF button
2 Operating with AC power supply
3 Gas operation
4 Operating with DC power supply
5 Automatic mode
6 Setting the temperature
7 Temperature indication
8 Malfunction indicator
Reset button for a gas malfunction

EN
Operating the refrigerator RM5310 – RM5385
18
7 Operating the refrigerator
A
I
7.1 Energy saving tips
zAllow warm food to cool down first before storing it.
zDo not open the refrigerator more often than necessary.
zDo not leave the door open for longer than necessary.
zArrange the food so that air can circulate in the refrigerator.
NOTICE!
zMake sure that you only put items in the refrigerator which may
be kept at the selected temperature.
zFood may only be stored in its original packaging or in suitable
containers.
NOTE
zBefore using your new device for the first time, you should
clean it inside and outside with a damp cloth for hygienic
reasons.
zThe cooling performance can be affected by:
– The ambient temperature
– The amount of food to be conserved
– The frequency with which the door is opened
– The outside temperature
– The ventilation
zWhen the device is first used, an odour may develop that will
dissipate after a few hours. Air the living area thoroughly.
zPark the vehicle in a horizontal position, particularly when
starting up and filling the refrigerator before beginning a trip.
zThe refrigerator cooling unit is noiseless.
zAround one hour after being switched on, the deep freeze
compartment of the refrigerators should get cold. The refriger-
ator will reach its operating temperature after a few hours.

EN
RM5310 – RM5385 Operating the refrigerator
19
7.2 Switching on the refrigerator (RM5310, RM5330,
RM5380)
Operating with AC power supply
➤Switch the refrigerator on by turning the power selection button to the
position.
Operating with DC power supply
➤Switch the refrigerator on by turning the power selection button to the
position.
Gas operation (fig. 6, page 4)
!
I
➤Make sure that the gas supply is turned on.
➤Turn the power selector switch to the position.
➤Turn the temperature control to the maximum level (A).
➤Press in the temperature regulator and hold it down.
➤Press in the battery igniter as well and hold it down (B).
✓The burner is ignited automatically. The needle of the pilot light moves to
the green zone once the burner has ignited (C).
➤Press and hold down the temperature regulator for another 15 seconds.
WARNING! Fire hazard!
Never operate the refrigerator with gas at petrol stations.
NOTE
When operating with LPG, the burner must be cleaned frequently
(two or three times a year).

EN
Operating the refrigerator RM5310 – RM5385
20
7.3 Switching on the refrigerator (RM5385)
➤Press and hold the button for two seconds.
✓The refrigerator starts with the last type of power selected.
Operating with AC power supply
➤Press the button.
Operating with DC power supply
➤Press the button.
Gas operation
!
I
➤Press the button.
✓The burner is ignited automatically.
Automatic operation
I
WARNING! Fire hazard!
Never operate the refrigerator with gas at petrol stations.
NOTE
When operating with LPG, the burner must be cleaned frequently
(two or three times a year).
NOTE
zTo avoid unintentionally switching to gas operation while
refuelling, the automatic mode starts the gas operation only
once the engine has been off for 15 minutes.
zTurn off the refrigerator or set it to a different operation mode,
if refuelling lasts longer than 15 minutes.
