Dometic CFX28 User manual

CFX28, CFX35W, CFX40W, CFX50W, CFX65W, CFX65DZ
Compressor Fridge/Freezer
Operating manual
EN
PORTABLE REFRIGERATION
COOLFREEZE
CFX-28-CFX-65--B-EN-AUSv1.book Seite 1 Montag, 14. November 2016 10:53 10

CFX-28-CFX-65--B-EN-AUSv1.book Seite 2 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W
3
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.1 General safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.2 Operating the device safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3 Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6.1 Scope of functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6.2 Operating and display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
7Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7.1 Before initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7.2 Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7.3 Connecting the cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7.4 Using the battery monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
7.5 Using the cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
7.6 Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.7 Enabling WiFi signal for optional app (all except CFX28 and
CFX65DZ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
7.8 Set brightness of display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.9 Using the emergency switch (where fitted) . . . . . . . . . . . . . . . . . . . 22
7.10 USB port for power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.11 Switching off the cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.12 Defrosting the cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.13 Replacing the device fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.14 Replacing the plug fuse (12/24 V) . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7.15 Replacing the light PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
CFX-28-CFX-65--B-EN-AUSv1.book Seite 3 Montag, 14. November 2016 10:53 10

EN
Explanation of symbols CFX28 – CFX100W
4
8 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9Guarantee. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 4 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W Safety instructions
5
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 5 Montag, 14. November 2016 10:53 10

EN
Safety instructions CFX28 – CFX100W
6
•Only connect the device as follows:
– With the DC cable to a DC plug socket in the vehicle (e. g.
cigarette lighter)
– Or with the AC connection cable to the AC mains supply
•Never pull the plug out of the socket by the cable.
•If the cooler is connected to the DC socket: Disconnect the cooler and
other power consuming devices from the battery before connecting
the quick charging device.
•If the cooler is connected to the DC socket: Disconnect the cooler or
switch it off when you turn off the engine. Otherwise you may dis-
charge the battery.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The cooling device contains inflammable cyclopentane in the
insulation. The gases in the insulation material require special disposal
procedures. Deliver the device at the end of its life-cycle to an appro-
priate recycling.
2.2 Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 6 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W Scope of delivery
7
3Scopeofdelivery
Item Quantity Description
1 1 Cooler
2 1 Connection cable for 12/24 Vgconnection
31
Connection cable for 100 – 240 V
w connection
– 1 Operating manual
SET
+
–
°
1
2
3
1
CFX-28-CFX-65--B-EN-AUSv1.book Seite 7 Montag, 14. November 2016 10:53 10

EN
Accessories CFX28 – CFX100W
8
4Accessories
Available as accessory (not included in scope of delivery):
Visit the Dometic website (see back page) for information about a WiFi app with
control-, display- and alarm functions (all except CFX28 and CFX65DZ). Note that
the app may not be available in your country.
5 Intended use
The cooler is suitable for cooling and freezing foods. The device is also suitable for
use on boats.
The device is designed to be operated from a 12 Vgor 24 Vgon-board
supply socket of a vehicle (e. g. cigarette lighter), boat or caravan as well as from
a 100 – 240 V AC mains.
The cooling device is intended to be used in household and similar applications such
as
•staff kitchen areas in shops, offices and other working environments
•farm houses
•clients in hotels, motels and other residential type environments
•bed and breakfast type environments
•catering and similar non-retail applications
!
Designation Item no. Model
Universal fixing kit (belt system) CFX-UFK 9108300002 suits all models
Quick release fixing kit CFX-QFK 9105306218 CFX28 only
Wireless display CFX-WD 9105306632 suits CFX28,
CFX65DZ and
older models
without WIFI app
function
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 8 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W Function description
9
6 Function description
The cooler can chill products, keep them cool as well as freeze them. A low
maintenance refrigerant circuit with compressor provides the cooling. The generous
insulation and powerful compressor ensure efficient and fast cooling.
The cooler is portable.
The cooler can withstand a heel (inclination) of 30°, for example when used on
boats.
6.1 Scope of functions
•Power supply with priority circuit for connecting to the AC mains
•Three-level battery monitor to protect the vehicle battery
•Display with temperature gauge in °C and °F
switches off automatically at low battery voltage
•Temperature setting: With two buttons in steps of 1 °C (2 °F)
•Integrated WiFi transmitter hence controllable using an app (all except CFX28
and CFX65DZ)
•Foldable carrying handles
•USB port for power supply
•Emergency switch (where fitted)
•Removable wire basket
CFX-28-CFX-65--B-EN-AUSv1.book Seite 9 Montag, 14. November 2016 10:53 10

EN
Function description CFX28 – CFX100W
10
6.2 Operating and display elements
Latch for lid
1
1
2CFX28, CFX35W, CFX40W CFX50W, CFX65W, CFX65DZ
CFX100W
SET
+
–
°
1
CFX-28-CFX-65--B-EN-AUSv1.book Seite 10 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W Function description
11
Operating panel
Item Description Explanation
1ON
OFF
Switches the cooler on or off when the button is pressed for
between one and two seconds
2POWER “P”Status indication
LED lights up green: Compressor is on
LED lights up orange: Compressor is off
LED flashes orange: display switched off automatically due
to low battery voltage
3 ERROR LED flashes red: Device is switched on but not ready
for operation
4 SET Selects the input mode
– Temperature setting
– Celsius or Fahrenheit display
– Set battery monitor
– Set brightness of display
– Switch WiFi on or off (all except CFX28 and CFX65DZ)
5 – Display, shows the information
6 DOWN – Press once to decrease the value
7 UP + Press once to increase the value
SET
+
–
°
1 3 4 5 6 72
3
CFX-28-CFX-65--B-EN-AUSv1.book Seite 11 Montag, 14. November 2016 10:53 10

EN
Function description CFX28 – CFX100W
12
Connection sockets
Item Description
1 Connection socket AC voltage supply
2 Fuse holder
3 Emergency switch (when fitted)
4 USB port for power supply
5 Connection socket DC voltage supply
EMERGENCY
OVERRIDE
NORMAL
USE
100-240V~AC
12/24V DC
2 3 4 51
4
CFX-28-CFX-65--B-EN-AUSv1.book Seite 12 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W Operation
13
7Operation
7.1 Before initial use
I

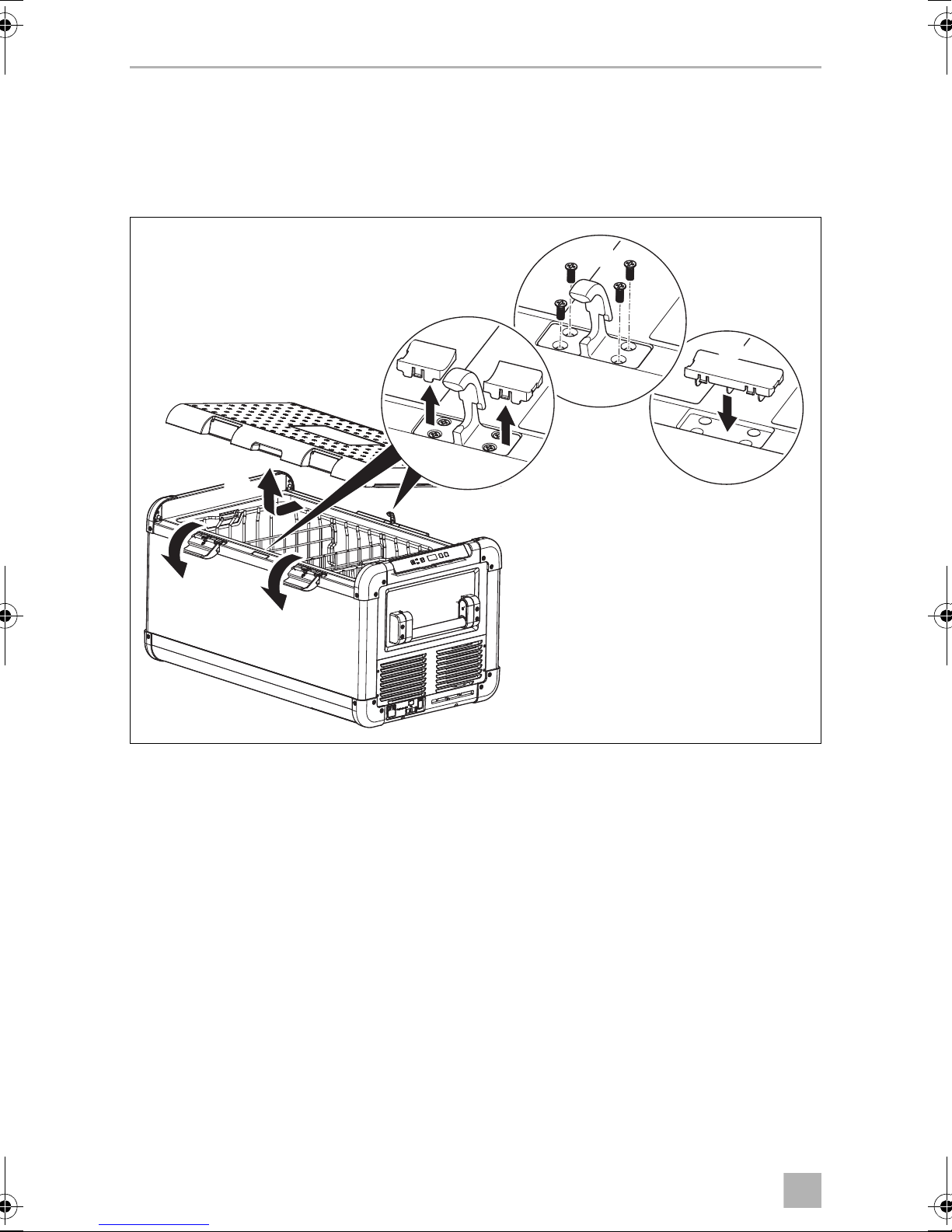

Reversing the lid opening direction (CFX50W, CFX65W, CFX65DZ)
The lid hinges can be moved to the opposite side if you want to open the lid from the
opposite direction. To do this, proceed as follows:
➤Open the lid and remove it (A).
➤Remove 3 screws per hinge (B) and take off hinges.
➤Remove plastic covers from new hinge positions with a small screwdriver and
re-fit to old hinge positions.
NOTE
Before starting your new cooler for the first time, you should clean it
inside and outside with a damp cloth for hygienic reasons (please also
refer to the chapter “Cleaning and maintenance” on page 27).
SET
+
–
°
SET
+
–
°
A
B
C
5
CFX50W, CFX65W, CFX65DZ, CFX100W
CFX-28-CFX-65--B-EN-AUSv1.book Seite 13 Montag, 14. November 2016 10:53 10

EN
Operation CFX28 – CFX100W
14
➤Re-fit hinges in new positions.
➤Insert the lid in the hinges on the opposite side (C) (CFX50W, CFX65W,
CFX65DZ only).
Additionally the centre hinge has to be changed (CFX100W only):
➤Remove two plastic covers from the centre hinge (A).
➤Remove four screws from the centre hinge (B) and take off the hinge.
➤Remove the plastic cover from new centre hinge position with a small screw-
driver and re-fit to old hinge position (C).
➤Re-fit centre hinge in new position.
➤Insert the lids in the hinges on the opposite side (D).
C
D
E
A
B
6
CFX100W
CFX-28-CFX-65--B-EN-AUSv1.book Seite 14 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W Operation
15
Selecting the temperature units
Temperature display units can be switched between Celsius and Fahrenheit as
follows:
➤Switch on the cooler.
➤Press the “SET” button (fig. 34, page 11) twice.
➤Use the “UP +” (fig. 37, page 11) or “DOWN –” (fig. 36, page 11) buttons to
select Celsius or Fahrenheit.
✓The selected temperature units then appear in the display for a few seconds. The
display flashes several times before it returns to the current temperature.
7.2 Energy saving tips
•Choose a well ventilated installation location which is protected against direct
sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
•Defrost the cooler once a layer of ice forms.
•Avoid unnecessarily low temperatures.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 15 Montag, 14. November 2016 10:53 10

EN
Operation CFX28 – CFX100W
16
7.3 Connecting the cooler
Connecting to a battery (Vehicle or boat)
The cooler can be operated with 12 V or 24 Vg.
A
For safety reasons the cooler is equipped with an electronic system to prevent
polarity reversal. This protects the cooler againstshort-circuiting when connecting to
a battery.
➤Plug the 12/24 V connection cable (fig. 12, page 7) into the device
DC voltage socket and also into a 12 V or 24 V cigarette lighter socket.
Connecting to a 100 – 240 V AC mains (E.g. in the home or office)
D
The coolers have an integrated multi-voltage power supply with priority circuit for
connecting to an AC voltage source of 100 – 240 V. The priority circuit automatically
switches the cooler to mains operation, if the device is connected to a 100 – 240 V
AC mains, even if the 12/24 V connection cable is still attached.
➤Plug the 100 – 240 V connection cable (fig. 13, page 7) into the device
AC voltage socket and connect it to the 100 – 240 V AC voltage mains.
NOTICE! Danger of damage!
Disconnect the cooler and other consumer units from the battery before
you connect the battery to a quick charging device.
Overvoltage can damage the electronics of the device.
DANGER! Danger of electrocution!
•Never handle plugs and switches with wet hands or if you are
standing on a wet surface.
•If you are operating your cooler on board a boat from a mains
connection of 100 – 240 Vw, you must install a residual current
circuit breaker between the 100 – 240 V
w mains and the cooler.
Seek advice from a trained technician.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 16 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W Operation
17
7.4 Using the battery monitor
The device is equipped with a multi-level battery monitor that protects your vehicle
battery against excessive discharging when the device is connected to the on-board
12/24 V supply.
If the cooler is operated when the vehicle ignition is switched off, the cooler switches
off automatically as soon as the supply voltage falls below a set level. The cooler will
switch back on once the battery has been recharged to the restart voltage level.
A
In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and
“MED” (see the following table).
The battery monitor mode can be selected as follows:
➤Switch on the cooler.
➤Press the “SET” button (fig. 34, page 11) three times.
➤Use the “UP +” (fig. 37, page 11) or “DOWN –” (fig. 36, page 11) buttons to
select the battery monitor mode.
✓Display will be as follows:
Lo (LOW), Πd (MED), Hi (HIGH)
✓The selected mode then appears in the display for a few seconds. The display
flashes several times before it returns to the current temperature.
I
NOTICE! Danger of damage!
When switched off by the battery monitor, the battery will no longer be
fully charged. Avoid starting repeatedly or operating current consumers
without longer charging phases. Ensure that the battery is recharged.
Battery monitor mode LOW MED HIGH
Switch-off voltage at 12 V 10.1 V 11.4 V 11.8 V
Restart-voltage at 12 V 11.1 V 12.2 V 12.6 V
Switch-off voltage at 24 V 21.5 V 24.1 V 24.6 V
Restart voltage at 24 V 23.0 V 25.3 V 26.2 V
NOTE
When the cooler is supplied by the starter battery, select the battery
monitor mode “HIGH”. If the cooler is connected to a supply battery,
the battery monitor mode “LOW” will suffice.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 17 Montag, 14. November 2016 10:53 10

EN
Operation CFX28 – CFX100W
18
7.5 Using the cooler
A
➤Place the cooler on a firm foundation.
Make sure that the ventilation slots are not covered and that the heated air can
dissipate.
I
➤Connect the cooler, see chapter “Connecting the cooler” on page 16.
A
➤Press the “ON/OFF” button (fig. 31, page 11) for between one and two
seconds.
✓The LED “P” lights up (fig. 32, page 11).
✓The display (fig. 35, page 11) switches on and shows the current cooling
temperature.
NOTICE! Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that
generated during operation can dissipate. Ensure that the ventilation
slots are not covered. Make sure that the device is sufficiently far away
from walls and other objects so that the air can circulate.
NOTE
Place the cooler as shown (fig. 1, page 7). If you operate the box in a
different orientation it can be damaged.
NOTICE! Danger from excessively low temperature!
Ensure that the only those objects are placed in the cooler that are
intended to be cooled at the selected temperature.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 18 Montag, 14. November 2016 10:53 10

EN
CFX28 – CFX100W Operation
19
!CAUTION! Health hazard!
CFX65DZ:
If the temperature in the freezer compartment (fig. 81, page 19) is very
low (–22 °C), the temperature range in the cooling department
(fig. 82, page 19) can be below freezing as well.
1
7
CFX50W, CFX65W
1
2
8
CFX65DZ
CFX-28-CFX-65--B-EN-AUSv1.book Seite 19 Montag, 14. November 2016 10:53 10

EN
Operation CFX28 – CFX100W
20
I
✓The cooler starts cooling the interior.
I
Latching the cooler lid
➤Close the lid.
➤Press the latch (fig. 21, page 10) down, until it latches in place audibly.
7.6 Setting the temperature
➤Press the “SET” button (fig. 34, page 11) once.
➤Use the “UP +” (fig. 37, page 11) and “DOWN –” (fig. 36, page 11) buttons
to select the cooling temperature.
✓The cooling temperature appears in the display for a few seconds. The display
flashes several times and then the current temperature is displayed again.
NOTE
Displayed temperature
•CFX28, CFX35W, CFX40W, CFX50W, CFX65W, CFX100W:
The temperature displayed is that of the large interior compartment
(e.g. CFX50W, CFX65W: fig. 71, page 19).
•CFX65DZ:
– With fridge/freezer divider in: The temperature displayed is that
of the freezer compartment (fig. 81, page 19).
– With fridge/freezer divider out: The actual compartment
temperature will be considerably warmer than the displayed
temperature
NOTE
When operating with the battery, the display switches off automatically
if the battery voltage is low. The LED “P” flashes orange.
CFX-28-CFX-65--B-EN-AUSv1.book Seite 20 Montag, 14. November 2016 10:53 10
