Dometic 9 SERIES User manual

RMLT9430, RMLT9431, RMLT9435
Absorber-refrigerator with oven
Operating manual
EN
REFRIGERATION
9 SERIES
RMLT94xx-O-AUS.book Seite 1 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx
2
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8 Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
11 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
13 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
RMLT94xx-O-AUS.book Seite 2 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Explanation of symbols
3
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
•Do not operate the refrigerator if it is visibly damaged.
•If the power cable for this refrigerator is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
•This refrigerator may only be repaired by qualified personnel. Inade-
quate repairs may cause serious hazards.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
RMLT94xx-O-AUS.book Seite 3 Montag, 24. Juli 2017 12:57 12

EN
Safety instructions RMLT94xx
4
•This refrigerator can be used by children aged 8 years or over, as well
as by persons with diminished physical, sensory or mental capacities
or a lack of experience and knowledge, providing they are supervised
or have been instructed how to use the refrigerator safely and are
aware of the resulting risks.
•Cleaning and user maintenance must not be carried out by unsuper-
vised children.
•Children must be supervised to ensure that they do not play with the
refrigerator.
•Do not store any explosive substances, such as spray cans with propel-
lants, in the refrigerator.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Food may only be stored in its original packaging or in suitable con-
tainers.
ANOTICE!
•Do not open the refrigerant circuit under any circumstances.
•The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit (smell of ammo-
nia):
– Switch off the refrigerator if applicable.
– Avoid naked flames and sparks.
– Air the room well.
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not use a high-pressure cleaner near the ventilation grille when
cleaning the vehicle.
•Never pull the plug out of the socket by the connection cable.
•The refrigerator lighting may only be replaced by customer service.
•The refrigerator may not be exposed to rain.
RMLT94xx-O-AUS.book Seite 4 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Safety instructions
5
2.2 Safe operation
!CAUTION!
•Close the refrigerator door before beginning a journey.
•The refrigerator unit at the back of the refrigerator gets very hot during
operation. Protect yourself from coming into contact with hot parts
when removing ventilation grilles.
•Only store heavy objects such as bottles or cans in the refrigerator
door, in the vegetable drawer or on the bottom shelf.
ANOTICE!
•Do not use electrical devices inside the refrigerator unless they are rec-
ommended by the manufacturer for that purpose.
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the refrigerator is sufficiently
far away from walls and other objects so that the air can circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Protect the refrigerator and the cable against heat and moisture.
•Make sure that foodstuffs do not touch the walls of the cooling area.
2.3 Safety when operating with DC power
ANOTICE!
•Only select DC operation (battery mode) if you are using a battery
monitor or if the alternator in your vehicle provides sufficient voltage.
2.4 Safety when operating with AC power
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Only use the cable supplied to connect the refrigerator to the
AC mains.
•Never pull the plug out of the socket by the connection cable.
RMLT94xx-O-AUS.book Seite 5 Montag, 24. Juli 2017 12:57 12

EN
Scope of delivery RMLT94xx
6
2.5 Safety when operating with gas
!WARNING!
•Only operate the refrigerator at the pressure shown on the type
plate. Only use pressure controllers with a fixed setting which comply
with the national regulations (in Europe EN 12864).
•Never store liquid gas cylinders in unventilated areas or below
ground level (funnel shaped holes in the ground).
•Keep liquid gas cylinders away from direct sunlight. The temperature
may not exceed 50 °C.
•Never operate the refrigerator with gas
– at petrol stations
– while driving
– while transporting the caravan or mobile home with a transport
vehicle or tow truck
•Never use a naked flame to check the refrigerator for leaks.
•If you smell gas:
– Close the gas supply cock and the valve on the cylinder.
– Open all windows and leave the room.
– Do not press an electric switch.
– Put out any naked flames.
– Have the gas system checked by a specialist.
ANOTICE!
•Only use propane or butane gas (not natural gas).
3Scopeofdelivery
•Refrigerator-oven combination
•Ice-cube tray
•Operating manual
•Installation manual
RMLT94xx-O-AUS.book Seite 6 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Accessories
7
4Accessories
Available as accessories (not included in the scope of delivery):
All the accessories are available from specialist dealers. If you have any questions,
please contact the dealer or your service partner directly.
5 Intended use
The refrigerator-oven combination is designed for installation in caravans or motor-
homes. The refrigerator is only suitable for cooling, freezing and storing foodstuffs.
The refrigerator is not intended for the proper storage of medicine.
!
The refrigerator is designed to be operated on a DC power supply and an AC socket
and can be independently powered by liquid gas (propane or butane). The
refrigerator may not be run on natural gas or city gas.
The oven is only suitable for cooking and baking food.
The oven is designed to be run on liquid gas (propane or butane). The oven may not
be run on natural gas or city gas.
Description
Fan kit for boosting the cooling capacity at high ambient temperatures
Winter cover for the ventilation grille
Door shelf locking
Bottle holder for door shelf locking
Shelf locking
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
RMLT94xx-O-AUS.book Seite 7 Montag, 24. Juli 2017 12:57 12

EN
Technical description RMLT94xx
8
6 Technical description
6.1 Description
The unit is a combination of refrigerator and oven which are firmly screwed together.
The refrigerator and the oven can be operated independently of one another. The
oven uses the gas connection of the refrigerator and does not need to be separately
connected.
The refrigerator is an absorption refrigerator. The refrigerator is designed to operate
with different types of power and can be run on an AC power supply, a DC power
supply or with butane/propane gas. For DC operation, the vehicle battery or a solar
system built on the vehicle can be used. For with AC and gas operation, the thermo-
static control ensures that the refrigerator temperature is kept constant and as little
power as possible is consumed.
The refrigerator has a locking mechanism to protect it during transport.
The refrigerator has a defrost water drain. The drain opening is located on the rear
panel of the refrigerator.
The refrigerator is equipped with an automatic pilot light which automatically inter-
rupts the gas supply after approx. 30 seconds if the flame goes out.
The RMLT9435 refrigerator has an automatic operating mode which selects the
most economical power mode connected.
Food can be cooked or baked in the oven at 110 – 220 °C.
RMLT94xx-O-AUS.book Seite 8 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Technical description
9
6.2 Components of the refrigerator-oven combination
No. in fig. 1Description
1Oven
2 Oven control element
3 Refrigerator controls
4 Ice compartment
5 Secondary evaporator for refrigerator
6Shelves
7 Vegetable compartment
8 Bottom tray with bottle holder
9 Upper trays
3
4
5
6
9
87
1
2
1
RMLT94xx-O-AUS.book Seite 9 Montag, 24. Juli 2017 12:57 12

EN
Technical description RMLT94xx
10
Inside the refrigerator, you can see the type plate of the refrigerator. There you can
see the model name, product number and serial number. You will need this
information whenever you contact the customer service or order spare parts:
On the back of the oven, you can see the type plate of the refrigerator.
No. in fig. 2Description
1 Model number
2 Product number
3 Serial number
4 Electrical connection value
5 Gas pressure
BRUTTOINHALT
TOTAL CAP.
VOLUME BRUT
VERDAMPFERFACH
FREEZER COMP.
VOLUME COMPT BT
MADE IN GERMANY
AP
MLCPROD. NO.MOD. NO.
TYPE
C 40/110 CLIMATE CLASS SKU
SER. NO.
00094200762
Z 660
031654
008512
NUTZINHALT
USEFUL CAP.
VOLUME NET
2
4
5
13
2
RMLT94xx-O-AUS.book Seite 10 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Technical description
11

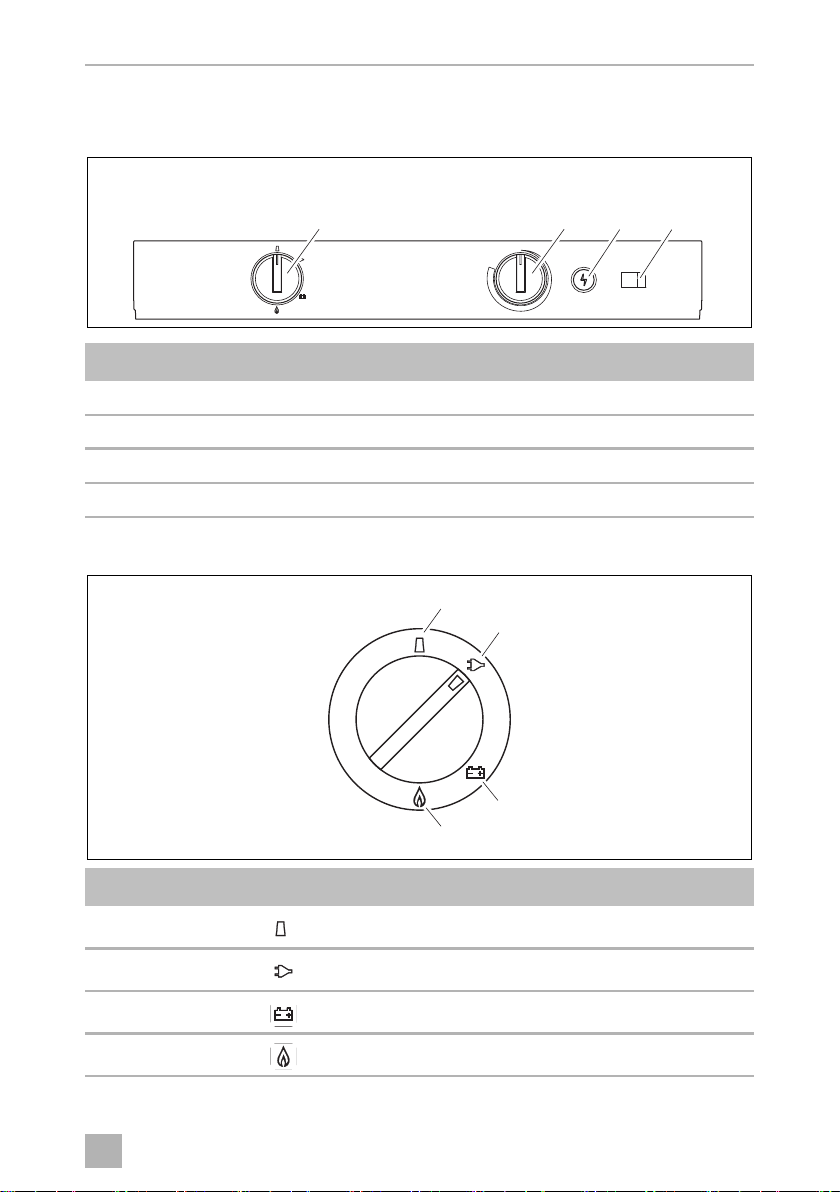

6.3 Control elements of the refrigerator
The RMLT9430 refrigerator has the following control elements:
The power selector (fig. 31, page 11) has the following setting options:
No. in fig. 3Description
1 Power selector
2 Temperature controller
3 Battery igniter (gas)
4 Pilot light
No. in fig. 4Description
1OUT
2 Operating with AC power supply
3 Operating with DC power supply
4 Gas operation
RMLT 9430
1 2 3 4
3
RMLT 9430
1
2
4
3
4
RMLT94xx-O-AUS.book Seite 11 Montag, 24. Juli 2017 12:57 12

EN
Technical description RMLT94xx
12
The RMLT9431 and RMLT9435 refrigerators have the following illuminated control
elements:
No. in fig. 5Description
1 ON/OFF button
2 Operating with AC power supply
3 Gas operation
4 Operating with DC power supply
5 Automatic mode (RMLT9435 only)
6 Setting the temperature
7 Temperature indication
8 Malfunction indicator
Reset button for a gas malfunction
RMLT 9431/9435
1 2 3 4 5 6 7 8
5
RMLT94xx-O-AUS.book Seite 12 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Technical description
13
6.4 Oven components
6.5 Oven control elements
No. in fig. 6Description
1 Interior light
2 Oven burner
3Ovenshelf
4 Drip pan
No. in fig. 7Description
1 Temperature controller
4
3
2
1
6
1
7
RMLT94xx-O-AUS.book Seite 13 Montag, 24. Juli 2017 12:57 12

EN
Using the refrigerator RMLT94xx
14
7 Using the refrigerator
A
I
7.1 Energy saving tips
•Allow hot food to cool down first before you place it into the refrigerator.
•Do not open the refrigerator more often than necessary.
•Do not leave the door open for longer than necessary.
•Arrange the food in the refrigerator so that air can circulate inside.
•Leave a distance of about 10 mm between the contents and secondary
evaporator.
NOTICE!
•Make sure that you only put items in the refrigerator which may be
kept at the selected temperature.
•Foodstuff may only be stored in its original packaging or in suitable
containers.
NOTE
•Before starting your new refrigerator for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons.
•The cooling performance can be affected by:
– The ambient temperature
– The amount of food to be conserved
– How often you open the door
•When using the refrigerator for the first time, there may be a mild
odour which will disappear after a few hours. Air the living space
well.
•Park the vehicle so that it is level, especially when starting up and
filling the refrigerator before setting off on a journey.
•The refrigerator unit operates silently.
•Approximately one hour after switching on, the freezer
compartment of the refrigerator should be cold. The refrigerator
reaches its operating temperature after a few hours.
•RMLT9431/9435 only: Battery management systems switch off
the power supply to the refrigerator as soon as the vehicle engine is
switched off for longer than 30 minutes. The refrigerator requires a
constant DC power supply to operate. If your vehicle has a battery
management system, deactivate it.
RMLT94xx-O-AUS.book Seite 14 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Using the refrigerator
15

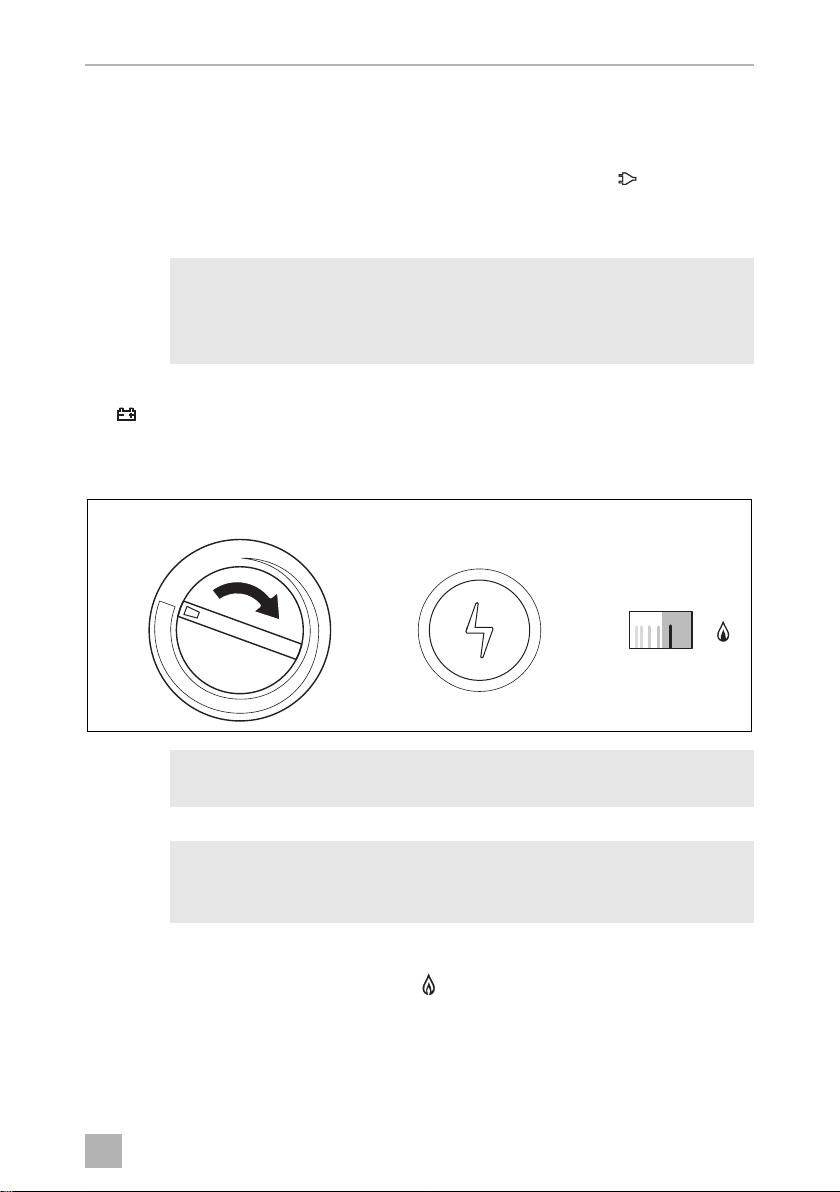

7.2 Switching on the refrigerator (RMLT9430)
Operating with AC power supply
➤Switch the refrigerator on by turning the power selector to the position.
Operating with DC power supply
A
➤Switch the refrigerator on by turning the power selection button to the
position.
Gas operation
!
I
➤Make sure that the gas supply is turned on.
➤Turn the power selector switch to the position.
➤Turn the temperature control to the maximum level (A).
➤Press in the temperature regulator and hold it down.
NOTICE!
Only select the operating mode with direct current (battery mode) if the
vehicle engine is running and is providing sufficient voltage to the light
system or if you are using a battery monitor.
WARNING! Fire hazard!
Never operate the refrigerator with gas at petrol stations.
NOTE
When operating with LPG, the burner must be cleaned frequently (two
or three times a year).
RMLT 9430
ABC
8
RMLT94xx-O-AUS.book Seite 15 Montag, 24. Juli 2017 12:57 12

EN
Using the refrigerator RMLT94xx
16
➤Press in the battery igniter as well and hold it down (fig. 8B).
✓Ignition is automatic. The needle of the pilot light moves to the green zone once
the burner has ignited (fig. 8C).
➤Press and hold down the temperature regulator for another 15 seconds.
7.3 Switching on the refrigerator
(RMLT9431/RMLT9435)
➤Press and hold the button for two seconds.
✓The refrigerator starts with the last type of power selected.
Operating with AC power supply
➤Press the button.
Operating with DC power supply
A
➤Press the button.
Gas operation
!
I
➤Press the button.
✓The burner is ignited automatically.
NOTICE!
Only select the operating mode with direct current (battery mode) if the
vehicle engine is running and is providing sufficient voltage to the light
system or if you are using a battery monitor.
WARNING! Fire hazard!
Never operate the refrigerator with gas at petrol stations.
NOTE
When operating with LPG, the burner must be cleaned frequently (two
or three times a year).
RMLT94xx-O-AUS.book Seite 16 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Using the refrigerator
17
Automatic operation (RMLT9435 only)
I
In automatic mode, the refrigerator selects the most favourable operating mode
available itself.
➤Press the button.
7.4 Closing the refrigerator door
➤Press the door shut until you hear it clearly click.
✓The door is closed and locked.
NOTE
•To avoid unintentionally switching to gas operation while refuelling,
the automatic mode starts the gas operation only once the engine
has been off for 15 minutes.
•Turn off the refrigerator or set it to a different operation mode, if
refuelling lasts longer than 15 minutes.
Priority Operating mode
1 Solar (DC power)
2 AC power
3 DC power
4Gas
RMLT94xx-O-AUS.book Seite 17 Montag, 24. Juli 2017 12:57 12

EN
Using the refrigerator RMLT94xx
18
7.5 Selecting the temperature
I
➤RMLT9430: Set the required temperature using the temperature regulator
(fig. 32, page 11):
– Narrow bar = lowest cooling capacity
– Wider bar = highest cooling capacity
➤RMLT9431/9435: Set the required temperature with the button. You can
see the set temperature in the display :
– One bar = lowest cooling capacity
– Five bars = highest cooling capacity
7.6 Notes on storing food
!
NOTE
•For ambient temperatures of +15 °C – +25 °C, select the centre
position (fig. 9). The unit operates in the optimum power range.
•In DC power mode, the refrigerator works without thermostatic
control (permanent operation).
CAUTION!
Only store heavy objects such as bottles or cans in the refrigerator door,
in the vegetable compartment or on the bottom shelf.
RMLT 9430 RMLT 9431/9435
11
9
RMLT94xx-O-AUS.book Seite 18 Montag, 24. Juli 2017 12:57 12

EN
RMLT94xx Using the refrigerator
19
The refrigerator compartments are recommended for the following types of food:
No. in fig. 0Food
1 Frozen food
2 Dairy products, ready-made meals
The following applies to France: Only store dairy products in this
compartment.
3 Meat, fish, items for defrosting
4 Salad, vegetables, fruit
5 Drinks in bottles or cartons
6 Dressing, ketchup, jam
7 Eggs, butter
1
7
6
5
2
4
3
0
RMLT94xx-O-AUS.book Seite 19 Montag, 24. Juli 2017 12:57 12

EN
Using the refrigerator RMLT94xx
20
Please observe the following instructions for storing items:
I
7.7 Making ice cubes
➤Fill the ice cube tray up to three quarters full with water.
➤Place the ice tray in the freezer compartment (fig. 14, page 9) of the
refrigerator.
7.8 Switching off the refrigerator
Proceed as follows:
➤RMLT9430: Turn the power selector switch to the position.
➤RMLT9431/9435: Press and hold the button for three seconds.
✓The display goes out and the refrigerator is switched off completely.
➤Shut off the gas supply in the vehicle and the valve to the gas cylinder.
NOTE
•Do not keep carbonated drinks in the ice compartment.
•The ice compartment is suitable for making ice cubes and for
keeping frozen food short-term. It is not suitable for long-term food
storage.
•If the refrigerator is exposed to a room temperature of below +10 °C
for a prolonged period of time, an even temperature of the ice com-
partment cannot be guaranteed. This can lead to a possible increase
in the ice compartment temperature and stored goods will defrost.
•Pack raw and cooked items separately.
•Observe the expiry date on the packaging.
•Do not leave refrigerated items outside the refrigerator for too long.
•Clean the inside of the refrigerator at regular intervals.
RMLT94xx-O-AUS.book Seite 20 Montag, 24. Juli 2017 12:57 12
