Dometic DM50D User manual

DM50
Drawer Minibar
Installation and Operating Manual. . . . . . . 11
Schubfach-Minibar
Montage- und Bedienungsanleitung . . . . .25
Minibar à tiroir
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .40
Cajón minibar
Instrucciones de montaje y de uso . . . . . . .55
Minibar de gaveta
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Cassetto del minibar
Istruzioni di montaggio e d’uso . . . . . . . . .85
Lade minibar
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . .100
Skuffe minibar
Monterings- og betjeningsvejledning . . . 115
Låda till minibar
Monterings- och bruksanvisning . . . . . . . 130
Uttrekkbar minibar
Monterings- og bruksanvisning . . . . . . . . 145
Vetolaatikkominibaari
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 160
Минибар с выдвижным ящиком
Инструкция по монтажу и эксплуатации 175
Minibary szufladowe
Instrukcja montażu i obsługi. . . . . . . . . . . 190
Minibar Drawer
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 205
Minibar Drawer
Návod k montáži a obsluze . . . . . . . . . . . 220
Fiókba szerelt minibár
Szerelési és használati útmutató . . . . . . . 235
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
MINI FRIDGES
DM50_IOM_EMEA16.book Seite 1 Dienstag, 30. Juni 2020 7:14 07

© 2020 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
DM50_IOM_EMEA16.book Seite 2 Dienstag, 30. Juni 2020 7:14 07

DM50
3
12
3
1
1
2
3
4
2
DM50_IOM_EMEA16.book Seite 3 Dienstag, 30. Juni 2020 7:14 07

DM50
4
5
3
SET
EP
Press“SET”to enter SLEEP mode
2 431
4
DM50_IOM_EMEA16.book Seite 4 Dienstag, 30. Juni 2020 7:14 07

DM50
5
4
3
2
1
5
1
2
6
DM50_IOM_EMEA16.book Seite 5 Dienstag, 30. Juni 2020 7:14 07

DM50
6
1 1
1 1
AB
CD
≥ 15
30
120
≥ 35 cm²
≥35 cm²
30
120
260 30 x 300
≥150 cm²
≥150 cm²
≥150 cm²
7
DM50_IOM_EMEA16.book Seite 6 Dienstag, 30. Juni 2020 7:14 07

DM50
7
160
450
67
480
508
418
91,2
93
8
470
30
300
9
1
3
2
4
5
6
AB
0
DM50_IOM_EMEA16.book Seite 7 Dienstag, 30. Juni 2020 7:14 07

DM50
8
C
BA
1
2
1
1
3
2
a
68
112
AB
b
DM50_IOM_EMEA16.book Seite 8 Dienstag, 30. Juni 2020 7:14 07

DM50
9
23
1
C
B
D
A
11
1
c
1
2
3
4
d
DM50_IOM_EMEA16.book Seite 9 Dienstag, 30. Juni 2020 7:14 07

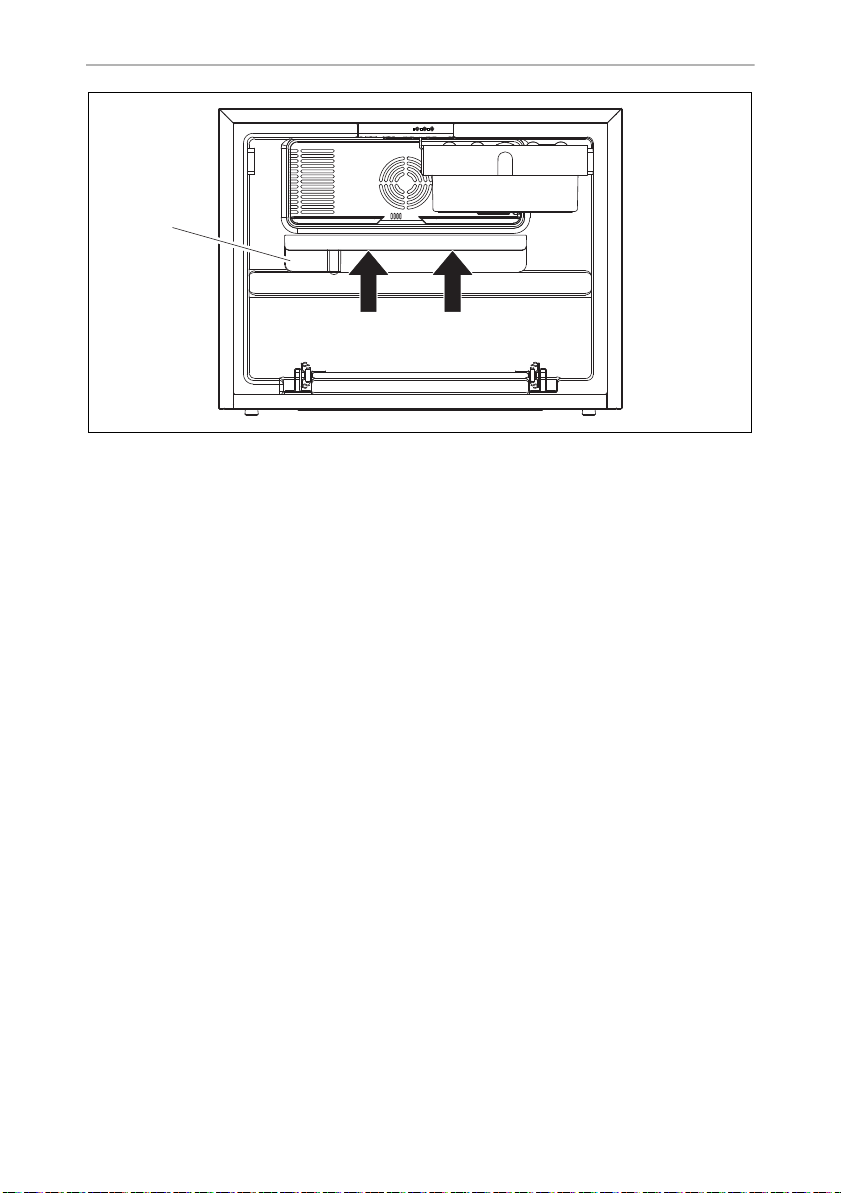

DM50
10
P
ES
1
e
DM50_IOM_EMEA16.book Seite 10 Dienstag, 30. Juni 2020 7:14 07

EN
DM50
11
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
DM50_IOM_EMEA16.book Seite 11 Dienstag, 30. Juni 2020 7:14 07

EN
Explanation of symbols DM50
12
1 Explanation of symbols
!
!
A
I
2 Safety instructions
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• If this cooling device's power cable is damaged, it must be replaced
to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Fire hazard
• When positioning the device, ensure the supply cord is not trapped or
damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
DM50_IOM_EMEA16.book Seite 12 Dienstag, 30. Juni 2020 7:14 07

EN
DM50 Safety instructions
13
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
• Food may only be stored in its original packaging or in suitable
containers.
• Opening the cooling device for long periods can cause significant
increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or can drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the lid open to prevent mould developing within the device.
DM50_IOM_EMEA16.book Seite 13 Dienstag, 30. Juni 2020 7:14 07

EN
Scope of delivery DM50
14
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Connect the cooling device with an AC connection cable to the AC
power supply.
• Never pull the plug out of the socket by the cable.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Risk of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
3Scopeofdelivery
The following main alternatives are obtainable:
• Minibar DM50D with door panel, without lock
• Minibar DM50D with door panel, with lock
• Minibar DM50F without door panel, without lock
• Minibar DM50F without door panel, with lock
DM50_IOM_EMEA16.book Seite 14 Dienstag, 30. Juni 2020 7:14 07

EN
DM50 Proper use
15
4Properuse
The Dometic Minibars DM50D and DM50F are designed for use inside a piece of
furniture and are suitable for cooling beverages and food.
The device is designed for use with a 230 V AC mains supply.
The cooling device is intended to be used in household and similar applications
such as
• staff kitchen areas in shops, offices and other working environments
•farmhouses
• clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications
!
Quantity Description
1 Minibar
1 Cable for 230 Vwconnection
4 Screw ø4 x 45 mm (Installation)
4 Plug (Installation)
1 Handle DM50D only
2 Plug (Handle installation) DM50D only
1 Inlet filter
6 Screw ø3 x 12 mm (Filter installation)
2 Plug (Wooden panel) DM50F wooden version only
1 Lock decor (Wooden panel) DM50F wooden version with
lock only
2 Key Lock version only
1 Installation and Operating manual
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
DM50_IOM_EMEA16.book Seite 15 Dienstag, 30. Juni 2020 7:14 07

EN
Technical description DM50
16
5 Technical description
The minibar has a main drawer for bottles and cans as well as a mini drawer for
miniatures and snacks. The main drawer has room for 33 bottles with a maximum
height of 30 cm.
The minibar DM50D comes with a anthracite panel and pull handle.
The minibar DM50F is delivered without panel and is prepared for fitting the hotel's
own door decor.
Its cooling system is a non-wearing Peltier cooling system with the heat discharged
by a fan.
A lock is optionally available.

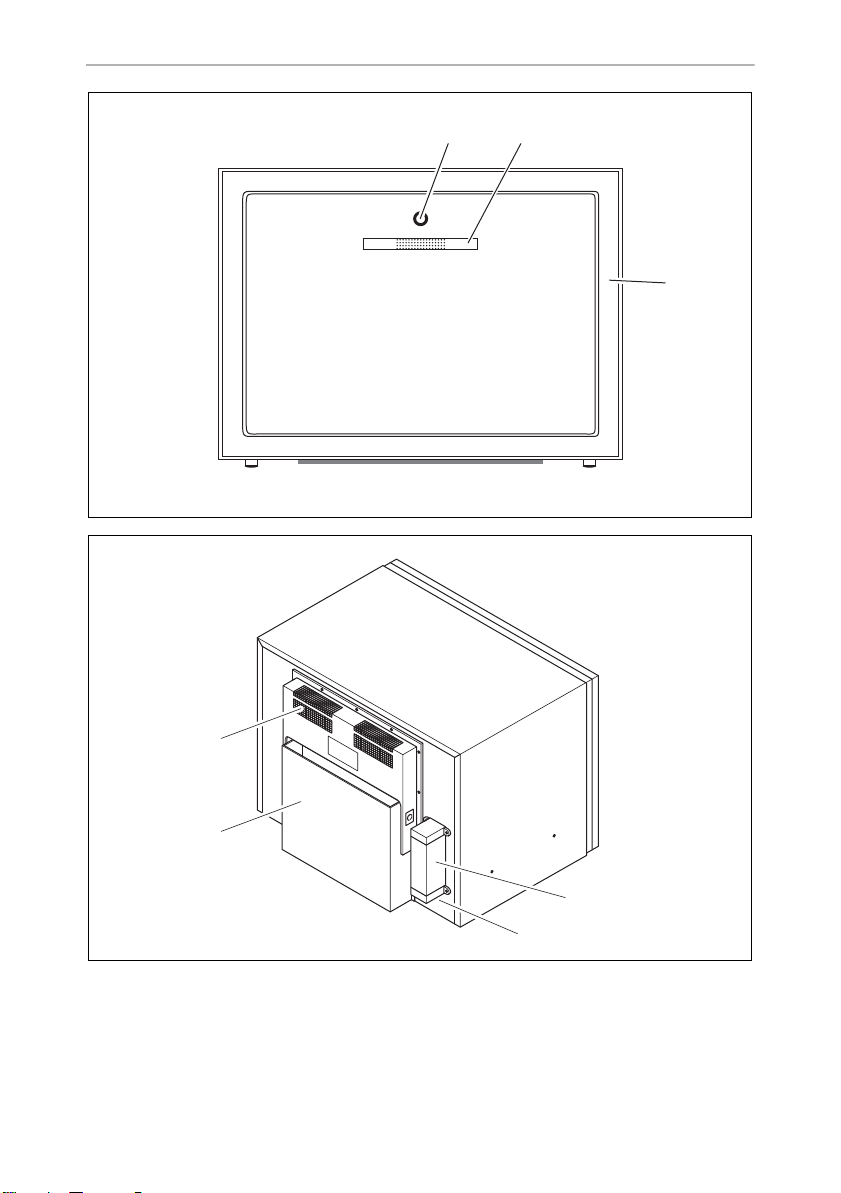

5.1 Description of the device
Front panel
Rear side
No in
fig. 1, page 3 Description
1 Lock (optional)
2 Handle (DM50D only)
3 Door panel (DM50D only)

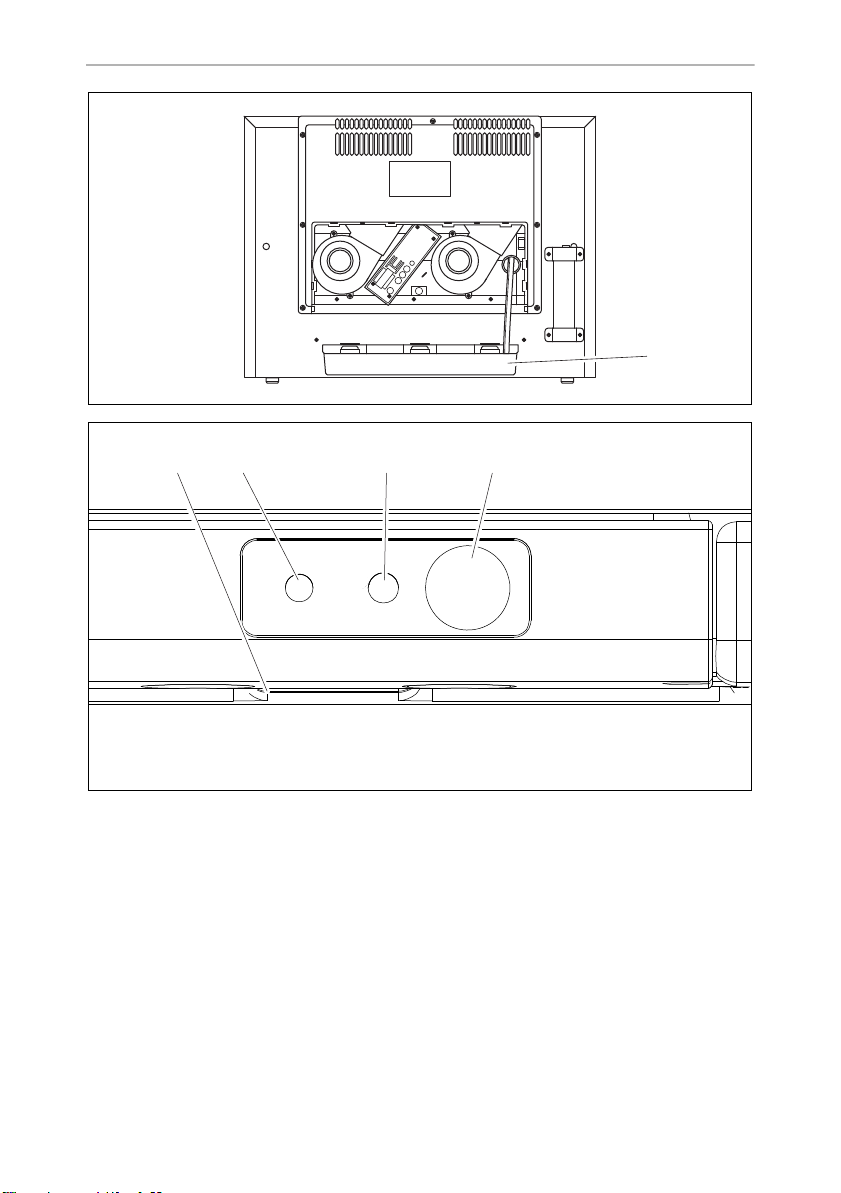

No in
fig. 2, page 3 and
fig. 3, page 4
Description
1 Mains adaptor
2 12 Vgsocket
3 Cooling unit cover
4 Ventillation openings
5 Drip tray
DM50_IOM_EMEA16.book Seite 16 Dienstag, 30. Juni 2020 7:14 07

EN
DM50 Installation
17
Control panel (inside the device)
Main drawer
Mini drawer
6 Installation
!
6.1 Notes on mounting into furniture
You can mount the minibar in four ways into furniture. Choose your favoured
alternative according to fig. 7, page 6.
No in
fig. 4, page 4 Description
1 Lamp
2 Error LED
3 Power Status LED
4 Setting button
No in
fig. 5, page 5 Description
1 Wide divider
2 Separator
3 Small divider
4 Bottle finger
No in
fig. 6, page 5 Description
1 Rotatable divider
2 Miniature bottle holder
CAUTION! Health hazard
To avoid a hazard due to instability of the device, it must be fixed in
accordance with the instructions.
DM50_IOM_EMEA16.book Seite 17 Dienstag, 30. Juni 2020 7:14 07

EN
Installation DM50
18
Observe the following:
• The cut-out dimensions H x W x D are:
– DM50D: 428 x 570 x 485 mm
– DM50F: 428 x 570 x (485 + d) mm
d is the thickness of the hotel‘s own decor
• The clearance between the minibar‘s back and the furniture wall should be
approx. 5 mm.
• The ventilation openings for the chosen alternative have to be produced as
shown in fig. 7, page 6.
• Air passing through the inlet air duct must not be heated by any heat sources
(heaters, direct sunlight, gas ovens etc.).
6.2 Pressing out the ventilation opening
fig. 9, page 7
➤Produce a ventilation opening of 30 x 300 mm in the bottom of the furniture into
which you place the minibar.
Measure the distance of 470 mm from the minibar‘s door front excluding any
own decor.
6.3 Mounting the minibar into a piece of furniture
➤Fasten the minibar with the four screws ø4 x 45 mm (fig. 01, page 7).
➤Insert the four plugs (fig. 02, page 7) into the boring.
No in
fig. 0, page 7 Description
1Screwø4x45mm
2Plug
3Furniture
4 Ventilation opening
5Filter
6Screwø3x12mm
DM50_IOM_EMEA16.book Seite 18 Dienstag, 30. Juni 2020 7:14 07

EN
DM50 Installation
19
➤Fasten the inlet filter (fig. 05, page 7) with the six screws ø3 x 12 mm (fig. 06,
page 7) to ventilation opening (fig. 04, page 7) of the furniture (fig. 03,
page 7).
6.4 Connecting the minibar electrically
➤Plug the 230 V connection cable into the AC voltage socket and connect it to the
230 V AC mains supply.
✓The Power Status LED lights up.
✓The lamp lights up and the minibar starts cooling the interior.
6.5 Mounting hotel's own door decor (DM50F only)
The hotel's own door decor has to comply with the following requirements:
• Maximum weight: 2 kg
• Maximum thickness: 14 mm
➤Fasten the decor with four screws.
6.6 Mounting the lock (lock version only)
➤Drill a hole with a diameter of 35 mm into the decor.
➤Mount the lock together with the lock decor.
6.7 Mounting the lock (no lock version only)

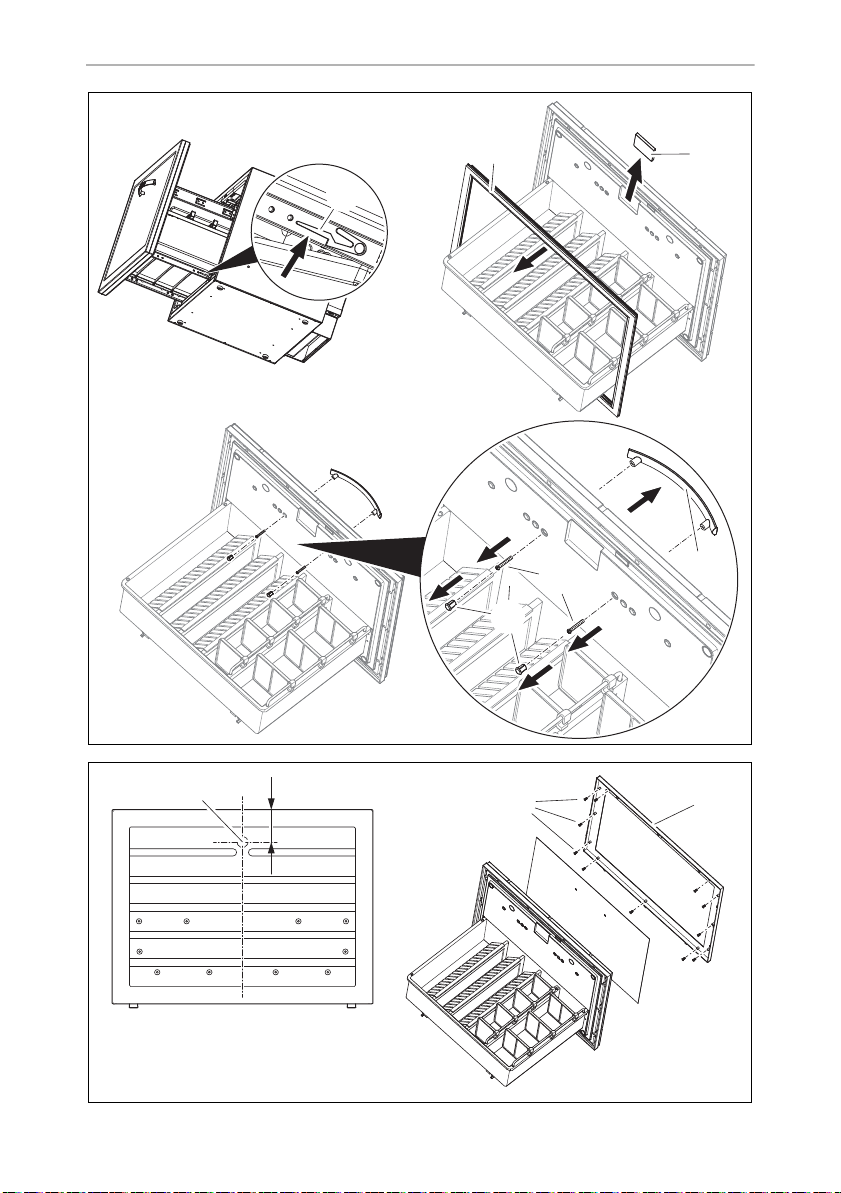

Disassembling the drawer (fig. a, page 8)
➤Open the drawer completely (A).
➤Press the rail lock (A 1).
➤Pull the drawer out of the cabinet (B).
Only for DM50D:
➤Remove the two plugs (C 1) from the screws (C 2) of the door handle (C 3).
➤Unscrew the two screws (C 2) of the door handle.
➤Remove the door handle (C 3).
DM50_IOM_EMEA16.book Seite 19 Dienstag, 30. Juni 2020 7:14 07

EN
Operation DM50
20
➤Remove the gasket.
➤Remove the lock cover.
Drilling the holes (fig. b, page 8)
➤Drill a hole (A 1) with a diameter of 23.6 mm through the decor (only DM50D)
and the door.
➤Unscrew the twelve screws (B 1) of the decor frame (B 2) (only DM50D).
➤Remove the decor frame (only DM50D).
Assembling the lock (fig. c, page 9)
➤Put the new lock cover (A 1) into place.
➤Put the decor (B 1) into the decor frame.
➤Screw (B 2) the decor frame (B 3) onto the door.
➤Install the door lock (C 1).
➤Install the lock catch (D 1) in the cabinet.
Assembling the drawer (fig. d, page 9)
➤Push the gasket (1) on the decor frame (2).
➤Screw the door handle (4) onto the door.
➤Push the plugs (3) on the screws of the door handle (4).
➤Push the drawer into the cabinet.
7Operation
A
7.1 Energy saving tips
• Do not open the cooling device more often than necessary.
• Do not leave the cooler unit open for longer than necessary.
NOTICE! Damage hazard
The lamp can only be replaced by the manufacturer, service agent or
similarly qualified person to avoid hazard.
DM50_IOM_EMEA16.book Seite 20 Dienstag, 30. Juni 2020 7:14 07
