Dometic HC302 Series User manual

HC302, HC502
Health care refrigerator
Installation and Operating Manual. . . . . . . . 9
EN
PROFESSIONAL COOLING
PHARMACEUTICAL
HC302-502-IO-EN.book Seite 1 Donnerstag, 16. März 2017 12:11 12

HC302-502-IO-EN.book Seite 2 Donnerstag, 16. März 2017 12:11 12

HC302, HC502
3
2
1
5
7
8
6
HC302FS
HC502FS
HC302BIU
HC502BIU
3
3
4
1
3
4
21
2
HC302-502-IO-EN.book Seite 3 Donnerstag, 16. März 2017 12:11 12

HC302, HC502
4
1
2
1
1
1
2
2
2
ADCB
3
!
m
i
n
.
1
0
0
°
4
chapter 6.3
HC302-502-IO-EN.book Seite 4 Donnerstag, 16. März 2017 12:11 12

HC302, HC502
5
!
5
chapter 6.3
!
6
chapter 6.3
HC302-502-IO-EN.book Seite 5 Donnerstag, 16. März 2017 12:11 12

HC302, HC502
6
1.
2.
3.
7
4.
1.
1.
3.
2.
8
HC302-502-IO-EN.book Seite 6 Donnerstag, 16. März 2017 12:11 12

HC302, HC502
7
A
C
B
1
2 2 3
4
9
CD
AB
0
HC302-502-IO-EN.book Seite 7 Donnerstag, 16. März 2017 12:11 12

HC302, HC502
8
820
422 FS: 450; BIU: 440
540
580
HC302
!
a
chapter 6.3
HC502
948
486 FS: 494; BIU: 484
552
592
!
b
chapter 6.3
HC302-502-IO-EN.book Seite 8 Donnerstag, 16. März 2017 12:11 12

EN
HC302, HC502
9
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
HC302-502-IO-EN.book Seite 9 Donnerstag, 16. März 2017 12:11 12

EN
Explanation of symbols HC302, HC502
10
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by
customer service or a similarly qualified person in order to prevent
safety hazards.
•This device should be repaired by qualified person only. Inadequate
repairs may cause serious hazards.
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
HC302-502-IO-EN.book Seite 10 Donnerstag, 16. März 2017 12:11 12

EN
HC302, HC502 Safety instructions
11
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under
8 years of age.
•Do not store any explosive substances, such as spray cans with propel-
lants, in the device.
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Never pull the plug out of the socket by the connection cable.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not open the refrigerant circuit under any circumstances.
•Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
•Make sure that the refrigerator circuit is not damaged during transpor-
tation.
•Set up the device in a dry location where it is protected against splash-
ing water.
2.2 Operating the device safely
DDANGER!
•Do not touch exposed cables.
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
HC302-502-IO-EN.book Seite 11 Donnerstag, 16. März 2017 12:11 12

EN
Scope of delivery HC302, HC502
12
ANOTICE!
•Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
•Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate (fig. 3,
page 4).
•Ensure that the ventilation vents are not covered.
•The device shall not be exposed to rain.
•Never immerse the appliance in water.
•Protect the appliance and power cable against heat and moisture.
•Make sure that the stored substances do not touch the walls of the
cooling area.
3Scopeofdelivery
These instructions are also available in PDF format (e.g. on the manufacturer‘s
website).
Quantity Description
1 Refrigerator
1 Handle
1 Battery (CR1632)
1 Installation and operating manual
HC302-502-IO-EN.book Seite 12 Donnerstag, 16. März 2017 12:11 12

EN
HC302, HC502 Intended use
13
4 Intended use
The refrigerator is designed to store medicaments and medical products which may
be stored at temperatures +2 °C and +8 °C.
!
5 Technical description
5.1 Function description
All materials used in the refrigerator are compatible for use with medicines.
The refrigerant circuit is maintenance-free.
The refrigerator is available as freestanding version (FS) and as built-in version (BIU).
The freestanding version (HC302FS, HC502FS) is intended for freestanding use.
The cooling unit cover protects the warm parts of the cooling units. The foot frame
with ventilation openings ensure sufficient ventilation. By removing the foot frame
and cooling unit cover the refrigerator can be used as a built-in version.
The built-in version (HC302BIU, HC502BIU) is intended to be mounted into furni-
ture. It doesn‘t have a foot frame or cooling unit cover.
The digital thermometer shows and stores the minimum and maximum inner
temperatures from the last reset so that you can check whether the medicines have
been stored at the appropriate temperatures.
CAUTION!
The refrigerator is not suitable for the storage of blood.
HC302-502-IO-EN.book Seite 13 Donnerstag, 16. März 2017 12:11 12

EN
Installing and connecting the refrigerator HC302, HC502
14
5.2 Control elements
Key to fig. 2, page 3
6 Installing and connecting the
refrigerator
6.1 Unpacking the refrigerator
➤Check that the packaging in not damaged.
➤Remove the cardboard packaging.
➤Check that the refrigerator is not damaged.
If you find damage on the packaging or at the refrigerator resulting from trans-
port, report it immediately to the transportation firm.
No. in
fig. 1,
page 3
Explanation
1Doorlock
2Door
3 Digital thermometer (see fig. 2, page 3)
4 Cooling unit cover
5Drawers
6 Interior light
7Fan
8 Foot frame
No. Explanation
1 Current inner temperature (in °C)
2 Minimum inner temperature (in °C)
3 Maximum inner temperature (in °C)
4 Reset button
HC302-502-IO-EN.book Seite 14 Donnerstag, 16. März 2017 12:11 12

EN
HC302, HC502 Installing and connecting the refrigerator
15
6.2 Installing freestanding version
Observe the following instructions when installing:
•Install the refrigerator so that the warm air produced can easily flow away, either
upwards or to the sides.
•Leave the device to stand for at least four hours before you connect it to the
power supply so that the refrigerant can flow back into the compressor.
➤Place the refrigerator at the chosen place.
6.3 Installing built-in version
Observe the following instructions when installing:
•Install the refrigerator so that the warm air produced can easily flow away (either
upwards or to the front, fig. 3, page 4).
Key to fig. 3, page 4
•Leave the device to stand for at least four hours before you connect it to the
power supply so that the refrigerant can flow back into the compressor.
•Make sure that the refrigerator door is able to open at least 100°. Otherwise the
drawers cannot be used.
➤Mount the refrigerator to the furniture by two screws through the fittings at the
bottom (fig. 4, page 4).
6.4 Connecting the refrigerator to the power supply
A
➤Connect the plug of the connection cable into the AC mains.
No. Explanation
1 Cold intake air
2 Hot waste air
NOTICE!
UK only: The refrigerator is supplied with a plug fitted with 3 A fuse. In
case this fuse has to be to changed, a 3 A ASTA approved (BS 1362) fuse
must be used.
HC302-502-IO-EN.book Seite 15 Donnerstag, 16. März 2017 12:11 12

EN
Using the refrigerator HC302, HC502
16
➤Insert the battery into the thermometer (see chapter “Replacing the battery of the
thermometer” on page 17).
✓The display turns on.
For the first two seconds the display will not show temperature values; it shows
“--.-”. Then the temperature read from the sensor is shown.
6.5 Mounting and removing the door handle

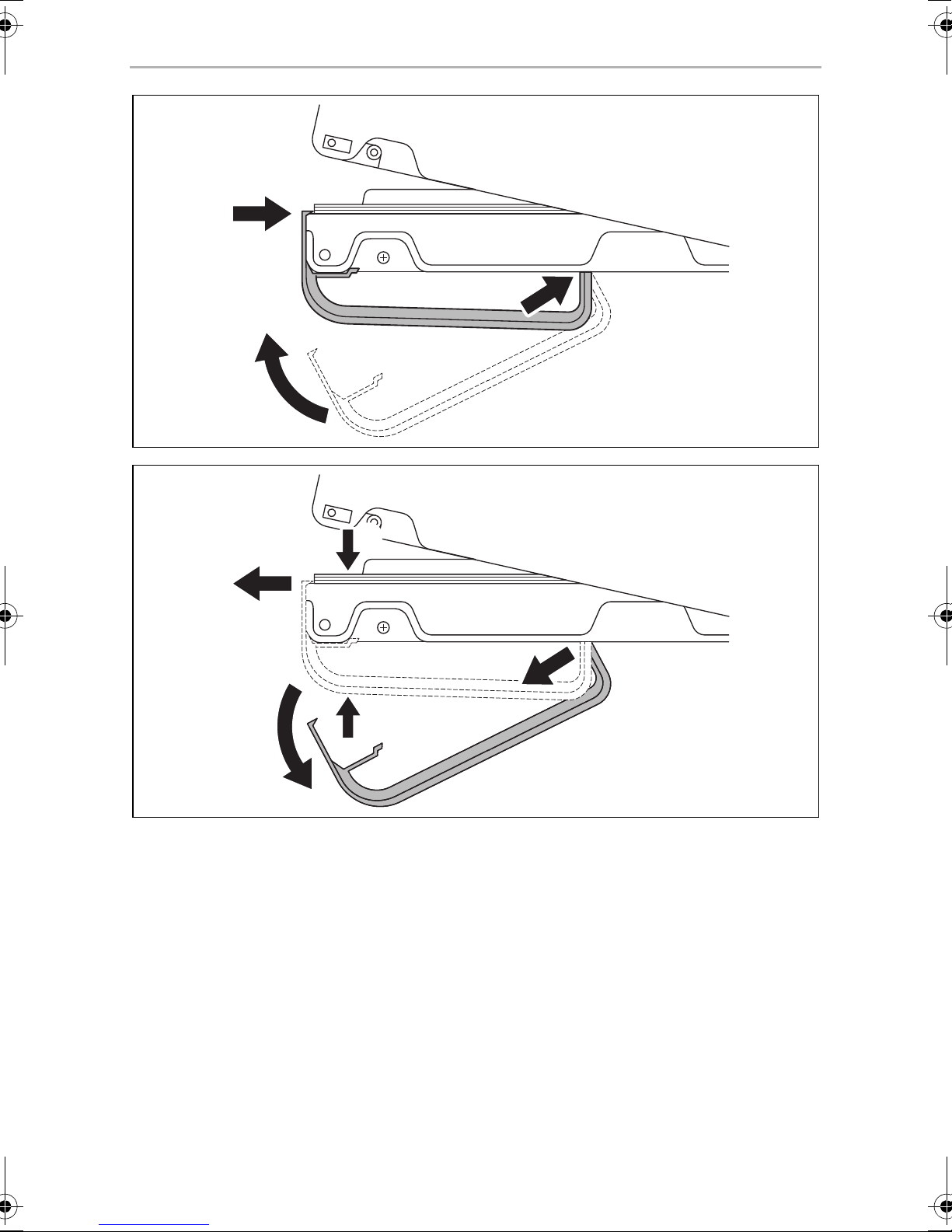

➤Mount the handle as shown (fig. 7, page 6).
➤Remove the handle as shown (fig. 8, page 6).
7 Using the refrigerator
I
7.1 Energy saving tips
•Choose a well ventilated location which is protected from direct sunlight.
•Do not open the refrigerator more often than necessary.
•Do not leave the doors open for longer than necessary.
•Defrost your refrigerator as soon as a layer of ice forms.
7.2 Using the refrigerator
I
NOTE
•Before starting your new refrigerator for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 19).
•Always leave some space between the medicaments in the cabinet
to ensure efficient and even cooling. If the drawers are packed too
tightly there may be unacceptable temperature values.
NOTE
The temperature values are shown in °C. This cannot be changed.
HC302-502-IO-EN.book Seite 16 Donnerstag, 16. März 2017 12:11 12

EN
HC302, HC502 Using the refrigerator
17
After the first start, after replacing the battery or after switching off the refrigerator for
a longer time the display of the digital thermometer (fig. 2, page 3) shows the cur-
rent ambient temperature. When the inner temperature reaches the operating range
the thermometer should be reset to avoid showing wrong maximum temperature
value.
➤Press the reset button (fig. 24, page 3) for 5 s.
The thermometer has a blue backlight which makes the temperature values easier to
read.
➤Press the reset button (fig. 24, page 3) briefly.
✓The blue backlight lights for 2 s.
The thermometer stores the values of the minimum and maximum inner temperature
since the last reset. These values are deleted when the thermometer is reset or the
battery is changed.
7.3 Replacing the battery of the thermometer

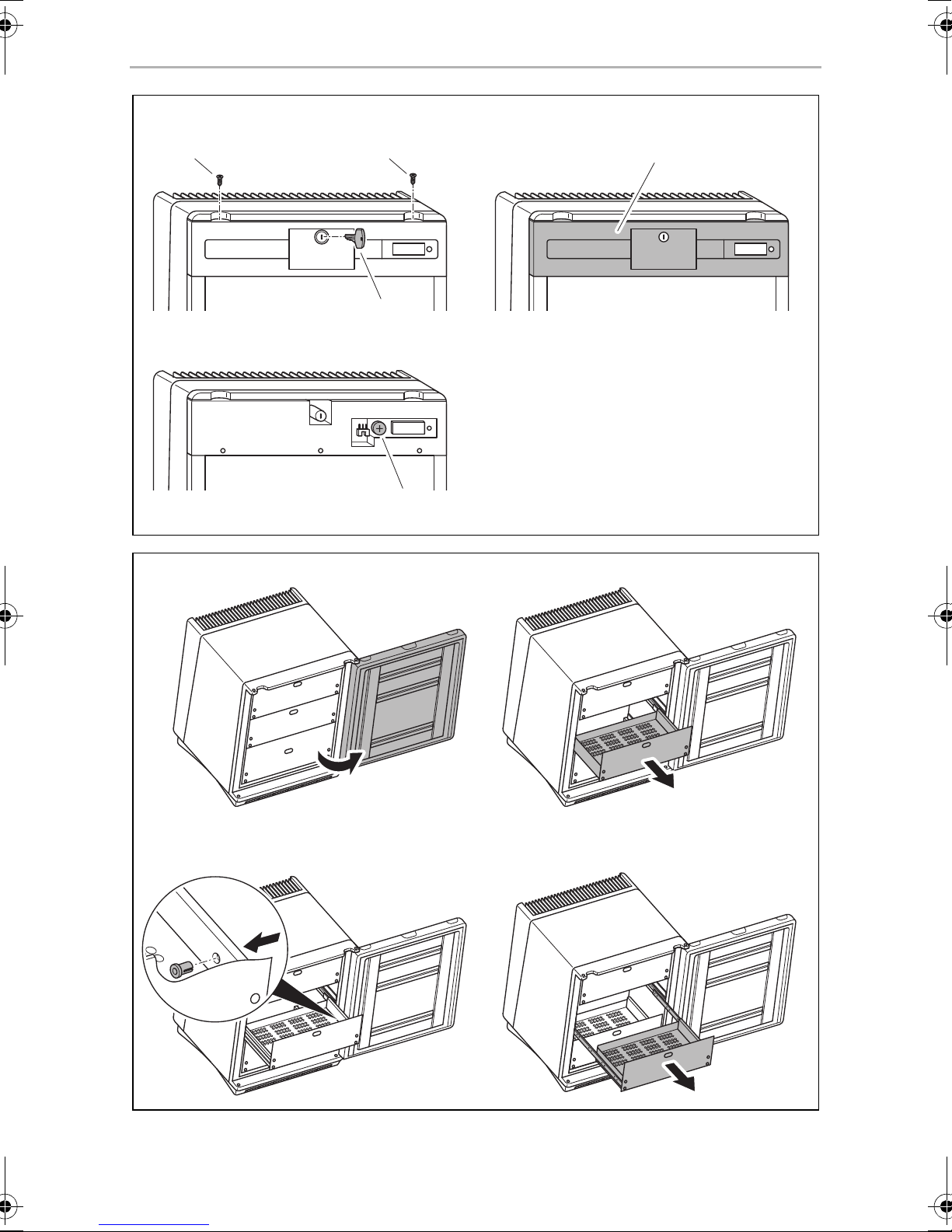

Replace the battery of the thermometer as follows (fig. 9, page 7):
➤Pull the key (1) from the lock.
➤Remove the lock cover rosette using two standard screwdrivers.
➤Remove both screws (2) from front panel.
➤Push the front panel (3) a bit upwards and remove it by slightly pulling.
➤Remove the battery (4).
A
➤Insert the new battery (CR1632) in its holder.
➤Remount the front panel and lock cover rosette in reversed order.
NOTICE!
Make sure the polarity is correct (the “+” must face up).
HC302-502-IO-EN.book Seite 17 Donnerstag, 16. März 2017 12:11 12

EN
Using the refrigerator HC302, HC502
18
7.4 Defrosting the refrigerator
I
Humidity can cause frost to form in the interior of the refrigerator or on the vaporiser.
A slight layer of frost or water droplets could form in the interior of the refrigerator if
it has been cooling for longer periods. This is normal because the moisture in the air
condenses to water when the temperature in the refrigerator drops. The refrigerator
is not defective.
The condensate flows out through a water drain duct into a water container at the
back of the unit at top of the compressor, where it evaporates.
It is recommended to defrost the refrigerator every three weeks.
Proceed as follows:
➤Disconnect the refrigerator from the AC mains.
➤Remove the drawers (see chapter “Removing the drawers” on page 19).
➤Leave the door open.
➤After defrosting wiped out the cabinet interior with a clean, damp cloth.
➤Assemble the drawers.
7.5 Switching off and storing the refrigerator
If you do not intend to use the refrigerator for a long time, proceed as follows:
➤Disconnect the plug.
➤Clean the refrigerator (see chapter “Cleaning and maintenance” on page 19).
➤Leave the door slightly open.
This prevents smells from building up.
NOTE
In high ambient temperatures, the refrigerator may operate
continuously, which can lead to excessive formation of frost on the rear
wall of the refrigerator compartment.
HC302-502-IO-EN.book Seite 18 Donnerstag, 16. März 2017 12:11 12

EN
HC302, HC502 Cleaning and maintenance
19
7.6 Removing the drawers
You can remove the drawers, e.g for cleaning.
Proceed as follows (fig. 0, page 7):
➤Open the door (A).
➤Pull out the drawer (B).
➤Push the fixing pins from the outside to the inside (C)
➤Remove the drawer (D)
➤Assemble the drawers in reverse order.
8 Cleaning and maintenance
!
A
➤Clean the refrigerator regularly and as soon as it becomes dirty with a damp
cloth.
➤Make sure that no water drips into the seals. This can damage the electronics.
➤Wipe the refrigerator dry with a cloth after cleaning.
➤Check the condensate drain regularly.
Clean the condensate drain when necessary. If it is blocked the condensate
collects on the bottom of the refrigerator.
➤Regularly clean the door seals.
➤Freestanding version: Clean the grid of the condenser and the compressor on
the back of the device with a vacuum cleaner regularly.
WARNING!
Always disconnect the refrigerator from the mains before you clean and
service it.
NOTICE!
•Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the refrigerator.
•Never use hard or sharp tools to remove ice or to free objects frozen
onto the device.
•Do not use any mechanical tools or any other tools to speed up the
defrosting process.
HC302-502-IO-EN.book Seite 19 Donnerstag, 16. März 2017 12:11 12

EN
Troubleshooting HC302, HC502
20
9 Troubleshooting
Water in or under the refrigerator
Display signals
Fault Possible cause Remedy
Water is leaking into the
inside of the refrigerator.
The condensate drain duct is clogged. Clean the drain.
Medicines are preventing the water from
flowing to the collector.
Make sure that medicines do
not touch the rear wall.
Water is leaking onto the
floor.
There is too much water in the water con-
tainer.
Clean the water container.
Signal Explanation
General error
The display blinks each
second.
The display shows alternately the current inner temperature and the active
error code (fig. 21, page 3) (E1 or E2, see below).
Sensor failure
The display blinks and
shows “E1”.
The minimum and maximum values will be kept as the last known values.
Low battery
The display blinks and
shows “E2” alternately with
the current temperature.
The minimum and maximum inner temperatures are still visible and will be
updated from the current inner temperature reading.
HC302-502-IO-EN.book Seite 20 Donnerstag, 16. März 2017 12:11 12
