Dometic RML9330 User manual

Absorber refrigerator
Installation Manual. . . . . . . . . . . . . . 13
Absorber-køleskab
Monteringsvejledning. . . . . . . . . . . . 31
Absorptionskylskåp
Monteringsanvisning . . . . . . . . . . . . 50
Absorbsjons-kjøleskap
Monteringsanvisning . . . . . . . . . . . . 68
Absorptiojääkaappi
Asennusohje . . . . . . . . . . . . . . . . . . 86
EN
DA
SV
NO
FI
RML9330, RML9331, RML9335,
RML9430, RML9431, RML9435
RML 943x
RML 933x

RML9330 – RML9435
2
1
586,5 mm420 mm
1293 mm
RML 9330, RML 9331, RML 9335
553 mm
468 mm
1293 mm
RML 9430, RML 9431, RML 9435
2

RML9330 – RML9435
3
23
4
1
3
≥ 1050
< 1050
1
4

RML9330 – RML9435
4
20 – 40
> 40 > 40
5
≥ 1350
20 – 40
1
6

RML9330 – RML9435
5
≥ 300
1 2
7
9
1
8
1
2
3
4
1
3
2
4
LS 230 LS 330
0

RML9330 – RML9435
6
LS 230
LS 330
a
LS 230
LS 330
b
LS 230
LS 330
1.
2.
3.
c
1
2
d

RML9330 – RML9435
7
1.
2.
e
f
1
2
3
4
g
1
2
h
1.
2.
3.
RML 9430
i
1.
3.
2.
RML 9431, RML 9435
j

RML9330 – RML9435
8
k
1.
2.
l
2x
n
2x
m
p
o
q

RML9330 – RML9435
9
448
194,5
1216
46
≤ 2,5 ≤ 2,5 ≤ 2,5
402
189
1270,5
49583,5
402
189
1270,5
49583,5
AB
r
1.
3.
2.
A B
s
SW 17
SW 14
t

RML9330 – RML9435
10

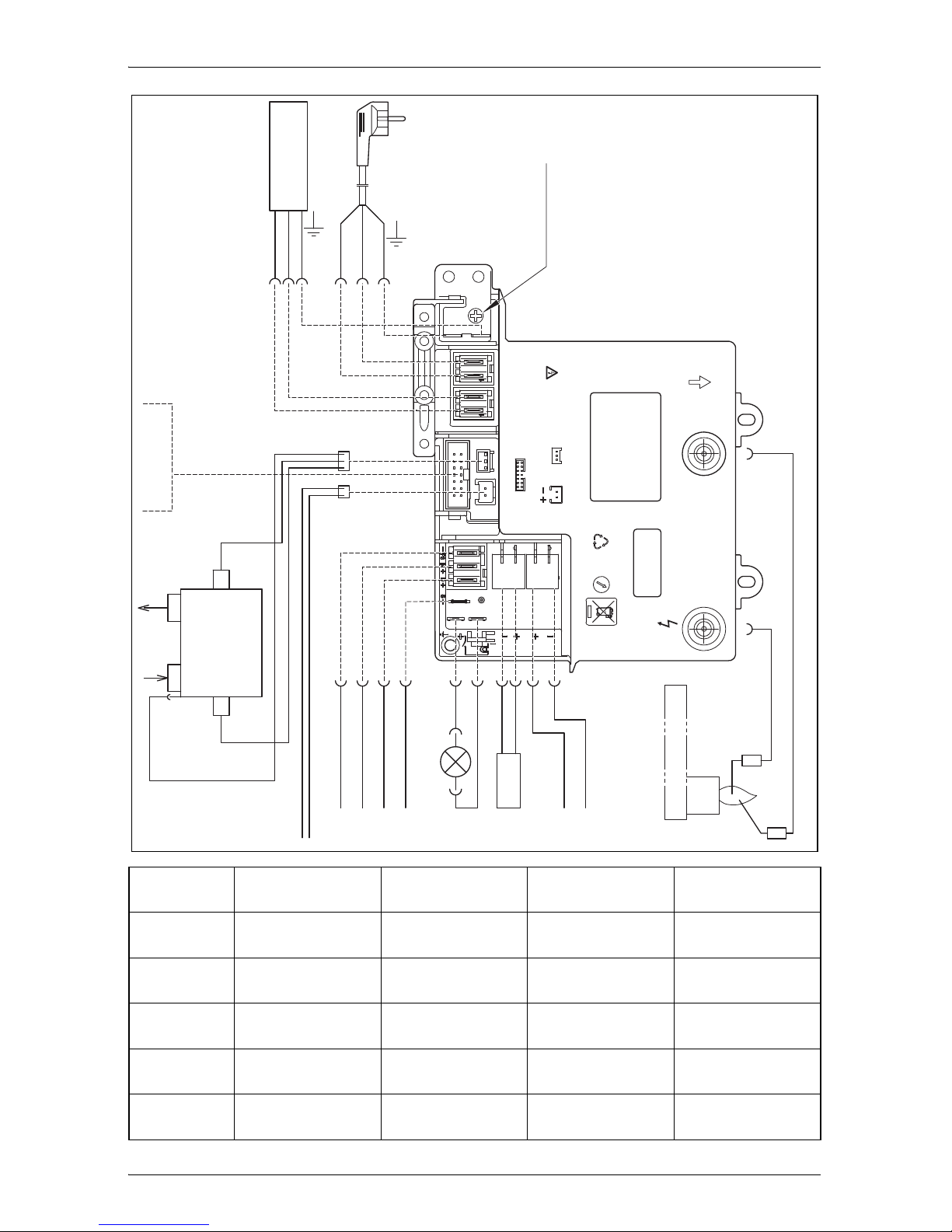

bl br ge gn rt sw ws
EN Blue Brown Yellow Green Red Black White
DA Blå Brun Gul Grøn Rød Sort Hvid
SV Blå Brun Gul Grön Röd Svart Vit
NO Blå Brun Gul Grønn Rød Svart Hvit
FI Sininen Ruskea Keltainen Vihreä Punainen Musta Valkoinen
15
14
3
6
78
1
2
4
5
12
11
9
10
10
N
L
G
ge/gn
ge/gn
V85
bl
1a
1b
3a
3b
5a
5b
2b
2a
4b
4a
6b
6a
87
85 86
30
br
ws
sw
bl
rt
br
br
bl
rt
rt
ge/gn
br
br
bl
bl bl
br
br
ws
ws
br
br
ge
gn
ws
ws
ws
ws
sw
sw
br
br
br br
gn
ge
ge
+
+
_
+
_
F
E
13
10
u

RML9330 – RML9435
11
br rt sw ws
EN Brown Red Black White
DA Brun Rød Sort Hvid
SV Brun Röd Svart Vit
NO Brun Rød Svart Hvit
FI Ruskea Punainen Musta Valkoinen
IN OUT
LLNN
AC
TO GV 12VDCOUT
TO FC
TOP
CE-0085XXXXXX
241 0241-
Typ: P-860
ABS
HE OUT 12 VDC HE IN
sw
sw
rt
brbrbrws
S+D+(+)
(+)
(-)
(-)
(+) (-)
rt
rt
L
NL
ABCDE FG
1
2
6
5
4
8
7
9
10
3
12
13
11
N
14
15
v

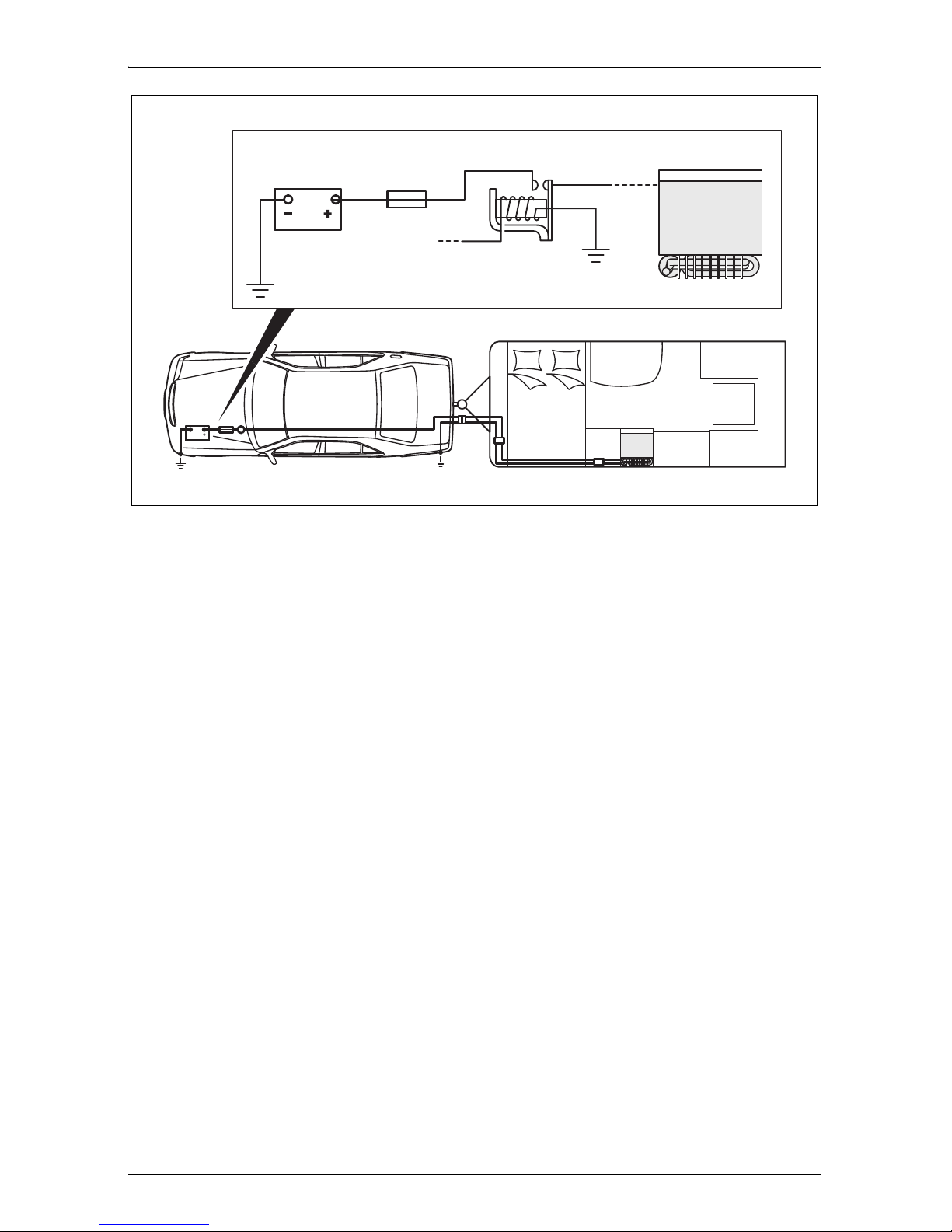

RML9330 – RML9435
12
RML 93…
RML 94…
w

EN
RML9330 – RML9435
13
Please read this instruction manual carefully before installation and
first use, and store it in a safe place. If you pass on the product to
another person, hand over this instruction manual along with it.
I
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6 Installing the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7 Connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
NOTE
You can find details on the operation in the manual.

EN
Explanation of symbols RML9330 – RML9435
14
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
Faulty assembly or connection
Damage to the product resulting from mechanical influences and excess
voltage
Alterations to the product without express permission from the manu-
facturer
Use for purposes other than those described in the operating manual
!WARNING!
Never open the absorber unit. It is under high pressure and can
cause injury if it is opened.
Ensure clean and residue-free handling if silicon sealant or
similar is used. There is a risk of fire if silicone filaments come
into contact with hot parts or naked flames.
Do not operate the refrigerator if it is visibly damaged.
If the AC power cable for this refrigerator is damaged, it must be
replaced by the manufacturer, customer service or a similarly
qualified person in order to prevent safety hazards.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
RML9330 – RML9435 Safety instructions
15
Never use a naked flame to check the refrigerator for leaks.
This refrigerator may only be repaired by qualified personnel.
Inadequate repairs may cause serious hazards.
Only use propane or butane gas (not natural gas).
Only operate the refrigerator at the pressure shown on the type
plate. Use a DIN-DVGW-approved pressure regulator with a
fixed setting in accordance with DIN EN 12864.
Dismantle all refrigerator doors for the disposal of the old
refrigerator and leave the shelves in the refrigerator to prevent
accidental enclosure and suffocation.
!CAUTION!
Danger of crushing! Do not put your fingers into the hinge.
Before starting the device, ensure that the power supply line
and the plug are dry.
ANOTICE!
Only hold the refrigerator at the body of the refrigerator during
transport. Never hold the refrigerator at the absorber unit, the
cooling fins, the gas pipes, the door or the control panel.
Make sure that the refrigerator circuit is not damaged during
transportation. The refrigerant in the refrigerator circuit is highly
flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
Do not install the refrigerator near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
Danger of overheating!
Always ensure sufficient ventilation so that the heat generated
during operation can dissipate. Make sure that the refrigerator
is sufficiently far away from walls and other objects so that the
air can circulate.
Check that the voltage specification on the type plate is the
same as that of the power supply.
Do not open the refrigerant circuit under any circumstances.
Only use the AC connection cable supplied to connect the
refrigerator to the AC mains.
Only use cables with a suitable size.

EN
Scope of delivery RML9330 – RML9435
16
Never pull the plug out of the socket by the connection cable.
The refrigerator may not be exposed to rain.
3 Scope of delivery
Refrigerator
Ice-cube tray
Operating manual
Installation manual
4 Accessories
Available as accessories (not included in the scope of delivery):
All the accessories are available from specialist dealers. If you have any
questions, please contact the dealer or your service partner directly.
Description
Fan kit for boosting the cooling capacity at high ambient temperatures
Ventilation grille
Winter cover for the ventilation grille
Divider, bottle finger (RML9430/9431/9435 only)
Shelf with safety edges (RML9430/9431/9435 only)
Breakfast tray (RML9430/9431/9435 only)
Vario shelves (door shelves can be fitted in any position)
Door shelf locking
Bottle holder for door shelf locking
Shelf locking

EN
RML9330 – RML9435 Intended use
17
5 Intended use
The RML9330, RML9331, RML9335, RML9430, RML9431 and RML9435
refrigerators are designed for installation in caravans or motorhomes. They
are only suitable for cooling and storing foodstuffs. The refrigerators are not
intended for the proper storage of medicine.
The refrigerators are designed to be operated on a DC power supply and an
AC socket and can be independently powered by liquid gas (propane or
butane). The refrigerators may not be run on natural gas or city gas.
6 Installing the refrigerator
6.1 Preparing the installation
When installing the refrigerator, note the following:
To enable the refrigerant to circulate properly, the refrigerator may not
exceed an angle of 3 °.
To do this, park the vehicle on a level surface and check to see if the
ice-cube tray is flat in the refrigerator.
The refrigerator must be installed so that it is easily accessible for service
work, easy to de-install and install and can be easily removed from the
vehicle.
The distance between the refrigerator and the rear wall must be at least
20 mm.
The refrigerator must be installed in a recess so that it stands firm when
the vehicle is in motion. Note the following dimensions here (H x W x D in
mm):
–RML9330/9331/9335: 1293 x 420 x 586.5 (fig. 1, page 2)
–RML9430/9431/9435: 1293 x 468 x 553 (fig. 2, page 2)

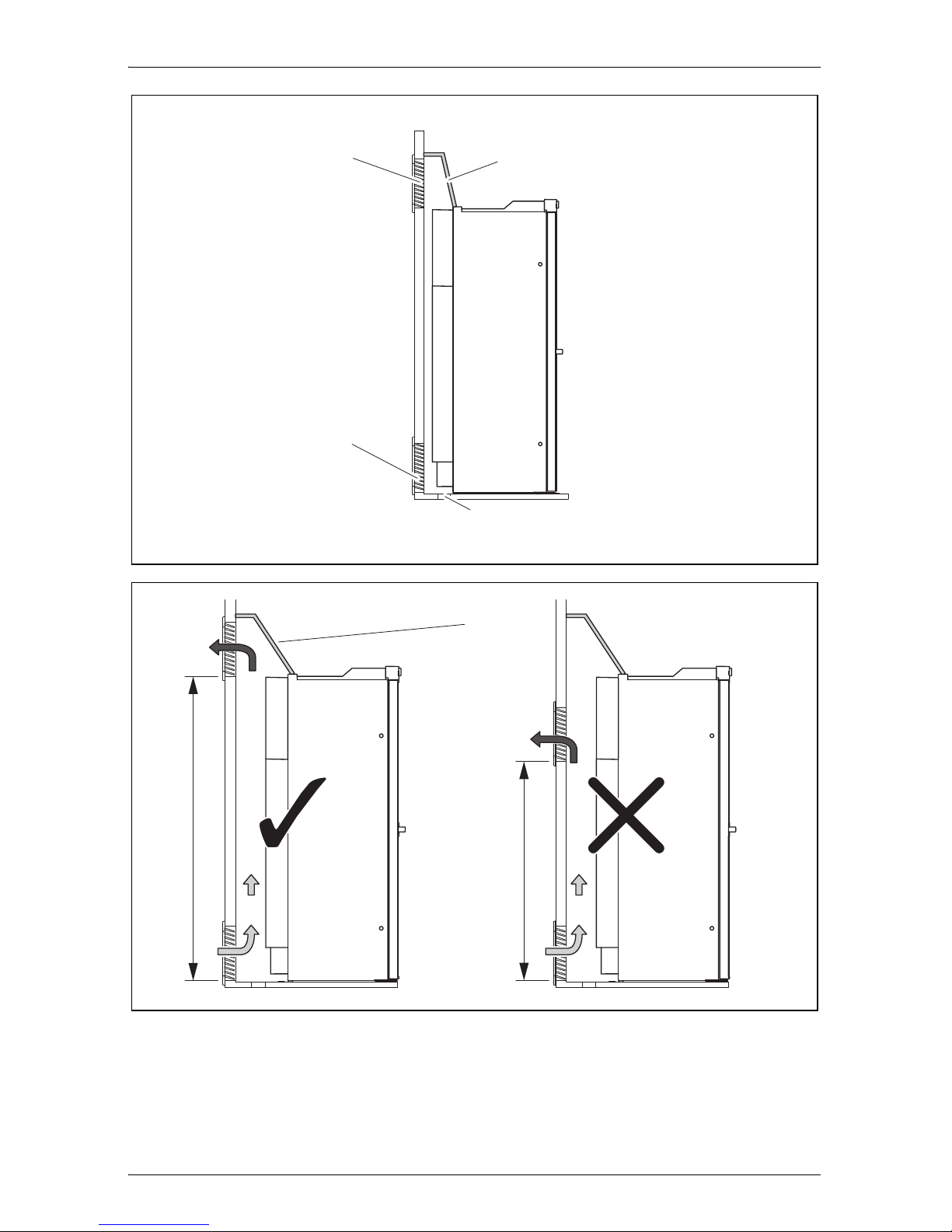

The outer wall must be fitted with an air inlet vent (fig. 31, page 3) and
an outlet vent (fig. 32, page 3) with ventilation grilles so that the heat
generated can be easily released to the outside:
– Air inlet vent: Fit the ventilation grille as flush as possible to the floor of
the installation niche with a minimum cross-section of 500 cm².
– Outlet vent: fit as far above the refrigerator as possible.
– The distance between the air inlet and outlet vents must be at least
1050 mm (fig. 4, page 3).
Fit a heat conduction plate (fig. 33, page 3) above the refrigerator so
that the heat does not accumulate in the vehicle.

EN
Installing the refrigerator RML9330 – RML9435
18
If the ventilation grille of the air inlet vent cannot be installed flush to the
ground, an additional inlet vent (fig. 34, page 3) must be provided in the
floor for releasing leaked gas.
A distance of more than 40 mm between the refrigerator and rear wall
leads to poor performance and increases the power consumption of the
refrigerator. Reduce the space behind the refrigerator to create adequate
air inlet and outlet ventilation (fig. 5, page 4). Use a ventilation plate, for
example, to do this.
If the minimum distance between the air inlet and outlet vents cannot be
met, a roof vent must be installed instead of the air outlet vent.
– The roof vent should be installed directly above the back of the
refrigerator as far as this is possible. Use an air duct (fig. 61, page 4)
if you need to install the roof vent offset, otherwise heat will accumu-
late there.
– The distance between the air inlet vent and the roof vent must be at
least 1350 mm (fig. 6, page 4).
– If a roof air conditioner is provided, the distance between the roof vent
(fig. 71, page 5) and the air outlet of the roof air conditioner
(fig. 72, page 5) must be at least 300 mm.
The refrigerator must not be installed at the side of the air inlet and outlet
vents as this leads to poor performance and increases the power
consumption of the refrigerator.
The air inlet and outlet vents must not be covered by vehicle parts (such
as an open door or by installing accessories such as bicycle racks) while
operating.
Install a fan kit for distances of 25 mm – 45 mm between the rear wall of
the refrigerator and air outlet vent (see chapter “Accessories” on
page 16).
Install the refrigerator so that it is protected from excessive heat, as this
leads to poor performance and increases the power consumption of the
refrigerator.
The electrical installation must comply with national and local regulations.
European standards: EN 60335-1, EN 60335-2-24, EN 1648-1 and
EN 1648-2.
The gas installation must comply with national and local regulations.
European standard: EN 1949.
The refrigerator must be installed in a draught-proof location in
accordance with EN 1949, see chapter “Installing the refrigerator in a
draught-proof location” on page 19.

EN
RML9330 – RML9435 Installing the refrigerator
19
6.2 Installing the refrigerator in a draught-proof
location
Gas-powered refrigerators in caravans or motorhomes must be installed in a
draught-free location according to EN 1949. This means that the combustion
air is not extracted from the interior and the exhaust fumes are prevented
from directly entering the living space.
A suitable seal must be fitted between the rear panel of the refrigerator and
the interior of the vehicle.
!
The manufacturer recommends using a flexible seal to ease removal and
installation for maintenance purposes.
➤Attach the sealing lips (fig. 81, page 5) to a stop rail behind the
refrigerator, for example, by using an adhesive.
➤When installing, push the refrigerator against the stop rails with the
sealing lips. This then seals the space behind the refrigerator to the
interior of the vehicle.
6.3 Making air inlet and outlet vents
I
➤Make an air inlet vent and an air outlet vent in the outer wall with the
size of 410 mm x 249 mm. When doing so, observe the information, see
chapter “Preparing the installation” on page 17.
If the ventilation grille of the air inlet vent cannot be installed flush with the
floor of the niche, you need to install an inlet vent in the floor:
➤Make an air inlet vent in the floor (fig. 34, page 3) behind the refrigerator
near the gas burner.
➤Shield the end of the opening with a deflector to prevent sludge or dirt
from getting inside while driving (fig. 9, page 5).
WARNING! Fire hazard!
Do not use flammable materials such as silicone sealants, foam
or similar for the draught-proof installation.
NOTE
At high ambient temperatures, the refrigerator can only provide its
maximum cooling capacity if the optimum ventilation has been
provided.

EN
Installing the refrigerator RML9330 – RML9435
20
If you have to use a roof vent instead of the air outlet vent:
➤Cut out a section in the roof. Refer to the roof vent instruction manual for
the required dimensions. When doing so, observe the information, see
chapter “Preparing the installation” on page 17.

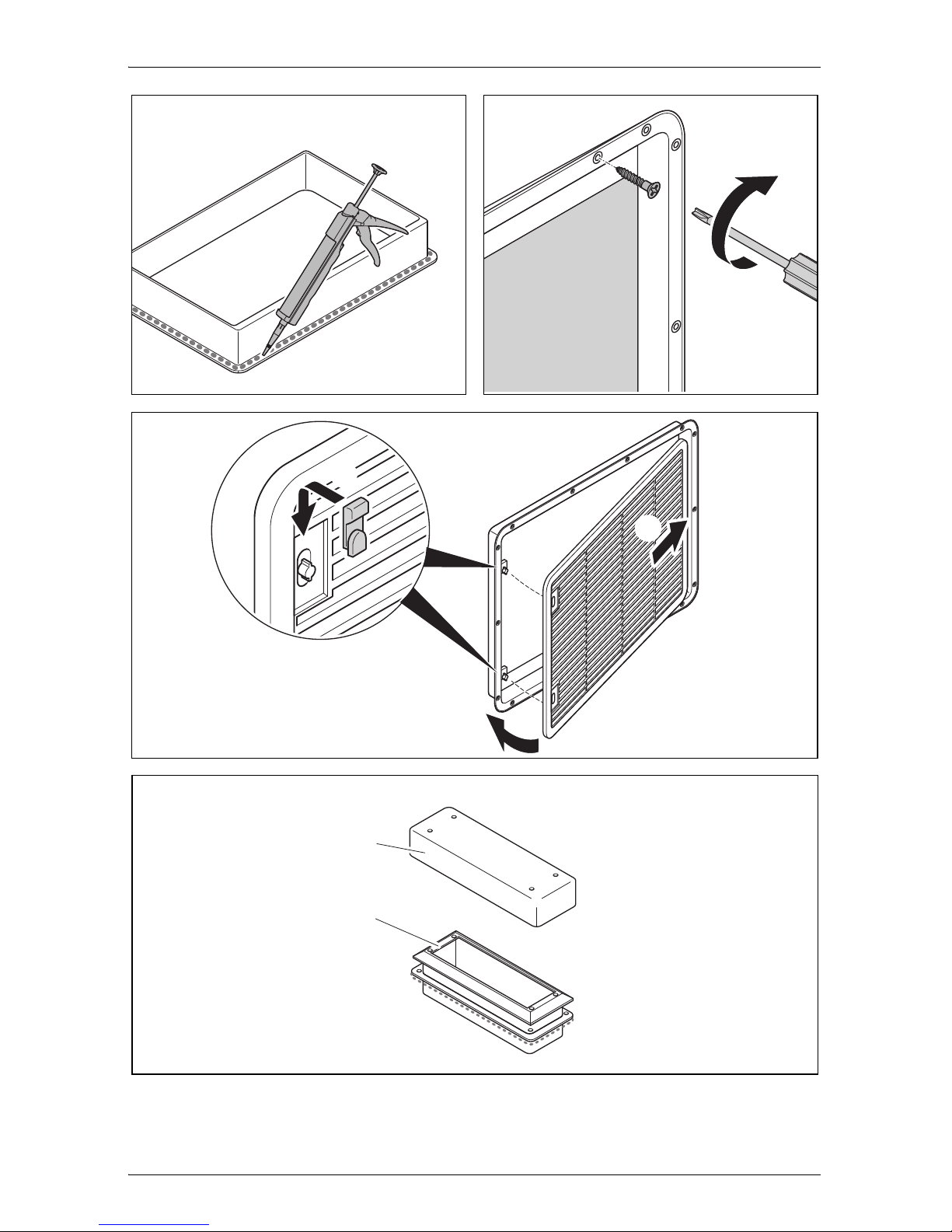

6.4 Installing the ventilation grille
➤Ensure the installation frame is water resistant (fig. a, page 6).
➤Insert the installation frame and screw it down tightly (fig. b, page 6).
➤Fit the ventilation grille (fig. c, page 6).
➤Insert the slider and lock the ventilation grille with it (fig. c, page 6).

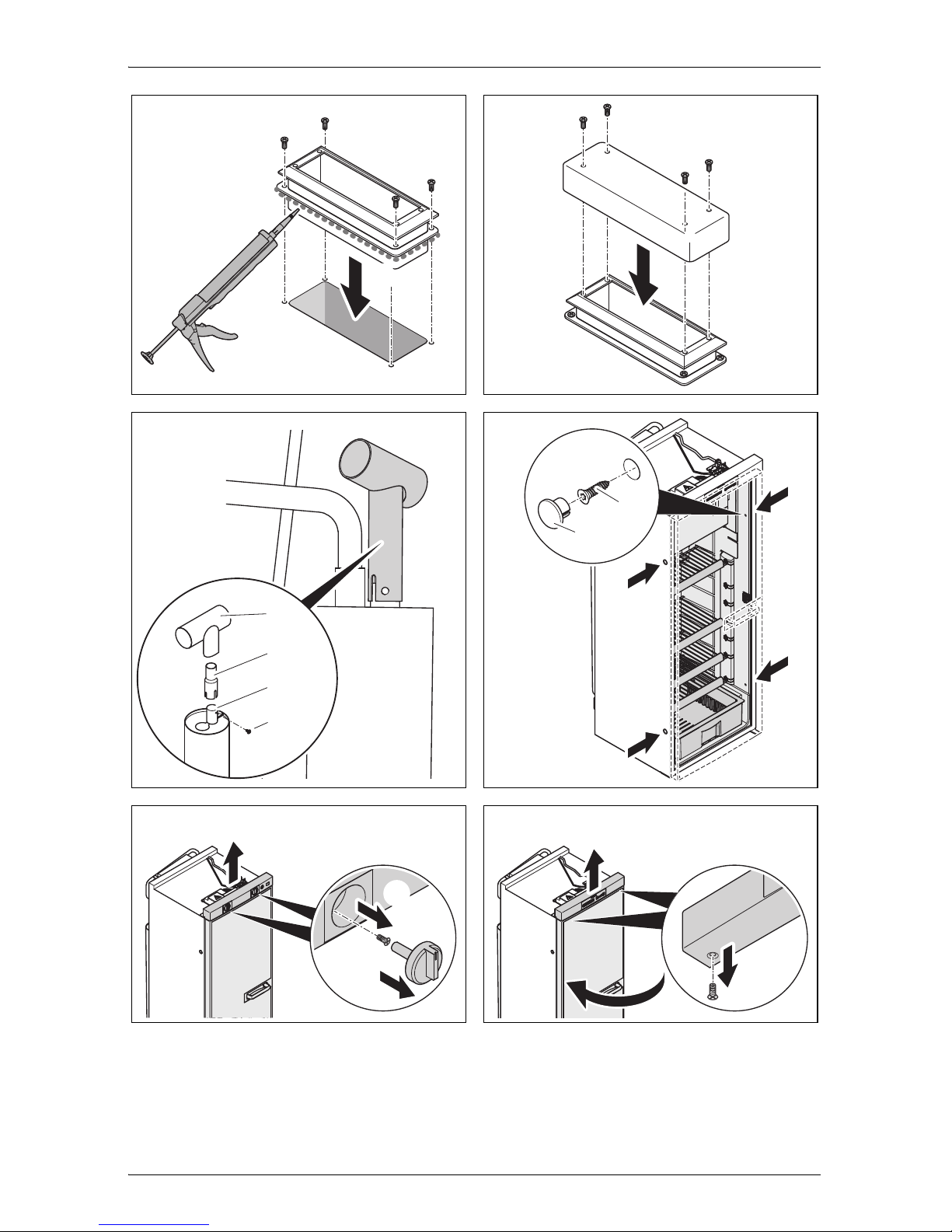

6.5 Install the roof vent
➤Ensure the installation frame is water resistant (fig. e, page 7).
➤Insert the installation frame and screw it down tightly (fig. e, page 7).
➤Insert the hood and screw it down tightly (fig. f, page 7).
No. in
fig. 0, page 5 Description
1 Installation frame
2 Ventilation grille
3 Winter cover
4 Slider
No. in
fig. d, page 6 Description
1 Installation frame
2Hood
