Dometic CoolMatic CRX 50 User manual

CRX50, CRX65, CRX80, CRX110,
CRX140
Compressor refrigerator
Installation and Operating Manual. . . . . . . 13
Kompressor-Kühlschrank
Montage- und Bedienungsanleitung. . . . .35
Réfrigérateur à compression
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .58
Nevera con compresor
Instrucciones de montaje y de uso. . . . . . .83
Frigorífico com compressor
Instruções de montagem e manual de
instruções. . . . . . . . . . . . . . . . . . . . . . . . . . 107
Frigorifero con compressore
Istruzioni di montaggio e d’uso . . . . . . . .132
Compressorkoelkast
Montagehandleiding en
gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 156
Kompressor-Køleskab
Monterings- og betjeningsvejledning. . . 179
Kylskåp med kompressor
Monterings- och bruksanvisning . . . . . . . 201
Kompressorkjøleskap
Monterings- og bruksanvisning. . . . . . . . 223
Kompressori jääkaappi
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 245
Компрессорный холодильник
Инструкция по монтажу и
эксплуатации . . . . . . . . . . . . . . . . . . . . . . 268
Lodówka kompresorowa
Instrukcja montażu i obsługi. . . . . . . . . . . 293
Kompresorová chladnička
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 316
Kompresorová chladnička
Návod k montáži a obsluze . . . . . . . . . . . 339
Kompresszoros hűtőszekrény
Szerelési és használati útmutató . . . . . . . 361
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
COOLMATIC
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
2

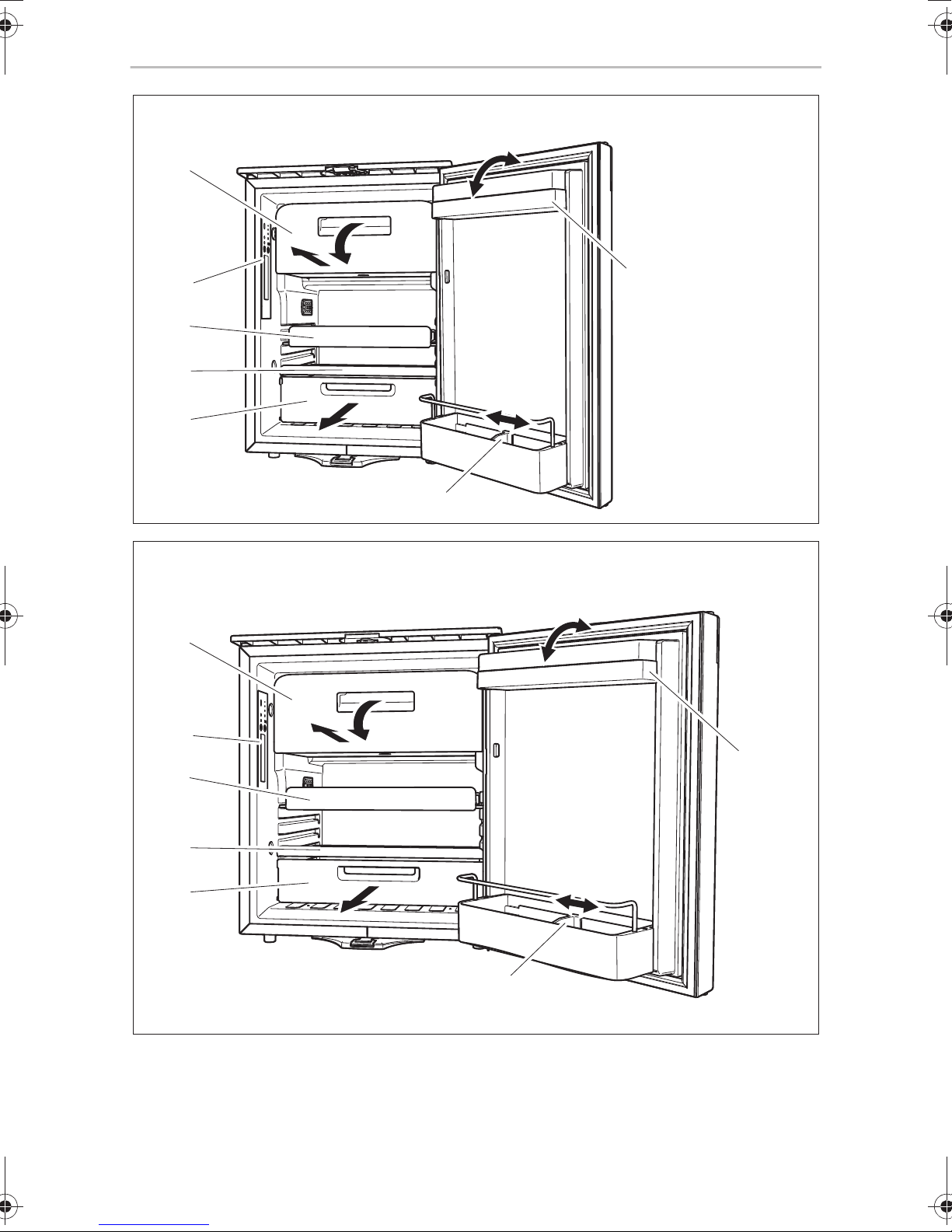

CRX 50
1
2
3
5
4
6
7
1
1
2
3
5
4
6
7

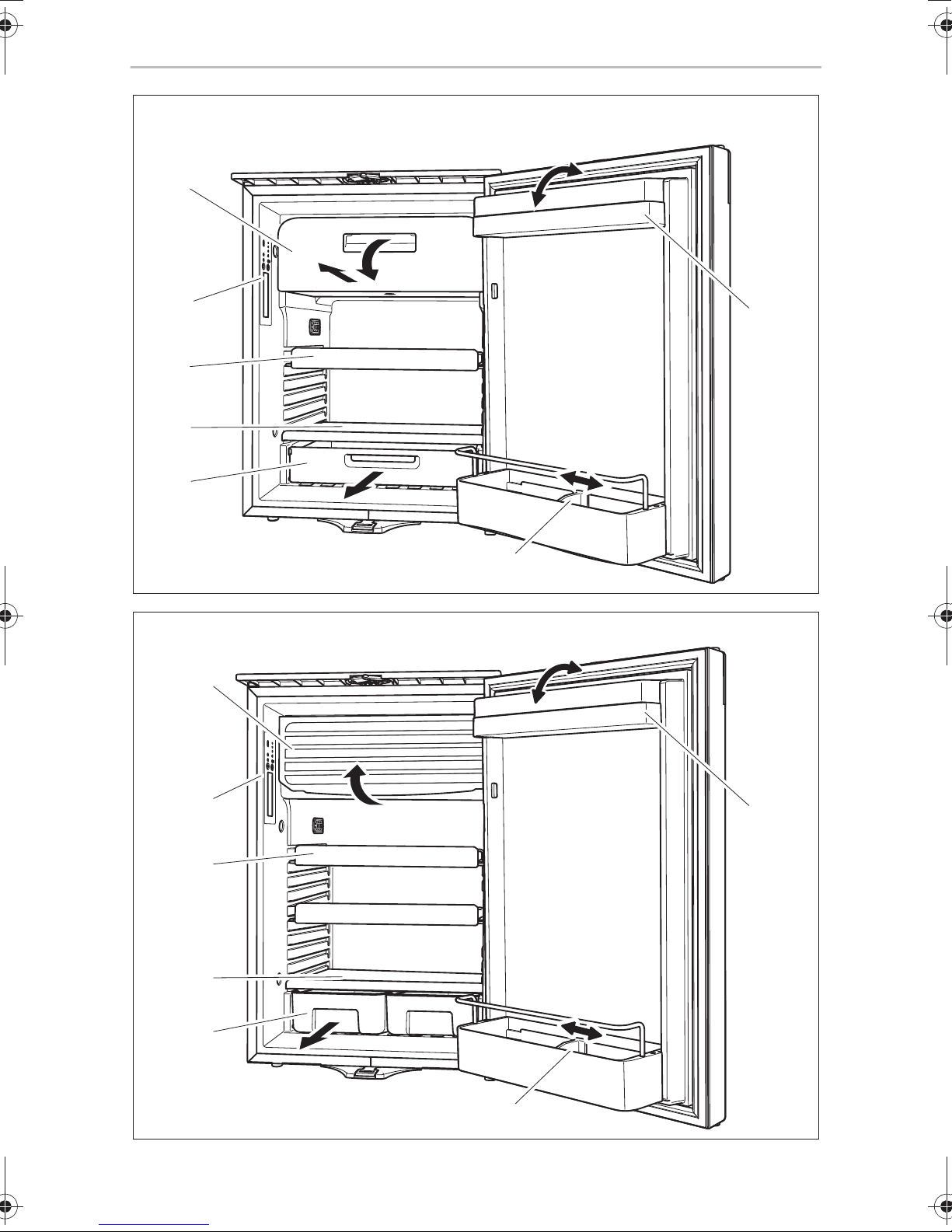

CRX 65
2
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
3
1
2
3
5
4
6
7
CRX 80
3
4
1
2
3
5
4
6
7
CRX 110
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
4
55
1
2
3
5
4
6
7
CRX 140
6CRX50, CRX65, CRX80
1
2
3
4
8
7
6
5
3s
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
5
7
CRX110ACDC, CRX140ACDC
1
2
3
4
8
6
5
1
2
3
4
8
7
6
5
3s
CRX110DC
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
6

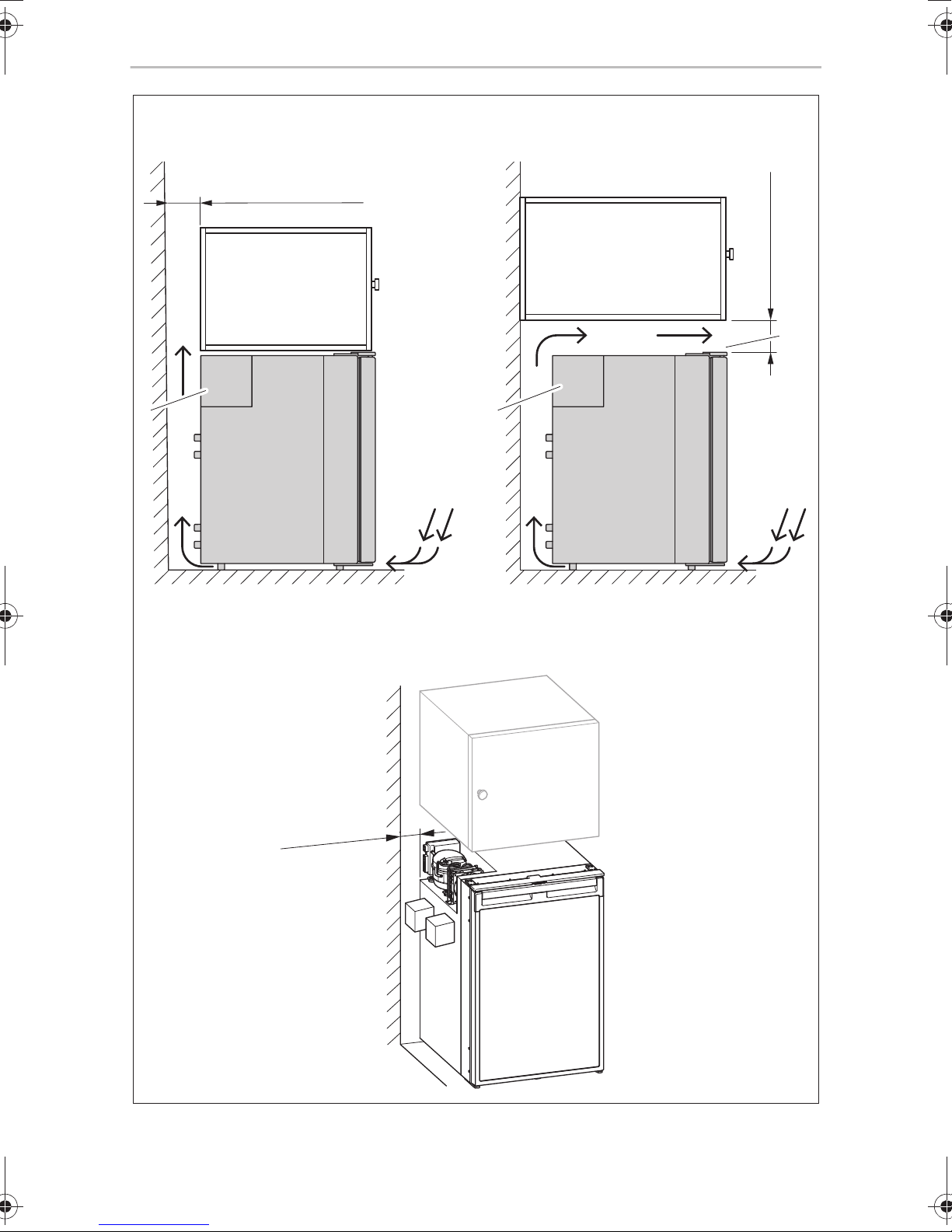

ca. 50 mm
ca. 50 mm
AB
CRX 50-140 CRX 50-140
11
22
33
4
8
CRX 140
ca. 20 mm
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
7

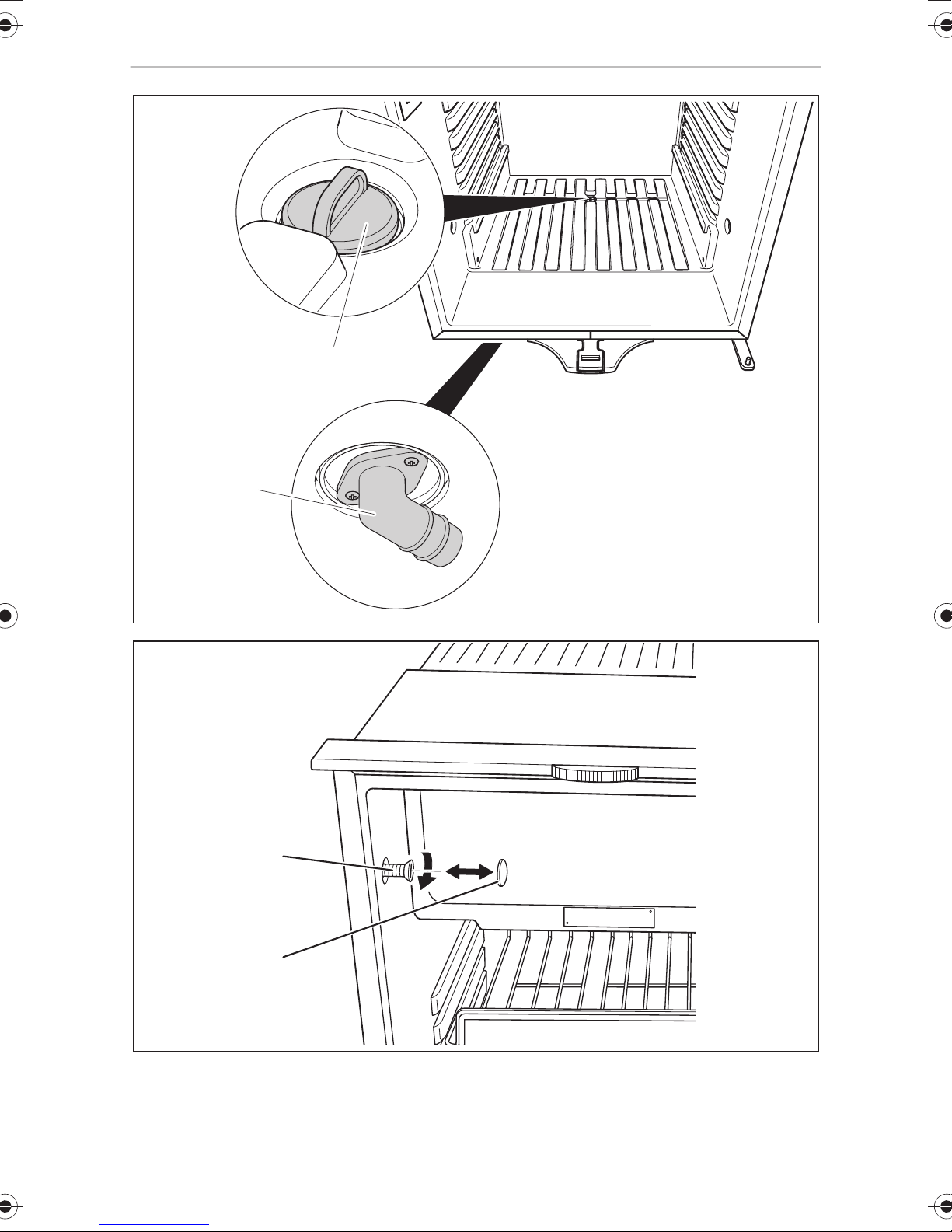

2
1
9
1
2
0
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
8
a
b c
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
9
Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
d
1
rd
bk
e
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
10
1
2
f
12 V/24 V
10 A
–
–
+
+
2
1
rd/bk
rd
bk
bk
100 – 240 V~
g
1
Vent Lock
h
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
11

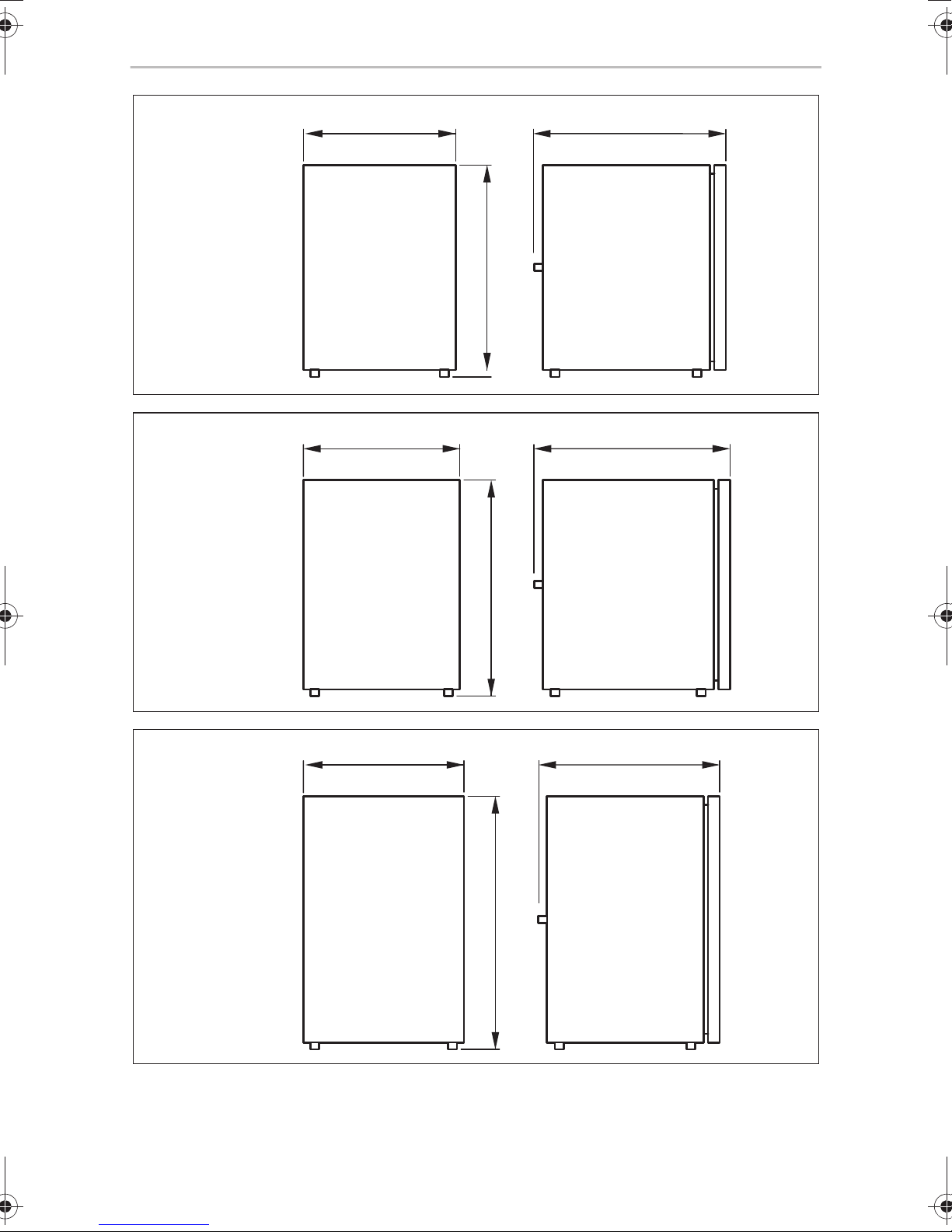

380
534
500
CRX 50
i
CRX 65
448
525
545
j
CRX 80
475
640
528
k
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

CRX
12
CRX 110
520
745
558
l
CRX 140
525
812
620
m
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

EN
CRX Explanation of symbols
13
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
1 Explanation of symbols
D
!
DANGER!
Safety instruction: Failure to observe this instruction will cause death
or serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause death
or serious injury.
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

EN
Safety instructions CRX
14
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
Faulty assembly or connection
Damage to the product resulting from mechanical influences and incorrect
connection voltage
Alterations to the product without express permission from the manufacturer
Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER!
On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
!WARNING!
Installations in washrooms and areas exposed to water, must be
performed by a qualified technician.
Do not operate the device if it is visibly damaged.
If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

EN
CRX Safety instructions
15
This device can be used by children aged8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
Cleaning and user maintenance must not be carried out by children
without supervision.
Children must be supervised to ensure that they do not play with the
device.
Always keep and use the device out of the reach of children under
8 years of age.
Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
Danger of crushing! Do not put your fingers into the hinge.
Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE!
Check that the voltage specification on the type plate is the same as
that of the power supply.
Never pull the plug out of the socket by the connection cable.
If the refrigerator is connected to the DC socket: Disconnect the
refrigerator and other electric consumers from the battery before
connecting the quick charging device.
If the refrigerator is connected to the DC socket: Disconnect the
refrigerator or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
Keep the drainage outlet clean at all times.
Do not open the refrigerant circuit under any circumstances.
Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

EN
Safety instructions CRX
16
Make sure that the refrigerator circuit is not damaged during
transportation. The refrigerant in the refrigerator circuit is highly
flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
Set up the device in a dry location where it is protected against
splashing water.
2.2 Operating the device safely
DDANGER!
Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION!
Before starting the device, ensure that the power supply line and the
plug are dry.
If you connect the device to a battery, make sure that no food comes
into contact with the battery acid.
ANOTICE!
Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
Ensure that the ventilation vents are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the appliance in water.
Protect the appliance and the cable against heat and moisture.
Make sure that foodstuffs do not touch the walls of the cooling area.
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

EN
CRX Scope of delivery
17
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
If you have any questions, please contact the dealer or your service partner directly.
5 Intended use
The refrigerator is designed for installation in caravans and motorhomes and on
boats. It is recommended the unit is installed into a fixed position. Once it is installed,
only the front of the appliance may be accessible
The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The
refrigerator is not intended for the proper storage of medicine.
!
Quantity Description
1 Refrigerator with shelves
1 Water drain outlet
1 Installation and operating manual
Description Explanation Ref. no.
Rectifier Suitable for CRX50DC, CRX65DC, CRX80DC,
CRX110DC.
Transforms an input voltage of 100 – 240 Vwto 12 Vg
or 24 Vg, so that the refrigerator can be connected to
an AC power supply.
9600000445
Mounting
Frames
Flush-mount and standard mounting frames are available
for all CRX models.
Various
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

EN
Technical description CRX
18
6 Technical description
The CoolMatic CRX series cooling appliances can cool products and keep them
cool. Products can be deep-frozen in the freezer compartment. If the refrigerator is
operated without a freezer compartment, frozen products can be stored in the short
term using the fast-cooling function.
All materials used in the refrigerator are compatible for use with foodstuffs.
The refrigerant circuit is maintenance-free.
The temperature is set using the control panel on the inside left of the refrigerator.
CRX50,CRX65,CRX80:
Four temperature ranges from +3 °C to +12 °C, and a fast-cooling function,
are available for selection.
CRX110, CRX140:
Four temperature ranges from +3 °C to +12 °C are available for selection.
CRX110ACDC, CRX140ACDC:
Four temperature ranges from +3 °C to +12 °C, and a winter mode, are available for
selection.
6.1 Control elements inside the refrigerator
The various types of refrigerators are shown in the following illustrations:
CRX50: fig. 1, page 3
CRX65: fig. 2, page 3
CRX80: fig. 3, page 4
CRX110: fig. 4, page 4
CRX140: fig. 5, page 5
No. Explanation
1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only)
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the refrigerator)
4Shelf
5 Fruit compartment
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

EN
CRX Installing and connecting the refrigerator
19
6.2 Control elements
7 Installing and connecting the
refrigerator
7.1 Safety instructions for installation on boats
Please note the following instructions for installation on boats:
D
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)
No. in
fig. 6, page 5,
fig. 7, page 6
Explanation
1 IR sensor for switching the interior light
2 LED Service display
3 LED Blue: Compressor is running
LED Orange: Compressor is off
4 On/off button
5 Inner lighting
6 Temperature selection button
7 LED: Fast cooling function on (CRX50, CRX65, CRX80)
LED: Winter mode on (CRX110ACDC, CRX140ACDC)
8 LEDs: Temperature levels
DANGER!
If the appliance is powered by the mains, ensure that the voltage supply
has a residual current circuit breaker.
No. Explanation
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU

EN
Installing and connecting the refrigerator CRX
20
A
7.2 Notes on installing the refrigerator
Observe the following when installing the refrigerator:
Install the refrigerator so that the warm air produced can easily flow away
(either upwards or to the sides, fig. 8, page 7).
Key for fig. 8, page 7
Observe the following installation dimensions:
Keep objects clear of openings in the housing or installation structure (such as
ventilation slots, etc.).
NOTICE!
The cooling device can withstand a short term inclination of 30°, for
example on boats. When setting up the refrigerator, note that it must
be fastened to take account of this. If you have any questions
regarding installation, consult your specialist dealer.
Install the refrigerator so that the warm air produced can easily flow
away (either upwards or to the sides, fig. 8, page 7).
The appliance is designed for ambient temperatures between
+16 °C (61 °F) and +43 °C (109 °F).
CRX110ACDC, CRX140ACDC: In winter mode the appliance can be
operated at ambient temperatures between +10 °C (50 °F) and
+16 °C (61 °F).
No. Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the refrigerator if there is not sufficient air to circulate
above or at the side.
Model Dimensions W x H x D (mm)
CRX50 390 x 544 x 550
CRX65 458 x 535 x 595
CRX80 485 x 650 x 578
CRX110 530 x 755 x 608
CRX140 550 x 825 x 670
&5;,2VERRN6HLWH0RQWDJ1RYHPEHU
