Dometic RML9430 User manual

Absorber refrigerator
Operating manual
EN
RML9430, RML9431,
RML9435

RML9430, RML9431, RML9435
3
1
2
3
4
7
65
1
BRUTTOINHALT
TOTAL CAP.
VOLUME BRUT
VERDAMPFERFACH
FREEZER COMP.
VOLUME COMPT BT
MADE IN GERMANY
AP
MLCPROD. NO.MOD. NO.
TYPE
C 40/110 CLIMATE CLASS SKU
SER. NO.
00094200762
Z 660
031654
008512
NUTZINHALT
USEFUL CAP.
VOLUME NET
2
4
5
13
2

RML9430, RML9431, RML9435
4
RML 9430
1 2 3 4
3
RML 9430
1
2
4
3
4
RML 9431 / 9435
1 2 3 4 5 6 7 8
5
RML 9430
ABC
6

RML9430, RML9431, RML9435
5
RML 9430 RML 9431 / 9435
11
7
1
7
6
5
2
4
3
8
2.
1.
1.
09

RML9430, RML9431, RML9435
6
1.
2.
1
b
2.
1.
a
d
1.
2.
c

RML9430, RML9431, RML9435
7
D
BA
C
1.
2.
1.
2.
e
1
2
f

RML9430, RML9431, RML9435
8
2.
3.
1.
4.
5.
6.
7.
1
g

RML9430, RML9431, RML9435
9
1.
2.
BA
2 – 3 mm
h
1.
2.
3.
RML 9430
i
1. 2.
3.
RML 9431
RML 9435
j
k

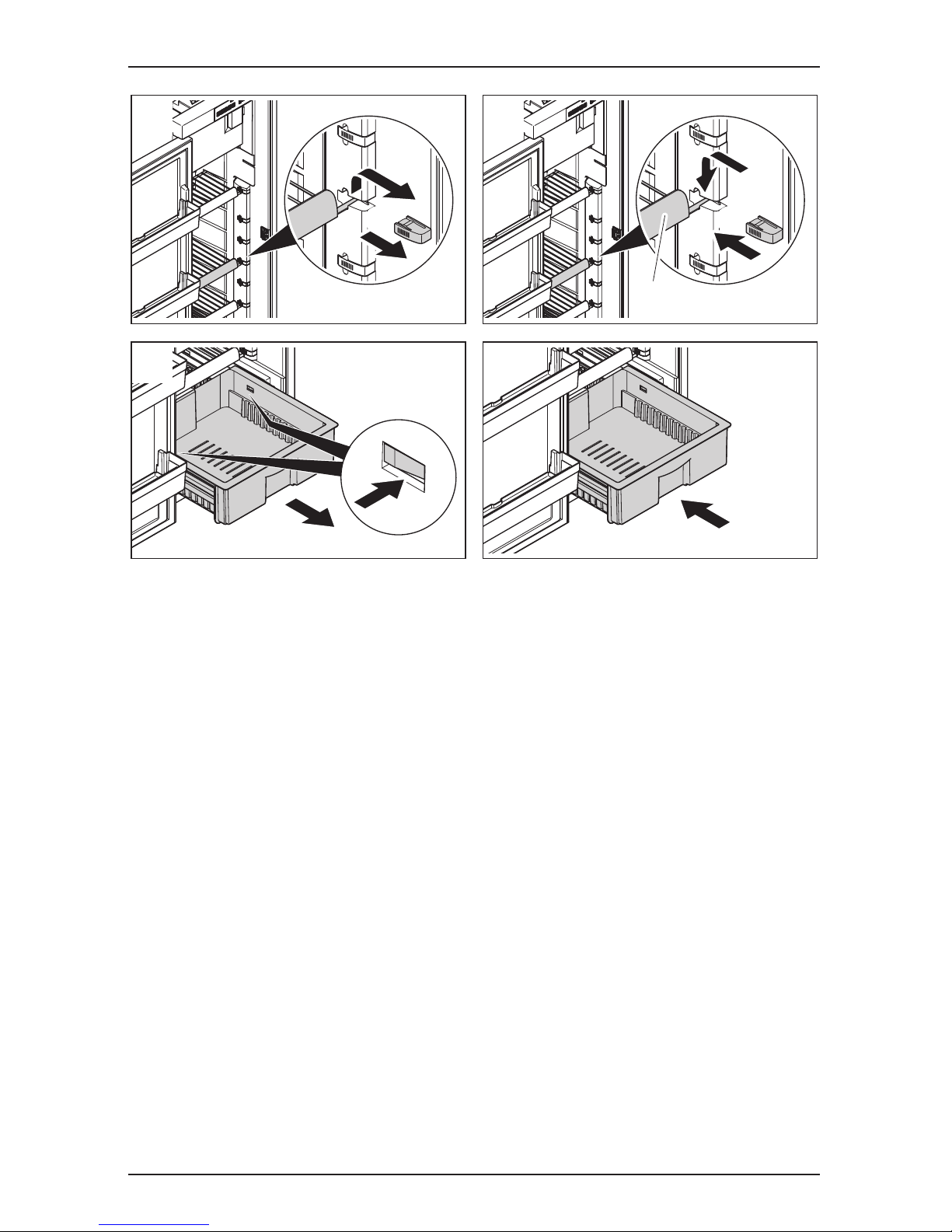

1.
2.
l
2x
n
2x
m

RML9430, RML9431, RML9435
10
po
q
1.
2.
4.
3.
A B
r

RML9430, RML9431, RML9435
11

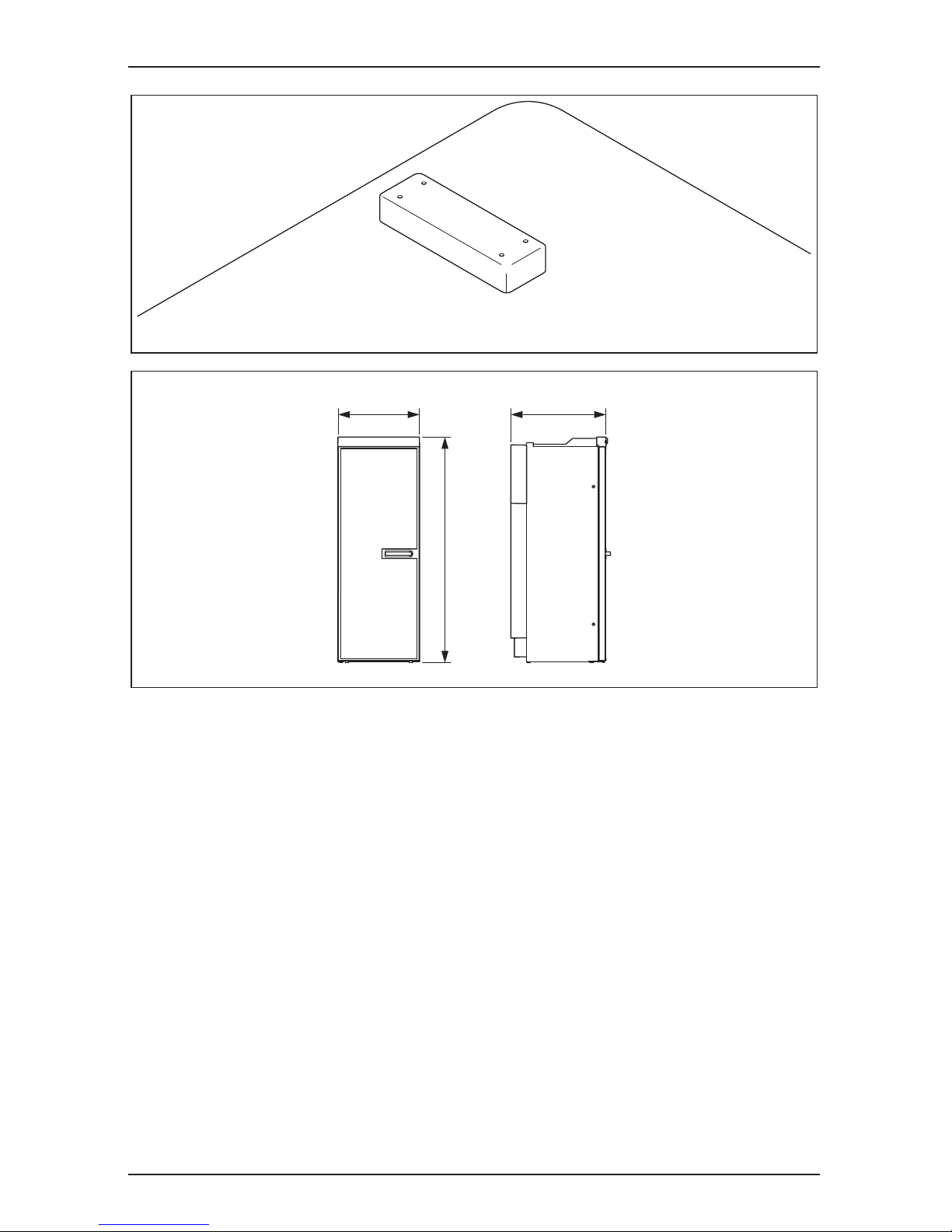

s
555 mm
486 mm
1293 mm
t

EN
RML9430, RML9431, RML9435
12
Please read this instruction manual carefully before first use, and store
it in a safe place. If you pass on the product to another person, hand
over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

EN
RML9430, RML9431, RML9435 Explanation of symbols
13
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
zDamage to the product resulting from mechanical influences and excess
voltage
zAlterations to the product without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
zNever open the absorber unit. It is under high pressure and can
cause injury if it is opened.
zDo not operate the refrigerator if it is visibly damaged.
zIf the power cable for this refrigerator is damaged, it must be
replaced by the manufacturer, customer service or a similarly
qualified person in order to prevent safety hazards.
zThis refrigerator may only be repaired by qualified personnel.
Inadequate repairs may cause serious hazards.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
Safety instructions RML9430, RML9431, RML9435
14
zThis refrigerator can be used by children aged 8 years or over,
as well as by persons with diminished physical, sensory or
mental capacities or a lack of experience and knowledge,
providing they are supervised or have been instructed how to
use the refrigerator safely and are aware of the resulting risks.
zCleaning and user maintenance must not be carried out by
unsupervised children.
zChildren must be supervised to ensure that they do not play with
the refrigerator.
zDo not store any explosive substances, such as spray cans with
propellants, in the refrigerator.
!CAUTION!
zDanger of crushing! Do not put your fingers into the hinge.
zFood may only be stored in its original packaging or in suitable
containers.
ANOTICE!
zDo not open the refrigerant circuit under any circumstances.
zThe refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
zCheck that the voltage specification on the type plate is the
same as that of the power supply.
zThe refrigerator is not suitable for storing substances which are
caustic or contain solvents.
zKeep the drainage outlet clean at all times.
zDo not use a high-pressure cleaner near the ventilation grille
when cleaning the vehicle.
zNever pull the plug out of the socket by the connection cable.
zThe refrigerator lighting may only be replaced by customer
service.
zThe refrigerator may not be exposed to rain.

EN
RML9430, RML9431, RML9435 Safety instructions
15
2.2 Safe operation
!CAUTION!
zClose the refrigerator door before beginning a journey.
zThe refrigerator unit at the back of the refrigerator gets very hot
during operation. Protect yourself from coming into contact with
hot parts when removing ventilation grilles.
zOnly store heavy objects such as bottles or cans in the refriger-
ator door, in the vegetable drawer or on the bottom shelf.
ANOTICE!
zDo not use electrical devices inside the refrigerator unless they
are recommended by the manufacturer for that purpose.
zDanger of overheating!
Always ensure sufficient ventilation so that the heat generated
during operation can dissipate. Make sure that the refrigerator
is sufficiently far away from walls and other objects so that the
air can circulate.
zEnsure that the ventilation openings are not covered.
zDo not fill the inner container with ice or fluid.
zProtect the refrigerator and the cable against heat and moisture.
zMake sure that foodstuffs do not touch the walls of the cooling
area.
2.3 Safety when operating with DC power
ANOTICE!
zOnly select DC operation (battery mode) if you are using a
battery monitor or if the alternator in your vehicle provides
sufficient voltage.
2.4 Safety when operating with AC power
ANOTICE!
zCheck that the voltage specification on the type plate is the
same as that of the power supply.
zOnly use the cable supplied to connect the refrigerator to the
AC mains.
zNever pull the plug out of the socket by the connection cable.

EN
Scope of delivery RML9430, RML9431, RML9435
16
2.5 Safety when operating with gas
!WARNING!
zOnly operate the refrigerator at the pressure shown on the
type plate. Use a DIN-DVGW-approved pressure regulator with
a fixed setting in accordance with DIN EN 12864.
zNever store liquid gas cylinders in unventilated areas or below
ground level (funnel shaped holes in the ground).
zKeep liquid gas cylinders away from direct sunlight. The temper-
ature may not exceed 50 °C.
zNever operate the refrigerator with gas
– at petrol stations
– while driving
– while transporting the caravan or mobile home with a trans-
port vehicle or tow truck
zNever use a naked flame to check the refrigerator for leaks.
zIf you smell gas:
– Close the gas supply cock and the valve on the cylinder.
– Open all windows and leave the room.
– Do not press an electric switch.
– Put out any naked flames.
– Have the gas system checked by a specialist.
ANOTICE!
zOnly use propane or butane gas (not natural gas).
3 Scope of delivery
zRefrigerator
zIce-cube tray
zOperating manual
zInstallation manual

EN
RML9430, RML9431, RML9435 Accessories
17
4 Accessories
Available as accessories (not included in the scope of delivery):
All the accessories are available from specialist dealers. If you have any
questions, please contact the dealer or your service partner directly.
5 Intended use
The refrigerator is designed for installation in caravans or motorhomes. It is
only suitable for cooling, freezing and storing foodstuffs. The refrigerator is
not intended for the proper storage of medicine.
!
The refrigerator is designed to be operated on a DC power supply and an
AC socket and can be independently powered by liquid gas (propane or
butane). The refrigerator may not be run on natural gas or city gas.
Description
Fan kit for boosting the cooling capacity at high ambient temperatures
Winter cover for the ventilation grille
Vario shelves (door shelves can be fitted in any position)
Door shelf locking
Bottle holder for door shelf locking
Shelf locking
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable
for storing the food you wish to cool.

EN
Technical description RML9430, RML9431, RML9435
18
6 Technical description
6.1 Description
The refrigerator is an absorption refrigerator. The refrigerator is designed to
operate with different types of power and can be run on an AC power supply,
a DC power supply or with butane/propane gas. For DC operation, the
vehicle battery or a solar system built on the vehicle can be used. For AC and
gas operation, the thermostatic control ensures that the refrigerator
temperature is kept constant and as little power as possible is consumed.
The refrigerator has a locking mechanism to protect it during transport.
The refrigerator has a defrost water drain. The drain opening is located on
the rear panel of the refrigerator.
The refrigerator is equipped with an automatic pilot light which automatically
interrupts the gas supply after approx. 30 seconds if the flame goes out.
The RML9435 refrigerator has an automatic operating mode which selects
the most economical power mode connected.
6.2 Components
No. in
fig. 1, page 3 Description
1 Control elements
2 Freezer compartment
3 Secondary evaporator for refrigerator
4Shelves
5 Vegetable compartment
6 Bottom section with bottle holder
7 Top section

EN
RML9430, RML9431, RML9435 Technical description
19
Inside the refrigerator, you can see the type plate of the refrigerator. There
you can see the model name, product number and serial number. You will
need this information whenever you contact the customer service or order
spare parts:
6.3 Control elements
The RML9430 refrigerator has the following control elements:
The power selector (fig. 31, page 4) has the following setting options:
No. in
fig. 2, page 3 Description
1 Model number
2 Product number
3 Serial number
4 Electrical connection value
5 Gas pressure
No. in
fig. 3, page 4 Description
1 Power selector
2 Temperature controller
3 Battery igniter (gas)
4 Pilot light
No. in
fig. 4, page 4 Description
1OUT
2 Operating with AC power supply
3 Operating with DC power supply
4 Gas operation

EN
Technical description RML9430, RML9431, RML9435
20
The RML9431 and RML9435 refrigerators have the following illuminated
control elements:
No. in
fig. 5, page 4 Description
1 ON/OFF button
2 Operating with AC power supply
3 Gas operation
4 Operating with DC power supply
5 Automatic mode (RML9435 only)
6 Setting the temperature
7 Temperature indication
8 Malfunction indicator
Reset button for a gas malfunction
