Dometic RUA Series User manual

RUA5208X, RUA6408X, RUA8408X
Absorption refrigerator
Installation Manual
EN
REFRIGERATION
RUA SERIES
RUA8408X-I-AU.book Seite 1 Montag, 3. Juni 2019 2:40 14

RUA8408X-I-AU.book Seite 2 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Explanation of symbols
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
I
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6 Installing the refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
7 Connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1 Explanation of symbols
!
!
A
I
NOTE
You can find details on the operation in the operation manual.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
RUA8408X-I-AU.book Seite 3 Montag, 3. Juni 2019 2:40 14

EN
Safety instructions RUA5208X, RUA6408X, RUA8408X
4
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and incorrect
connection voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
!WARNING!
•Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
•Ensure clean and residue-free handling if silicone sealant or similar is
used. There is a risk of fire if silicone filaments come into contact with
hot parts or naked flames.
•Do not operate the refrigerator if it is visibly damaged.
•If the AC power cable for this refrigerator is damaged, it must be
replaced by the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.
•Never use a naked flame to check the refrigerator for leaks.
•This refrigerator may only be repaired by qualified personnel. Inade-
quate repairs may cause serious hazards.
•Only use universal LPG gas.
•Only operate the refrigerator at the pressure shown on the type
plate. Only use pressure controllers with a fixed setting which comply
with national regulations.
•Dismantle all refrigerator doors for the disposal of the old refrigerator
and leave the shelves in the refrigerator to prevent accidental enclo-
sure and suffocation.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Before starting the device, ensure that the power supply line and the
plug are dry.
RUA8408X-I-AU.book Seite 4 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Scope of delivery
5
ANOTICE!
•Only hold the refrigerator at the body of the refrigerator during trans-
port. Never hold the refrigerator at the absorber unit, the cooling fins,
the gas pipes, the door or the control panel.
•Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit (smell of ammo-
nia):
– Switch off the refrigerator if applicable.
– Avoid naked flames and sparks.
– Air the room well.
•Do not install the refrigerator near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the refrigerator is sufficiently
far away from walls and other objects so that the air can circulate.
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Do not open the refrigerant circuit under any circumstances.
•Only use the AC connection cable supplied to connect the refrigera-
tor to the AC mains.
•Only use cables with a suitable size.
•Never pull the plug out of the socket by the connection cable.
•The refrigerator may not be exposed to rain.
3Scopeofdelivery
Quantity Description
1 Refrigerator
1Drainhose
1 Bottom trim piece
1 Sealing strip (fitted underneath during installation)
1 Installation and Operating Manual
RUA8408X-I-AU.book Seite 5 Montag, 3. Juni 2019 2:40 14

EN
Accessories RUA5208X, RUA6408X, RUA8408X
6
4Accessories
Available as accessories (not included in the scope of delivery):
All the accessories are available from specialist dealers. If you have any questions,
please contact the dealer or your service partner directly.
5 Intended use
The refrigerators are designed for installation in caravans or motorhomes. They are
only suitable for cooling and storing foodstuffs. The refrigerators are not intended for
the proper storage of medicine.
The refrigerators are designed to be operated on a DC power supply, AC mains
power supply or universal LPG gas.
6 Installing the refrigerator
6.1 Preparing the installation
When installing the refrigerator, note the following:
•Ensure that the floor is solid and level.
•Ensure that the refrigerator is level.
•The refrigerator must be installed so that it is easily accessible for service work,
easy to de-install and install and can be easily removed from the vehicle.
Description
LS300 ventilation grille
Dometic gas flue kit 3776
RUA5208X only: Door reversing kit
RUA8408X-I-AU.book Seite 6 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Installing the refrigerator
7
1
WH
B
D
A
C
RUA5208X
WH
B
D
A
C
RUA6408X
RUA8408X
2
RUA8408X-I-AU.book Seite 7 Montag, 3. Juni 2019 2:40 14

EN
Installing the refrigerator RUA5208X, RUA6408X, RUA8408X
8
•The refrigerator must be installed in a recess so that it stands secure when the
vehicle is in motion. Note the following dimensions (fig. 1and fig. 2):
Installation with two side vents
RUA5208X RUA6408X RUA8408X
Refrigerator Overall dimension in mm
Height (A) 1191 1447 1657
Width (B) 550 550 550
Depth (C)
(excludes control knob 5mm)
677 677 677
Recess Dimension in mm
Height (H) 1181 – 1186 1437 – 1442 1647 –1652
Width (W) 530 – 535 530 – 535 530 – 535
Depth (D) min. 621 min. 621 min. 621
RUA5208X
RUA6408X, RUA8408X
5
6
3b
3a
4
1
2
5
6
3b
3a
4
1
2
77
3
RUA8408X-I-AU.book Seite 8 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Installing the refrigerator
9
•The outer wall must be fitted with one air inlet ventilation grille (fig. 33a,
page 8) and one outlet ventilation grille (fig. 33b, page 8) so that the heat
generated can be easily released to the outside:
– Lower air inlet vent LS300 must be installed flush to the vehicle floor.
– Upper air outlet vent LS300 must be installed with the bottom of the vent no
lower than equal to the top of the refrigerator cabinet, the bottom of the top
vent can be higher than the cabinet.
•Fit an air deflection plate (fig. 36, page 8) above the condenser so that the heat
does not accumulate in the vehicle.
•Put insulation wool (fig. 31, page 8) on top and sides of the cabinet.
•If the lower ventilation grille of the air inlet vent cannot be installed flush to the
floor, an additional vent (fig. 37, page 8 and fig. b, page 16) must be pro-
vided in the floor for releasing any possible gas leakage.
•The distance between the refrigerator and the rear wall must be at least 10 mm.
Pos. in fig. 3,
page 8 Description
1 Insulation wool on top and sides of cabinet
2 Recommended maximum clearance 25 mm
3 LS300 ventilation grille
4 Minimum height is equal to the height of the cabinet
5 Dometic gas flue kit 3776
6 Air deflection plate
7 Floor vent, min. 40 mm (only required if lower air inlet vent is not flush to
the floor)
RUA8408X-I-AU.book Seite 9 Montag, 3. Juni 2019 2:40 14

EN
Installing the refrigerator RUA5208X, RUA6408X, RUA8408X
10
10 – 25
>25 >25
RUA5208X
4
10 – 25
>25 >25
RUA6408X, RUA8408X
5
RUA8408X-I-AU.book Seite 10 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Installing the refrigerator
11

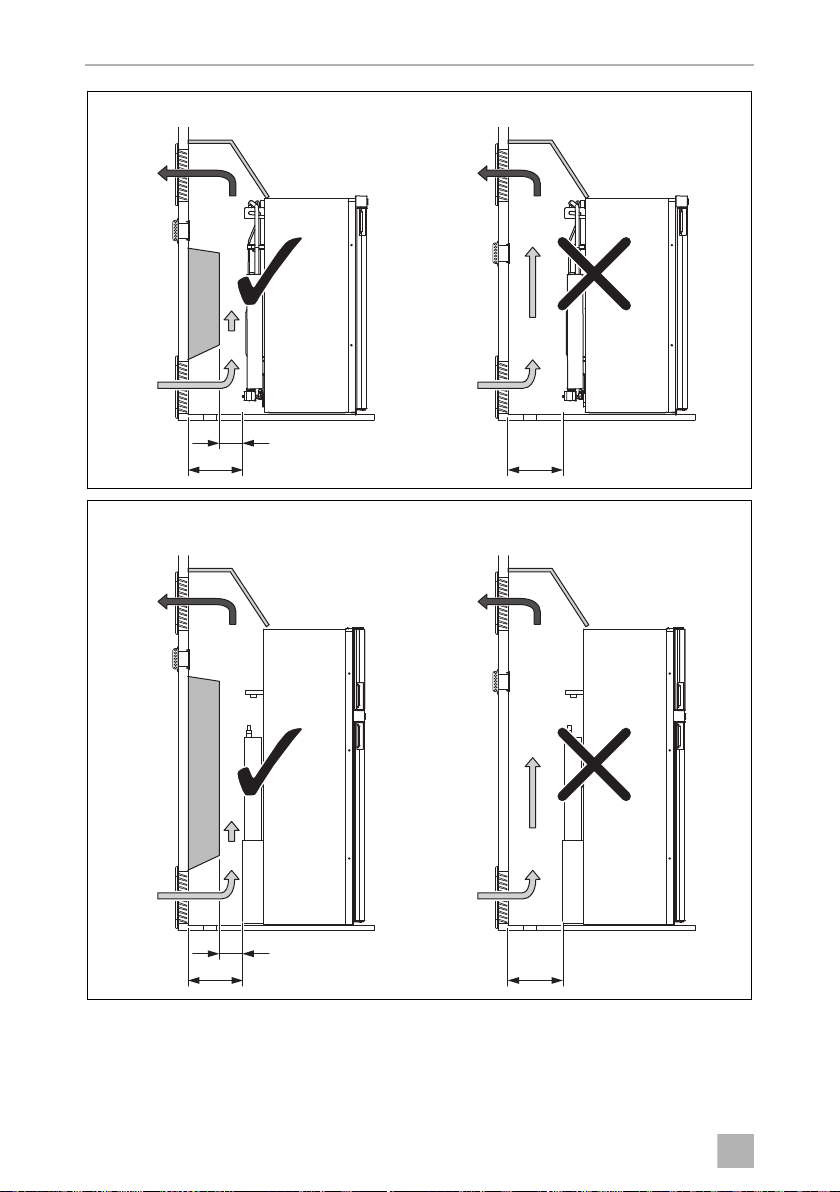

•The recommended maximum distance between the refrigerator and the rear wall
is 25 mm. A distance of more than 25 mm between the refrigerator and rear wall
leads to poor performance and increases the power consumption of the
refrigerator. Reduce the space behind the refrigerator to maximum 25 mm to
create adequate air inlet and outlet ventilation corridor (fig. 4and fig. 5). Use
a ventilation plate, for example, to do this.

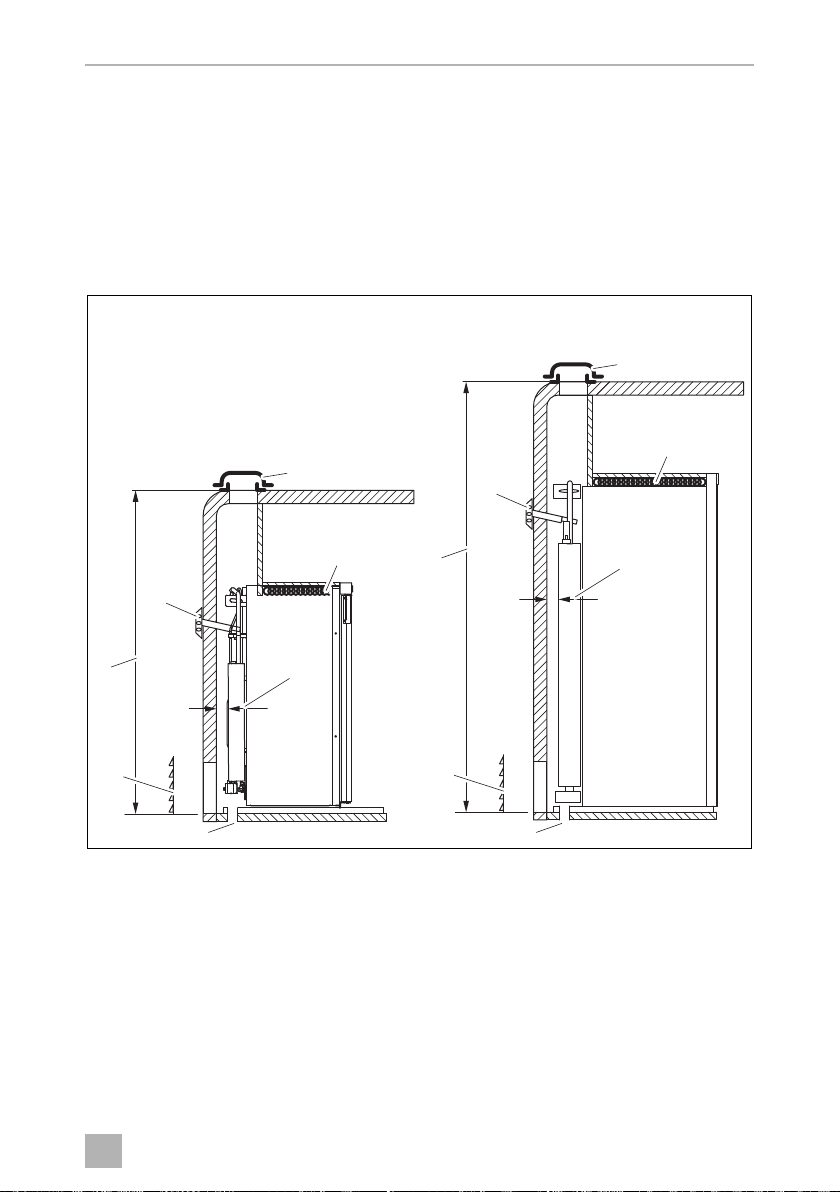

Installation with one lower side vent and one roof vent
RUA5208X
RUA6408X, RUA8408X
5
3
4
1
6
2
5
3
4
1
6
2
7 7
6
RUA8408X-I-AU.book Seite 11 Montag, 3. Juni 2019 2:40 14

EN
Installing the refrigerator RUA5208X, RUA6408X, RUA8408X
12
•If the minimum distance between the air inlet and outlet vents cannot be met, a
roof vent must be installed instead of the air outlet vent.
– The roof vent should be installed directly above the back of the refrigerator as
far as this is possible. Use an air duct if you need to install the roof vent
(fig. 66) offset, otherwise heat will accumulate there.

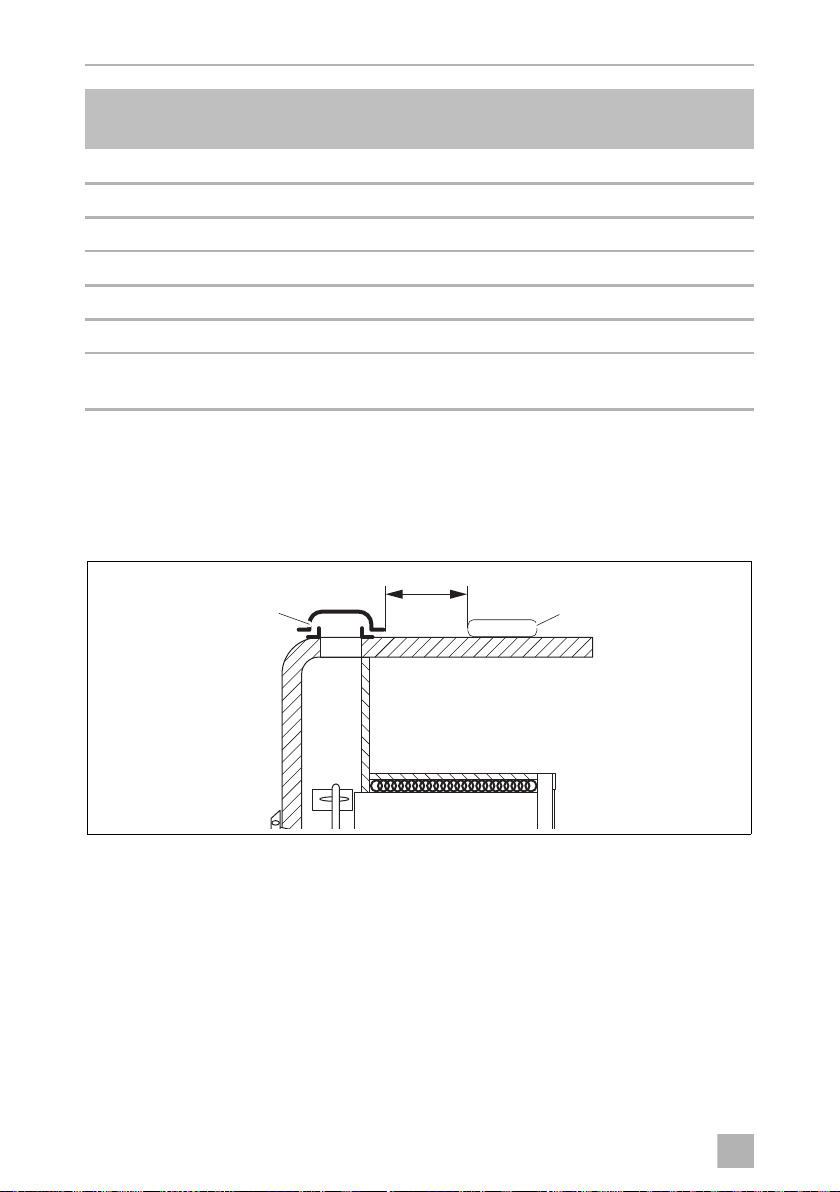

– If a roof air conditioner is installed, the distance between the roof vent
(fig. 71) and the air outlet of the roof air conditioner (fig. 72) must be at
least 300 mm.
•The refrigerator must not be installed at the side of the air inlet and outlet vents as
this leads to poor performance and increases the power consumption of the
refrigerator.
•The air inlet and outlet vents must not be covered by vehicle parts (such as an
open door or by installing accessories such as bicycle racks) while operating.
•A separate flue duct must be installed under the air outlet vent, see chapter
“Installing the flue duct” on page 19.
Pos. in fig. 6,
page 11 Description
1 Insulation wool on top and sides of cabinet
2 Recommended maximum clearance 25 mm
3 LS300 ventilation grille
4 Minimum height is equal to the height of the cabinet plus 150 mm
5 Dometic gas flue kit 3776
6 Roof vent
7 Floor vent, min. 40 mm (only required if lower air inlet vent is not flush to
the floor)
7
≥ 300
2
1
RUA8408X-I-AU.book Seite 12 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Installing the refrigerator
13
•Install the refrigerator so that it is protected from excessive heat, as this leads to
poor performance and increases the power consumption of the refrigerator.
•The electrical installation must comply with national and local regulations.
•The gas installation must comply with national and local regulations.
– AS/NZS 5601.2 – Gas installations – LP Gas installations in caravans and boats
– AS/NZS 5601.1 – Gas Installations – General Installations
•The refrigerator must be installed in a draught-proof location, see chapter “Install-
ing the refrigerator in a sealed location separate to the living space” on page 13.
6.2 Installing the refrigerator in a sealed location
separate to the living space
Gas-powered refrigerators in caravans or motorhomes must be installed in a sealed
location. This means that the combustion air can not be extracted from the interior
and exhaust fumes are prevented from directly entering the living space.
A suitable seal must be provided and fitted between the rear wall of the refrigerator
cabinet and the interior of the vehicle. The purpose is to provide a seal between the
interior of the vehicle and the cooling unit and ventilation area behind the
refrigerator.
!
The manufacturer has applied a sealing strip to the rear surface of the front frame.
WARNING! Fire hazard!
Do not use flammable materials such as silicone sealants, foam or similar
for the draught-proof installation.
1.
2.
8
RUA8408X-I-AU.book Seite 13 Montag, 3. Juni 2019 2:40 14

EN
Installing the refrigerator RUA5208X, RUA6408X, RUA8408X
14

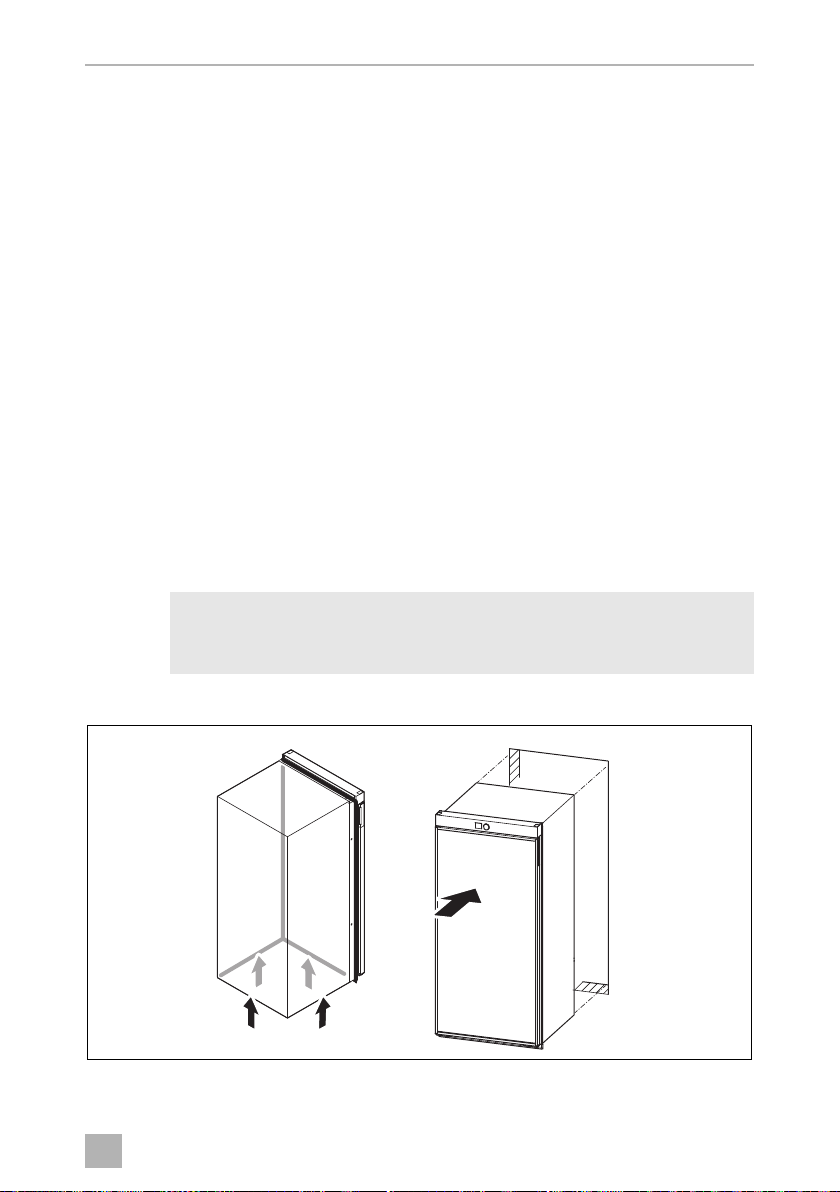

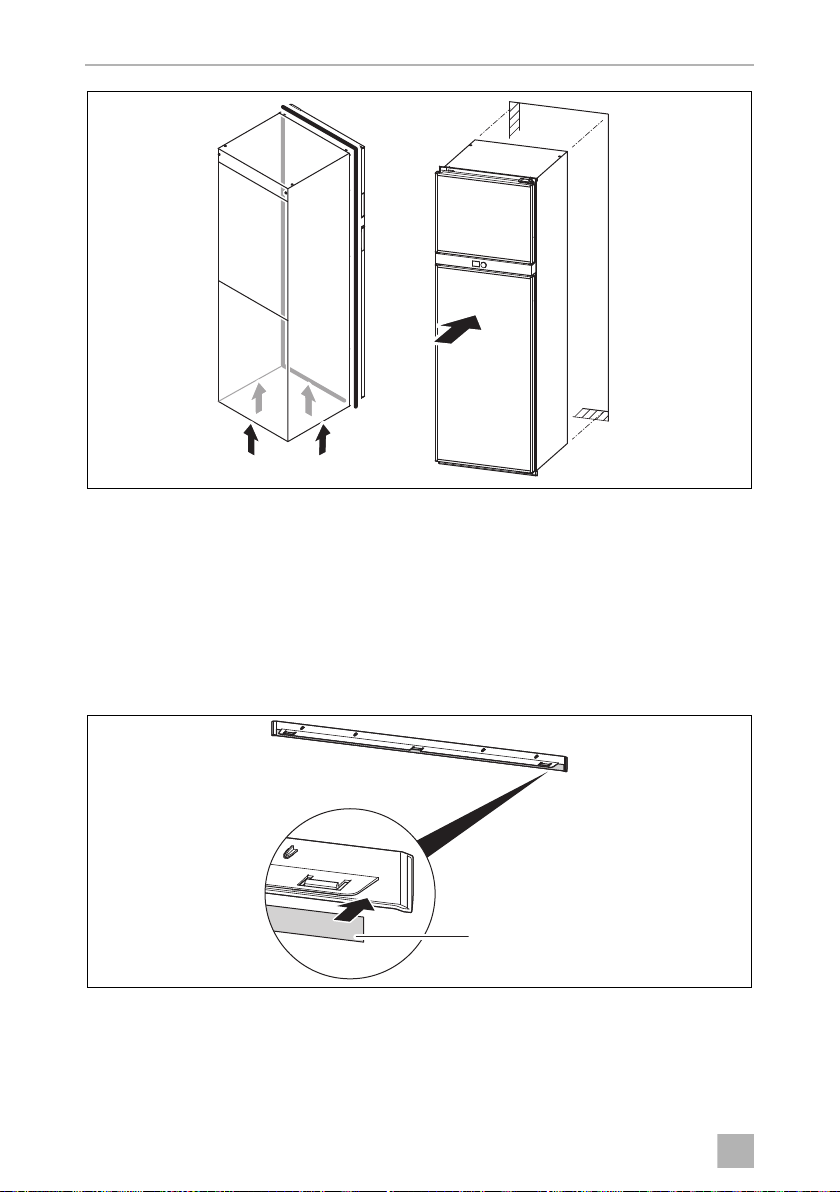

➤Apply the sealing strip to all four sides of the bottom surface of the refrigerator
(step 1. in fig. 8and fig. 9).
➤Push the refrigerator into position (step 2. in fig. 8and fig. 9). This then seals
the space behind the refrigerator to the interior of the vehicle.
OPTIONAL:
➤If the refrigerator stands on a platform, install the bottom trim piece in order to
seal the space between the refrigerator and the platform.
– A sealing strip (fig. 01) is applied to the lower surface of the bottom trim
piece.
1.
2.
9
0
1
RUA8408X-I-AU.book Seite 14 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Installing the refrigerator
15
– Push the bottom trim piece with the four plugs (fig. a1) into the holes on the
front frame of the refrigerator.
– Snap the three catches (fig. a2) into the holes under the bottom frame of
the refrigerator.
6.3 Making air inlet and outlet vents
I
➤Make a cut out in the wall to fit the LS300 for the upper and lower vent system,
see chapter “Preparing the installation” on page 6.
➤If the lower ventilation grille can not be installed flush to the floor, make an air inlet
vent in the floor (fig. b, page 16) behind the refrigerator near the gas burner.
NOTE
At high ambient temperatures, the refrigerator can only provide its max-
imum cooling capacity if the optimum ventilation has been provided.
a
1
2
RUA8408X-I-AU.book Seite 15 Montag, 3. Juni 2019 2:40 14

EN
Installing the refrigerator RUA5208X, RUA6408X, RUA8408X
16

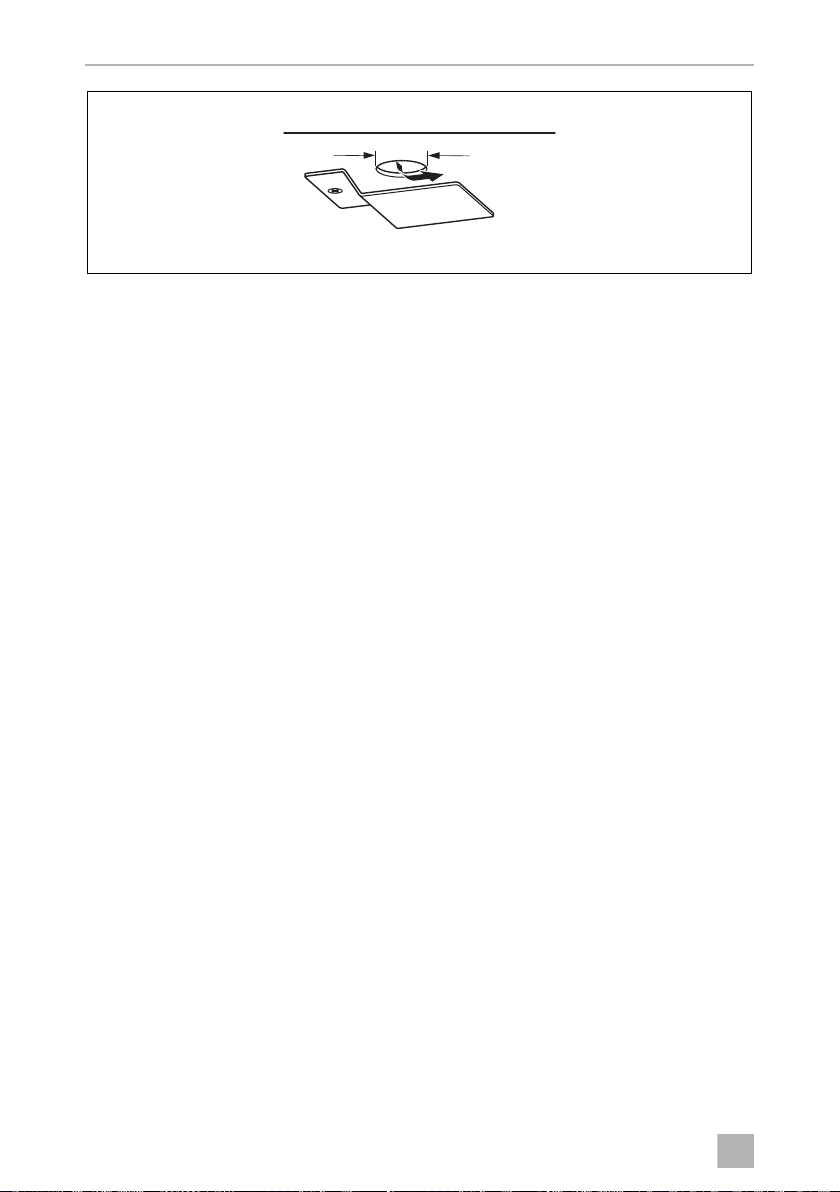

➤Shield the end of the opening with a deflector to prevent sludge or dirt from
getting inside while driving (fig. b).
If you have to use a roof vent instead of an upper wall vent:
➤Cut out a section in the roof. Refer to the roof vent instruction manual for the
required dimensions. When doing so, observe the information, see chapter “Pre-
paring the installation” on page 6.
6.4 Installing the drain water hose
➤To avoid damage on the drain water hose, position the hole for the drain water
hose in a way, that the hose does not touch the boiler casing.
➤Drill a hole through the floor at the rear of the refrigerator.
➤Install the drain water hose through the drilled hole. Ensure, that the drain water
hose is long enough in order to drain the water outside of the vehicle.
➤Ensure that the drain water hose is not kinked.
➤Seal the area around the drain water hose.
≥40 mm
b
RUA8408X-I-AU.book Seite 16 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Installing the refrigerator
17
6.5 Installing the ventilation grille
➤Ensure the installation frame is water resistant (fig. d).
➤Insert the installation frame and screw it down tightly (fig. e). Use all the fixing
holes for this.
No. in fig. cDescription
1Slider
2 Ventilation grille
3 Installation frame
3
2
1
c
d
e
RUA8408X-I-AU.book Seite 17 Montag, 3. Juni 2019 2:40 14

EN
Installing the refrigerator RUA5208X, RUA6408X, RUA8408X
18
➤Fit the ventilation grille (step 1. and step 2. in fig. f).
➤Insert the slider and lock the ventilation grille with it (step 3. in fig. f).
6.6 Install the roof vent
➤Ensure the installation frame is water resistant (fig. h).
No. in fig. gDescription
1 Hood
2 Installation frame
1.
2.
3.
f
1
2
g
h
RUA8408X-I-AU.book Seite 18 Montag, 3. Juni 2019 2:40 14

EN
RUA5208X, RUA6408X, RUA8408X Installing the refrigerator
19
➤Insert the installation frame and screw it down tightly (fig. i1). Use all the fixing
holes for this.
➤Insert the hood and screw it down tightly (fig. i2).
6.7 Installing the flue duct
i
10
1
9
7
8
6
6
4
5
3
2
j
RUA8408X-I-AU.book Seite 19 Montag, 3. Juni 2019 2:40 14

EN
Installing the refrigerator RUA5208X, RUA6408X, RUA8408X
20
I
Install the flue duct as follows:
➤Make a rectangular opening in the outer wall of the vehicle (fig. k).
– The opening must be as wide as the flue pipe (fig. j3, page 19).
– The opening must be high enough that the flue pipe fits through at a 45°
angle.
➤Insert the coil (fig. j7, page 19) in the flue pipe (fig. j8, page 19) of the
refrigerator.
➤Place the T-piece (fig. j4, page 19) on the adaptor (fig. j5, page 19) and the
flue pipe (fig. j8, page 19) of the refrigerator.
➤Direct the T-piece at an angle of 45° towards the rear wall.
➤Attach the T-piece, adaptor and flue pipe with a screw (fig. j6, page 19).
NOTE
•Install the Dometic gas flue kit 3776. Contact the customer service
(see back page).
•It is not recommended to install additional flue stacks, as this leads to
poor performance and increases the power consumption of the
refrigerator.
•Mount the flue duct under the upper ventilation grille (fig. j1).
1.
2.
k
min.
15 mm
1.
2.
3.
l
RUA8408X-I-AU.book Seite 20 Montag, 3. Juni 2019 2:40 14
