Dominator GDO-7v2 User manual

GDO-7v2
INSTALLATION INSTRUCTIONS | OWNERS COPY
Overhead Garage Door Opener

2GDO-7v2 Owner Installation Instructions
WARNING: It is vital for the safety of persons to follow all
instructions.Failuretocomplywiththeinstallationinstructions
and the safety warnings may result in serious personal injury
and/or property and remote control opener damage. Please
save these instructions for future reference.
Dominator® Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or
warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an Dominator®
Australia Pty Ltd Garage Door Opener. Dominator® Australia Pty Ltd hereby further expressly excludes all or any liability for
any injury, damage, cost, expense or claim whatsoever suffered by any person as a result whether directly or indirectly from
failure to install the Dominator® Australia Pty Ltd Garage Door Opener in accordance with these installation instructions.

Owner Installation Instructions Dominator®3
Important Safety Instructions 4
Features 6
Operating Controls 8

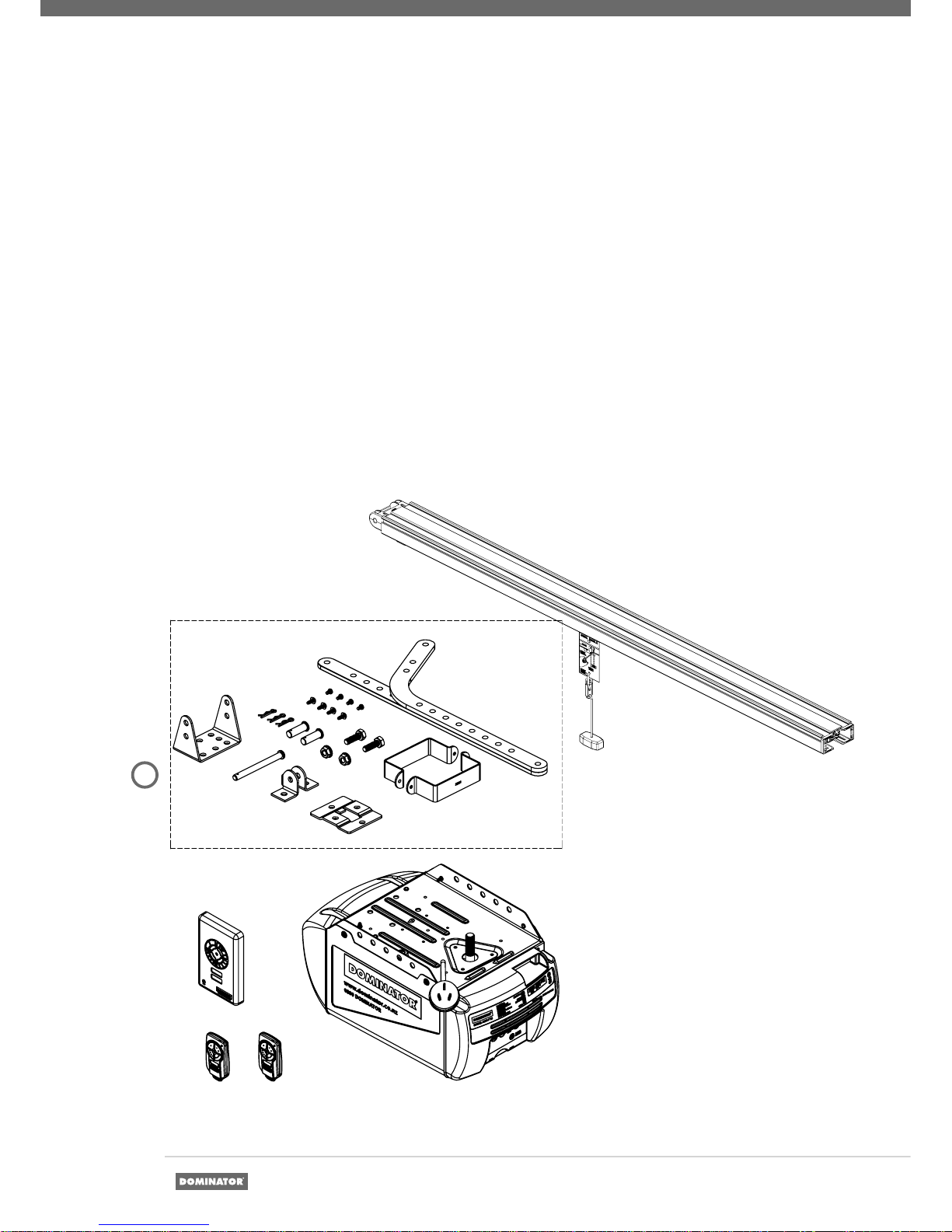

Package Contents 10
Installation 11

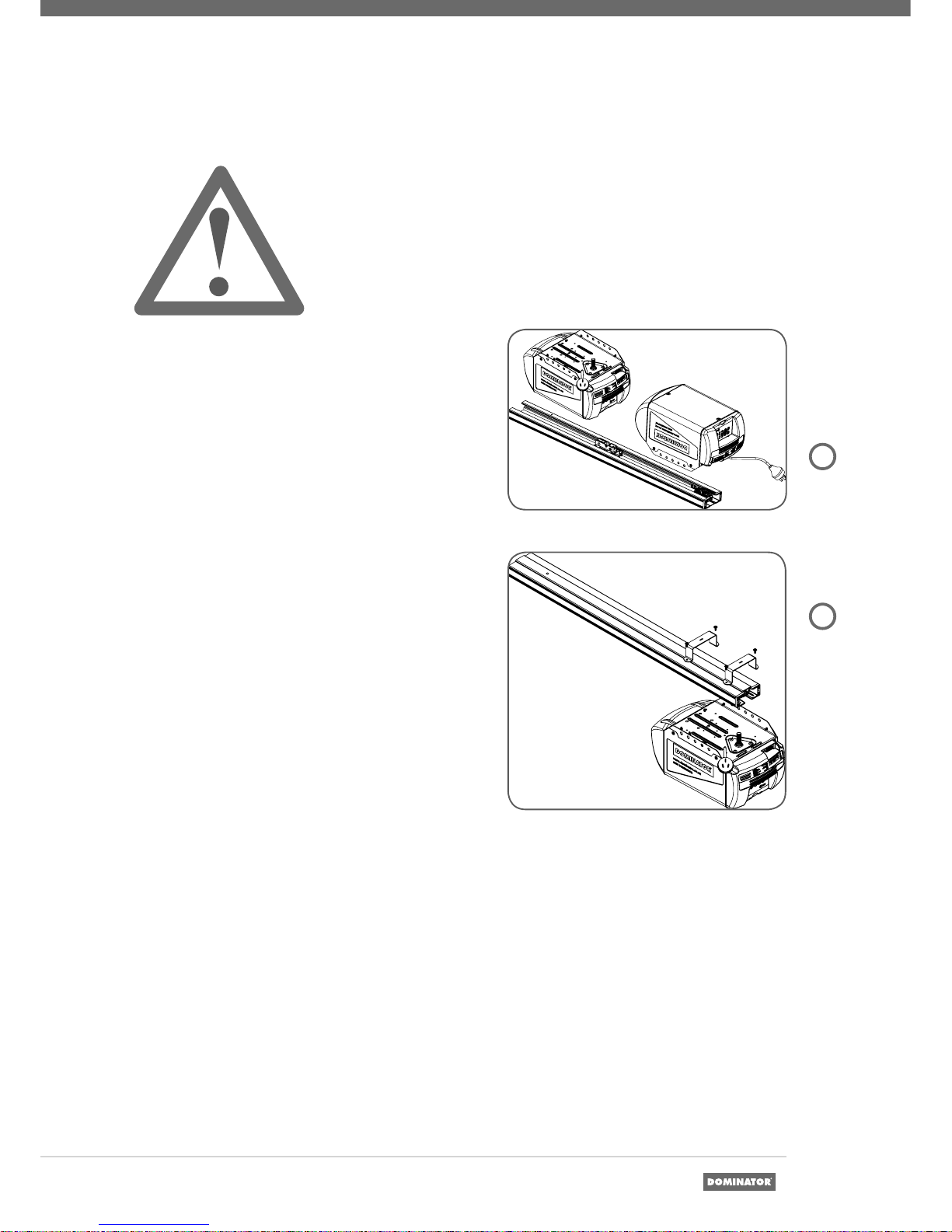

C-Rail Assembly 11
Determine the Door Type 12
Mounting on a Track Type Door 13
Mounting on a non-Track Type Door 14

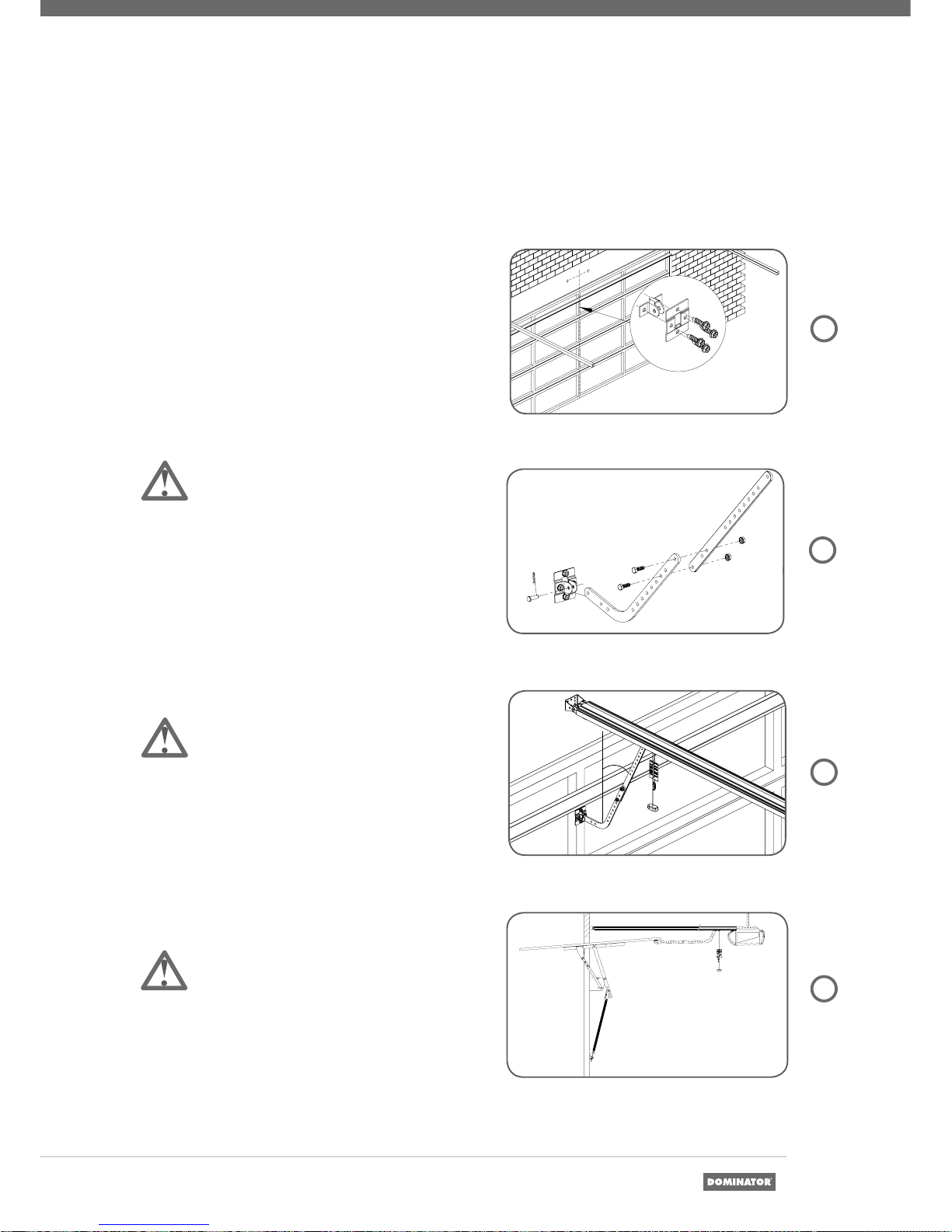

Mounting Door Bracket & Arms 15
Programming the Opener 16
Setting Limits 16
Setting Limits: via Transmitter 17
Safety Obstruction Force 18
Safety Obstruction Force Test 18
Adjustin Safety Obstruction Forces 19
Coding Transmitters 20
Door 20
Courtesy Light 20
Vacation Mode 20
Pet (Pedestrian)Mode 20
Remotely Coding Transmitters 21
Deleting Transmitter Codes 21
Accessories 22
Photo Electric Beam 22
Auto-Close 22
Final Set Up 23
Courtesy Light Time 23
Pet Mode Door Height 23
Wall Mounted Transmitter 23
Re-Initialising 23
Parameters 24
Door Status Indicators 24
Button Functions 25
System Specifications 26
Troubleshooting Guide 27
Maintenance 28
Spare Parts 29
Warranty 30
Dominator®GDO-7v2
Overhead Garage Door Opener

4GDO-7v2 Owner Installation Instructions
CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.
This accessory allows manual operation of the garage door from outside in case of power failure.
For ADDITIONAL SAFETY protection we STRONGLY recommend the fitting of a Photo Electric (P.E.)
Beam. In most countries P.E. Beams are mandatory on all garage doors fitted with automatic openers.
For a small additional outlay Dominator® recommends that Photo Electric Beams be installed with
the automatic opener ensuring additional safety and peace of mind.
DO NOT operate the opener unless the garage door is in full view and free from objects such
as cars and children/people. Make sure that the door has finished moving before entering or
leaving the garage.
DO NOT operate the opener when children/persons are near the door. Children must
be supervised at all times when the GDO-7v2 is in use. Serious personal injury and/or
property damage can result from failure to follow this warning.
DO NOT allow children to operate the GDO-7v2. Serious personal injury and/or
property damage can result from failure to follow this warning.
Regularly check to make sure that the safety obstruction force is working
correctly, and is tested and set as per page 18 of this manual. Failure to
follow these instructions could result in serious personal injury and/or
property damage. This test must be repeated at regular intervals and the
necessary adjustments made as required.
Doors requiring over 400N of force to move must have P.E. Beams
installed.
DO NOT disengage the door opener to manual operation with
children/persons or any other objects including motor vehicles
within the doorway.
The door opener is not intended for use by young children
or infirm persons without adequate supervision. Children
should be supervised to ensure that they do not play
with the remote transmitters or the opener.
Keep hands and loose clothing clear of the door
and door opener at all times.
WARNING: It is vital for the safety of persons to follow
all instructions. Failure to comply with the following
Safety Rules may result in serious personal injury and/or
property damage.
Important Safety Instructions

Owner Installation Instructions Dominator®5
The unit should be installed so that it is protected from the elements. It should not be exposed to water or rain.
It is not to be immersed in water or sprayed directly by a hose or other device.
The garage door must be well balanced. Sticking or binding doors must be repaired by a qualified garage
door installer prior to installation of the opener.
Frequently examine the installation, in particular cables, springs and mountings for signs of wear,
damage or imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation
or an incorrectly balanced door may cause injury. DO NOT attempt to repair the door yourself as
hardware is under extreme tension.
Remove or disengage all garage door locks and mechanisms prior to installation of the opener.
Connect the opener to a properly earthed general purpose 240V mains power outlet
installed by a qualified electrical contractor.
Disconnect the power cord from mains power before making any repairs or removing
covers. Only experienced service personnel should remove covers from the opener.
When using auto close mode, a photo electric beam must be fitted correctly and
tested for operation at regular intervals. Extreme caution is recommended when
using auto close mode. All safety rules must be followed.
In order for the GDO-7v2 to sense an object obstructing the door way, some
force must be exerted on the object. As a result the object, door and/or
person may suffer damage or injury.
If the power supply cord is damaged, it must be replaced by an
Dominator® service agent or suitably qualified person.
Make sure that the door is fully open before driving in or out of
the garage and fully closed before leaving the driveway.
Make sure that remote controls are kept out of reach of
children.
Install the wall switch or wall mounted transmitter in a
location where it is out of reach of children and the
garage door is visible. We recommend that the wall
control be fixed at a hight of at least 1.5 metres
and within sight of the door but away from
moving parts.
Important Safety Instructions

6GDO-7v2 Owner Installation Instructions
Operation
To open or close the door simply press a button on a TrioCode™ handheld transmitter, a wall mounted
transmitter, or optional wall switch for two seconds. During open and close cycles the door can be stopped
by pressing the button again. The next actuation will move the reverse the door’s direction.
TrioCode™ Code Hopping Multi-Frequency Technology
Every time a TrioCode™ transmitter is used a new security code is randomly generated from over 4.29 billion
possibilities. This greatly enhances the security of the system and makes “code grabbing” a thing of the past
These transmitters also overcome interference issues by simultaneously sending a signal over three slightly
different frequencies. Even if two of the three signals are jammed, the system will still work.
S-ALPS (Semi Automatic Limits Positioning System)
The S-ALPS system does away with manual adjustment of the door’s limits position using mechanical parts,
such as cams and microswitches. During installation the handheld transmitter can be programmed to set the
limits positions.
Anti-travel electronic brakes
The GDO-7v2 features an anti-travel electronic brake mechanism to ensure the opener stops the door at
exact location
ISS (intelligent safety obstruction system)
While the door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it
will automatically reverse. The amount of force the door should encounter before reversing is automatically
adjusted by the doors control system during the initial installation of the automatic door opener. The door will
also stop if restricted whilst opening. The Safety Obstruction Force should be checked at least once a month.
See installation manual for instructions.
Overload indicator
When the maximum opening and closing capacity of the GDO-7v2 is exceeded the red and green Limits
LEDs flash alternately to indicate that an overload has occurred.

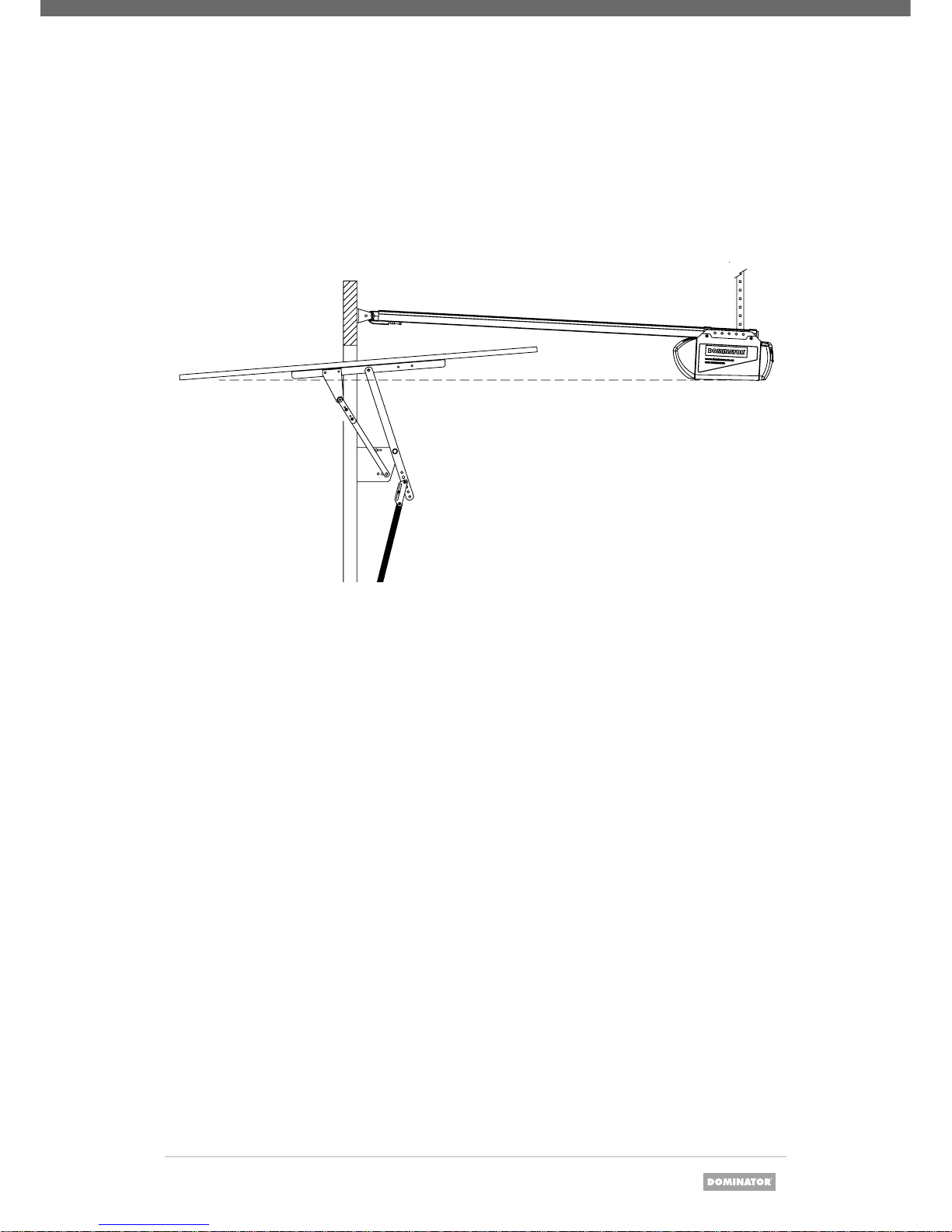

Features
Thank you for purchasing the Dominator®GDO-
7v2 Automatic Garage Door Opener.
Designed by our renowned engineers to suit
sectional overhead and one piece tilt up doors, the
GDO-7v2 will provide years of secure convenience
to your home.

Owner Installation Instructions Dominator®7
Auto courtesy light
The GDO-7v2 courtesy light comes on automatically whenever the door is activated. The light can also be
switched on and off without operating the door by coding a dedicated button on a TrioCode™ transmitter.
The light will stay on for approximately three minutes then switch off. This time is adjustable.
Vacation mode
A hand held transmitter can be programmed to lock and unlock all other transmitters that have been
programmed into the openers’ memory. The vacation mode can be used when the door is left idle for long
periods of time.
Pet/Pedestrian mode
The hand held transmitter can be programmed to open the door partially so that the family pet can enter and
exit the garage at any time. You may also wish to open the door to a height suitable only for pedestrian access.
The door opening position is also programmable.
Auto-close mode
The opener can be programmed to automatically close after an open cycle. The auto-close time is adjustable.
It is compulsory to install a P.E. Beam if this mode is selected, otherwise the door may cause personal injury
or damage to property.
Photo Electric (P.E.) Beam (optional)
The opener has an input for a P.E. Beam to be connected for extra safety protection and use of the auto-close
mode. We highly recommend that a Photo Electric Beam (P.E. Beam) be installed.
Manual operation
The opener is equipped with a unique manual disengaging device. If the power to the opener is disrupted for
any reason the door can be put into manual mode by pulling down on the string handle on an angle towards
the door. This will allow you to manually open or close the door. To re-engage the opener pull the string
handle away from the door.

8GDO-7v2 Owner Installation Instructions
Operating Controls
PROG (Input) is used to connect he Automatic Technology Handheld Programmer PG-3 for editing
control and receiver functions, accessing diagnostic, and activating special features and operating
modes.
01
Terminal Block (J6).
30V PWR is used to power devices such as:
Photo electric beam (PE-2) for safety and auto-close function (P.E. and P.E.(0V) terminals).
GND - Common ground for accessories.
OSC is used for the connection of a wired switch (momentary contact). This switch can then
be used to open, stop or close the door. Install the wall switch in a location where the switch is out of
reach of children and the garage door is visible.
AUX (open collector outout) - A transmitter button can be programmed to trigger an input.
SET button (yellow) is used during the installation phase together with the Open and Close buttons to set
the door limit positions. The Set button is also used to re-initialize the Opener.
OPERATE button (Yellow) is used during installation to test the open, stop and close cycles for the
opener. The opener has to be initialised by the Reset button to make the O/S/C button operable.
PLUS (+) button (green) is used during installation to help set the open limit position. Pressing and
holding this button will move the door in the open direction, releasing stops the door.
NOTE: The safety obstruction detection is inoperable when the PLUS (+) button is used to move door.
OPEN LIMIT LED (green) the LED is very helpful during installation. It illuminates and flashes when the
door is opening and remains steady on when the open limit position has been reached.

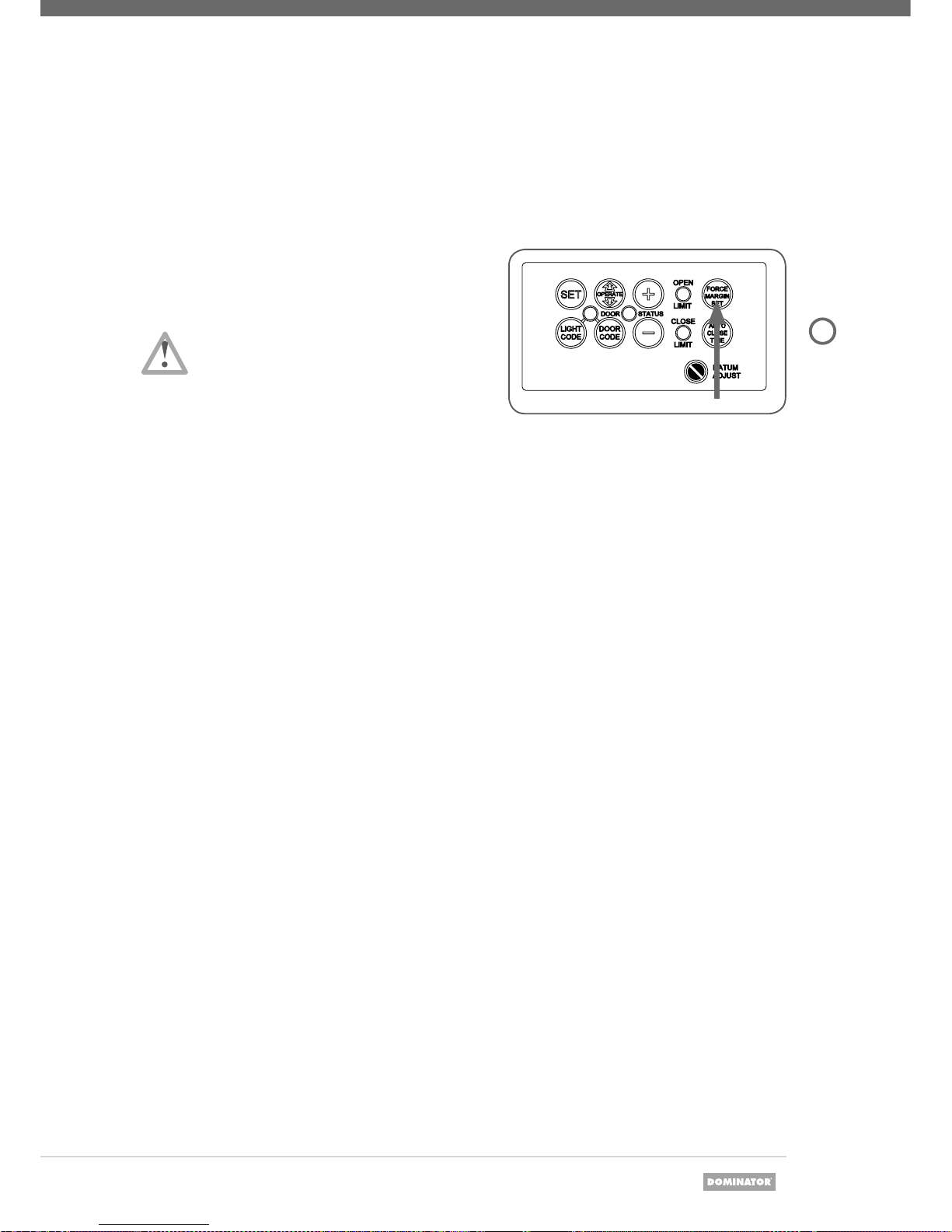

FORCE MARGIN SET Button The obstruction force margin is set automatically during installation. The
margin can be adjusted manually using the Force Margin Set button (White). Holding the Force Margin Set
button and pressing Plus (+) or Minus (-) buttons will increase or decrease the amount of force. The Force
Margin Set should only be used if environmental factors (wind, etc.) affect the door’s operation.
LIGHT CODE button (white) is used for storing or erasing the transmitter button (code) you wish to use
to switch the courtesy light on the opener on or off.
CODING LED (red) light flashes when a code is being stored or when a transmitter button is pressed.
DOOR CODE BUTTON (blue) is used for storing or erasing the transmitter button you wish to use to
command the door to open, stop or close.
DOOR STATUS LED (Yellow)
MINUS (-) button (red) is used during installation to help set the close limit position. Pressing and holding
this button will move the door in the close direction. Movement stops when the button is released.
NOTE: The safety obstruction detection is inoperable when the MINUS (-) button is used to move door..
CLOSE LIMIT LED (red) the LED is very helpful during installation. It illuminates and flashes when the
door is closing and remains steady on when the close limit position has been reached.
DATUM ADJUST SCREW is used during limits set up to indicate the mid point of the door’s travel.
AUTO CLOSE TIME button (White) is used to adjust the auto close time. While holding in the AUTO
CLOSE TIME button and then pressing the open button the time is increased. Each press will increase the
time by 5 seconds. Pressing the close button will decrease the time.
•
•
•
02
03
04
05
06
07
08
09
10
11
12
14
13
15
•

Owner Installation Instructions Dominator®9
01 02
03 04 05 06 07
08
09
10
11
12 13
14
15
01
fig
J4
0800 366462

10 GDO-7v2 Owner Installation Instructions
Package Contents
GDO-7V2 drive unit 1
Keyring transmitters 2
Wall mounted transmitters (not available all models) 1
Shuttle assembly 1
Door attachment arms 2
Hardware pack 1
Installation Manual 1
Packaged Seperately
C-Rail Kit (packed seperately) 1
02
fig

Owner Installation Instructions Dominator®11
C-Rail Assembly
IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
Warning: Incorrect installation can lead to severe injury.
Follow ALL installation instructions.
03
fig
Step 1 - Connect the Powerhead to the C-
Rail
Locate and insert the powerhead’s shaft into the C-Rail’s
sprocket as shown in (Fig. 03).
Step 2 - Secure the C-Rail
Fix the two track brackets as shown in (Fig. 04). Fix with
the four screws supplied in accessory pack.
04
fig

12 GDO-7v2 Owner Installation Instructions
Determine the Door Type
Step 3 - Determine Door Type
Determine which type of garage door you have as
illustrated below. (Fig. 05 to 07).
For a sectional (panel) door on tracks (Fig. 05)
proceed with the installation from Step 5.
For a one-piece door on tracks (Fig. 06)
proceed with the installation from Step 5.
For a one-piece door without tracks (on springs) (Fig. 07)
proceed with the installation from Step 9.
05
fig
06
fig
07
fig
Door
Sectional door with track
Door
Track
One piece door with
track
One piece door
without track

Owner Installation Instructions Dominator®13
Mounting on a Track Type Door
08
fig
10
fig
11
fig
09
fig
Step 4 - Determine Bracket Position
Open the door and find the highest point of travel of
the top door panel.
Using a level, transfer this height to the wall above
the door (Fig. 08) and mark a line 60mm above it.
Determine the centre point on the wall above and on
top of the door. Draw two lines extending 21.5mm
from each side of the centre point. (Fig. 09)
Step 5 - Mounting the Wall Bracket
Centre the bracket over the intersection of these two
lines. Mark centres for at least two holes (Fig. 09).
Ensure this is into a solid mounting point
Drill holes into the wall with an appropriate bit.
Secure to the wall using:
IF CONCRETE OR BRICK - 8mm or 5/16 loxins or
dynabolts.
IF TIMBER - wood screw #20 or equivalent
(minimum 50mm long).
WARNING: Make sure concrete, brick wall or
timber lintels are solid and sound so as to form a
secure mounting platform.
Step 6 - Attach the Rail to the Wall Bracket
Attach the C-Rail assembly to the wall bracket
with the 90mm long clevis pin and secure with the
supplied snap pin (Fig. 10)
Leave the powerhead in its packing box for protection
during installation.
Step 7 - Secure the Powerhead to the Ceiling
Raise the powerhead from the packing box and
support it in the horizontal position with a step
ladder.
Open the garage door. Rest the opener on the open
door and use a scrap piece of wood to bring it to
horizontal level.
Line up the track perpendicular to the wall.
Secure the perforated angle (not supplied) to
the ceiling above where powerhead’s mounting
holes will be once fully installed. A representative
mounting is shown (Fig. 11)
Connect the powerhead to the ceiling mounted
perforated angle with M8x20mm screws and nuts.
Strips should not extend more than 18mm below
centre of powerhead mounting holes.
Go to Step 13 on page 14.
WARNING: The opener must be securely
fastened to structural supports otherwise opener
failure may ensue, causing serious personal injury
and/or property damage.
a.
b.
c.
a.
•
b.
c.
a.
b.
a.
b.
c.
d.
e.
Track
Door
Track
Level
Level
Door
Drilled holes

14 GDO-7v2 Owner Installation Instructions
WARNING: Make sure concrete, brick wall or
timber lintels are solid and sound so as to form a
secure mounting platform.
Step 8 - Determine the Door’s Centre
Find the centre of the door and mark this location
both above the door and on top of the door.
Draw two lines 21.5mm either side of this (Fig. 12).
Step 9 - Prepositioning the Opener
Raise the door to open position.
Rest the opener on the top edge of the door with
end of the rail against the wall (Fig. 13).
Support the powerhead level with the lowest point
of the open door (Fig. 13).
NOTE: Do not slide rail along the face of the door.
Step 10 - Mounting the C-Rail
Close the door slowly. The rail will be elevated by
the top edge of the door as it moves.
Stop the door when it is at its highest point of travel.
Allow 25mm additional height for clearance between
the door and the track (Fig. 14).
Support the Rail in this position and close the door
The height determined in Step 11(b) will be the
height at which to mount the wall bracket.
Centre the bracket along the line detemined in Step
9
Using the bracket as a template, mark a minimum of
two holes and drill with appropriate size bit. For a
more secure fitting, the wall bracket can be anchored
using more than two holes.
Secure the bracket to the wall using:
IF CONCRETE OR BRICK - 8mm or 5/16 loxins or
dynabolts.
IF TIMBER - wood screw #20 or equivalent
(minimum 50mm long).
Attach the bracket to the C-Rail with the 90mm long
clevis pin (Fig. 15) and a snap pin.
Step 11 - Secure the Powerhead to the Ceiling
Secure the perforated angle (not supplied) to the
ceiling above where powerhead’s mounting holes
will be. See (Fig.11) for a representative mounting.
Connect the powerhead to the ceiling mounted
perforated angle with M8x20mm screws and nuts.
Strips should not extend more than 18mm below
centre of powerhead mounting holes (Fig. 11).
WARNING: The opener must be securely
fastened to structural supports, otherwise opener
failure may ensue causing serious personal injury
and/or property damage.
a.
b.
a.
b.
c.
a.
b.
c.
d.
e.
f.
g.
h.
a.
b.
12
fig
14
fig
15
fig
Centre of Door
Step ladder
Mounting on a non-Track Type Door
13
fig

Owner Installation Instructions Dominator®15
A
Step 12 - Mounting Door Bracket
The door bracket comes in two parts. The bottom plate
with two mounting holes is used on its own for one piece
doors. For sectional doors, the top plate is placed over
the bottom plate and is fixed with four (4) screws (Fig.
16).
Mount the door bracket, or bracket assembly,
on the door’s centre line one-third down the top
panel (Fig. 16) using M6 or equivalent screws (not
supplied),
STEEL DOORS ONLY: Bracket can be welded in
place.
NOTE: If in doubt about the door’s strength,
reinforcement may be added to the door’s frame
where necessary. Door damage may occur if the
bracket is installed on a panel with insufficient
strength. The opener’s warranty does not cover
damage caused to the door and/or door panels.
Step 13 - Attaching the Arms
FOR SECTIONAL AND ONE PIECE DOORS WITH
TRACK:
Assemble the bent and straight arms with bolts
and nuts supplied in the accessory pack (Fig. 17).
Always use both bent and straight arms.
Connect the assembled arm to the bracket and the
disengaged trolley with clevis and snap pins. The
angle “A” must be more less than 10° (Fig. 18).
WARNING: Connecting the bent arm other way
around may damage the door. The straight arm
should not protrude beyond heal of bent arm
FOR ONE PIECE DOORS WITHOUT TRACK
Assemble the bent and straight arms as shown
in (Fig. 19) with bolts and nuts supplied in the
accessory pack. Always use both the bent and
straight arms.
Connect the assembled arm to the bracket and the
disengaged trolley with clevis and snap pins.
If installing on a door with a bad wave action,
lengthening the arm will assist in reducing this
effect.
IMPORTANT NOTE: Adjust the length of the
cord so that its toggle is no more than 1.8m from
the ground.
a.
b.
a.
b.
a.
b.
c.
Mounting Door Bracket & Arms
16
fig
18
fig
19
fig
17
fig

16 GDO-7v2 Owner Installation Instructions
Setting Limits
20
fig
21
fig
NOTE: If P.E. Beams are to be used they must be
installed before setting the travel limits.
Step 14 - Remove Controls Cover
Remove the controls cover to access the control panel
Replace it when setup is completed.
Step 15.1 - Connect Power to the Powerhead
Plug the power cord into a mains point and switch power
on. The red CLOSE LIMIT LED will be flashing.
WARNING: The safety obstruction detection
system is inoperable while MINUS (-) and PLUS (+)
drive buttons are being used and travel limits are
not set.
Step 15.2 - Set the Datum Position
Press and hold the MINUS (-) or PLUS (+) buttons to
move the door to the halfway position. Ensure that
the door, shuttle and chain index are engaged.
Using a small screwdriver, turn the DATUM ADJUST
screw until the STATUS LED comes on (Fig 20).
If the STATUS LED is already illuminated when
the door is halfway up, turn the DATUM ADJUST
screw until the light goes off, then turn back one
notch to illuminate again.
Step 15.3 - Set the Limits Positions
Press and hold the MINUS (-) button until the door
reaches the desired close limit position. Single
presses will the inch the door closed (Fig. 21).
Press the LIMIT SET button to store the close position
into memory (Fig. 21)
Press and hold the PLUS (+) button until the door
reaches the desired open limit position. Single
presses will the inch the door open (Fig. 21).
IMPORTANT WARNING: The door will
automatically close, open and close again once
Step 15.4(c) is performed. Ensure that no persons
or objects are in the door’s path.
Press the LIMIT SET button to store the close position
into memory (Fig. 27).
The door will now automatically close and open to
calculate the safety obstruction settings. After this, the
opener can be operated with the OPERATE button.
Step 15.4 - Resetting the Door Limit Positions
Limit positions can be deleted by the following steps:
Press and hold the MINUS (-) button for six (6)
seconds until you hear three beeps and the CLOSE
LIMIT LED starts to flash (Fig. 21).
Release the CLOSE button.
Repeat Steps 15.3 to 15.4 to set new travel limit
positions..
a.
b.
»
a.
b.
c.
d.
e.
a.
b.
c.

Owner Installation Instructions Dominator®17
Setting Limits: via Transmitter
22
fig
The GDO-7v2 has the unique ability to set travel limits
using the transmitter, allowing the installer to move
around the garage and door to better assess the desired
close and open limit positions.
Step 16.1 - Power Up and Set the Datum
Follow Steps 15.1 to 15.3 as outlined overleaf.
Observe all warnings!
Step 16.2 - Code a Transmitter for Limit Setting
Press and hold the DOOR CODE button (Fig. 22).
Press Button 1 on the transmitter for two seconds
(Fig. 23). Release and pause for two seconds.
Press the same button again on the transmitter
for two seconds.
Release the DOOR CODE button.
Step 16.3 - Setting Limits via Transmitter
Press and hold Button 4 on the transmitter to close
the door. When the door is approx. 2cm from the
ground, press and hold Button 3 for two seconds
and release (Fig. 23).
Each press of Button 4 will allow you to “inch” the
door closed. Keep doing this until the door reaches
the desired close limit position.
If the door is closed too far, press Button 1
to “inch” the door towards open
When happy with the close limit position, press
Button 2 to store this in memory.
Press Button 1 to open the door. When approx.
2cm from the desired open position, press and hold
Button 3 for two seconds then release.
Each press of Button 1 will allow you to “inch” the
door open. Keep doing this until the door reaches
the desired open limit position.
If the door is opened too far, press Button
4 to “inch” the door towards closed
IMPORTANT WARNING: The door will
automatically close, open and close again once
Step 16.3(f) is performed. Ensure that no persons
or objects are in the door’s path.
When happy with the open limit position, press
Button 2 on the transmitter to store into memory.
The door will now automatically close and open to
calculate the safety obstruction settings. After this, the
opener can be operated with the OPERATE button.
Step 16.4 - Resetting the Door Limit Positions
Limit positions can be deleted by the following steps:
Follow Steps 15.5 (a) and (b), as outlined overleaf.
Repeat Steps 16.1 and 16.3 to set new travel limit
positions.
There is no need to re-code the transmitter
(Step 16.2) upon restting travel limits. The
transmitter will still be stored in memory.
a.
a.
b.
c.
a.
b.
»
c.
d.
e.
»
f.
g.
a.
b.
»
Button 1
(Inch Open)
Button 4
(Inch Close)
Button 2
(Set)
Button 3 (
Switch between
fast and slow
inching)
23
fig

18 GDO-7v2 Owner Installation Instructions
Safety Obstruction Force Test
Wood (40mm high)
24
fig
25
fig
WARNING! Take care when testing or adjusting
the Safety Obstruction Force. Excessive force
may cause SERIOUS PERSONAL INJURY and/or
PROPERTY DAMAGE.
Step 17.1 - Testing Close Cycle
Press the OPERATE button to open the door (Fig. 24).
Place a piece of timber approximately 40mm high
on the floor directly under the door (Fig. 25).
Press the OPERATE button to close door. The door
should strike the object and start to re-open.
Step 17.2 - Testing Open Cycle
Press the OPERATE button to close the door (Fig. 24).
Press again to open the door. When the door reaches
the half open point, grab the bottom rail of the door
firmly and the door should stop.
If the door does not reverse readily when closing, or
stop when opening, the force may be excessive and
need adjusting, refer below.
DANGER! If the door fails these tests, put the
opener into manual mode, only operate the door
by hand and call for service.
a.
b.
c.
a.
b.
c.

Owner Installation Instructions Dominator®19
26
fig
Adjusting Safety Obstruction Forces
Adjusting Safety Obstruction Force
The Safety Obstruction Force is calculated automatically
during setup. Adjusting this is normally only necessitated
by environmental conditions such as windy or dusty areas,
and areas with extreme temperature changes.
WARNING: Doors that exert more than 400N
(40kgf) closing force must have a Photo Electric
Beam (P.E.Beam, Model: PE-2) fitted for safety.
Step 18.1 - To Increase Force Pressure
Hold down FORCE MARGIN SET button (Fig. 26)
While holding the FORCE MARGIN SET button,
press the PLUS (+) button. Each press increases the
force margin.
The OPEN LIMIT LED will flash each time the PLUS
(+) button is pressed to indicate a force increase
If the OPEN LIMIT LED flashes continuously
when pressing the PLUS (+) button this
indicates that the maximum setting has
been reached.
Test the force again as per Steps 17.1 and 17.2
Step 18.2 - To Decrease Force Pressure
Hold down FORCE MARGIN SET button (Fig. 26)
While holding the FORCE MARGIN SET button,
press the MINUS (-) button. Each press decreases
the force margin.
The CLOSE LIMIT LED will flash each time the MINUS
(-) button is pressed to indicate a force increase
If the OPEN LIMIT LED flashes continuously
when pressing the PLUS (+) button this
indicates that the maximum setting has
been reached.
Test the force again as per Steps 17.1 and 17.2
Step 18.3 - To Recall Factory Set Force
While holding down the FORCE MARGIN SET
button, press the SET button for two (2) seconds.
Release both buttons. The default setting should
now be recalled.
a.
b.
c.
•
d.
a.
b.
c.
•
a.
a.
b.

20 GDO-7v2 Owner Installation Instructions
Coding Transmitters
Step 19.1 - Code a Transmitter Button for
Door Operation
Press and hold the DOOR CODE button (Fig. 27).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the DOOR CODE BUTTON.
Press the transmitter button to test.
Step 19.2 - Coding a Transmitter Button to
the Courtesy Light
The transmitter can be programmed to operate the
courtesy light on the opener independently of the door
moving.
Press and hold LIGHT CODE button (Fig. 28).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the LIGHT CODE button.
Press the transmitter button to test.
Step 19.3 - Code a Transmitter Button for Pet
(Pedestrian) Mode
Step 19.4 - Code a Transmitter Button to
Enable Vacation mode
The opener can be programmed into a “Vacation Mode”
where the opener will not respond to any transmitter
except one pre-programmed unit.
a.
b.
c.
d.
a.
b.
c.
d.
27
fig
28
fig
29
fig
Briefly press the DOOR CODE button three times,
then press it again and hold (will beep four times
on fourth press (Fig. 29)).
Press one of the four buttons on the transmitter for
two (2) seconds, pause for two (2) seconds, then
press the same button again for two (2) seconds.
Release the DOOR CODE button.
Press the transmitter button to test. To change the
default pet (pedestrian) door opening position,
refer Step 2.
a.
b.
c.
d.
Briefly press the DOOR CODE button once, then
press it again and hold (will beep two times on
second press (Fig. 29)).
Press one of the four buttons on the transmitter for two (2) seconds, pause for two (2) seconds, then press the same
button again for two (2) seconds.
Release DOOR CODE button.
To test, press and hold the transmitter button for seven (7) seconds to set Vacation Mode.
To reset Vacation Mode press the same button for two seconds.
a.
b.
c.
d.
e.
Step 19.5 - Code a Transmitter Button to Enable AUX OUTPUT
Briefly press the DOOR CODE button two times, then press it again and hold (will beep three times on third
press (Fig.29)).
Press one of the four buttons on the transmitter for two (2) seconds, pause for two seconds, then press the same
button again for two (2) second.
Release the DOOR CODE button.
Press the transmitter button to test.
a.
b.
c.
d.
