DONGAH ELECOMM VPRS-4175E User manual

220V AC 1Phase Input
-54.5VDC Output
175Amps per Shelf
35Amps per Module

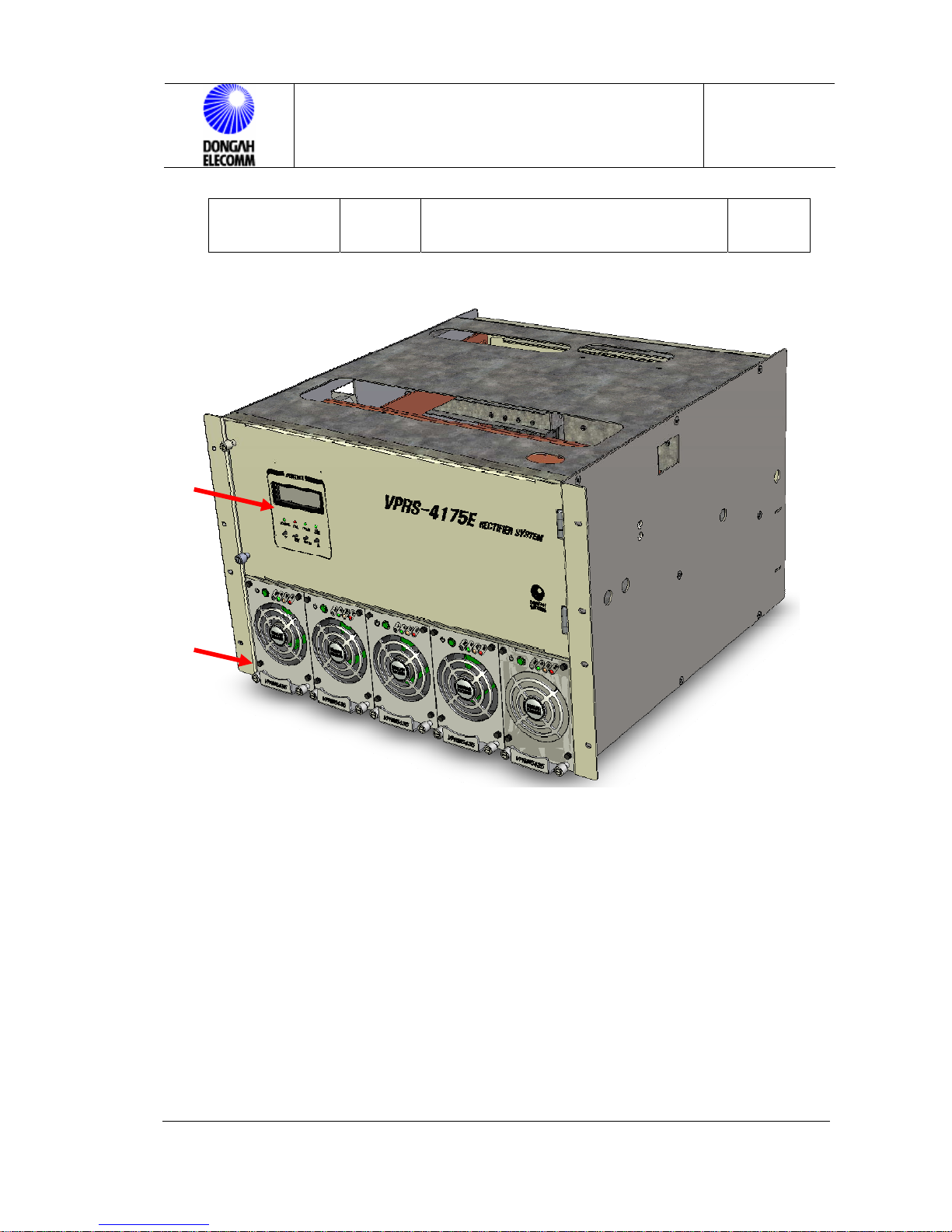

VPRS-4175E
POWER SUPPLY SYSTEM
OPERATION MANUAL

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 2 /31
- CONTENTS -
1. SYSTEM SPECIFICATIONS.....................................................................................................12
1.1 ELECTRIC CHARACTERISTICS ...............................................................................................12
1.1.1 Input Characteristics ...................................................................................................12
1.1.2 Output Characteristics................................................................................................12
1.2 SAFETY SPECIFICATIONS ......................................................................................................13

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 3 /31
1.2.1 Electro Magnetic Interference (EMI).........................................................................14
1.2.2 Surge Voltage of Power Cable..................................................................................14
1.2.3 Leaked Current............................................................................................................14
1.3 ENVIRONMENTAL CHARACTERISTICS ...................................................................................14
1.3.1 Operating Temperature & Humidity..........................................................................14
1.3.2 Storage Temperature & Humidity ..............................................................................14
1.4 PHYSICAL SPECIFICATIONS...................................................................................................14
1.4.1 Dimension.....................................................................................................................14
1.4.2 Weight ...........................................................................................................................15
2 RECTIFIER SYSTEM CONFIGURATION ..............................................................................15
2.1 CONFIGURATION ....................................................................................................................15
2.2 FRONT VIEW ..........................................................................................................................15
2.3 FUNCTIONS ............................................................................................................................15
2.4 RECTIFIER SYSTEM BLOCK DIAGRAM ..................................................................................18
3 INITIALIZATION & CHECK POINTS.......................................................................................19
3.1 INSTALLATION CHECK LIST ...................................................................................................19
3.2 RECTIFIER MODULE INSERTION &DELETION ......................................................................20
3.2.1 Rectifier Module Insertion...........................................................................................20
3.2.2 Rectifier Module Deletion ...........................................................................................20
3.3 NORMAL OPERATION.............................................................................................................20
3.4 ABNORMAL ACTIONS/CORRECTIVE MEASURES ..................................................................21
4 RECTIFIER MODULE CONFIGURATION..............................................................................22
4.1 STANDBY/OPERATING SWITCH.............................................................................................23
4.2 POWER ON LED .................................................................................................................23
4.3 STB LED ...............................................................................................................................24
4.4 ALARM LED .........................................................................................................................24
4.5 ADJUSTMENT VR...............................................................................................................24

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 4 /31
5 CONTROL PANEL OPERATION .............................................................................................25
5.1 DISPLAY...............................................................................................................................25
5.2 CONTROL PANEL FUNCTIONS...............................................................................................25
5.3 CONTROL PANEL OPERATION...............................................................................................26
6 MANUAL BATTERY DISCONNECT........................................................................................26
7 RECTIFIER SYSTEM OPERATION & STOP OPERATION................................................27
7.1 RECTIFIER SYSTEM OPERATION...........................................................................................27
7.2 RECTIFIER SYSTEM STOPPING (LOCAL) ............................................................................28
7.3 BATTERY TEMPERATURE COMPENSATION (BTC MODE IN TEMP ON) .............................28
7.4 OUTPUT VOLTAGE FL CHAGE MODE SELECT (TEMP OFF)..............................................30
7.5 OUTPUT VOLTAGE EQ CHARGE MODE SELECT (TEMP OFF) ..........................................31
7.6 RECTIFIER MODULE RESTART ..............................................................................................32
7.6.1 When Module is Shut Down by Over Voltage.........................................................32
7.6.2 Rectifier Unit Thermal Shut Down.............................................................................32
7.7 BATTERY CHARGE CURRENT LIMITATION............................................................................32
7.8 CONTROL PANEL POWER DROP...........................................................................................32
8 CONTROL PANEL SETUP & MEASUREMENT...................................................................32
8.1 CONTROL PANEL SETUP &FUNCTIONS ...............................................................................33
8.1.1 Float voltage setting....................................................................................................33
8.1.2 Equalize voltage setting..............................................................................................33
8.1.3 Output OV alarm setting.............................................................................................33
8.1.4 Output UV alarm setting.............................................................................................33
8.1.5 New password setting.................................................................................................33
8.1.6 Battery charge current limitation setting...................................................................33
8.1.7 Battery charge end current setting............................................................................33

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 5 /31
8.1.8 Battery charge start current setting...........................................................................33
8.1.9 Temp ON/OFF setting.................................................................................................33
8.1.10 Battery charge mode setting......................................................................................33
8.1.11 Battery emergency voltage setting............................................................................33
8.1.12 Alarm History Clerar....................................................................................................33
8.1.13 Alarm Sound Setting..................................................................................................33
8.2 CONTROL PANEL MEASUREMENT ........................................................................................33
8.2.1 Input voltage measurement .......................................................................................34
8.2.2 Output voltage/current measurement.......................................................................34
8.2.3 Battery charge/discharge current measurement ....................................................34
8.2.4 Current measurement per unit...................................................................................34
8.2.5 Rectifier system alarm monitoring.............................................................................34
9 RECTIFIER TEST & MAINTENANCE.....................................................................................34
9.1 OVERVIEW..............................................................................................................................34
9.2 PERIODIC INSPECTION ..........................................................................................................34
9.3 ADDING RECTIFIER MODULE ................................................................................................35
10 PROBLEM SOLVING & FAULT FIXING............................................................................36
10.1 PROBLEM SOLVING ...............................................................................................................37
10.2 REPLACING PARTS ................................................................................................................37
10.3 ORDER OF REPLACEMENT ....................................................................................................37
10.3.1 Replacement of Rectifier Module (VPRM5435)......................................................37
10.3.2 FAN Replacement of Rectifier Module.....................................................................37
10.3.3 Replacement of Surge Protector...............................................................................39
11 ACRONYMS.............................................................................................................................39

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 6 /31
Safety Tips
For Your Safe Operation…
- Before starting the installation, operation, test and repair work, please read carefully al of
the directions specified in this manual for your safe operation of the system.
- This product has been manufactured under strict quality management. If there are any
potential damages to human life or assets, please contact Dongahelecomm.
- This document deals with safety directions with the following symbols.

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 7 /31
If you deal with this system without observing this symbol, it may cause
death or critical injury.
If you deal with this system without observing this symbol, it may cause an injury or damage
to assets.
《Check of Contained Materials》
●Make sure that the delivered product is the same one that you
ordered.
●Check first the quantity of the delivered articles as specified in the
enclosed sheet. Thene, make sure that there are any missing parts,
deformation, damage, peeled out paints, unscrews or damage of
cables.
《Directions in Storage》

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 8 /31
●Do not put this product package in a place where water or rain
drops, there are any harmful gas or liquids or direct lay of light
reaches.
●Do not store this product under high temperature and humidity
conditions.
《Directions in Operation》
Injury, Electric Shock, Fire
●Do not run this system in a place with flammable or corrosive gases,
dewdrops or humidity. (It may cause an electric shock or fire.)
●Do not try to modify this product. (It may cause an electric burn or
fire.)
●Operate this system under the environmental conditions specified in
this manual. Take particular attention to voltage, frequency,
temperature, humidity and vibrations. (Violating the environmental
requirements may cause an electric shock or fire.)
●Before connecting the battery wire, load and gronding wire, pay
attention not to reverse the polarity of them. (Polarity reversal may
cause fire.)
●While the system is on, do not touch the battery wire, load or
grounding wire ports. It may cause an electric shock or short circuit.
●Pay attention not to reverse polarity of signaling cables and detection
cables when connected. (It may cause a fire.)
●Do not leave alien materials such as sheathes of electric wires,
screws and so on inside the product. (It may cause an electric shock
or fire.)
●DC output is connected to the battery before the system starts to be
driven. Pay close attention not to cause an electric shock or short
circuit.
●When the rectifier units are added, pay close attention as AC input
volta
g
e is fed to the Connector in the Shelf side.
(
It ma
y
cause an

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 9 /31
electric shock.)
●When you take apart or insert a rectifier unit from/to the Shelf, pay
close attention not to have a burn as the part has been heated. (It
may cause an injury.)
●Do not put your finger or other things to the ractifier unit fan. (It may
cause an injury.)
●When you extend units, pay close attention not to arise an accident
of short circuit. (It may cause an electric shock.)
●When cables are connected, battery should be separated from the
rectifier system except one point of the conductor at each cell.
●Start operation after the connections of battery wire, load, and
grounding wire are taken apart from NFB and fuses.
●Connect the battery wire, load and grounding wire while the load side
has been unloaded.
●External transmission signal should be used at 60V or lower of input
voltage and 0.5A or lower of circuit current.
●Before you take apart or insert the RS232C and RS485 ports of the
control module, turn off the control module switch.
●When you take apart or insert the rectifier unit from/to the rectifier
system, turn off the rectifier unit switch.
●Rectifier unit should be inserted and taken apart in line with the guide
rail of the rectifier system.
●Tightly join the unit fixing screws, and then, turn on the input switch
of the rectifier unit.
●As AC input may be fed to turned on system while power is failed,
special care should be paid to check and maintain the AC input.

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 10 /31

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 11 /31
《Test & Repair》
Electric Shock, Fire
●Qualified labor should perform test and repair work periodically with
designated methods. (Violating this direction may cause an electric
shock or fire.)
●Only qualified labor with due knowledge and experience should
repair this product. (Violating this direction may cause an electrtic
shock or fire.)
●As AC input and DC voltage are applied, take particular attention
not to have electric shock or short circuit when the system is tested
or repaired.
●Even when the system is turned on while commercial power is
failed, AC input may be fed to the system. Take particular attention
to test and repair work of the AC input.
《Disposal》
●This product should be disposed under the ordinary industrial
wastes disposition procedure.

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 12 /31
1. System Specifications
1.1 Electric Characteristics
1.1.1 Input Characteristics
1) Rated input voltage : 1Φ3W 220Vac
2) Input voltage : 90V ~ 280V
3) Input frequency : 45Hz ~ 65Hz
4) Input rush current : 50Apeak or less (per rectifier module)
5) Efficiency : 90% or greater (at 10% ∼100% load)
6) Power factor : 98% or greater (at 10% ∼100% load)
1.1.2 Output Characteristics
1) Rated output voltage : -54.5V ±0.545V

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 13 /31
2) Operating voltage : -40.0V ∼-59.0V
3) Output current : max. 100A (35A ×5 Modules:N+2)
4) Output distribution circuit : Refer to Table 1)
Table 1) Output Distribution
NO Output Port Class Cap. Volt. Description
1 L1~4 DC 32A : 4PORT -54.5V Load voltage supply
#1 ~#4
2 L5~8 DC 20A : 4PORT -54.5V Load voltage supply
#5 ~#8
3 L9~10 DC 10A : 2PORT -54.5V Load voltage supply
#9 ~#10
4 BATTERY#1 DC 150A : 1PORT #1 Battery power supply
5 BATTERY#2 DC 150A : 1PORT
-48V
#2 Battery power supply
5)Stability of input and load : ±0.5% (±0.27V) or less
6)Output current limitation : at 105％∼130％(40% during derating)
7)Output over voltage protection : Suspend rectifier module at 59.0V ∼
60.0V.
8)Battery over discharge protection : Suspend battery at 42.0V ±0.2V.
9)Output Ripple / Noise : 100mV or less at peat point
1.2 Safety Specifications

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 14 /31
1.2.1 Electro Magnetic Interference (EMI)
ÎFCC PART 15 SUBPART B, CLASS A
- 450kHz≤f≤1.6MHz : 1mV (60dB ㎶) or lower
- 1.6MHz≤f≤30MHz : 3mV (69.5dB ㎶) or lower
1.2.2 Surge Voltage of Power Cable
ÎVoltage →6kV (1.2 ×50 ㎲), Current →3kA (8 ×20 ㎲)
1.2.3 Leaked Current
Î10mA or lower
1.3 Environmental Characteristics
1.3.1 Operating Temperature & Humidity
-10℃∼+55℃, 10% ∼95%
1.3.2 Storage Temperature & Humidity
-40℃∼+80℃, 5% ∼95%
1.4 Physical Specifications
1.4.1 Dimension
VPRS-4175E Rectifier Shelf ⇒310.3(H) X 482.6(W) X 421.7(D) ( mm )
VPRM5435 Rectifier Module ⇒122.5(H) X 85(W) X 405.5(D) ( mm )

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 15 /31
1.4.2 Weight
VPRS-4175E Shelf ⇒20 Kg (w/o 5 rectifier modules)
VPRM5435 Rectifier Module ⇒3.6 Kg
2 Rectifier System Configuration
2.1 Configuration
The VPRS-4175E rectifier system accommodates max. 5 rectifier units
(VPRM5435). The rectifier system contains control panel (VPRC-175E) and DC
distribution panel. (See Figure 1 Exterior View). The control panel is located at
the front panel of the distribution frame at the rectifier Shelf top. DC distribution
frame contains 10 circuits for load supply and 2 circuit for battery connection.
This rectifier has been designed to charge the battery with positive ground, and
can be used for the system without any battery installed or connected. Rectifier
capacity can easily be built up by adding modules.
2.2 Front View
Figures 1 shows the exterior view of the rectifier.
2.3 Functions
Table 2) Rectifier System Functions
Classification No. of
Modules Function Remark
Rectifier Module
[VPRM5435] 5 Receives AC 110V/220VAC, and feeds DC-48V to load and charges the battery.
Basically
3ea
Control Panel
[VPRC-175E] 1 Controls up to 5 rectifiers, sends out
alarms.
AC distribution
frame 1 Receives 1Φ3W 220Vac.

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 16 /31
DC distribution
frame 1 Distributes output power, and connects battery.
Figure 1 Exterior View of VPRS-4175E
Rectifier
Module Part
Rectifier
Controler Part

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 17 /31

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 18 /31
2.4 Rectifier System Block Diagram

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 19 /31
Figure 2. VPRS-4175E Block Diagram
3 Initialization & Check Points
3.1 Installation Check List
To check installation of the system, take the following procedure:
1) Check if the Shelf has been fixed to the floor.
2) Check if the battery charge temperature compensation probe has been fixed.
3) Check if NFB has been installed in the DC distribution frame.
4) Check if the battery has been correctly connected.
If the battery polarity is reversed, relay will not work when power is fed.
5) Check if the battery C/B is in the ON Position.
6) Check if the Shelf frame ground has been connected to the main ground
busbar.
7) Check if the AC input ground has been connected to the main ground busbar.
8) Check if the I/O cable has been correctly connected.
9) Check if the rectifier modules have been fully inserted.
Once all of the cabling and installation procedures are finished, initialize the system
and carry out the function test in the following order.
1) Check if all of the power switches have been turned off, and check polarity and
cable connection status of batteries using DVM.
2) Check if the input power has been correctly connected and check the input
voltage using DVM.
3) Check if the output cables have been correctly connected, and check polarity.
4) Turn on the AC power switch at the right side of each shelf.
5) Check if the STB LED at the rectifier module is turned to yellow. Then, turn on
the module switch.

VPRS-4175E OPERATION MANUAL Issue : 2009.03
ED : 1
VPRS-4175E OPERATION MANUAL 20 /31
6) Check if the POWER LED at the rectifier module is green. Then, turn on the
power switch of the control panel, and check error status on the display window.
3.2 Rectifier Module Insertion & Deletion
3.2.1 Rectifier Module Insertion
Rectifier module should be inserted from the left top side of the Shelf. So
insertion should made from left to right and from top to bottom. Turn off the
power switch of each module. Then, insert it until it reaches the end of the Shelf.
Then, tighten the captive screws at the front panel and turn on the power switch.
Keep the switch ON while the rectifier is in operation.
3.2.2 Rectifier Module Deletion
Turn off the power switch of the module. Then, loosen the captive screws on it.
Pull out the module seizing the handle on it.
Before starting the action, wait for about 1 minute until the LED is turned off.
Caution : Turn off power switch when taking apart a module.
3.3 Normal Operation
Default setting of the output voltage of this rectifier is BTC-FL MODE. NORMAL
LED and DCV LED at the control panel are turned on. The LCD window provides
information on the rectifier. Using the push button switches [F1(▼), F2(EDIT),
F3(ENT), F4(▲)] at the LCD window, user may query or modify setup values. (See
Figure 3.)
