dooch NSQ Series User manual

NSQP
HNSQP
BOOSTER PUMP SYSTEM
PREMIUM

CONTENTS
3
Cause of Fault and Reaction
Basics
Safety Instruction
Features of Product
Components of Product
Method of Operation
Installation
Inspection and Maintenance
Drive
- Control mode

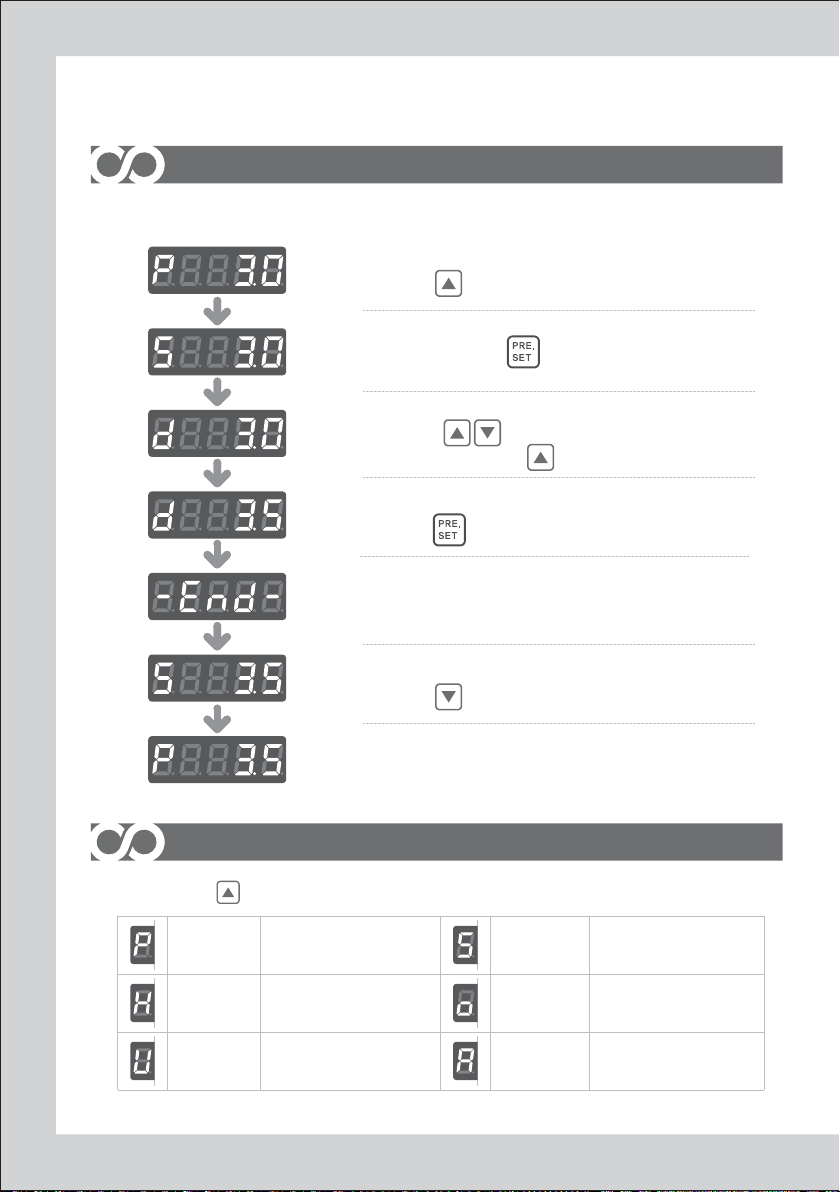

- Method of pressure setting
- Parameter Mode
- Pr (Pump) - dr(Drive)
- Fault History Table
- Measures be taken in case of
fault or alarm
- Internet Modem
- RS-485
Communication(Option)

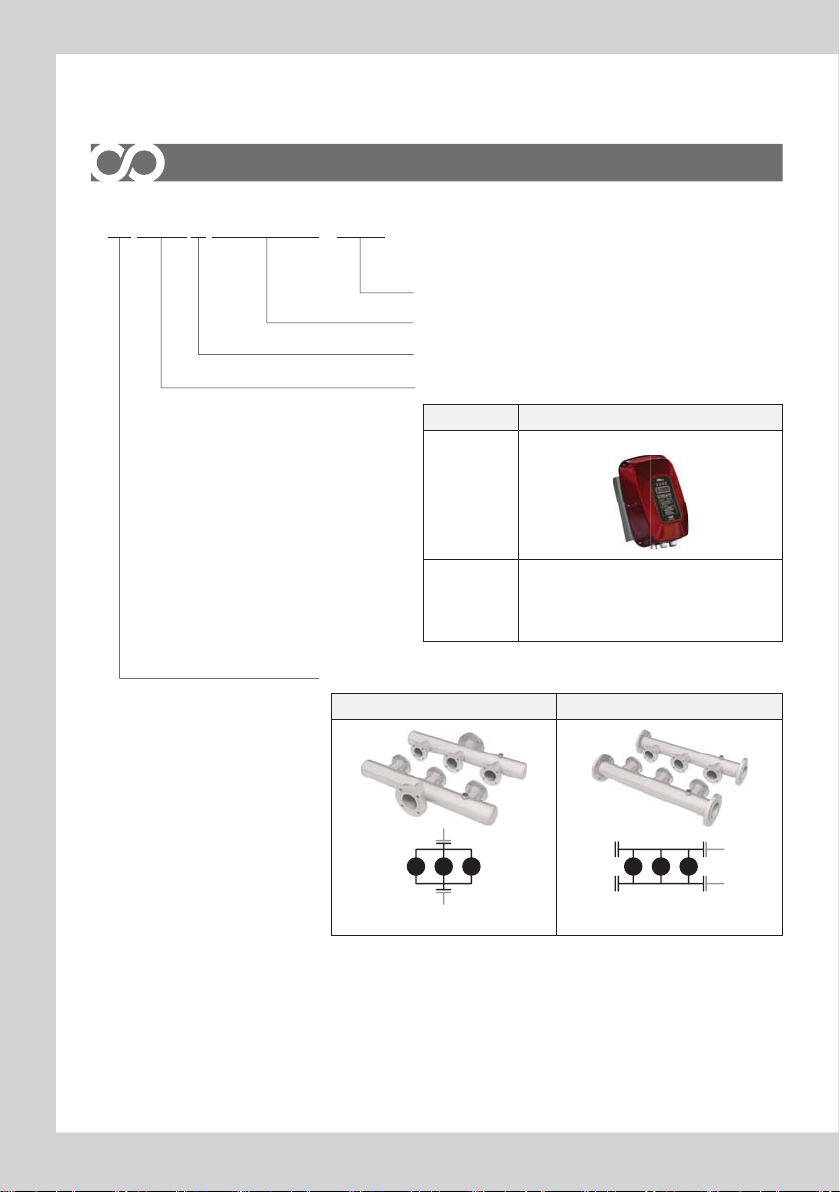

Basics
Manifold Size
Pump Model
Each of Pump
Inverter Type
In-Line type manifold
H NSQ 3 DRL 10-6 - 80A
NSQ-Drive
Exclusive Inverter for Pump
Power Range : 0.75~22kW
Input Power : 1Φ×200~230V (0.75~2.2kW)
3Φ×380~440V (0.75~22kW)
Output Power : 3Φ×380V
Frequency : 50/60Hz
Model
Feature
Specification
H Without H
In-Line Type Manifold Standard Type Manifold

Warning
Caution
Safety Instructions
Preface
Thank you for choosing DOOCH’s high performance NSQ-Drive series.
Describing specification, installation, operation, function, and maintenance of the NSQ-Drive
series provided for the users who are familiar with and having basic experience in using a
variable frequency drive.
Be sure to understand function, performance, installation, and operation of the product by
reading through this User's Manual completely prior to your use of NSQ-Drive series that
you have purchased. In addition, you are required to have this User's Manual properly
delivered to the end-user and maintenance manager.
Safety Precautions
Remark
To prevent injury and property damage, follow these instructions. Incorrect operation
due to ignoring instructions will cause harm or damage.
The seriousness of which is indicated by the following symbols.
Even if the instructions are indicated as ‘Caution’, it can cause a serious result according to the kind
of operation and the environment.
The meaning of each symbol in this manual and on your equipment is as follows.
Warning :
This symbol indicates the possibility of death or serious injury.
Caution :
This symbol indicates the possibility of injury or damage to property.

Do not remove the cover while power is applied or the unit is in operation.
Otherwise, electric shock could occur.
Do not run the inverter with the front cover removed.
Otherwise, you may get an electric shock due to high voltage terminals or
charged capacitor exposure.
Do not remove the cover except for periodic inspections or wiring, even if
the input power is not applied.
Otherwise, you may access the charged circuits and get an electric shock.
Wiring and periodic inspections should be performed at least 10 minutes
after disconnecting and after checking the DC link voltage is discharged
with a meter (below DC 30V).
Otherwise, you may get an electric shock.
Operate the switches with dry hands.
Otherwise, you may get an electric shock.
Do not use the cable when its insulating tube is damaged.
Otherwise, you may get an electric shock.
Do not subject the cables to scratches, excessive stress, heavy loads or
pinching.
Otherwise, you may get an electric shock.
Install the VFD on a non-flammable surface. Do not place flammable
material nearby.
Otherwise, fire could occur.
Disconnect immediately the input power if the inverter gets damaged.
Otherwise, it could result in a secondary accident and fire.
After the input power is applied or removed, the VFDwill remain hot for
a couple of minutes.
Otherwise, you may get bodily injuries such as skin-burn or damage.
Do not apply power to a damaged inverter or to the VFD with parts missing
even if the installation
Otherwise, electric shock could occur.
Do not allow lint, paper, wood chips, dust, metallic chips or other foreign
matter into the drive.
Otherwise, fire or accident could occur.
Caution
Warning
Safety Instructions

Safety Instructions
Cautions for Use
A. Transportation and Installation
Be sure to carry VFD in a proper way suitable for its weight, or it may result in damage to the VFD.
Be sure to use heat-treated wooden crate when you adopt wooden packaging for the product.
Do not pile up VFD's above allowable limit.
Be sure to install the VFD as directed in this instruction manual.
Do not turn off the power supply to the damaged VFD.
Do not open the front cover while carrying the VFD.
Do not place the heavy material on the VFD.
The direction of installation should be observed properly as criterions specified in this manual show.
Make sure that you should not put screw, metal material, water, oil and the inflammable something else.
Keep in mind that the VFD is very vulnerable to drop from the mid air and strong shock.
Don't let the inverter exposed to rain, snow, fog, dust, etc.
Do not cover, nor block, the ventilating system having cooling fan. It may cause the VFD overheated.
Be sure to check the power is off when installing the VFD.
To prevent the risk of fire or electric shock, keep the connected wire in a sound condition.
Use the wire that meets the standard in a recommended length.
B. Wiring
A professional installer should have done the wiring and checking.
Do wiring after installing the VFD body.
Do not connect phase-leading capacitors, surge filter, radio noise filter to the output of the VFD.
Output terminals (terminals named U, V, W respectively) should be connected in a proper phase
sequence.
Make sure that there is not any short circuit terminal, wrong wiring. It may cause spurious operation
or failure.
Refrain from using a cable other than the cable shielded when you connect control circuit wiring.
Adopt the shielded wire only when wiring the control circuit. It may cause the failure of the VFD in its
operation.
Use the twisted pair shield wire for the ground terminal of the VFD
Installation Location Free of corrosive gas, inflammable gas, oil sludge and dust, etc
Temperature/Humidity -10 ~ 40℃/ Below 90% RH (Dewdrop should not be formed)
Storage Temperature -20~65℃
Elevation/Vibration Altitude 1,000m or lower / below 5.9m/sec²(=0.6g)
Ambient Atmospheric Pressure 70~106 kpa

Features of Product
Apply advanced technology of new booster system
Minimize pressure fluctuation by durable multi inverter
Optomized design with controller module
RS-485 comm., Ethernet and Internet remote control (OPTION)
PID Control by Micro Processor
Sequential pump run and stop
Running stop and fault when low water level
If one of the pump is out of order, another pump operate.
If the motor is over current, the trip is occured automatically.
Pump operate throughout owner-operation
High Pressure Alarm level
Low Pressure Alarm level
Correct the sensor value if the sensor value differ from analogye value
Save all of run history of pump
Save all of the trip and error history of pump
all pumps have evenly run time.
The pump operate individually
Input muti-functional external analogue
After calculating the intergrated curent from each controller, disribute the current to all pump.
RS485communication
IM2000 Internet modem
Functions
PID controller
Sequential Operation
Dry-running protection
Fault pump Skip
Motor Overcurrent Protection
Owner -Operation
High Pressure Alarm
Low Pressure Alarm
Revised sensor value
Run History
Trip History
Relief operation
Intergrated current operation
Contact each of pump
Input external analogue
485comm.(option)
Internet modem(option)
Fixed Hz Operate When the pressure sensor is out of order, pump can operate fixed Hz
Explanation

System Component
Product Component
Panel
Inverter
Controller
Pump
Bed
Manifold-Suction
Manifold-Discharge
Pressure Transmitter
Suction Isolating Valve
Check Valve
Pressure Tank
No.
2
1
3
4
5
6
7
8
9
10
Discription
1
2~6
2~6
2~6
1
1
1
1
1/PUMP
1/PUMP
1
Quantity
4 ~ 20mA
-
-
-
-
-
Standard Manifold
Standard Manifold
-
-
Depend on pump size
Comments
2
7
9
6
5
3
1
4
8
NSQP Booster Pump

Panel
Inverter
Controller
Pump
Bed
Manifold-Suction
Manifold-Discharge
Pressure Transmitter
Suction Isolating Valve
Check Valve
Air Vent
No.
2
1
3
4
5
6
7
8
9
10
Description
1
2~6
2~6
2~6
1
1
1
1
1/Pump
1/Pump
1
Quantity
4 ~ 20mA
-
-
-
-
-
In-Line Manifold
-
-
-
Pressure Tank11 1Depend on pump size
Comments
HNSQP Booster Pump
2
7
8
5
6
3
1
4
9
Product Component
System Component
In-Line Manifold

If the pressure of the discharge is lower than set pressure, the second pump will stat to operate.
If the flow of the discharge continues to increase, all of the pumps will operate sequently.
If the flow decreases, the pump operating last will stop.
If there is no water consumption, the pump that was operating last will stop after rising up to
the set pressure of th e mater pump.
3Pump system
Pressure
Starting Pressure
Quantity
q0 q1
Stop pressure of master pump
q2 q3
Step Operating Mode
All pumps operate consistantly by a method of step operating (protects the pumps from over
load)
Stop Mode 1pump operate
Inverter operate
1pump operate
1 pump with inverter
2 pump operate
1pump with inverter
Increase water
consumption
Decrease water
consumption
Operate condition
Operation Method
q0~q1 : 1pump operate with inverter
q1~q2 : 1pump operate with inverter, 1slave pump operate
q2~q3 : 1pump operate with inverter, 2 slave pump operate

Alternative Operation(basic)
After scheduled operating or when all of the pumps stop, the master pump will
alternatively change
- Alternative method means all of the pumps will run sequently.
- If all of the pumps stop and then reopertate, the master pump changes from pump one to
pump 2
-After passing the time of the Pr-54 (lead pump alternation time : Factory setting 12hour),
second pump will operate by force
Fixed Lead Pump Operation
In case the location is in demand of high water consumption or a location where the pump needs to maintain
contstant pressure.
-If Pr-54 (lead pump alternation time) is set at "0", the first pump will operate as lead pump
- The lead pump does not altenate, oand will operate sequently.
Method by Intergrated Current Rate
To operate by distributing the current evenly after calculating the intergrated
current from each controllers.
- If Pr-53 (Alternation Type)is set at "1", the pump with the lowest amount of
current consumed will operate.
ALL PID Method
Main controller controls all of the drives via PID
If Pr-61(PID control type setup) is set at "1", this function will be applied.
Operation Method

Check the product specification
Installation Place
Take the VFD out of the box, check the rating shown on a side of the product body to
determine wheather the VFD specification is what you had ordered. Check also whether
the product has been damaged during delivery. (refer to product components )
Booster system is usually installed indoors, but if the system is installed outdoors, there should be covers to
protect the electronic components from water, freezing and natural disaster
Booster pump systems have to be installed within a pressurization condition.
To prevent the suction pipe from any dust, please install extra strainer
To prevent dry-running, make sure the water level is always higher than the pump. Make sure
the pump has been installed to keep the minimum suction pressure.
To prevent flood damage from installation, pump breakage, leakage by external condition,
please install within a facility that is equipped with drainage.
The pump installation shall not allow the system pipeline tensile force to be transferred to
the suction and discharge pipe.
Suction pipe line should be installed less curved and short.
To be convenient maintenance, encourage to install By-pass(discharge), valve and flexible
joint to suction and discharge pipe.
Please install the prevention device for Water Hammer to discharge sector. If suction pipe is
over 10m and covered 2 times, the chage of dicharge pressure can occure and low water
level switch can operate, so suction pipe line should be larger than booster system manifold.
Pipe Line
Wiring
Wiring should be performed by an wiring expert. To prevent from electronic leakage by
inductance and electronic shock , circuit breaker and grounding should be installed.
Main wiring for booster pump has already been wired in the factory. If you need additional wiring,
please wire as per the electronic drawings .
Note before operating
- Is the circuit breaker capacity enough ?
- is the wiring correct ?
Installation

Operation
FND has five digits of 7-segment, four LED lamps to display various settings and
states and consists of four buttons to operate drive or enter setting.
FND
Drive
LAMP
FND
BUTTONS
Instructions on setting the pressure
Warnings

-Run and Stop LEDs indicate status of the drive.
-In case of drive error, Alarm2 lamp will be turned on. In case of alarm
for pump system, Alarm1 lamp will be turned on.
Functional Description of each Part
LED Lamps
LED lamps consist of Run, Stop, Alarm1 and Alarm2 and functions of them are as follows:
- Functions of each Button
FND Part
FND consists of five digits of 7-segment and displays status value of drive and pump and
parameter settings. FND displays are divided into St group (Status Group), Pr group (Pump
Control Group) and dr group (Drive Group).
Button Part
Button part consists of four buttons and it is used for parameter setting or
movement.
Drive
Operation
Turned on for waiting and flickered on operation
Turned on during stop
Turned on for High Pressure/Low Pressure/Sensor Error/Low Level Alarms
Run
Stop
Alarm1
Alarm2 Turned on for drive error
It is used for setting up pressure settings, various parameters or Alarm Reset
It operates or stops the drive.
On operation state, RUN lamp will be turned on.
It is used to change parameter items or parameter settings. Key increases
key decreases the value After changing the settings,
o press key for saving the final value. If pres
the value, whilele
be sure to pressbe sure t
for 3 seconds, parameter group is moved.

Press the and check the current Pressure setting
ex> Changing from 3,0 Bar~ 3.5 Bar
Press the to confirm the set pressure.
Press the button to check your changed settings.
Current
Pressure
Current pressure
display
Power
Frequency
Current Hz display Current Operation
Ratio in % display
Current output current
display
Set
Pressure
User's Set pressure
display
Output
Current
Current DC Link
display
Pressing the will display the current P-S-H-o-U-A in sequence.
Press the to change the set pressure value.
[Ex. (3.5) : Press the 5 times]
When pressing the button for one second the d
3.0 will appear and the 3.0 will keep on blinking.
- End - display will appear which will apply the desired setting
Parameter Settings
Changing the settings
Drive
DC
LINK
Operation
Ratio

Capcity Setup of Sensor 1
Correction Value of Sensor 1
Freezing Prevention
Starting Pressure Variation
Stopping Time after reaching Setup Pressure
485 Comm. Delay time
CAN Comm. ID
Alteration type
Lead pump alteration type
Standby Pump wating time
PID control Type Setup
Output Ratio of ALL PID
High Pressure Alarm Level
Low Pressure Alarm Level
Pr-03
Pr-04
Pr-11
Pr-12
Pr-13
Pr-51
Pr-53
Pr-54
Pr-55
Pr-70
Pr-71
Pr-72
Pr-73
Pr-74
Pr-75
Pr-90
Pr-92
Low Level Trip Time of Pressure Sensor
S/W Version
1.0~25.0[bar]
-1.0~1.0[bar]
0~1
0~2.0[bar]
0~200[sec]
0~6
0~2
0~24[hour]
1~100[sec]
0~Sen1 Cap[bar]
0~10.0[bar]
0~100[sec]
0~200[sec]
0~250[sec]
0~1.0[bar]
0~1
-
16.0
0.0
0
0.3
30
0
0
12
5
20.0
0.5
5
20
20
0.3
0
-
Pr-40 0~1 0
Pr-41 0~250 1
485 Comm. Mode
485 Comm. ID
485 Comm. Speed
Pr-42 1~5 4
Pr-43 1~9999[ms] 5
Pr-61 0~1 0
Pr-64 70~100[%] 100
X
X
○
○
○
X
○
○
○
○
○
○
○
○
○
X
X
X
○
○
○
○
○
X
○
○
○
○
X
X
X
X
X
○
○
X
X
○
○
○
○
○
○
○
X
X
Pr Mode (Pump Control Mode) Drive
DescriptionDisplay PHRASE
3Φ
Setting Range Interlock of
Factory
Setting PHRASE
1Φ
Change
operation
PARA.
High Pressure Alarm Time
Low Pressure Alarm Tim
Low Level Trip Pressure Level
Initialization Code

Enter the maximum value that the pressure sensor can measure.
By entering capacity of pressure sensor attached to the drive being used, it is possible
to display the currently measured pressure.
Example) In case the using sensor has 10bar, enter 10.0.
If the using sensor has 16bar, enter 16.0.
And enter the rated value of the pressure sensor for normal pump operation.
Pr-03 : Sensor 1 Capacity Setup
It corrects pressure variation between analog or digital pressure meter and the one
displayed on drive FIND.
Pr-04 : Sensor 1 Correction Setup
It sets up freezing prevention mode of pump.
It is to prevents pump from being broken due to low temperature (below zero) in winter using ambient temperature
sensor information within the drive. The function is operated with a frequency not generating pressure between
0~10 seconds and maintained as stopped status between 11~59 seconds based on 1 minute.
This function is to prevent the pump from freeze and burst by generating frictional heat upon rotation within
pump casing.
Pr-11 : Freezing Prevention Function
It sets up start variation pressure value. That is, the operation starts when the current
pressure has larger variance than the specified value comparing to setting.
In case of alarm occurrence, operation does not start.
Pr-12 : Start Variation
When the pump pressure reaches to setting and maintained for longer than setup time, it starts to reduce
speed. If there is pressure difference as much as starting variation, the pump starts to operate again during
decrease of speed and if not, it stops.
Pr-13 : Stopping Time after Reaching Setup Pressure
Drive
Pr Mode (Pump Control Mode)
Functional DescriptionSetup Data
0 (Factory Setting) OFF
1 ON
Functional DescriptionSetup Data
0 Deactivation of Pressure Sensing
1 ~ 200 [sec] Setting the time for pressure sensing(Factory setting 30(Sec)

Pr Mode (Pump Control Mode) Drive
Pr-40 : 485 Communication Mode
To set up 485.
Pr-41 : 485 Communication ID set up
It sets up 485 comm. ID set up
Pr-42 : 485 Communication speed
485 comm. speed set up
Pr-43 : 485 Communication delay time
485 comm. delay time set up
Functional DescriptionSetup Data
0 (factory setting) Not use 485 comm.
1 Use 485 comm.
Functional DescriptionSetup Data
1 ~ 250 (Factory Setting 1) f the number of data request protocol is different, data is not
transmitted.
Functional DescriptionSetup Data
11200 bps
22400 bps
34800 bps
4 (Factory Setting) 9600 bps
519200 bps
Functional DescriptionSetup Data
1 ~ 9999 [msec] When receive data request protocol, data transmit after set up delay
time (Factory set up : 5[msec])

Pr Mode (Pump Control Mode) Drive
Pr-51 : Communication ID Setup
It is CAN Communication ID on Multi-Drive control mode.
Be sure to not duplicate ID for setup.
Pr-53 : Alternation method
It determines the order of Q-Driver’s run, stop, alternation on Multi-Drive operation mode.
Setting is available for Ver 1.3x
When Pr-50 CAN comm. mode is 0, alternation is set 0.
Pr-54 : Lead Pump Alternation Time
Alternative operation refers to an operation that when it reaches time specified by the user,
the drive with a lot of power consumed is to be stopped and the one with less power
consumption is to be started alternatively at the same time in order to prevent a specific
drive(pump) being operated constantly. If times is set, drives are forcedly shifted.
Functional Description
Single Mode
Setup Data
0 (Factory Setting)
1 ~ 6 Multi-Drive
control
Comm. ID No.
Related Functions
dr-02
Pr-52
Pr-53
Pr-54
Pr-55
Pr-61
Target Frequency Input Method
CAN Communication Speed
Lead Pump Alternation method
Lead Pump Alternation Time
Stand-by Pump Waiting Time
PID Type on Multi-Drive control
Functional DescriptionSetup Data
0 (Factory Setting) In order if ID
1In order of low watt-hour
Functional DescriptionSetup Data
0 Release of alternation
1 ~ 24 (hour) Alternation time setup. (Factory Setting 12[hour])
