NVR BASIC USER GUIDE
DORIP10 - DORIP11 - DORIP12
WWW.DORANI.COM.AU
Dorani (PJM Sales) – 03 9357 0942d
4/1 Merri Concourse, Campbellfield, Victoria 3061

ii
Contents
Preface ....................................................................................................
Part I Local Operations .............................................................................
1 Before You Begin ...................................................................................
Login................................................................................................................
Local Operations .............................................................................................
2 Initial Configuration...............................................................................
Preparation .....................................................................................................
Wizard .............................................................................................................
3 Network & APP Phone Connection ........................................................
Network ..........................................................................................................
Data Speed and Usage ....................................................................................
P2P App Connection........................................................................................
4 Live View...............................................................................................
Live View Status ..............................................................................................
Window Toolbar .............................................................................................
Screen Toolbar ................................................................................................
Shortcut Menu ................................................................................................
Sequence Operation .......................................................................................
Zoom ...............................................................................................................
Image Configuration .......................................................................................
Preview Configuration ....................................................................................
5 Playback................................................................................................
Instant Playback ..............................................................................................
Playback Toolbar .............................................................................................
Playback by Camera and Date.........................................................................
Playback in Corridor Mode..............................................................................

iii
Playback by Tag...............................................................................................
Playback by Event ...........................................................................................
Playback by Smart Search ...............................................................................
Playback by External File.................................................................................
Playback by Image...........................................................................................
File Management ............................................................................................
6 Backup ..................................................................................................
Recording Backup ...........................................................................................
Image Backup..................................................................................................
7 System Configuration.............................................................................
Basic Configuration .........................................................................................
Time Configuration .........................................................................................
User Configuration ..........................................................................................
Security Configuration ....................................................................................
8 Channel Configuration ...........................................................................
Channel Management.....................................................................................
OSD Configuration ..........................................................................................
Image Configuration .......................................................................................
Privacy Mask Configuration ............................................................................
9 System Maintenance .............................................................................
System Information.........................................................................................
Network Information ......................................................................................
Log Query........................................................................................................
Import/Export .................................................................................................
System Restoration .........................................................................................
Automatic Maintenance .................................................................................
System Upgrade ..............................................................................................
10 Shutdown............................................................................................

1
Preface
This manual describes how to use your NVR locally or on the Web
interface.
In this manual, the terms IP camera and IPC refer to the same thing:
network camera, which requires a connection to the network. And the
IP device mentioned in this manual refers to an IP camera (also known
as network camera) or a Digital Video Server (DVS).
Part I Local Operations
An NVR supports two types of operations: local operations and web-
based remote operations. With local operations you connect a monitor
and a mouse to the NVR and use the mouse to operate. If your NVR has
buttons on the front panel or is delivered with a remote control, you
may also control your NVR by pressing the front panel buttons or using
the remote control.
The NVR has an embedded web server and allows web-based
operations. To do this, you need a PC that has a network connection to
the NVR and is installed with a web browser. You just need to navigate to
the NVR's IP address and log in to the Web interface like you log in to
the system locally.
This section describes local operations.
1 Before You Begin
Please be aware that the parameters that are grayed out on the system
user interface (UI) cannot be modified. The parameters and values
displayed may vary with device model, and the figures in this manual are
for illustration purpose only.

2
Login
Use the default username admin and password 123456 for your first
login.
CAUTION!
The default password is intended only for the first login and should be
changed to a strong one containing at least eight characters including
uppercase and lowercase letters, digits and symbols after your first login
to ensure security.
1. Right-click anywhere in the window and then choose Menu. The
login dialog box is displayed.
2. Select the username from the drop-down list, enter your password,
and then click Login.
Local Operations
You can refer to Initial Configuration and complete a quick configuration.
NOTE!
Unless otherwise specified, all operations described in this manual are
performed with a mouse by the right hand. See Mouse Operations for
details.
Mouse Operations
Table 1-1 Mouse Operations
Name
Action
Description
Left
button
Click
⚫Select or confirm an item.
⚫Select to edit digits, symbols, upper-case or
lower-case letters in a field.
Double-click
Enter or exit full screen mode in live view.

3
Name
Action
Description
Drag
Draw or move a rectangle on the screen, for
example, a motion detection area.
Right
button
Click
⚫Show the shortcut menu.
⚫Exit zoom.
⚫Exit the current window when Cancel or
Exit is displayed.
Wheel
Scroll up or
down
Scroll up or down a list or a window; or zoom in
or out on a playback progress bar.
Front Panel Buttons
The front panel buttons may vary with NVR model.
Table 1-2 Front Panel Buttons 1
Button
Description
Display the main menu.
Switch to the next tab on the screen or switch the
input method.
Auxiliary function button.
Exit the current window.
⚫, , , : Switch windows or menu
items; or control rotation directions of a
PTZ camera when the PTZ toolbar is closed.
PTZ stands for pan, tilt, and zoom.
⚫, : Rewind or forward 30 seconds
in full screen.
•, : Variable-speed forward or
rewind in full screen.

4
Button
Description
Confirm an operation, or start/pause the
playback.
Press this button to start up or shut down the
NVR.
To shut down, press this button and hold for at
least 3 seconds till a message appears on your
monitor. Click Yes.
Note:
This shutdown operation can be performed only
when you have logged in to the system.
Table 1-3 Front Panel Buttons 2
Button
Description
Press this button to start up or shut down the NVR.
To shut down, press this button and hold for at least 3
seconds till a message appears on your monitor. Click
Yes.
Note:
This shutdown operation can be performed only when
you have logged in to the system.
Enter 1; or display the main menu.
Enter 2, A, B, or C; or start instant playback.
Enter 3, D, E, or F; or start manual recording.
Enter 4, G, H, or I; or enter the PTZ control interface.
Enter 5, J, K, or L; or switch the screen layout in live
view or playback mode.

5
Button
Description
Enter 6, M, N, or O; or enable or disable arming.
Enter 7, P, Q, R, or S; or take a snapshot.
Enter 8, T, U, or V.
Enter 9, W, X, Y, or Z.
Enter 0 or a space.
Delete
Switch the input method.
Auxiliary function button.
Exit the current window.
Switch to the next tab.
•, , , : Switch windows or menu
items; or control rotation directions of a PTZ
camera when the PTZ toolbar is closed
•, : Rewind or forward 30 seconds in full
screen.
⚫, : Variable-speed forward or rewind in
full screen.
⚫: Confirm an operation; or start or pause
playback.

6
2 Initial Configuration
Preparation
⚫Make sure that at least one monitor is correctly connected to the
VGA or HDMI interface on the rear panel of the NVR.
⚫Verify that the hard disk(s) are correctly installed. For detailed
steps to install a hard disk, please refer to the quick guide shipped
with your NVR.
Wizard
The wizard can guide you to complete the most basic setup. The wizard
may vary with device model and other factors. The following shows an
example.
1. Enable or disable the wizard as needed and then click Next.
NOTE!
⚫You may change the setting under System > Basic.
⚫If a QR code is displayed, you may scan the code to download an
app and use the app to control your NVR.
2. Enter the default admin password 123456 and then click Next.

7
CAUTION!
The default password is intended only for the first login and should be
changed to a strong one containing at least eight characters including
uppercase and lowercase letters, digits and symbols after your first login
to ensure account security.
NOTE!
For RAID models, a window appears following this step for RAID
configuration.
3. Complete time information and then click Next.

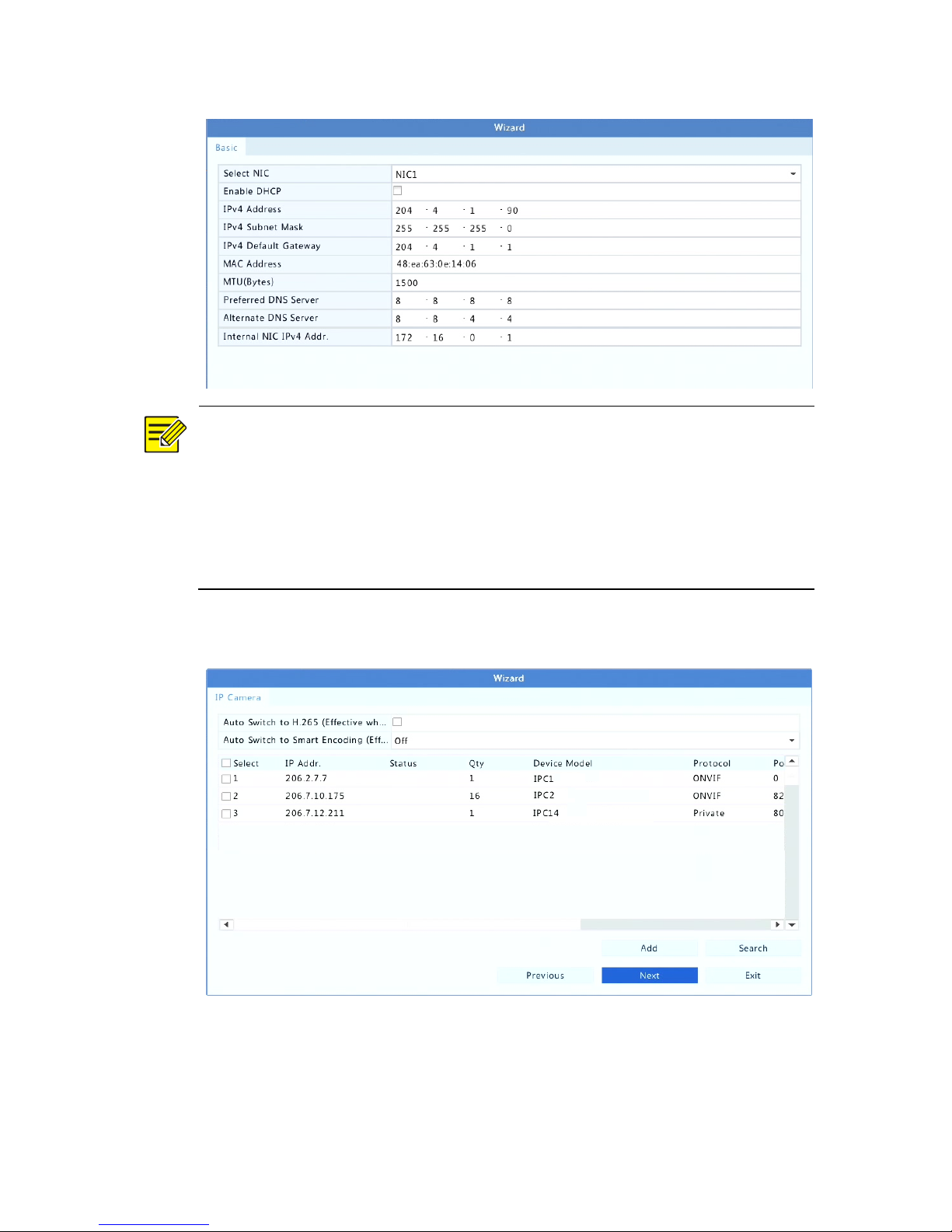

4. Set the IP address, subnet mask, and default gateway. Use the
default settings for other parameters unless modification is
necessary. Review the settings and then click Next.

8
NOTE!
⚫DHCP is enabled by default.
⚫If your NVR has more than one Network Interface Card (NIC), you
may configure the NICs and choose one for default route.
⚫An internal IPv4 address can be configured if your NVR has PoE
ports or switching ports.
5. Click Next.

9

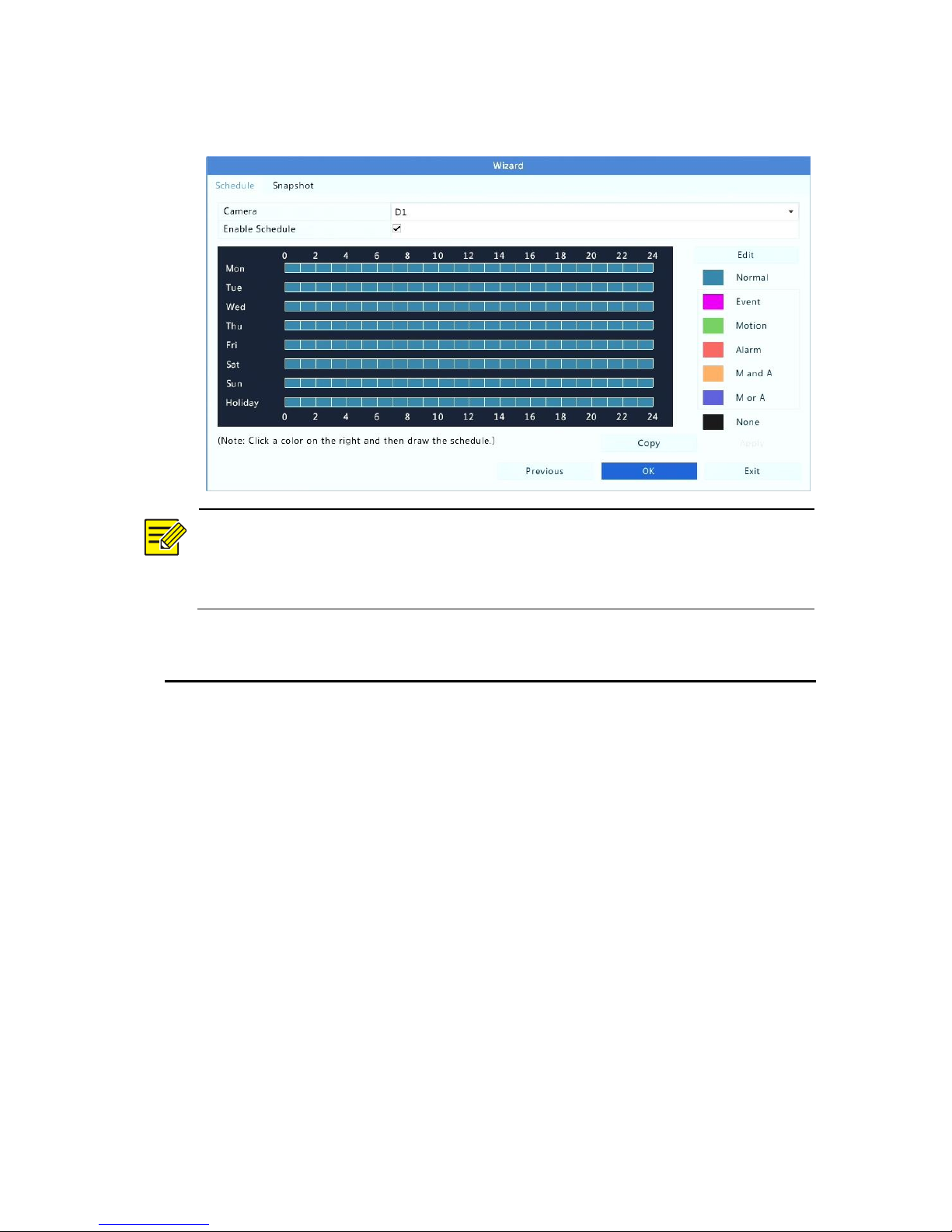

6. Set a recording/snapshot schedule and then click OK.
NOTE!
You may also edit wizard settings by clicking Wizard under
System > Basic.
3 Network and Phone Connection
General
Your recorder is pre-set to be DHCP which when plugged into a router
with internet connection it should automatically be assigned an IP

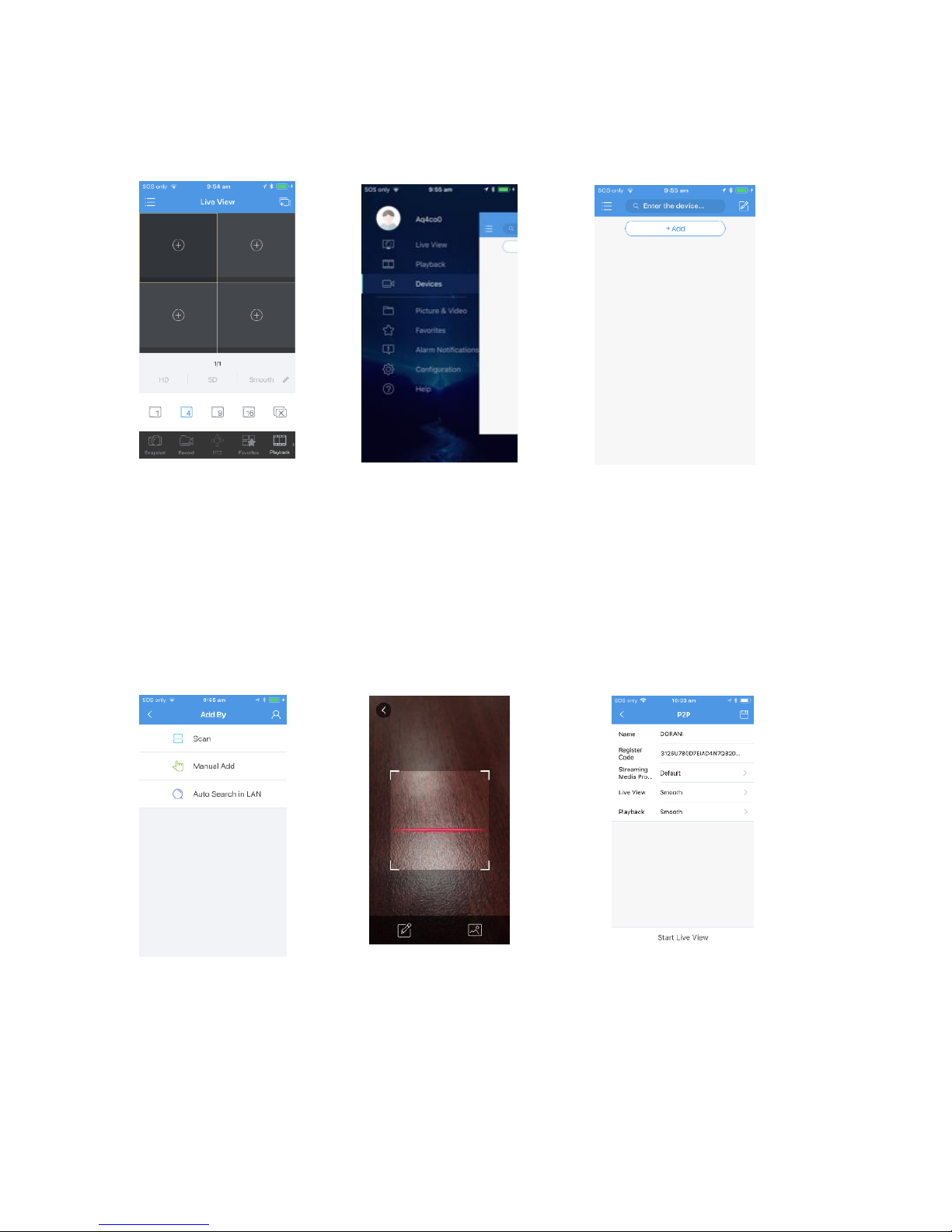

address. Once the recorder is ONLINE to the internet a P2P connection
can be made to the device for Mobile Phone device connection.
Please note: if there is any network connection problems, this could be a
modem configuration setting NOT a recorder setting. This would need to
have port forwarding set up for the connection to be made.

10
It is recommended that only IT professionals do this style of connections
as incorrectly changing settings in your modem can cause connection
issues for all devices.
Data Speed & Usage
When you are streaming the footage to your mobile device please be
aware that this is using the upload data of your internet service and
download data of your mobile device. If this data usage falls outside of
your allocated plan, charges could occur.
The system relies on the UPLOAD speed of the internet at the device
location and the DOWNLOAD speed at the mobile device. There is 3
different rates of camera quality; Smooth (low data) SD (medium data)
and HD (High data). Smooth is recommended for standard viewing; the
others are recommended when looking for more detailed picture
quality.
Viewing at higher picture quality at a low internet speed may cause
video feeds to load slower or jump in playback or live view.
Get the App
Option one: Search "Dorani IP Viewer" on Google Play or App Store.
Option two: Scan the QR code on the device or Below.

11
Getting Started
If this is the first time using the App, or you have not registered a P2P
account with the server. If you already have signed up an account,
please proceed to adding a device.
Before you proceed, please ensure you have a valid email address ready
and the ability to receive an emails from this account at time of set up.
This email will be the MAIN administrator of the account.
App Connection
If a successful connection is achieved the ‘cloud’light will appear on the front
panel of the NVR
Step 1 Step 2 Step 3
Enter a Password for your
Account
Press Sign Up on Home Page
Enter the Email address and
Press Verfiy – Then enter the
Verify code that is emailed to
the email address entered

12
Scan the QR Code from either
-Start Up Wizard
-Bottom of NVR
-NVR Menu
(Settings/Network/P2P)
Name the
Device
Press Start
Live View
Step 4 Step 5Step 6
Step 7 Step 8 Step 9
Select ‘+Add’
Select ‘ Menu’
A pop up window may appear asking
you if you would like to add a device.
Select ‘ADD’ and proceed to step 7
Select ‘Devices’
Select ‘ Scan’
DO NOT USE Auto Search – This
will only allow the device to
work on local WiFI

13
Subsequent Users
If you have additional users wishing to view on their own mobile device,
the same login can be used for subsequent users. The users only need to
login using the same username and password as the initial user.
If the user wishes to have their own login they can follow steps 1-3 ONLY
The first (ADMIN) user can then utilize the share function in their APP to
“share” the device with others.
De-Regsitering
If you no longer want to use the APP, or no longer wish to connect to
that device or want to register a new user as the ADMIN- you can either:
1) delete the device on the APP itself (this will delete it from the local
phone and ANY shared accounts)
2) Delete it in the NVR Menu – Settings – Network – P2P
Once there is no Devices connected to the recorder the ‘Cloud’ light will
disappear from the front panel of the NVR.
4 Live View
Live View Status
The following icons are used to indicate alarms, recording status, and
audio status in a live view window.

14
Table 4-1 Live View Window Icons
Icon
Description
Tampering alarm
Motion detection alarm
Recording
Two-way audio
Turn on audio
Normally, live video is displayed, but other situations are also possible.
No.
Description
1
The IP device is online, and live video is displayed.
2
The IP device is online, but the NVR has insufficient capacity to
decode streams from the IP device.
3
No permission to view live video from the IP device.
4
The IP device is offline.
5
No IP device is linked to the window.
12
4
3
5

15
Window Toolbar
Icon
Description
Available for PTZ cameras only. Click to display the PTZ
control window.
Set mount mode and display mode for fisheye camera.
This icon appears only for fisheye cameras.
Record live video in the window to the hard disk.
Clicking stops recording.
Click to play video recorded during the past 5 minutes and 30
seconds.
Zoom in on an area of interest.
Click to edit image settings.
Click to set OSD.
Click to take a snapshot. The window borders will flash white.
You may view and back up snapshots under Backup > Image.
Rest your mouse pointer on the icon to view bitrate info; click
this button to view the camera ID and IP address or to change
the username and password used to connect the camera.
Start two-way audio with the camera. Click to stop. The
sound volume is adjustable.
Note: Correct audio input and output connections are
required.
Click to turn on audio. Clicking turns off audio. The sound
volume is adjustable.
Note: When you turn on audio in the current window, audio
of the previous window is turned off.
Click to link the window to another IP device.
Exit

16
Screen Toolbar
Icon
Description
Click to access the main menu.
/ / /
Select the screen layout.
/
Previous or next screen.
/
Start or stop sequence.
Playback.
Click to open the USB Device window and perform
USB related operations. The window offers quick
access to multiple windows, and it pops up
automatically if a USB storage device is plugged in
when the NVR is restarting or when the preview
window is displayed.
This button is effective only when a USB storage
device is plugged in.
Rest the mouse pointer on this icon to view encoding
information including frame rate, bit rate, and
resolution; or click to view camera status.
Click to view device alarm status and camera status.
Rest the mouse pointer on it to view NIC card
information. Or click this icon to edit basic network
settings.
Rest the mouse pointer on it to view the date. Or click
this icon to edit time settings.
Available to certain NVR models.
Click to display the cloud service window. You may
scan the QR code and download an app to manage
your NVR.
Click to automatically hide the toolbar, or click to
lock.

17
Shortcut Menu
A shortcut menu as shown below appears when you right-click in a
window. Some menu items are described in Shortcut Menu Description.
Table 4-2 Shortcut Menu
Table 4-3 Shortcut Menu Description
Menu
Description
Menu
Access the main menu.
Most of operations described in this manual are performed
start from the main menu; for example, click Camera >
Camera (with Menu >omitted).
Corridor
Choose a corridor mode. Corridor mode can also be set in
the Default Layout drop-down list under System >
Preview.
To display images in corridor mode, the camera must be
installed correctly (rotated 90° clockwise or
counterclockwise), and then use the Image Rotation
parameter under Camera > Image to rotate images
accordingly.
Fisheye Mode
Set mount mode and display mode for fisheye camera.
PTZ Control
Display the PTZ control window for the first PTZ camera in
live view.
