SLON-DR
Mounting instructions
Contents
1 About this document 1
2 Safety 1
3 Product description 1
4 Mounting 2
5 Disassembly and disposal 4
1 About this document
1.1 Contents and purpose
This document describes the mounting of the SLON-
DR network adapter (SafeRoute® Local Operation
Network for DIN rail mounting).
1.2 Target group
This document is intended for assembling technicians
and specialists authorized for mounting by
dormakaba.
1.3 Other applicable documents
• Instructions for devices intended for networking
1.4 Symbols used
Components may be damaged by
electrostatic discharge. Ground
your own body before touching a
component!
2 Safety
2.1 Intended use
dormakaba control modules intended for networking
are networked in one building with the help of SLON-
DR network adapters.
2.2 Personnel qualification
Mounting may only be carried out by persons
authorized by dormakaba.
3 Product description
The SLON-DR network adapter enables the
integration of dormakaba control modules into LON
networks. The mounting takes place on a 35 mm DIN
rail in a housing. The housing must at least meet the
requirements of IP 30.
The LON application is loaded in the module ex works.
The control, parameterization and visualization for
the connected devices is carried out via TMS Soft®.
The assignment of network variables (binding) can
be linked to other sensors/actuators (including
external systems). Commissioning takes place with
a commissioning tool (e.g. OpenLNS Commissioning
Tool).
3.1 Parts included
106
92
65
Neuron-ID
xx xx xx xx xx xx

2SLON-DR 2018-11
WN 059729 45532
dormakaba Mounting instructions MountingMounting
3.2 Technical information
Supply voltage: 24VDC +/- 15 %
Power consumption: 18 mA
Ambient temperature: -10 °C to +55 °C
Rel. humidity: up to 93 %
(non condensing)
Protection class: Dependent on the
housing used
3.3 LED display
The LED lights up and flashes red. When the service
button is pressed, the LED lights up green.
LED on LED flashes LED off
Module is not configured/no
application loaded
Module is not configured/
application is loaded
Module is fully configured
4 Mounting
The mounting takes place by clipping onto a 35mm
DIN rail.
4.1 Requirements for mounting
Prerequisite for the mounting is compliance with the
LON specifications regarding transceivers, network
topology, network lengths, cable specifications, etc.
• The mounting location of the modules must be
selected so that the modules’ ambient temperature
range is maintained and any heat generated can be
dissipated.
• A minimum distance of 200 mm to high-energy
sources of interference, e.g. frequency converters, is
recommended.
• To avoid condensation, modules that have been
stored at very different temperatures must be
adjusted to the operating temperature before
commissioning.
• If tools for network management are already used
in the network, any potential conflicts must be
identified and excluded before connecting further
tools.
4.2 Assignment of terminals and button
Neuron-ID
xx xx xx xx xx xx
24V
GND
TxD1
TxD2
GND
TxD3 RxD3
GND
RxD2
RxD1
GND
24V
X1
Service
Status
LED
X302
Tx2
Rx2
GND
Tx3
Rx3
X300
Net B
Net A
Net B
Net A
Neuron-ID
xx xx xx xx xx xx

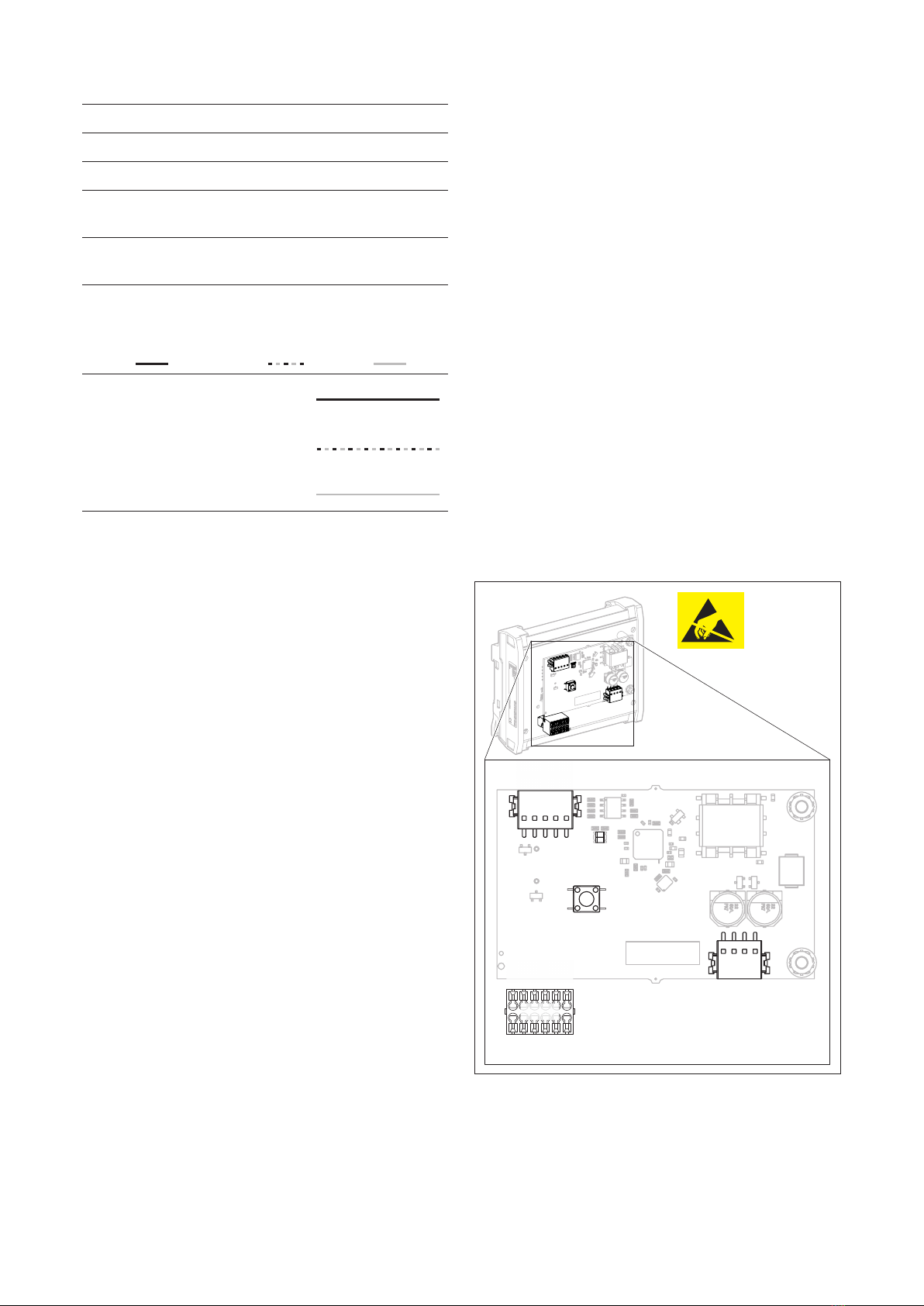

Fig. 1 View of the boards

3SLON-DR 2018-11WN 059729 45532
dormakaba Mounting instructions MountingMounting
X300 NETA
NETB
NETA
NETB
LON bus FTT
LON bus FTT
X302
(Do not connect anything to the plug connection. The signals are available
on the motherboard.)
X1 24V24V
GND GND
TxD2 RxD2
TxD1 RxD1
GNDGND
TxD3 RxD3
stabilized power supply, input
TxD1
RxD1
RS232 port, e.g. dormakaba control module 1 (max. 15m)
TxD2
RxD2 RS232 port, e.g. dormakaba control module 2 (max. 15m)
RxD3
TxD3 RS232 port, e.g. dormakaba control module 3 (max. 15m)
S1
Service button (Neuron ID is sent)
Neuron-ID
xx xx xx xx xx xx
X302
Tx2
Rx2
GND
Tx3
Rx3
X300
24V
GND
TxD1
TxD2
GND
TxD3 RxD3
GND
RxD2
RxD1
GND
24V
X1
Net B
Net A
Net B
Net A
24VDC
GND
TxD
RxD
dormakaba control
module
Connection to another
dormakaba control module
Connection to another
dormakaba control module
SLON-DR
SLON-DR connection example
LON
network
LON
network
