TP/TA EASY Safe
Mounting instructions
Contents
1 Information about this document 2
1.1 Contents and purpose 2
1.2 Target group 2
1.3 Other applicable documents 2
1.4 Document storage 2
1.5 Abbreviations 2
1.6 Symbols used 2
1.6.1 Hazard categories 2
1.6.2 More symbols 2
1.7 Customer service 2
2 Safety 2
2.1 Intended use 2
2.2 Reasonably foreseeable misuse 2
3 Product description 3
3.1 Technical data 4
3.1.1 Double-action doors 4
3.1.2 Single-action doors 4
3.1.2.1 Single-action door in all-glass system 4
3.1.2.2 Single-action door in door frame –
24/26 rebate depth 4
3.1.2.3 Single-action door in door frame –
27 mm to 40 mm rebate depth 4
3.2 Variants 5
3.2.1 Variants 5
3.2.1.1 Door rail for single-action doors 5
3.3 Components 5
3.3.1 Top pivot points 5
3.3.2 Bottom pivot points 5
3.3.3 250 mm lock module 5
3.4 Accessories 5
3.4.1 Floor door closer (FDC) 6
3.4.2 Floor bearing (01.106) 6
4 Mounting 7
4.1 Cleaning the glass surfaces 7
4.2 Mounting the door rail 7

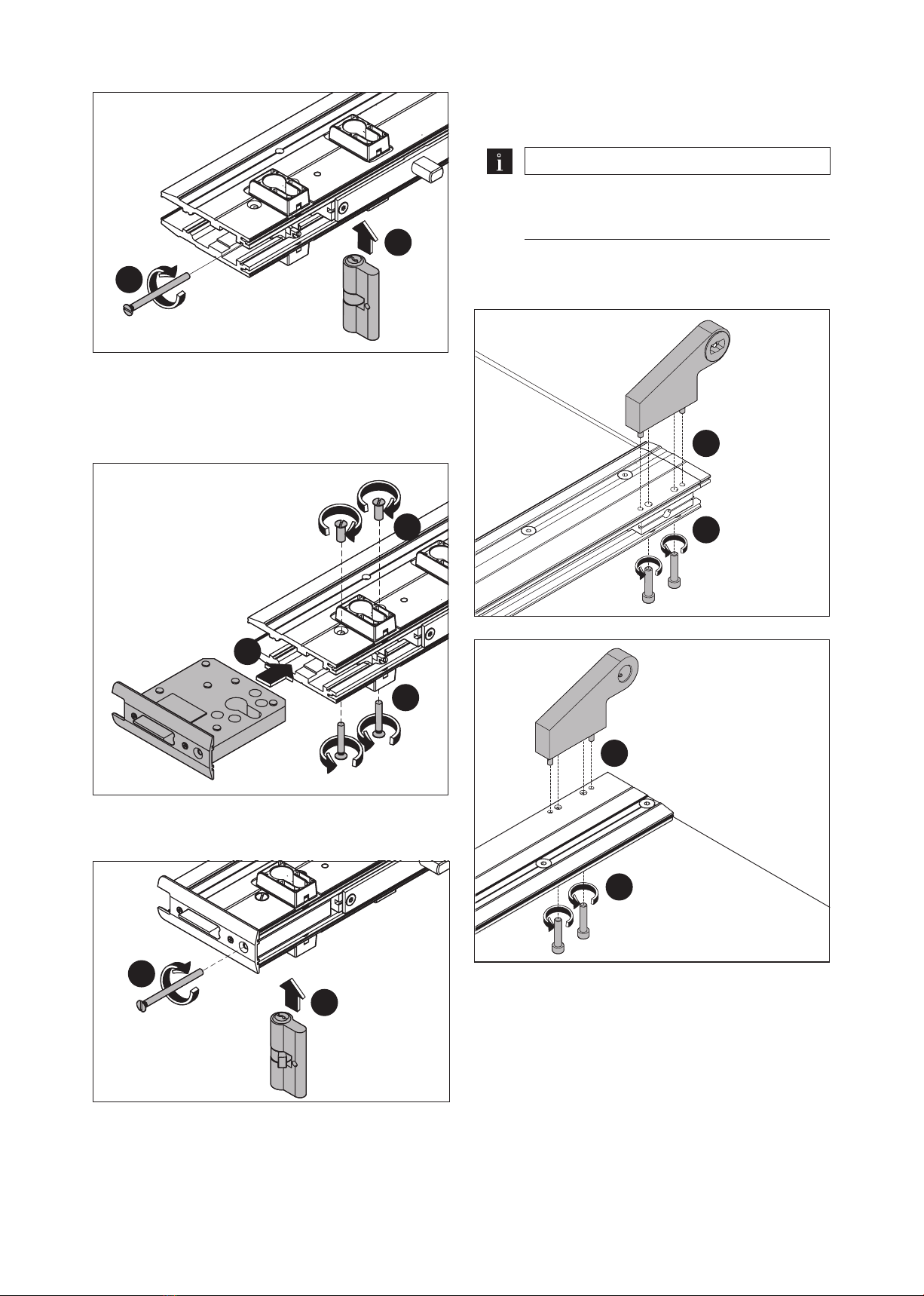

4.3 Mounting the lock module 8
4.3.1 Mounting the latch lock and
floor-locking deadlock 8
4.4 Mounting the door strap for single-action
doors (TA) 9

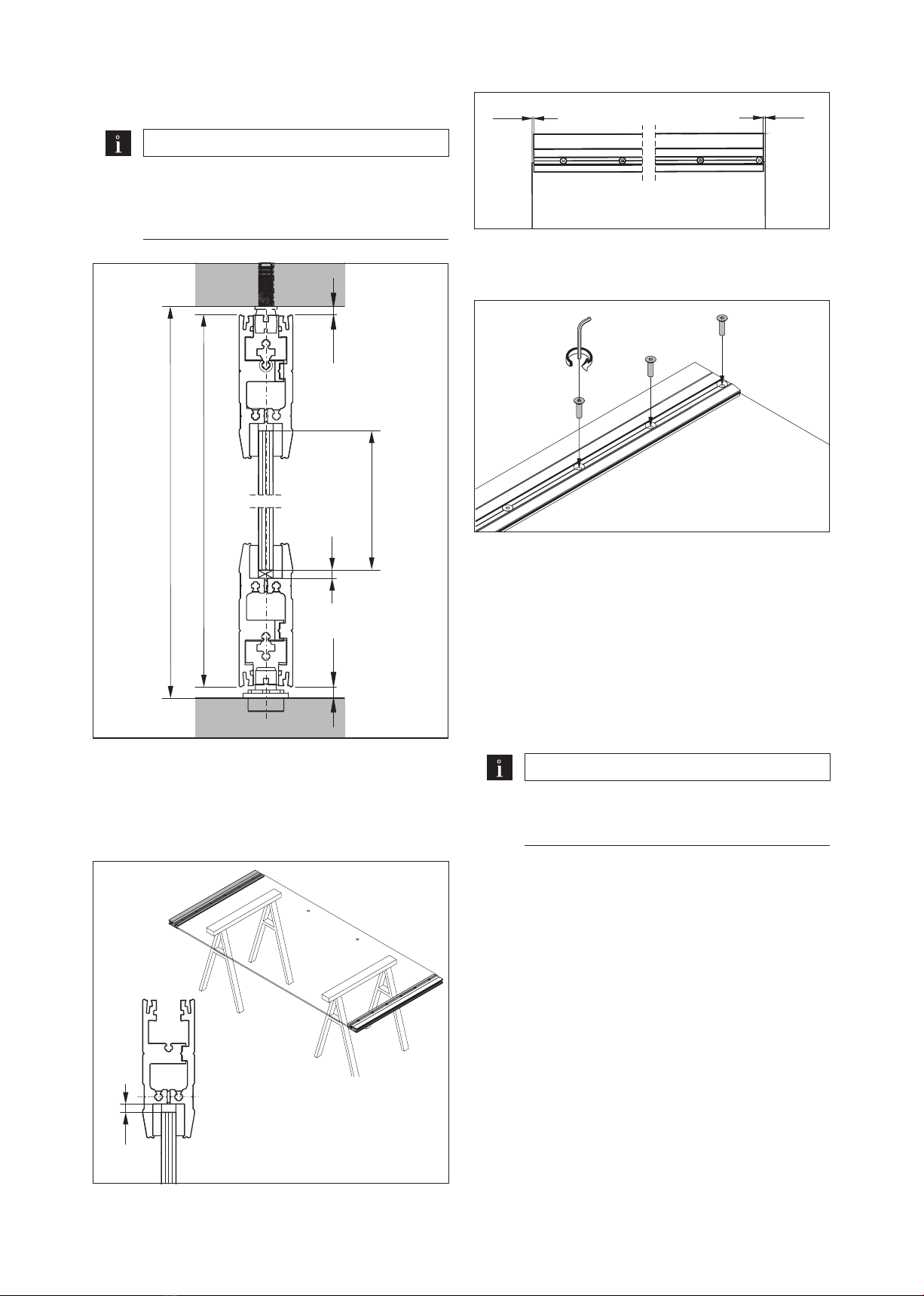

4.5 Mounting the panel 10
4.5.1 Mounting the panel with a top door
rail with bushing in insert and PT 21
on the ceiling 10
4.5.2 Mounting the panel with a top door
rail with bushing in insert and PT 24
or PT 25 on the ceiling 10
4.5.3 Mounting the panel with a top door
rail with two-part insert for RTS 11
4.5.4 Mounting the panel with a top door
rail with two-part insert for PT21,
PT24 or PT25 11
4.5.5 Mounting the panel with a top door
rail with top pivot bearing 12

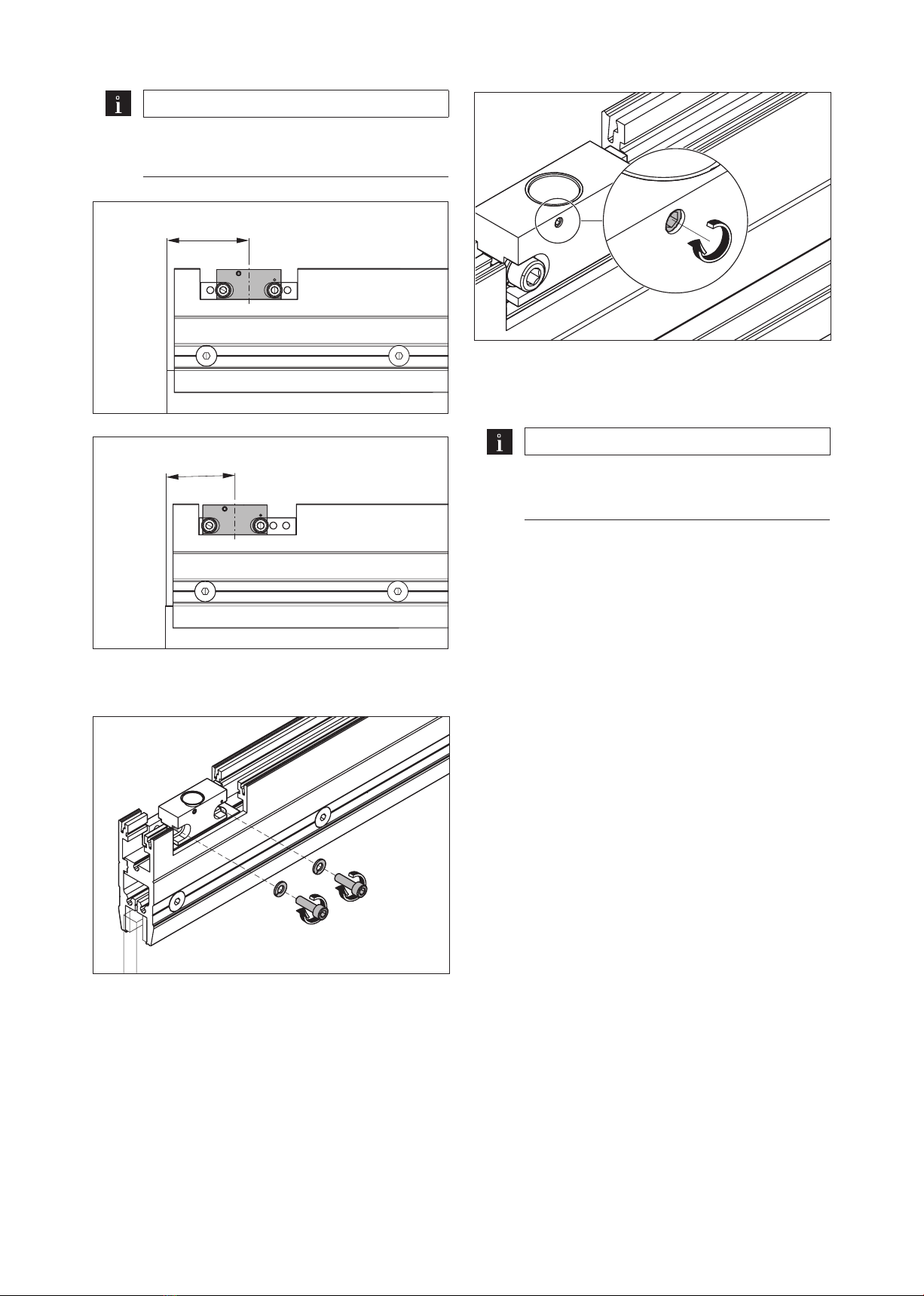

4.6 Aligning the panel 12
4.7 Gluing the top door rail to an LSG glass panel
(optional) 13
4.8 Mounting the side panel 13
4.9 Aligning the side panel 14

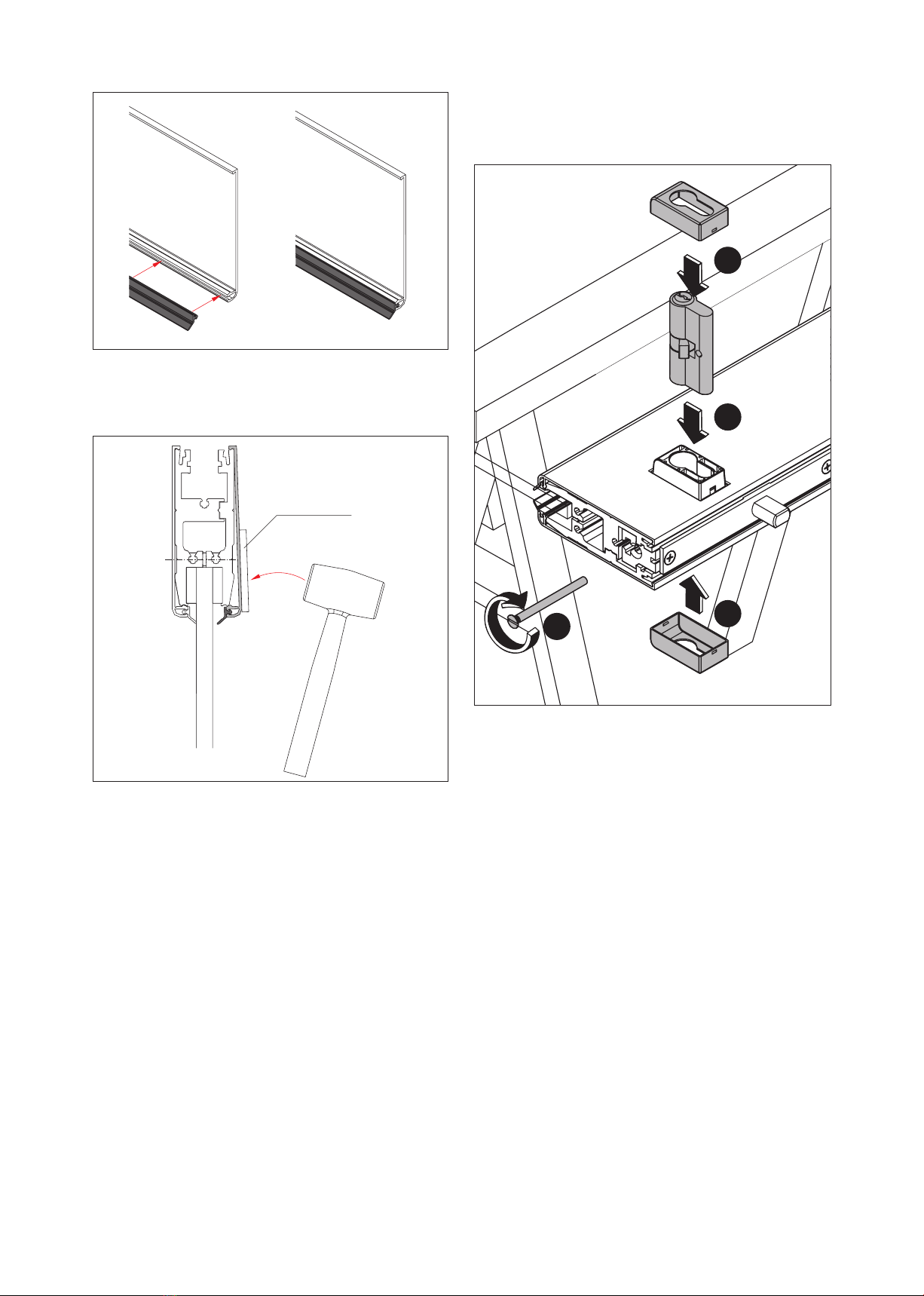

4.10 Mounting the cover profiles 14
4.11 Finalizing the lock module 15
4.12 Mounting the end covers 16
4.12.1 65 mm and 55 mm pivot point 16
4.12.2 20mm pivot point 16
4.12.3 Free glass edge 16
4.13 Mounting accessories 17
4.13.1 Mounting the strike plate bushing 17
4.13.2 Mounting the eccentric bushing 17
5 Maintenance 18
6 Cleaning 18
7 Troubleshooting 18
8 Disassembly and disposal 18
8.1 Removing the cover profiles 19
8.2 Removing a faulty electric strike release 19
8.3 Replacing the electric strike release 19

2TP/TA EASY Safe 2020-11
dormakaba mounting instructions Information about this document
WN 060028 45532
1 Information about this document
1.1 Contents and purpose
This manual describes how to mount the TP/
TA EASY Safe door rail and contains information
about settings, operation, maintenance, cleaning,
troubleshooting, disassembly and disposal. Before
commencing any work, personnel must have carefully
read through and understood these mounting
instructions. Complying with all safety instructions
and action steps provided in this manual is the basic
prerequisite for safe working. The figures serve to
provide a general understanding and may differ from
the model that is actually delivered.
1.2 Target group
The target group of these mounting instructions is
qualified personnel specially trained in glass fitting.
1.3 Other applicable documents
• Documentation for accessories and components
used
1.4 Document storage
This manual and the other applicable documents are
part of the product and must be kept accessible at all
times during the service life of the product. If they are
lost, the latest version of the mounting instructions
can be downloaded from www.dormakaba.com.
1.5 Abbreviations
TA Door rail for single-action door
TP Door rail for double-action door
DP Pivot point
PZ Profile cylinder
1.6 Symbols used
1.6.1 Hazard categories
WARNING
This signal word indicates a possible
hazardous situation which may result in
death or serious injury if not averted.
CAUTION
This signal word indicates a situation of
potential risk, which could lead to minor or
slight injury if not averted.
ATTENTION
This signal word indicates a possible
hazardous situation that could lead to
damage to property or the environment if
not averted.
1.6.2 More symbols
Note
This signal word indicates useful information
for efficient and trouble-free operation.
2.1. Step-by-step graphics
1 2 Position numbers of components
1.7 Customer service
Address
dormakaba Deutschland GmbH
DORMA Platz 1
58256 Ennepetal
Germany
T: [phone]
Website www.dormakaba.com
2 Safety
2.1 Intended use
• The product is only suitable for indoor use.
• The product may only be installed undamaged
and in accordance with the requirements of the
assembly location.
• The product may only be mounted by qualified
personnel who correspond to the defined target
group.
• Only toughened safety glass (TSG), heat-
strengthened glass (HSG) or laminated safety
glass (LSG) made of TSG may be installed with the
product.
2.2 Reasonably foreseeable misuse
• The product is not suitable for installation in the
vicinity of showers, saunas, swimming and salt-
water bath or rooms in which chemicals (e.g.
chlorine) are used.
• Single-action doors must not be slammed shut with
too much force.
• Do not install glass with conchoidal fractures and/
or damaged edges.

3
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Product description
WN 060028 45532
3 Product description
The TP/TA EASY Safe door rail can be mounted at the top and bottom of the glass door panel. Depending on
the variant, the door rail can be used for double-action doors, single-action doors and side panels.
Fig.1
1 2 3
7 3 7 7
3 3
Variants
(1) Door rail for double-action doors (TP)
(2) Door rail with door strap for single-action doors (TA)
(3) Door rail with bottom rail for side panel
The TP/TA EASY Safe door rail can also be combined with the UNIVERSAL and MUNDUS corner fittings. The
new version (MUNDUS) differs from the old version (UNIVERSAL) in terms of the gap to the wall.
Fig.2
63
63
2
2
7 3
FDC
63
63
5 (2)
5 (2)
7 3
FDC
Old door rail with
UNIVERSAL corner fitting
New door rail with
MUNDUS corner fitting
Door rails combined with corner fittings

4TP/TA EASY Safe 2020-11
dormakaba mounting instructions Product description
WN 060028 45532
3.1 Technical data
3.1.1 Double-action doors
Bottom door rail standard Bottom door rail in special version with
bottom steel door strap
UNIVERSAL corner
fittings 110 kg 1200mm 3000 mm 120 kg 1200mm 3500 mm
MUNDUS corner fittings
MUNDUS Comfort 150 kg 1200mm 3000 mm 150kg* 1200 mm* 3000 mm*
MUNDUS Premium 150 kg 1200mm 3000 mm 200kg
170kg*
1300 mm
1200 mm*
3800 mm
3500 mm*
UNIVERSAL corner
fittings
anti-pinch**
100kg 1100 mm 3000 mm
Door rail standard 120 kg 1200mm 3500 mm 200kg***
150kg*
1400 mm***
1200 mm*
4000 mm
3500 mm*
Door rail anti-pinch 150 kg 1200mm 3500 mm
* for high-usage doors
** with 20 mm pivot point
*** only for double-action doors with top and bottom door rail
3.1.2 Single-action doors
3.1.2.1 Single-action door in all-glass system
EA corner fittings and
bottom door rail
Top door rail and bottom
door rail
Max. door height 3000mm 3500mm
Max. door width 1200mm 1200mm
Max. door weight 100kg 100kg
3.1.2.2 Single-action door in door frame – 24/26 rebate depth
EA corner fittings and
bottom door rail
Top door rail and bottom
door rail
Max. door height 3000mm 3500mm
Max. door width 1100mm 1100mm
Max. door weight 90kg 90kg
3.1.2.3 Single-action door in door frame – 27 mm to 40 mm rebate depth
EA corner fittings and
bottom door rail
Top door rail and bottom
door rail
Max. door height 3000mm 3500mm
Max. door width 1000mm 1000mm
Max. door weight 80kg 80kg

5
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Product description
WN 060028 45532
3.2 Variants
• 1 and 2-panel
• in all-glass system, without rebate
• in door frame with/without rebate
• with free glass edge
3.2.1 Variants
• Door rail for double-action doors
• Door rail for single-action doors
3.2.1.1 Door rail for single-action doors
Single-action doors always have a stop:
• in the form of a door frame
• in the form of a suitable end cover
3.3 Components
Depending on the order, the top and bottom pivot
points are pre-mounted in the door rail.
3.3.1 Top pivot points
• Top frame center ES
• Top insert ES
• Top insert ES for RTS frame door closer
• Top insert, two part ES, special version
3.3.2 Bottom pivot points
• Floor bearing ES for damp environments without
floor inlet with insert for double-action door rail
• Bottom frame center ES for floor bearing
• Bottom steel door strap ES with spindle for FDC
• Bottom steel door strap ES, suitable for flat
tapered spindle for FDC and floor bearing
• Bottom insert for round or flat tapered spindle
3.3.3 250 mm lock module
• Side-locking deadlock, PZ
• Floor-locking deadlock, PZ and electric strike release
• Latch lock, PZ
• Electric strike release
• Strike box
• Latch lock and floor-locking deadlock, PZ
• Floor-locking deadlock, PZ with micro switch
3.4 Accessories
Mount the accessories in accordance with the
enclosed manuals
.
Ceiling connection Art.:
PT 25 pivot with plug 01.115
PT 24 pivot with fixing plate 6mm 01.116
PT 21 frame portion top center 01.117
PT 21 with cover 01.118
PT 24 pivot with fixing plate 3mm 01.123
Top pivot bearing 01.129
Top pivot bearing 01.130
Top pivot bearing steel fixing plate 01.131
Top pivot bearing aluminum fixing plate 01.132
Floor connection Art.:
Floor bearing 01.106
FDC 84 (80) -75V
Floor bearing with flat-tapered spindle 04.602
04.603

6TP/TA EASY Safe 2020-11
dormakaba mounting instructions Product description
WN 060028 45532

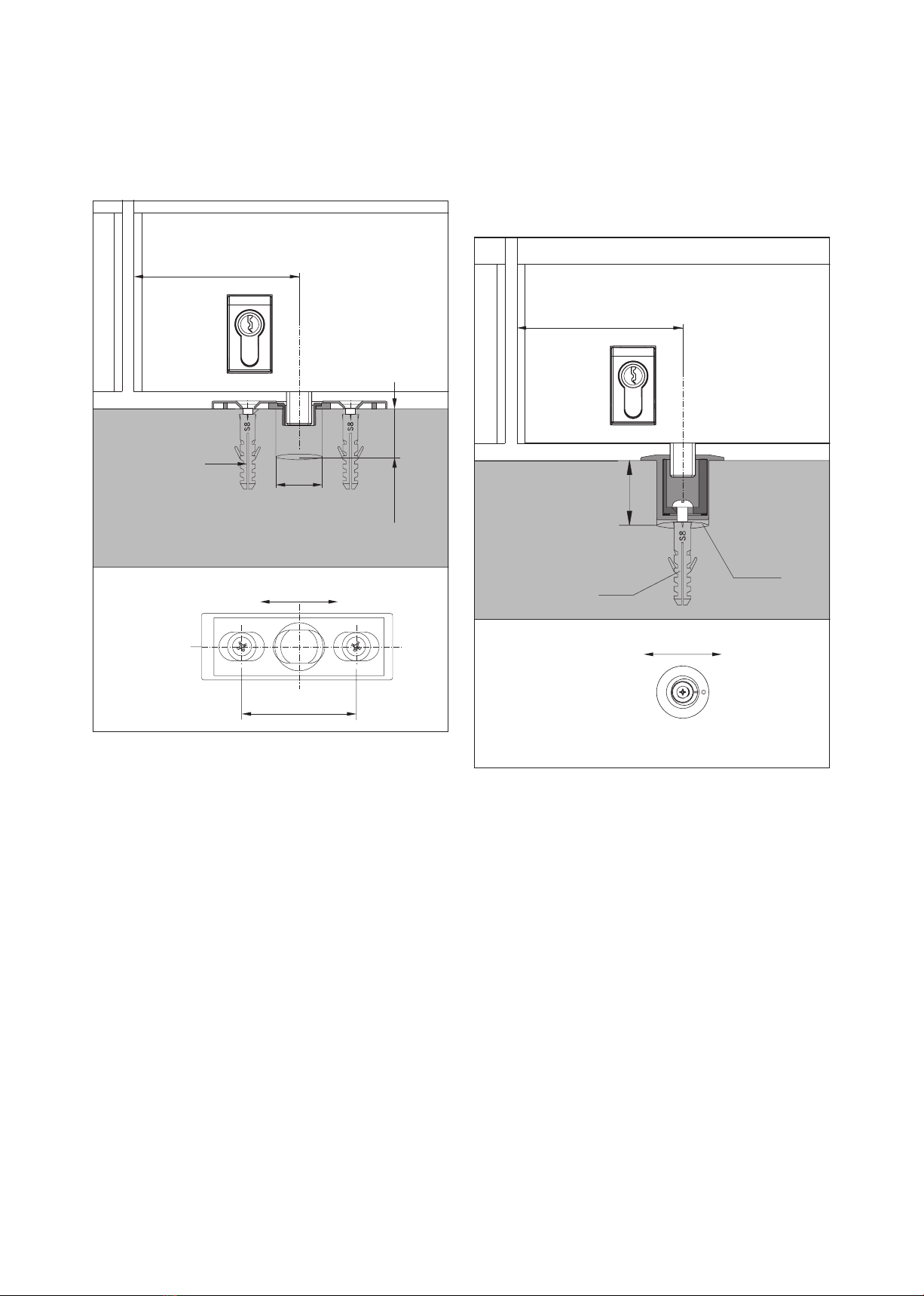

3.4.1 Floor door closer (FDC)
A recess which is covered with a stainless steel cover plate must be provided in the floor for the FDC. The FDC
can only be combined with the bottom steel door strap ES.
Fig.3
7
FDC 75 = 78
FDC 80 = 78
FDC 84 = 108
FDC 75 = 291
FDC 80 = 341
FDC 84 = 306
FDC 75 = 51-57
FDC 80 = 51-57
FDC 84 = 51-58
FDC 75 = 50 FDC 80 = 60 FDC 84 = 40
65/55
(20)
5
Dimensions of the FDC recess
1. Remove the spindle from the FDC.
3.4.2 Floor bearing (01.106)
Fig.4
65/55
(20)
5
7
Dimensions with floor bearing

7
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
4 Mounting
CAUTION
Risk of injury from sharp edges.
Incorrect handling during mounting can
cause the glass
to break, resulting in injury.
• Read and follow the safety instructions in
this manual carefully.
• Wear personal protective equipment.
4.1 Cleaning the glass surfaces
CAUTION
Risk of injury from broken glass
Incorrect cleaning of the glass surfaces
can prevent the door hinges from gripping
the
glass surface, causing the glass to break.
• Clean glass surfaces around the clamping
plates carefully.
• Use commercial glass cleaner.
• Do not use thinners.
1. Clean glass surfaces around the clamping plates
carefully.
2. Wipe glass surfaces dry.
4.2 Mounting the door rail
CAUTION
Risk of injury from broken glass during
mounting.
Incorrect handling during mounting can
cause the glass
to break, resulting in injury.
• Secure the installation site.
• 2 persons required to carry out
installation.
• Wear protective clothing.
• Use glass suction cups.
• Place the glass door panel on wooden
blocks and ensure that it cannot fall.
CAUTION
Risk of crushing during mounting of the
glass door panel.
During mounting, there is a
risk of crushing injuries to the fingers by the
glass edges.
• Wear protective gloves.
• Use glass suction cups.
Note
When a lock module is configured, the door
rail has a pin, and the door rail and lock
module are pinned.
1. Slide the bottom door rail onto the glass with
a distance of 5 mm. When a lock module is
configured, the pin must point toward the glass
door panel.
Fig.5
5
Sliding the bottom door rail on
2. Align the bottom door rail with a distance of 4.5
mm.
Fig.6
4.54.5
Aligning the bottom door rail
3. In the case of a free glass edge, align the bottom
door rail with a distance of 15 mm.
Fig.7
4.515
Aligning the door rail in the case of free glass edge

8TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
4. Tighten all screws on the front and back so that
the bottom door rail clamps firmly to the glass.
Fig.8
5mm
15Nm
Tightening the door rail screws
4.3 Mounting the lock module
Note
Depending on the configuration, the lock
module can be mounted on the right or left.
The figure shows it mounted on the left.
1. Slide the lock module onto the glass.
2. Pin the lock module to the door rail.
Fig.9 Pinning the lock module
3. Tighten the screws so that the lock module
clamps firmly to the glass, tightening torque of 15
Nm.

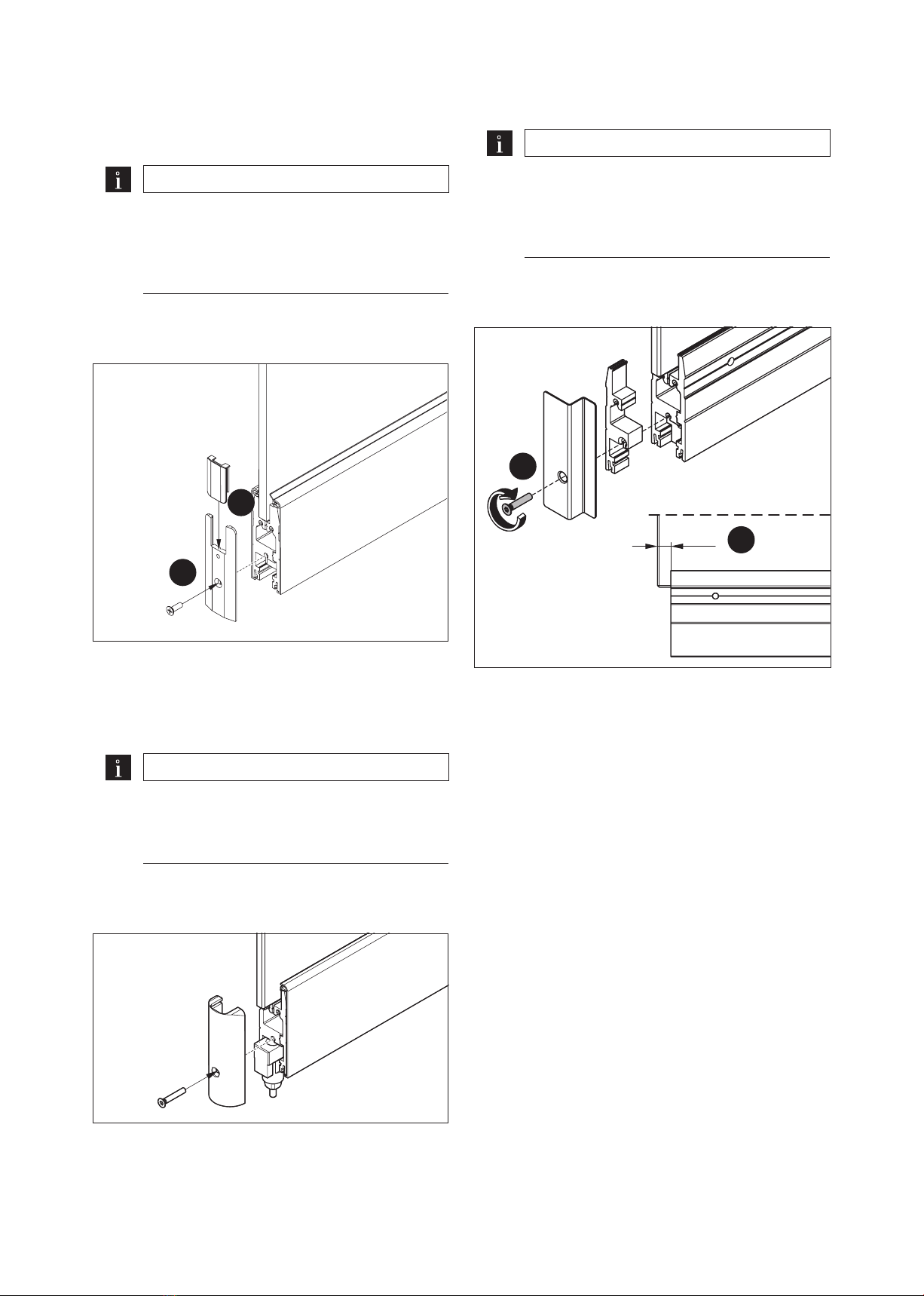

4. Attach the lower roses to the lock module
(Fig.10/1) and hook them in downwards
(Fig.10/2).
Fig.10
1.
2.
1. 2.
Attaching and hooking in the lower roses
4.3.1 Mounting the latch lock and floor-
locking deadlock
Note
To mount the locking cylinder for the
deadlock, the latch lock must be removed.
1. Loosen the screws and sleeves so the latch lock
can be removed.
Fig.11
1.
1.
2.
Loosening the screws and sleeves
2. Insert the locking cylinder. In doing so, ensure that
the cylinder driver fits in the opening (Fig.12/1).

9
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
Fig.12
1.
2.
Inserting the locking cylinder and screwing into place
3. Screw the locking cylinder with the screw from the
front end (Fig.12/2).
4. Insert the latch lock in the door rail (Fig.13/1) and
secure with the screws and sleeves (Fig.13/2).
Fig.13
2.
2.
1.
Re-mounting the latch lock
5. Insert the locking cylinder. In doing so, ensure that
the cylinder driver fits in the opening (Fig.14/1).
Fig.14
1.
2.
Inserting the locking cylinder and screwing into place
6. Screw the locking cylinder with the screw from the
front end (Fig.14/2).
4.4 Mounting the door strap for single-
action doors (TA)
Note
The inserts for securing the door straps are
pre-mounted in the door rail.
1. Place the door strap with the pins on the door rail
(Fig.15/1 and Fig.16/1).
Fig.15
1.
2.
6mm
15Nm
Mounting the door strap on the bottom door rail
Fig.16
1.
2.
6mm
15Nm
Mounting the door strap on the top door rail
2. Secure the door strap from the other side with
the 2 screws through the insert in the door rail
(Fig.15/2 und Fig.16/2). Note the tightening
torque.

10 TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
4.5 Mounting the panel
Note
If a PT21, PT24 or PT25 is mounted on the
ceiling, an insert with bushing or a two-part
insert is pre-mounted in the top door rail.
Fig.17
9
Glass height =
panel height - 160
5
Panel height - 4
Panel height + 10
5
Panel clearance without cover profile
4.5.1 Mounting the panel with a top door
rail with bushing in insert and PT 21
on the ceiling
1. Slide the top door rail onto the glass.
Fig.18
5
Sliding the top door rail on
2. Align the top door rail with a distance of 4.5 mm.
Fig.19
4.54.5
Aligning the top door rail
3. Tighten all screws on the front and back so that
the top door rail clamps firmly to the glass.
Fig.20
5mm
15Nm
Tightening the door rail screws
4. 2 people are needed to place the panel turned 90°
down on the floor bearing/the FDC.
5. Swing the panel in and position below the PT 21.
6. Turn the PT 21 pivot in the insert of the top door
rail.
4.5.2 Mounting the panel with a top door
rail with bushing in insert and PT 24
or PT 25 on the ceiling
Note
Mounting must only be carried out by 2
people.
1. Unscrew the top door rail. The insert clamps in the
half with the bar.
2. Place and mount the panel at the bottom on the
floor bearing/the FDC.
3. In doing so, hold the glass pane in a slightly
inclined position and secure.
4. Place the 1st half of the top door rail with the
insert on the pivot on the ceiling.
5. Swivel the glass pane on the half of the door rail
and hold in position.
6. Screw the 2nd half of the door rail on so that the
door rail can still be moved slightly.
7. Align the top door rail with a distance of 4.5mm
(Fig.19).
8. Tighten the screws so that the top door rail
clamps firmly on the glass (Fig.20).

11
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
4.5.3 Mounting the panel with a top door
rail with two-part insert for RTS
1. Slide the top door rail onto the glass. The screw
heads must be on the inside.
2. Align the top door rail with a distance of 4.5mm
(Fig.19).
3. Tighten the screws so that the top door rail
clamps firmly on the glass (Fig.20).
4. Place the panel at the bottom on the floor
bearing and swing in.
5. In doing so, insert the pin in the top insert in the
RTS spindle.
Fig.21 Inserting the pin
6. Secure the panel in the position with the screw-on
plate on the RTS. Tighten the screws first from
one side, then from the other.
Fig.22
4mm
12Nm
Securing the screw-on plate
4.5.4 Mounting the panel with a top door
rail with two-part insert for PT21,
PT24 or PT25
1. Slide the top door rail onto the glass. The screw
heads must be on the inside.
2. Align the top door rail with a distance of 4.5mm
(Fig.19).
3. Tighten the screws so that the top door rail
clamps firmly on the glass (Fig.20).
4. Place the panel at the bottom on the floor
bearing and swing in.
5. Attach the insert to the pivot (PT21, PT24 or
PT25).
Fig.23 Attaching the insert
6. Place the panel at the bottom on the floor
bearing and swing in.
Fig.24 Swinging the panel in

12 TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
Note
The insert’s screw points depend on the
pivot point (Fig.25 or Fig.26).
Fig.25
65
65 mm pivot point
Fig.26
55
55mm pivot point
7. Secure the insert in the door rail according to the
pivot point.
Fig.27
5mm
12Nm
Securing the insert
8. Screw in the grub screw for fall protection all the
way.
Fig.28 Screwing the grub screw in
4.5.5 Mounting the panel with a top door
rail with top pivot bearing
Note
Mounting must only be carried out by 2
people.
1. Unscrew the top door rail. The insert clamps in the
half with the bar.
2. Place and mount the panel at the bottom on the
floor bearing/the FDC.
3. In doing so, hold the glass pane in a slightly
inclined position and secure.
4. Insert the 1st half of the top door rail with the
pivot in the bushing in the ceiling.
5. Swivel the glass pane on the half of the door rail
and hold in position.
6. Screw the 2nd half of the door rail on so that the
door rail can still be moved slightly.
7. Align the top door rail with a distance of 4.5mm
(Fig.19).
8. Tighten the screws so that the top door rail
clamps firmly on the glass (Fig.20).
4.6 Aligning the panel
1. Note the panel clearance (Fig.17).
2. Unscrew the screws for the top door rail.
3. Align the top door rail so that the clearances
match and the door rail has an even gap to the
ceiling.
4. Tighten all screws on the front and back with 15
Nm so that the top door rail clamps firmly to the
glass again.

13
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
4.7 Gluing the top door rail to an LSG
glass panel (optional)
The clamping of the top door rail is particularly
important because of the supporting function. If
vibrations are expected on the item, the glass panel
should also be glued in the top door rail area in
addition to the clamping.
The chambers in the gasket and the drill holes in the
door rail are already present. They are on the right
and left-hand on the face on the inside of the panel.
Requirements
• The top door rail is mounted on the glass panel.
• The glass panel is mounted.
1. Inject the adhesive through the fill hole.
Fig.29
Fill hole
Injecting the adhesive
2. Stop the injection as soon as the adhesive
emerges from the outlet channel. The adhesive
chamber is completely full.
Fig.30
Outlet channel for
checking the fill level
Adhesive chamber
Completely fill the adhesive chamber
3. Leave the adhesive to cure.
The curing time is 15 minutes at a room
temperature of approx. 23°C.
4. After 15 minutes, carefully remove excess adhesive
that has leaked out from the side.
5. After a further 45 minutes, the door can be
carefully used.
Note
• The adhesive fully cures after 24 hours and
the unit can then be used normally.
• The 24-hour period starts 1 hour after
injecting the adhesive.
• Do not expose the door to any sudden
loads until the 24-hour period has expired.
4.8 Mounting the side panel
Note
The fixing materials are not included in
delivery. The fixing materials must be
suitable for the fabric of the building.
Fig.31
725 25
Glass height =
panel height - 160
3
Panel height
Panel height + 10
Clearances for the side panel
1. If necessary, shorten the bottom rail to the
required length.

14 TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532

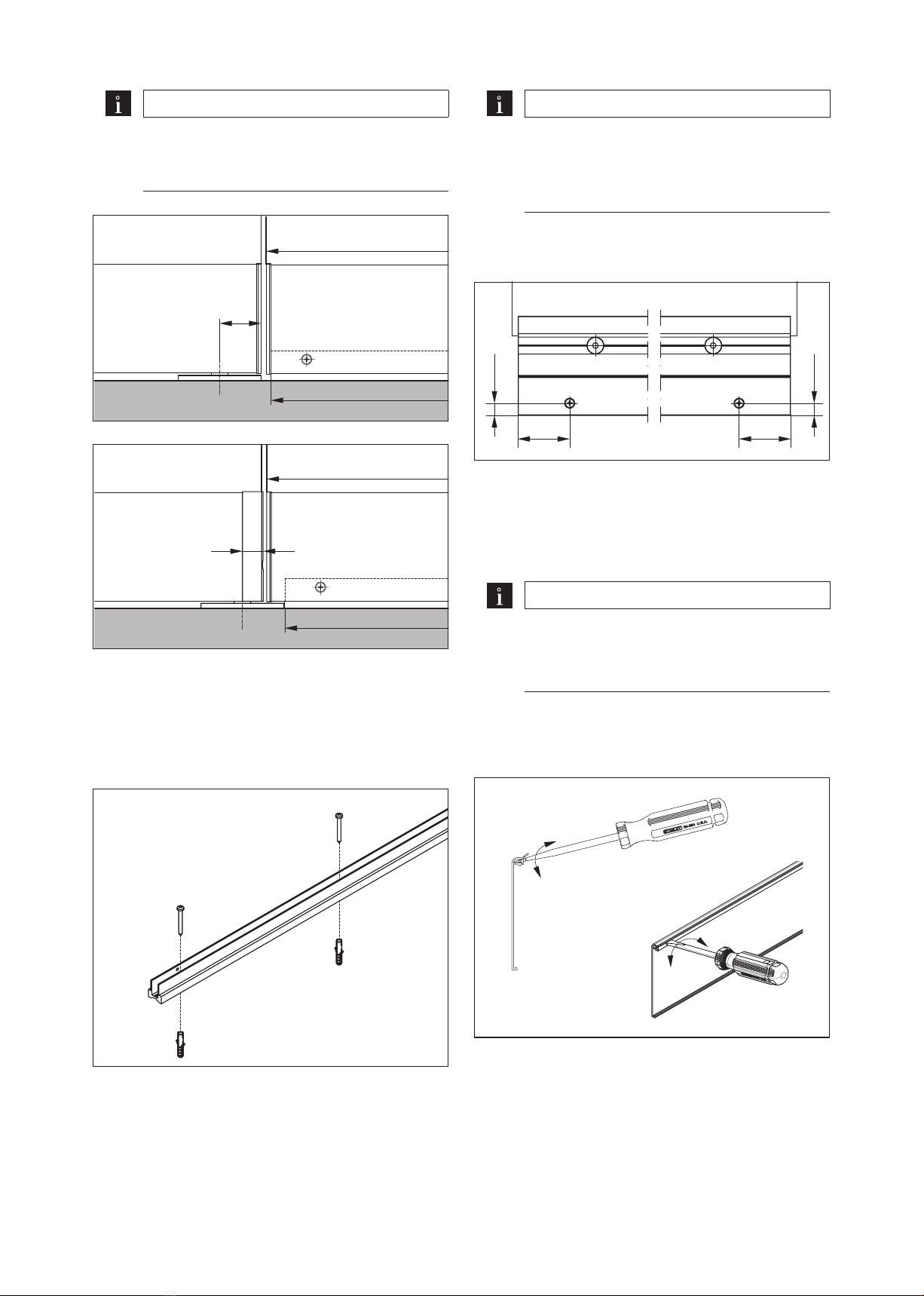

Note
65/55mm DP = panel width - 4.5mm
20mm DP = panel width - 18mm
Fig.32
Panel width
Panel width - 4.5
DP
65/55mm DP
Fig.33
Panel width
Panel width - 18
DP
20mm DP
2. Align the bottom rail according to the unit
drawing on the floor and on the ceiling.
3. Mark the drill holes and drill the holes.
4. Use suitable screws and dowels to secure the
bottom rail.
Fig.34 Mounting the bottom rail
5. Laterally slide the side panel onto the bottom rail
at the top and bottom.
6. Align the side panel with a distance of 5 mm to
the wall.
Note
The screws for securing the side panel are
not included.
The screw heads must end flush with the
door rail.
7. Drill and screw the door rail and the bottom rail
at the bottom on the left and right.
Fig.35
50 50
12 12
Screwing the door rail
4.9 Aligning the side panel
See Chapter 4.6
4.10 Mounting the cover profiles
Note
The recesses for the door strap or the lock
module, for example, are already provided in
the cover profiles.
1. To ensure the cover profile fits firmly, bend the clip
cam at 3-4 points along the cover profile’s length
if necessary.
Fig.36 Bending the clips cam
2. Insert a slotted screwdriver between the rubber
seal and the cover profile and turn it.
‣ The clip cam is bent upwards.
3. Insert the rubber seal in the cover profile across
the entire length.

15
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
Fig.37 Inserting the rubber seal
4. Place the cover profile at the top on the door
rail and carefully clip it onto the door rail with a
gasket and a hammer.
Fig.38
Gasket
Clipping on the cover profile
4.11 Finalizing the lock module
1. Insert the locking cylinder. In doing so, ensure that
the cylinder driver fits in the opening (Fig.39/1).
Fig.39
1.
2.
3.
3.
Finalizing the lock module
2. Screw the locking cylinder with the screw from the
front end (Fig.39/2).
3. Press the end caps onto the roses (Fig.39/3).

16 TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
4.12 Mounting the end covers
4.12.1 65 mm and 55 mm pivot point
Note
If the new door rail is combined with
UNIVERSAL corner fittings, the black plastic
cap of the end cover must be left out, so
that the gap of 2 mm can be achieved.
1. Attach the black plastic cap to the end cover
(Fig.40/1).
Fig.40
1.
2.
Mounting the end cover
2. Use the screw to secure the entire end cover to
the door rail (Fig.40/2).
4.12.2 20mm pivot point
Note
In the case of a 20 mm pivot point, the large
glass bite is covered by the semi-circular end
cover. The end cover is resting on the glass.
1. Use the screw to secure the end cover to the door
rail. The end cover is resting on the glass.
Fig.41 Mounting the semi-circular end cover
2. If the end cover is not resting on the glass, then if
necessary align the door rail with the end cover.
4.12.3 Free glass edge
Note
In the case of a free glass edge, the large
glass bite of 15 mm is covered with an
adapter piece and an angled end cover. The
end cover is resting on the glass.
1. Check the glass bite (Fig.42/1) and re-adjust if
necessary.
Fig.42
15 1.
2.
Mounting the adapter piece and end cover
2. Use the screw to screw the adapter piece and the
angled end cover on the door rail (Fig.42/2).

17
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Mounting
WN 060028 45532
4.13 Mounting accessories
4.13.1 Mounting the strike plate bushing
1. Drill the hole of diameter 25 mm to at least 15
mm deep.
Fig.43
Dia. 8
Dia.
25
min. 15
99
±4
55
Mounting the strike plate bushing
2. Drill holes of dia. 8 mm in diameter for the
dowels.
3. Secure the strike plate bushing with suitable
screws and dowels.
4.13.2 Mounting the eccentric bushing
Adjustable eccentric bushings are used as the
standard version with a plastic inner sleeve.
Optionally, an adjustable eccentric bushing is
available where the plastic insert is glued into the
floor (Art.: 84027700099).
1. Drill drill holes of dia. 8 mm for the dowels.
Fig.44
Dia. 25
Dia. 8
±2.5
min. 30
99
Mounting the eccentric bushing
2. Centrally to that, drill the hole of diameter 25 mm
to at least 30 mm deep.
3. Secure the eccentric bushing with a suitable screw
and suitable dowel.

18 TP/TA EASY Safe 2020-11
dormakaba mounting instructions Maintenance
WN 060028 45532
5 Maintenance
We recommend that the fittings’ function be checked
by specialists every 500000 movements.
• Check the unit regularly for proper positioning,
smooth running and correct adjustment.
• High-usage door units in particular require
inspection by specialized companies or installation
firms.
• Replace damaged glass elements immediately.
6 Cleaning
Clean the surfaces of the fittings according to their
type.
• Only use suitable non-abrasive cleaning substances
for metallic surfaces (anodized finishes, stainless
steel).
• Only use suitable, solvent-free cleaning substances
for coated surfaces (powdered, painted, etc).
Keep all strike plate bushings and eccentric bushings
in the floor for the lock module clean and free of dirt.
7 Troubleshooting
If damage or impaired function occurs to the unit,
e.g. door catching on the floor,
conchoidal fractures of glass, the unit should be
checked by
qualified personnel and any faulty
components replaced.
8 Disassembly and disposal
ATTENTION
Danger to the environment through
improper disposal!
Improper disposal can present a hazard
to the environment.
• When in doubt, gather information about
environmentally friendly disposal from
the local community authorities or special
disposal companies.
Disassembly is carried out in the reverse order of
mounting and must be carried out by qualified
personnel.
The product must be disposed of in an
environmentally friendly manner.
Electrotechnical parts and batteries must not
be disposed of as domestic waste. Dispose of
electrotechnical parts and batteries in the designated
acceptance and collection points. Refer to the
corresponding statutory regulations for your country.

19
TP/TA EASY Safe 2020-11
dormakaba mounting instructions Disassembly and disposal
WN 060028 45532
8.1 Removing the cover profiles
ATTENTION
Risk of property damage due to incorrect
removal.
Incorrect removal can
result in property damage.
• Do not use screwdrivers or similar!
1. Remove the cover profile from the door rail with a
glazing shovel (item no.: 81640200099)
Fig.45 Removing the cover profile
8.2 Removing a faulty electric strike
release
WARNING
Danger to life through electric current.
Work on electrical systems must only be
carried out by qualified electricians.
• Before starting work on electrical systems
and equipment, establish a voltage-
free state and maintain this state while
carrying out the work.
1. Unscrew the screws and pull the electric strike
release out of the lock module (Fig.46).
Fig.46
2.
1.
Pulling the electric strike release out of the lock module
2. Disconnect the cable from the electric strike
release.
3. Unscrew the screws and disassemble the electric
strike release (Fig.47).
Fig.47 Disassembling the electric strike release
8.3 Replacing the electric strike release
1. Follow the enclosed manual for the new electric
strike release.
2. Mount the new electric strike release in reverse
order (“8.2 Removing a faulty electric strike
release”).

dormakaba Deutschland GmbH
DORMA Platz 1 58256 Ennepetal Germany T: [phone] F: [phone] www.dormakaba.com
Translation of the original document, subject to change without notice
