The DOUZE LT
and its components
Before we begin, here are a few useful terms to help you get to know
the DOUZE LT. The following annotated diagrams show its different
components.
EN

ENEN
B
B
E
A
A
C
F
11
20
17
15
19
18
13
12
4
6
5
2
7
8
21
1
3
10
99
14
22
23
16
D
G

ENEN
BIKE COMPONENTS
1STEM
2HANDLEBAR
3FRONT LIGHT
4FRONT MUDGUARD
5FORK
6FRONT TYRE
7FRONT BRAKE DISC
8PEDAL
9MOTOR
10 CRANKSET
11 BATTERY
12 KICKSTAND
13 CHAIN
14 DERAILLEUR
15 REAR TYRE
16 REAR BRAKE DISC
17 REAR MUDGUARD
18 REAR LIGHT
19 REAR LUGGAGE RACK
20 WHEEL GUARD
21 SEAT POST
22 SADDLE
23 SADDLE CLAMP
16
16
HANDLEBARS
AGRIP
BBRAKES LEVERS
CREMOTE / DISPLAY
DFRONT LIGHT
EHANDLEBAR
FBELL
GSHIFTERS

ENEN
INSTRUCTION MANUAL DOUZE LT
BEFORE STARTING UP 5
Loading the LT 6
Safe riding 8
FIRST USE 9
Adjusting the saddle height 11
Adjusting the saddle 11
Adjusting the brake levers 11
Charging and fitting the battery 12
USE 13
Loading 15
Engaging and retracting the kickstand 17
Starting and pedalling 17
Changing gears 18
Braking and stopping 18
Vertical storage 18
LT MOTORS 19
LT1 REAR WHEEL MOTOR 20
The LT1 rear wheel motor 20
The LT1 remote 20
The LT1 battery 22
The LT1 charger 22
Contents

ENEN
INSTRUCTION MANUAL DOUZE LT
LT2 B MID-DRIVE MOTOR 23
The LT2 B BAFANG M500/M510 mid-drive motor 23
The LT2 B remote 23
The LT2 B battery 25
The LT2 B charger 25
LT2 S MID-DRIVE MOTOR 26
The LT2 S SHIMANO EP8 Cargo mid-drive motor 26
The LT2 S display 27
The LT2 S battery 28
The LT2 S charger 28
MAINTENANCE AND UPKEEP 29
Cleaning and lubrication 30
BATTERY MAINTENANCE 31
Battery management 31
Storing the battery 31
Checking and changing worn parts 32
ECO-RIDING 36
Changing gears 36
Conserving the brakes 36
APPENDICES 37
Tightening torque 38
The technical characteristics of the DOUZE LT 39
Warranty and After Sales Service 40
EC certificate of conformity 41

ENEN
W
INSTRUCTION MANUAL DOUZE LT
You have purchased a DOUZE Cycles cargo bike, LT
model. DOUZE Cycles is a DOUZE Factory brand.
IMPORTANT
This instruction manual is for the DOUZE Cycles cargo bike, LT model, and
its electric assist system. It contains important information about your safety
and that of passengers. You will also find essential information on the tech-
nical characteristics and maintenance of your LT and its electric assistance
system.
Make sure that your Retailer or DOUZE Cycles Technical Centre has
provided the information required for getting started, maintenance and
the warranty conditions of your LT and its accessories, along with its
maintenance handbook.
This manual is also available as a PDF document, which can be down-
loaded from the website:
www.douze-cycles.com
DANGER
This icon indicates a potentially dangerous situa-
tion.
IMPORTANT
This icon indicates information that must not be
ignored.
TIP
This icon indicates help or advice, so that you can
make the most of your LT.
ONLINE RESOURCE
This icon indicates an online resource accompanied
by a link.
http://www.douze-cycles.com/support/
EN

ENEN
W
5
BEFORE STARTING UP
INSTRUCTION MANUAL DOUZE LT
EN

BEFORE STARTING UP 6
ENEN
The LT has been designed to transport people and goods. Loading must
comply with certain limits so you can ride in complete safety.
Each version of the LT includes the bike assembly, rear luggage rack
and skirt guard without accessories.
Loading the LT

BEFORE STARTING UP
7
ENEN
LT M LT1 LT2 B LT2 S
BIKE WEIGHT 23 kg 29,5 kg 30,5 kg 29,5 kg
MAXIMUM CYCLIST WEIGHT 100 kg
MAXIMUM LOAD WEIGHT ON THE
REAR LUGGAGE RACK FRONT LUGGAGE RACK
80 kg 18 kg
MAXIMUM TOTAL LOAD WEIGHT ALLOWED
(cyclist + front/rear load) 198 kg
TOTAL WEIGHT RIDING WEIGHT ALLOWED
(bike + cyclist + fr./re. load + accessories; without harness) 240 kg

ENEN
BEFORE STARTING UP 8
ENEN
This notice has been supplied to you with your LT by your Retailer or your DOUZE Cycles Technical Centre. Every bike is assembled,
configured and checked by a qualified person who has received the relevant training and materials.
Before taking the road, please read the safety advices and instructions to get the most out of your LT:
• Before use, always check the main steering and safety elements: tightening of the handlebars, stem and wheels, tyre pressure and correctly
functioning brakes
• Always wear suitable equipment. In France, helmets are mandatory for children under 12 and are highly recommended for everyone.The wearing
of an approved high-vis vest is mandatory for all cyclists and any passengers when cycling outside built-up areas, at night or when visibility is poor.
•Always observe the Traffic Laws of the country in which you are cycling. Legislation on mandatory equipment and the Traffic Laws differ from
one country to another, so please find out before you travel.
• Ensure that you are visible and able to alert other users to your presence. In France, reflectors, headlamps and a sound warning system audible
at up to 50 m are mandatory.
• The load on your LT must be stable and not pose a danger to any passengers or other road users. Make sure that the load does not exceed the
width of the handlebars.
Safe riding
EN

FIRST USE
ENEN ENEN
9INSTRUCTION MANUAL DOUZE LT
FIRST USE
EN

10
ENEN
FIRST USE
Every DOUZE cyclist has their own unique height, body shape and ri-
ding position. Your cargo bike has been designed to be used in daily
life, for business and pleasure. It is, therefore, essential to adjust your
LT to your body shape for optimal comfort and safety. Your Retailer or
DOUZE Cycles Technical Centre will help you make such adjustments
when you receive your cargo bike. They can be tuned during the first
mandatory servicing.

11
ENEN
FIRST USE

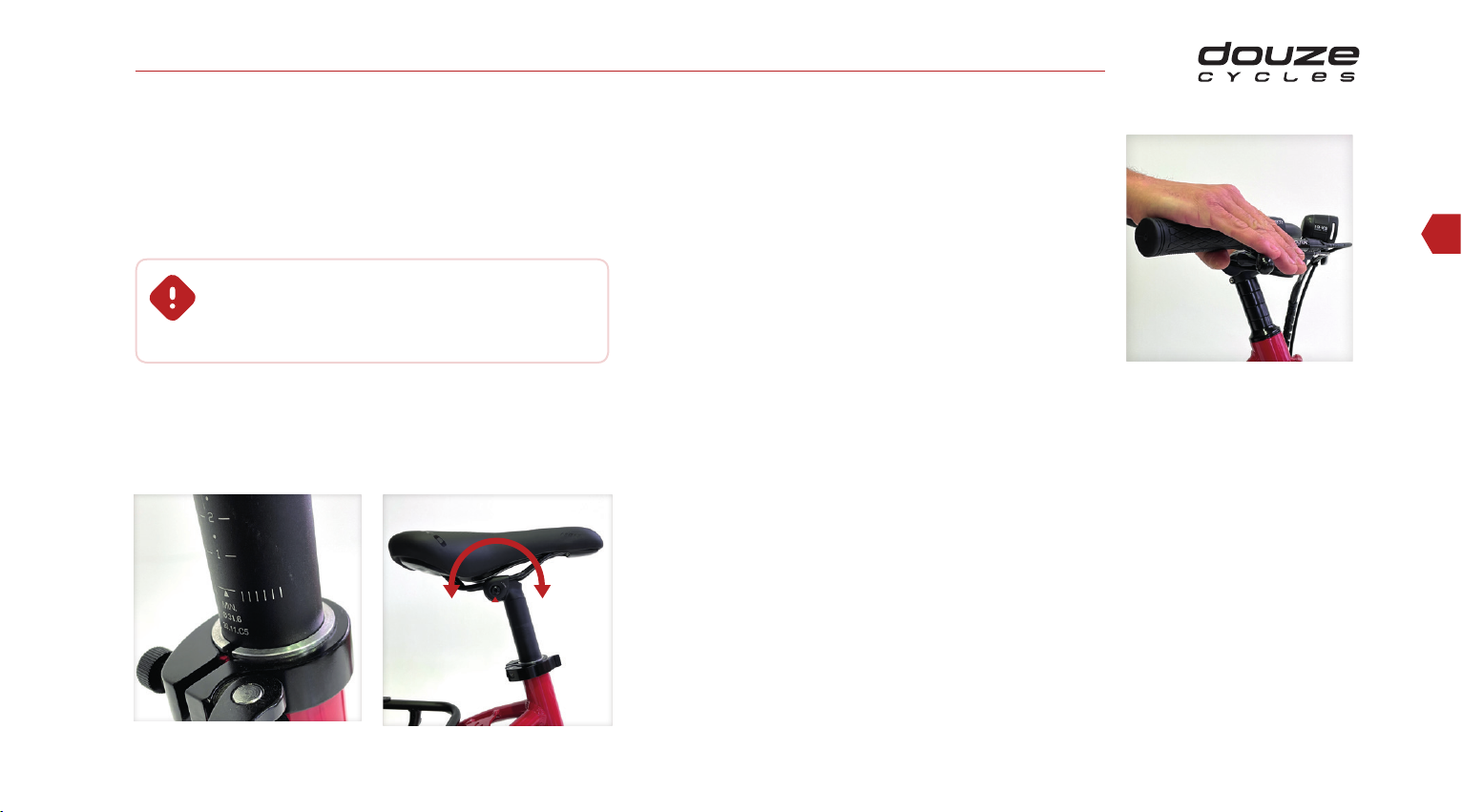

Adjusting the saddle height
The ideal height is when your knee is slightly bent when the pedal is in
its lowest position. To adjust the saddle height, open the saddle clamp
lever, then close it ensuring that the seat post is fully locked in place.
For your safety, do not exceed the insertion limit
of the seatpost as indicated by the marking “MIN
Insert”. (Fig-1)
Adjusting the saddle
The saddle clamp lets you adjust the angle and height of the saddle to
suit your body shape and riding style (Fig-2). A neutral configuration is
obtained with the saddle horizontal and the clamp in the centre.
We recommend that you lower the saddle if you are very tall or raise it
if you are of below-average height.
Adjusting the brake levers
Your fingers should sit naturally on the brake levers.
To reduce braking time, position the levers in line with your forearms.
Fig-1 Fig-2
Adjusting the brake grips

ENEN
12
FIRST USE
ENEN
On the other hand, if you intend to store the batte-
ry for a long period without using it (two weeks or
more), do not charge above 70% of the total capacity.
A completely discharged battery must not be stored
in an environment that is too cold (<10°C) or stored
for more than 24 hours without being recharged,
otherwise, it enters into a state of deep discharge,
which may damage it permanently.
Charging and fitting the battery
To optimise your battery’s performance, it is important to fully charge
and discharge the battery for the first three uses. After these first three
cycles, it is no longer necessary to discharge the battery completely
before recharging.

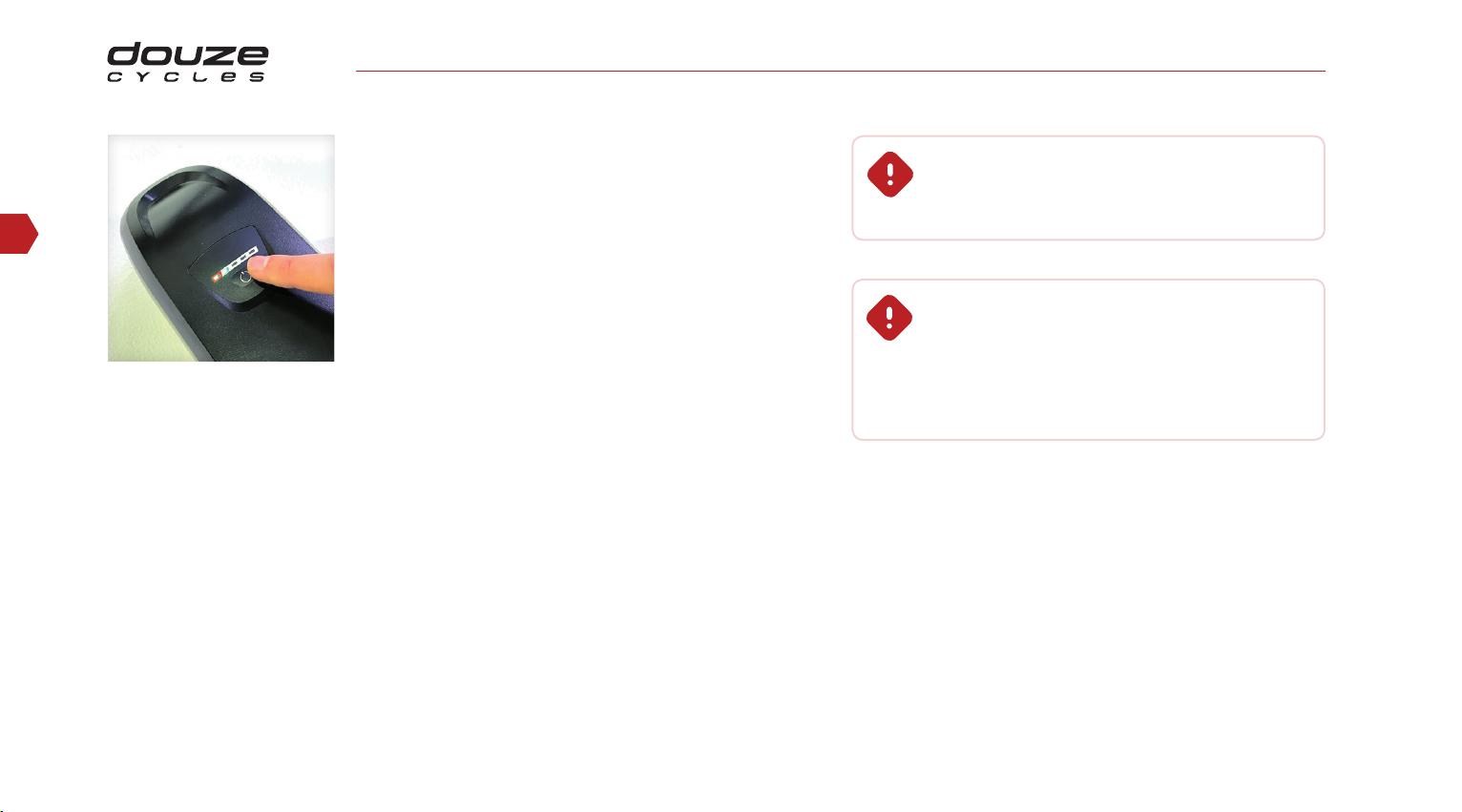

Battery charge level
EN

USE
13
ENEN ENEN
13
USE
INSTRUCTION MANUAL DOUZE LT
EN

USE 14
ENEN
The LT is intended for use on tarmac roads, lightly gravelled paths
or any other type of non-asphalt road suitable for cycling where the
two wheels stay in permanent contact with the ground. The LT is not,
under any circumstances, intended for “all-terrain” use or any kind of
competition. The LT is designed to be ridden by an adult with a mini-
mum height of 1.50 metres, a maximum height of 1.95 metres and a
maximum weight of 100 kg. The total permitted load is 80 kg maximum
on the rear luggage rack. The total weight limit is 198 kg including the
cyclist and their load. It must never be exceeded.

USE
15
ENEN

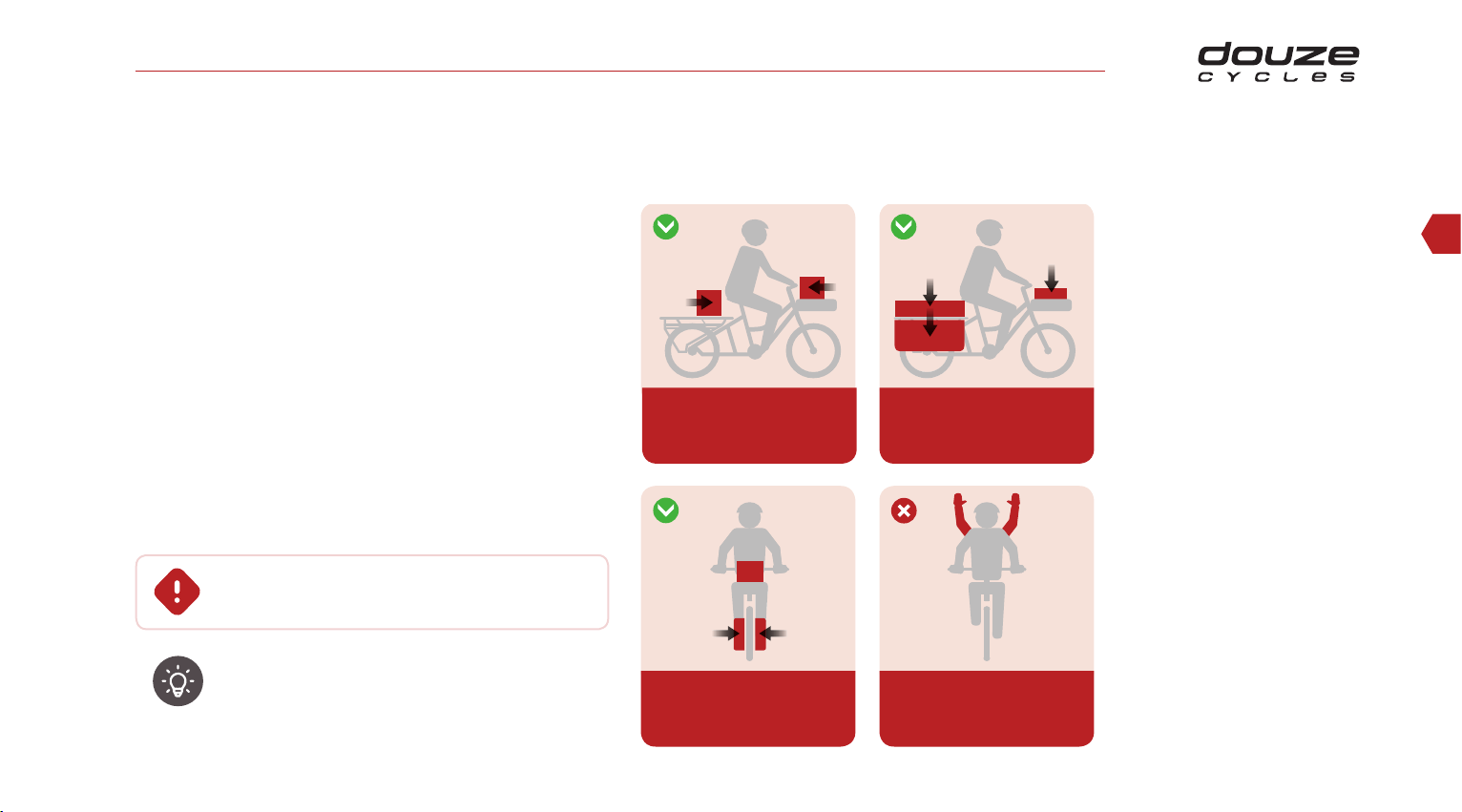

PLACE THE LOAD IN THE CENTRE.
THIS HELPS REDUCE
UNSTEADINESS.
DISTRIBUTE THE LOAD CLOSE
TO YOUR BIKE.
PLACE THE LOAD LOW DOWN.
THIS IMPROVES STABILITY.
KEEP YOUR HANDS ON THE
HANDLEBARS FOR YOUR SAFETY
AND THAT OF YOUR PASSENGERS.
Loading
Loading is possible on the rear luggage rack. Front loading is possible
only if your LT is equipped with a suitable accessory, available from
your Retailer or DOUZE Cycles Technical Centre. The load must be pro-
perly attached to the structure. It must be organised according to the
mass of each object transported with the heaviest objects placed as
near as possible to the saddle and low down. They must not exceed
the width of the handlebars. Check that there is no risk of any object
falling during your ride.

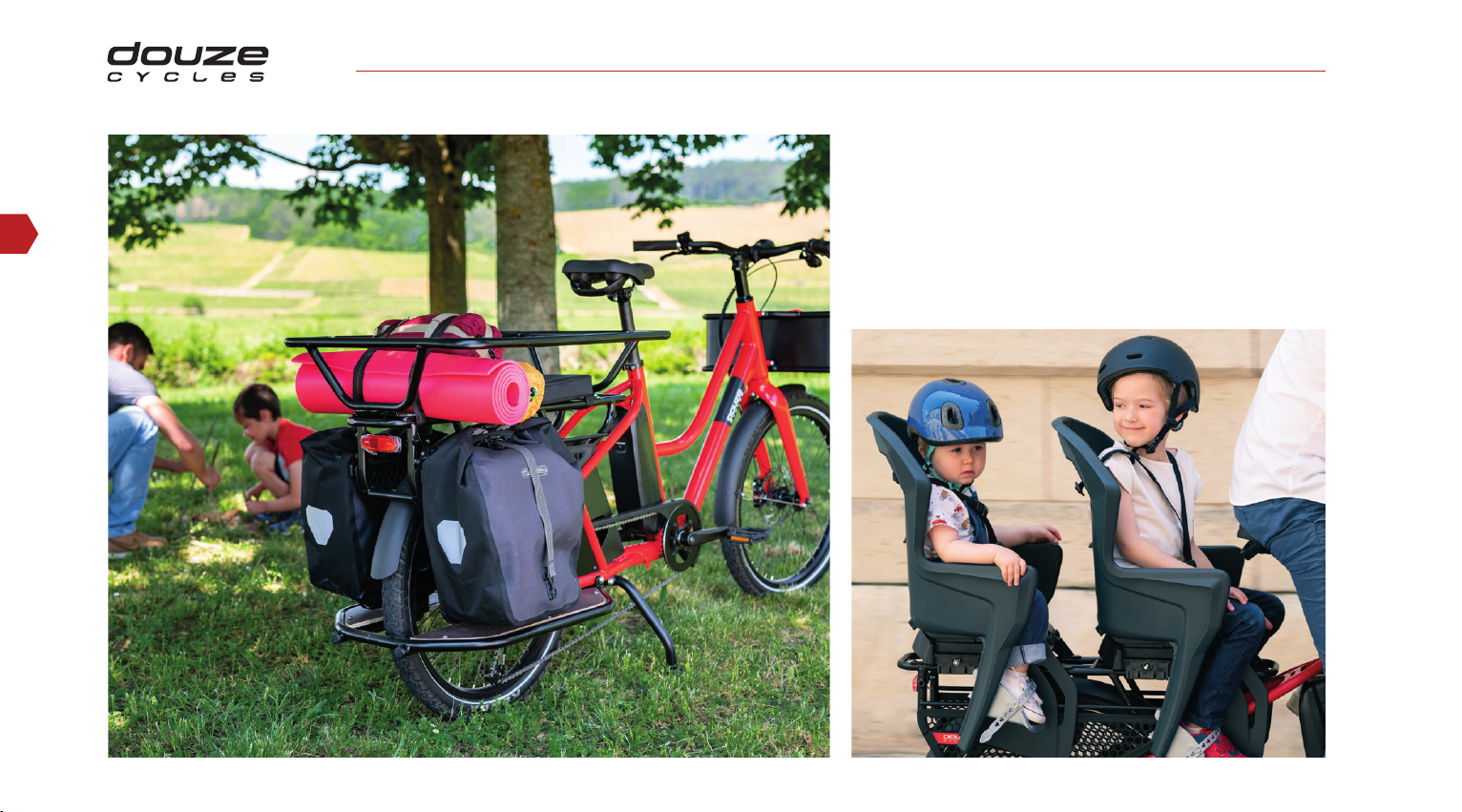

Carrying people, children or adults, is also possible on the rear lug-
gage rack only. You can use it to carry one or two passengers without
exceeding the total limit of 80 kg. Various accessories are available to
improve the comfort and safety of passengers. Accessories that make
your luggage rack compatible with MIK HD and THULE EasyFit moun-
ting systems are available.
When the passengers get on and off, the bike must
be held by the cyclist to prevent it from falling.
Make sure that your reflectors and lights are visible
once you have added your load to the luggage rack.
GOOD PRACTICE
FOR SAFE RIDING

USE 16
ENEN
Douze Factory cannot be held liable for any in-
cident or accident or their consequences caused
by incorrect installation or improper carrying of
children or goods in transit. Any modification of
the structure of the luggage rack and bike in ge-
neral is forbidden.

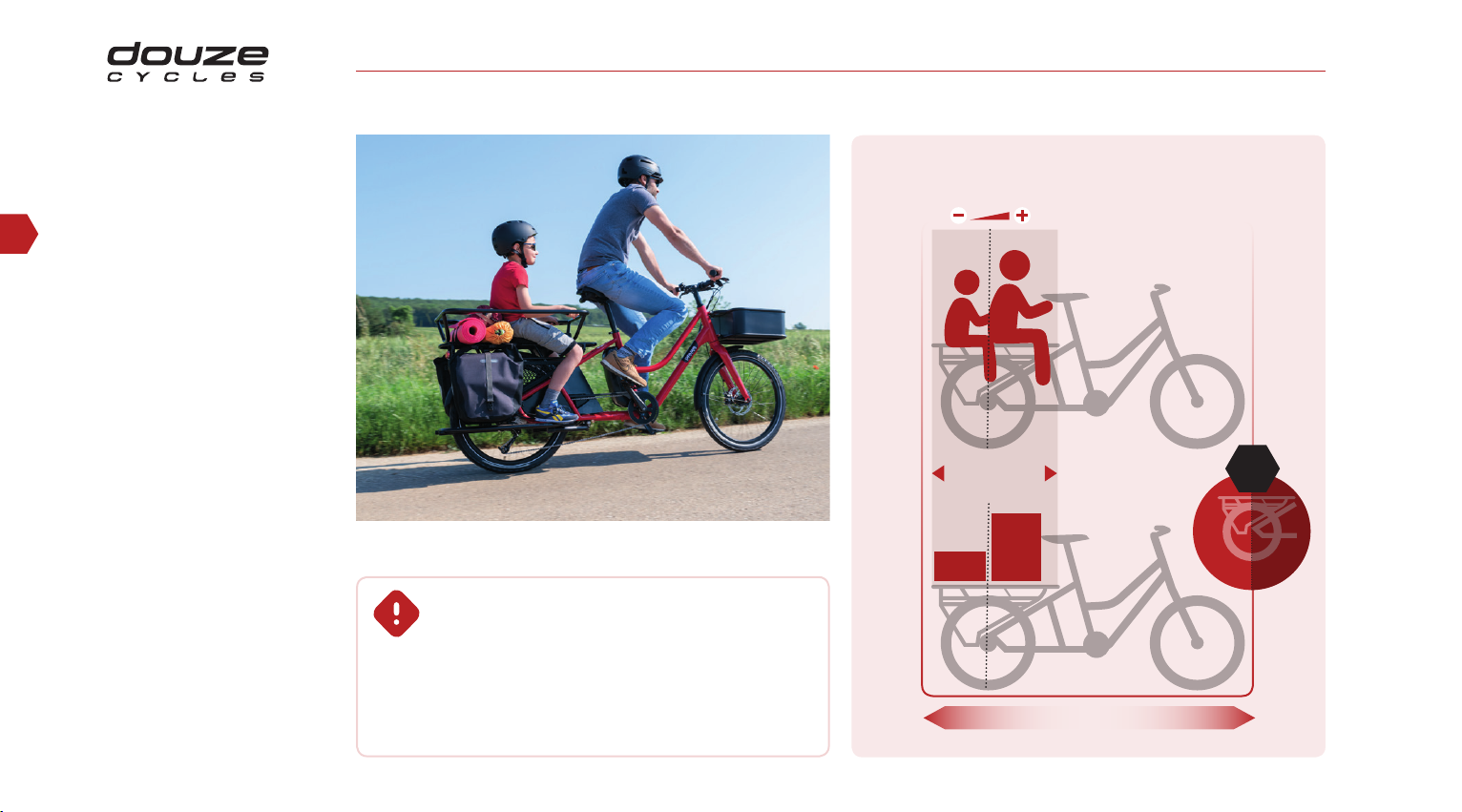

LOAD DISTRIBUTION ON THE BIKE
80 kg
max
80 kg
max
30 kg 50 kg
198 kg
Maximum weight on the bike
