E-BIKE OWNER’S MANUAL
THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Motorized bicycles are new to most riders so in the interest of safe cycling make sure you
read, understand, and follow the instructions in this manual.
This manual contains important safety, signal words such as DANGER, WARNING,
CAUTION, IMPORTANT, and NOTE or NOTICE. These are important signal words telling
you to pay special attention to that text as rider safety is involved.
This symbol will appear in areas of critical rider safety.
DANGER and WARNING: Pay special attention to these since failure to do so could
result in serious injury or death to the rider or others.
CAUTION: If not followed these instructions could result in injury or mechanical failure or
damage to the bicycle.
NOTE or NOTICE or IMPORTANT: These specify something that is of special interest. Read
and pay close attention as your safety and that of your bicycle are involved.
IMPORTANT: Read the BEFORE RIDING section and check that all parts are installed and
working as per this manual. If you understand how the bicycle operates, you will get the
best performance. When you read this manual, compare the illustrations to the bicycle.
Learn the location of all the controls and parts as well as how they work. KEEP THIS BOOK
FOR FUTURE REFERENCE.
CAUTION Before you ride the bicycle, check the brakes and other parts of the bike. Make
sure all parts are assembled correctly, securely tightened and working properly. Take your
first ride in a large, open, level area away from traffic. If you have a problem, call customer
service at 800-451-KENT (5368).

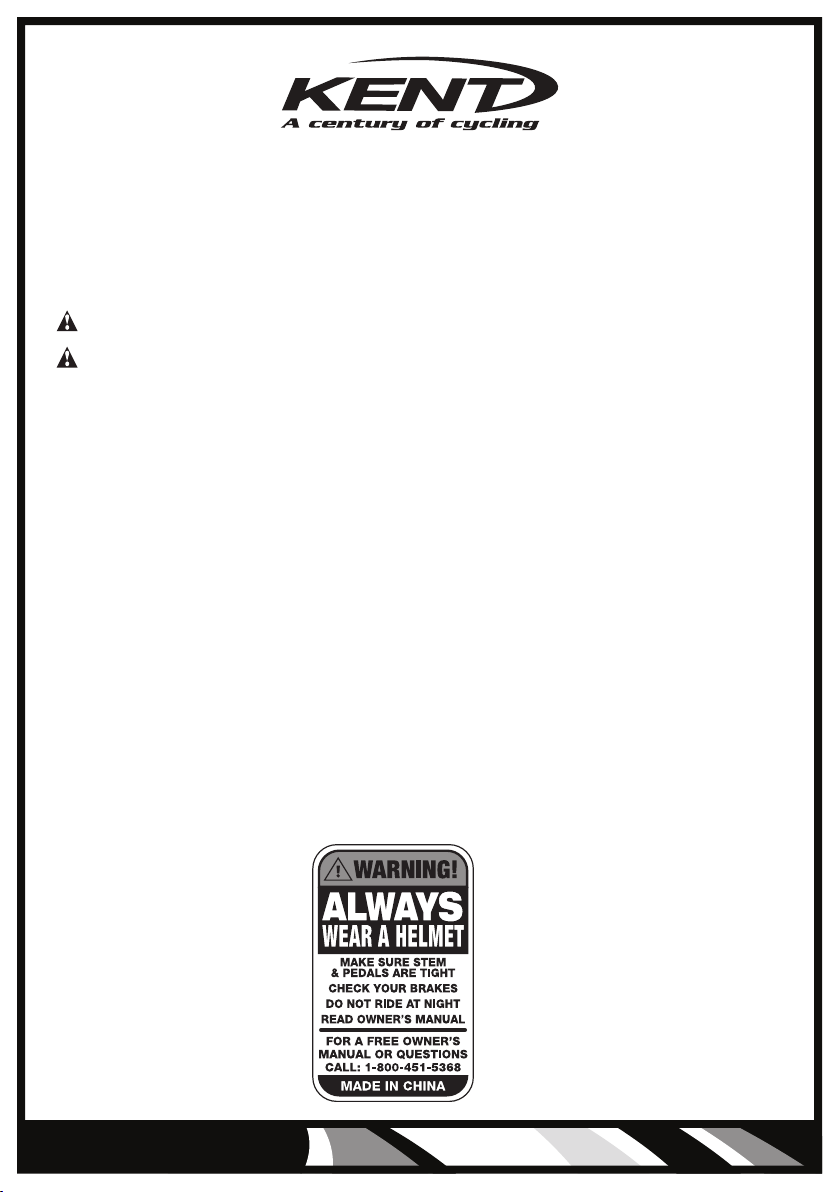

Check and read this decal on
your bicycle before each ride:

1
CONTENTS
PREFACE..........................................................................2-4
PARTS IDENTIFICATION CHART ......................................5-6
BEFORE RIDING.............................................................7-12
ASSEMBLING YOUR BIKE ...........................................13-28
OPERATING PROCEDURES..........................................29-32
MONITOR DISPLAY ..........................................................33
MAINTENANCE/REPAIR...............................................34-48
TROUBLESHOOTING ...................................................49-52
ELECTRIC BIKE FAQs...................................................53-54
LIMITED WARRANTY ..................................................55-56
IMPORTANT INFORMATION .............................................57

2
Congratulations on the purchase of your new bike! With proper assembly and maintenance it will
offer you years of enjoyable riding!
IMPORTANT: Carefully read and follow this manual (and any other materials included with this bike)
before riding. Please retain this manual for future use. If this bike was purchased for a child, it is the
responsibility of the purchaser to verify the bike has been properly assembled, and that the user has
been properly trained and instructed in use of the bike.
This manual is provided to assist you and is not intended to be a comprehensive manual covering all
aspects of maintaining and repairing your bicycle. The bicycle you have purchased is a complex piece of
equipment that must be properly assembled and maintained in order to be ridden safely. If you have any
doubts about the assembly or your ability to properly assemble and maintain the bicycle. You must
have it assembled and maintained by a professional bicycle mechanic.
WARNING: Electric bikes are fun to ride but can be dangerous to use. The user or consumer assumes
all risk of personal injuries, damage, or failure of the bicycle or system and all other losses or
damages to themselves and others and to any property arising as a result of using the bicycle.
DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS.
If you need to change any parts, please consult a professional
bicycle mechanic or conact customer service for additional help.
NOTE: YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING
THE USE OF THIS BICYCLE. TO DETERMINE IF COVERAGE IS PROVIDED YOU SHOULD CONTACT
YOUR INSURANCE COMPANY OR AGENT.
DANGER! Failure to properly assemble and maintain your bicycle could result in serious
injury or death to the rider.
This manual contains important safety, performance and service information. The
purpose of this Owner’s Manual is to help you use your bike safely in the manner it is
intended and allow you to enjoy the benefits it offers for many years to come. Please read
it before you take the first ride on your new bicycle, and keep it for reference.
If you have any questions or do not understand something, take responsibility for your
safety and contact Kent customer service at 1-800-451-KENT (5368).
ALWAYS WEAR A PROPERLY FITTED HELMET WHEN YOU RIDE YOUR
BICYCLE. DO NOT RIDE AT NIGHT. AVOID RIDING IN WET CONDITIONS.
PREFACE

3
RESPONSIBILITY OF THE OWNER!
IMPORTANT:
Reading and following the information and instructions in this manual are essential
to the ability of the owner or any other persons allowed to use this bicycle in order to ride safely.
1. It is the responsibility of the owner or in the case of a younger rider the parents of the
rider to be certain all assembly instructions have been followed, even if the bike has been
assembled by the seller or a professional assembly company.
2. Brakes are essential to safety. Be sure they are checked and working properly before each
use. Remember that any mechanical system changes condition during use and must be
maintained and checked before each use.
3. Rules for bicycle use (bicycle laws) vary from location to location so be certain the rider
knows and understands the rules that apply to bicycle usage in all areas where the bicycle will
be used. Wearing a helmet, light or reflective clothing, using lights and reflectors are examples
of rules which may exist and which make sense as rider safety precautions at all times.
4. Know how to operate the bicycle and all equipment on it before first use and be certain
anyone allowed to use the bike knows how to properly and safely use the bike as well.
5. There are many different types of bicycles and often these types are designed for
different uses. Make sure you know what type unit you have and do not exceed its service
limitations. Be sure you check and understand the bicycle classifications set in this manual,
including size of the unit that is proper for the rider to insure good control during use.
Riders who are too small or large may have control problems. Do not overload a unit with a
rider that is too heavy or too large, and do not attempt to carry extra passengers, packages
or loads on the bicycle. Do not use street bikes for off road riding.
6. Your electric bike is water-resistant, but must be properly maintained to preserve this
condition. Please do not submerge the bicycle or any electric components in water. Water
entering electric components can cause a short circuit and damage the electric components
with possible injury to the rider and others.
7. The battery’s performance can be effected by its environment. Generally speaking, battery’s
discharge performance is better in a higher temperature. Electric power will drop by more
than 1/3 when the temperature is below 32ºF (0ºC). Thus, this e-bike’s riding distance per
charge will become shorter in winter or cold areas. It returns to normal / optimal when the
temperature is higher than 68ºF (20ºC).
8. Do not put any metal objects in charge hole or battery circuit, it may cause a short circuit,
start a fire, or cause an explosion with personal injury or property damage.
NOTE: Max weight of rider+luggage+bike = 220lbs/100kg
PREFACE

4
CAUTION: For your safety you must carefully read this manual and follow its instructions.
Your bicycle may come with additional instruction sheets that cover features unique to your
bike. Please ensure that you read and become familiar with their contents and retain them with
this manual for future reference. Remember bicycles, in most areas, are subject to the same
laws, rules, and regulations as motor vehicles.
Always wear a CPSC approved helmet when riding your bike.
Learn and follow local and state traffic use laws.
Any major service or adjustments on your bike not covered in this manual should be carried
out by a professional bicycle mechanic. If you wish to make adjustments yourself, this manual
contains important tips on how to do it.
CAUTION: Any adjustments you make are entirely at your own risk. Do NOT use your bike
for freestyle and stunt riding, jumping or competitive events. Even if you are riding a mountain
bike, you should know that off-road use or any similar activities can be dangerous, and you
assume the risk for personal injury, damages or losses incurred from such use. Do not ride
your bike when any part is damaged or not working properly. You must, for your safety and
the safety of other users, consult a professional bicycle mechanic for any questions on
repairs or maintenance.
WARNING: As with all mechanical components, the bicycle is subjected to wear
and high stresses. Different materials and components react to wear or stress
fatigue in different ways. As your bicycle ages, you should inspect it more frequently to
look for deformed, cracked, bent, or loose components. Such conditions may lead to
sudden failure. This may possibly cause injuries to the rider. If something is cracked or
broken, do not ride until repairs have been made.
NOTE: BEFORE TRANSPORTING THE BIKE AND/OR BATTERY, CALL CUSTOMER SERVICE AT
1-800-451-KENT (5368) FOR SPECIFIC DETAILED INSTRUCTIONS.
PREFACE
CORRECT
Forehead Covered
INCORRECT
Forehead Exposed
A properly fitting, CPSC approved, bicycle helmet should
be worn at all times when riding your bicycle.
The correct helmet should:
– be lightweight and comfortable
– have good ventilation
– cover the forehead and fit correctly
– be securely fastened on the rider
ALWAYS WEAR A HELMET-IT COULD SAVE YOUR LIFE!

5
20
1
3
2
17
18
19
16
6
5
15
11
14
13
12
10
9
4
7
8

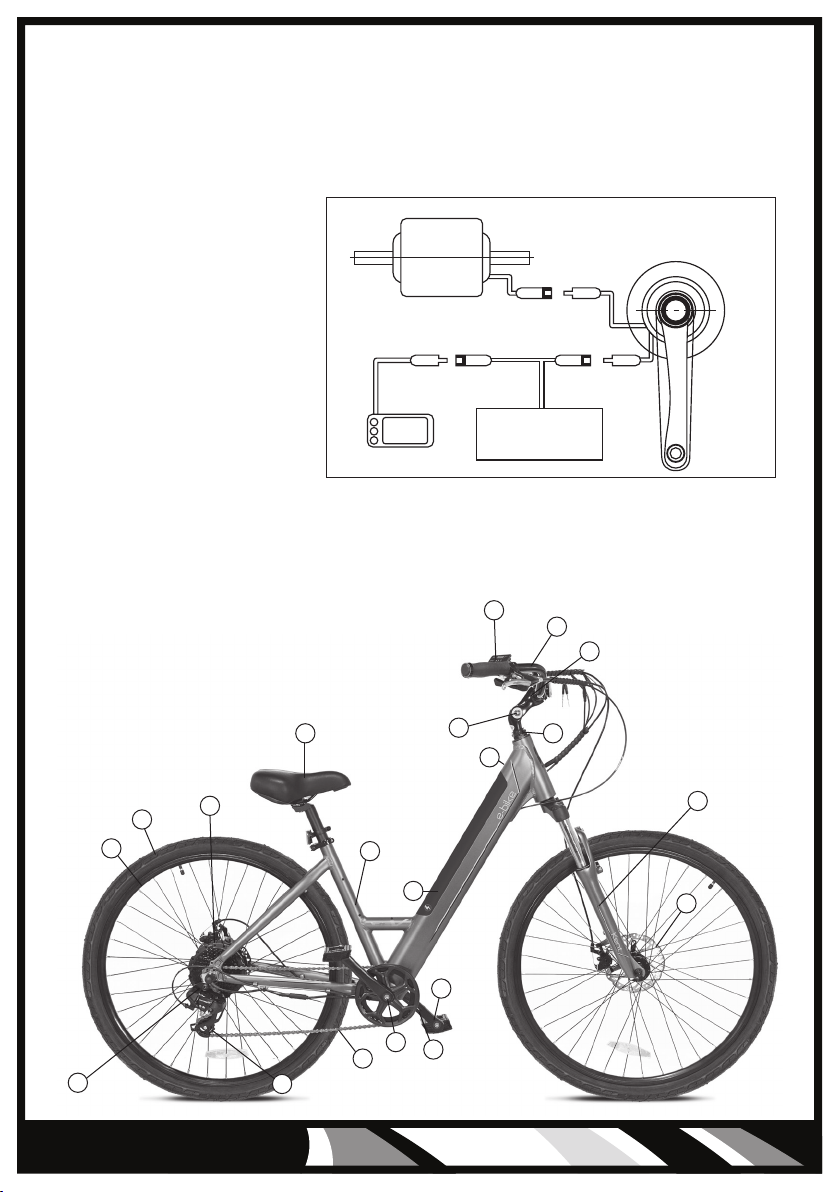

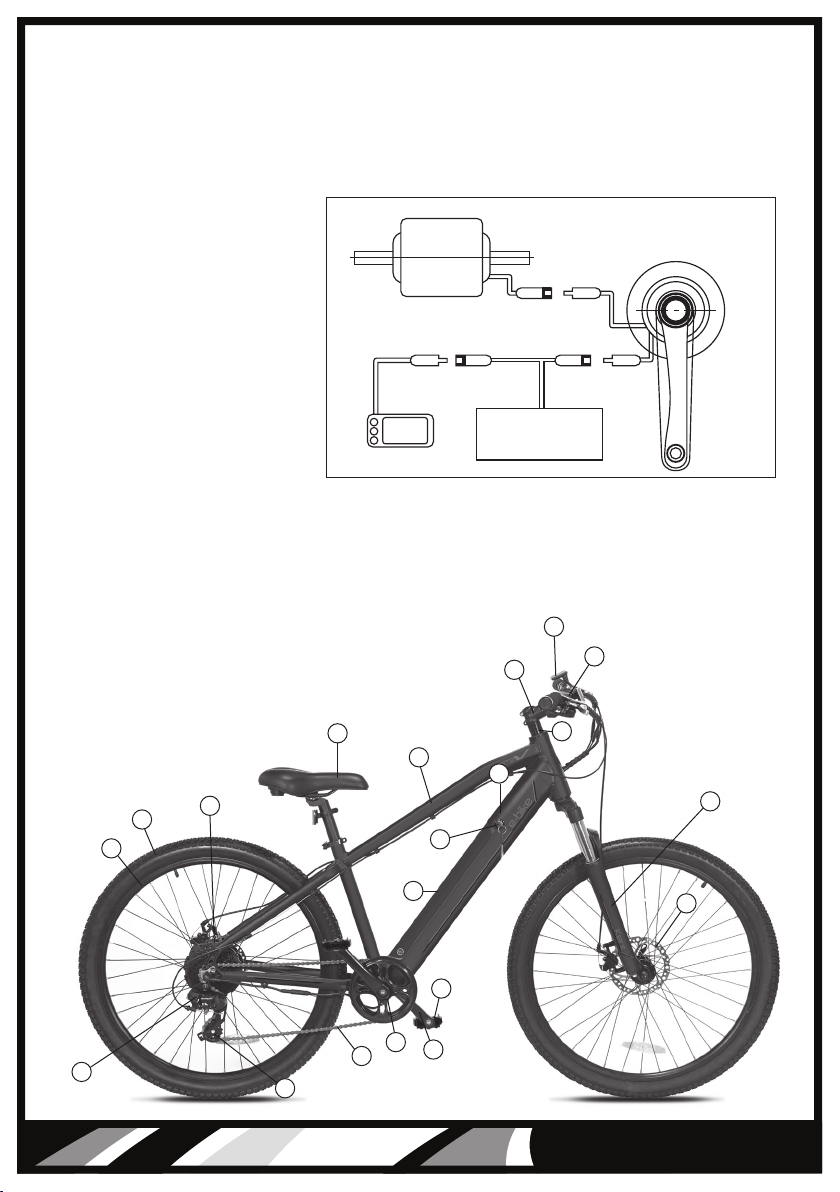

PARTS IDENTIFICATION
1. Handlebar
2. Handlebar Stem
3. Monitor Display
4. Headset
5. Fork
6. Front Brake
7. Pedal
8. Pedal Crank Arm
9. Torque Sensor
10. Chain
11. Rear Derailleur
12. Motor
13. Wheel
14. Tire
15. Rear Brake
16. Saddle
17. Frame
18. Battery (inside frame)
19. Charging Port (opposite side)
20. On/Off Switch
CIRCUIT DIAGRAM
BATTERY
+
–
MONITOR
DISPLAY
MOTOR TORQUE SENSOR

6
1. Monitor Display
2. Handlebar
3. Handlebar Stem
4. Headset
5. Fork
6. Front Brake
7. Pedal
8. Pedal Crank Arm
9. Torque Sensor
10. Chain
11. Rear Derailleur
12. Motor
13. Wheel
14. Tire
15. Rear Brake
16. Saddle
17. Frame
18. Battery (inside frame)
19. Charging Port (opposite side)
20. On/Off Switch
19
20
2
1
3
17
18
16
6
5
15
11
14
13
12
10
9
4
7
8
PARTS IDENTIFICATION
CIRCUIT DIAGRAM
BATTERY
+
–
MONITOR
DISPLAY
MOTOR TORQUE SENSOR

7
BEFORE RIDING
1. WARNING - ON AND OFF ROAD CONDITIONS: The condition of the riding surface
is very important to your safety. If the surface is wet, or has sand, leaves, small rocks or
other loose debris on the surface where you plan to ride, carefully decrease the speed of
the bicycle and ride with extra caution. It will take a longer time and more distance to stop.
Apply the brakes sooner and with less force. Always apply the rear brake first allowing time
and distance for it to take effect. Then follow by cautiously applying the front brake, in order
to maintain control of the bicycle. Rapid front brake application first may cause a front pitch
over or fall. Learn to use your brakes properly under controlled conditions until you learn
proper braking under all road conditions.
2. NOTICE: State and federal regulations require a full set of reflectors. Some state and
local laws may require that your bike be equipped with a warning device, such as a horn or
bell and most states require a light. The manufacturer and many legal authorities DO NOT
approve or encourage riding at night. Vision is quite limited at dawn, dusk and at night for
bike riders, motorists and by-standers. If you must ride at night, take extra precautions, use
front and rear lights, wear flashers on your arms, wear light-colored clothing, and plan your
route to ride in well lighted areas avoiding heavy traffic areas.
3. NOTE: Always wear shoes when riding a bicycle and avoid loose fitting clothes. Wear a
cuff band or trouser clip to keep pants or other loose clothing from getting caught in the
chain wheel. Long sleeves, long pants, gloves, eye protection, a CPSC approved helmet,
elbow and knee pads are recommended.
Helmet use is required by law in many states and is always a good idea for your safety.
4. CAUTION: WET WEATHER WARNING: Check your brakes frequently. The ability to stop
is critical to your safety. Roads are slippery in wet weather so avoid sharp turns and allow
more distance for stopping. Brakes become less efficient when wet. Leaves, loose gravel and
other debris on the road can also lengthen stopping distance. If at all possible, do not ride in
wet weather. Vision and control are impaired, creating a greater risk of accidents and injury.
5. CAUTION: A bicycle rider’s best defense against accidents is to be alert to road conditions
and traffic in the area. Do not wear anything that restricts your vision or your hearing.
6. When riding, ALWAYS WEAR A CPSC APPROVED BIKE HELMET. It may save your life.
7. Obey all traffic regulations. Most traffic regulations apply to bike riders as well as
automobile operators. Observe all state and local traffic regulations, signs and signals.
Check with your local police station on bicycle licensing and inspection, and where it is
legal to ride your bike.

8
BEFORE RIDING
8. Keep to the RIGHT SIDE of the road. Follow the traffic flow in a straight line close to the
curb. Watch out for opening car doors and cars moving in and out of traffic. Use caution at
intersections.
9. Never carry passengers. This is dangerous and it makes the bicycle harder to control.
Never carry anything that can inhibit your ability to control the bicycle or see the road.
10. When riding in pairs or in larger groups, form a single line along the right side of the
road. Set up a sensible distance between riders. Don’t follow too closely.
11. Always be alert. Animals or people may dart in front of you. Give pedestrians the right-
of-way. Don’t ride too close to pedestrians, and don’t park your bicycle where it can get in
the way of foot/vehicle traffic.
12. Be careful at all intersections. Slow down and look both ways before crossing.
13. Use hand signals. Always let other drivers and pedestrians know what you are going to
do. Signal 100 ft. before turning unless your hand is needed to control the bike.
14.WARNING: NIGHT TIME OPERATION: We do NOT recommend riding your bike at night.
If you have an emergency that requires you to ride at night you must have proper lights and
reflectors. NEVER ride at night without a helmet, taillight, a white front reflector, a red rear
reflector, pedal reflectors and white wheel reflectors. You must be able to clearly see the
surface where you are riding and be seen by others.
15. Never hitch rides. Never hold onto moving vehicles while riding. Never stunt ride or
jump on your bike.
16. ON AND OFF ROAD OPERATION: Avoid the following road hazards: drain grates,
pot holes, ruts, soft road edges, gravel, leaves (especially when they are wet), uneven
pavement, railroad crossings, manhole covers, curbs, speed bumps, puddles, and debris as
all have an effect on your riding and may result in loss of control. Adjust your speed and the
way you use your brakes if you must ride in such areas.
17. If any components becomes loose while riding, (STOP!!) immediately and tighten, or
bring to a mechanic for repair.

9
BEFORE RIDING
Your new bicycle was assembled and tuned in the factory and then partially disassembled
for shipping. The following instructions will enable you to prepare your bicycle for years of
enjoyable cycling. For more details on inspection, lubrication, maintenance and adjustment
of any area please refer to the relevant sections in this manual. If you have questions about
your ability to properly assemble this bicycle, please consult a professional bicycle
mechanic before riding.
TO AVOID INJURY, THIS PRODUCT MUST BE PROPERLY ASSEMBLED
BEFORE USE. WE STRONGLY RECOMMEND THAT YOU REVIEW THE
COMPLETE ASSEMBLY GUIDE AND PERFORM CHECKS SPECIFIED IN THE
OWNER’S MANUAL BEFORE RIDING.

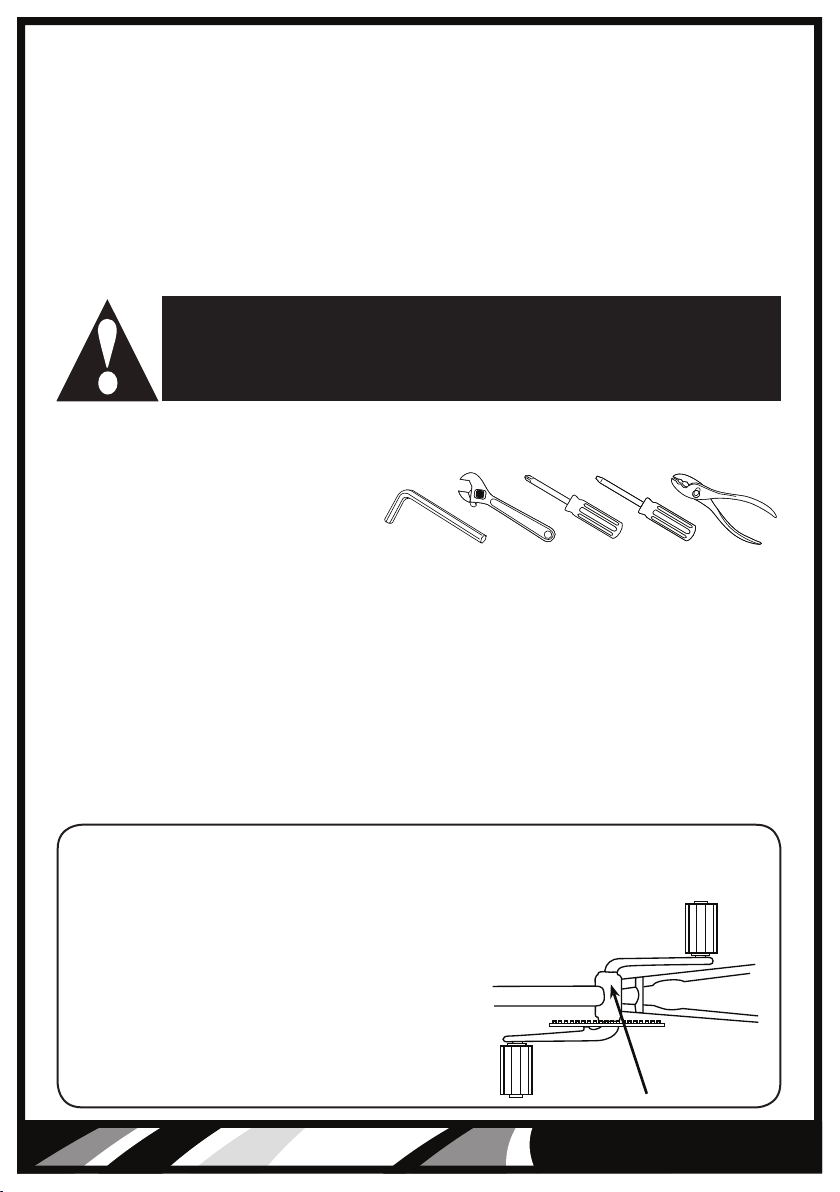

Tools required for assembly:
• 5/6mm hex wrench
• Torque wrench
• Air pump & tire gauge to inflate tires
• Bicycle lubricant or grease
• 6” adjustable wrench
• Phillips & standard screwdrivers
• Pliers with cable cutting ability
###
Serial Number Location
Bike Shown Upside Down
Serial Number
RECORD SERIAL NUMBER
Each bicycle has a serial number stamped into the bottom of the frame (See Illustration).
Record this number HERE to keep for future reference.
This number can be helpful to reclaim your bike if
ever lost or stolen. THIS INFORMATION IS ONLY
AVAILABLE ON THE BIKE ITSELF. There is no
record of your serial number at the store
purchased or with our company. It is your
responsibility to record this information.
Serial Number: __________________________

10
BEFORE RIDING
Just a minute spent before each ride can significantly improve your safety and the
enjoyment of your ride. So, EACH TIME before you ride make a habit of performing the
following safety checks:
• Stand in front of the bicycle facing rearward and hold the front wheel securely
between your legs. Try to twist the handlebar and verify that they do not move.
Then pull the handlebars up, trying to lift the bike. There should be no movement.
• Try to push the front wheel from side to side and confirm that it feels tight and
will not wobble. Lift the front wheel up by the handlebars and strike the wheel
downward with the heel of your hand to confirm that it is securely attached to the
wheel. Spin the front wheel and confirm that it does not wobble or contact the fork
or brake pads.
• Try to lift/push down on and twist the seat to confirm it is tight.
• Look at the connection of the pedals to the crank arm. You should not see pedal
screw threads and the pedal should feel firm and be parallel to the ground.
• Apply your brake(s) and make sure they feel firm to the touch, and then spin the
wheel(s). Apply the brakes. The brakes should stop the wheel(s).
• Check to be sure that the fenders and accessories (if equipped) are firmly attached
and will not contact any moving parts. Make sure all reflectors are in position and
not broken.
Now, put on your BICYCLE SAFETY HELMET and enjoy your ride. Your safety is well worth
just a minute. Also, be sure to read and follow the warnings and instructions in this manual.

11

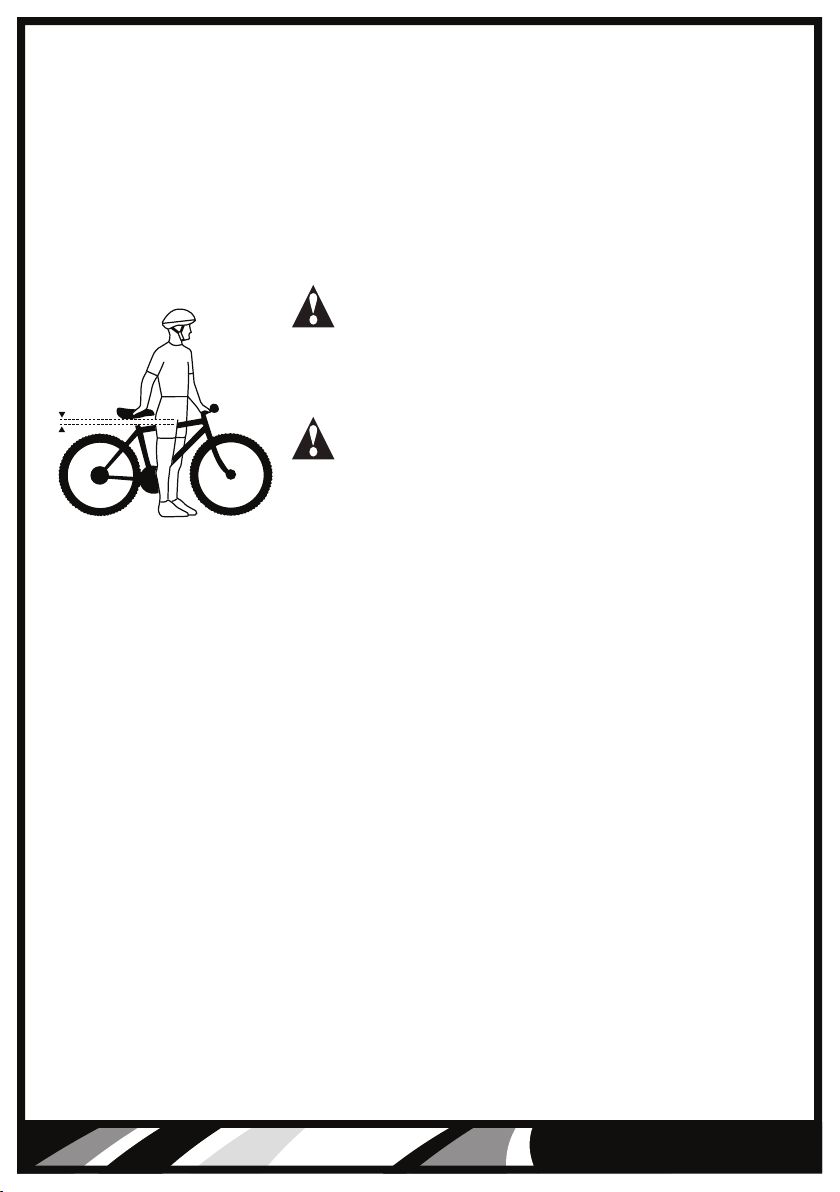

CORRECT FRAME SIZING:
When selecting a new bicycle, the correct choice of frame size is a very important safety
consideration. The ideal clearance will vary between types of bicycles and rider preference. This
makes straddling the frame when off the saddle easier and safer in situations such as sudden
traffic stops. Women can use a man’s bicycle to determine the correct size women’s model.
THERE SHOULD BE A CLEARANCE OF NO LESS THAN
1-2 INCHES BETWEEN THE GROIN AREA OF THE
INTENDED RIDER AND THE TOP TUBE OF THE BICYCLE,
WHILE THE RIDER STRADDLES THE BICYCLE WITH
BOTH FEET FLAT ON THE GROUND.
THE SEAT POST “MINIMUM INSERTION” / “MAXIMUM
HEIGHT” MARK SHOULD NOT BE VISIBLE WHEN THE
SEAT POST IS INSERTED INTO THE SEAT MAST OF
THE BIKE. DO NOT RAISE THE SEAT POST BEYOND
THIS MARK. THE SEAT POST OR FRAME MAY BREAK
CAUSING YOU TO LOSE CONTROL AND FALL. ALWAYS
CHECK TO MAKE SURE THE SEAT POST ADJUSTING
MECHANISM IS TIGHTENED SECURELY BEFORE RIDING.
BEFORE RIDING
1-2”

12

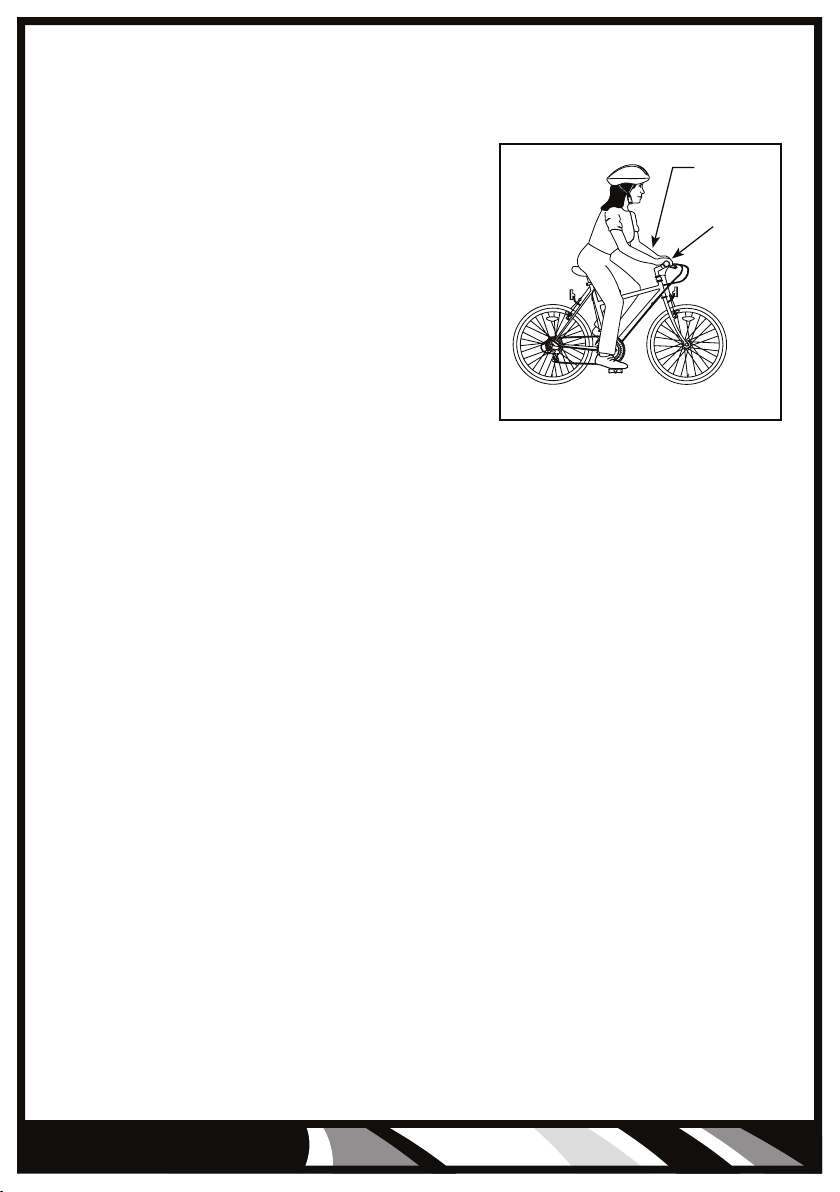

RIDING POSITION:
SADDLE HEIGHT
In order to obtain the most comfortable riding
position and offer the best possible pedaling, correct
saddle height should not allow leg strain from over-
extension, and the hips should not rock from side to
side when pedaling. While sitting on the bicycle with
one pedal at it’s lowest point, place the ball of your
foot on the pedal. The correct saddle height will
allow the knee to be slightly bent in this position.
REACH
To obtain maximum comfort, the rider should not over extend his or her reach when riding.
There should be a slight bend in the rider’s elbows. Refer to the section regarding seat and
seat posts to learn how to adjust the seat post height.
BEFORE RIDING
Arms not
overextended
Pedal
bottom position
Handlebar stem
height
about the
same as
seat height

13
PREPARATION
It is important that you read this owner’s manual before you start to assemble your bicycle.
WE RECOMMEND THAT YOU CONSULT A PROFESSIONAL BICYCLE MECHANIC IF YOU
HAVE DOUBTS OR CONCERNS AS TO YOUR ABILITY TO PROPERLY ASSEMBLE, REPAIR,
OR MAINTAIN YOUR BICYCLE. Remove all parts from the shipping carton. Check to make
sure no parts are loose on the bottom of the carton. Carefully remove the front wheel which
is attached to the side of the bicycle for shipping. Carefully remove all other packing material
from the bicycle. This includes zip ties, axle caps and material protecting the frame.

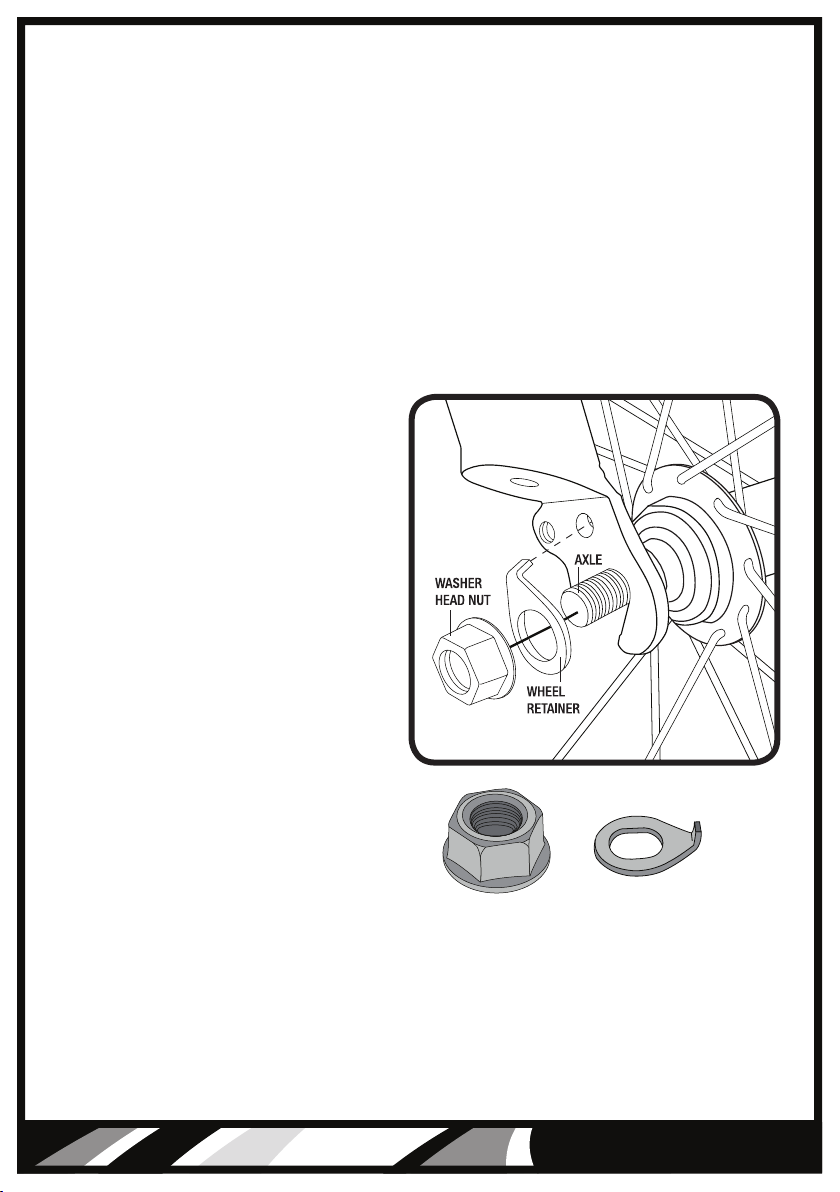

FRONT WHEEL
1. Remove the nuts, washers and
wheel retainers from the front wheel.
2. Slide the wheel onto the open ends
of the fork. Slip an axle retainer onto each
end of the axle, and hook the retainers
into the holes in the fork end. Loosely
install the washer onto each end of the
axle (serrated end toward the retainer),
then install the hex nut. (Note: there may
be a washer head nut in place of the
washer and hex nut).
3. Center the wheel in the fork and tighten
the axle nuts securely, alternating from one
side to the other to center the wheel.
4. Spin the wheel to make sure that it is
centered in the fork and does not wobble.
If the wheel is not centered, loosen the nuts
and try again.
5. If your bicycle has a quick release mechanism, read and follow the quick release
information on this manual.
Torque requirement: 16-20 ft. lbs.
ASSEMBLING YOUR BIKE

14
QUICK RELEASE FRONT WHEEL
Some bicycles have wheel axles that incorporate a Quick Release (QR) mechanism. This
allows easy wheel removal without the need for tools. The mechanism uses a long bolt (called
a skewer) with an Adjusting Nut on one end, and a lever operating a cam-action tensioner
on the other. With the quick release lever in the open position, insert the front wheel into
the open ends of the fork. Turn the adjusting nut so that the locking lever is moved to the
closed position with a firm action. At the halfway closed position of the quick release lever,
you should start to feel some resistance to this motion. Do not tighten the quick release by
using the quick release lever like a wing nut. If the quick release lever is moved to the closed
position with little or no resistance, clamping strength is insufficient. Move the quick release
lever to the open position, tighten the quick release adjusting nut, and return the quick release
lever to the closed position.
CORRECT QUICK RELEASE AXLE SETTING:
1. To set, turn the lever to the open position so that
the curved part faces away from the bicycle.
2. While holding the lever in one hand, tighten the
Adujusting Nut until it stops.
3. Pivot the lever toward the closed position. When the
lever is halfway closed, there must be firm resistance
to turn it beyond that point. If resistance is not firm,
open the lever and tighten the Adjusting Nut in a
clockwise direction.
WARNING! IF YOU ARE USING A UNIT EQUIPPED
WITH A QUICK RELEASE, ALWAYS MAKE SURE THE
QUICK RELEASE LEVER IS SECURELY CLOSED IN A
LOCKED POSITION. ALSO BE CERTAIN YOUR QUICK
RELEASE LEVER IS ON THE SIDE OPPOSITE TO THE
DISC BRAKE IN YOUR UNIT.
4. Continue to move the lever all the way to the closed
position so that the curved part of the lever faces the
bicycle.
5. The Quick Release is open when you are able to read OPEN. Verify the Quick Release is
closed when you are able to read CLOSED.
6. Repeat process until quick release lever is securley closed in a locked position.
ASSEMBLING YOUR BIKE
Closed Position
Open Position
Hub
Hub
Axle
Quick Release
Axle (skewer)
Adjusting
Nut Quick
Release
Cam Lever
Spring

15

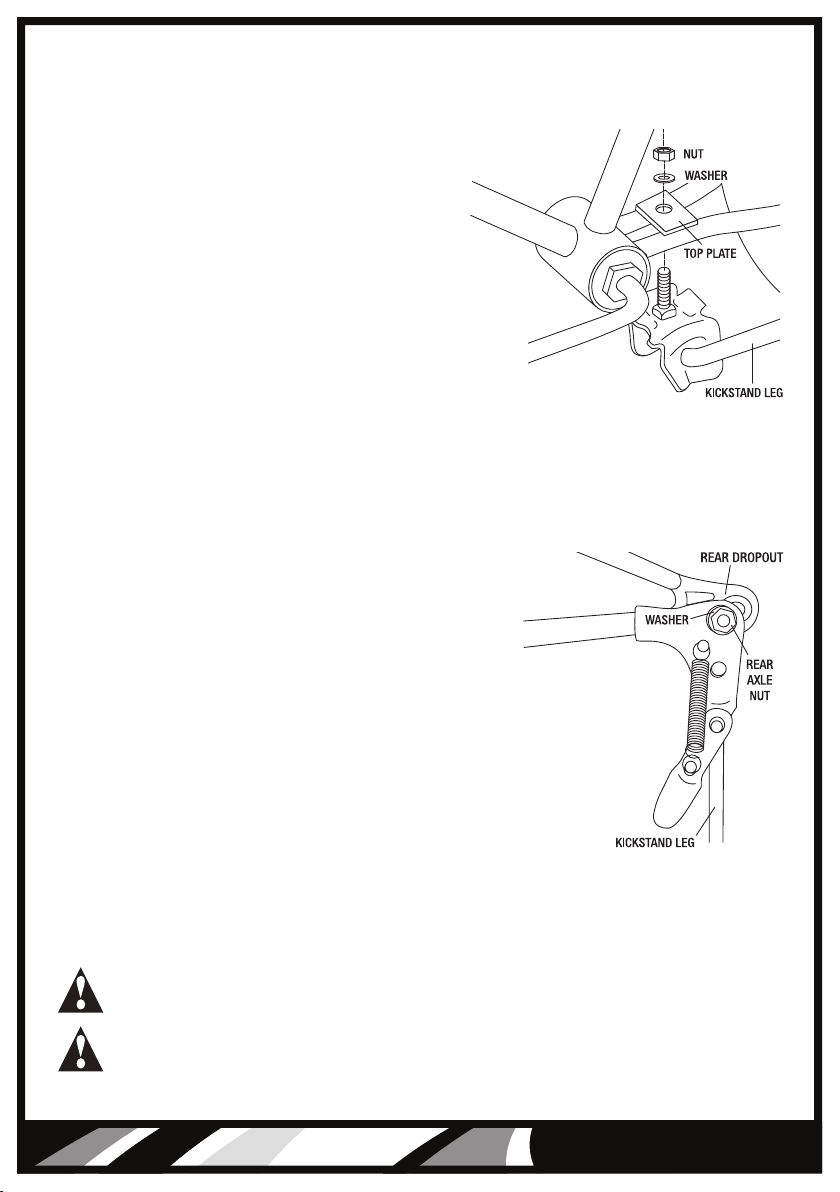

KICKSTAND
If your bike is equipped with a kickstand, please
follow the instructions below.
1. Place the bicycle in an upright position.
2. Remove the top plate from the kickstand.
3. From the left side of the bicycle (opposite side from
chainring), place the kickstand in position beneath the
two rear fork legs.
4. Place the top plate, flange down, onto the mounting bolt.
5. Replace the washer and nut onto the mounting bolt. Hold the kickstand arm in an up
position aligned with the frame stay, then securely tighten the mounting bolt.
6. Leave the leg of the kickstand down so it will support the bicycle during the rest of the
assembly process.
REAR MOUNT KICKSTAND
If your bike is equipped with a rear mount kickstand,
please follow the instructions below:
1. Lean the bike against a wall for support, so that the
right side (chainring side) is facing the wall and the left
side of the bike is facing out.
2. Remove the rear axle nut and washer from the left side rear wheel.
3. Slide the kickstand plate onto the axle, so that it is seated against
the rear dropout.
4. Slide the washer and nut back onto the axle and tighten securely.
5. Leave the leg of the kickstand down so it will support the bicycle during the rest of the
assembly process.
WARNING! THE KICKSTAND IS DESIGNED TO SUPPORT THE
BICYCLE ONLY, NOT THE BICYCLE AND RIDER.
WARNING! Use your kickstand to support the bike when not riding. Allowing your
bike to lay on it’s side can damage the brake levers and cause an usafe riding
condition and could result in injury to the rider.
ASSEMBLING YOUR BIKE

16

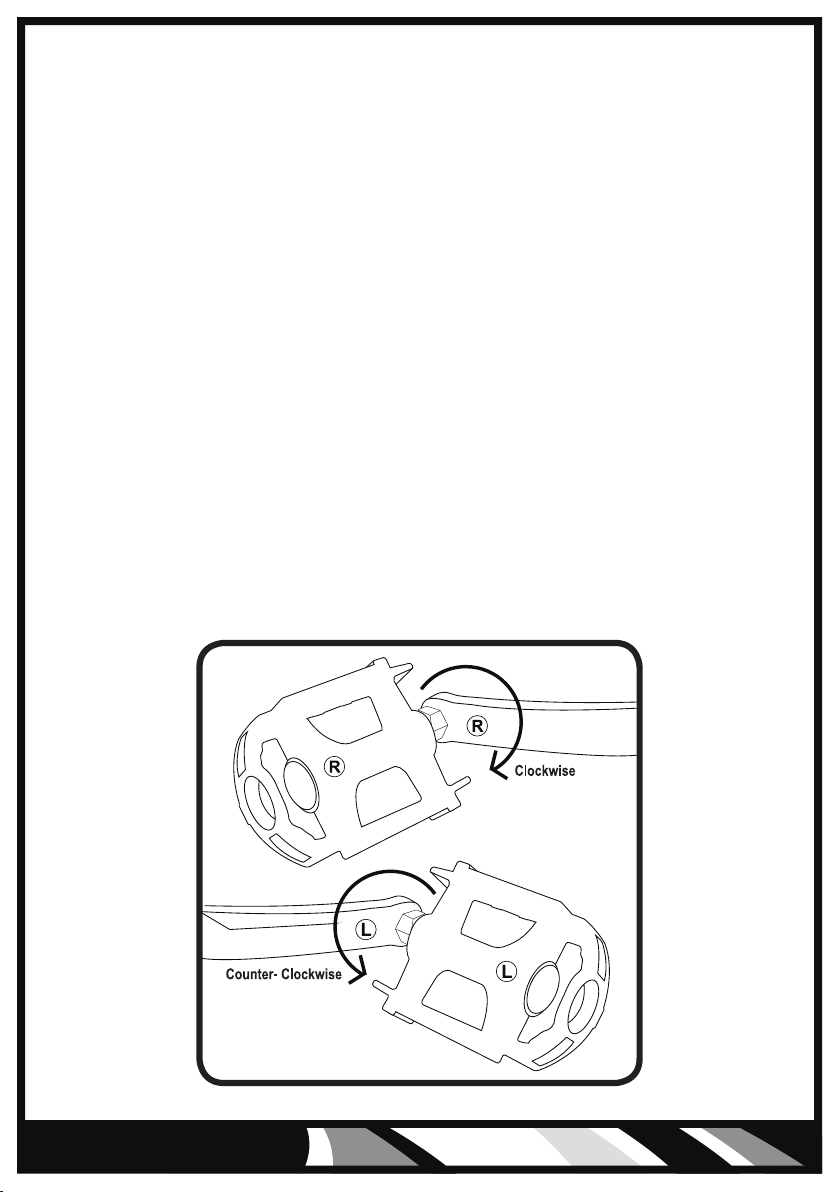

PEDAL INSTALLATION
1. Apply a small amount of grease to the threads of each pedal. Look for the letter “L” or “R”
on the side or end of each pedal spindle (picture). Turning the spindle clockwise by hand
(Picture), thread the pedal marked “R” into the crank arm on the right (drive) side of the
bicycle. Make sure that you are not “cross-threading”, which can strip the threads in the crank
arm. If the threads do not turn easily, don’t force them. Back the spindle out and start over.
Once the pedal is threaded into the crank arm, tighten the spindle securely to the crank arm
with a 15mm open end or an adjustable wrench.
2. Turning the spindle counterclockwise by hand, thread the pedal marked “L” into the crank
arm on the left side of the bike. Make sure that you are not “cross-threading”, which can
strip the threads in the crank arm. If the threads do not turn easily, don’t force them. Back the
spindle out and start over. Once the pedal is threaded into the crank arm, tighten the spindle
securely to the crank arm with a 15mm open end or an adjustable wrench.
WARNING! IMPROPERLY INSTALLED AND TIGHTENED PEDALS CAN WORK LOOSE,
DAMAGING THE BICYCLE AND CAUSING POSSIBLE SERIOUS INJURY OR DEATH TO THE
RIDER
Torque Requirement 15-18 ft. lbs.
ASSEMBLING YOUR BIKE

17

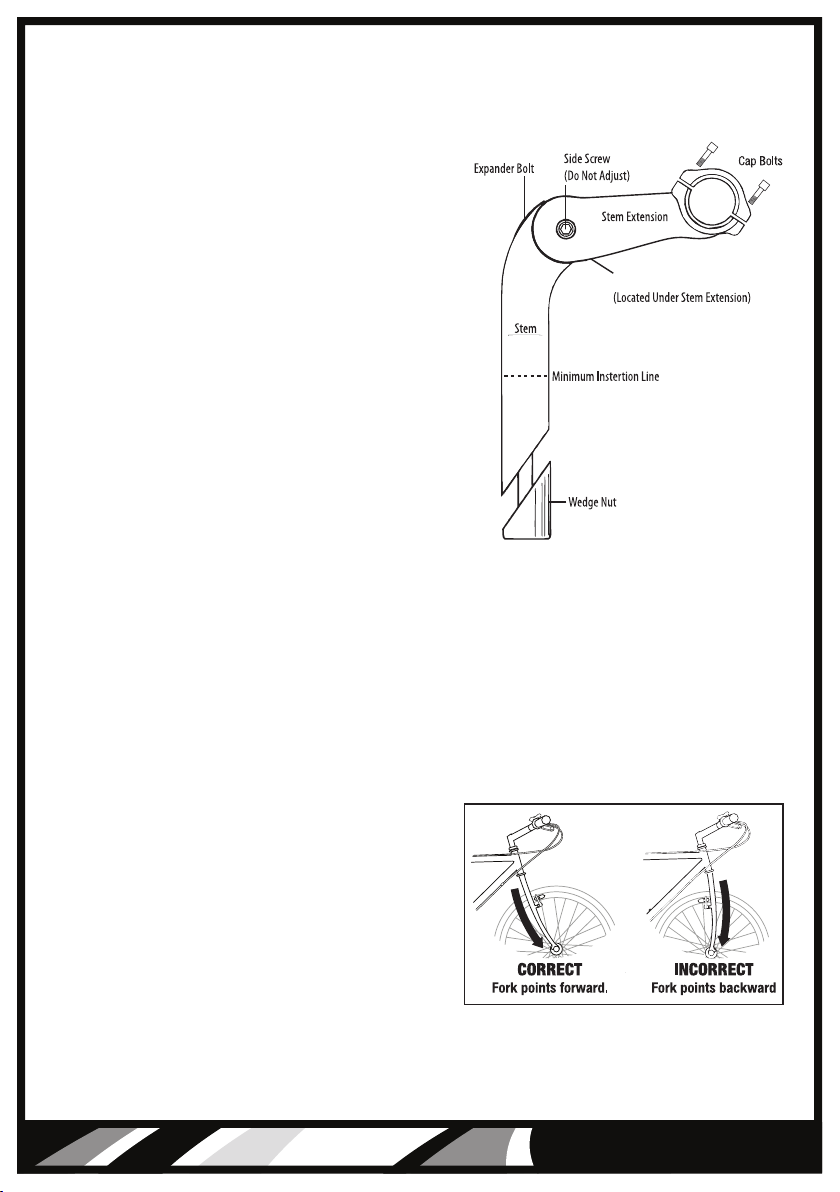

ADJUSTABLE STEM
1. Remove plastic packaging covering the expander
wedge. Loosen the stem expander bolt, if necessary,
so the wedge nut is in line with the stem body.
See illustration.
2. Insert the stem into the head tube past the
minimum insertion line indicated on the stem.
WARNING: The handlebar stem must be inserted
into the head tube until the minimum insertion
line indicated on the stem is completely covered.
3. Face the handlebar stem forward directly in line
with the front wheel. Make sure the fork is in the
correct position (facing forward) before tightening
the expander bolt. See illustration.
4. Tighten the expander bolt securely (turning in a
clockwise direction). Recommended torque is 20 ft. lbs.
5. STEM ANGLE ADJUSTMENT. The stem angle can be adjusted from 90 to 145 degree angle.
The adjustment screw is located UNDER the stem extension. You will need a 6mm Allen
Wrench. Loosen the 6mm Allen Screw. (DO NOT remove the screw. Loosen it only enough to
allow angle adjustment.) Adjust to the desired angle and tighten bolt securely. Check the stem
for tightness before riding. WARNING: The assembler is cautioned against the danger of
damaging the handlebar stem assembly and possible injury to the rider in overtightening
the expander bolt and expander wedge.
HANDLEBAR INSTALLATION
1. Loosen the stem clamp bolt.
2. Insert the handlebar into the stem.
3. Tighten the stem clamp bolt securely.
4. Check the handlebar for tightness. If you can
move it forward or backward, the clamp bolt is not
tight enough.
5. Check steering by straddling the front wheel and
trying to turn the handlebar. If you can turn the
handlebar without turning the front wheel. The stem is too loose. Align the handlebar with the
front wheel. Retighten the expander bolt (clockwise).
Recommended torque is 15 ft. lbs.
ASSEMBLING YOUR BIKE
Angle Adjustment Screw (6mm)
Fork Steerer tube
should be aligned above
the top allen screw
but below the top
of the stem

18

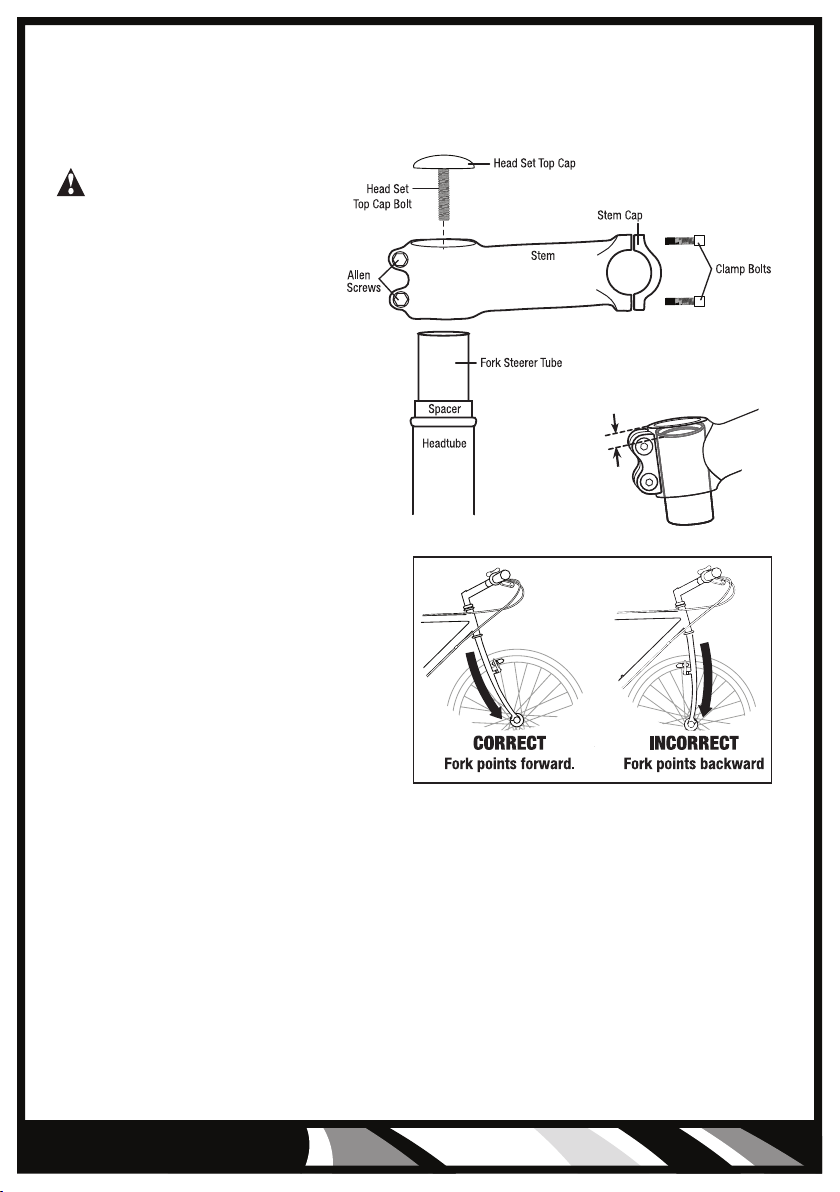

A-HEAD STEM ASSEMBLY
WARNING! ALWAYS TIGHTEN
FASTENERS TO THE CORRECT
TORQUE. BOLTS THAT ARE TOO
TIGHT CAN DEFORM. BOLTS THAT
ARE TOO LOOSE CAN MOVE AND
FATIGUE. EITHER MISTAKE CAN
LEAD TO LOSS OF CONTROL,
SERIOUS INJURY OR DEATH. IF YOU
DO NOT FEEL COMFORTABLE WITH
YOUR SKILLS IN ASSEMBLING OR
ADJUSTING THE BIKE, PLEASE TAKE
IT TO A PROFESSIONAL BIKE MECHANIC.
1. Make sure the front fork is facing forward
(see illustration).
2. Insert the stem onto the fork steerer tube.
Align the steerer tube so that it sits ABOVE
the top allen screw, but BELOW the top of
the stem.
3. Tighten the 5mm head set top cap bolt to
a torque of 15 ft. lbs. Do Not Overtighten!
4. Face the handlebar stem forward directly
in line with the front wheel. Tighten the two
5mm allen screws on the handlebar stem to
a torque of 7 ft. lbs.
ASSEMBLING YOUR BIKE
Fork Steerer tube
should be aligned above
the top allen screw
but below the top
of the stem
