DR. Heater DR-650HP Instruction Manual

Content
I． GENERAL PRECAUTIONS............................................................................................................1
II．APPLICATION.................................................................................................................................. 3
III．FEATURES........................................................................................................................................ 4
IV．ACCESSORY.................................................................................................................................... 4
V． TECHNICAL PARAMETERS......................................................................................................... 5
VI．DIMENSION..................................................................................................................................... 6
VII． INSTALLATION INSTRUCTIONS .................................................................................................7
VIII． OPERATION INSTRUCTIONS....................................................................................................13
IX．STARTING........................................................................................................................................15
X． MAINTENANCE.............................................................................................................................16
XI．TROUBLESHOOTING ..................................................................................................................18
XII． WI-FI SETTING.............................................................................................................................20
XIII． WARRANTY INFORMATION .....................................................................................................29

1
I．General Precautions
Attention
1. Follow the instructions to set a comfortable water temperature and avoid
overheating;
2. Please do not stack anything near the heat pump that can block air flow to the
inlet or exhaust area, or the efficiency of the heat pump will be reduced and/or
stopped;
3. Please do not put hands into the outlet of the pool heat pump, and do not remove
the screen of the fan at any time;
4. If there are abnormal conditions such as noise, smell, smoke, or electrical leakage,
please switch off the machine immediately and contact the local dealer. Don’t try
to repair it by yourself;
5. Don’t use or stock combustible gas or liquid such as thinners, paint and fuel near
the heat pump in order to avoid fire;
6. The piping between the pool and the heat pump should be less than 10m long, or
its performance may be impacted.
Safety
1. Please keep the main power supply switch away from children;
2. If a power outage happens while the heat pump is running, the heat pump will
restart automatically when power is restored. Please switch off the power supply

2
when there is a power outage, and reset the temperature when power is restored;
3. Please switch off the main power supply in the event of lightning flash and stormy
weather to prevent machine damage from a lightning strike;
4. If the heat pump is stopped for a long time, please cut off the power supply and
drain water completely from the heat pump by opening the union of the inlet pipe.
Special Attention
Please read this instruction manual carefully and operate the unit according to the
user manual before starting the heat pump.
1. This product is only for heating swimming pool or spa water. It cannot be used for
other applications.
2. Inlet and outlet water nozzles are not designed to bear the weight of external
pipes. Support the piping independently.
3. Make sure power is turned off before opening the case and performing service
work.
4. The heat pump must be installed by a qualified electrician.
5. Set heating temperature within the recommended range to maximize comfort.
6. Keep the air inlet and exhaust free from obstructions.
7. This heat pump has a power-off memory function.
8. When the ambient temperature is at or below 32℉（0℃）, make sure the main
power switch is turned off and all water is drained from the heat exchanger.

3
9. Never place your hand or any other object into the air inlet or exhaust of the
pump.
10. If there are abnormal conditions such as noise, smells, smoke or electricity
leakage, please switch off the main power switch immediately and contact the
local dealer/installer.
11. Do not attempt to repair the heat pump yourself.
II．Application
1. Set swimming pool water temp efficiently and economically to provide you
comfort and pleasure.
2. The user can refer to the technical parameters of each model under the guidance
of professionals; this series of pool heat pump has been adjusted to the best state;
the heat pump is ready for normal protection after standard wiring water
connection.

4
III．Features
1. Sensitive and accurate temperature control and water temperature display.
2. High and low pressure protection.
3. Protection in case of too low or no water flow.
4. Exceeding low temperature auto stop protection.
5. Temperature control forced defrosting.
6. International brand compressor.
7. High efficient titanium heat exchanger.
8. Easy installation and operation.
IV．Accessory
Please check if you have all the following components：
DR-650HP & DR-900HP are with water pipe, while DR-1100HP is without.

5
V．Technical Parameters
1. The heat pump works well under water temp from 80℉ to 104℉, air temperature
32℉ to 109℉, efficiency will not be guaranteed out of this range. Please take into
consideration that the pool heat pump’s performance and parameter are different
under various conditions.
2. Related parameters are subject to adjust periodically for technical improvement
without further notice. For details please refer to rating label.
Model
DR-650HP
DR-900HP
DR-1100HP
Applied pool volume (gallons)
≤18000
≤28000
≤32000
Operating air temperature (°F)
32~109
Performance Condition: Air 80°F (27℃)/ Water 80°F (27℃)/ Humidity 80%
Heating capacity (Btu)
65,000
90,000
110,000
Heating capacity (Btu) in silence mode
52,000
72,000
88,000
C.O.P
11.2~5.61
13.6~6.0
13.5~5.8
Performance Condition: Air 80°F (27℃)/ Water 80°F (27℃)/ Humidity 63%
Heating capacity (Btu)
61,500
85,000
104,000
Heating capacity (Btu) in silence mode
49,200
68,000
83,500
C.O.P
9.9~5.35
12.3~5.7
12.2~5.6
Performance Condition: Air 50°F (10℃)/ Water 80°F (27℃)/ Humidity 63%
Heating capacity (Btu)
27,000
43,000
54,000
C.O.P
5.2~4.3
5.5~4.3
5.2~4.2
Rated input power (kW)
0.53~3.39
0.54~4.39
0.61~5.9
Rated input current (A)
2.30~14.8
2.34~19.1
2.65~25.6
Power supply
208~230V/1 Ph/60Hz
Advised water flux (L/min)
108~142
125~158
133~167
Sound pressure 10’FT (3m) dB(A)
38.2~47.3
34.9~46.8
35.0~48.1
Heat exchanger
Titanium in PVC
Casing
ABS casing
Metal or Insertion
casing
Air discharge
Horizontal
Vertical
Water pipe in-out Spec (inch)
1.5" (48mm) PVC
2" (60mm) PVC
Net Dimension LxWxH (inch)
37.8x16.5x25.9
43x16.5x37.7
37.2x35.6x38.5
Net Weight (lbs.)
137
187
276
* The values indicated are valid under ideal conditions: Pool is well covered, filtration system running
at least 15 hours a day.

6
VI．Dimension
*Above data is subject to modification without notice.
A
B
C
D
E
F
G
H
DR-650HP
15.6
23.2
15.4
16.5
37.8
14.2
2.9
25.9
DR-900HP
15.6
28.3
15.4
16.5
43.0
24.4
2.9
37.7
A
B
C
D
E
F
G
H
DR-1100HP
36.3
17.6
35.6
37.2
27.8
20.9
3.3
38.5
BF(E)机
C
H
D
A
E
F
G
B
Name
Size(inch)
Model
Name
Size(inch)
Model

7
VII．Installation instructions
Warning: This heat pump is an electromechanical machine that incorporates a
pressurized refrigerant gas in a sealed system. ONLY trained and qualified service
personnel are authorized to install or service this equipment. Without proper training
and knowledge of such equipment, any attempt to install or service the unit could
result in serious injury or even death.
1. Drawing for water connection
Reference only
2. Electrical Wiring Diagram

8
Note：
Wiring must be installed by a professional installation technician and follow
the circuit diagram.
a) Make sure the power supply is at the rated voltage of the appliance.
b) Ground the heat pump.
c) WARNING: Before obtaining access to terminals, all supply circuits must be
disconnected.

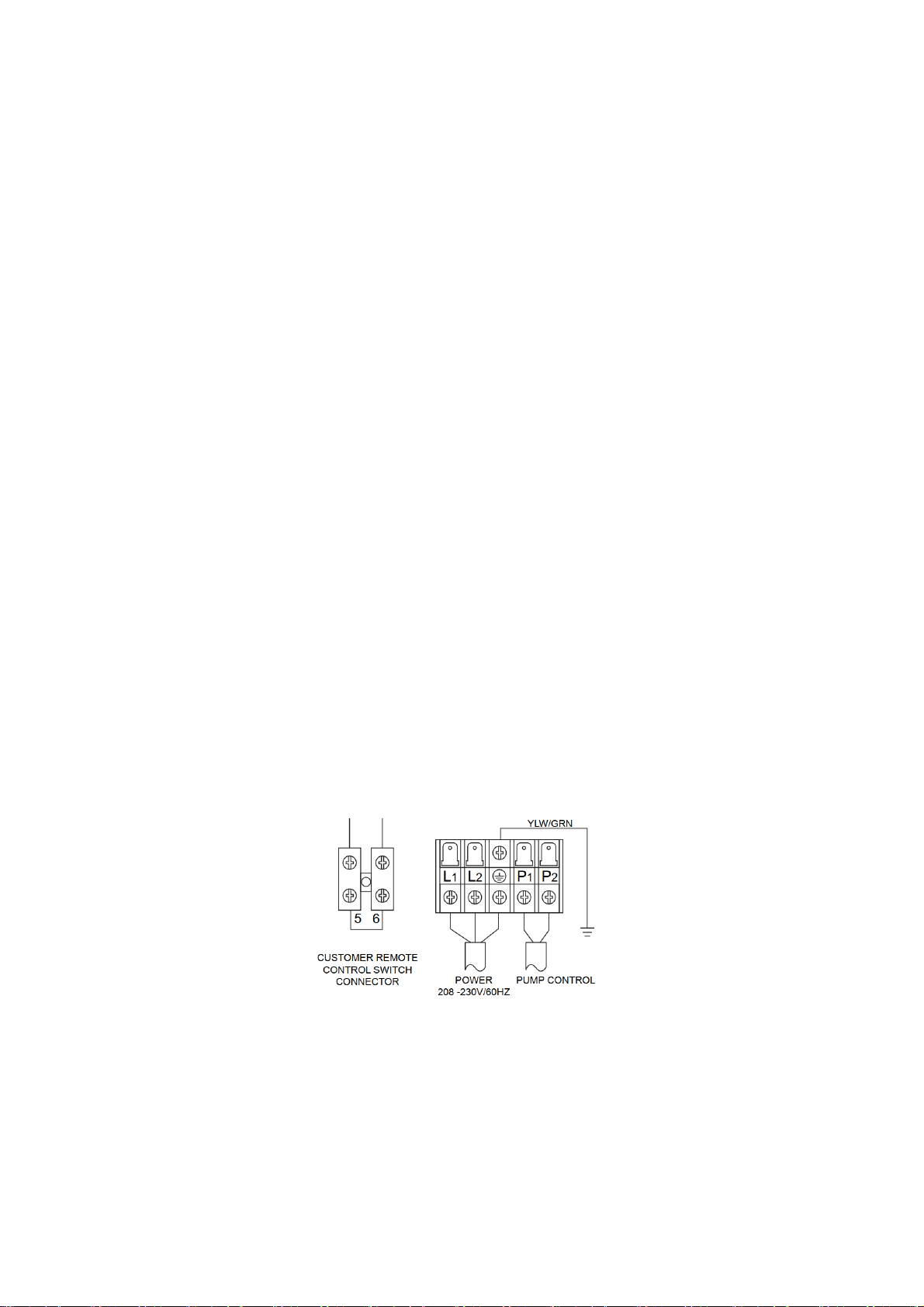

Automation control 2-Wire system connection (Heat Only):
The inverter models have a temperature sensor for temperature automation control.
a) Install wires from the automation controller for ‘Heat’ on the terminal strip inside
the heat pump’s electrical compartment on the side of the heat pump;
b) Remove the jumper wire on the terminal block from terminals marked #5 and #6;
c) Install the automation control wires for ‘Heat’ to terminals #5 and #6;
d) Set temperature setting on the heat pump to 104℉ (40℃).
NOTE: When the automation controller has a HEAT command the unit will be in the
HEAT mode. When the automation controller does not have a HEAT command the unit
will be in the OFF mode.

9
3. Options for protection devices and cable specifications
※Above data is subject to modification without notice.
Note: The above data is adapted to power cord ≤ 393.7 inch. If it is ＞393.7 inch, wire
diameter must be increased. The longest signal cable can be extended to 1968.5 inch.
4. Installation and Requirements
The heat pump must be installed by a pool professional. End users are not qualified to
install the heat pump. Damage may occur to the heather or threaten the safety of the
user.

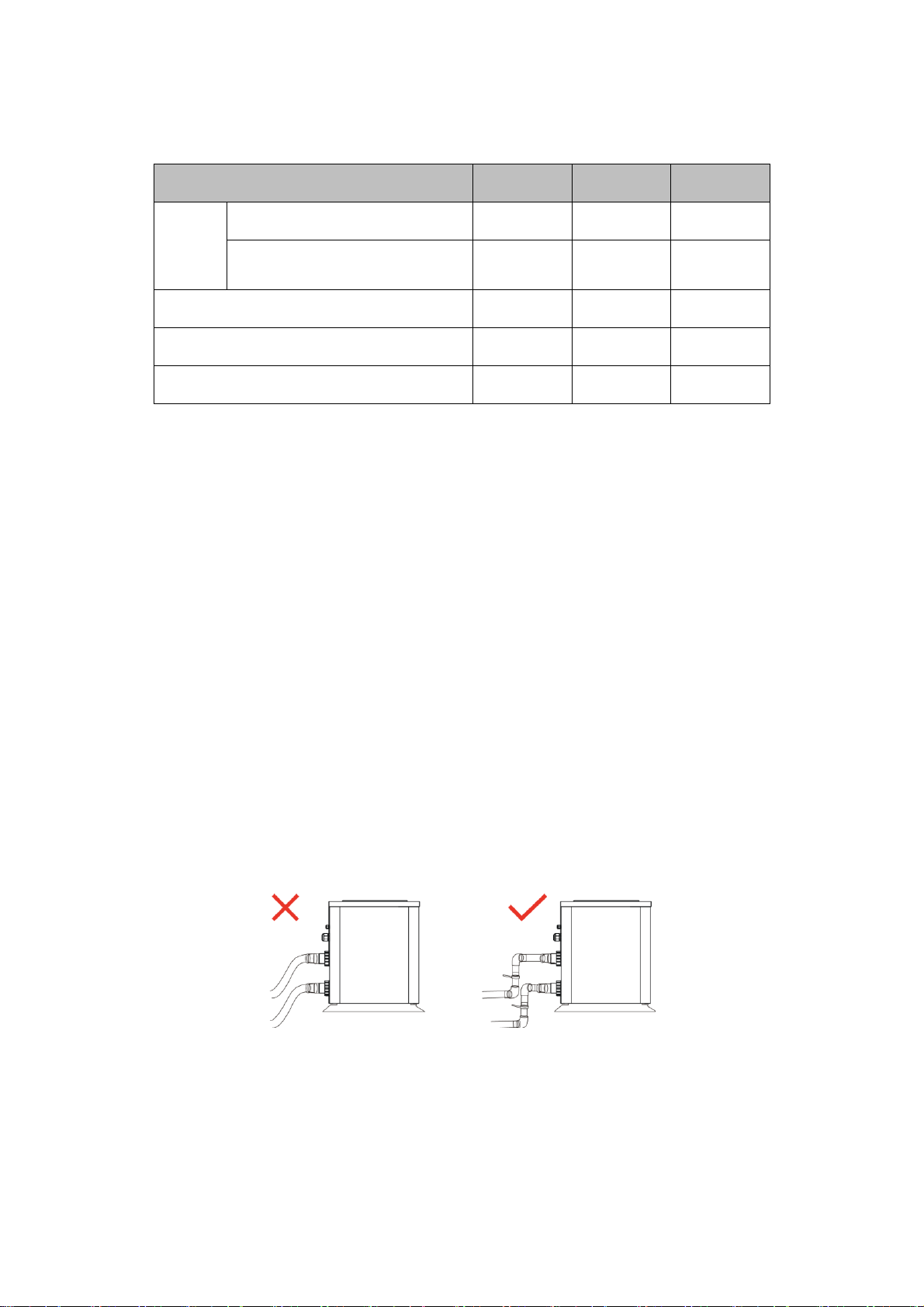

Notes:
1) The inlet and outlet water unions of this machine can’t support the weight of the
external piping. The heat pump must be connected with hard pipes!
2) The piping between pool and the heat pump should be less than 10m, or its
performance cannot be ensured.
Model
DR-650HP
DR-900HP
DR-1100HP
Breaker
Rated Current (A)
20
26
40
Rated Residual Action Current
(mA)
30
30
30
Fuse (A)
20
26
40
Power Cord (AWG)
3×11
3×10
3×8
Signal cable (AWG)
3×20
3×20
3×20

10
A. Installation of the heat pump
The heat pump must be installed by a pool professional. End users are not qualified
to install the heat pump. Damage may occur to the heat pump or threaten the safety
of the user.
The heat pump must be installed OUTSIDE in a well ventilated area to avoid air
re-circulation, and in a place with adequate room for both installation and
maintenance. Please refer to the following illustration: The unit requires a minimum of
59.1 inch (DR-650HP, DR-900HP)/39.4 inch (DR-1100HP) of clearance from walls,
shrubbery, equipment, etc. around the entire perimeter of the heat pump. This allows
for ample air intake. Ample clearance around the air outlet is required to prevent
re-circulation of air. We recommend not placing the unit underneath eaves, decks, or
porches, as this causes re-circulation of discharged air, thereby reducing the
efficiency of the heat pump, or even stopping it
1) Be sure to fix the bracket with bolts (M10) to install the machine. The machine can
be fixed on a concrete foundation or on a bracket. The concrete foundation should
be solid and sturdy, and the bracket should be strong enough and rust-proof.
2) Don’t stack anything that will block air flow near the inlet or outlet areas, or have
any barrier within 20 inch behind the main heat pump, or the efficiency of the
heat pump will be reduced;
3) The heat pump needs a pool pump (to be supplied by user). For recommended
pump flow rates, please refer to Technical Parameter, Max. lift ≥393.7 inch;

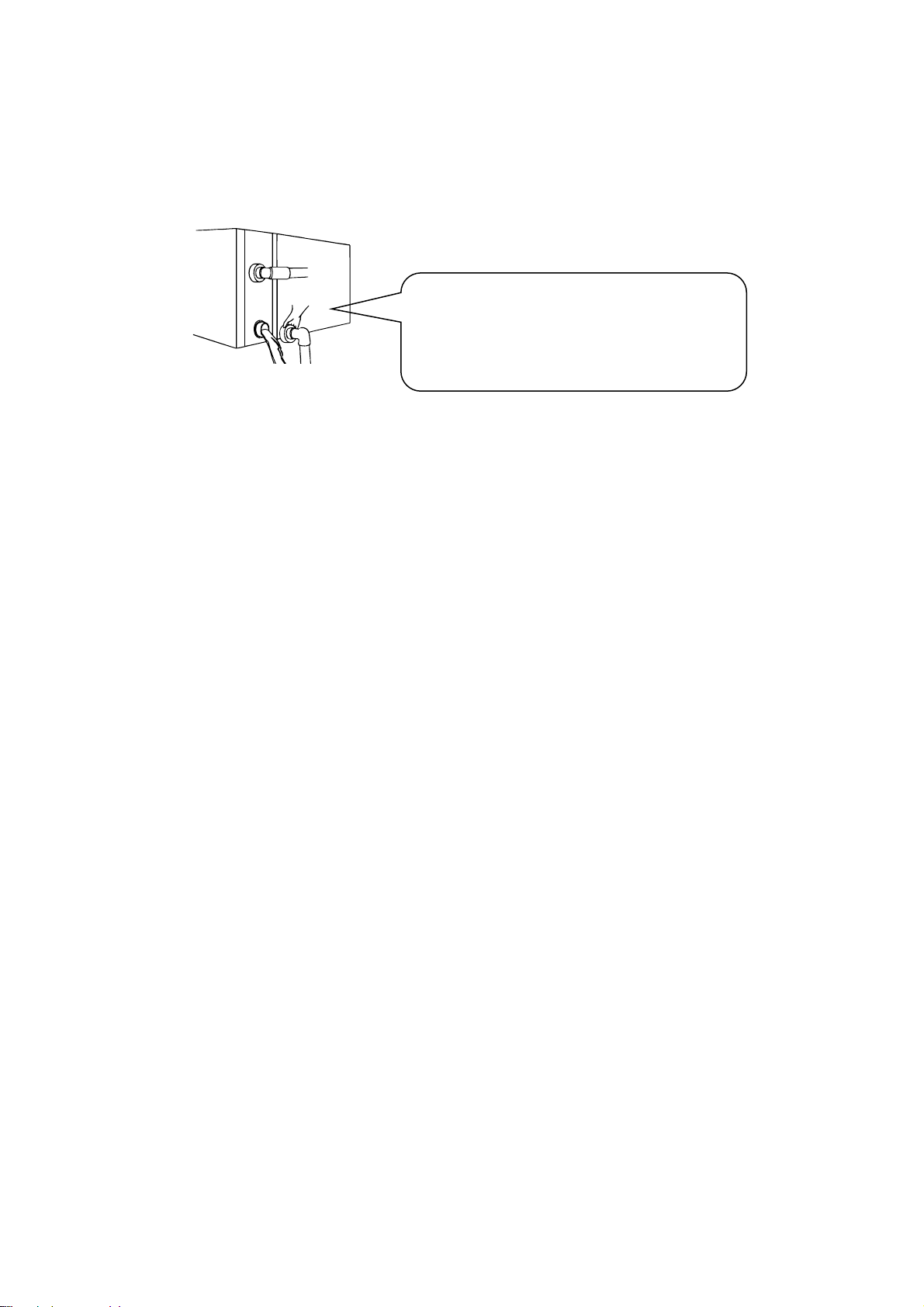

4) When the heat pump is running, there will be condensation water discharged at

11
the base. Place the drainage nozzle into the condensation outlet and attach it
securely, then contact a drainage pipe from it to the drain.
DR-650HP, DR-900HP
DR-1100HP

12
B. Wiring
1) Make sure the power supply is at the rated voltage of the appliance.
2) Ground the heat pump.
3) Wiring must be installed by a professional installation technician and follow the
circuit diagram.
4) Set leakage protection device according to the local code for wiring (leakage
action current ≤ 30mA specification).
5) The layout of power cable and signal cable should be orderly and not interfere
with each other.
C. Switch on the heat pump after finishing all wiring construction and
re-checking.

13

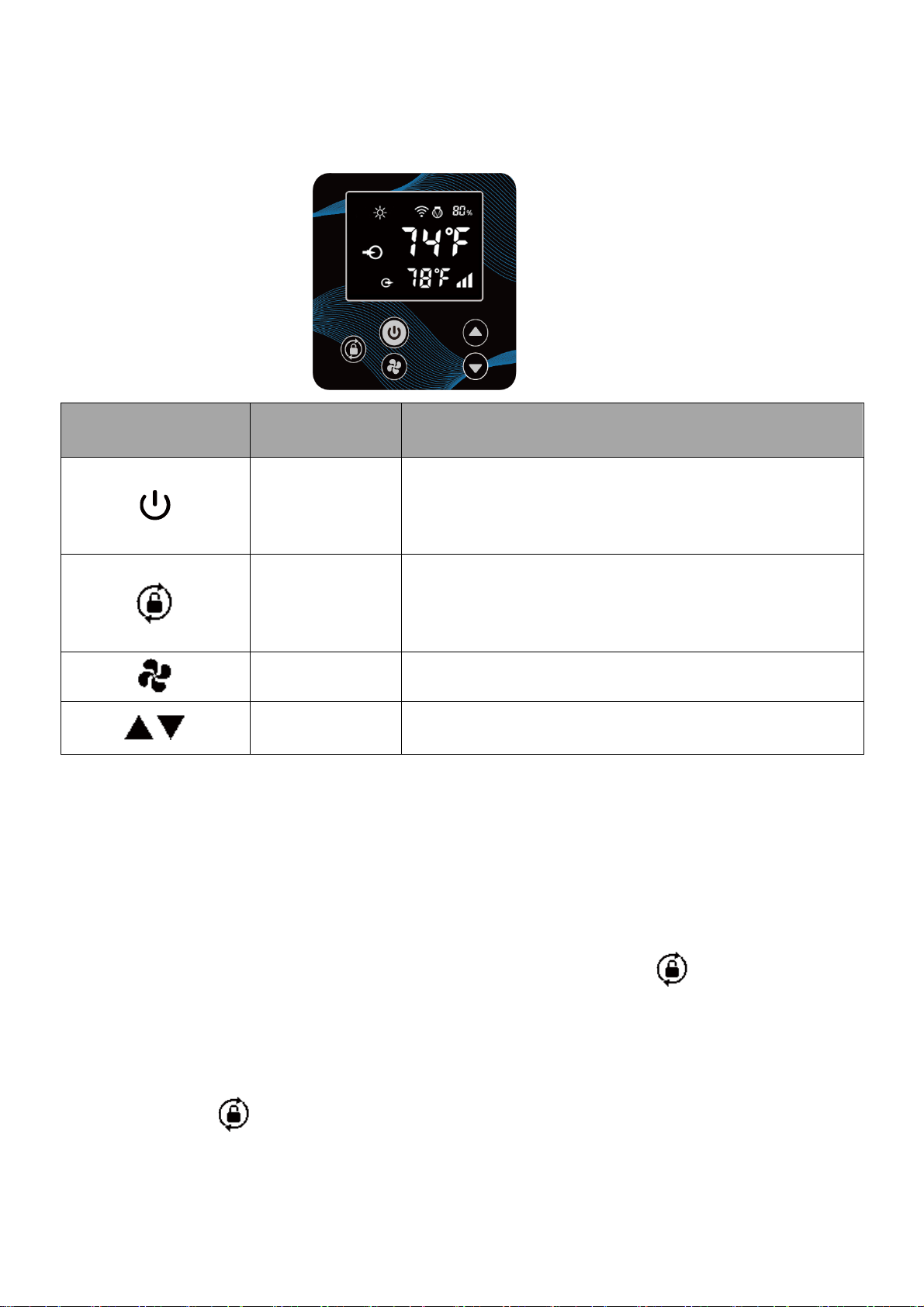

VIII．Operation instructions
Symbol
Designation
Function
ON/OFF
1. Power On/Off
2. Wi-Fi Setting
Unlock / Mode
1. Press 3 seconds to unlock/lock screen.
2. After screen is unlocked, press it to select mode.
Speed
Smart/Silence mode
Up / Down
Temperature adjustment
Note:
Screen lock: Only after screen is unlocked, any other buttons can be functioning.
a. If no button is used within 30 seconds, the screen will lock automatically. At this point,
the backlight will turn off and 0% will display.
b. Alternatively, you can lock the display by pressing the LOCK button for 3 seconds
to achieve the same result.
c. To unlock the screen and use any other button, follow the Power On Instruction above.
d. Press for 3 seconds to lock screen and it will be dark.

14
Heating
Heating capacity %
Wi-Fi connection
Water inlet
Water outlet
1. Power On: Press the LOCK button for 3 seconds to light up screen, then press
POWER button to power on heat pump.
2. Adjust/Set Temperature: When screen is unlocked, press UP or DOWN
to display or adjust the set temperature; To change from Fahrenheit (℉)to Celsius (℃),
press the UP and DOWM together for 5 seconds.
3. Smart/Silence mode selection:
① Smart mode, as default, will be activated when heat pump is on, and the screen
shows .
② Press FAN to enter Silence Mode. The display screen will show .
(Suggestion: select Smart mode for initial heating)
Water inlet
temperature
Water outlet
temperature
Smart/Silence
mode

15
4. Defrosting
a. Auto Defrosting: When heat pump is defrosting, HEATING will continually
flashing. After defrosting, HEATING will stop flashing.
b. Manual Defrosting: When heat pump is heating, press FAN and MINUS
together for 5 seconds to start manual defrosting, will flash continuously. After
defrosting, HEATING will stop flashing.
(Note: Manual defrosting intervals should be more than 30 minutes and the
compressor should run for more than 10 minutes.)
5. Wi-Fi setting
Please kindly check the last page.
IX．Starting
A. The user should start the pool pump, and check for any leakage of water; Power
on and press the ON/OFF button on the heat pump, and set a suitable
temperature at the thermostat.
B. In order to protect the heat pump, the heat pump is equipped with a time-delay
starting function. When starting the heat pump, the blower will run for 1 minute
before than the compressor.
C. After the heat pump starts up, check for any abnormal noise from the heat pump.
NOTE: The user must start the pool pump before the heat pump, and turn off the
heat pump before the pool pump, or the heat pump will be damaged.

16
X．Maintenance
1. When a power outage happens while the heat pump is running, the heat pump
will restart automatically when the power is restored. Please switch off the power
supply when there is a power outage, and reset the temperature setting when
power is restored.
2. If the heat pump is stopped for a long time, please cut off the power supply and
drain water completely from the heat pump by opening the union of the inlet pipe.
3. Check bolts, cables, and connections regularly for looseness and adjust as
needed.
Cold Weather Operation
In the ‘off’ season, when the pool is not going to be used at all:
1. Cut off the power supply to avoid damage to the heat pump.
2. Drain water from the heat pump by removing the piping connection on both inlet
and outlet side, from the pool to the heat pump. As needed, use a shop dry/wet
vac or air pressure to purge any excess water.
3. Unscrew the water union of the inlet pipe (top) to let water flow out completely
from the outlet (bottom).
4. Cover the heat pump when not in use to protect it from the weather.
CAUTION: Turn off its power supply before service work including cleaning,
examination, or repair. Do not touch any electronic components until the LED
indication lights on the PCB is off.
o
ff.

17
5. Clean the heat pump’s exterior with standard household detergent to clean water.
Never use gasoline, paint thinner or other flammable liquids.
Testing:
Inspection before use
A. Check installation of the entire heat pump and pipe connections according to the
pipe connecting drawing;
B. Check the electric wiring according to the electric wiring diagram; and grounding
connection;
C. Make sure that the main heat pump’s power switch is off;
D. Check the temperature setting;
E. Check the air inlet and outlet.
!!CAUTION:
If water is left in the system during freezing
weather, the titanium heat exchanger may be
damaged.

18
XI．Troubleshooting
Failure
Reason
Solution
Swimming pool
heat pump Does
not run
Main power off
Wait for the power to be restored
Power switch is off
Turn on switch
Fuse burnt
Replace fuse
Circuit breaker tripped
Turn circuit breaker back on
Heat pump runs
but not heat
Air inlet blocked
Remove obstructions
Air outlet blocked
Remove obstructions
3-minute protection
Please wait more than 3 minutes for
warming to start
Temp set too low
Set temperature setting
If these above solutions do not work, contact your dealer. Do not attempt to repair the
heat pump yourself.
