DR Power Equipment PILOT 2C Quick start guide
2DR® 2-CYCLE TILLER CULTIVATOR
This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
Table of Contents
Chapter 1: Important Safety Considerations....................................................................................................................................... 3
Chapter 2: Setting up your DR 2-CYCLE TILLER CULTIVATOR.......................................................................................................... 6
Chapter 3: Operating Your DR 2-CYCLE TILLER CULTIVATOR ......................................................................................................... 10
Chapter 4: Maintaining the DR 2-CYCLE TILLER CULTIVATOR......................................................................................................... 13
Chapter 5: Troubleshooting ................................................................................................................................................................. 16

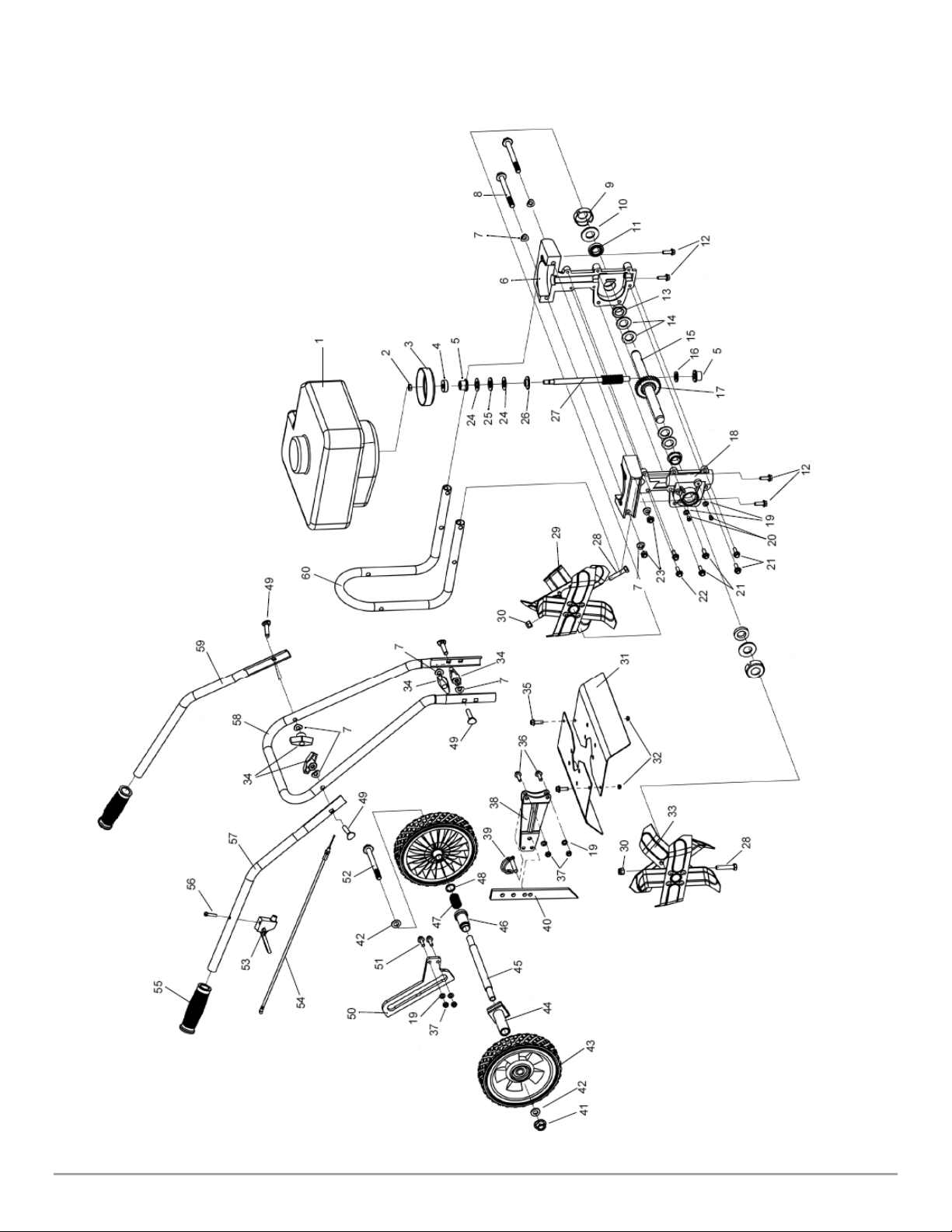

Chapter 6: Parts Lists and Schematic Diagrams................................................................................................................................. 17
Conventions used in this manual
We have done our utmost to ensure that your DR 2-CYCLE TILLER CULTIVATOR will be one of the most trouble-free and
satisfying pieces of equipment you have ever owned. Please let us know of any questions you may have. We want to answer them
as quickly as possible. When you do call, please have your order number, or serial number handy. For technical assistance,
please visit our website at www.DRpower.com or call Toll-Free 1-800-DR-OWNER (376-9637) and one of our Technical Support
Representatives will be happy to help you. We also hope to hear from you on how much you like your new helper.
If you are ever unsure about an action you are about to take, don’t do it, visit our website at www.DRpower.com for help or
information.
DR Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation
to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. Equipment described
within this manual may be optional. Some illustrations may not be applicable to your machine.
California Proposition 65
This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
This information is important in the proper use of your machine. Failure to follow this instruction could result in
damage to your machine or property.
CONTACT US AT www.DRpower.com 3
Chapter 1: Important Safety Considerations
We want you to enjoy years of safe and productive use from your DR 2-CYCLE TILLER CULTIVATOR. We do not want you injured,
so please take a few moments to read the following instructions for safely operating your new Tiller/Cultivator.
Your DR 2-CYCLE TILLER CULTIVATOR carries prominent safety labels (shown below) to remind you of important information
while you are operating the machine. Take a moment to study these labels before you operate the machine. Please, immediately
replace labels if they should become unreadable due to fading, or otherwise damaged during use of your DR 2-CYCLE TILLER
CULTIVATOR.
Protecting Yourself and Those around You
Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the
Tiller/Cultivator and the activity of tilling. Never assume that children will remain where you last saw them.
This tilling machine, can cut, and sever parts of your body if they become in contact with the moving Tines. Always take the
following precautions when operating the DR 2-CYCLE TILLER CULTIVATOR:
Only allow responsible individuals who have a thorough understanding of these instructions to operate the Tiller/Cultivator.
Never allow children to operate the machine.
Always wear protective goggles or safety glasses with side shields while tilling to protect your eyes from possible foreign objects
thrown from the machine.
Wear shoes with non-slip treads when using this machine. If you have safety shoes, we recommend wearing them. Do not use
the machine while barefoot or wearing sandals with exposed toes or heels.
Avoid wearing loose clothing or jewelry, which can catch on the machine’s moving parts.
We recommend wearing long pants and gloves while using this machine. Be sure the gloves fit properly and do not have loose
cuffs or drawstrings.
Never place your hands, feet, or any part of your body near the Tines when starting the Engine or while the DR 2-CYCLE TILLER
CULTIVATOR’s Engine is running.
Keep children, other bystanders, and pets away from your work area at all times. Stop the Engine when another person or pet
approaches.
Before and while pulling the machine backwards, look behind and down for small children and for secure footing.
We recommend the use of ear protectors or earplugs rated for at least 20 dba to protect your hearing.
#A0001077239
#A0001077298
4DR® 2-CYCLE TILLER CULTIVATOR
Operating the Tiller/Cultivator Safely
Safety with Gasoline-Powered Machines
Clear the work area of objects that might jam or wrap around the Tines such as glass, large sticks, stones, metal objects, wire,
rope, and string-like materials. Use on these objects could damage the DR 2-CYCLE TILLER CULTIVATOR and/or cause injury.
Do not touch the muffler and Engine when the machine is in use as they become very hot and can cause severe burns.
The Engine should always be off before adjusting the Wheel Height or Drag Stake.
Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the DR 2-CYCLE TILLER
CULTIVATOR. This includes all shields and guards. Modifications to your machine could cause personal injuries and property
damage and will void your warranty.
Do not operate the machine when under the influence of alcohol, drugs, or medication.
Use the DR 2-CYCLE TILLER CULTIVATOR only in daylight.
Do not hurry or take things for granted when using the DR 2-CYCLE TILLER CULTIVATOR. When in doubt about the machine
or your surroundings, stop the machine and take time to look things over.
Do not use this machine around large roots and surface rocks that you cannot remove prior to use.
Do not use this machine around underground pipes and wiring.
Prior to removing material from the Tines by hand, stop the Engine and remove the Spark Plug wire.
Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that is easy to ignite and cause a fire or explosion.
Never overlook the hazards of gasoline and always follow these precautions:
Never run the DR 2-CYCLE TILLER CULTIVATOR Engine in an enclosed area or without proper ventilation as the exhaust from
the Engine contains carbon monoxide, this is an odorless, tasteless, and deadly poisonous gas.
Store all fuel and oil in containers specifically designed and approved for this purpose and keep away from heat, open flame,
and out of the reach of children.
Mix the oil and gasoline outdoors and then fill the Fuel Tank outdoors with the Engine off; allowing the Engine to cool
completely. Do not handle gasoline if you or anyone nearby is smoking, or if you are near anything that could cause it to ignite
or explode. Replace the Fuel Tank and Fuel Container Caps securely.
If you spill gasoline, do not attempt to start the Engine. Move the machine away from the area of the spill and avoid creating
any source of ignition until the gas vapors have dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly
dispose of the waste.
Allow the DR 2-CYCLE TILLER CULTIVATOR Engine to cool completely before storing in any enclosure. Never store the
machine with fuel in the tank or with fuel in a container near an open flame or spark such as a water heater.
Never make adjustments or repairs with the Engine running. Before making an adjustment or repair, shut off the DR 2-CYCLE
TILLER CULTIVATOR Engine, wait five (5) minutes to cool, then disconnect the spark plug wire and keep the wire away from
the spark plug to prevent accidental starting.
Never check for an ignition spark with the Spark Plug or Spark Plug wire removed. Always use an approved spark tester.
To reduce fire hazard and keep the Engine from overheating, keep the Engine and Muffler area free of debris or any other
combustible material.
Never operate the Engine without the Muffler. Inspect the Muffler periodically and replace if necessary.
Never operate the Engine with the Air Filter or Cover over the Carburetor air intake removed, except for adjustment. Removal of
such parts could create a fire hazard. Do not use flammable solutions to clean Air Filter.
Always check Fuel Lines and fittings frequently for cracks or leaks, replace if necessary.
Replace rubber Fuel Lines and Grommets when worn or damaged, but do not use over five (5) years.
CONTACT US AT www.DRpower.com 5
General Safety Rules
A Note to All Users
No list of Warnings and Cautions can be all-inclusive. If situations occur not covered by this manual, the operator must apply
common sense and operate the DR 2-CYCLE TILLER CULTIVATOR in a safe manner. Visit our website at www.DRpower.com or
call 1-800-DR-OWNER (376-9637) for assistance.
Under California law, and the laws of some other states, you are not permitted to operate an internal combustion Engine using
hydrocarbon fuels without an Engine Spark Arrester. This also applies to operation on US Forest Lands. We provide all DR 2-
CYCLE TILLER CULTIVATORS shipped to California and Washington State with Spark Arresters. Failure of the owner/operator to
maintain this equipment in compliance with state regulations is a misdemeanor under California law and may be in violation of
other state and/or Federal regulations. Contact your local Fire Marshal, Forest Service, State Park Association, or the appropriate
State organization for specific information in your area.
Safe operation of the DR 2-CYCLE TILLER CULTIVATOR is necessary to prevent or minimize the risk of minor or moderate injury.
Unsafe operation can create a number of hazards for you. Always take the following precautions when operating this machine:
The DR 2-CYCLE TILLER CULTIVATOR is a powerful tool and not a plaything. When using this machine, exercise extreme
caution at all times. The design of this machine is to till soil. Do not use it for any other purpose.
Do not cultivate above underground utilities, including water lines, gas lines, electric cables, or pipes. Do not operate the
machine on terrain/soil with large rocks and foreign objects which can damage the equipment.
The tines of the cultivator should not rotate when the engine is idling. If it does rotate when engine is idling, contact DR Power
Equipment for instructions.
The operator or user of the DR 2-CYCLE TILLER CULTIVATOR is responsible for accidents or hazards occurring to other people,
their property, and themselves.
In an emergency, to quickly stop the machine, simply release the Throttle Lever and shut off the Engine.
Do not transport the DR 2-CYCLE TILLER CULTIVATOR from one place to another with the Engine running.
If the machine should make an unusual noise or vibration during use, shut off the DR 2-CYCLE TILLER CULTIVATOR Engine.
Vibration is generally a warning of trouble. Wait five (5) minutes for the DR 2-CYCLE TILLER CULTIVATOR Engine to cool,
disconnect the Spark Plug wire and then inspect the machine for clogging, damaged Tines, or loose Engine mounting bolts.
Clear any obstructions and repair and/or replace damaged parts.
Always keep the machine in good safe operating condition. Always make certain nuts and bolts are tight and always use the
supplied self-locking hardware. Do not use substitute hardware.
Always shut off the DR 2-CYCLE TILLER CULTIVATOR Engine, wait five minutes to cool, and disconnect the spark plug wire
before attempting to clear any obstructions.
If the DR 2-CYCLE TILLER CULTIVATOR Engine should stall, raise the Tines out of the soil by pushing down on the Handlebars.
Never squeeze the Throttle Lever when the Tines are already in the ground.
Never leave the DR 2-CYCLE TILLER CULTIVATOR unattended with the Engine running.
6DR® 2-CYCLE TILLER CULTIVATOR
Chapter 2: Setting up your DR 2-CYCLE TILLER CULTIVATOR
This chapter outlines a few simple steps you will need to follow to set up your new machine before you use it. It may be helpful to
familiarize yourself with the controls and features on your new machine by reviewing Figure 1 on the following page before
beginning the steps outlined in this chapter. For technical assistance, please visit our website at www.DRpower.com and one of
our Technical Support Representatives will be happy to help you.
DR 2-CYCLE TILLER CULTIVATOR Specification Sheet
Engine
Single Cylinder, 2-Cycle, Air Cooled
Engine Speed
9000 rpm
Displacement
43cc
Bore/Stroke
40/34 (mm)
Power Output
1.34 HP
Max Torque Output
1.18 ft.lbs
Fuel Tank Capacity
28.7 oz (850 ml)
Fuel Type
Gas/Oil Mixture
Gas/Oil Mix Ratio
50:1 (2.6 ounces Oil per 1 gallon gas)
Gas Type
Minimum 87 Octane with Low Ethanol Content
Oil Type
2-Cycle Engine Oil
Spark Plug
LD L6
Spark Plug Gap
.021" (.53mm)
Transmission Gear Ratio
32:1
Tilling Width
11" (27.9cm)
Tilling Depth
0-8" (0-20.3cm)
Tine Speed
288 RPM max
Wheel Size
7.0" diameter x 1.375" wide (17.8 cm x 3.5 cm)
Machine Weight
29 lbs. (13.2kg)
Machine Dimensions
36" x 18.5" x 39". (91.4cm x 47cm x 99.1cm)
CONTACT US AT www.DRpower.com 7

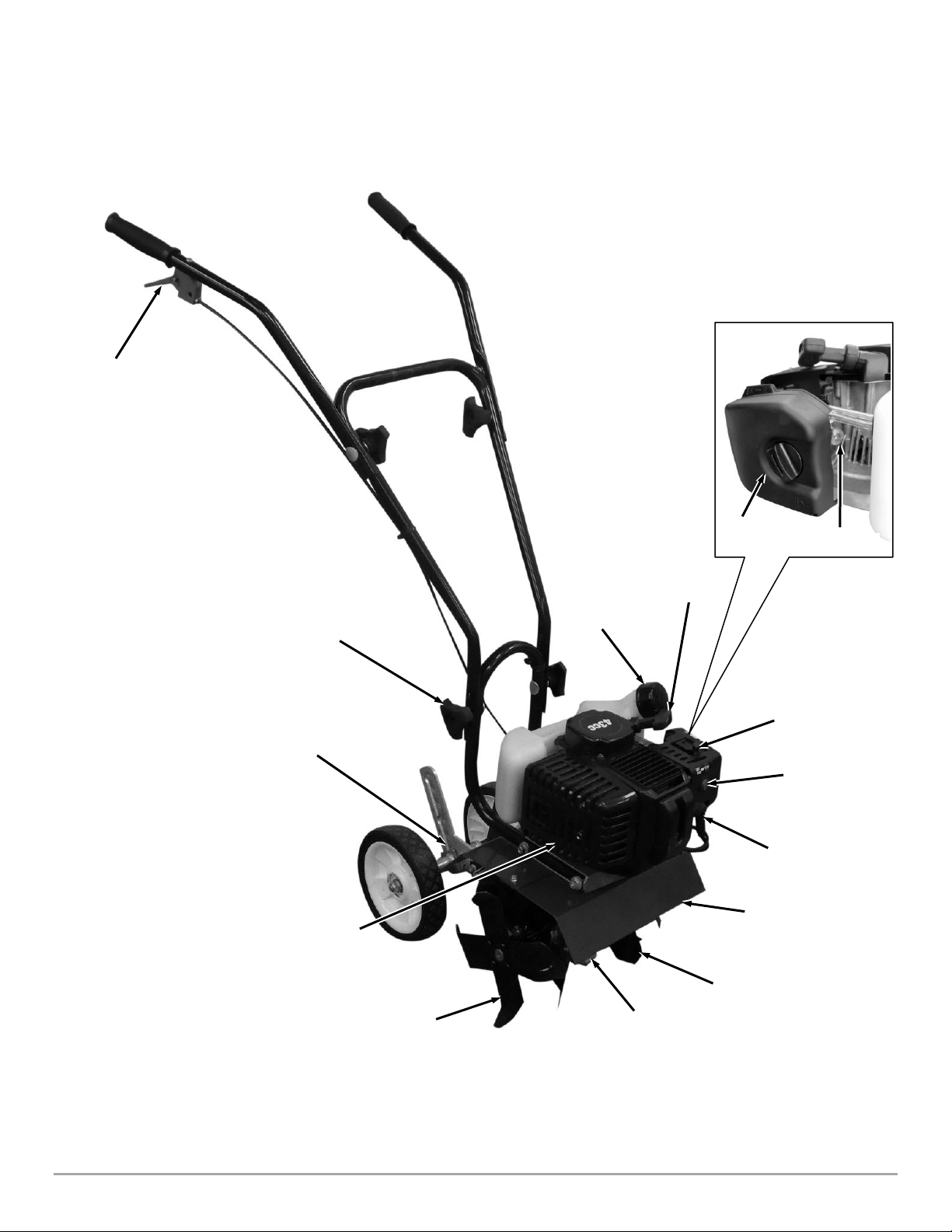

DR 2-CYCLE TILLER CULTIVATOR Controls and Features
Note: The model shown in Figure 1 may look slightly different than your machine.
Figure 1
Throttle Control
Lever
43cc 2-Cycle
Engine
Manual Recoil
Start Handle
Fuel Cap
Primer Bulb
Choke Lever
Tine
Shield
2 Position Tool-Less Handlebar
Height Adjustment
Left Hand Tine
Assembly
Right Hand Tine
Assembly
3 Position Tool-Less Wheel
Height Adjustment
Air Filter
Cover
On/Off
Switch
Transmission
Spark Plug
Wire
8DR® 2-CYCLE TILLER CULTIVATOR

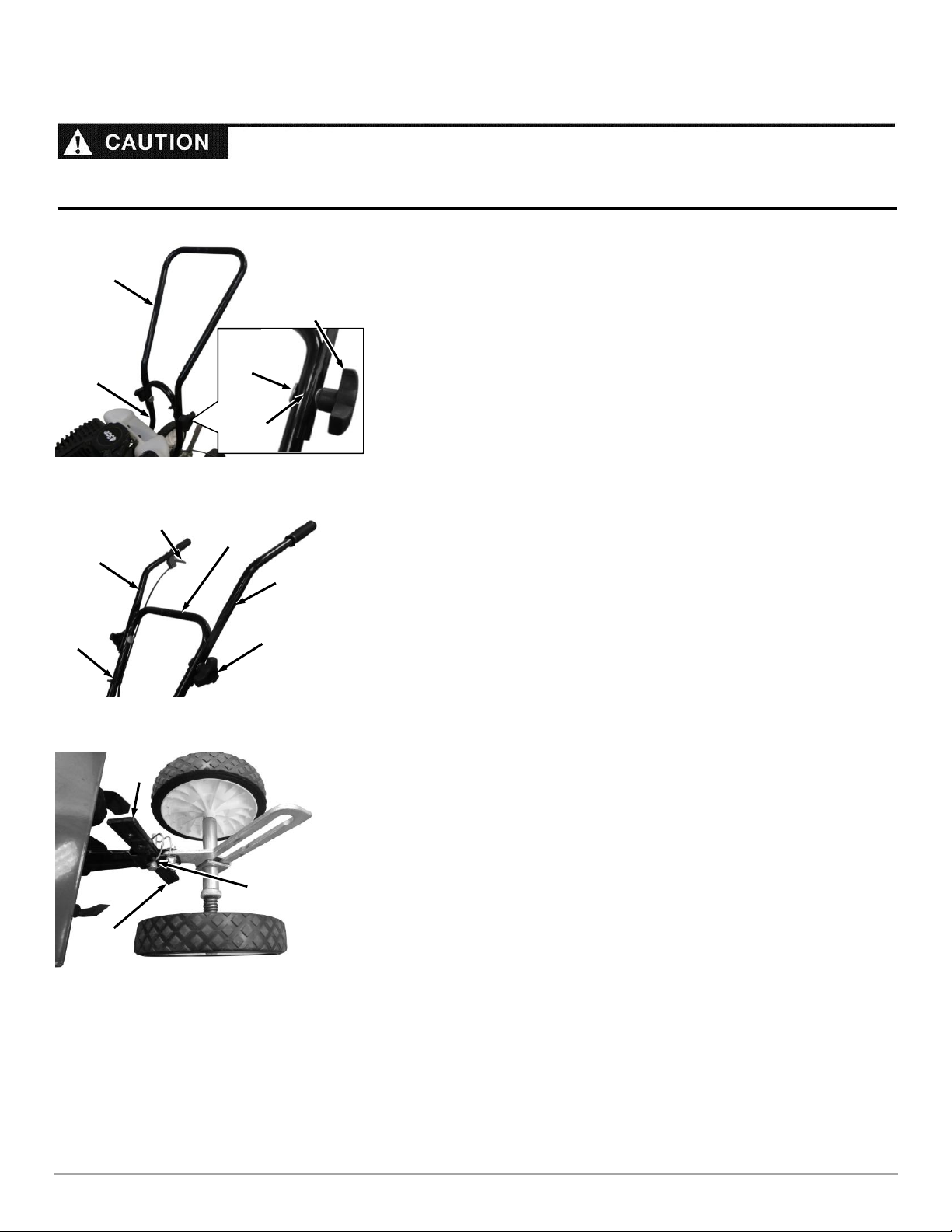

Assembling the Machine
Parts Supplied in Shipping Carton:
DR 2-CYCLE TILLER CULTIVATOR
Upper Left Handlebar
Upper Right Handlebar
Middle Handlebar
Safety & Operating Instructions Manual
Engine Manual
Hardware Bag:
(4) T-Handle Nut
(4) Curved Washer
(4) Handle Clamp Bolt
(1) Cable Tie
Note: Use care with the Upper Right Handlebar so as not to kink the Throttle
Cable; it is pre-attached to the Engine.
1. Place unit upright with the Tines and Wheels on level surface. Set Wheels to
lowest position.
2. Assemble the Middle Handlebar to the Lower Handlebar (already attached to
the machine) using two T-Handle Nuts, two Handle Clamp Bolts and two
Curved Washers (Figure 2). The Middle handlebar can be installed in high or
low position.
Note: You can install the Middle Handlebar in either of two positions, one high, and
one low. DO NOT over tighten the T-Handle Nuts.
3. Attach the Upper Right (with Throttle Lever) and Left Handlebars to the
Middle Handlebar using the remaining two T-Handle Nuts, two Handle
Clamp Bolts, and two Curved Washers (Figure 3). DO NOT over tighten the
T-Handle Nuts.
4. Secure the Throttle Cable to the Upper Right Handlebar with a Cable Tie.
5. The Drag Stake shipped with its pointed end facing upwards. Remove the
Lock Pin, turn the Drag Stake around and direct the point in the downward
position facing towards the Tines, and then reinsert the Lock Pin (Figure 4).
6. Do not discard your packaging material until you are fully satisfied with your
new DR 2-CYCLE TILLER CULTIVATOR.
Drag
Stake
Figure 4
Lock Pin
Point
Facing
Forward
Upper Right
Handlebar
Figure 3
Upper Left
Handlebar
Throttle
Lever
Middle
Handlebar
T-Handle Nut,
Curved Washer,
and Handle
Clamp Bolt
Cable
Tie
Lower
Handlebar
Figure 2
Middle
Handlebar
Curved
Washer
Handle
Clamp
Bolt
T-Handle
Nut
Stabilize the shipping carton on a flat ground surface before attempting to unpack and assemble the machine. Do not place the
machine on a bench or table where it can fall and cause personal injury or damage the machine.
CONTACT US AT www.DRpower.com 9

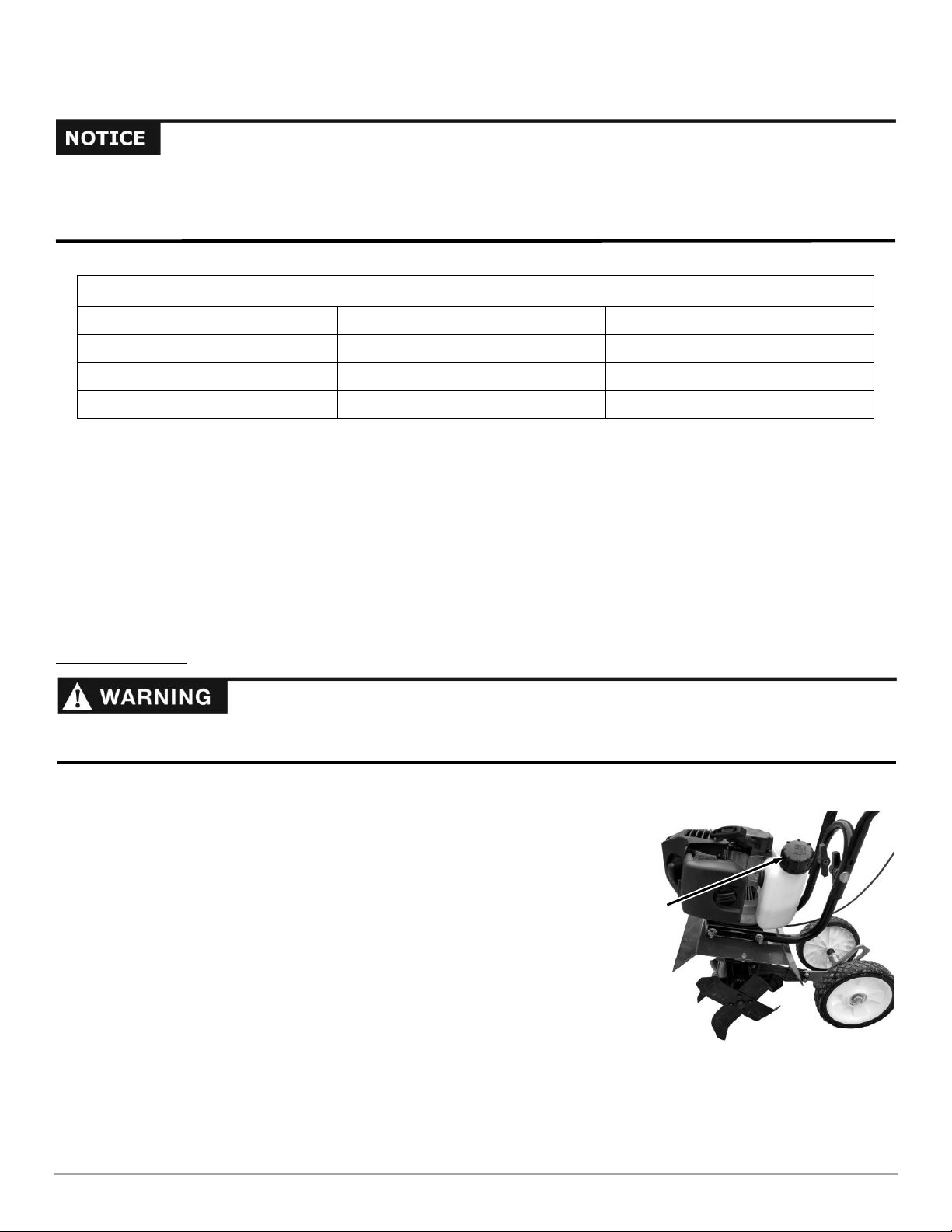

Adding the Gasoline/Oil Mixture
Fuel Mixture
GAS
OIL
RATIO
1 Gallon
2.6 Ounces
50:1
2 Gallons
5.1 Ounces
50:1
5 Gallons
13 Ounces
50:1
1. Outside in a well ventilated area; add the recommended amount of 2-cycle oil to the approved container for the amount of fuel
you are mixing.
2. Add unleaded gasoline with minimum 87 octane to the fuel container to approximately 1/4 full.
3. Screw the container cap on tight and gently shake the container to mix the fuel and oil.
4. Unscrew the container cap slowly and add the remainder of the fuel you are mixing.
5. Replace the cap and
6. Wipe up any spilled fuel.
Filling the Fuel Tank
Note: Only use fuel that is a 50:1 mixture of Gas and 2-Cycle mixing Oil.
1. Clean any debris from the area around the Fuel Tank Cap and remove it
slowly, placing the Cap on a clean dry surface (Figure 5).
2. Carefully fill the Fuel Tank to avoid spilling, to approximately 1" below the
bottom of the Fill Neck to allow for fuel expansion. Be careful not to overfill.
Reinstall the Fuel Tank Cap.
3. Wipe off any spilled fuel before starting the Engine.
Note: To refill the Fuel Tank, turn the Engine OFF, and let the Engine cool at least
two minutes before removing the Fuel Tank Cap.
Fuel Tank
Cap
Figure 5
To operate the Engine you must use 2-cycle Engine oil with unleaded regular gasoline mixed with a 50:1 ratio. Never use
straight gasoline, as this will result in damage to the Engine.
Never mix the gasoline and oil directly in the Engine Fuel Tank. Always use only nonmetal, portable fuel containers approved
by UL or ASTM.
Always fill the Fuel Tank outdoors or in a well-ventilated area, away from sparks, open flames, pilot lights, heat, and other ignition
sources.
10 DR® 2-CYCLE TILLER CULTIVATOR
Chapter 3: Operating Your DR 2-CYCLE TILLER CULTIVATOR
This chapter covers the procedures for starting and stopping your new DR 2-CYCLE TILLER CULTIVATOR and discusses basic
operation features.
Before Starting the Engine
Cold Engine Start:
1. Push the Primer Bulb in and then release until it returns to its original
position (Figure 6). Repeat this process 6 times or until the Primer Hose is
full of fuel.
2. Move the Choke Lever all the way to the CHOKE position and make sure the
On/Off Switch is in the ON position (Figure 7).
3. Standing between the Handlebars, push down on the Handlebar lifting the
Tines off the ground (Figure 8). Grasp the Recoil Starter Handle with your
left hand and slowly pull until you feel resistance, then pull the cord with a
smooth accelerating motion to start the Engine. Do not let the Starter
Handle snap back against the Engine. One or two pulls usually starts the DR
2-CYCLE TILLER CULTIVATOR.
Note: If the Engine fails to start after 5-6 pulls, push the Primer Bulb 1 more time
and pull the Starter Rope again.
4. After the Engine starts, release the Throttle Lever and move your left hand to
the Handlebar position for stability. Slowly push the Choke Lever to the half
choke position with your right hand until the Engine starts to run smoother
and then all the way to the RUN position.
5. Squeeze the Throttle to the desired speed. For the best Engine performance,
do not hold the engine at full throttle while the tines are not making contact
with your working area. Running the engine at maximum throttle without
and load applied may cause engine damage.
Warm Engine Start:
1. Make sure the On/Off Switch is in the ON position (Figure 7).
2. Repeat steps 3 through 5 with the Choke in the RUN position.
Throttle
Lever
Figure 8
Recoil
Starter
Handle
Figure 7
Choke
Lever
On/Off
Switch
Primer
Bulb
Figure 6
Make sure the machine is in a stable position before pulling the starter
rope.
The starter rope can cause an unanticipated jerk (kick back) towards the
Engine. Please follow these instructions to avoid injury.
Remove all long vegetation from the site. Long vegetation will wrap around
the Tines and cause poor performance. Remove any built up debris from
the Tines.
Remove any debris from the Air Cleaner Holes and around the Fuel Tank
Cap for proper airflow.
CONTACT US AT www.DRpower.com 11
Stopping the Engine
Release the Throttle Lever and turn the On/Off Switch to the OFF position
(Figure 9).
Operating Procedures
Cultivate without placing excessive body weight on the machine. The cultivator operated most efficiently under its own weight.
Allow the machine to till soil clawing its way forward. Depending on the soil type and moisture conditions, the slower the
cultivator moves across the working area, the deeper the tines will penetrate.
Make multiple passes over working area to cultivate soil effectively.
Note: This cultivator is designed to till predominately loose soil. Attempting to break hard pack soil may damage tines.
Note: The 43cc 2-cycle engine is only designed to be run under the load of tiller. Holding the engine at full throttle continuously while the
machine is not in use may cause permanent engine damage.
1. Ensure the Drag Stake and Wheel height is set to the desired position.
2. Start the machine as described in the previous section.
3. Lift Tines off the ground and operate the Throttle Lever to full speed.
4. Slowly lower the Tines into the soil as you begin walking forward to till soil.
Note: Holding back on the Handlebar will slow the forward movement to till material more thoroughly.
5. Release the Throttle Lever when you want to stop the Tiller.
6. Shut the Engine off before leaving the Tiller.
Figure 9
On/Off
Switch
The Tines Drive Clutch will transfer maximum power after about two hours of normal operation. During this break-in period,
Clutch slippage may occur and is normal.
The Tines should not rotate when the Engine is idling; if they do, contact us at www.DRpower.com for instructions.
Use the DR 2-CYCLE TILLER CULTIVATOR without placing excessive body weight on the machine. The unit operates most
efficiently with the weight of the machine itself.
Use common sense when using the machine. Learn to recognize the change in sounds when it is overloaded. Turn off the
Engine immediately if the machine becomes jammed to prevent damage to the drive system.
Never stop the Engine by moving the Choke Lever to the CHOKE position.
This could cause an Engine backfire resulting in Engine damage.
12 DR® 2-CYCLE TILLER CULTIVATOR
Handling and Transporting
Adjusting the Wheels and Drag Stake
Adjusting the Wheels
You can adjust the Wheels on the DR 2-CYCLE TILLER CULTIVATOR to one of
three positions (Figure 10). Use the lowest Wheel position for transporting the
machine across a smooth level surface while the Engine is not running. Use the
two higher positions for tilling in soil and to help stabilize the unit when tilling
at different depths.
1. Pull the Locking Sleeve toward the Spring until it releases from one of the
three cutouts in the Vertical Guide.
2. Slide the Wheel Set up or down to the desired position, and then release the
Locking Sleeve until it locks into one of the three cutouts in the Vertical
Guide.
Adjusting the Drag Stake
The Drag Stake is used to help regulate tilling depth and control the machine
from lurching forward during operation (Figure 11). Set the Drag Stake in its
lowest position of three to provide the greatest resistance to forward motion
allowing for deeper tilling.
1. Pull the Lock Pin out of the Drag Stake Mounting Hole.
2. Position the Drag Stake to the desired depth and reinsert the Lock Pin.
Drag
Stake
Figure 11
Lock Pin
Point
Facing
Forward
Locking
Sleeve
Figure 10
Spring
Vertical
Guide
Cutouts
Never lift the machine while the Engine is running.
If you must use an enclosed vehicle for transportation, remove the fuel into an approved container; never siphon fuel by mouth.
CONTACT US AT www.DRpower.com 13
Chapter 4: Maintaining the DR 2-CYCLE TILLER CULTIVATOR
This chapter covers regular maintenance procedures that will ensure the best performance and long life of your DR 2-CYCLE
TILLER CULTIVATOR.
Regular Maintenance Checklist
Note: Consider that the service intervals shown are the maximum under normal operating conditions. Increase frequencies under
extremely dirty or dusty conditions.
Procedure
Before Each
Use
Every 35
Hours
Check the Engine mixed Fuel Level
▲
Clean the Tines and Tine Shield*
After each use
Check the general condition of the machine, e.g.
nuts, bolts, welds, etc.
▲
Clean Engine Exterior & Cooling Fins
▲
Clean Air Filter
▲
Check Tines for Wear
▲
Replace Air Filter
▲
Replace Spark Plug
▲
* Cover the Engine Muffler, Carburetor, and Air Filter before using a hose to clean the Tines and Tine Shield.
Lubrication
The Tines Drive Transmission Case has grease installed at the factory. We recommend that once a year to have the Transmission
opened by a qualified service professional and the grease level checked. Add a molylithium type grease only if the level of the
grease is below the top of the gears. DO NOT OVERFILL.
Prior to performing any maintenance, you must first shut off the Engine; wait five minutes to allow parts to cool and disconnect
the Spark Plug wire, keeping it away from the Spark Plug.
14 DR® 2-CYCLE TILLER CULTIVATOR
Replacing the Air Filter
Supplies Recommended:
Clean Cloth
1. Unscrew the Plastic Knob Bolt that secures the Filter Cover and remove the
Cover (Figure 12).
2. Remove the Air Filter Element from the Filter Housing (Figure 13). If the
Filter is dirty, replace with a new one.
3. Wipe out any dirt from inside the Air Filter Housing using a clean Rag.
4. Clean any debris buildup from the openings in the Air Filter Cover.
5. Align the new Air Filter with the hole opening positioned on the right side.
6. Replace the Air Filter Cover and secure with the Plastic Knob Bolt.
Spark Plug Service
Tools Recommended:
Feeler Gauges
Wire Brush
Spark Plug Wrench
Spark plug gap must be correct for efficient operation. Proceed as follows to
service the spark plug:
1. Clean area around spark plug Boot (Figure 14).
2. Pull the Spark Plug Wire from the Spark Plug.
3. Use a Spark Plug Wrench to remove the Spark Plug.
4. Clean the electrodes with a metal brush to remove any build up.
5. Measure spark plug clearance with a feeler gauge. The clearance should be
0.02 in. (.53 mm). If adjustment is necessary, bend the side electrode
carefully with the Feeler Gauge tool.
6. Replace spark plug with a new one if electrodes are pitted, burned or
porcelain is cracked. Use only a NGK CMR6A or equivalent.
7. Install Spark Plug and Wire.
Figure 14
Spark
Plug Boot
Air Filter
Figure 13
Air Filter
Cover
Figure 12
Plastic
Knob Bolt
CONTACT US AT www.DRpower.com 15
Replacing Wheels
Tools Recommended:
Two 14mm Wrenches
1. Hold the Axle Bolt securing the left side Wheel using a 14mm Wrench and
remove the Locknut and Washer on the right side using a 14mm Wrench
(Figure 15).
2. Tilt the machine to the left side to remove the right side Wheel. Tilt the
machine to the right side to remove the Axle Bolt, Washer, and left side
Wheel.
Note: Ensure the Spring and Washer are in position on the Wheel Shaft when
installing the left side Wheel and Axle Bolt. The Washer must be positioned
between the Spring and Wheel. On page 18, see explode drawing items 47
and 48 for reference to position the Spring and Washer correctly.
3. Install the new Wheels in the reverse order and tighten the Axle Bolt and
Locknut.
Tine Remove and Replace
Tools and Supplies Recommended:
Two 13mm Wrenches
Note: For ease of disassembly and assembly, block up the machine so that the Tines
are off the ground.
Tine Removal:
1. Remove the Bolt and Locknut that secures the right side Tine Assembly to
the Shaft using two 13mm Wrenches (Figure 16).
2. Remove the Bolt and Locknut that secures the left side Tine Assembly to the
Shaft using two 13mm Wrenches.
3. Slide the Tine Assemblies off the Shaft.
Tine Installation:
1. Install the left side Tine Assembly onto the Shaft with the squared edge
facing forward the angled Tine edge facing back (Figure 17).
2. Align the holes of the left side Tine Assembly with the Shafts and secure it
with the Bolt and Locknut using two 12mm Wrenches.
3. Install the right side Tine Assembly onto the Shaft with the squared Tine
edge facing forward the angled Tine edge facing back.
4. Align the holes of the right side Tine Assembly with the Shafts and secure it
with the Bolt and Locknut using two 12mm Wrenches.
Note: It is important the Tine Assemblies are installed on the correct right and left
sides to work properly. The square Tine edges face forward and the angled
Tine edges face back.
Square
Edge
Figure 17
Angled
Edge
Bolt and
Locknut
Figure 16
Left Hand Tine
Assembly
Right Hand Tine
Assembly
Left Side
Wheel
Figure 15
Axle Bolt
with Washer
Right Side Wheel
with Locknut and
Washer
16 DR® 2-CYCLE TILLER CULTIVATOR
Chapter 5: Troubleshooting
Most problems are easy to fix. Consult the Troubleshooting Table for common problems and their solutions. If you continue to
experience problems, visit our website at www.DRpower.com or call: 1-800-DR-OWNER (376-9637) for support.
Troubleshooting Table
SYMPTOM
POSSIBLE CAUSE
Recoil will not pull out
or is difficult to pull.
The Recoil may be broken or jammed. Visit our website at www.DRpower.com for
assistance.
The Engine will not
start.
Check that the Spark Plug Wire is attached.
Check the fuel mixture level.
The fuel line hose is not positioned in the bottom of the Fuel Tank. Push the fuel line
down into the fuel in the Fuel Tank.
The fuel mixture may be old; change it if necessary. Use a fuel stabilizer if you keep fuel
longer than one month.
Check the Throttle and Choke settings.
The Spark Plug may be dirty or cracked; change it if necessary.
The Air Filter may be dirty; clean or replace.
If your Engine still won’t start, visit our website at www.DRpower.com for assistance.
The Engine lacks
power or is not
running smoothly.
Make sure that you run the Engine at full Throttle.
The Air Filter may be dirty; clean or replace.
The Spark Plug may be dirty or cracked; change it if necessary.
The fuel mixture may be old; change it if necessary. Use a fuel stabilizer if you keep fuel
longer than one month.
The Choke may be partially in the CHOKE position, place in the RUN position.
The Fuel Filter in the Fuel Tank may be clogged; clean or replace the filter.
If your Engine still lacks power, visit our website at www.DRpower.com for assistance.
Engine smokes.
You may have the wrong gas/oil mixture.
The Air Filter may be dirty; clean or replace.
Clean the Engine cooling fins and the carburetor housing if they are dirty.
If the Engine still smokes, visit our website at www.DRpower.com for assistance.
The Engine runs well
but the Tines won’t
move.
The Tine Drive Clutch may be faulty, visit our website at www.DRpower.com for assistance.
Shear Bolt broken or missing; replace as needed
The Tines turn when
the Engine is idling.
Engine idle speed is too high, visit our website at www.DRpower.com for assistance.
Broken Tine Drive Clutch Spring, replace the Spring.
The Engine runs well
but labors when
tilling.
Operator is being too aggressive; raise the Tines by pushing down on the Handlebars.
Be sure to run the Engine at full Throttle.
Excessive bounce and
difficult handling.
The area you are tilling may be too dry and hard. Moisten the ground or wait for
conditions that are more favorable.
Be sure to run the Engine at full Throttle.
If your DR 2-CYCLE TILLER CULTIVATOR still bounces, visit our website at
www.DRpower.com for assistance.
The tilled soil balls up
or clumps.
The ground that you are trying to till is too moist.
Prior to performing any maintenance, you must first shut off the Engine; wait five minutes to allow parts to cool and disconnect
the Spark Plug wire, keeping it away from the Spark Plug.
CONTACT US AT www.DRpower.com 17
Chapter 6: Parts Lists and Schematic Diagrams
Parts List - Cultivator Assembly
Note: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
1 A0000938179 Engine, DR 43cc
2 A0000967062 Nut, M10 Jam
3 A0000967067 Clutch, Plate
4 A0000967135 Bearing, 6200 –2RS
5 A0000967136 Bushing, Worm Shaft
6 A0000967137 Transmission Case, Left
7 A0000967139 Washer, M8 Curved
8 A0000967070 Hex Bolt, M8 X 155 Flanged
9 A0000967144 Cover, Oil Seal
10 A0000967145 Seal, Dust
11 A0000967147 Seal, Oil
12 A0000967071 Hex Bolt, M6 X 40 Flanged
13 A0000967149 Bushing, Worm Gear
14 A0000967150 Washer, Worm Gear
15 A0000967151 Shaft, Tine
16 A0000967152 Washer, Worm Shaft Top
17 A0000967153 Gear, Worm
18 A0000967154 Transmission Case, Right
19 A0000940904 Washer, M6 Flat
20 A0000967079 Pan Head Screw, M6 X 1.0 X 10
21 A0000967085 Hex Bolt, M6 X 18 Flanged
22 A0000967086 Hex Bolt, M6 X 22 Flanged
23 A0000967087 Nut, M8 Lock
24 A0000967155 Washer, Worm Shaft Bottom
25 A0000967156 Bearing, Thrust
26 A0000967157 Reducer, Thrust Bearing
27 A0000967158 Shaft, Worm
28 A0000967106 Hex Bolt, M8 X 40
29 A0000967159 Tine, Left
30 A0000967107 Nut, M8 Metal Lock
31 A0001077337 Shield, Tine
Ref# Part# Description
32 A0000967111 Nut, Lock M5
33 A0000967161 Tine, Right
34 A0000967162 Knob, Handlebar Adjustment
35 A0000967113 Hex Bolt, M5 X 10 Flanged
36 A0000967114 Hex Bolt, M6 X 25 Flanged
37 A0000967112 Nut, M6 Lock
38 A0000967163 Bracket, Drag Stake
39 A0000967116 Lock Pin, Drag Stake
40 A0000967165 Drag Stake
41 A0001055475 Nut, M10 X 1.5 Lock Flanged
42 A0000938011 Washer, Flat M10
43 A0000967166 Wheel
44 A0000967167 Support, Wheel Bracket
45 A0000967168 Shaft, Wheel
46 A0000967169 Adjustment Lock, Wheel
47 A0000967170 Spring, Wheel Adjustment Lock
48 A0000967172 Washer, Wheel Shaft
49 A0000967129 Bolt, M8 X 38 C Head
50 A0000967173 Bracket, Wheel Adjustment
51 A0000967131 Hex Bolt, M6 X 20 Flanged
52 A0000967133 Hex Bolt, M10 X 1. 5 X 220
Flanged
53 A0001077350 Throttle Control
54 A0000967175 Cable, Throttle
55 A0000967176 Grip, Handlebar
56 A0000967134 Screw, M5 X 25 Countersunk
57 A0000967177 Handlebar, Right
58 A0000967178 Handlebar, Middle
59 A0000967179 Handlebar, Left
60 A0000967180 Handlebar, Lower
18 DR® 2-CYCLE TILLER CULTIVATOR
Schematic Diagram - Cultivator Assembly
DR®2-CYCLE TILLER CULTIVATOR
2-Year Limited Warranty
Terms and Conditions
The DR2-CYCLE TILLER CULTIVATOR is warranted for two (2) years against defects in materials or workmanship
when put to ordinary and normal consumer use; ninety (90) days for any other use.
For the purposes of all the above warranties, “ordinary and normal consumer use” refers to non-commercial
residential use and does not include misuse, accidents or damage due to inadequate maintenance.
DR Power Equipment certifies that the DR2-CYCLE TILLER CULTIVATOR is fit for ordinary purposes for which a
product of this type is used. DR Power Equipment however, limits the implied warranties of merchantability and fitness
in duration to a period of two (2) years in consumer use, ninety (90) days for any other use.
The 2-Year Limited Warranty on the DR2-CYCLE TILLER CULTIVATOR starts on the date the machine ships from our
factory. The 2-Year Limited Warranty is applicable only to the original owner.
The warranty holder is responsible for the performance of the required maintenance as defined by the manufacturer's
owner's manuals. The warranty holder is responsible for replacement of normally wearing parts such as the Tines, Tine
Hardware, Throttle Lever, Spark Plug, Air Filter, and Wheels. Attachments and accessories to the machine are not
covered by this warranty.
During the warranty period, the warranty holder is responsible for the machine transportation charges, if required.
During the warranty period, warranty parts will be shipped by standard method at no charge to the warranty holder.
Expedited shipping of warranty parts is the responsibility of the warranty holder.
SOME STATES DO NOT ALLOW LIMITATIONS ON THE LENGTH OF IMPLIED WARRANTIES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.
DR Power Equipment shall not be liable under any circumstances for any incidental or consequential damages or
expenses of any kind, including, but not limited to, cost of equipment rentals, loss of profit, or cost of hiring services to
perform tasks normally performed by the DR2-CYCLE TILLER CULTIVATOR.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
8 0 0 H I N E S B U R G R O A D , S O U T H B U R L I N G T O N , V E R M O N T 0 5 4 0 3
©2020 DR Power Equipment. All rights reserved A0001141151_A
Daily Checklist for the DR 2-CYCLE TILLER CULTIVATOR
To help maintain your DR 2-CYCLE TILLER CULTIVATOR for optimum performance, we recommend you follow this checklist each
time you use your machine.
[ ] FUEL: Fill the Fuel Tank with a fresh unleaded gasoline/2-cycle oil mixture. See page 10.
[ ] ENGINE: It is very important to keep the Engine clean. Remove dirt and other debris from the Engine Cooling Fins. A dirty
Engine retains heat and can cause damage to internal Engine components.
[ ] HARDWARE: Check all nuts and bolts to be sure that the components are secure.
[ ] FRAME: Check all welds to be sure that the Frame is intact and secure.
[ ] TINES: Make sure that the Tine Assemblies and Tine Shield are free of accumulated debris.
[ ] ENGINE AIR FILTER: Clean engine air filter before each use to ensure optimal engine performance.
End of Season and Storage
If your DR 2-CYCLE TILLER CULTIVATOR will not be operated for more than 30 days, we recommend using a fuel stabilizer.
This will prevent sediment from gumming up the carburetor. If there is dirt or moisture in the fuel or tank, remove it by
draining the tank. Completely fill the tank with a fresh fuel mixture and add the appropriate amount of stabilizer or fuel
additive. Run the Engine for a short time to allow the additive to circulate?
Remove the Spark Plug and pour about 1 ounce of motor oil into the cylinder hole. Replace the Plug and pull the Recoil Starter
Rope until you feel strong resistance. This will coat the Piston and Cylinder Wall to prevent moisture buildup.
Clean or replace the Engine Air Filter.
Clean dirt and debris from the Engine Cylinder Head Cooling Fins, Debris Screen, and Muffler.
Clean out residual debris from the under the Tines Hood and Tine Assemblies.
Touchup all rusted or chipped paint surfaces. Sand them lightly before painting.
Be sure all Nuts, Bolts, and Screws are securely fastened.
Inspect moving parts for damage and wear; replace if necessary.
If possible, store your DR 2-CYCLE TILLER CULTIVATOR inside, but not near an open flame or spark such as found in a water
heater.
After the DR 2-CYCLE TILLER CULTIVATOR has cooled, cover the machine with a suitable protective cover that does not retain
moisture. Do not use plastic as this material cannot breathe; it also allows condensation to form, which will cause your
machine to rust.
Prior to performing any maintenance, you must first shut off the Engine; wait five (5) minutes to allow parts to cool and
disconnect the Spark Plug wire, keeping it away from the Spark Plug.
Prior to performing any maintenance, you must first shut off the Engine; wait five minutes to allow parts to cool and disconnect
the Spark Plug wire, keeping it away from the Spark Plug.
Table of contents
