DRAKE VM2551 User manual

Instruction Manual
is a registered trademark of the R.L. Drake Company
© Copyright 2005 R.L. Drake Company P/N: 3852551B-12-2005
VM2551
Commercial Video Modulator
(For use in NTSC systems)

2 Caution Statements
POWERSERVICEGROUNDING
ELECTRODESYSTEM
(NEC ART 250, PART H)
GROUND
CLAMPS
GROUNDING
CONDUCTORS
(NEC SECTION
810-21)
ANTENNA
DISCHARGE
UNIT (NEC
SECTION810-20)
ANTENNA
LEADIN
WIRE
ELECTRIC
SERVICE
EQUIPMENT
GROUND CLAMP

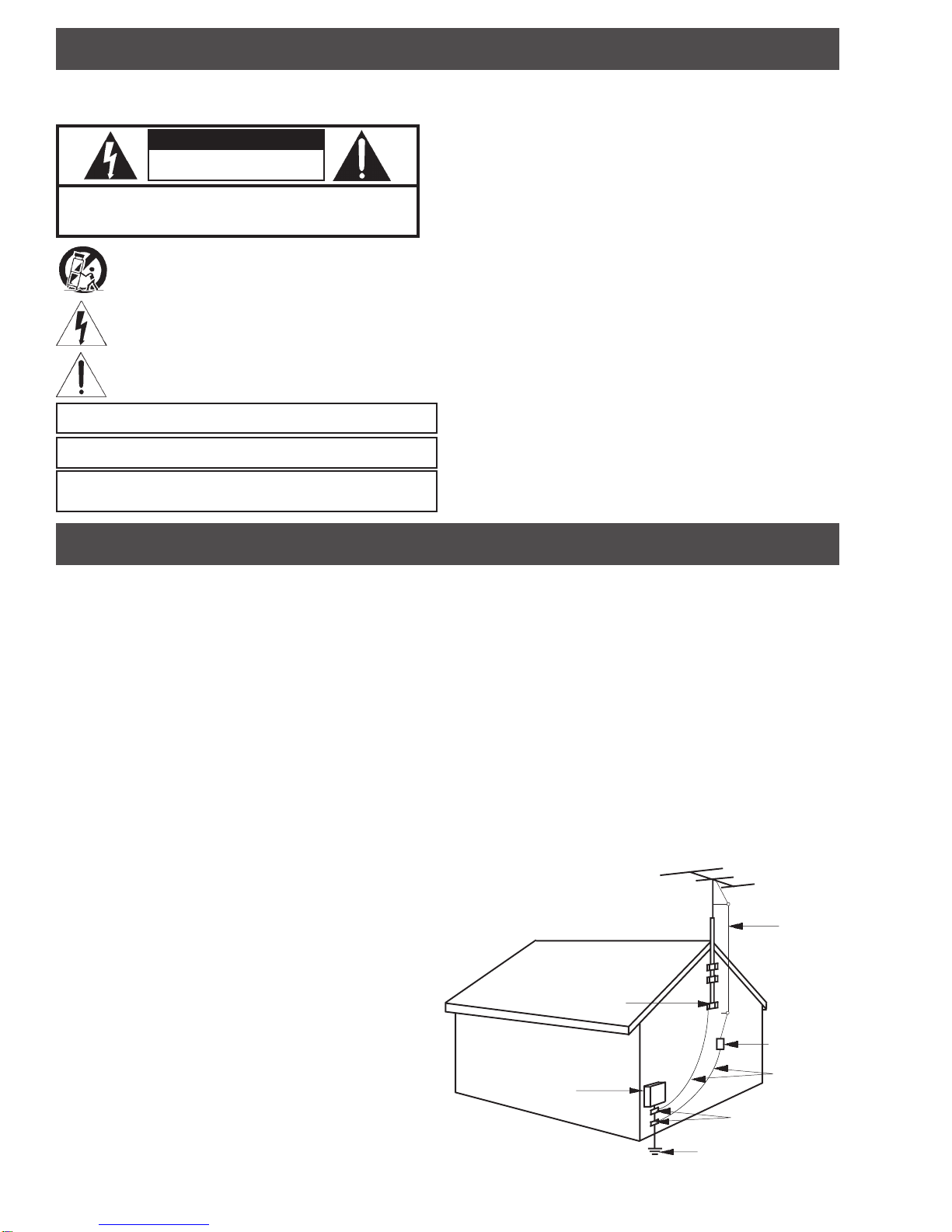

EXAMPLE OF ANTENNA GROUNDING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE. DO NOT OPEN THE CABINET, REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN
EXTENSION CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
POUR PREVENIR LES CHOCS ELECTRIQUES, NE PAS UTILISER CETTE FICHE
POLARISEE AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU UNE
AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES
A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.
WARNING:
CAUTION:
ATTENTION:
Aproductandcartcombinationshouldbemovedwithcare.Quickstops,
excessiveforceandunevensurfacesmaycausetheproductandcart
combinationtooverturn.
Thelightningflashwitharrowheadsymbol,withinanequilateraltriangle,
isintendedtoalerttheusertothepresenceofuninsulated"dangerous
voltage"withintheproduct'senclosurethatmaybeofsufficient
magnitudetoconstituteariskofelectricshocktopersons.
Theexclamationpointwithinanequilateraltriangleisintendedtoalert
theusertothepresenceofimportantoperatingandmaintenance
(servicing)instructionsintheliteratureaccompanyingtheproduct.
!WARNING!
WARNING: TO PREVENT FIRE OR
ELECTRICAL SHOCK DO NOT
EXPOSE TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DONOT REMOVECOVER
NOUSER-SERVICEABLEPARTSINSIDE
REFERSERVICINGTOQUALIFIEDPERSONNEL
1. Read Instructions—All the safety and operating instructions should be read before the product is
operated.
2.Retain Instructions—The safetyandoperating instructions shouldberetained forfuturereference.
3.HeedWarnings—Allwarningsontheproductandintheoperatinginstructionsshouldbeadheredto.
4. Follow Instructions—Alloperating and use instructionsshould be followed.
5. Cleaning—Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleansers. Use a damp cloth for cleaning.
6.Attachments—Donotuseattachmentsthatarenotrecommendedbytheproductmanufacturerasthey
may cause hazards.
7.Waterand Moisture—Donotusethisproductnearwater—forexample,neara bathtub, wash bowl,
kitchen sink or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories—Do not place this product on an unstable cart, stand, tripod, bracket, or table. The
productmayfall,causingseriousinjurytoachildor adult, and serious damage to the product. Use only
withacart,stand,tripod,bracket, or table recommended by the manufacturer, or sold with the product.
Any mounting of the product should follow the manufacturer's instructions, and should use a mounting
accessory recommended by the manufacturer.
9.Aproductandcartcombinationshouldbemovedwithcare.Quickstops,excessiveforce,anduneven
surfaces may cause the product and cart combination to overturn.
10. Ventilation—Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from overheating, and these openings must not be blocked or
covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or similar
surface. This product should not be placed in a built-in installation such as bookcase or rack unless
proper ventilation is provided or the manufacturer's instructions have been adhered to.
11.Power Sources—This product shouldbeoperatedonly from thetypeofpower source indicatedon
the marking label. If you are not sure of the type of power supplied to your home, consult your product
dealerorlocalpowercompany.Forproductsintendedtooperate from battery power, or other sources,
refer to the operating instructions.
12.GroundingorPolarization—Thisproductmaybeequippedwithapolarizedalternating-currentline
plug(a plug having one blade wider than the other).This plug will fit into the power outlet onlyone way.
This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.
If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarized plug.
Alternate Warnings—If this product is equipped with a three-wire grounding-type plug, a plug having a
third (grounding) pin, the plug will only fit into a grounding-type power outlet. This is a safety feature. If
youare unable to insert the plug into the outlet, contact your electrician to replace yourobsolete outlet.
Do not defeat the safety purpose of the grounding-type plug.
12a.MiseàlaterreouPolarisation—Cetappareilestéquipéavecuncordond'alimentationàtroisfils.
Ilesta brancher sur une prise ayant un connecteur alaterre.Assurez-vousquelaconnection a la terre
ne manque pas.
13. Power-Cord Protection—Power-supply cords should be routed so that they are not likely to be
walkedonorpinchedbyitemsplaceduponoragainstthem, payingparticularattentiontocordsatplugs,
convenience receptacles, and the point where they exit from the product.
14.OutdoorAntennaGrounding—Ifanoutsideantennaorcablesystemisconnectedtotheproduct,be
surethe antenna or cable systemis grounded so as toprovide some protection against voltagesurges
and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides
informationwithregard toproper groundingofthemastandsupportingstructure,groundingofthelead-
in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.
15.Lightning—Foraddedprotectionforthisproductduringalightningstorm,orwhenitisleftunattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning and power-line surges.
16. Power Lines—An outside antenna system should not be located in the vicinity of overhead power
lines, other electric light or power circuits, where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken to keep from touching such power
lines or circuits as contact with them may be fatal.
17. Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock.
18.ObjectandLiquidEntry—Neverpushobjectsofanykindintothisproductthroughopeningsasthey
maytouch dangerousvoltagepoints orshort-outpartsthat couldresultin afireor electricshock. Never
spill liquid of any kind on the product.
19.Servicing—Donotattempttoservicethisproduct yourselfas opening orremovingcoversmay
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20.DamageRequiringService—Unplugthisproductfromthewalloutletandreferservicingtoqualified
service personnel under the following conditions:
a. When the power-supply cord or plug is damaged,
b. If liquid has been spilled, or objects have fallen into the product,
c. If the product has been exposed to rain or water,
d.Ifthe productdoes notoperate normallyby followingthe operating instructions. Adjustonlythose
controlsthatarecoveredbytheoperatinginstructionsasanimproperadjustmentofother controls may
result in damage and will often require extensive work by a qualified technician to restore the product
to its normal operation,
e. If the product has been dropped or damaged in any way, and
f. When the product exhibits a distinct change in performance—this indicates a need for service.
21.ReplacementParts—Whenreplacementpartsarerequired,besuretheservicetechnicianhasused
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutes may result in fire, electric shock or other hazards.
22.SafetyCheck—Uponcompletionofanyserviceorrepairstothisproduct,asktheservicetechnician
to perform safety checks to determine that the product is in proper operating condition.
23.WallorCeilingMounting—Theproductshouldbemountedtoawallorceilingonlyasrecommended
bythe manufacturer.
24. Heat—The product should be situated away from heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that produce heat.
NOTE TO CATV SYSTEM INSTALLERS:
THISREMINDERISPROVIDEDTOCALLTHECATVSYSTEMINSTALLER'SATTENTIONTO
ARTICLE820-40OFTHENECTHATPROVIDESGUIDELINESFORPROPERGROUNDING
AND,INPARTICULAR,SPECIFIESTHATTHECABLEGROUNDSHALLBECONNECTEDTO
THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE
ENTRYASPRACTICAL.
Important Safety Instructions

Table of Contents / General Description 3
CautionStatements/
ImportantSafetyInstructions
TableofContents/GeneralDescrption
FrontPanelControlsand Indicators
RearPanelConnections
2
3
4
5
Installation
Specifications
Service / If You Need To Call For Help
Warranty
6
7
8
9
TABLE OF CONTENTS
GENERAL DESCRIPTION
The modulator accepts standard (sync negative) polarity
video at a 0.7 -1.5 Vpp level. A high quality IF SAW filter
eliminates adjacent channel interference.
IF loop-through capability in the VM2551 supplies an IF
output prior to channel conversion. This feature provides
the capability to replace the standard internally generated
IF output with an alternate source of composite IF, or
allows insertion of IF scrambling equipment.
The internally generated aural carrier may be disabled by
moving an internal jumper and an external 4.5 MHz
carrier can can be inserted via the rear panel 4.5 MHz
input.
These features, combined with a carefully designed low
intermodulation output stage, provide reliable operation
in a densely crowded SMATV or cable environment.
A / V
RATIO AUDIO LEVEL AUDIO OVER DEV VIDEO LEVEL RF OUT LEVEL OUTPUT TEST
VIDEO
OVER MOD CHANNEL
CH
IRC
HRC
STD ANT /
CATV
SEL
The Drake VM2551 Video Modulator is a vestigial
sideband unit with synthesized visual and audio carriers.
The VM2551 is designed to accept video and audio
baseband signals from a satellite receiver, video server,
VCR, camera, or similar equipment. Front panel video
and audio level controls and overmodulation indicators
permit setting the proper modulation levels. Synthesized
operation provides complete frequency agility, allowing
front panel selection of any standard, HRC, or IRC, CATV
channel from 2 to 78 and channels 95-99 or OFF AIR TV
channels 2-27. FCC required channel frequency offsets,
for aeronautical channels of zero, +12.5 kHz, or +25 kHz
are selected automatically and offset positive when
offsets are required.

A / V
RATIO AUDIO LEVEL AUDIO OVER DEV VIDEO LEVEL RF OUT LEVEL OUTPUT TEST
VIDEO
OVER MOD CHANNEL
CH
IRC
HRC
STD ANT /
CATV
SEL
F8- ANT/CATV
Press to switch between the CATV or ANT (off-air
channels) output.
F9 - SEL (select)
When set to the CATV channel frequency plan, use
button F9 to further select the type of system channel map
that is required. Select among STD, HRC, or IRC. The
indicators, F7, will display the selected setting.
F10, F11 - CHannel Select Buttons
Press F10 to decrement the selected channel settings.
Press F11 to advance to the next highest numbered
channel.
F12 - RF OUTPUT LEVEL
This screwdriver adjustment permits decreasing the RF
output level a minimum of 10 dB below its specified
output level as the control is rotated counterclockwise.
The maximum output level of +55 dBmV is set with the
adjustment approximately fully clockwise.
NOTE: If an output level of less than +45 dBmV is
required, add an attenuator of the appropriate value at
the modulator output and operate the modulator at the
highest practical level (not exceeding 55 dBmV).
Example: For an output level of +35 dBmV, add a 12 dB
or 18 dB attenuator pad to the modulator output and set
the output level.
F13- OUTPUT
This type "F" connector provides a test monitor output that
is nominally 30 dB below the main rear panel RF output
level.
F1 F2 F3 F4 F5 F6 F7 F8 F11
FIGURE 1
F1 - A/V RATIO Control
This screwdriver adjustment varies the level of the aural
carrier over a range from 12 to 18 dB below the visual
carrier. The aural carrier should be adjusted to
approximately 15 dB below the visual carrier (normal
operation).
F2, F3 - AUDIO LEVEL Control &
AudioOvermodulationLED
The setting of this screwdriver adjustment determines the
peak aural carrier deviation. Clockwise rotation in-
creases the carrier deviation. After installing the unit, and
with an audio source connected, adjust for 25 kHz
deviation by advancing the Audio Level control, F2, until
the Audio Overmodulation LED, F3, begins to illuminate.
Monitor for a few minutes to assure that maximum volume
of the audio source program does not cause an
overmodulation condition.
F4, F5 - VIDEO LEVEL Control &
VideoOvermodulationLED
The setting of this screwdriver adjustment determines the
video modulation level. Clockwise rotation increases the
modulation depth. After installing the unit, and with the
desired nominal 1 Volt P-P video source connected,
adjust the VIDEO LEVEL control F4 for the correct
percentage of modulation (87.5%). This setting will be
achieved when the Video Overmodulation LED, F5, just
barely illuminates. Advance video level until F5
illuminates and then back off until F5 just extinguishes.
F6 - CHANNEL Display
This is the 3 digit display which displays the selected
output channel. If the modulator is set to output off-air
broadcast frequencies (the ANT setting) the channel
number is preceded by an A. Off-air channels will display
as A2 through A27. When the CATV channel plan is
selected, a numeric 3 digit EIA channel number is
displayed.
F7 - STD, HRC, IRC
These are LED indicators.
F9 F10 F12 F13
4 Front Panel Controls and Indicators

Rear Panel Connections 5
RF OUTPUT
MADE IN TAIWAN
IF IN IF OUT VIDEO INPUT AUDIO INPUT 4.5 MHz INPUT
120V AC
60 Hz 618W600W MAX
R1 - RF OUTPUT
This is the modulator output.
R2 - IF IN Connector
This is the composite IF input to the up converter circuits.
The composite IF has both the aural and visual IF
combined. This connection is normally cabled directly
from the “COMPOSITE IF OUT” connector (See R3). This
external IF loop allows the use of accessories such as
scramblers or alternate video sources.
R3 - IF OUT Connector
This is the composite IF output from the IF circuits. The
composite IF provides a vestigial sideband filtered visual
carrier at 45.75 MHz combined with a level controlled
(-15 dBc typical) aural carrier at 41.25 MHz. This connec-
tion is normally cabled directly to the “COMPOSITE IF IN”
connector (See R2). The video carrier output level is
+40 dBmV.
R4 - VIDEO INPUT Connector
This is the baseband video input to the IF circuits. This
input accepts baseband through 4.2 MHz video at levels
from 0.7 Vp-p to 1.5 Vp-p.
R5 - AUDIO INPUT Connector
This is an unbalanced audio input to the IF circuits. This
“RCA” (phono) connector input accepts 40 Hz through
15 kHz audio at a nominal level of 250 mV RMS
(approximately -10 dBu). Input impedance is 10K Ohms.
R6 - 4.5 MHz INPUT
To use this input, remove the top cover of the modulator
and move jumper J2 to the ON position. Input 4.5 MHz at
R6 at a level of +37 dBmV.
R7 - 600 W Convenience Outlet
This outlet is unfused and must be limited to a 5A or 600
W load at 120 VAC.
R8 - LINE CORD
Connect the 3 wire IEC line cord to this connector.
Connect to a nominal 115 VAC ±10%, 60 Hz source. Do
not defeat the safety purpose of the ground pin on the line
cord plug.
R9 - FUSE
To access the fuse, unplug line cord from the socket R8.
Pull out on the tab on the upper side of the fuse
holder assembly.
R1 R2 R3 R4 R5 R6 R7 R8
FIGURE 2
R9

RACK MOUNTING
Adequate ventilation is very important in multichannel
installations. Units should be spaced apart by at least
one panel height wherever possible, and some air
movement is advisable in enclosed rack cabinets.
Excessive heat will shorten component life and modulator
performance will be degraded without proper cooling.
USE WITH A STEREO ENCODER
An external BTSC stereo encoder may be used with the
VM2551. To sett the VM2551 for a flat audio response
that will accept the BTSC composite stereo input - remove
the top cover of the VM2551. Observing the PCB that
contians the Audio, Video, A/V Ratio, and other compo-
nents, locate the small slide switch - SW2. Set switch
SW2 to the Pre-emphasis OFF position. The factory
default setting is Pre-emphasis ON - for mono operation.
CONNECTIONS AND CONTROLS
All connections to and from the VM2551 are made
through the rear panel. Additional channels can be
added by using additional VM2551 modulators and either
multi-port combiners or combinations of two-port
combiners.
INSTALLATIONNOTES
Level adjustment provides optimum performance in
multichannel installations. The modulator outputs should
be checked periodically to maintain a ±1 dB variation of
adjacent channel carriers. Aural/Visual (A/V) ratios
should be held to -15 dB or less. The output 'RF Level'
and 'A/V Ratio' controls are used respectively to make
these adjustments. If an output level of less than
+40 dBmV is required, add an attenuator of the
appropriate value to the modulator output.
6 Installation

Specifications 7
RF
Frequency Range:
FCC Frequency
Offsets:
Output Level:
Output Impedance:
A/V Ratio:
Frequency Stability,
Visual:
Aural Intercarrier
Frequency:
Spurious Outputs:
In-Channel C/N:
Broadband Noise:
VIDEO
Input level for 87.5%:
Input Impedance:
Frequency Response:
Video S/N:
L/C Delay:
Differential Gain:
Differential Phase:
175 mV rms minimum. 250 mV
rms nominal. Manual gain
adjustment with front panel
control and overmodulation
indicator.
10K Ohms, unbalanced.
75 µSec.
40 Hz to 15 kHz, ±1.5 dB,
referenced to 75 µSec
pre-emphasis curve.
1.5% maximum.
-60 dB minimum, referenced
to 25 kHz peak deviation.
37 dBmV for -15 dB A/V ratio.
45.75 MHz visual carrier,
41.25 MHz aural carrier. Loop
output is after SAW filtering.
40 dBmV (visual carrier).
75 Ohms.
115 VAC ±10%, 60 Hz,
25WATTS.
00C to +500C, ambient.
19" W x 1.75" H x 11.8" D.
9 Lbs., 4 oz.
Video input, IF loop, 4.5 MHz In
and RF output are all type F.
Audio input is RCA phono.
AUDIO
Input Level for 25 kHz
Peak Deviation
@ 1 kHz Tone:
Input Impedance:
Pre-emphasis:
Frequency Response:
Total Harmonic
Distortion:
Hum and Noise:
4.5 MHz INPUT
(Internal Jumper
Change to Activate)
Input Level:
COMPOSITEIF
LOOP
IF Frequency:
Loop Level:
Loop Impedance:
GENERAL
AC Power Input:
Operating Temperature
Range:
Size:
Weight:
Connectors:
82 CATV channels, 54-550 MHz:
channels 2-78 and 95-99, and
Off-air broadcast channels 2-27.
Automatic: Zero, +12.5 kHz, or
+25 kHz offset, for aeronautical
channels.
+55 dBmV minimum, (typically
adjustable from +40 to
+55 dBmV).
75 OHMS, return loss of 12 dB,
nominal.
Audio Carrier -18 to -12 dB
referenced to video carrier,
adjustable.
Within ±5 kHz (FCC offset CH).
Within ±10 kHz (other CH)
4.5 MHz, ±2 kHz.
-60 dBc minimum, measured
at -15 dB A/V ratio and with
modulator output level of
+55 dBmV.
62 dB typical, 60 dB minimum.
-75 dBc typical @ ±12 MHz or
greater spacings. (Specified
levels are referenced to the video
carrier and measured in a
4 MHz bandwidth).
1 Vp-p ±3 dB, manual
gain adjust with front
panel control and
overmodulation indicator.
75 Ohms.
Flat ±1.5 dB from 30 Hz to
4.2 MHz.
60 dB, luminance weighted.
Within 50 nSec of FCC
predistortion (complies with
FCC rules, 76.605).
Less than ±5%
(10 to 90% APL).
Less than ±5 degrees
(10 to 90% APL).

8 Service / IfYou Need To Call for Help
Should you want to return your unit for service, package
the unit carefully using the original carton or other suitable
container.
Write your return address clearly on the shipping carton
and on an enclosed cover letter describing the service
required, symptoms or problems. Also include your
daytime telephone number and a copy of your proof of
purchase.
The unit will be serviced under the terms of the
R.L. DRAKE COMPANY Limited Warranty and returned
to you.
Red is an overnight service. Send the unit in a way that it
can be traced if we can’t verify receipt of shipment. We
suggest UPS or insured postal shipment.
If the unit is still under the original owner’s warranty,
R.L. DRAKE will pay the cost of the return shipment to
you. Our return shipping policy is that we will return it UPS
Brown if received Brown or by US Mail, it will be returned
Blue if received Blue or Red—or it will be returned
however you prefer if you furnish the return cost for the
method you select.
If the unit is out of warranty, it will be returned by UPS
Brown label COD (UPS does not accept cash/currency)
unless:
1) It was received UPS Blue/Red, in which case it will be
returned UPS Blue/Red COD;
2) You designate billing to American ExPress, VISA,
MasterCard or Discover card;
3) You prepay the service charges with a personal check,
or
4) You specify some other method of return.
When calling, the technician can estimate the repair
charges for you over the phone. This is another good
reason to call before sending a unit in for repair.
Typically, equipment is repaired in five to ten working
days after it arrives at R.L. DRAKE if we have all the facts.
If we must call you, it may take longer. R.L. DRAKE is not
responsible for damage caused by lightning, nonprofes-
sional alterations, “acts of God”, shipping damage, poor
storage/handling, etc. R.L. DRAKE will make note of any
shipping damage upon receipt.
Should your warranty card not be on file at R.L. DRAKE,
you will need to send proof of purchase to receive
warranty service. Typically, a copy of the invoice from an
R.L. DRAKE dealer will suffice. The warranty is for the
original owner only and is not transferable.
IF YOU NEED TO CALL FOR HELP
Call our Customer Service/Technical Support line at
[phone] between 8:00 A.M. and 4:00 P.M.
Eastern Time, weekdays. Please have the unit’s serial
number available. We will also need to know the specifics
of any other equipment connected to the unit.
When calling, please have the unit up and running, near
the phone if possible. Our technician(s) will likely ask
certain questions to aid in diagnosis of the problem. Also,
have a voltmeter handy, if possible.
R.L. DRAKE also provides technical assistance by
e-mail: [email protected]
or by Telefax: [phone].
Many of the products that are sent to us for repair are in
perfect working order when we receive them. For these
units, there is a standard checkout fee that you will be
charged. Please perform whatever steps are applicable
from the installation sections of the Owner's Manual
before calling or writing—this could save unnecessary
phone charges. Please do not return the unit without
contacting R.L. DRAKE first: it is preferred to help
troubleshoot the problem over the phone (or by mail) first,
saving you both time and money.
Inside the carton, enclose a note with your name,
address, daytime phone number, and a description of the
unit’s problem.
The unit must be sent to the following address:
Service Department
R.L. DRAKE COMPANY
230 Industrial Drive
Franklin, Ohio 45005 U.S.A.
Be sure to include your street address which will be
needed for UPS return. UPS Surface (Brown Label) takes
7-10 days to reach us depending on your location, Blue
takes 2-3 days.
SERVICE INFORMATION
You may contact the R.L. DRAKE Service Department for
additional information or assistance by calling
[phone], Monday through Friday, between
8:00 A.M. and 4:00 P.M. Eastern Time, except on holidays.
You may also contact the R.L. DRAKE Service Department by
E-mail at the following address:
[email protected]
or by Telefax:
[phone].

Warranty
Warranty 9
Three Year Limited Warranty
R.L.DRAKE COMPANY warrants to the original purchaser this product shall be free from defects in material or
workmanshipfor three(3) yearsfrom thedate oforiginal purchase.
DuringthewarrantyperiodtheR.L.DRAKECOMPANYoranauthorizedDrakeservicefacilitywillprovide,freeofcharge,
bothparts and labornecessary tocorrect defects in material andworkmanship. At its option, R. L.DRAKE Company
may replace a defective unit.
To obtain such a warranty service, the original purchaser must:
(1) Completeand sendin theWarranty RegistrationCard within 10 days ofpurchase.
(2)Notifythe R.L.DRAKE COMPANYorthe nearest authorizedservicefacility, assoonaspossible afterdiscoveryof
a possible defect, of:
(a)themodelandserialnumber,
(b) the identity of the seller and the approximate date of purchase; and
(c)Adetaileddescriptionoftheproblem,includingdetailsontheelectricalconnectiontoassociatedequipmentandthe
list of such equipment.
(3) Deliverthe productto theR.L.DRAKE COMPANYor thenearest authorizedservice facility,or shipthe samein its
originalcontainerorequivalent,fullyinsuredandshippingchargesprepaid.
Correctmaintenance,repair,anduseareimportanttoobtainproperperformancefromthisproduct. Thereforecarefully
readtheInstructionManual. ThiswarrantydoesnotapplytoanydefectthatR.L.DRAKECOMPANYdeterminesisdue
to:
(1)Impropermaintenanceorrepair, includingtheinstallationofpartsor accessoriesthatdonotconformto thequality
and specifications of the original parts.
(2) Misuse,abuse, neglector improperinstallation.
(3)Accidentalorintentionaldamage.
Allimpliedwarranties,ifany,includingwarrantiesofmerchantabilityandfitnessforaparticularpurpose,terminate three
(3) years from the date of the original purchase.
The foregoing constitutes R.L.DRAKE COMPANY’S entire obligation with respect to this product, and the original
purchasershallhavenootherremedyandnoclaimforincidentalorconsequentialdamages,lossesorexpenses. Some
states do not allow limitations on how long an implied warranty lasts or do not allow the exclusions or limitation
of incidental or consequential damages, so the above limitation and exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
This warranty shall be construed under the laws of Ohio.
For Service, contact: R.L. DRAKE COMPANY
230 Industrial Drive
Franklin, Ohio 45005 U.S.A.
Customer Service and Parts Telephone: [phone]
Telefax: [phone]
World Wide Web Site: http://www.rldrake.com

R.L. Drake Company
230 Industrial Drive
Franklin, Ohio 45005 U.S.A.
Customer Service and Parts Telephone: [phone]
Telefax: [phone]
World Wide Web Site: http://www.rldrake.com
