Draper DE1030 User manual

DUST EXTRACTORS
• INSTRUCTIONS •
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO
ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL.
05/2001
■ PART No. DE1030. ■ STOCK No. 37802
DE1030H 37804
DE1045 37129
DE2000 37130
GENERAL INFORMATION
This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment, which should be kept with the
machine.
This manual describes the purpose for which this tool has been designed and contains all the necessary information to ensure its correct
and safe use.We recommend that this manual is read before any operation of the machine, before performing any kind of adjustment to
the machine, and prior to any maintenance tasks. By following all the general safety instructions contained in this manual, it will ensure
both machine and operator safety, together with longer life of the tool itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the machine.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tool policy of continuous
improvement determines the right to make modifications without prior warning.

DUST EXTRACTORS
■STOCK No.37802 ■PART DE1030.
37129 DE104.
37130 DE2000.
37804 DE1030H.
CONTENTS:-
Page Nos.
Contents/Declaration .................................................................................................................. 1
Specification/Guarantee ............................................................................................................. 2
Power Supply .............................................................................................................................. 3
Safety Warning/General Safety Instructions for Machine Tools................................................... 4
Getting to know your Dust Extractor ........................................................................................... 5
Operating Instructions ................................................................................................................ 6
Maintenance................................................................................................................................ 7
Optional Accessories .................................................................................................................. 8
- 1 -
We
Draper Tools Ltd. Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. England.
Declare under our sole responsibility that the product:
Part Number:- DE1030, DE1045, DE2000 & DE1030H Stock No. 37802, 37129, 37130 & 37804.
Description:- Dust Extractors
To which this declaration relates is in conformity with the following directive(s) 73/23/EEC & 89/336/EEC.
With reference to
IEC 335-1,EN 55014 & EN 60555
J.N.Draper
Managing Director 28/10/1996
DECLARATION OF CONFORMITY

SPECIFICATION
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be free
from defective materials and workmanship for a period of 12 months from the date of purchase except
where tools are hired out when the guarantee period is ninety days from the date of purchase.
Should the machine develop any fault, please return the complete tool to your nearest authorized
warranty repair agent or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF.
England. Telephone: [phone].
If upon inspection it is found that the fault occurring is due to defective materials or workmanship, repairs
will be carried out free of charge. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accident, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are
not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to
verify your proof of purchase within the 12 month period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited
- 2 -
The Draper Tools policy of continuous improvement determines the right to change specification without
notice.
Part No . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DE1030 DE1045 DE2000 DE1030H
Stock No . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37802 37129 37130 37804
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50cm 60cm 70cm 50cm
Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35cm 35cm 46cm 35cm
Weight (without accessories) . . . . . . . . . . . . . . . . . . . . . . . . . 8.9kg 9.4kg 20kg 8.9Kg
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230v or 110v 230v or 110v 230v or 110v 230v
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000w 1000w 2000w(2x1000w) 1000w
Air Flow 21⁄2'' Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.35m3/min 4.35m3/min 4.92m3/min 4.35m3/min
Air Flow 4'' Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – – 7.32m3/min –
The typical sound pressure level of this machine is 78db(A). The noise level whilst working could exceed
85db(A).WEAR EAR PROTECTION.
GUARANTEE

CONNECTING YOUR MACHINE TO THE POWER SUPPLY: (230V ONLY)
To eliminate the possibility of an electric shock your machine has been fitted with a BS approved, non
rewireable moulded plug and cable which incorporates a fuse, the value of which is indicated on the pin
face of the plug. Should the fuse need to be replaced an approved BS1362 fuse must be used of the
same rating, marked thus . The fuse cover is detachable, never use the plug with the cover omitted. If
a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the
plug (i.e. red). Fuse covers are available from your Draper Tools stockist.
If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be
suitably prepared and the correct type of plug fitted. See below.
*WARNING:
A plug with bare flexible wires exposed is hazardous if engaged in a live power socket outlet.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Green and Yellow - Earth, Blue - Neutral, Brown - Live.
As these colours may not correspond with the coloured markings identifying the terminals in your plug,
proceed as follows.:
The wire which is coloured green and yellow must be connected to the terminal in the plug which is
marked with the letter 'E' or by the earth symbol or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or
coloured black or blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or
coloured red or brown.
N.B. Three phase machines must be connected by a qualified electrician.
EXTENSION LEAD CHART:
Extension lead sizes shown assure a voltage drop of not more than 5% at rated load of tool.
3 6 10 13
Extension cable length Wire Size mm2
7.5m 0.75 0.75 1.0 1.25
15m 0.75 0.75 1.0 1.5
22.5m 0.75 0.75 1.0 1.5
30m 0.75 0.75 1.25 1.5
45m 0.75 1.25 1.5 2.5
Ampere rating
(on Name plate)
- 3 -
POWER SUPPLY

1. KNOW YOUR MACHINE TOOL
Read and understand the owner's manual and labels
affixed to the tool. Learn its application and limitations as
well as the specific potential hazards peculiar to this tool.
2. KEEP GUARDS IN PLACE
and in working order.
3. KEEP WORK AREA CLEAN
Cluttered areas and benches invite accidents.
Floor must not be slippery due to oil or sawdust.
4. AVOID DANGEROUS ENVIRONMENT
Do not use power tools in damp or wet locations or
expose them to rain. Keep work area well lit.
Provide adequate surrounding work space.
5. KEEP CHILDREN AWAY
All visitors should be kept a safe distance from work
area.
6. MAKE WORKSHOP CHILDPROOF
- with padlocks, master switches, or by removing
starter keys.
7. WEAR PROPER CLOTHING
Do not wear loose clothing, gloves, neckties or jewellery
(rings, wristwatches) to catch in moving parts. NON SLIP
footwear is recommended.Wear protective hair
covering to contain long hair. Roll long sleeves above
the elbow.
8. DO NOT OVERREACH
Keep proper footing and balance at all times.
9. MAINTAIN TOOLS WITH CARE
Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and
changing accessories.
10. DISCONNECT POWER TO THE TOOLS
Before servicing, when changing accessories such as
cutters etc.
11. AVOID ACCIDENTAL STARTING
Make sure switch is in 'OFF' position before plugging in
cable to the power supply.
12. USE RECOMMENDED ACCESSORIES
Consult the owner's manual for recommended
accessories. Follow the instructions that accompany the
accessories. The use of improper accessories may cause
hazards.
13. NEVER STAND ON TOOL
Serious injury could occur if the tool is tipped or if the
cutting tool is accidentally contacted. Do not store
materials above or near the tool such that it is necessary
to stand on the tool to reach them.
14. CHECK DAMAGED PARTS
Before further use of the tool, a guard or other part that is
damaged should be carefully checked to ensure that it
will operate properly and perform its intended function.
Check for alignment of moving parts, breakage of parts,
mounting and any other conditions that may affect its
operation. A guard or other part that is damaged should
be properly repaired or replaced.
15. NEVER LEAVE MACHINE RUNNING UNATTENDED
Turn power off. Do not leave machine until it comes to a
complete stop.
- 4-
WARNING
Please read the following instructions carefully, failure to do so could lead to serious personal injury.
IMPORTANT
Draper Tools Limited recommends that this machine should not be modified or used for any application
other than that for which it was designed. If you are unsure of its relative applications do not hesitate to
contact us in writing and we will advise you.
SAFETY WARNING
GENERAL SAFETY INSTRUCTIONS
FOR MACHINE TOOLS
ADDITIONAL SAFETY RULES
FOR DUST EXTRACTORS
1. When replacing the filter always switch the machine off and disconnect from the power supply. It is
important to follow this instruction every time you separate the motor from the receptacle.
2. When replacing the filter always use protective gloves and mask (which complies to a recognised
standard).
3. The motor housing must only be opened by a qualified person.
4. When not in use switch the extractor off.
IMPORTANT WARNING FOR HAZARDOUS DUST MACHINE
Emptying and maintenance operations including removal and renewal of dust collection bag shall only be
carried out by authorised personnel wearing suitable personal protection. Do not operate without the full
filtration system fitted.

- 5 -

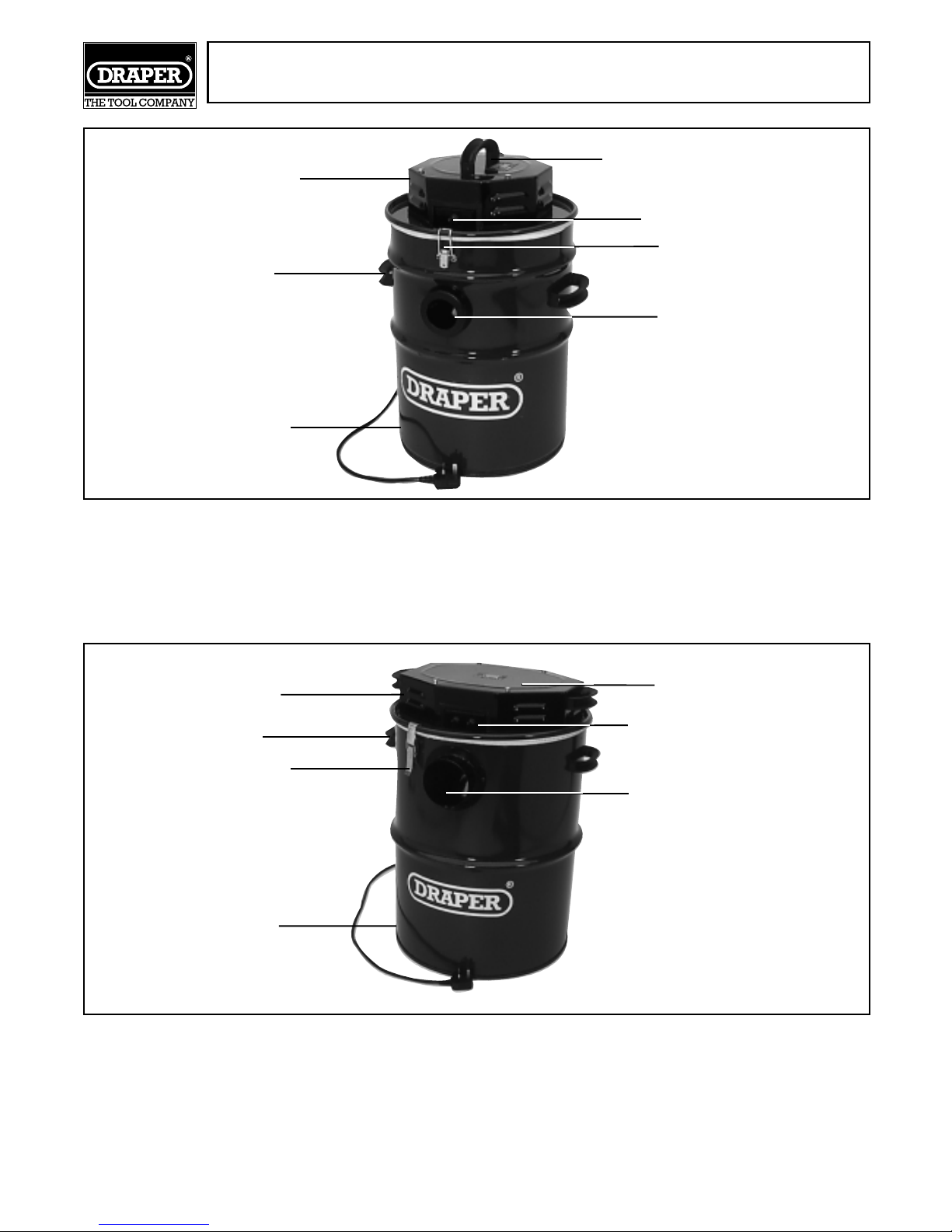

1 - Transportation Handles
2 - Locking Motor/Lid Clips
3 - Motor Housing Handle
4 - Motor Housing
5 - Motor On/Off Switch
6 - Receptacle Connector
7 - Receptacle
GETTING TO KNOW YOUR DUST EXTRACTOR
DE1030,
DE1045
& DE103H
DE2000
✗✌
✙✌
✖✌
✚✌
✘✌
✕✌
✛✌
✙✌
✚✌
✛✌
✕✌
✖✌
✘✌ ✗✌

DE1030, DE1045 & DE1030H:-

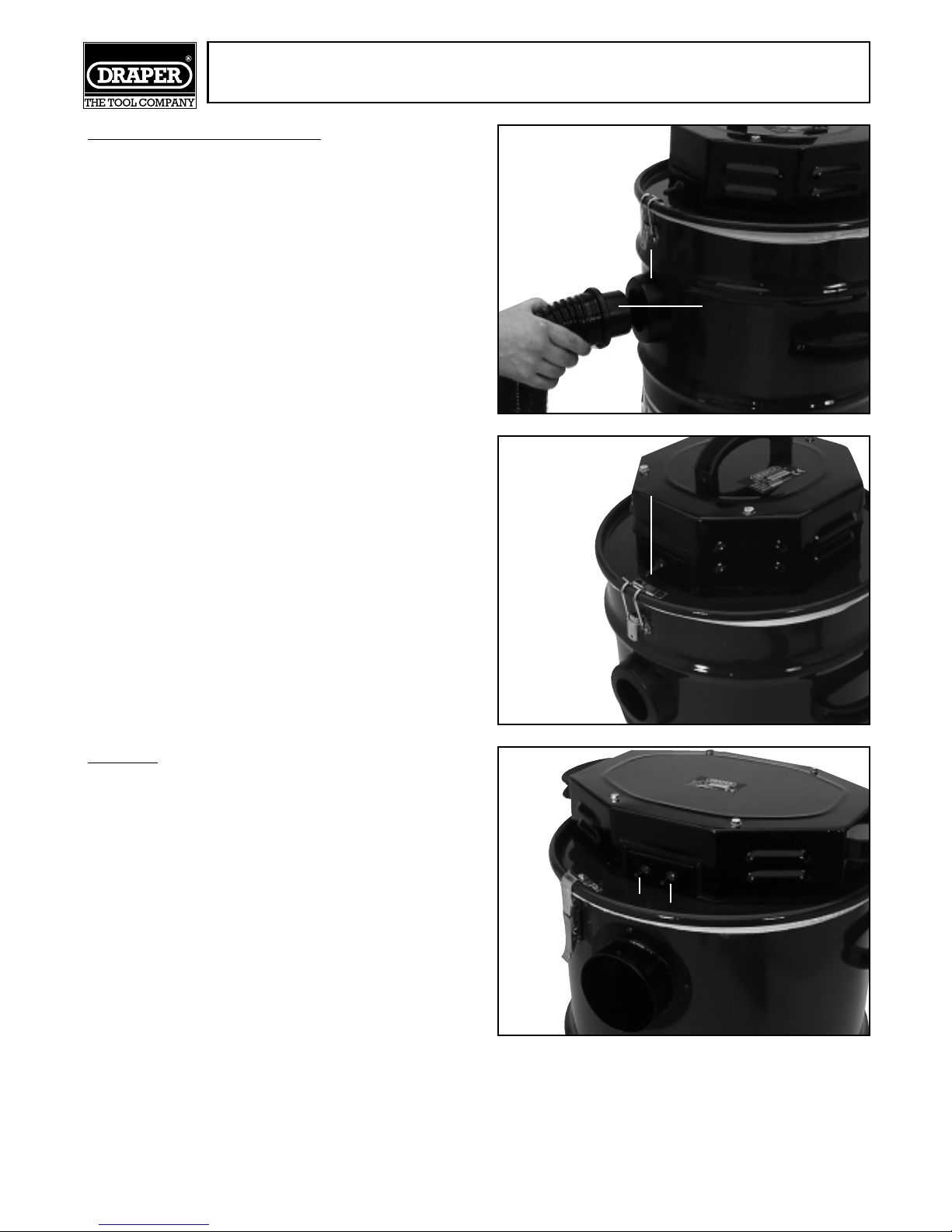

Fit the required hose to the dust extractor. Slide the
hose connector ✪✌ into the receptacle connector ✫✌
Fig.1.
Connect the dust extractor to the power supply. To
operate, push switch ✬✌ Fig.2. to the ON position.
IMPORTANT:- Never use the machine without both
filters in place.
IMPORTANT:- Do not use the hazardous dust
extractor without the three filters
fitted. They are (1) Hepa Cartridge
Filter (2) 14" Dacron Filter Bag (3)
Dust Collecting Paper Bag.
DE2000:-
Select hose and suitable connector. (see optional
accessories)
Connect the dust extractor to the power supply. To
engage one of the motors push switch ✭✌, to operate
the second motor, push switch ✮✌ Fig.3.
NOTE:- Do not operate both motors together when
using the 21⁄2'' hose.
IMPORTANT:- Never use the machine without both
filters in place.
Fig.1.
Fig.3.
OPERATION
✫✌
✪✌
✬✌
✭✌✮✌
Fig.2.
- 6 -

- 7 -
IMPORTANT:- For your own safety turn the power switch off and remove the plug from the supply outlet
before maintaining your dust extractor.
REPLACING FILTERS:-

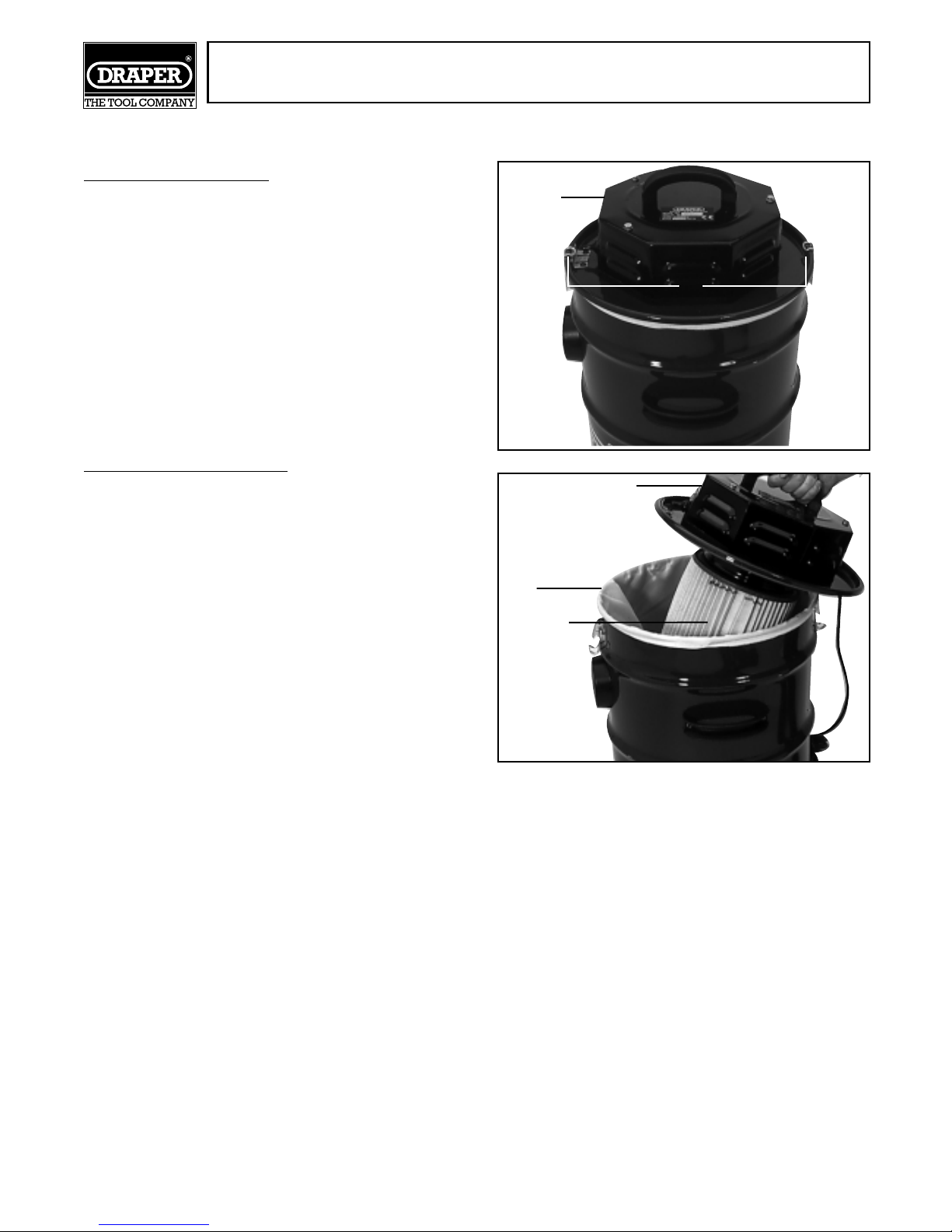

Remove the motor housing ✯✌, by releasing the two
locking clips, ✰✌ Fig.4.
Using the handle ✱✌, lift the motor housing clear to
expose both the cartridge filter ✳✌ and the cloth filter
✴✌ Fig.5.
Fit the new filter and lock the motor housing into
position.
Re-connect to the power supply.
NOTE:- The DE2000 is fitted with two cartridge filters,
both should be replaced.
CLEANING THE FILTER:-
CARTRIDGE FILTER:- This can be cleaned by two
methods.
1. Brush the dust off the filter
(do not do this in the working
area).
2. Vacuum dust off using
another vacuum cleaner.
CLOTH BAG FILTER:- This can be cleaned by three
methods.
1. Shake the bag until all the
dust hasgone (do not do this
in the working area).
2. Vacuum dust off using
another vacuum cleaner.
3. Shake clean and then wash
(ensure the filter is dry
before re-fitting).
IMPORTANT
Do not use the hazardous dust extractor without the three filters fitted. They are (1) Hepa Cartridge Filter
(2) 14" Dacron Filter Bag (3) Dust Collecting Paper Bag.
NOTE: If any of the filters are damaged or holed, they must be replaced.
IMPORTANT
All repairs/adjustments should be carried out by a qualified person.
IMPORTANT DE1030H
This hazardous dust extractor will not be repaired/handled by Draper Tools or by their warranty agents
until the machine has been cleaned and certified by a decontamination organisation.
It is the responsibility of the user to have the machine decontaminated.Your local company can be found
in the telephone directory under plant and machinery.
Please note all repairs/adjustments should be carried out by a qualified person.
Draper Power Helpline [phone].
MAINTENANCE
✯✌
✱✌
✰✌
Fig.4.
Fig.5.
✴✌
✳✌

- 8 -
OPTIONAL ACCESSORIES
DRAPER STOCK
PART No. No. DESCRIPTION
DE2000
DE1045
DE1030
DE1030H
ADE1 37456 4" CLEAR HOSE & CLIP ✓
ADE2 37457 4" to 21⁄2" ADAPTOR ✓
ADE3 37458 21⁄2" INDUSTRIAL HOSE ✓✓✓✓
ADE4 37459 21⁄2" HEAVY DUTY HOSE ✓✓✓✓
ADE5 37460 21⁄2" METAL HOSE CONNECTOR ✓
ADE6 37461 90 LTR TROLLEY BASE ✓
ADE7 37462 21⁄2" ACCESSORY KIT ✓✓✓
ADE8 37463 POWER TOOL HOSE ✓✓✓
ADE9 37464 21⁄2" PLASTIC HOSE CONNECTOR ✓✓✓
ADE10 37465 21⁄2"HOSE WITH SWIVEL CONNECTOR & REDUCER ✓✓✓
ADE11 37466 45 & 30 LTR TROLLEY BASE ✓✓✓
ADE12 37472 CARTRIDGE FILTER 15/20 MICRON ✓✓✓
ADE13 37473 CARTRIDGE FILTER 0.5 MICRON ✓✓✓
ADE14 37488 18" DACRON FILTER BAG ✓
ADE15 37489 14" DACRON FILTER BAG ✓✓✓
ADE17 37655 HAZARDOUS DUST HEPA FILTER ✓
ADE18 37656 PAPER BAG ✓
ADE19 38128 4" GRAY HOSE & CLIP ✓
ADE20 38400 METAL TWIN HOSE CONNECTOR

NOTES
- 9 -

NOTES
- 10 -

YOUR DRAPER STOCKIST
©Published by Draper Tools Ltd.
No part of this publication may be reproduced,
stored in a retrieval system or transmitted in any
form or by any means, electronic, mechanical
photocopying, recording or otherwise without
prior permission in writing from Draper Tools Ltd.
www.draper.co.uk
e-mail: [email protected]
DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford, Eastleigh, Hants. SO53 1YF. U.K.
Helpline: [phone].
Sales Desk: [phone].
General Enquiries: [phone].
Fax: [phone].
