Drazice OKCE 100 S/2.2 kW User manual

OPERATING AND INSTALLATION MANUAL
WATER HEATERS
STATIONARY ELECTRICAL
OKCE 100 S/2,2 kW OKCE 200 S/3-6 kW OKCE 300 S/1 MPa
OKCE 125 S/2,2 kW OKCE 250 S/2,2 kW OKCE 400 S/1 MPa
OKCE 160 S/2,2 kW OKCE 250 S/3-6 kW OKCE 500 S/1 MPa
OKCE 160 S/3-6 kW OKCE 750 S/1 MPa
OKCE 200 S/2,2 kW OKCE 1000 S/1 MPa
Družstevní závody Dražice-strojírna s.r.o.
(Works Cooperative - Dražice – Machine Plant, Ltd.)
294 71 Benátky nad Jizerou
tel.: [phone], fax: [phone]
www.dzd.cz
[e-mail]

2
Read carefully the below instructions prior to the installation of the heater!
Data sheet pursuant to Directive No 442/2004 Coll. and Annex No 7
Dear Customer,
Družstevní závody Dražice - strojírna s.r.o. would like to thank you for your decision to use a product of our brand.
With this guide, we will introduce you to the use, placement, construction, maintenance, and other information about
storage pressure water heater. Product’s reliability and safety is proven by tests implemented by the Engineering Test
Institute in Brno.
We believe you will be fully satisfied with our product.
The manufacturer reserves the right for engineering modification of the product.
The product is designed for permanent contact with drinkable water.
Guide Contents
1. USE........................................................................................................................................................................................ 3
2. PRODUCT DESCRIPTION ................................................................................................................................................... 3
3. HEATER DIMENSIONS ....................................................................................................................................................... 3
4. TECHNICAL PARAMETERS............................................................................................................................................... 6
5. WIRING................................................................................................................................................................................. 6
6. SERVISING ......................................................................................................................................................................... 10
7. SECURITY EQUIPMENT ................................................................................................................................................... 11
8. PUTTING THE HEATER INTO OPERATION ................................................................................................................... 12
9. HEATER CLEANING AND ANODE ROD EXCHANGE .................................................................................................. 13
10. IMPORTANT NOTICES.................................................................................................................................................... 13
11. SPARE PARTS .................................................................................................................................................................. 13
12. INSTALLATION REGULATIONS ................................................................................................................................... 13
13. FURTHER INFORMATION.............................................................................................................................................. 14
14. FUNCTIONAL DEFECTS ................................................................................................................................................. 14

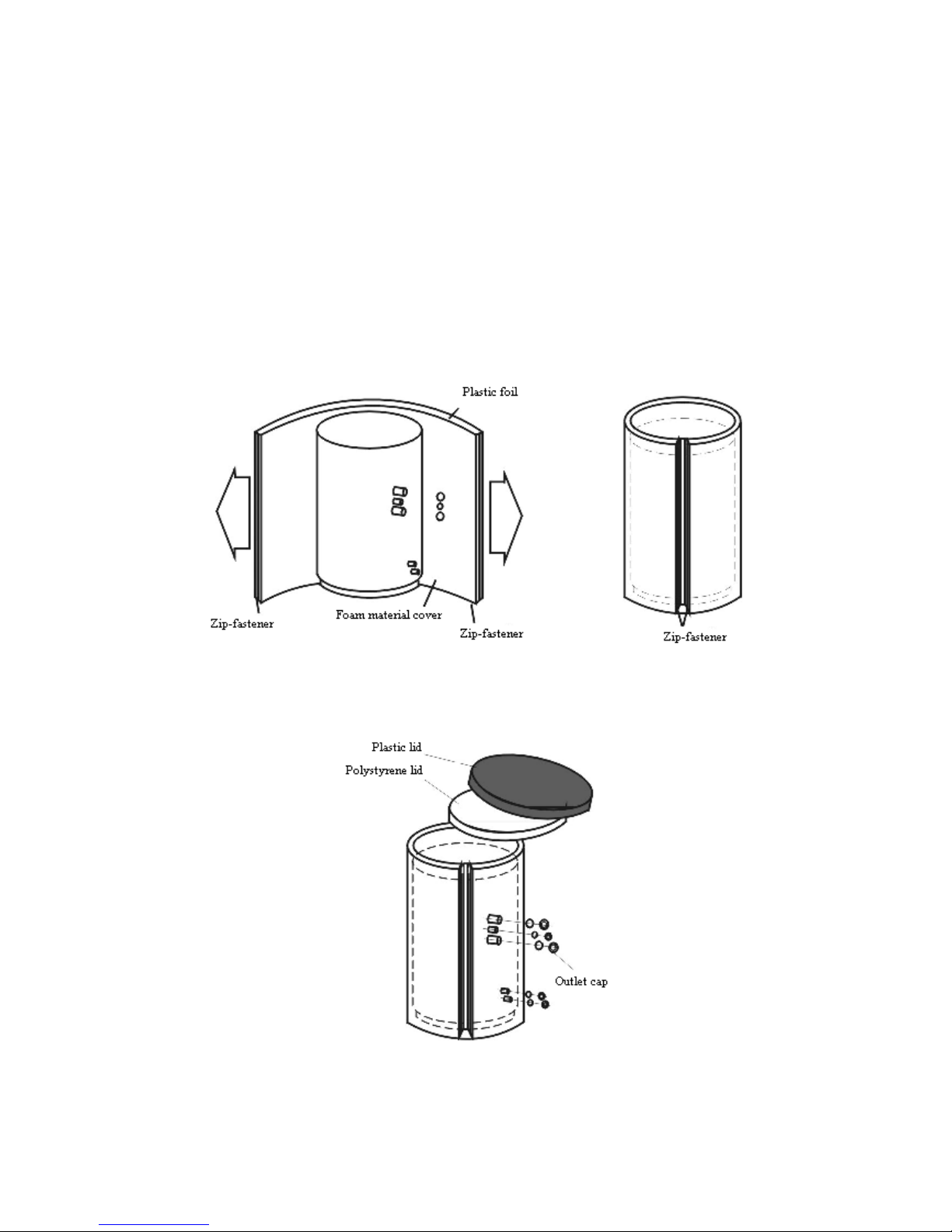

15. ASSEMBLY GUIDE FOR ZIP-FASTENER INSULATION.............................................................................................. 15
100 3 6
125 3,5 7,5
160 4,5 9,5
200 5,5 12
250 715
160 3,2-2,5-1,6 9,5
200 4-3-2 12
250 5-3,8-2,5 15
Time of
content
heating
(hours)
Electricity
consumption
for heating of
volume from
15°C to 65°C
(in kWh)
Heat losses
(kWh/24hr)
Heater types
Energy
efficiency
class
Heat losses
((Wh/24hr)/l)
Nominal
capacity (l)
OKCE 200 S/3-6 kW
OKCE 250 S/3-6 kW
OKCE 100 S/2,2 kW
OKCE 125 S/2,2 kW
OKCE 160 S/2,2 kW
OKCE 200 S/2,2 kW
OKCE 250 S/2,2 kW
OKCE 160 S/3-6 kW

3
1. USE
OKCE line water heaters use only electricity for heating. Their nominal performance provides sufficient amount of
hot water for flat units, premises, restaurants, and similar establishments.
2. PRODUCT DESCRIPTION
The heater tank is welded from a steel sheet; it is entirely coated with hot water resistant enamel. For additional
corrosion protection a magnesium anode is mounted in the upper part of the heater to adjust the electric potential
inside the tank, lowing the risk of corrosion. All types have the outlets of hot and cold water and a circulation
opening welded to them. The tank is insulated with 65 mm of polyurethane foam. The heater shield consists of a
steel, powder-paint coated, sheet; the connecting parts are metal coated. Under a plastic cover on the side of the
heater, there is a cleaning and revision opening ended with a flange; various performance heating units may be
mounted into the opening. The heater is to be placed on the ground.
Tanks between 100 and 250 litres are tested with the pressure of 0.9 MPa; 300 litre tanks are tested with 1.5 MPa.
3. HEATER DIMENSIONS

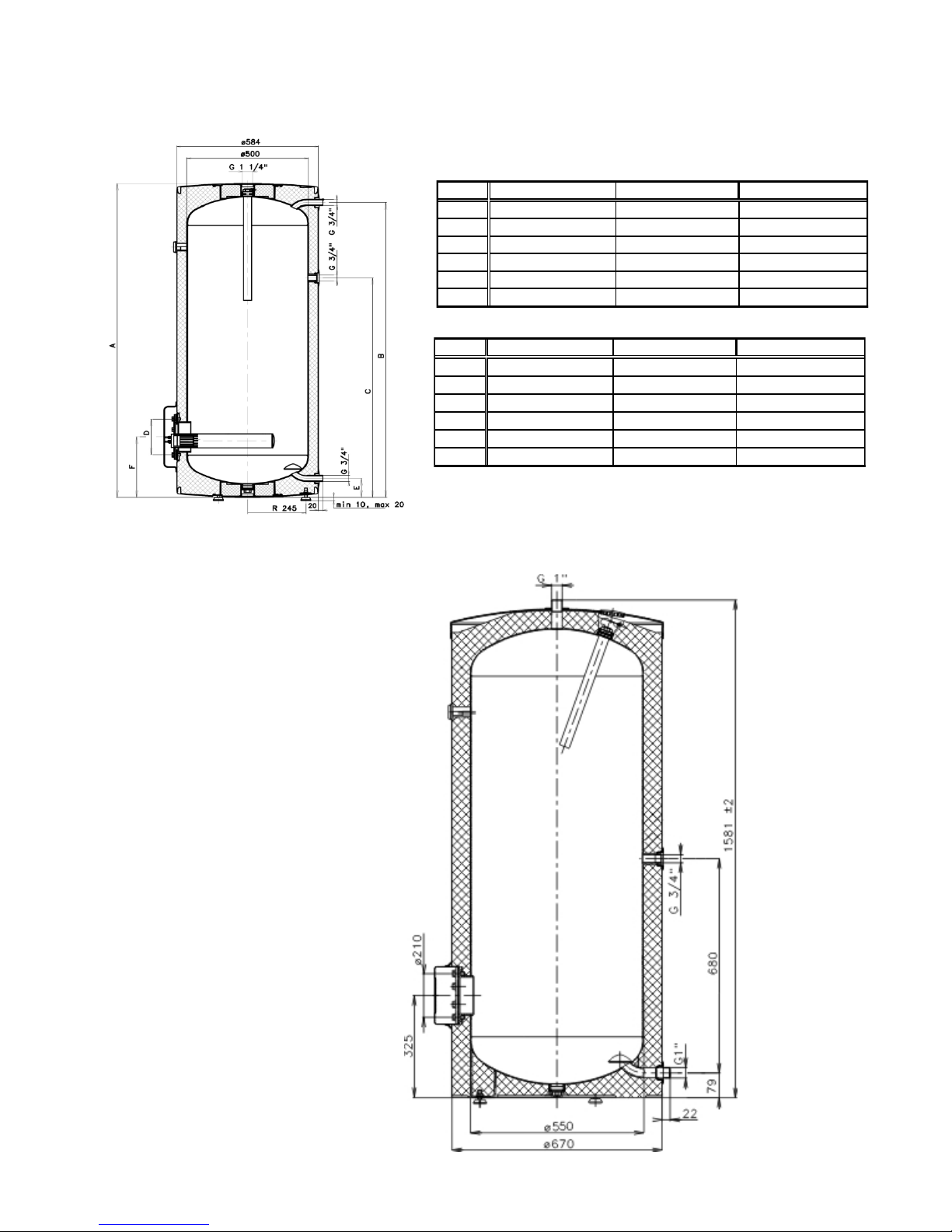

OKCE 100 S/2.2 kW; OKCE 125 S/2.2 kW;
TYP OKCE 100 S/2,2 kW OKCE 125 S/2,2 kW
A881 1046
B521 621

4
OKCE 160 S/2,2 kW, OKCE 200 S/2,2 kW, OKCE 250 S/2,2 kW
OKCE 160 S/3-6 kW, OKCE 200 S/3-6 kW, OKCE 250 S/3-6 kW
OKCE 300 S/1 MPa
TYPE OKCE 160 S/2,2 kW OKCE 200 S/2,2 kW OKCE 250 S/2,2 kW
A1052 1362 1542
B969 1281 1465
C526 861 1065
D168 168 168
E82 82 82
F265 265 265
TYPE OKCE 160 S/3-6 kW OKCE 200 S/3-6 kW OKCE 250 S/3-6 kW
A1052 1362 1542
B969 1281 1465
C526 861 1065
D227 227 227
E82 82 82
F297 297 297

5
OKCE 750 S/1MPa OKCE 1000 S/1MPa
A1998 2025
B1643 1671
C378 386
D1 750 850
D2 910 1010
E1908 1911
F1143 1154
G1638 1646
H943 951
M88 92
N45 45
O288 296
P1473 1511
OKCE 400 S/1MPa OKCE 500 S/1MPa
A304 288
B79 55
C514 380
D650 700
E1194 1264
F1289 1409
G1798 1790
H1919 1903
I245 273
OKCE 400 S/1 MPa, OKCE 500 S/1 MPa
OKCE 750 S/1 MPa, OKCE 1000 S/1 MPa

6
4. TECHNICAL PARAMETERS
5. WIRING
Wiring for: OKCE 100 S/2,2 kW, OKCE 125 S/2,2 kW
Elelektrického wiring diagram is attached to the heater wiring on the cover.
Connect, repair and control wiring can be performed only company authorized for this activity.
Professional involvement must be confirmed by the warranty.
The heater is connected to the power supply 230 V/50 Hz movable fixed wire which is equipped with all-pole
disconnecting switch network and circuit breaker
protector.

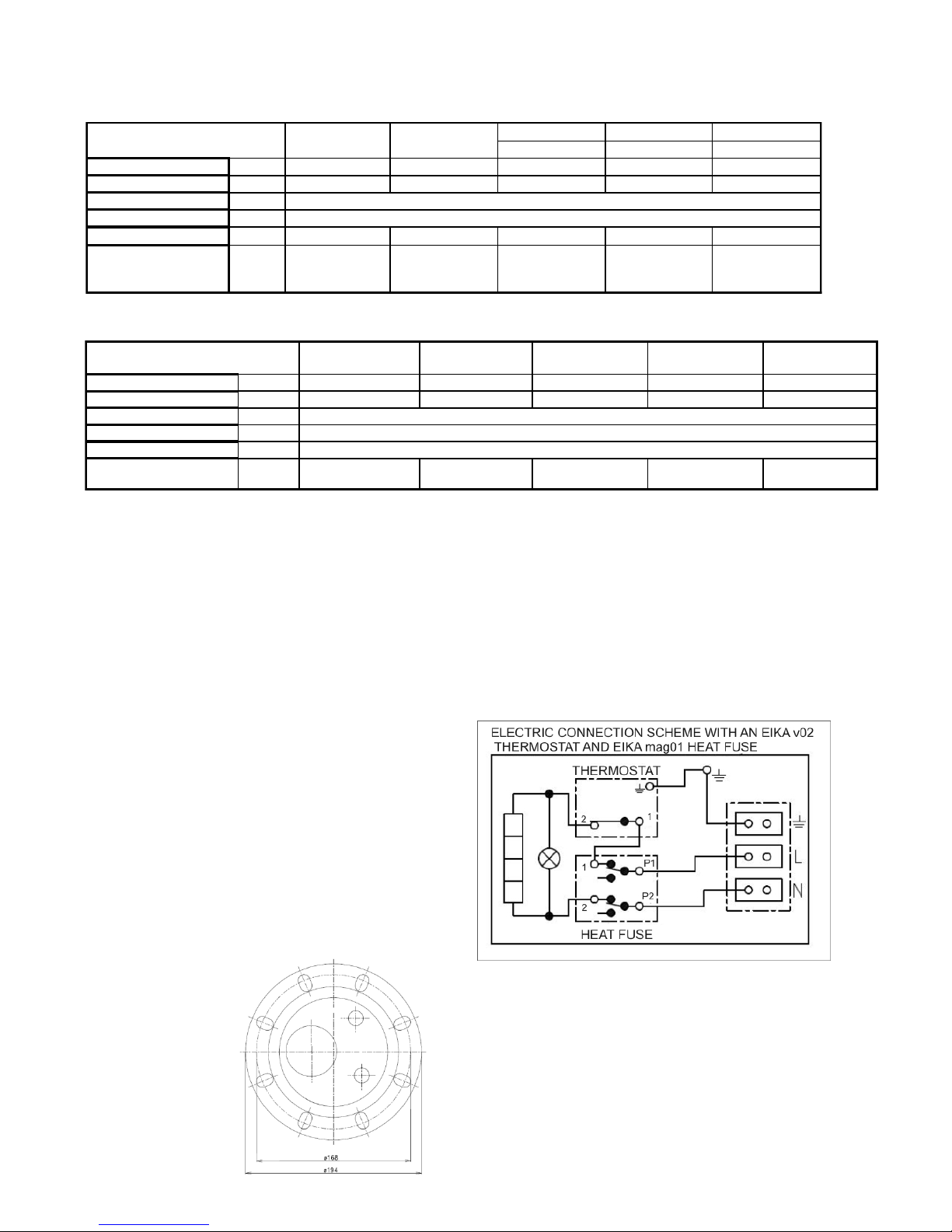

Wiring schéme:
Mounting 8 x M10
Capacity l300 400 500 750 1000
Weight kg 90 103 121 162 211
Operating pressure of accumulator
MPa
Max temperature of HSW °C
Heating time from 10 to 60°C h
Heat losses/Energy
efficiency class
kWh/24 h
OKCE 750S/1 MPa
OKCE 1000S/1 MPa
Based on selected power input of a heating unit
OKCE 300S/1 MPa
1
80
OKCE 400S/1 MPa
OKCE 500S/1 MPa
OKCE 160S/2,2 kW OKCE 200S/2,2 kW OKCE 250S/2,2 kW
OKCE 160S/3-6 kW OKCE 200S/3-6 kW OKCE 250S/3-6 kW
Capacity l100 125 160 200 250
Weight kg 42 49 58/67 72/81 80/89
Operating pressure of accumulator
MPa
Max temperature of HSW °C
Heating time from 10 to 60°C h3 3,5 4,5 / 3,2-1,6 5,5 / 4-2 7/ 5-2,5
Heat losses/Energy
efficiency class
kWh/24 h
80
OKCE 100S/2,2 kW
OKCE 125S/2,2 kW
0,6

7
Wiring for: OKCE 160 S/2,2 kW, OKCE 160 S/3-6 kW, OKCE 200 S/2,2 kW, OKCE 200 S/3-6 kW, OKCE
250 S/2,2 kW, OKCE 250 S/3-6 kW
Water heater is equipped with a universal electric heating unit with either a set or adjustable heating elements'
performance (except OKCE 300 S/1 Mpa). A heating unit consists of a flange, to which one or three wells for
ceramic heating elements and one thermowell are welded (see fig.). A unit is attached by either 8 M 10 screws with a
168 mm clearance or 12 M 12 screws with a 210 mm clearance. In the wiring plastic cover, there is a thermostat and
a safety fuse; heater operation control light; and a lead-in wire bushing.
The sensors must be inserted all the way in; first the thermostat and then the safety fuse.
The performance of heating unit may be adjusted based on either required heating time or connecting possibilities of
electric energy distribution in the place of use.
Parameters of an electric heating unit for: OKCE 100 S/2,2 kW, OKCE 125 S/2,2 kW, OKCE 160 S/2,2 kW,
OKCE 160 S/3-6 kW, OKCE 200 S/2,2 kW, OKCE 200 S/3-6 kW, OKCE 250 S/2,2 kW, OKCE 250 S/3-6 kW
Type
Performance
(kW)
Voltage (V/Hz)
Build-up length
l (mm)
IP
Protection
Weight (kg)
Mounting
TPK 168 - 8/2,2 kW
2,2
1 PE-N ~ 230 V/50 Hz
405
IP 44
5
8 x M10
For: OKCE 300 S/1 MPa –the heating element has to be additionally purchased
Type
Performance
(kW)
Voltage (V/Hz)
Build-up length
l (mm)
IP
Protection
Weight (kg)
Mounting
TPK 210 - 12/2.2 kW
2,2
1 PE-N ~ 230 V/50 Hz
440
IP 44
9
12 x M12
TPK 210 - 12/3-6 kW
3 - 4 - 6
3 PE-N ~ 400 V/50 Hz
440
IP 44
15
12 x M12
TPK 210 - 12/5-9 kW
5 - 7 - 9
3 PE-N ~ 400 V/50 Hz
550
IP 44
18
12 x M12
TPK 210 - 12/8-12 kW
8 - 10 - 12
3 PE-N ~ 400 V/50 Hz
550
IP 44
18
12 x M12
After the heater is connected to electric network, the heating element starts heating water. The element is turned on
and off by a thermostat. Thermostat can be set as per your need within the range from 5°C to 74°C. We recommend
setting service water to maximum temperature of 60°C. This temperature ensures an optimal operation of the heater,
reduces heat losses and saves electricity. After reaching the temperature set, the thermostat switches off the electric
circuit and thus discontinues water heating. The control light signals if the element is in operation (light is on) or if it
is off (the light goes out).
When shutting the heater out for an extended period, in winter you can set the thermostat to the snowflake sign
preventing the water from freezing, or turn off the inlet of electricity to the heater.
Connection, repairs, and wiring inspections may only be implemented by company (person) authorised to such
activity. Expert connection must be confirmed on the warranty certificate.
The heater is connected to the electric network using a solid moving conductor with a switch that turns off all
network poles and the circuit breaker (protector).
Installations in bathrooms, laundromats, rest rooms and showers must comply with ČSN 33 2000-7-701.
The degree of protection of electric parts of the heater is IP 44.
Respect rules of protection against electrical injuries in accordance with ČSN 33 2000-4-41.

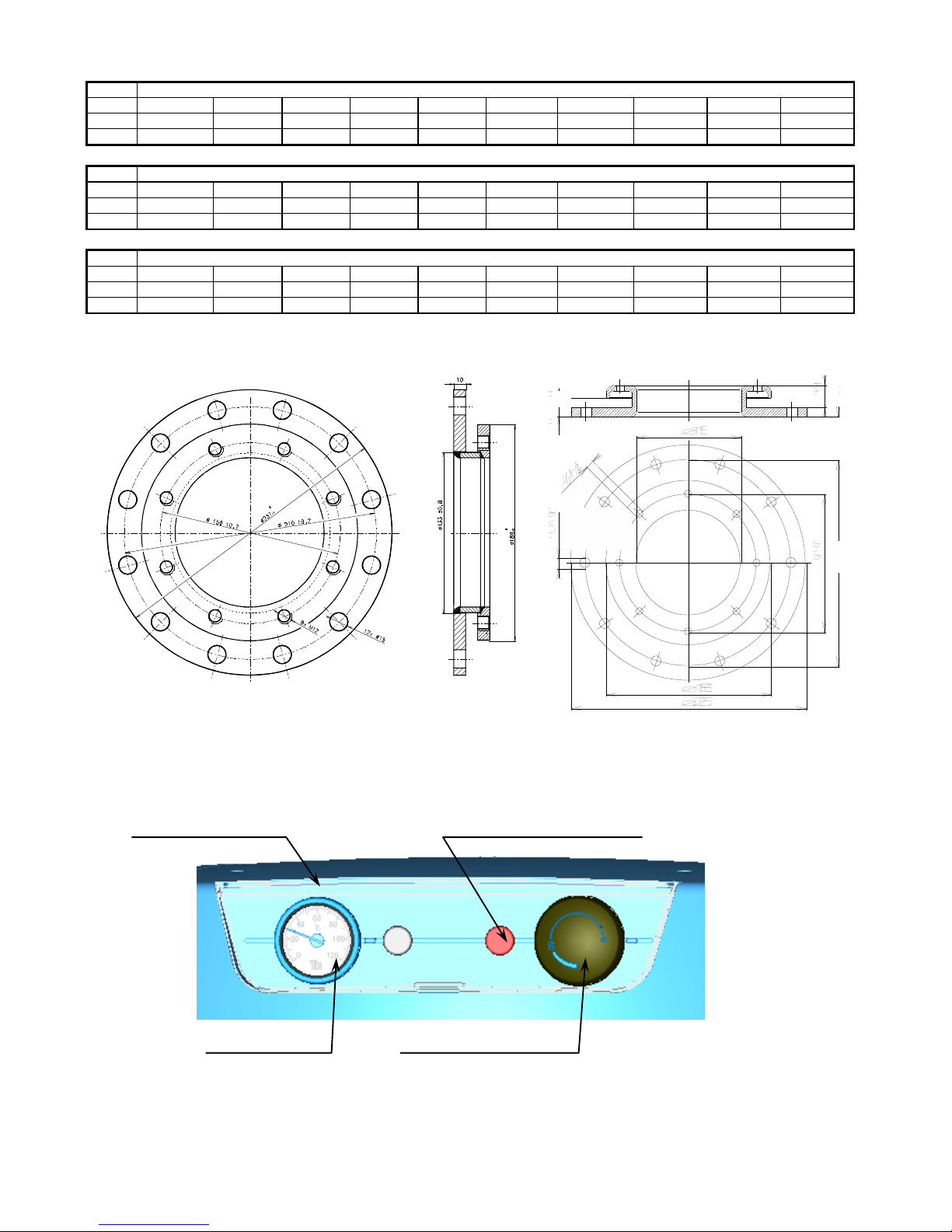

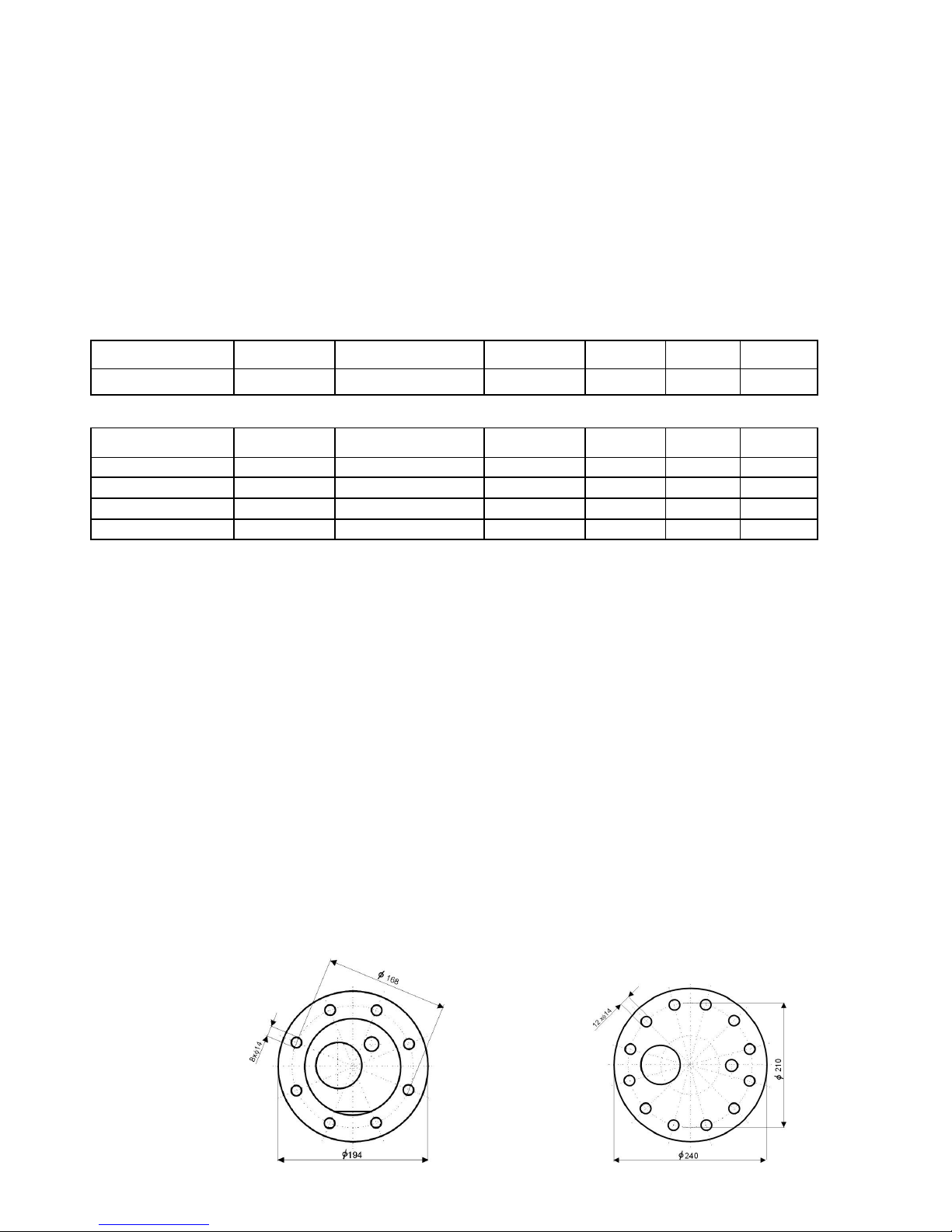

Heating unit - flanges
OKCE 100 S/2.2 kW; OKCE 125 S/2.2 kW; OKCE 300 S/1 MPa
OKCE 160 S/2.2 kW; OKCE 200 S/2.2 kW;
OKCE 250 S/2.2 kW
TPK 168-8/2.2 kW TPK 210-12/2.2 kW

8
Mounting 8 x M10 Mounting 12 x M12
OKCE 160 S/3-6 kW; OKCE 200 S/3-6 kW;
OKCE 250 S/3-6 kW; OKCE 300 S/1 MPa;
TPK 210-12/3-6 kW
OKCE 300 S/1 MPa
TPK 210-12/5-9 kW
TPK 210-12/8-12 kW
Mounting 12 x M12

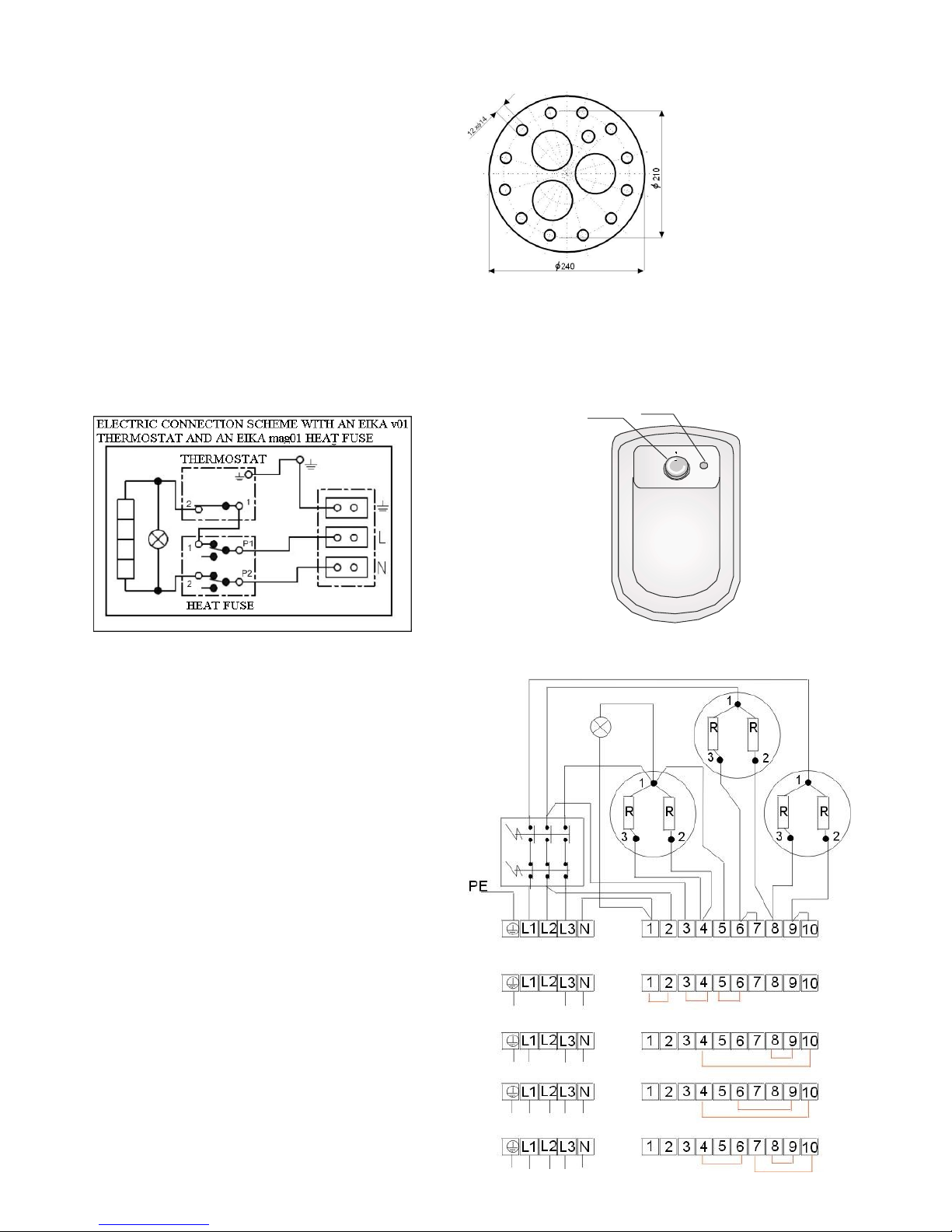

Wiring scheme
Notice: Factory connection must not be changed! Cover of wiring with control
Heating unit 2.2 kW
Thermostat Heater operation control light
Heating unit 3-6 kW
The 3-6 kW heating unit allows 4 types of connection based on either required time of heating or possibilities of
electric network in the place of use.
TPK 3-6 kW R ~ 1 kW
To achieve chosen performance of the heating unit,
connect the inlet conductor to L1, L2, L3, and N
terminal board,
and interconnect the clips on the 1-10 terminal board in
accordance with the following schemes:
3 kW 1 PE - N AC 230 V / 50 Hz
3 kW 2 PE - N AC 400 V / 50 Hz
4 kW 3 PE - N AC 400 V / 50 Hz

9
Type Performance Connection
Element lenght (
mm )
Weight (kg)
REU 18 - 2,5 2,5 1 PE-N AC 230 V / 50 Hz 450 3
RDU 18 - 2,5 2,5 3 PE-N AC 400 V / 50 Hz 450 3,3
RDU 18 - 3 3 3 PE-N AC 400 V / 50 Hz 450 3,4
RDU 18 - 3,8 3,8 3 PE-N AC 400 V / 50 Hz 450 3,5
RDU 18 - 5 5 3 PE-N AC 400 V / 50 Hz 450 3,5
RDU 18 - 6 6 3 PE-N AC 400 V / 50 Hz 450 3,5
RDW 18 - 7,5 7,5 3 PE-N AC 400 V / 50 Hz 450 3,7
RDW 18 - 10 10 3 PE-N AC 400 V / 50 Hz 450 4
RSW 18 - 12 12 3 PE-N AC 400 V / 50 Hz 530 4
RSW 18 - 15 15 3 PE-N AC 400 V / 50 Hz 630 4,2
SE 377* 8,0-11-16 3 PE-N AC 400 V / 50 Hz 610 8
SE 378* 9,5-14-19 3 PE-N AC 400 V / 50 Hz 610 11,5
* Only for 750 and 1000 litre boilers.
6 kW 3 PE - N AC 400 V / 50 Hz
OKCE 300 S/1 MPa
TPK 210-12/5-9 kW
TPK 210-12/8-12 kW
TPK 5-9 kW R ~ 1 kW
TPK 8-12 kW R ~ 1.33 kW
TPK 5-9 kW
5 kW 3 PE - N AC 400 V / 50 Hz
7 kW 3 PE - N AC 400 V / 50 Hz
9 kW 3 PE - N AC 400 V / 50 Hz
TPK 8-12 kW
8 kW 3 PE - N AC 400 V / 50 Hz
10,5 kW 3 PE - N AC 400 V / 50 Hz
12 kW 3 PE - N AC 400 V / 50 Hz
Wiring for:
OKCE 300 S/1MPa, OKCE 400 S/1MPa , OKCE 500 S/1MPa, OKCE 750 S/1MPa, OKCE 1000 S/1MPa
Heating units use
Capacity
Flanges size
Time of heating from 10°C to 60°C (hours)
l
mm
8
6
5
4
3
2,5
2
1,5
750
flange 150
RDU 18-6
RDW 18-7,5
RDW 18-10
RSW 18-12
RSW-18-15
flange 225
SE 377-8
SE 378-9,5
SE 377-11
SE 378-14
SE 377-16
SE 378-19
1000
flange 150
RDW 18-7,5
RDW 18-10
RSW 18-12
RSW 18 -15
flange 225
SE 377-8
SE 378-9,5
SE 377-11
SE 378-14
SE 377-16
SE 378-19
Capacity
Flanges size
Time of heating from 10°C to 60°C (hours)
l
mm
8
6
5
4
3
2,5
2
1,5
300
flang 210
RDU 18- 2,5
RDU 18- 3
RDU 18-3,8
RDU 18-5
RDU 18-6
RDW 18-7,5
RDW 18-10
400
flang 210
RDU 18- 3
RDU 18-3,8
RDU 18-5
RDU 18-6
RDW 18-7,5
RDW 18-10
RSW 18-12
RSW 18-15
500
flang 210
RDU 18-3,8
RDU 18-5
RDU 18-6
RDW 18-7,5
RDW 18-10
RSW 18-12
RSW 18-15
Electric heating units REU, RDU and RSW with the reduction flange 210/150 can be assembled in heaters with volume 300, 400 and 500 litres.
Electric heating units REU, RDU and RSW with the reduction flange 225/150 can be assembled in heaters with volume 750 and 1000 litres.
1
1
22
2
33
3

10
Capacity
Time of heating from 10°C to 60°C (hour)
l
8
6
4,5
3,5
3
2,5
2,1
1,8
1,6
1,4
300
TPK 210/2,2
TPK 210/3-6
TPK 210/3-6
TPK 210/5-9
TPK 210/3-6
TPK 210/5-9
TPK 210/8 -12
TPK 210/5 - 9
TPK 210/8-12
TPK 210/8-12
Wiring
2,2 kW
3 kW
4 kW
5 kW
6 kW
7 kW
8 kW
9 kW
10 kW
12 kW
Capacity
Time of heating from 10°C to 60°C (hour)
l
11,3
8
6
4,7
4
3,4
3
2,6
2,4
2
400
TPK 210/2,2
TPK 210/3-6
TPK 210/3-6
TPK 210/5-9
TPK 210/3-6
TPK 210/5-9
TPK 210/8 -12
TPK 210/5 - 9
TPK 210/8-12
TPK 210/8-12
Wiring
2,2 kW
3 kW
4 kW
5 kW
6 kW
7 kW
8 kW
9 kW
10 kW
12 kW
Capacity
Time of heating from 10°C to 60°C (hod)
l
14,1
9,8
7,5
6
5
4,2
3,7
3,3
3
2,5
500
TPK 210/2,2
TPK 210/3-6
TPK 210/3-6
TPK 210/5-9
TPK 210/3-6
TPK 210/5-9
TPK 210/8 -12
TPK 210/5 - 9
TPK 210/8-12
TPK 210/8-12
Wiring
2,2 kW
3 kW
4 kW
5 kW
6 kW
7 kW
8 kW
9 kW
10 kW
12 kW
Reduction flange 225 / 150 Reduction flange225 / 150
6. SERVICING
Service devices of heaters of 100, 125 l capacity are located under the transparent guard of the control panel.
Tipping transparent guard Electric circuit power indicator lamp
Thermometer Thermostat knob

11
Temperature setting
Teplota vody se nastavuje otočením knoflíku termostatu. Požadovaný symbol se nastaví proti pevnému bodu na
ovládacím panelu.
Notice: Adjusting the thermostat selector to the left backstop does not mean permanent shutoff of the heating
element.
When the heater is in use without blocking the daily rate, we do not recommend the temperature to be set above
65°C.
The maximum value to select is “60“.
Limiting the regulation range; locked settings.
For various safety reasons (unintentional scalding, preventing children or unauthorised person from handling), the
regulation range can be limited, or the setting on the thermostat blocked.
Regulation limited: - pull off the thermostat knob (it will be hard for the first time), and you will find two 2.15mm
cylindrical pins on the back side of the knob
- pull off one pin and insert it to the corresponding hole of the selected maximum temperature.
- put the knob back on to the stop
To block the setting: - set the selected temperature
- pull off the thermostat knob without changing the setting, there are two pins on the back
side of the knob
- pull off both of them and fit them into the holes corresponding with the selected
temperature so that the gap between the pins was without a hole, and the position was
opposite the set temperature.
7. SECURITY EQUIPMENT
Each hot service water pressure heater must have a membrane spring loaded with a safety valve. Nominal clearance
of safety valves is defined in the ČSN 06 0830 standard. 300 l heaters are not equipped with a safety valve. The
safety valve must be easily accessible, as close to the heater as possible. The input pipes must have at least the same
clearance as the safety valve. The safety valve is placed high enough to secure dripping water drain by gravity. We
recommend mounting the safety valve onto the branch led above the heater. This allows easier exchange without
having to drain the water from the heater. Safety valves with fixed pressure settings from the manufacturer are used
for the assembly. Starting pressure of a safety valve must be identical with the maximum allowed heater pressure,
and at least 20% higher than the maximum pressure in the water main. If the water main pressure exceeds such
value, a reduction valve must be added to the system. No stop valves can be put between the heater and the safety
valve. During the assembly, follow the guide provided by the safety equipment manufacturer.
Before putting the safety valve into operation it always needs to be checked by manual removal of the membrane
from the valve seat and turning the make-and-break device button always in the direction of the arrow. After being
turned, the button must click back into a notch. Proper function of the make-and-break device results in water
Lower temperature range
limit (about 5°C)
Fixed point on the control
panel
Anti-freezing temperature
(about 8°C)
Upper temperature range
limit (about 74°C)
”Ideal” temperature (about
60°C)
Regulation limited
Setting blocked

12
draining through the safety valve outlet pipe. In common operation, such a check needs to be implemented at least
once a month, and after each heater shutdown for more than 5 days. Water can drip from the safety valve through the
drain pipe; the pipe must be freely open to the atmosphere, placed vertically and shall be in an environment free of
temperatures below freezing.
When draining the heater, use a recommended drain valve. First, close water supply into the heater.
Find necessary pressure values in the following table:
For proper safety valve operation, a
backflow valve must be mounted on the
input pipes, preventing spontaneous
heater draining and hot water penetrating
back into the water main.
When assembling the security equipment, follow the ČSN 06 0830 standard.
8. PUTTING THE HEATER INTO OPERATION
After connecting the heater to the water main, electrical power system, and after checking the safety valve (following the
instructions attached to the valve), the heater can be put into operation.
Procedure:
a) Check the water main and wiring; Check proper placement of thermostat sensors;
b) Open the hot water valve on the combination faucet;
c) open the cold water inlet valve to the heater;
d) when the water starts flowing through the hot water valve, the filling of the heater is finished and the valve needs to be
closed;
e) If a flange lid leak is discovered, the flange lid bolts need to be tightened;
f) Fasten the electric installation cover;
g) When commencing operation, flush the heater until the cloudiness in the water is gone.
h) Make sure to fill in properly the warranty certificate.

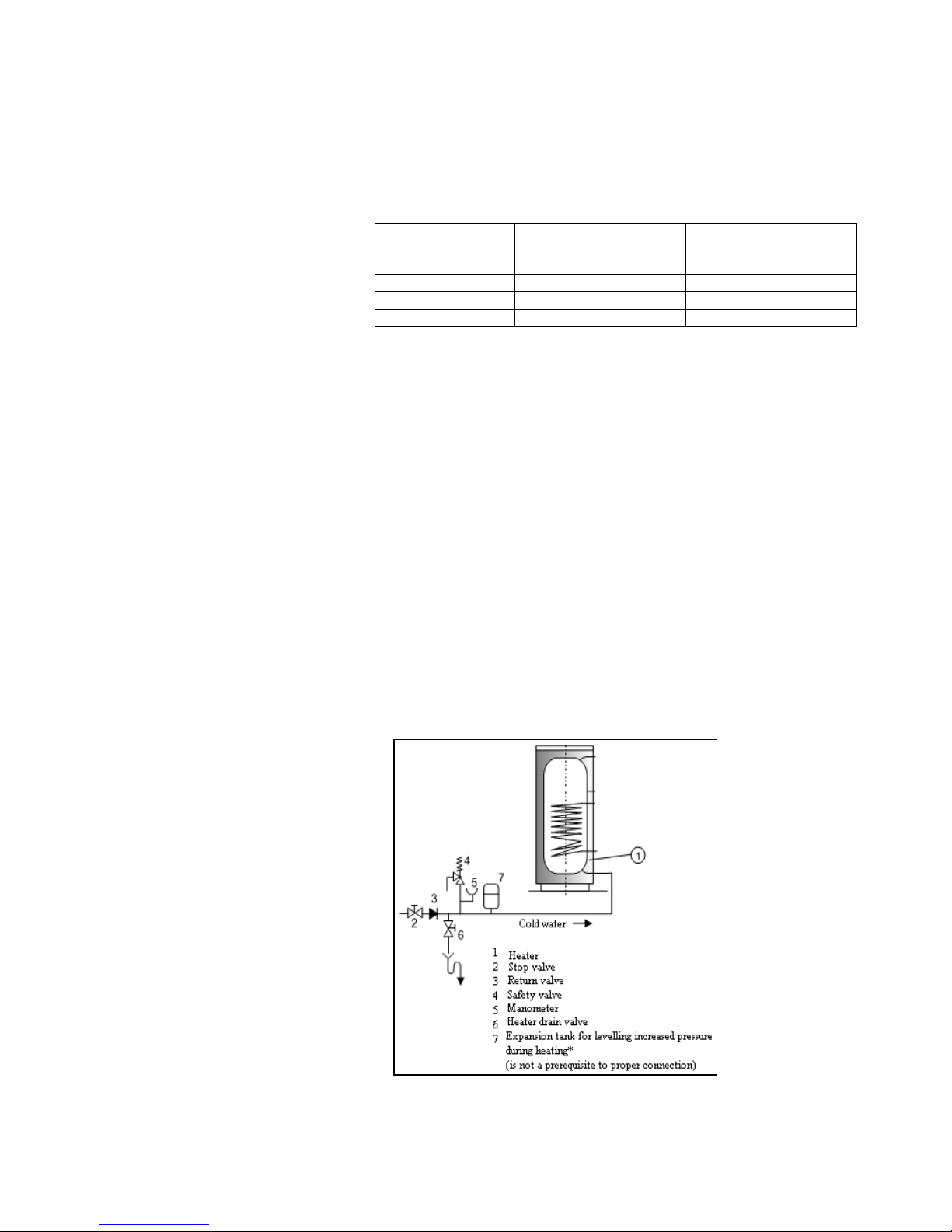

Cold Water Inlet Scheme
Safety valve starting
pressure (MPa)
Admissible operating
water heater pressure
(MPa)
Max. pressure in the cold
water pipe (MPa)
0.6
0.6
up to 0.48
0.7
0.7
up to 0.56
1
1
up to 0.8

13
9. HEATER CLEANING AND ANODE ROD EXCHANGE
Repetitive water heating causes limestone sediment on both the tank walls and chiefly the flange lid. The sedimentation
depends on the hardness of water heated, its temperature, and amount of hot water consumed. We recommend checking
and cleaning the tank from scale, if necessary, inspection and possible replacement of anode rod, after two years of
operation. The anode life is theoretically calculated for two years of operation; however, it changes with water hardness
and chemical composition in the place of use. Based on such an inspection, the next term of anode rod exchange may be
determined. Have the company in charge of service affairs clean and exchange the anode. When discharging water from
the heater, the mixing valve of the hot water tap must be open in order to avoid creating underpressure that would prevent
water discharge.
10. IMPORTANT NOTICES
-Check and exchange the Mg anode regularly.
-No stop valves can be put between the heater and the safety valve.
-If the overpressure in the eater main exceeds 0.48 MPa, a reduction valve must be mounted before the safety valve.
-All outlets of hot water must be equipped with a combination faucet.
-Before filling the heater with water for the first time, it is recommended to fasten the flange connection nuts of the tank.
-It is not allowed to handle the thermostat, aside from temperature resetting with a control button.
-All electric installation handling, setting, and regulation feature exchange, may only be implemented by a service
company.
Notice: To prevent formation of bacteria (e.g. Legionella pneumophila) within stack heating it is recommended, if
absolutely necessary, to increase the temperature of HSW periodically for a transitional period of time to at least 70°C. It
is also possible to make use of another way of HSW disinfecting.
11. SPARE PARTS
- Flange lid - flange lid seal - set of M12 (or M10) bolts
- thermostat and thermal fuse - Magnesium anode - insulation flange lid
- control lights with wires - control button for the thermostat - capillary thermometer
- heating element
When ordering spare parts, give part name, type, and type number from the heater label.
12. INSTALLATION REGULATIONS
Regulations and instructions that must be obeyed if the heater is connected
a) to the heating system
ČSN 06 0310 – Thermal systems in buildings –Designing and Installation
ČSN 06 0830 – Thermal systems in buildings –Protecting devices
b) to the electrical network
ČSN 33 2180 - Connecting of electric devices and appliances
ČSN 33 2000-4-41 - Low voltage electric installations Protective measures to ensure safety –Protection against
electric shock
ČSN 33 2000-7-701 - Low voltage electric installations: Single-purpose devices and devices in special premises -
Premises with tub or shower
c) to the hot water heating system
ČSN 06 0320 - Thermal systems in buildings - Hot water preparation –Design and Project Engineering
ČSN 06 0830 – Thermal systems in buildings –Protecting devices
ČSN 73 6660 – Internal water conduits
ČSN 07 7401 - Water and steam for thermal energy equipments with working steam pressure up to 8 MPa
ČSN 06 1010 - Tank water heaters with water and steam heating; and combined with electric heating. Technical
requirements. Testing.
ČSN 75 5455 – Calculation of water installations inside buildings
ČSN EN 12897 – Water supply –Indirectly heated closed tank-type water heaters
Both the electric and water installation must follow and meet the requirements and regulations relevant in the country of use.

14
13. FURTHER INFORMATION
Notice: 300-1000 litre capacity heaters are screwed onto the bottom wooden palette with M12 screws. When the heater is
released from the palette and prior to its putting into operation, 3 adjustable legs supplied as the product accessories have
to be installed. With these legs, the heater may be positioned vertically to the base, within 10 mm.
Disposal of packaging material and functionless product
A service fee for providing return and recovery of packaging material
has been paid for the packaging in which the water heater was
delivered.
The service fee was paid pursuant to Act No. 477/2001 Coll., as
amended, at EKO-KOM a.s. The client number of the company is
F06020274. Take the water boiler packages to a waste disposal place
determined by the town. When the operation terminates, disassemble
and transport the discarded and unserviceable heater to a waste
recycling centre (collecting yard), or contact the manufacturer.
14. FUNCTIONAL DEFECTS
Do not try to repair the failure yourselves. Seek either expert or service help. It does not take much for an expert to
remove the defect. When making a repair appointment, report the type and serial number you find on the performance
plate of your water heater.
Control light
* Each heating element is made of two or more parallel connected coils. The element works but on lower output.
Water in the tank does not correspond with
temperature set
Defect
3
4
Water in the tank is cold
is not on
is on
- Heating element failure
- Some elements are not heating
- Thermostat failure
- The safety fuse turned off electricity supplye
- Power supply outside the heater discontinued
- Thermostat failure
Failure
- Failure of one of the elements
- Failure of one of the heating coils in the element *
1
Water in the tank is cold
is on
2
Water in the tank is not warm enough
is on

15
15. ASSEMBLY GUIDE FOR ZIP-FASTENER INSULATION
(Only concerns heaters with the capacity of 750 and 1,000 litres)
Two people are enough to implement the insulation assembly; three people are required for larger boilers; the assembly
must be implemented in areas with the temperature of at least 18 oC.
If the insulation includes tank bottom insulation, the latter must be mounted first. The insulation is then inserted around
the boiler (heater), respecting the pre-pressed insulation openings. Pull gently in the direction of the arrows to put the two
zip insulation sides together (see Fig. 6) so that the insulation does not draw down and the openings in the insulation fit
the boiler inputs and outputs. It must be secured that, before closing, both halves of the zip-fastener are not further than 20
mm apart (see Fig.7). No foam must get into the zip-fastener on closing.
After the insulation coat is properly mounted and the zip-fastener closed, insert the top lid made of foam material and
cover it with either a foil cover or a plastic lid. It is also possible to glue the outlet caps to connection places (see fig. 8).
The insulation must be stored in dry areas only.
We take no responsibility for damages caused by not respecting this guide.
Fig. 6 Fig. 7
Fig. 8
2-2014
