Drive Medical GentleFeed+ MQ9130 Assembly instructions

Dual Channel
Electric Breast Pump
gentlefeed
INSTRUCTIONS & ASSEMBLY
Item # MQ9130
www.drivemedical.com | [phone]

Indications for Use
The Gentlefeed+breast pump is intended to ex-
press and collect milk from lactating women and
maintain the ability of lactation to complement
breast feeding. The device is intended for a sin-
gle user only.
Descriptions
Gentlefeed+is a double electric or battery-op-
erated breast pump that is to be used when a
baby would normally be breast feeding, which is
multiple times daily. The device is capable of sin-
gle and double pumping, and has two pumping
modes: Stimulation Mode and Expression Mode.
Control Panel Description
Suction
Control Button
Mode Button ON/OFF Button
Speed Control
Button

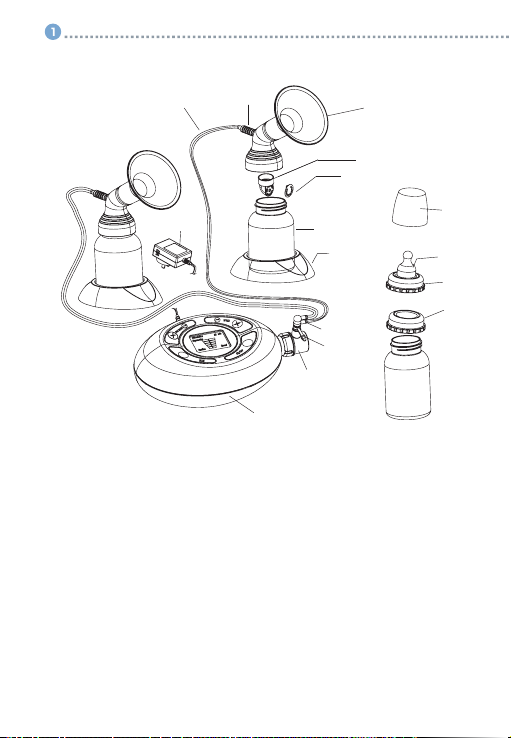

Parts Guide
11
10
9
8
13
15
16
14
5
4
3
2
1
6
7
12
1. Breast Shield (2)
2. Valve (2)
3. Membrane (2)
4. 4-Ounce Bottle (2)
5. Stand (2)
6. Single-Connector (2)
7. Tubing (2)
8. Double-Connector
*Additional Parts: Battery Pack (1)
9. Double-Connector Cap
10. Collector
11. Pump Unit
12. A/C Adapter
13. Bottle Cap (2)
14. Nipple
15. Clear Bottle Cap
16. Disc Collar

Symbol List
The following symbols may appear in this manual,
on the device, or on the device’s accessories.
Technical Performance & Specifications
DISPOSAL: Do not dispose as unsorted municipal waste.
Electrical waste must be disposed of separately or recycled.
CAUTION: Refer to the Warnings and Precautions information
located in the Instructions for Use Guide.
REFERENCE: Refer to the Instructions for Use Guide.
SERIAL NUMBER: Information is located on the device.
DATE OF MANUFACTURE: Information is located in the first 4
numbers of the Serial Number after the 2 digit factory code.
MANUFACTURER:
Drive Medical
99 Seaview Blvd.
Port Washington, NY 11050
Tel: [phone] | Fax: [phone]
Website: www.drivemedical.com
S/N
A/C Adapter
Total Power
Stimulating Velocity
Stimulating Intensity
Suction Velocity
Suction Intensity
Noise
Operating Conditions
Storage and Shipping Conditions
Electronic Protection Equipment Type
Applied Part Type
Water and Dust Protection Class
Compliance with Standard
Input 100-240V~ 50/60Hz, Output 9V-1.6A
12.6W
88T/min
-0.018MPa (Max.), 3 adjustable degrees
34-63T/min, 5 adjustable speeds
-0.028MPa (Max.), 5 adjustable degrees
60dB(A)
5~40°C,10~85% Rh
-20~50°C, 10~90% Rh
Class II
Type BF
IP32
IEC 60601-1

Warnings and Precautions
Basic safety precautions should be taken when using electrical
products, especially around children.
Warning: If you are a mother who is infected with Hepatitis B, Hepatitis C or Human
Immunodeficiency Virus (HIV), pumping breast milk will not reduce or remove the
risk of transmitting the virus to your baby through your breast milk.
WARNING:
• The power adapter is a part of the breast pump.
• Always unplug electrical device immediately after use.
• Do not use while bathing.
• Do not place or store device where it can be submerged in water.
• Do not reach for device if it has fallen in water. Immediately unplug from the
electrical outlet.
• Do not leave device unattended when plugged into an electrical outlet.
• Do not position the breast pump such that it is difficult to disconnect the adapter
plug from the main power supply.
• Close supervision is necessary when used near children or people with disabilities.
• Use product only for its intended use. Do not use attachments not recommended
by the manufacturer.
• Keep cord away from heated surface.
• Never use while sleepy or drowsy.
• Never drop or insert objects into any opening or tubing.
• Do not use outdoors or operate where aerosol products are being used, or where
oxygen is being administered.
• Always inspect power adapter and batteries prior to use for damage and exposed
wires. If damage is found, immediately discontinue use of power adapter.
• Do not operate during transportation.
WARNING: To avoid health risk and reduce the risk of injury:
• This device is intended for single user only and should not be shared between
users.
• Do not drive while pumping.
• Never use while pregnant, as pumping can induce labor.
• Clean and sanitize all parts that come in contact with your breast and breast milk
prior to first use. Wash all parts that come in contact with your breast and breast
milk after every use.
• Inspect all appropriate pump components before each use.
• Do NOT continue pumping for more than two consecutive pumping sessions if no
results are achieved.
• Do not thaw frozen breast milk in a microwave or in a pan of boiling water.
• If tubing becomes moldy, discontinue use and replace tubing.
• If breast milk backup occurs, clean the tubing before your next pumping session.

WARNING: Avoid the following, which could lead to minor injury:
• DO NOT wrap cord around adapter body.
• Use only the power adapter that comes with the Gentlefeed+breast pump.
• Pump only with the breast pump in an upright position.
• DO NOT shorten tubing.
• Make sure the voltage of the power adapter is compatible with the power
source.
• Plug the power adapter into the breast pump first, then into the power source.
• DO NOT use antibacterial or abrasive cleaners/detergents when cleaning
breast pump or breast pump parts.
• Never put breast pump motor in water or sterilizer, as permanent damage can
be caused to the device.
• DO NOT attempt to remove the breast shield from your breast while pumping.
Turn the breast pump off and break the seal between your breast and breast
shield with your finger, then remove the breast shield from your breast.
• If pumping is uncomfortable or causing pain, turn the unit off, break the seal
between the breast and the breast shield with your finger and remove breast
shield from your breast.
• If experiencing pain in the breast or nipple, discontinue pumping by shutting
off the device or breaking the suction with your finger, even if you think the
pump is not the source of the pain.
NOTES: To avoid health risk and reduce the risk of injury:
• Plastic bottles and component parts become brittle when frozen and may
break when dropped.
• Take appropriate care in handling bottles and components.
• Do not use the breast milk if bottles or components become damaged.
Cleaning Instructions
Basic Cleaning Method
1. Rinse each piece that comes into contact with the body and or
milk with cool water immediately after pumping.
2. Wash each piece separately using liquid dishwashing soap and
plenty of warm water.
3. Rinse each piece thoroughly with hot water for 10-15 seconds.
4. Place the pieces neatly on a clean paper towel or in a clean drying
rack and allow them to air dry.
5. Avoid using cloth towels to dry the pump parts because they can
carry germs and bacteria that may contaminate the breast milk.
6. Once the pump parts are dry, assemble the pump before storage
or use.
7. Try not to touch the inside of any parts that will come in contact
with your breast milk.

Cleaning Breast Pump Parts
• All breast pump parts that come in contact with your body and milk, such as
bottles, valves, and breast shields, should be cleaned after each use.
• Wash the pieces thoroughly to remove germs and bacteria with liquid soap
and warm water.
• It is not necessary to clean the breast pump tubing unless breast milk gets
into it.
• If you must wash the tubing, ensure the tubing is hung up to air dry before
attaching it to the pump. If any moisture/condensation appears in the tubing
after pumping, turn the pump on until the tubing is dry.
Cleaning the Electrical Unit:
• Electrical units, which house the motor and batteries, should be wiped with a
clean paper towel or soft cloth after each use.
• The electrical unit should never be put into water or other liquids for cleaning.
It should also never be sterilized in a microwave sterilizer.
Assembling the Expression Collection Kit
Gentlefeed+comes pre-assembled, however you must reas-
semble the device after each cleaning. All parts of the device
and accessories that come in contact with the breast milk,
including the bottle, breast shield, membrane, and valve,
should be cleaned and sterilized after each use.
Be sure to wash hands before touching the breast pump
and accessories, and avoid touching the inside of containers
or lids.

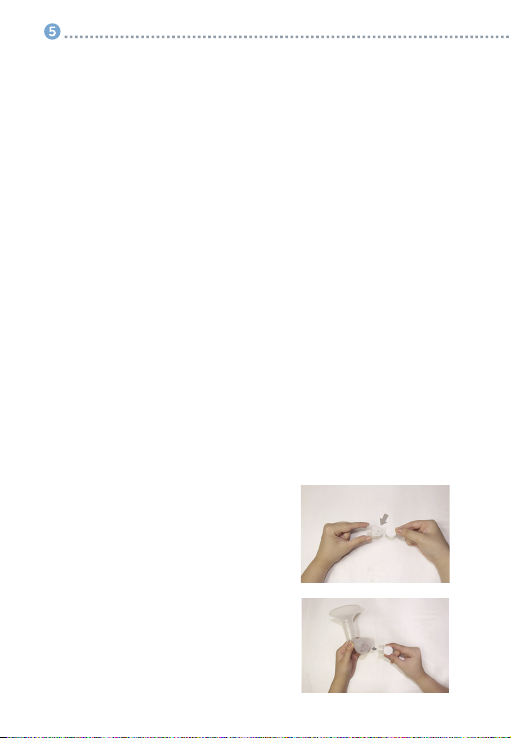

1. Press the Membrane (3) into the
holes of the Valve (2). The membrane
should be pressed flat and tight.
2. Mount the assembled valve with
membrane connected to the Breast
Shield (1).

3. Screw the Bottle (4) into the
breast shield.
4. Connect two tubes to the Dou-
ble-Connector (8) separately and
connect the other end of the tub-
ing to the Single-Connector (6).
Then insert the Single-Connector
into the hole of the breast shield.
5. Connect the Double-Connector
to the Collector (10).
(NOTE: For single-pumping use
with one breast, disconnect one
tube from the Double-Connector
and insert into the Double-Con-
nector Cap (9) instead. When
switching to single-pumping the
suction power at each level will
be slightly stronger than that of
double-pumping suction. Be sure
to adjust the vaccum to a comfort-
able level.)

Connecting the Expression
Collection Kit and Pump Unit
1. Connect the Collector (10) to the
pump’s air vent.
2. Attach the power cord to the
pump unit. Then plug the A/C
Adapter (12) into the all-socket
outlet.
Device Operation
• Wash hands before touching the breast pump, kit, and breasts. Avoid
touching the inside of accessories, containers, or lids.
• Always inspect breast shields, connectors, valves, and tubing prior to use
for cleanliness.
• If you experience pain or other symptoms while pumping, contact a
healthcare professional.
• Do not try to express with a vacuum that is too high and uncomfortable.
• Make sure tubing is not kinked or pinched while pumping.
• Contact your healthcare professional if you express minimal milk or no
milk, or if expression is painful.
1. Place the Breast Shield over your breast so that your nipple is
properly centered in the tunnel.
2. While the pump unit is connected to power source, press the ON/
OFF button to switch on the device.

3. The Gentlefeed+breast pump operates in two modes: Stim-
ulation and Expression. Once the device is turned on, the timer
will start and the pump will begin simultaneously in the Stimulation
Mode at a fixed speed (88T/min) for two minutes. The device will
then move to the Expression Mode at Suction Level 2 with Speed
Level 1 (factory default).
4. If your milk starts to flow earlier, press the MODE button to toggle
between Stimulation and Expression modes. Make sure the milk
is flowing into the bottle properly. If you do not press the MODE
button, the pump will automatically switch to Expression mode after
two minutes.
5. Press the MODE button to toggle between Stimulation and Ex-
pression modes.
6. To adjust the suction to your comfort level during pumping, press
the “+” on the SUCTION CONTROL button to increase the suction,
or the “-“ to decrease the suction.
7. To adjust the speed to your comfort level during pumping, press
the “+” on the SPEED CONTROL button to increase the speed, or
the “-“ to decrease the speed.
8. Once you are finished pumping, switch off the breast pump,
unplug the device, and disassemble the pump. Clean the device
and accessories per the Cleaning Instructions. Close the bottle and
store it for later use.
Guidelines for Storing and Thawing
Breast Milk Operation
Freshly Expressed
Breast Milk
Thawed Breast Milk
Room Temperature Cooler with Ice Pack Refrigerator Freezer
4–6 hours
at 66–78 °F
(19–26 °C)
Breast Milk Storage Guidelines
Use within 24 hours
24 hours
at 59 °F
(15 °C)
3–5 days
at 39 °F
(4 °C)
6–12 months
0–4 °F
(-18–-20 °C)
Use within 24 hours Use within 24
hours
Use within 24
hours

Tips for Freezing/Thawing Breast Milk
• DO NOT refreeze breast milk after thawing.
• Never fill bottles more than three-quarters high to allow space for expansion.
• Label the bottle with the date you expressed the milk.
• When storing breast milk in the refrigerator or freezer compartment, make
sure to store away from the door in order to avoid fluctuations in tempera-
ture.
• In order to preserve the components of the breast milk, thaw in the refrig-
erator overnight or by holding the bottle under running warm water (max.
98.6°F/37°C).
• Shake the bottle gently to blend any fat that has separated.
• Do not thaw frozen breast milk in a microwave oven or in a pan of boiling
water (danger of burning).
Troubleshooting
If problems arise during the use of the breast pump, please consider
the following troubleshooting remedies.
Weak suction
• Check to make sure all connections are tight to ensure there are no air leaks.
• Check to ensure the tubing is not kinked.
• Check to see if dried up milk residue resides in the tubing. If there is residue
present, disassemble and clean per the enclosed instructions.
• Inspect the Breast Shield, valves, tubing, and other accessories for chips,
cracks, or other defects. If flawed, replace the parts immediately.
Device Will not Power On
• Check to make sure the outlet is properly functioning.
• Ensure the power supply is correctly connected to the pump unit.
Milk Backflow
• Immediately shut off the device and clean the tubing, connector, and other
accessories.
Disposal
Medical equipment and devices should be disposed of in proper
containers that meet Environmental Protection Agency standards.
Check with local State Laws & Regulations to see what is required in
your state or contact your local representatives.

Warranty Information
Your Drive branded breast pump product is warrantied
to be free of defects in materials and workmanship for a
period of 1 year from the date of purchase for the original
consumer purchaser. The Breast Pump Accessories
is warrantied to be free from defects in materials and
workmanship for a period of 120 days from the date
the accessories are delivered to the original consumer
purchaser.
This device was built to exacting standards and
carefully inspected prior to shipment. This Warranty is
an expression of our confidence in the materials and
workmanship of our products and our assurance to the
consumer of years of dependable service.
This warranty does not cover device failure due to owner
misuse or negligence, or normal wear and tear. The
warranty does not extend to non-durable components,
such as rubber accessories, casters, and grips,
which are subject to normal wear and need periodic
replacement.
If you have a question about your Drive device or this
warranty, please contact an authorized Drive dealer.

99 Seaview Boulevard, Port Washington, NY 11050
Tel: [phone] | Fax: [phone]
www.drivemedical.com
REV1.01.12.14
