DROPSA 3414 Series Operating instructions

PNEUMATIC-DRIVEN PUMP
Series 3414…
User and
Maintenance Manual
Warranty information
TABLE OF CONTENTS
1. INTRODUCTION
2. GENERAL DESCRIPTION
3. PRODUCT-MACHINE IDENTIFICATION
4. TECHNICAL CHARACTERISTICS
5. PUMP COMPONENTS
6. UNPACKING AND INSTALLING THE PUMP
7. PUMP OPERATIONS
8. TROUBLESHOOTING
9. MAINTENANCE PROCEDURE
10. DISPOSAL
11. ORDERING INFORMATION
12. DIMENSIONS
13. HANDLING AND TRASPORTATION
14. OPERATING HAZARDS
15. PRECAUTIONS
16. WARRANTY INFORMATION
17. DECLARATION OF COMPLIANCE WITH STANDARDS
18. DROPSA LOCATIONS
Manual drafted in compliance with C2089IE –WK 01/12
EC Directive 42/06
http://www.dropsa.com

1. INTRODUCTION
This manual refers to the Pneumatic-driven Pump, Series 3414….
You can find additional copies and newer revisions of this document from our website http://www.dropsa.com.
Alternatively contact one of our Sale Offices.
Please read this manual carefully, as it contains important information on health safety issues: a copy of this manual
should remain with the user of the product.
2. GENERAL DESCRIPTION
2.1 Pneumatic-driven pump - with reservoir
Pneumatic-driven Pump, Series 3414…. is strong and reliable. It consists of a pump body made of zinc-plated steel, a piston
made of hardened and lapped steel, a pneumatic cylinder in which a piston with anti-oil rubber seal runs.
The single-acting drive requires a 3-way solenoid valve. This item can be furnished by Dropsa on request (see ch.11).
2.2 Pneumatic-driven pump - without reservoir
These pumps have been designed for client’s reservoir or special reservoir applications. Equipped with plate with
lubricant inlet thread G½ UNI-ISO 228/1.
3. PRODUCT –MACHINE IDENTIFICATION
Pump identification label is located on the front side of the pump and contains pump serial number and details of its
operating parameters.
4. TECHNICAL CHARACTERISTICS
4.1 Series 3414… general technical characteristics
Operating temperature
-5 °C ÷ +80 °C (+23°F ÷ +176°F)
Storage temperature
-20°C ÷ + 50°C (-4°F÷+122°F)
Operating humidity
90% relative humidity
Lubricant
oil
Lubricant viscosity
15÷2000 cSt (73.31÷9256 SUS)
Refilling filter
metallic
Sound pressure level
70dB(A)
4.2 Single-acting Pneumatic-driven pump
Pump
With reservoir
Without reservoir
(For special applications)
3414001
3414002
3414006
3414032
3414033
3414034
3414046
3414000
3414005
3414016
Compression
ratio
50:1*
Reservoir
capacity
2l (0.44 gals)
5l (1.1 gals)
5kg (11.02 lb)
-
Flowrate
0.5÷2 cm3/stroke (0.03÷0.12 cu.in./stroke)
Driving air
pressure
4÷8 bar (58.8÷117.6 psi)
Lubricant inlet
-
G ½ UNI-ISO 228/1
Lubricant outlet
Rp ¼ UNI-ISO 7/1
Compressed-air
inlet
G 1/8 UNI-ISO 228/1
*It is kindly recommended to verify compression ratio on machine label:
-For pumps manufactured before 03.03.2003, compression ratio is 30:0;
-For pumps manufactured after 03.03.2003, compression ratio is 50:0

3

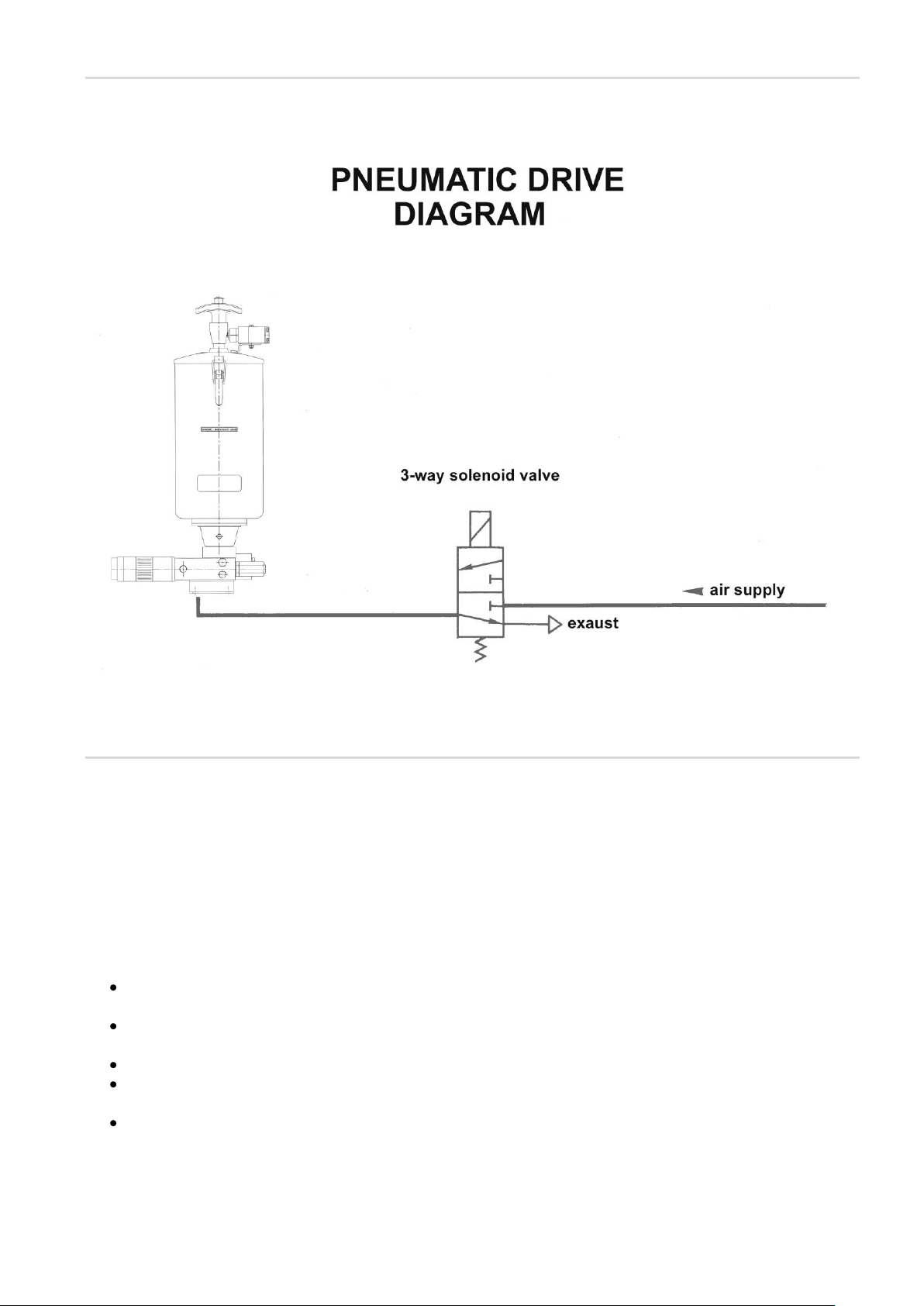

5. PUMP COMPONENTS
5.1 Example of a pneumatic-driven pump Series 3414…
6. UNPACKING AND INSTALLING THE PUMP
6.1 UNPACKING
Once a suitable location has been found to install the unit remove the pump from the packaging. Check the pump has not
been damaged during transportation or storage. No particular disposal procedures are necessary, however packing
should be disposed of in accordance with regulations that may be in force in your area or state.
6.2 INSTALLING THE PUMP
No particular assembly operations are provided.
Pump must be fixed to floor. On this purpose, pump bracket has been provided with 4 holes, Ø 8.5 mm (0.33 in). Then,
pump must be pneumatically connected to the machine (see par. 5.1).
Furthermore, we recommend:
To leave minimum 100 mm (3.93 in.) space around the pump in order to avoid unnatural posture or possibility
of sustaining impacts.
Not to install pump submerged into fluids or in aggressive/explosive/inflammable environments, if not
preventively provided for this purpose by the supplier.
To use gloves and safety glasses, as required in the lubrication oil safety chart.
Not to use aggressive lubricants with NBR seals. If any doubt, please contact Eng. Dept. of Dropsa S.p.A. We will
provide you with a detailed chart of recommended oils.
Not to ignore dangers to health and observe all hygienic standards.

4
7. PUMP OPERATIONS
After installing the pump, adjust driving air pressure.
7.1 Prior to pump start-up
Verify the unit is undamaged.
Check that pneumatic and electric connections (IEC 64/8, IEC 364) have been carefully carried out.
Refill the reservoir with compatible lubricant.
Verify operating temperature [MIN temperature: -5°C (+23°F)].
7.2 Pump start-up
Verify piping are air-bubble-free.
Verify that lubrication is correctly carried out.
8. TROUBLESHOOTING
The following diagnostic table indicates the main anomalies which may be encountered, the probable causes and possible
solutions. If you cannot solve the problem, do not attempt to disassemble parts of the machine but contact the Eng.
Dept. of DROPSA S.p.A.
ANOMALY
PROBABLE CAUSE
SOLUTION
Lubricant is not
delivered by pump at all
or in the required
quantity
Lubricant is below the MIN. level
Refill the reservoir with impurity-free lubricant.
Do not exceed the MAX level indicator
Solenoid valve does not discharge
Verify that solenoid valve is 3-way. Verify,
also, that air is properly discharged from pump
chamber.
Lubricant is not
delivered by pump at
the required pressure
Loosened pipe fitting
Carefully retighten pipe fitting. Be sure there are
no lubricant leakages.
Incorrect regulation of driving air
Regulate driving air according to the technical
characteristics (see ch. 4)
9. MAINTENANCE PROCEDURE
Pneumatic-driven Pump, Series 3414…. require only minimal maintenance.
To facilitate maintenance, it is suggested to install the pump in an easily accessible location (see paragraph 6.2).
Machine does not require any special tool for checking or maintenance tasks. However, it is recommended the use only
of appropriate and in good conditions tooling, protective devices (gloves) and clothing to avoid hazards to equipment
or persons.
9.1 How to disassemble the pump
-Empty the reservoir;
-Disconnect the piping;
-Unscrew the fixing screws;
-Remove the reservoir;
-Remove the pump and the provided filters;
-Unscrew the pneumaticcylinder from pump;
-Remove all the other components.
WARNING: The unit can only be opened and repaired by authorized Dropsa personnel.
CAUTION!
Prior to any maintenance and cleaning task, discharge pressure from pump and from the respective
connected piping.

5
Before the reassembling all pump components must be washed with petroleum and lubricated.
Periodical checks:
VERIFICATION
WORK CYCLES
State of lubrication
100
Lubricant level
200
Cleanliness of refilling filter
400
Cleanliness of return filter (where provided)
400
Cleaning of the bottom of reservoir in presence of sediments
600
Furthermore:
Keep the machine unit clear and check pipe joints to readily detect possible leaks.
10. DISPOSAL
During maintenance or disposal of the machine care should be taken to properly dispose of environmentally sensitive
items. Refer to local regulations in force in your area. When disposing of this unit, it is important to ensure that the
identification label and all the other relative documents are also destroyed.
11. ORDERING INFORMATION
11.1 Single- acting pneumatic pump –with reservoir
SERIAL N°
MIN level
Characteristics
3414001
visual
Without MiN level electric contact
3414002
3414006
With MIN level electric contact
3414032
With MIN and MAX level electric contact
3414033
Pneumatic piston-pump with PNP sensor
3414034
Pneumatic piston-pump with level electric contact
3414046
Pump-like serial n°3414006 with viton seals
11.2 Single- acting pneumatic pump (without reservoir) –Special reservoir applications
SERIAL N°
Characteristics
3414000
Solenoid valve for serial n°: 3414032, 3414033, 3414034, 3414046
3414005
Special reservoir applications
3414016
11.3 3-way solenoid valve for pneumatic-driven pumps
SERIAL N°
Voltage and frequency
45273
110V/50Hz
45274
220V/50Hz
45275
24V/50Hz

6
12. DIMENSIONS
12.1 Single-acting pneumatic pumps –with reservoir
Serial N°
Length
Width
Depth
Weight
mm
in.
mm
in.
mm
in.
Kg
lb
3414001
454
17.87
280
11.02
130
5.11
5.1
11.24
3414002
420
16.53
170
6.69
6.9
15.21
3414006
450
17.71
7
15.43
3414032
467
18.38
270,5
10.64
160
6.29
N.A.
N.A.
3414033
464
18.26
280
11.02
N.A.
N.A.
3414034
466
18.34
270,5
10.64
10
22
3414046
491
19.33
280
11.02
155
6.10
N.A.
N.A.
N.A.: information not available
12.2 Single-acting pneumatic pumps (without reservoir) –Special reservoir applications.
Serial N°
Length
Width
Depth
Weight
mm
in.
mm
in.
mm
in.
Kg
lb
3414000
90
3.54
280
11.02
130
5.11
4.6
10.14
3414005
100
3.93
7
15.43
3414016
90
3.54
4
8.81
13. HANDLING AND TRANSPORTATION
Prior to shipping, Pneumatic-driven Pump, Series 3414…. is packed and in cardboard containers. During transportation
and storage always maintain the pump the right way up as indicated on the box. On receipt check that the packaging has
not been damaged and store the pump in a dry place. Pump may be handled without any special lifting apparatus.
Lift the equipment observing the right way up shown on the cardboard packing.
During storage, machine components can withstand temperatures –20°C÷+50°C (-4°F÷ +122 F°).
However, in order to avoid damages, machine start-up should occur at a minimum temperature of +5°C
(+41°F).
14. OPERATING HAZARDS
It is necessary to read and understand the possible hazards and risks involved when using a lubrication pump. The
operator must fully understand the hazards implied in pumping grease under pressure.
Inflammability
Lubricant generally used in lubrication systems is not normally flammable. However, it is recommended to avoid contact
with extremely hot substances or naked flames.
Pressure
Prior to any intervention, check the absence of residual pressure in any branch of the lubricant circuit as it may cause
lubricant squirts when disassembling components or pipe fittings. Do not subject the connections, the piping or parts
under pressure to violent impacts. Damaged piping or connections are DANGEROUS and should be immediately replaced.
Noise
During normal operating conditions the pump does not produce excessive noise less than 70 dB(A).

7
15. PRECAUTIONS
Verification of compliance with the essential safety requirements and Machine Directive dispositions has been carried
out filling in checking lists provided and contained in the technical file.
Dropsa used three kinds of checking list:
List of hazards (according to the EN 414 as it refers to EN 292);
Enforcement of the essential safety requests (Machine Directive –06/42);
Electric safety requirements (EN 60204-1)
Here follows a list of dangers which have not been fully eliminated but which are considered acceptable:
During assembly or maintenance, oil squirts at low pressure can occur. (For this reason suitable personal
protective clothing must be worn and appropriate protective measures must be taken during such operations).
Contact with lubricant during refilling /maintenance -> Protection against direct and indirect contact must be
provided by the user. (See the requirements for the use of suitable individual protective measures).
Preloaded spring in driving cylinder or reservoir where provided.
Use of incompatible lubricant -> fluid characteristics are shown on the pump and in the User and Maintenance
Manual (in case of doubts, please contact Dropsa S.p.A. Eng. Dept.).
Use of incompatible lubricant.
Main incompatible fluids:
Fluids
Dangers
Lubricants containing abrasive components
Premature wear of pump
Lubricants containing silicon
Pump failure
Petrol –solvents –inflammable liquids
Fire –explosion –seal damage
Corrosive products
Pump damage - danger to persons
Water
Pump oxidization
Food Products
Contamination of the product

8
16. WARRANTY INFORMATION
All products manufactured and marketed by Dropsa are warranted to be free of defects in material or workmanship for a
period of at least 12 months from date of delivery. Extended warranty coverage applies as follows:
Complete system installation by Dropsa: 24 Months
All other components: 12 months from date of installation; if installed 6 months or more after ship date, warranty shall be
maximum of 18 months from ship date.
If a fault develops, notify us giving a complete description of the alleged malfunction. Include the part number(s), test
record number where available (format xxxxxx-xxxxxx), date of delivery and installation and operating conditions of
subject product(s). We will subsequently review this information and, at our option, supply you with either servicing data
or shipping instruction and returned materials authorization (RMA) which will have instructions on how to prepare the
product for return. Upon prepaid receipt of subject product to an authorized Dropsa Sales & Service location, we will
then either repair or replace such product(s), at out option, and if determined to be a warranted defect, we will perform
such necessary product repairs or replace such product(s) at our expense.
Dropsa reserves to right to charge an administration fee if the product(s) returned are found to be not defective.
This limited warranty does not cover any products, damages or injuries resulting from misuse, neglect, normal expected
wear, chemically caused corrosion, improper installation or operation contrary to factory recommendation. Nor does it
cover equipment that has been modified, tampered with or altered without authorization.
Consumables and perishable products are excluded from this or any other warranty.
No other extended liabilities are states or implied and this warranty in no event covers incidental or consequential
damages, injuries or costs resulting from any such defective product(s).
The use of Dropsa product(s) implies the acceptance of our warranty conditions. Modifications to our standard warranty
must be in made in writing and approved by Dropsa.

9
Dropsa Spa
Via Benedetto Croce, 1
20090 Vimodrone (MI)
Italy
Tel.:
Fax Sales:
E-mail:
Web site:
(+39) 02. 250.79.1
(+39) 02. 250.79.767
[email protected]
http://www.dropsa.com
DICHIARAZIONE DI CONFORMITÁ/DECLARATION OF COMPLIANCE WITH STANDARDS/
DECLARATION DE CONFORMITE/ KONFORMITÄTSERKLÄRUNG DES STANDARDS /DECLARACIÓN DE
CONFORMIDAD/ DECLARAÇÃO DE CONFORMIDADE
La società Dropsa S.p.A., con sede legale in Milano, Via Besana,5/ Dropsa S.p.A., registered office in Milan, Via
Besana,5 / Dropsa S.p.A. au Siège Social à Milan, Via Besana,5/ Dropsa S.p.A., Sitz in Milano, Via Besana 5/ La
sociedad Dropsa S.p.a., con sede legal en Milán, Via Besana,5/ A Dropsa S.p.A, com sede em Milão, via Besana, nº 5
DICHIARA /CERTIFIES / CERTIFIE/ ZERTIFIZIERT, DASS/ DECLARA/ CERTIFICA:
che il prodotto denominato/that the product called/ le produit appelè/ das Produkt mit dem Namen/ el producto que se
llama/ o produto chamado:
Descrizione/ Description/ Description/ Beschreibung/
Descripción/ Descrição:
Pompa pneumatica
Pneumatic pump
Nome Commerciale/ Product Name/ Dénomination/
Handelsname/ Denominación/ Denominação:
-
Versioni/ Versions/ Versions/ Versionen/ Versiones/
Versões:
Tutte
Codici/ Codes/ Códigos/:
3414001-3414002-3414006-3414032-
3414033-3414034-3414046-3414000-
3414005-3414016
è conforme alle condizioni previste dalle Direttive CEE /has been constructed in conformity with the Directives Of
The Council Of The European Community on the standardization of the legislations of member states/ a été
construite en conformité avec les Directives Du Conseil Des Communautes Europeennes/ Entsprechend den
Richtlinien des Rates Der Europäischen Union, für die Standarisierung der Legislative der Mitgliederstaaten,
konstruiert wurde/ cumple con las condiciones establecidas por las directivas comunitarias/ foi construído em
conformidade com as diretivas do Conselho das Comunidades Europeias:
2006/42 CE Direttiva macchine /Machinery Directive/ Directive machines/ Maschinenrichtlinien/Maquinaria / Directiva
Máquinas;
17. DECLARATION OF COMPLIANCE WITH CE STANDARDS
Technical Director:
Maurizio Greco
.....................................
Legal representative
Milena Gavazzi
.....................................
M
i
l
Vimodrone (MI), Gennaio 2012
La persona autorizzata a costituire il Fascicolo Tecnico c/presso Dropsa S.P.A.
The person authorized to compile the Technical File care of Dropsa S.P.A.

10
18.DROPSA LOCATIONS
Web site: http://www.dropsa.com - E-mail: [e-mail]
Dropsa S.p.A.
Via B. Croce,1
20090 Vimodrone (MI) Italy.
Tel: (+39) 02 - 250.79.1
Fax: (+39) 02 - 250.79.767
E-mail: [email protected] (Export)
E-mail: [email protected] (National)
Dropsa Ame
23, Av.des.Morillons
Z.I. des Doucettes 91140
Garges Les Gonesse, France
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Dropsa (UK) Ltd
Unit 6, Egham Business Village,
Egham,Surrey,TW20 8RB
Tel: [phone] - 431177
Fax: [phone] - 438598
E-mail: [email protected]
Dropsa do Brazil Ind. E Com. Ltda
Rua Sobralia 175,
Sao Paulo, Brazil
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Dropsa USA Inc.
6645 Burroughs Ave
48314-2132 Srerling Hts,Mi Us -USA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Dropsa Lubrication Systems
Nr 8 Dongxing Road,
Songjiang Industrial Zone
(Shanghai) Co., Ltd
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Dropsa Gmbh
Volmerswerther Strasse 80
40221 Dusseldorf 1, Deutschland
Tel: [phone]
Fax:[phone]
E-mail: [email protected]
Dropsa Australia Pty.
C20/148 Old Pittwater Road
Brookvale, NSW 2100
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
