DROPSA 989v2 User manual

1
989v2
Multi-outlet electric pump
For 989v2 grease
Operation and maintenance manual
Original instructions
Manual drafted in compliance
with directive 2006/42
DropsA products can be purchased at DropsA branches and authorised distributors,
go to www.dropsa.com/contact or write to [email protected]
C2287IE - WK 04/21

2
Index
INTRODUCTION 3
1. GENERAL INFORMATION 3
1.1. GENERAL INFORMATION 3
1.3. CONTENTS OF THE OPERATION AND
MAINTENANCE MANUAL 4
1.4. WARRANTY 4
1.4.1. GENERAL CONDITIONS 4
1.4.2. PARTS NOT COVERED UNDER WARRANTY 5
1.4.3. THE RESPONSIBILITY OF THE USER 5
1.4.4. OPERATIONS THAT VOID THE WARRANTY 6
2. DESCRIPTION AND TECHNICAL CHARACTERISTICS 6
2.1 GENERAL DESCRIPTION 7
2.2. STANDARD PUMP COMPONENTS 7
2.2.1 PUMPING ELEMENTS 8
2.2.2. AUXILIARY PUMPING ELEMENTS (OPTIONAL) 8
2.2.3 LASER FOR GREASE MINIMUM LEVEL (OPTIONAL) 8
2.2.4 GREASE STIRRING PADDLE (STANDARD PUMP) 8
2.3. TECHNICAL SPECIFICATIONS OF THE PUMP 9
2.3.1. LUBRICANTS 9

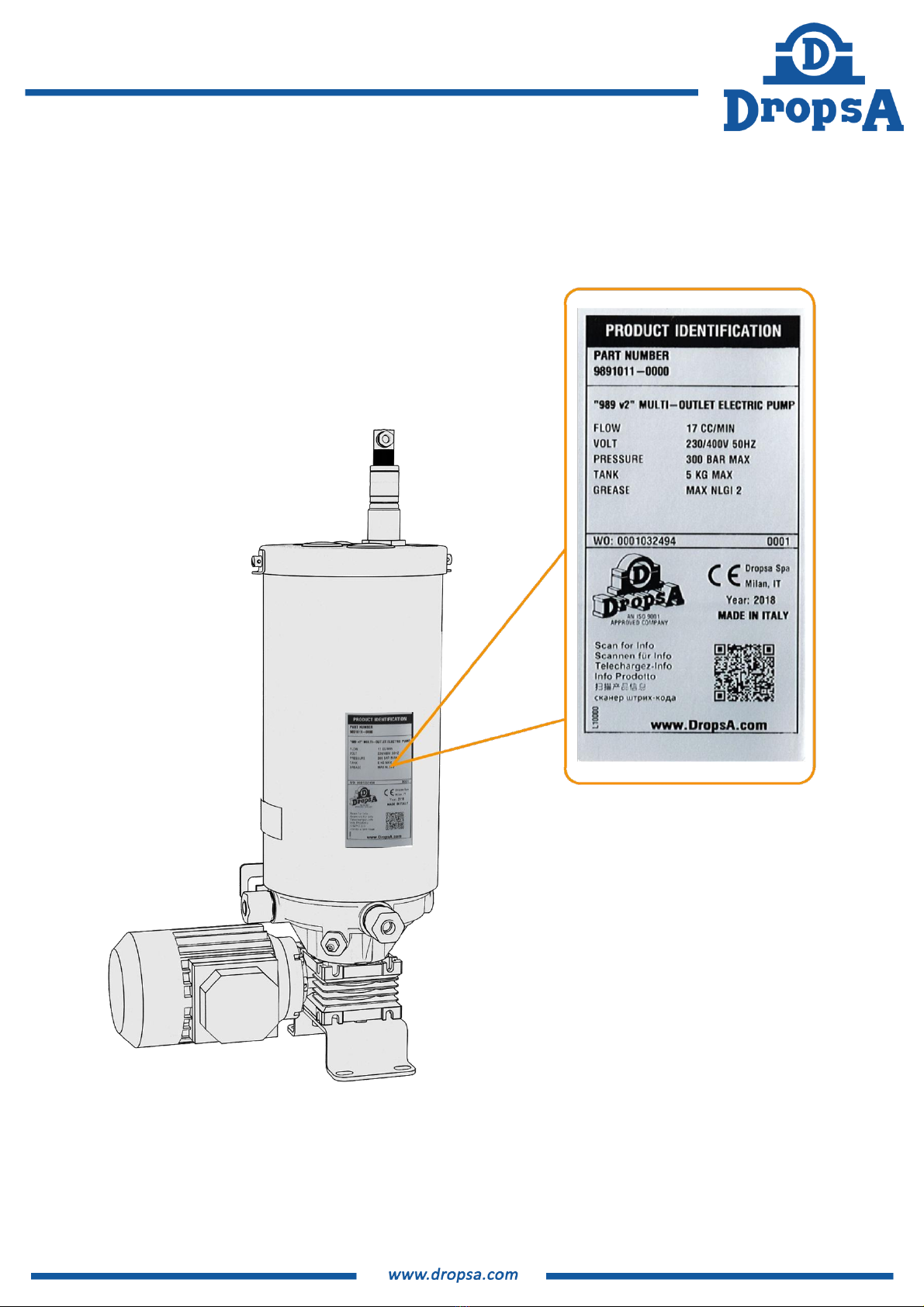

2.4. IDENTIFICATION OF THE PRODUCT 10
3. SAFETY 11
3.1. MATERIALS PRESENT ON THE MACHINE 11
3.2. DEVICES AND SOLUTIONS FOR PROTECTION 11
3.3. WARNING OF RESIDUAL RISKS 11
3.3.1. LIFTING AND TRANSPORT 12
3.3.1.1 RESIDUAL RISKS PRESENT IN THE LIFTING AND
TRANSPORT PHASES 12
3.3.1.2. REQUIRED PERSONAL PROTECTION EQUIPMENT 12
3.3.1.3. WARNINGS TO BE HEEDED IN THE LIFTING AND
TRANSPORT PHASES 12
3.3.2. INSTALLATION AND OPERATION 13
3.3.2.1. RESIDUAL RISKS PRESENT IN THE INSTALLATION AND
OPERATION PHASES 13
3.3.2.2. REQUIRED PERSONAL PROTECTION EQUIPMENT 13
3.3.2.3 WARNINGS TO BE HEEDED IN THE INSTALLATION AND
OPERATION PHASES 14
3.3.3. MAINTENANCE AND DEMOLITION 15
3.3.3.1. RESIDUAL RISKS PRESENT IN THE MAINTENANCE AND
DEMOLITION PHASES 15
3.3.3.2 REQUIRED PERSONAL PROTECTION EQUIPMENT 15
3.3.3.3 WARNINGS TO BE HEEDED IN THE MAINTENANCE
AND DEMOLITION PHASES 16
3.4. SAFETY SIGNS 16
3.5. NOISE AND VIBRATION INDICATIONS 17
3.5.1. NOISE 17
3.5.2. VIBRATIONS 17
3.6. PROPER AND IMPROPER USE OF THE MACHINE 17
3.6.1. PROPER USE 17
3.6.2. IMPROPER USE 17
4. TRANSPORT AND INSTALLATION 18
4.1. PREPARATIONS AT THE CUSTOMER’S EXPENSE 18
4.2. TRANSPORT,HANDLING AND INSTALLATION 19
4.2.1. INSTALLATION OF THE PUMP 20
4.2.2. HYDRAULIC CONNECTIONS 20
4.2.3. ELECTRICAL CONNECTION 20
5. START-UP, ADJUSTMENT AND OPERATION 22
5.1 CHECKS TO CARRY OUT DURING THE FIRST
START-UP OF THE PUMP 22
5.2 RESERVOIR FILLING 23
5.3 ADJUSTABLE PUMPING ELEMENT SETTING 23
5.4 CALIBRATION OF THE LASER LEVEL PROBE
0295131, 24VDC OUT NO AND NC (1 THRESHOLD) 23
5.5 OPERATION OF THE 989 V2 24
5.5.1 START-UP 25
5.5.2 ARREST 25
6. MAINTENANCE AND DEMOLITION 25
6.1 PROBLEMS AND SOLUTIONS 26
6.2 SCHEDULED MAINTENANCE 27
6.3 SPECIAL MAINTENANCE OPERATIONS 27
6.4 DEMOLITION 29
7. ORDER INFORMATION AND DIMENSIONS 30
7.1 ORDER INFORMATION 30
7.2 DIMENSIONS 32
Copyright 33

3
INTRODUCTION
OPERATION AND MAINTENANCE MANUAL
DROPSAS.P.A.-Allrightsreserved
This Operation and Maintenance Manual is entrusted to 989 V2 users for the instruction of
maintenance personnel and operators. Without written authorisation in advance from DROPSA
S.P.A., this manual or part of it may not be reproduced in any way, modified, transcribed,
translated into any language, made available to third parties or in any case used in any way that
may undermine the interests of DROPSA S.P.A.
Maintenance and operation personnel are strictly forbidden from distributing the information
contained herein and using this manual for purposes other than those strictly connected with the
proper conservation of the 989 V2, its operation and upkeep.
DROPSA S.P.A. will not be held responsible or liable for damage caused by the incorrect use of the
documentation. For the purpose of preventing incorrect handling which could cause danger to
personnel, it is important to read and comprehend all the documentation that comes with the 989
V2.
1. GENERAL INFORMATION
1.1. General information
This Operation and Maintenance Manual constitutes an integral part of the 989 V2 (identified in
this document with the term MACHINE) made by the company DROPSAS.P.A. (identified in this
document with the term MANUFACTURER); for this reason, it must follow the machine itself in the
event that it is transferred to a new user or owner.
This manual must be carefully kept and protected from any agent that could deteriorate it for the
entire life cycle of the MACHINE.
This manual was drafted for the purpose of providing operators and maintenance personnel of the
Machine with information and the instructions essential for correctly and safely operating.
Since it must be easily and immediately consulted, this manual must be placed in a location that is
known and accessible to the various users.
This manual contains all the data and information required to carry out preliminary instruction
and training of personnel assigned to correctly managing the Machine; for this purpose, it must be
used.
Although highlighting all of the notices and warnings for correct use of the MACHINE by the
operators or to allow maintenance personnel to operate correctly, this manual presumes that, in
the area in which the MACHINE is installed, the prevailing health and safety regulations are
observed and that operation and maintenance personnel possess a level of instruction that allows
them to correctly interpret the information contained herein.

4
1.2. Property of the Information
This Operation and Maintenance Manual contains information that is confidential property.
All rights are reserved.
This manual cannot be reproduced or photocopied in all or in part without previous written
consent from the MANUFACTURER. The use of this documentation material is permitted only for the
customer to whom the manual was provided along with the machine and only for purposes of
installation, operation and maintenance on the MACHINE to which the manual refers.
The MANUFACTURER declares that the information contained in this manual is consistent with the
technical and safety specifications of the machine to which the manual refers. The drawings,
diagrams and technical data are updated to the date of publication of this document and are valid
exclusively for the MACHINE to which they are attached.
The MANUFACTURER reserves the right to make changes or improvements to this documentation
material without advance notice.
The MANUFACTURER assumes no responsibility for direct or indirect damage to people, objects or
pets resulting from the use of this documentation material or the MACHINE in conditions other than
those foreseen.
1.3. Contents of the Operation and Maintenance Manual
This Operation and Maintenance Manual is intended for operators and engineers so that they can
know and correctly use the MACHINE.
In fact, in addition to a functional description of the Machine and its primary parts, this manual
contains the instructions and indications for:
correctly transporting and installing the MACHINE;
correctly using the MACHINE;
carrying out correct cleaning and maintenance on the MACHINE;
placing attention on the most basic safety and accident prevention rules.
The personnel indicated above will thereby be able to know both the potential of the MACHINE and
the problems that can arise while managing it.
The most recent version of this document can be obtained by requesting it from the Sales
Technical Office or online at www.dropsa.com.
1.4. Warranty
1.4.1. General Conditions
THE MANUFACTURER, DROPSA S.P.A. guarantees the 989 V2 and the equipment manufactured by the
same MANUFACTURER free of material and processing defects for a period that is agreed upon at the
stipulation of the MACHINE sale contract.
During the warranty period, the Manufacturer undertakes to remove within the necessary time
the clear material or processing defects in the event of malfunction or breakdown. This is
contingent on the condition that the MACHINE has been assembled with the assistance of the
Manufacturer’s engineers and that it has been used correctly in compliance with the best rules of
operation and maintenance indicated in this manual. Any defective parts under warranty are
repaired or replaced free of charge by the MANUFACTURER if it is demonstrated that they are defects

5
from the origin. The transport or shipping expenses, unless otherwise specified in the sale
contract, as well as the transfer expenses related to any intervention by the MANUFACTURER’s
engineers at the User’s site are governed in the sale contract.
The MANUFACTURER,for the construction of the MACHINE, uses materials, organs and mechanisms of
the type, state and quality deemed, at their unquestionable discretion, suitable for the functions
that the MACHINE must carry out. The MANUFACTURER, in pursuing a policy of constant development
and upgrading of the product, reserves the right to modify both the functional and aesthetic
characteristics, to make changes to the design of any functional organ or accessory, or to suspend
production and supply, without giving any notice and without incurring any obligation whatsoever.
Furthermore, the company reserves the right to make any structural or functional change, in
addition to modifying the supply of spare parts and accessories without the obligation of notifying
anyone and for any reason whatsoever.
1.4.2. Parts not covered under Warranty
The parts subject to wear and any the consumable utensils and materials provided by the
MANUFACTURER along with the MACHINE are not covered under warranty.
1.4.3. The responsibility of the user
All the following points are the responsibility of the user.
Electrical power supply, with the suitable characteristics based on the type of motor installed
(on this subject, see paragraph 2.1 and in particular, the electrical characteristics indicated
specifically on the CE Tag of the individual pump unit).
Specific electrical disconnect switch on the power supply line, dedicated only to the MACHINE
or also relative to the machinery / system for which the MACHINE carries out lubrication, with
the following characteristics:
-isolates the electrical equipment from the power supply having only one open and closed
position;
-is lockable with suitable devices (for example a padlock) in open position 0 –OFF or fitted
with a wall plug;
-the disconnect device interrupts all the live wires on its power supply circuit.
Control system for management of the motor (start / stop pump) and the signals coming from
the level sensors located in the grease reservoir, fitted with a simple arrest dedicated control,
which, once launched, determines a stop in Category 0 or in Category 1, in order to have the
actuators of the MACHINE completely disconnected from the power supply in a reasonable time
in any case.
MACHINE grease reservoir filling system, whether gun, pump or automatic.
Grease distribution system downstream of the MACHINE (the selection and installation of
which is the responsibility of the customer), including the piping and the connections, suitable
for managing the pressures that develop in it due to the pumping of grease in it by the
MACHINE, including the detection / reading system of the relative pressure point.
In the event of installation of emergency stop control, the logic chain that also includes the
MACHINE must reach a reliability such to guarantee a minimum Performance Level equal to PL =
c, in accordance with UNI EN ISO 13849-1: 2016
Utensils and consumable materials.

6
1.4.4. Operations that void the warranty
Any attempt to disassemble, modify or tamper with a component of the MACHINE by the user or by
unauthorised personnel voids the warranty and releases the MANUFACTURER from any liability on
any damage whether to people or things stemming from said tampering.
THE MANUFACTURER is also released from any responsibility and the warranty on the MACHINE will be
void in the following cases:
unforeseen use of the machine (on the subject, see the chapter Improper use of the MACHINE );
opening of the upper cover of the reservoir of the MACHINE (SPECIFICALLY LEAD SEALED)and/or
filling of the reservoir without the use of the included filling nozzle and relative filter.
use contrary to the requirements of the prevailing standards in the country of use;
INSTALLATION OF THE MACHINE in conditions other than those specified in the Transport and
Installation chapter;
hook-up that does not comply with the specifications found in the Transport and Installation
chapter;
use of work equipment other than what is specified in the Use of the MACHINE and the
Maintenance and Demolition chapters;
total or partial failure to follow the instructions in this manual;
lack of or incorrect maintenance;
use of non-original replacement parts or parts not specified by the MANUFACTURER.
The machine is a grease pump, designed and constructed to feed an automatic lubrication system
for systems or machinery in accordance with its technical specifications.
The machine uses an electric motor which, by means of a ratio motor, allows an eccentric system
to be driven which allows the pumping of GREASE from the included pumping element. Also by
means of the same motor, a stirring paddle is driven which acts inside the reservoir for the
purpose of removing the grease from the walls of the same and push it downward, in other words,
toward the action of the pumping elements. Filling of the included reservoir must be carried out
only by gun, pump or automatic system, through the included filling nozzle.
All the moving parts are protected inside fixed guards made of metallic material.
The machine is supplied only with an electric motor and relative connection terminal strip. The
connection and management (timed, manual or based on a level reading) of the electric activation
is delegated to the customer.
2. DESCRIPTION AND TECHNICAL CHARACTERISTICS
The machine is available in different configurations, inferred by part numbers, identical to one
another as a system of operation, system of protection for the machine operators, residual risks
and operator interface, which differ in the following elements:
type of electric motor and relative specifications of the electrical power supply;
type of ratio motor;
number of pumping elements;

7
dimension of the grease reservoir;
type of minimum and maximum level detection sensor (if present), namely induction or
laser.
2.1 General description
The 989 v2 range of lubrication pumps are particularly suited for plants with progressive systems
and can adapt to many needs without mechanical modifications, even after installation. In fact, be
choosing a set of components that are perfectly compatible with one another and easy to
assemble, you can vary the pressure, the quantity of grease distributed, the type of grease or the
type of distribution.
This construction technique is based essentially on the following modules:
Electric motor;
Pump body;
Pumping element;
Reservoir.
The bearing structure is the same for any version. The pumping element constitutes the essential
module.
Two types of reservoirs with different volume (from 5 or 10 kg÷11 or 22 lbs) can be arranged on
the pump body with stirring paddle and electric level indicator.
The 989 v2 OEM is fully protected against the external environment and can operate without
difficulty even in the most severe environmental conditions.
2.2. Standard pump components
In the following
Figure 1 e Table 1 the main components that make up the standard pump are indicated.
Figure 1

8
Table 1
STANDARD PUMP COMPONENTS
1
Motor
6
Wall mounted support bracket
2
Reducer
7
Pumping element
3
Reservoir
8
Reservoir bleed
4
Capacitive minimum level
9
Grease loading
5
Floor mounted support bracket
10
Optional levels housing
2.2.1 Pumping elements
The pump can be supplied both with fixed flow rate pump element (17 cm^3 / min for each
pumping element) and with adjustable flow rate pump element (2.5÷17 cm^3 / min for each
pumping element).
The seal between piston and pumping body is a dry type since it has no gasket in between.
The pumping element check valve is the tapered seal type. This solution allows an outstanding seal
of the system to be guaranteed at high operating pressures (max pressure of 300 bar –4351 psi).
The line piping is connected directly to the pumping element outlet.
For the adjustment of adjustable pumping elements, see Paragraph 5.3.

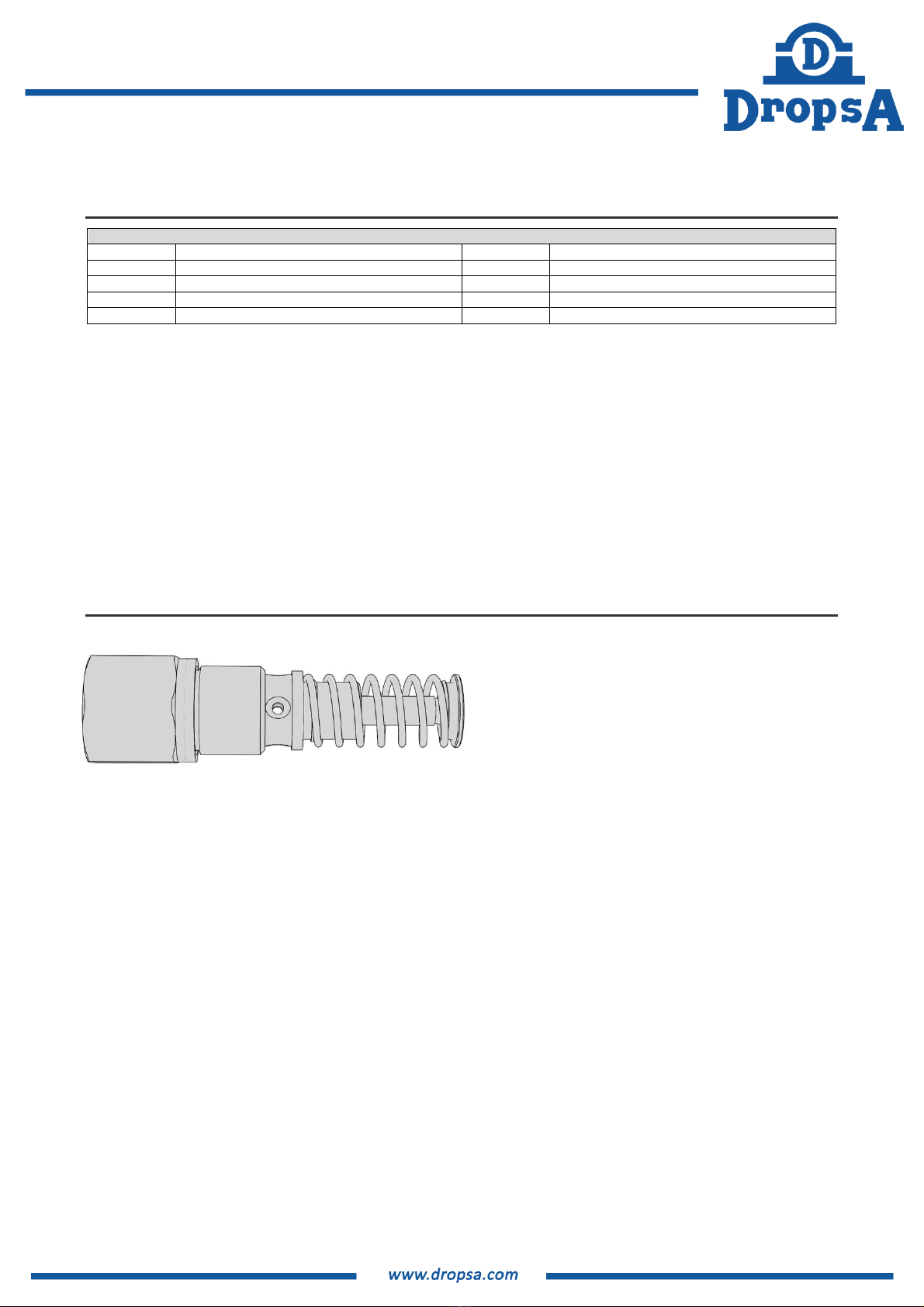

Figure 2
2.2.2. Auxiliary pumping elements (optional)
The pump is installation-ready for another one or two pumping elements. This allows more than
one line to be fed or the outlets of two or three pumping elements (fixed and adjustable) to be
combined, mounted to double or triple the flow rate.
2.2.3 Laser for grease minimum level (optional)
The minimum level is achieved by a laser probe. The probe is normally closed when there is
grease. When the minimum level is reached, the probe signals the lack of lubricant.
For connections and settings, see paragraphs 4.2.3 and 5.4. respectively.
2.2.4 Grease stirring paddle (standard pump)
Two reservoirs have been provided with capacity of 5 and 10 kg. (11 –22 lbs).
As standard, the reservoirs have the stirring paddle that do not need to be disassembled in the
event of disassembly and replacement of the same.

9
2.3. Technical specifications of the pump
In Table 2 the technical specifications common to all the 989 v2 Pumps are listed.
Table 2
GENERAL SPECIFICATIONS
Empty weight (5 kg reservoir)
15 kg ~ 33 lbs
Empty weight (10 kg reservoir)
18 kg ~ 40 lbs
ELECTRICAL SPECIFICATIONS
Motor power supply
230-400V - ±5% 50Hz
280-480V - ±5% 60Hz
Insulation class F
Motor power rating
0.09 kW
Motor grade of protection
IP 54
Grease minimum level
Laser 24V cc Out NO and NC 1 threshold –Capacitive (optional greases
NLGI00-NLGI000)
Oil minimum level
Float
Maximum level
Laser 24V cc Out NO and NC 1 threshold (optional)
HYDRAULIC SPECIFICATIONS
Pumping system
Piston
Flow rate (1 pumping element)
17 cc/min (fixed) –3~17 cc/min (adjustable)
No. of pumping elements
Max 3
Maximum operating pressures
300 bar (4351 psi)
Outlet connection
1/4” BSP
Reservoir capacity
5-10 kg (11-22 lbs)
Filling filter
Filtering grade 220 µ
Operating temperature
- 10 + 50 C (+14~122F)
Operating humidity
90% R.H.
Permitted lubricants (1)
grease NLGI000~NLGI2 –Oil min 32 cst
Storage temperature
-40 +65 °C (-40~149F)
Continuous sound pressure level
< 70 dB(A)
(1) If a different product is used, you must ask DROPSA S.p.A. if it is suitable for use.
The following characteristics refers to an operating temperature of +20°C [+68°F] The indicated
flow rate value refers to the following test conditions: grease with NLGI 2 consistency class,
standard environmental conditions (Temperature 20°C [68°F], pressure 1bar [14.5psi]).
2.3.1. Lubricants
A table is shown that compares the NLGI (National Lubricating Grease
Institute) and ASTM (American Society for Testing and Materials)
categories for greases, limitedly to the values that involve the 989 v2
pump.
For further information on the technical characteristics and the safety
measures to adopt, see the Product Safety Data Sheet (MSDS –
Material Safety Data Sheet) related to the type of grease selected and supplied by the
manufacturer. See paragraph 3.6 on prohibited fluids.
ATTENTION: the pump is designed to work with maximum NLGI 2 grade lubricants. Use NBR gasket
compatible lubricants. Any residual grease inside that was used for assembly and testing is
NLGI 2 grade.
NLGI
ASTM
000
445 - 475
00
400 –430
0
355 –385
1
310 –340
2
265 –295

10
2.4. Identification of the product
A label is located on the pump tank that indicates the product code, the power supply voltages
and the basic characteristics.

11
3. Safety
3.1. Materials present on the MACHINE
None of the materials used for the constructions of the MACHINE components are dangerous for
the personnel in charge of its operation (during all life phases of the MACHINE itself). Specifically,
the materials used for the construction of the MACHINE are primarily:
iron derivatives;
plastic derivatives;
copper derivatives;
During operation, the MACHINE uses specific products for the production purpose, namely
lubricants contained in its reservoir to carry out its operations. The lubricants permitted by the
manufacturer DropsA S.p.A. can in and of themselves bear phrases of risk on their MSDS (material
safety data sheet) even related to flammability, irritability, harmfulness to the health and toxicity
of the grease. In this respect, DropsA S.p.A. requires the use of suitable PPE, namely gloves, eye
protection and shoes, while carrying out the various possible operations on the MACHINE itself. In
any case, this PPE must be integrated or diversified depending on the explicit requirements of the
MSDS relative to the grease being used. On the other hand, lubricants with the characteristics
indicated in the following table shown in the paragraph on intended use are prohibited.
The MACHINE does not produce gases, residues or powders, fogs, fumes or vapours during
operation.
3.2. Devices and Solutions for Protection
The construction devices and solutions described below have been adopted for the MACHINE.
Fixed guards in metallic and plastic material that act as a shield for the motion drive parts.
3.3. Warning of residual risks
In order to prevent any dangerous condition for personnel or damage to the MACHINE caused by
residual risks, in other words, those risks that remain despite all the devices adopted, or from less
evident potential risks, the MANUFACTURER urges operators, maintenance personnel and all
personnel in charge of the MACHINE to strictly adhere to the warnings indicated on the following
pages.

12
3.3.1. Lifting and Transport
3.3.1.1 Residual risks present in the Lifting and Transport Phases
In the lifting and transport phases, risks are present connected to:
operations on the 989 V2 by unqualified, untrained, uninformed or incorrectly equipped
personnel;
incorrect selection of incorrect use of the means of transport and handling of the components
of the 989 V2;
crushing / impact of the operators in charge of handling;
loss of load stability during lifting and transport operations;
impact of parts or components of the 989 V2 with people or objects due to improper behaviour by personnel
tasked with the operation;
impact or falling of the 989 V2, damaging the 989 V2 itself;
unhealthy positions or excessive strain for the operators tasked with transport and handling the components of
the 989 V2.
3.3.1.2. Required Personal Protection Equipment
3.3.1.3. Warnings to be heeded in the Lifting and Transport Phases
In the lifting and transport phases, the warnings in this paragraph must be heeded.
For these operations, assign only specialised personnel trained on handling and transport
procedures, capable of safely using the lifting and transport equipment and choosing the most
suitable paths for the circumstances.
Ensure ahead of time that moving parts of the 989 V2 have been secured or removed.
Ensure ahead of time that the electrical power supply of the 989 V2 is disconnected.
Only use a suitable system to grip, lift / lower and transport the 989 V2 to the installation
point. The MACHINE has limited dimensions and a weight of 15 kg or 18 kg, depending on
whether it is fitted respectively with a 5 kg or 10 kg grease reservoir.
Always handle the MACHINE with the reservoir completely empty.

13
3.3.2. Installation and operation
3.3.2.1. Residual risks present in the Installation and Operation Phases
In the operation and setup phases, risks are present connected to:
use of the 989 V2 by unqualified, untrained, uninformed or incorrectly equipped personnel;
contact with chemical agents, namely, the grease being used by the MACHINE;
crushing / impact to the hands or feet due to falling during transport / positioning / securing
of the MACHINE in its installation point, or during operation due to incorrect securing;
projection of grease from the reservoir bleed valve in the event of excessive filling;
projection of non-pressurised grease in the event of lack of / incorrect connection of the
pumping elements with the grease distribution system downstream of the machine (the
selection and installation of which is the customer’s responsibility);
projection of grease under pressure due to incorrect connection with the grease distribution
system downstream of the MACHINE (the selection and installation of which is the customer’s
responsibility) or due to the breakage of connections or piping of the grease distribution
system itself;
possible breakage and projection of components or parts of them or materials / foreign
objects present in the GREASE LOADED IN THE MACHINE'S RESERVOIR, in the event in which it is
loaded in a manner other than that required, in other words, without using the filling nozzle
specifically provided on the machine and the relative grease filter fitted on the nozzle;
serious breakage / fault with the MACHINE or its components, with projection of the same or
parts of them or parts being processed.
possible impact / crushing with the pumping elements handling system in the event of use of
the MACHINE with pumping element or elements removed;
projection of fluid under pressure if the connections and/or the piping of the grease
distribution system downstream of the machine are removed with the system still under
pressure, even with the machine already stopped.
ignition of flammable materials due to incorrect use of the MACHINE, namely near open
flames;
contact with live electrical parts.
3.3.2.2. Required Personal Protection Equipment

14
3.3.2.3 Warnings to be heeded in the Installation and Operation Phases
In the operation and setup phases, the warnings in this paragraph must be heeded.
Carry out transport / positioning / securing of the machine using suitable means. The
machine has limited dimensions and a weight of 15 kg or 18 kg, depending on whether it is
fitted respectively with a 5 kg or 10 kg grease reservoir. Always handle the MACHINE with the
reservoir completely empty.
Always ensure the correct and solid connection of the pumping elements with the grease
distribution system downstream of the machine (the selection and installation of which is the
customer’s responsibility) before starting it.
Always load the grease using the filling nozzle SPECIFICALLY PROVIDED ON THE MACHINE, and the
relative grease filter fitted on the nozzle.
Do not use the machine with pumping element or elements removed. Remove them only
with the machine disconnected from the electrical power supply.
Do not remove the connections and/or the piping of the grease distribution system
downstream of the machine are removed with the system still under pressure. Even with the
machine already stopped, it can stay under pressure. On the grease distribution system
downstream of the MACHINE, always install a detection / reading system of the relative
pressure point. Always ensure the absence of pressure before removing the connections
and/or piping of the grease distribution system downstream of the MACHINE.
Always install a grease distribution system downstream of the MACHINE (the selection and
installation of which is the responsibility of the customer), including the piping and the
connections, suitable for managing the maximum pressures that develop in it due to the
pumping of grease in it by the MACHINE.
Never operate with open flames near the machine.
Never open the upper cover of the MACHINE, which is fitted with a lead seal, at the penalty of
voiding the warranty.
For these operations, assign only specialised personnel trained on the installation and
operation procedures.
Start the 989 V2 only if all the safety protection devices are in proper working order.
Do not remove, for any reason whatsoever, the installed safety devices and guards.
Adhere to all the safety and danger signs AFFIXED ON THE MACHINE.
Ensure that all the safety and danger signs AFFIXED ON THE MACHINE are always legible.
Wear all the required PPE. Integrate or diversify this PPE depending on the explicit
requirements of the MSDS relative to the grease being used.
Always ensure that no foreign objects are present on the MACHINE.
Carry out regular maintenance in accordance with what is established in the specific chapter.
Do not operate in correspondence to the 989 V2 without having entirely and carefully read
this manual.
Activate any movement of the 989 V2 only after having ensured the absence of other
personnel in the dangerous area.

15
Use auxiliary equipment only after understanding the indications contained in the related
Operation and Maintenance Manuals or after having followed specific and formalised
training.
Immediately report abnormal operating situations.
Do not attempt to make the 989 V2 carry out prohibited operations (refer to the indications
contained in this manual).
Do not use the 989 V2 when under the influence of drugs or beverages that can reduce quick
reflexes.
Do not rest equipment / piping / conduit on the 989 V2 or on top of the components that
make it up.
3.3.3. Maintenance and Demolition
3.3.3.1. Residual risks present in the Maintenance and Demolition
Phases
In the maintenance and demolition phases, risks are present connected to:
all the operations and risks already included in the previous paragraphs.
operations on the MACHINE by unqualified, untrained, uninformed or incorrectly equipped
personnel;
contact with live parts of the electrical system;
forgetting objects on the MACHINE at the end of maintenance or adjustment operations;
contact with hot elements of the MACHINE.
3.3.3.2 Required Personal Protection Equipment

16
3.3.3.3 Warnings to be heeded in the Maintenance and Demolition
Phases
In the maintenance and demolition phases, the warnings in this paragraph must be heeded.
Execution of maintenance and demolition operations must be carried out by qualified and
specifically trained personnel.
Always ensure to have removed the electrical power supply by disconnecting the power
supply wall plug before carrying out any operation.
Use auxiliary equipment and any other tool only after understanding the indications
contained in the related Operation and Maintenance Manuals or after having followed
specific and formalised training.
Do not, for any reason whatsoever, use petrol, solvents or flammable liquids to clean the
same.
Do not make any modifications transformations or applications to the 989 v2.
Do not strike the structure, the components or the panel of the 989 v2 with tools or anything
else.
Do not tamper with the components of the 989 v2.
3.4. Safety Signs
On the MACHINE the warning labels indicated in Table 3 can be found.
Table 3 –Description of the warning labels on the
LABEL
DESCRIPTION
A
Warns of the danger of laser-emitted optical radiation.
B
Warns of the danger of electrocution.
C
Warns of the danger due to parts in motion.
D
Indicates that it is prohibited to remove fixed guards
with parts in motion.

17
3.5. Noise and Vibration Indications
3.5.1. Noise
The 989 V2was designed and built in such a way so as to reduce the noise level emitted during
normal operation to a minimum. The noise value detected in the area where the operator is
during the work cycle is lower than 70 dB (A).
3.5.2. Vibrations
In operating conditions in compliance with the indications provided by the Manufacturer in this
manual, the 989 v2 does not emit vibrations.
3.6. Proper and improper use of the Machine
3.6.1. Proper use
The MACHINE is a grease pump, designed and constructed to feed an automatic lubrication system
for systems or machinery in accordance with its technical specifications.
The use of the 989 v2 in a way other than what is indicated above is considered improper use. The
989 V2 was designed and built to operate in environments where there is no potentially explosive
atmosphere and, in and of itself, cannot generate a potentially explosive atmosphere if used
correctly.
3.6.2. Improper use
Use of the 989 V2for operations other than those indicated above could cause damage to
personnel or to the 989 V2 itself and they are therefore considered improper uses for which the
MANUFACTURER will not be held liable. Any use of the 989 V2 with methods other than those
indicated in 3.8.1 Proper use is therefore to be considered improper and for this reason, the
MANUFACTURER will not be held liable.
The user is responsible for any damage stemming from failure to observe the operating conditions
agreed upon when establishing the technical specifications and during the order confirmation
phase.
The 989 V2 must not be used in an improper way. Specifically:
use of material other than those indicated in Intended uses;
use of the machine for operations other than those indicated in Intended uses;
washing the MACHINE with water;
installing and using the machine outdoors or exposed to adverse weather conditions;
installing and using the machine in an aggressive environment;
installing and using the MACHINE in a potentially explosive atmosphere;
loading the MACHINE without using the included loading nozzle and the relative filter;
using the MACHINE with the fluids indicated in the following Table 5.

18
Table 4 –Prohibited fluids
PROHIBITED FLUIDS
FLUIDS
HAZARDS
Lubricants with abrasive additives
High wear of the contaminated parts
Lubricants with silicon additives
Seizing of the pump
Petrol –solvents –flammable liquids
Fire –explosion –damage to the gaskets
Corrosive products
Corrosion of the pump –damage to personnel
Water
Oxidation of the pump
Food substances
Contamination of the same
ATTENTION: The manufacturer cannot be held liable for any fault caused by unreasonable, improper
and/or incorrect use of the Machine.
4. TRANSPORT AND INSTALLATION
4.1. Preparations at the customer’s expense
Unless otherwise agreed upon, the following preparations remain the user’s responsibility.
Electrical power supply, with the suitable characteristics based on the type of motor installed
(on this subject, see paragraph 2.1 and in particular, the electrical characteristics indicated
specifically on the CE Tag of the individual pump unit).
Specific electrical disconnect switch on the power supply line, dedicated only to the MACHINE
or also relative to the machinery / system for which the MACHINE carries out lubrication, with
the following characteristics:
- isolates the electrical equipment from the power supply having only one open and closed
position;
- is lockable with suitable devices (for example a padlock) in open position 0 –OFF or fitted
with a wall plug;
- the disconnect device interrupts all the live wires on its power supply circuit.
Control system for management of the motor (start / stop pump) and the signals coming from
the level sensors located in the grease reservoir, fitted with a simple arrest dedicated control,
which, once launched, determines a stop in Category 0 or in Category 1, in order to have the
actuators of the MACHINE completely disconnected from the power supply in a reasonable time
in any case
MACHINE grease reservoir filling system, whether gun, pump or automatic.
Grease distribution system downstream of the MACHINE (the selection and installation of
which is the responsibility of the customer), including the piping and the connections, suitable
for managing the pressures that develop in it due to the pumping of grease in it by the
MACHINE, including the detection / reading system of the relative pressure point. To
determine the maximum operating pressure, it is necessary to know the pressure drop of the
pipeline connected to the pumping elements, depending on the length, temperature and type
of lubricant.

19
Depending on these variables to achieve a proper supply to the delivery point, it is always
necessary to ensure that the pipeline pressure loss plus the pressure required at the
lubrication point does not exceed the maximum pressure supplied for pump delivery
In the event of installation of emergency stop control, the logic chain that also includes the
MACHINE must reach a reliability such to guarantee a minimum Performance Level equal to PL =
c, in accordance with UNI EN ISO 13849-1: 2016
Room with the following operational environmental conditions, necessary for correct
operation of the MACHINE:
-ambient temperature - 10°C ÷ + 50°C (+ 14°F ÷ + 122°F);
-relative humidity 90%.
In the installation room, there must be no gases or corrosive or harmful acids, damaging both
to the operators and to the MACHINE itself.
In the installation room, there must be no potentially explosive areas generated by bases or
powders.
In the room where the machine is installed, a brightness must be guaranteed no lower than
300 lux, taking care for the uniformity of the lighting and the absence of reflections.
In the work room, the following must not be present:
-strong oxidising agents (acids in general, oxidising mineral acids, amino compounds,
magnesium, aluminium and zinc salts);
-open flames;
-sparks;
-heat sources;
-abrasive powders.
4.2. Transport, handling and installation
DANGER: the MANUFACTURER will not be held liable for any damage to objects and/or personnel
stemming from improper operations carried out by unqualified, untrained or
unauthorised personnel.
DANGER: the MANUFACTURER will not be held liable for any damage to objects and/or personnel
stemming from improper operations carried out by unqualified, untrained or
unauthorised personnel.

20
To carry out the task in question, the following Personal Protection Equipment is required:
4.2.1. Installation of the pump
To complete the task in question, carry out the following simple steps.
Position the pump and secure it to its support (on the wall or floor) by using the appropriate
Ø9mm eyelets, (0.354 in) with 4 suitable screws. The pump has limited dimensions and a
weight of 15 kg or 18 kg, depending on whether it is fitted respectively with a 5 kg or 10 kg
grease reservoir, to which the weight of the grease with a full reservoir must be summed.
Assemble the pump in such a way that the grease nipple for filling the reservoir is easily
accessible.
Leave at least 100mm (3.94 in) perimeter distance from other equipment or obstacles that
prevent access to the pump.
In the event of wall-mounted installation, mount the pump at “operator height” (about 1200
mm from the floor surface) to avoid abnormal posture or the possibility of impact.
Ensure that the pipes and wires have been properly fastened and protected from any possible
impact.
Verify that the grease used is fit for operating temperatures, especially at temperatures below
0° C. If in doubt, contact our Technical Office for the correct choice of lubricant.
4.2.2. Hydraulic connections
The plumbing connection point to install the pump to the system is located on the pumping body
with G1/4” thread for "Progressive" pumping elements and G1/8" for "Multi-line" pumping
elements. The possibility of having the return in pump with G1/8” thread is provided.
ATTENTION: the pipeline must reach the point of lubrication along the shortest route possible.
4.2.3. Electrical connection
The electrical connection is the responsibility of the user who must provide unequivocal
identification of the power supply connection and output signals.
Connect the machine to the electrical line as indicated in this manual.
