Orange Flavored Compression
I N T R O D U C T I O N
Thank DryBell, Croatia.for purchasing the Module 4 pedal fromyou
The Module 4 is our highly versatile take on a classic vintage compressor
- Dan Armstrong's Orange Squeezer from the '70s. It’s an analog
compressor engineered with the highest precision to achieve versatility,
low noise, expanded headroom and sound resolution, while keeping
Armstrong's magic inside the pedal. You can choose between two
flavors - 'Orange' & 'Full Frequency range'. Orange brings a warm,
vintage sound and feel while 'Full Frequency range' brings a more
modern, brighter, clearer tone. A burst of inspiration is guaranteed. The
pedal is equipped with several usable, unique, colorful and cool options,
all packed into our new enclosure line - Enjoy!

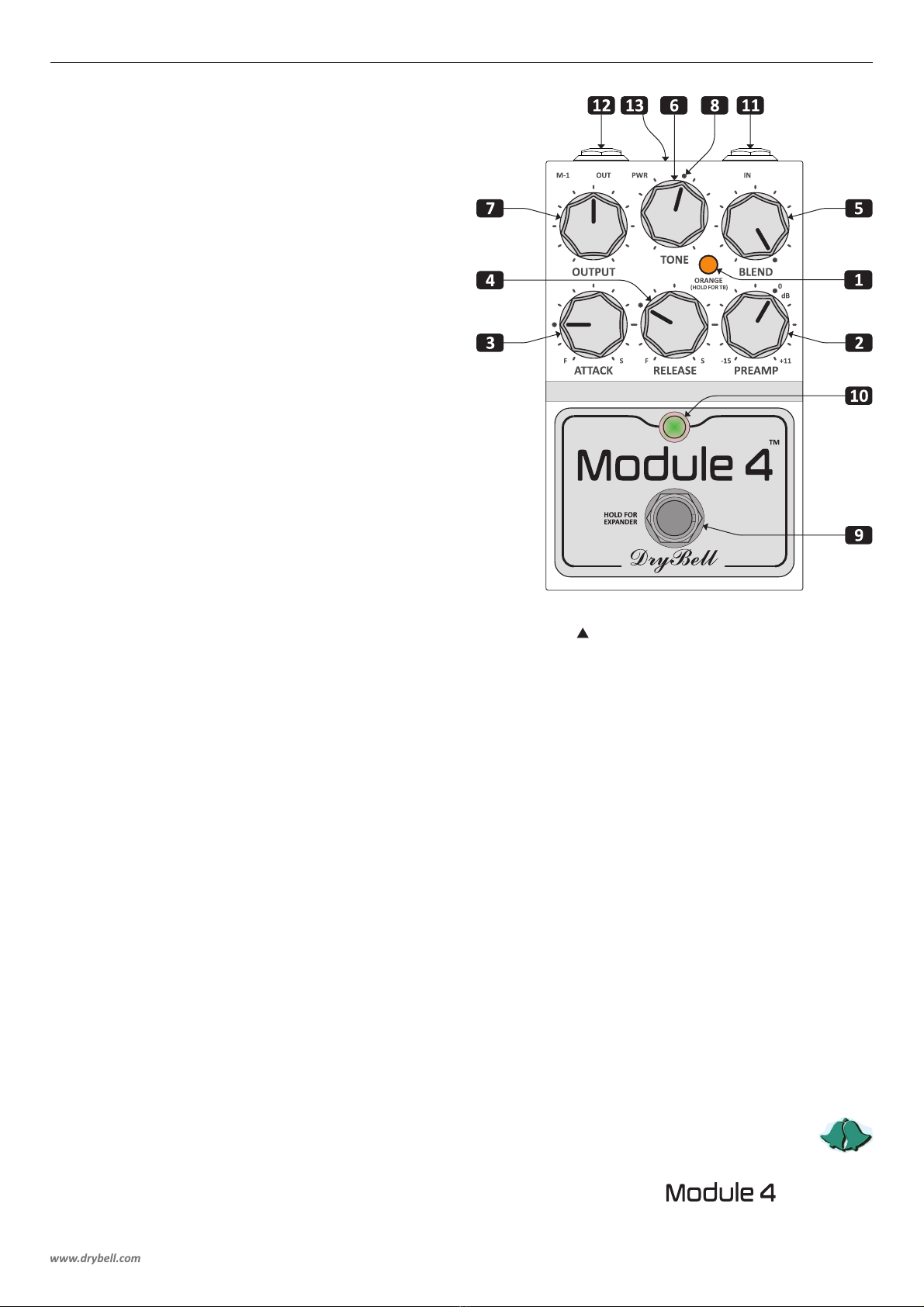

ORANGE (pushbutton switch with orange LED) 1
Enables/disables the ORANGE mode - an original, dynamic input
impedance which . Yis controlled by the player's pick attack ou can feel
this warm dynamic tone response while playing. It gives you the unique
feel and tone of the classic design which can only be heard if you’re not
using active pickups or any type of buffer in front. When the ORANGE
mode is off, Module 4 becomes a Full Frequency range compressor. For' '
secondary functions of the Orange button, see the SWITCH ACTIONS
section below.
PREAMP (knob) 2
Controls the input gain of (any) instrument. This ensures that you can
use various low or high output pickups, single coils or humbuckers. It
drives the compressor stage so you can easily adjust the amount of
compression to your needs. Dot mark indicates unity gain (0 dB).
ATTACK (knob) 3
Controls the reaction time of the compressor, meaning how long it takes
for the unit to start compressing. The Attack is one of the essential
controls for retaining the initial pick attack, especially with humbuckers
or hotter pickups. Set the ATTACK knob CCW for faster (F) or CW for
slower (S) reaction times.
RELEASE (knob) 4
Controls the time before the unit releases or stops compression. It
shapes the sustain, adapting compression dynamic to the playing style.
During the natural fade out of the input guitar signal, the compressor
automatically increases its gain to maintain the volume. The rate at
which the compressor will do this is controlled by the Release control.
Set the RELEASE knob CCW for faster (F) or CW for slower (S) release
times, adjusting this gives the sustain a wide variaty of character.
BLEND (knob) 5
Sets andthe mix of dry compressed signals. You can balance the tone
with this smooth parallel compression circuit, while retaining pick
attack dynamics. Turn the BLEND knob fully CCW for clean, fully CW for
100% compressed signal or any desired Ratio in between.
TONE (knob) 6
Controls the high frequency spectrum of .overall the unit Flat tone
response :30 (dot mark on the silkscreen).is at 12 o'clock The TONE
control is tweaked just to the right frequencies, for a wide spectrum of
usage on any guitar or any amp.
OUTPUT (knob) 7
Controls the output volume of . It(make-up gain) the compressor also
acts as a high headroom and distortion free clean Boost, thanks to the-
high internal power supply voltage. It’s useful for pushing your amp
harder and adding even more sustain to your tone. Turned fully CW, the
gain is dB or can be reduced up to 7dB turned fully CCW. Unity gain17 1
zone (0dB) is approx. at 1 o'clock.2
DOT MARKS (on the silkscreen around knobs 8)
O , the .n the pedal's front panel you will find dot marks around the knobs
When the control knobs are set to those dot marks and the ORANGE
button is ON, Module 4 faithfully provides all the tonal flavors of the
original Also, those dots are a great starting point to explore the.
Module 4's various possibilities.
BYPASS SYSTEM (footswitch, LED) 9,10
Each time you press the footswitch the effect is turned ON or OFF. The
Module 4 true and buffered options Hold the ORANGEhas bypass .
button to select true or buffered bypass mode (see the SWITCH
ACTIONS section below for more details).
One additional feature of the buffered bypass mode is that the ORANGE
button can also work when the pedal is turned off. In this case, the
buffered bypass reacts like the Orange Squeezer's Front-end, keeping
the bypass EQ very similar to the EQ when the pedal is active. You will
find it helpful for resolving certain pedalboard buffer EQ issues, when
using various pedals in the chain.
EXPANDER option, disabled by default( )
When enabled, the EXPANDER's fade operation automatically
attenuates incoming background noise when you mute strings or vice
versa. Also, you can choose between slow (default) or fast expander
fade operation settings. A turquoise LED indicates active Expander. See
the SWITCH ACTIONS section below for more details.
COMPRESSION LEVEL METER LED) 10(
The included 3-color compression level meter gives you a nice visual
representation of gain reduction .and input signal level A white LED
indicates active Module 4. When a signal appears, it lights up green,
then fades-to-orange for moderate compression, and the color changes
to red with hotter signals showing that you are getting the strongest
compression. Also, when you mute the strings you can see the
compressor release reaction in red.
LOW END CUT option, enabled by default( )
The LOW END cut feature allows you to keep or remove certain low-end
frequencies. Explore this option if you are a bass player or if you want to
hear the original full low end response of the Orange Squeezer. See the
switch actions section below for more details.
SWITCH ACTIONS:
1) Press once shortly:
FOOTSWITCH - engage/bypass the pedal
ORANGE - toggle between 'Orange' or 'Full Frequency
range' compressor modes
(glowing orange button indicates 'Orange' mode)
2) Hold for 2 secs:
FOOTSWITCH - engage/disengage Expander
(glowing turquoise LED indicates working Expander)
ORANGE - toggle between True bypass (TB) and Buffered
bypass mode
Note: True bypass enabled - LED flashes green 3x
Buffered bypass enabled - LED flashes red 2x
Note: The 'Orange' button also works in buffered bypass when the
pedal is turned off. In that case, the buffered bypass reacts
like the Orange Squeezer's Front-end, keeping the bypass
EQ very similar to the EQ when the pedal is active.
3) Tap 5x fast:
FOOTSWITCH - enable/disable LOW END cut
ORANGE - toggle Expander fade in/out reaction time
between fast or slow
Note: LOW END cut enabled - LED flashes green 3x
LOW END cut disabled - LED flashes red 2x
FAST EXPANDER - LED flashes green 3x
SLOW EXPANDER - LED flashes red 2x
DryBell Musical Electronic Laboratory

DryBell
2 YEAR WARRANTY
DryBell M.E.L. guarantees that this product will work without defects in
materials or craftsmanship, for a period of two (2) years from the date of
purchase. If a defect occurs within the warranty period, it will be
repaired as soon as possible, free of charge. If the product cannot be
repaired and the model is no longer produced, the product will be
replaced with a current model or in agreement with the buyer, with a
similar product. DryBell will extend the warranty period for the duration
of service failure if it is not repaired within 30 days (not including
transportation time). If the original buyer sells the product to a new
owner, the warranty transfers to the new owner. All transportation costs
for the service within the warranty period are paid by the owner of the
goods. This warranty covers manufacturing defects that occurred while
the product was used according to DryBell's recommendations and
instructions. The warranty does not cover loss or theft of products, and
excludes failures caused by misuse, mechanical damage, liquid damage
of any kind, being dropped, unauthorized modification, shock surge in
electricity supply, lightning, improper storage and natural disasters.
DryBell assumes no liability for any damages/injuries resulting from the
use of this product. In using this product, the customer accepts the
terms and conditions set out above. There may be occasional updates
on this product; please visit www.drybell.com to find these.
DryBell
2
y
e
a
r
w
a
r
r
a
n
t
y
CONTACT:
DryBell Musical Electronic Laboratory
Almet Stubica d.o.o.
Address: Toplička cesta 44,
49240 Donja Stubica, CROATIA
E- ail: inf[email protected]M
TECHNICAL SPECIFICATIONS:
Model:
Manufacturer Part Number:
Input impedance (Full Freq. mode):
Input impedance (Orange mode):
Output impedance:
Max input level w/o compressor clipping:
Max output level:
Max buffered bypass level w/o clipping:
Preamp gain (PREAMP knob):
Make-up gain (OUTPUT knob):
External power supply:
Power supply connector type:
Nominal current (with guitar):
Operating temperature range:
Length (w/o jacks):
Width:
Height (w/o knobs):
Weight: (w/o package):
Weight: (with package):
Standard color/finish:
M-1
DB2446
900kΩ/1kHz
Dynamic; 80kΩ-200kΩ/1kHz
440 Ω/1kHz
13.0 Vpp / 15.5 dBu
13.0 Vpp / 15.5 dBu
13.5 Vpp / 15.8 dBu
-15 dB (CCW), +11 dB (CW)
-17 dB (CCW), +17 dB (CW)
Adapter 9V DC, (9.0Vmin -
18.1Vmax), 100mA minimum
Barrel, Plug 5.5mm/2.1mm, Center
Negative
~85mA max
-15°C/5°F to 70°C/158°F
122 mm / 4.80 inch
73 mm / 2.87 inch
40 mm / 1.57 inch
0.34 kg / 0.75 lb
0.49 kg / 1.08 lb
Hippie blue metallic/ Powder
Coating
is a trademark of
DryBell Musical Electronic Laboratory.
SAV POWER ON SETTINGSING
When the pedal is powered on, it will immediately operate with the
selected saved settings.
Every user can define these settings himself, depending on the needs.
For example, if you’re using a switching system, then you want your
pedals to be activated when the pedalboard power is turned on.
To save selected settings:
1. Set the desired power up settings
2. Press the ORANGE button and footswitch simutaneously
and hold them for 3 secs to save the pedal power up
settings. ORANGE must be first in the sequence; otherwise
you will simply turn the pedal on or off.
Factory defaults:
When turning on the power, the pedal will be in a buffered bypass.
When you activate the pedal, the ORANGE mode will be active, LOW
END cut enabled, EXPANDER operation disabled and EXPANDER
reaction time will be slow.
INPUT and OUTPUT ( jacks)top mounted 11,12
The input is on the right and the output on the left side of the pedal.
POWER SUPPLY (no battery, power supply only) 13
We recommend a regulated 9VDC / 100mA PSU (notminimum
included). Maximum allowed power supply voltage is 18 V (must be.1
regulated). Higher voltages than 9V (18 V max) will affect the tone,.1 not
dynamics and internal headroom of The currentthe Module 4.
consumption for use with electric guitar is about mA If you85 maximum.
connect another device with much higher output than an electric guitar,
we recommend using a power supply with 150mA output. The Module
4 has internal protection against reverse power polarity and
electrostatic discharges. KNOB SETTINGS
The knob settings shown on a graphic representation above are the
settings of the original Orange Squeezer. The Orange button needs to be
switched on. settingsAlso, those are a great starting point to explore the
Module 4's various possibilities.
Module 4, User's manual, rev.1.0, 10/2022
DryBell Musical Electronic Laboratory
Doc. No. DM1041 / Page 2
