DS Audio ES 001 User manual

2022_v.01
Owner’s Record
The model and serial numbers are located inside of the stabilizer.
Record the serial number in the space provided below.
Refer to these numbers whenever you call your dealer regarding this product.
Model No. ES-001 Eccentricity Detection Stabilizer
Serial No.
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS
LIMITED WARRANTY
DS Audio warrants this product against defects in material or workmanship for the time periods as
stated below. Pursuant to this Limited Warranty, DS Audio will, at its option, (1) repair the product
using new or refurbished parts or (2) replace the product with a new or refurbished product.
For the purposes of this warranty, "refurbished" means a product or part has been returned to its
original specifications. In the event of a defect, these are your exclusive remedies.
For a period of one (1) year from the original date of purchase of the product, DS Audio, at its
option, repair or replace with new or refurbished product, product determined to be defective.
This limited warranty covers only the hardware components packaged with the product. It deos
not cover technical assistance for hardware.
Instructions: To obtain warranty service, you must deliver the product, freight prepaid, in either its
original packaging or packaging affording an equal degree of protection to the DS Audio authorized
service facility specified.
Any parts or product replaced under this limited warranty will become the property of DS Audio.
This limited warranty only covers product issues caused by defects in material or workmanship
during ordinary consumer use. It does not cover product issues caused by any other reasons,
including but not limited to product issues due to commercial use, acts of God misuse, limitation
of technology, or modification of any art of product.
This limited warranty is invalid if the factory-applied serial number has been altered or removed
from the product.
This limited warranty is valid with the official receipt of our authorized dealer which indicating the
date of your purchase.
WARRANTY
Warranty
11

1 2
Specifications
Size
Weight
Body Material
Bottom material
Power
operation
Touch panel size
µ80×H70mm
620g(Batteries included)
aluminum
tungsten
AA battery x 2
Touch Panel Operation
2.4inch
Hexagonal wrench 1.5 mm
Used to open stabilizer for battery replacementor software update.
Turn clockwise to tighten and counterclockwise to loosen.
Reamer
Used when eccentricity cannot be resolved due to misalignment of the center hole.
Once the center hole is expanded, it cannot be restored, so it is the customer's
responsibility to expand the center hole.
Software update cable
This code is used to update the software.
If a software update is required, DS Audio will inform you how to update the
software on the DS Audio website.
Instruction manual
Microfiber Cloth
Use for removing dirt from the screen and for placing the stabilizer.
AA battery×2
Please insert batteries in the correct direction
ES-001 Stabilizer
Table of contents Supplied items
1
2
3
4
5
6
7
ES-001
3〜4
5〜6
7〜8
9〜10
Specifications and Supplied items 1〜2
Names and functions
Software1
Software2
Safety Precautions & Notes
Warranty 11
5
1
7
36
4
2

3
5
4
2
1
3
43
Names and functions
No power Battery is dead or battery is in the
wrong direction
Replace the batteries with new ones.
Insert the batteries in the correct
orientation.
Screen is not
responding.
Please remove the batteries
and restart the system.
Trouble shooting
1. Depending on the condition of the record disc, it may not be possible to measure correctly.
(End groove position deviates significantly from the record standard, color record
Label is close to the end groove.Sound groove is close to the end groove, etc.)
2. If the warp of a record disc is too large, the stabilizer may be shaken too much and accurate
measurement may not be possible.
3. Since this product is a manual adjustment of the record position by the customer, there is a limit
to the adjustment.
Button
Used to turn on the power. Push to turn on the power.
The unit is equipped with an automatic power off function.
The power can also be turned off from the display panel. (See P8)
Display panel
Used for displaying and adjusting eccentricity status and various settings.
It is a touch panel, so please operate it with your own fingers.
Details of the software are explained in the software description page.
Rear Screw
Use the supplied wrench (Allen wrench 1.5mm) to open the main body of the stabilizer when
replacing batteries or updating software.
You can tighten the case by turning clockwise and open the case by turning counterclockwise.
Battery box
First, insert the supplied batteries to the battery box.
When the battery runs out, remove the battery from this battery box and replace the battery.
Press the metal switch
Terminal for software update
Used when software updates are required.
(We will inform you how to update the software on our website.)
Do not use this terminal except for software updates, as it may be damaged.
Detection light & light-receiving part (2 locations)
These holes are for the light emitting and receiving parts of the infrared LED for eccentricity
detection.
If these two holes are blocked, eccentricity cannot be detected.
Do not block these two holes.
Cannot be
detected
correctly
End grooves not in proper position
Low reflectivity
Record is heavily warped
Depending on the situation of the
record, detection may not be
possible.
Should any problem persist after you have checked those symptoms, please consult our
authorized dealer nearest to you.
Microcontroller error.
Symptom Cause Corrective action
1
2
3
4
5
Battery open switch
Press to open the battery box.
6
7
7
6
Limitations of Measurement and Adjustment

efg
b
ai
c
h
d
5 6
Software1

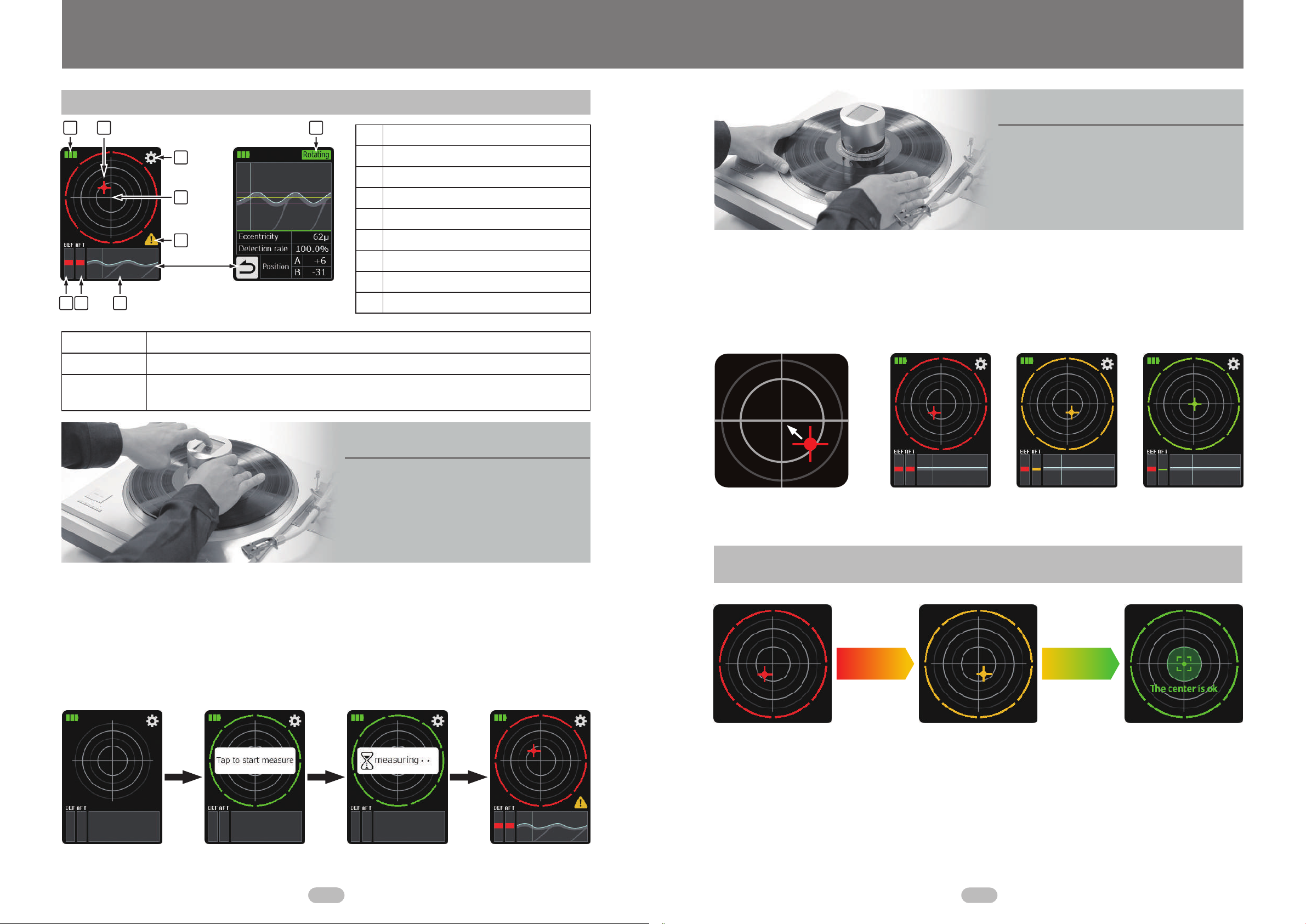

When the record player is rotated, the upper part of the stabilizer is held to stop the rotation of the
stabilizer, and the stabilizer detects the rotation and shifts to the measurement mode.
When switch to the measurement mode, the display on the outer circumference of the stabilizer
starts to rotate and the [Tap to start measure] button is displayed.
Next, when you press the [Tap to start measure] button, the display changes to the [Measuring]
button and the measurement is completed in about 2 seconds.
If the end groove detection rate is low, a detection error warning mark appears.
Stop the record player when the measurement is complete.
Next, while looking at the stabilizer screen, press the record board to bring the cross mark (center of
rotation) as close as possible to the absolute center position.
The degree of eccentricity of the record is indicated by the color of the screen (outer circumference,
cross mark & display bar at the bottom).
Measuring Measurement Completed
*Please be sure to rotate the record player (33rpm or 45rpm) when measuring eccentricity.
If the record player is not rotating, the stabilizer will not enter the measurement mode.
Approx
2 sec.
Tap on the graph area
to display detailed graph data.
Measurement
Turn on the stabilizer and rotate the
record player.Measure the stabilizer
while holding it with one hand. As the cross mark approaches the absolute center,
the color changes from red > yellow > green.
Eccentricity
Detection rate
Position A
Position B
Standby Waiting for measurement
Tap to
measure
Rotation
detected.
Stop the record player and adjust the
record disc position while watching the
cross marks on the screen
Estimated eccentricity(µ)
The percentage of correct detection is shown. The higher the detection rate, the more accurate the detection.
The distance of the end grooves from their respective sensors. (If it was at the absolute center, it would be 0.)
If the eccentricity is small, this absolute value will be small.
a
b
c
d
e
f
g
h
i
Battery level
Cross mark
Setting button
Absolute center
Before
After
Waveform graph screen
Detection error warning
Rotation display
Press the record so that the
cross mark is in the center.
300 µover 150µ under 20µ
Eccentricity and Color Indication
Adjustment
The color of the outer circumference, the cross mark, and the Before After display bar changes
variably according to the amount of eccentricity.
If the color is red, the eccentricity is more than 300µ, if yellow, it is about 150µ, and if the mark
"The center is ok" appears, the eccentricity is less than 20µ.
More detailed estimated eccentricity can be found on the graph details page.
Estimated eccentricity
Main screen

Return
Go to Exit Screen
OFF
ON
6
7 8
Software2
When the center of rotation is aligned with the absolute center position, rotate
the record player again to check that the eccentricity of the record is gone(or
reduced) and then play the record.
Play the record when the adjustment is
finished.The stabilizer will turn off
automatically.

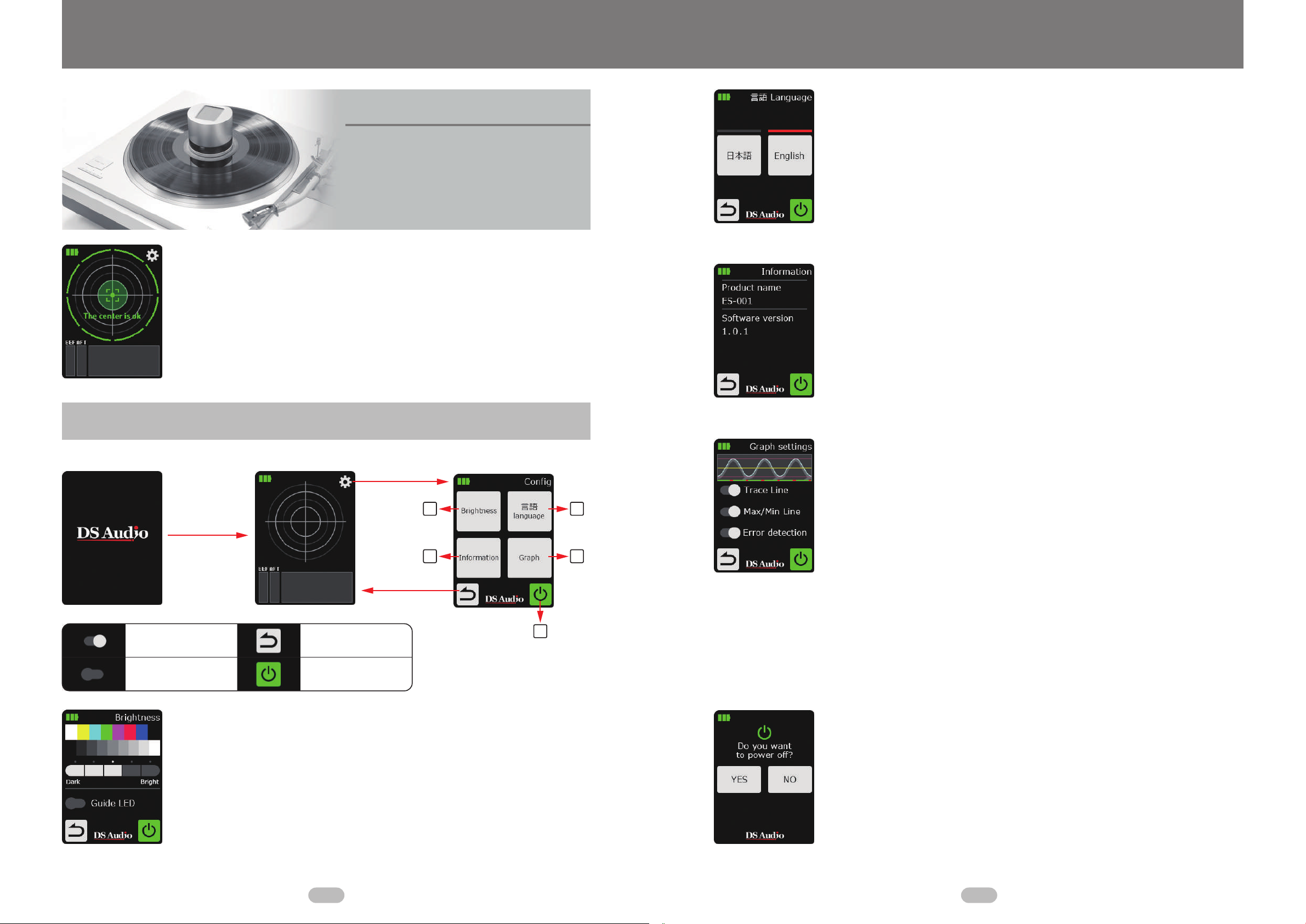

3. Brightness setting
The brightness can be set in 5 levels. Please set the brightness to your own
preference.
Guide LED ON/OFF
The guide LED that indicates the area being measured can be set to ON or OFF.
This guide LED is only for visualizing the actual area being measured and does
not affect the actual measurement even if it is turned OFF. It is recommended
that the LED be turned off during normal use to reduce battery power
consumption.
Start screen
7. Termination
Press YES to turn off the power.
Pressing and holding the button does not turn off the power.
Conditions for automatic power off
No operation: 45 sec.
Starts rotating on the turntable (when record playback starts): 10 sec.
4. Language Settings
You can choose between Japanese and English. Select the language of your
choice and touch the screen.
5. Version Information
Displays the product name and software version.
Make sure that the software is the latest version.
6. Graph Display Settings
Select the graph display method for the main page and the wave display page.
Trace Line
When ON (right side), the area recognized by the software as the record groove
is displayed in blue-white.
If this tracking line coincides with the white end groove, the measurement is
correct.
Max/Min Line
When ON (right side), the maximum and minimum eccentricity values recognized
by the software are displayed with red lines. The median value is also indicated
by a yellow line. These measurement lines remain after adjustment.
Error detection
Indicates in red when there is a reading error.
If the measurement is correct, it is displayed in green.
3
5
4
6
7
Main screen Setting screen
Automatically moves
to the main screen
Setting
Restart

910
Safety Precautions Notes
Please be sure to follow the instructions.
Please read "Safety Precautions" carefully before use and use the product correctly.
The precautions described in this instruction manual are intended to ensure safe and proper
use of the product and to prevent injury or damage to you or others.
If the product is used under abnormal conditions such
as smoke, strange smells or noises, it may cause fire
or electric shock.
If you notice a strange smell or smoke, turn off the
power of the device immediately and remove the
batteries.
After that, confirm that smoke is no longer emitted,
and contact the dealer for repair.
This unit is designed for indoor use only.
Be careful not to allow water to enter or wet the unit.
Doing so may cause malfunction, fire, or electric shock.
Do not place flower vases, flowerpots, cups, containers
filled with cosmetic chemicals or water, or small metal
objects near the device.If water gets into the equip-
ment, it may cause malfunction, fire or electric shock.
If foreign matter should enter the inside of the instru-
ment, first turn off the power and contact the dealer.
Do not place the product on an unstable place such as
on a wobbly stand, on a tilt, or near the edge of a
stand. Falling may cause injury.
Installation Notes
Location
Battery
Do not place the product in a humid or dusty place.
It may cause malfunction, fire, or electric shock.
Be sure to insert batteries in the correct orientation.
Inserting the battery in the wrong direction may cause
a malfunction, fire, or electric shock.
Installation Location Do not install in the following locations
●In places exposed to direct sunlight or close to heaters or other heat-emitting equipment.
●Places with poor ventilation, high humidity, or high dust content.
●Unstable places with vibration or inclination.
●Places where the product may be exposed to rain or water.
●Other places where the temperature is particularly high.
●Places where there is a high risk of falling.
Batteries
●Please use AA batteries. Other batteries cannot be used.
●Please contact to your dealer or DS Audio distributor when repair is needed.
Limitations of Measurement and Adjustment
Repair
Expansion of record hole
No impact
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
Keep away from
water/moisture
No liquid nearby
Do not operate
this equipment
when it is broken
Do not make any
changes or
modification
Do not shake, bump, or otherwise subject the unit to
shock.
Such actions may cause malfunction.
Caution
Warning
Do not put things
inside.
●Depending on the condition of the record disc, it may not be possible to measure correctly.
(End groove position deviates significantly from the record standard, color record
Label is close to the end groove,Sound groove is close to the end groove, etc)
●If the warp of the record disc is too large, accurate measurement may not be possible.because
the stabilizer is shaken too much).
●If the record hole is not centered correctly or the adjustment width (gap between the spindle
and record hole) is too small, the eccentricity may not be fully resolved.
●Since this product is a manual adjustment of the record position by the customer, there is a
limit to the adjustment.
●Once record holes are expanded, they cannot be restored.
Therefore, it is the customer's responsibility to expand the record hole using a reamer.

2022_v.01
Owner’s Record
The model and serial numbers are located inside of the stabilizer.
Record the serial number in the space provided below.
Refer to these numbers whenever you call your dealer regarding this product.
Model No. ES-001 Eccentricity Detection Stabilizer
Serial No.
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS
LIMITED WARRANTY
DS Audio warrants this product against defects in material or workmanship for the time periods as
stated below. Pursuant to this Limited Warranty, DS Audio will, at its option, (1) repair the product
using new or refurbished parts or (2) replace the product with a new or refurbished product.
For the purposes of this warranty, "refurbished" means a product or part has been returned to its
original specifications. In the event of a defect, these are your exclusive remedies.
For a period of one (1) year from the original date of purchase of the product, DS Audio, at its
option, repair or replace with new or refurbished product, product determined to be defective.
This limited warranty covers only the hardware components packaged with the product. It deos
not cover technical assistance for hardware.
Instructions: To obtain warranty service, you must deliver the product, freight prepaid, in either its
original packaging or packaging affording an equal degree of protection to the DS Audio authorized
service facility specified.
Any parts or product replaced under this limited warranty will become the property of DS Audio.
This limited warranty only covers product issues caused by defects in material or workmanship
during ordinary consumer use. It does not cover product issues caused by any other reasons,
including but not limited to product issues due to commercial use, acts of God misuse, limitation
of technology, or modification of any art of product.
This limited warranty is invalid if the factory-applied serial number has been altered or removed
from the product.
This limited warranty is valid with the official receipt of our authorized dealer which indicating the
date of your purchase.
WARRANTY
Warranty
11
