DS18 6XL650NB-4 User manual

6XL650NB-4
’
ENGLISH | ESPAÑOL
MANUAL DE USUARIO
OWNER'S MANUAL
6.5" MID-RANGE LOUDSPEAKER
WITH NEODYMIUM RINGS AND BULLET
ALTAVOZ DE RANGO MEDIO DE 6.5"
CON ANILLOS DE NEODIMIO Y BALA

6XL650NB-4
SPECIFICATIONS / ESPECIFICACIONES:
Nominal Diameter / Diámetro Nominal............................................................................................ 6.5" / 165 mm
Nominal Impedance / Impedancia Nominal .................................................................................................4 OHMS
RMS Power Handling / Manejo de Potencia RMS.................................................................................. 325 Watts
MAX Power Handling / Manejo de Potencia MAX.................................................................................. 650 Watts
Sensitivity (1w/1m) / Sensibilidad (1w /1m) ..................................................................................................97 dB
Frequency Response / Respuesta de Frecuencia............................................................................80Hz-12.5KHz
Recommended Hi Pass Crossover / Corte Paso Alto Recomendado..........................................................100 Hz
Sold as Pair or Single / Vendido en Par o Unidad ........................................................................... Single / Unidad
MOTOR / MOTOR:
Voice Coil Diameter / Diámetro de la Bobina de Voz..........................................................................2" / 50.8 mm
VC Former Material / Material Interior de Bobina de Voz............................................................................ Kapton
Winding Material / Material del Embobinado ................................................................................................. CCAW
Cone Material / Material del Cono ....................................................... Non-Pressed Paper / Papel No Prensado
Bullet Material / Material de la Bala.......................................................................................Aluminum / Aluminio
Bullet Color/Finish / Color/Acabado de la Bala.................................................................................. Black / Negro
Surround Material / Material de la Suspensión .....................................................................................Cloth / Tela
Basket Material / Material de la Canasta...............................................................................Aluminum / Aluminio
Basket Color/Finish / Color/Acabado de la Canasta ...............................................Satin Black / Negro Satinado
Magnet Material / Material del Imán ................................................... Neodymium Rings / Anillos de Neodimio
Magnet Weight / Peso del Imán .....................................................................................................................11.4 Oz
Displacement Volume / Volumen de Desplazamiento .............................................................. 0.34 L / 0.012 ft3
THIELE & SMALL PARAMETERS / PARÁMETROS T/S:
Equivalent Volume / Volumen Equivalente..........................Vas.................................................. 5.07 L / 0.17 ft3
Excursion / Excursión ..............................................................Xmax ..............................................................3.7 mm
Free Air Resonance / Resonancia al Aire Libre.....................Fs ....................................................................120 Hz
Mechanical Factor / Factor Mecánico ...................................Qms ..................................................................... 5.16
Electrical Factor / Factor Eléctrico.........................................Qes ...................................................................... 0.28
Total Factor / Factor Total ......................................................Qts ....................................................................... 0.26
Mechanical Mass / Masa Mecánica.......................................Mms ................................................................. 9.11 g
Mechanical Compliance / Cumplimiento Mecánico.............Cms .........................................................0.19 mm/N
BL Factor / Factor Bl ...............................................................Bl.......................................................................... 9.41
Voice Coil Inductance / Inductancia de Bobina de Voz........Le .................................................................. 0.05 mH
Cone Area / Área del Cono ......................................................Sd............................................................. 136.85 cm²
DC Resistance / Resistencia DC .............................................Re...................................................................3.5 ohm
Mechanical Mass w/o air / Mechanical Mass w/o air.........Mmd................................................................... 8.2 g
MEASUREMENT / MEDIDAS:

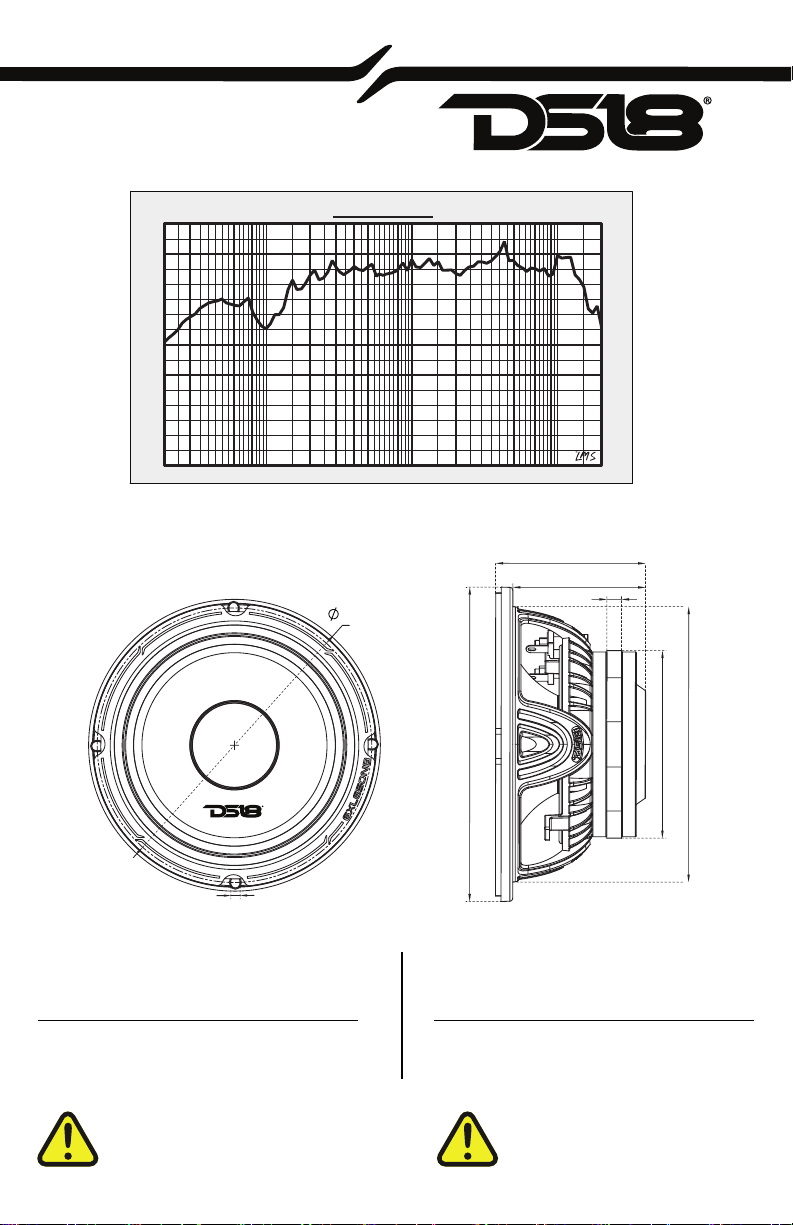

Overall Diameter / Diámetro Total .................................................................................................... 6.7" / 170 mm
Overall Depth / Profundidad Total..................................................................................................... 3.19" / 81 mm
Front Mount Baffle Cutout
/ Corte del Orificio de Montaje............................................................ 5.9" / 150 mm
Mounting Depth / Profundidad de Montaje ..................................................................................... 2.83" / 72 mm
Motor Diameter / Diámetro del Motor............................................................................................4.13" / 105 mm

6.34”/ 161 mm
6.7”/ 170 mm
4.13”/ 105 mm
5.9”/ 150 mm
20 Hz 50 100 200 500 1K 2K 5K 10K 20K
dBSPL
30
40
50
60
70
80
90
100
110
SPL vs Freq
Please visit our website DS18.com for more information
on our warranty policy.
We reserve the right to change products and specifications
at any time without notice.
Images may or may not include optional equipment.
Visita nuestra página web DS18.com para obtener más
información sobre nuestra garantía.
Nos reservamos el derecho de cambiar productos y
especificaciones en cualquier momento sin previo aviso. Las
imágenes pueden incluir o no equipo opcional.
WARRANTY GARANTÍA
WARNING:
Cancer and Reproductive Harm.
www.P65Warning.ca.gov
ADVERTENCIA:
Cáncer y Daño Reproductivo.
www.P65Warning.ca.gov
MEASUREMENTS / MEDIDAS:
SPECIFICATIONS / ESPECIFICACIONES:
Nominal Diameter / Diámetro Nominal............................................................................................ 6.5" / 165 mm
Nominal Impedance / Impedancia Nominal .................................................................................................4 OHMS
RMS Power Handling / Manejo de Potencia RMS.................................................................................. 325 Watts
MAX Power Handling / Manejo de Potencia MAX.................................................................................. 650 Watts
Sensitivity (1w/1m) / Sensibilidad (1w /1m) ..................................................................................................97 dB
Frequency Response / Respuesta de Frecuencia............................................................................80Hz-12.5KHz
Recommended Hi Pass Crossover / Corte Paso Alto Recomendado..........................................................100 Hz
Sold as Pair or Single / Vendido en Par o Unidad ........................................................................... Single / Unidad
MOTOR / MOTOR:
Voice Coil Diameter / Diámetro de la Bobina de Voz..........................................................................2" / 50.8 mm
VC Former Material / Material Interior de Bobina de Voz............................................................................ Kapton
Winding Material / Material del Embobinado ................................................................................................. CCAW
Cone Material / Material del Cono ....................................................... Non-Pressed Paper / Papel No Prensado
Bullet Material / Material de la Bala.......................................................................................Aluminum / Aluminio
Bullet Color/Finish / Color/Acabado de la Bala.................................................................................. Black / Negro
Surround Material / Material de la Suspensión .....................................................................................Cloth / Tela
Basket Material / Material de la Canasta...............................................................................Aluminum / Aluminio
Basket Color/Finish / Color/Acabado de la Canasta ...............................................Satin Black / Negro Satinado
Magnet Material / Material del Imán ................................................... Neodymium Rings / Anillos de Neodimio
Magnet Weight / Peso del Imán .....................................................................................................................11.4 Oz
Displacement Volume / Volumen de Desplazamiento .............................................................. 0.34 L / 0.012 ft3
THIELE & SMALL PARAMETERS / PARÁMETROS T/S:
Equivalent Volume / Volumen Equivalente..........................Vas.................................................. 5.07 L / 0.17 ft3
Excursion / Excursión ..............................................................Xmax ..............................................................3.7 mm
Free Air Resonance / Resonancia al Aire Libre.....................Fs ....................................................................120 Hz
Mechanical Factor / Factor Mecánico ...................................Qms ..................................................................... 5.16
Electrical Factor / Factor Eléctrico.........................................Qes ...................................................................... 0.28
Total Factor / Factor Total ......................................................Qts ....................................................................... 0.26
Mechanical Mass / Masa Mecánica.......................................Mms ................................................................. 9.11 g
Mechanical Compliance / Cumplimiento Mecánico.............Cms .........................................................0.19 mm/N
BL Factor / Factor Bl ...............................................................Bl.......................................................................... 9.41
Voice Coil Inductance / Inductancia de Bobina de Voz........Le .................................................................. 0.05 mH
Cone Area / Área del Cono ......................................................Sd............................................................. 136.85 cm²
DC Resistance / Resistencia DC .............................................Re...................................................................3.5 ohm
Mechanical Mass w/o air / Mechanical Mass w/o air.........Mmd................................................................... 8.2 g
MEASUREMENT / MEDIDAS:
Overall Diameter / Diámetro Total .................................................................................................... 6.7" / 170 mm
Overall Depth / Profundidad Total..................................................................................................... 3.19" / 81 mm
Front Mount Baffle Cutout
/ Corte del Orificio de Montaje............................................................ 5.9" / 150 mm
Mounting Depth / Profundidad de Montaje ..................................................................................... 2.83" / 72 mm
Motor Diameter / Diámetro del Motor............................................................................................4.13" / 105 mm
4-5.5*7.0
3.19”/ 81 mm
2.83”/ 72 mm
0.31”/ 8 mm
