DSC GS3060 User manual

GS3060
GSM-GPRS INTERFACE
INSTALLATION MANUAL
WARNING: This manual contains information on limitations regarding product
use and function and information on the limitations as to liability of the manu-
facturer. The entire manual should be carefully read.
firealarmresources.com

firealarmresources.com

i
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Identification of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installing the GS3060 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Connecting the GS3060 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Status LEDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operating Principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Simulated Landline Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Panel Transmission Monitoring (PTM) . . . . . . . . . . . . . . . . . . . . . . . . .6
GPRS Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Activating the Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Swinger Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Hardware Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Low Power Radio Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
CONNECT 24 Remote Programming . . . . . . . . . . . . . . . . . . . . . . . . .8
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
GS3060 Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
TABLE OF CONTENTS
firealarmresources.com

ii
IMPORTANT
The equipment is fixed, wall-mounted and shall be installed in the position specified in
these instructions. The equipment enclosure must be fully assembled and closed, with
all the necessary screws/tabs and secured to a wall before operation. Internal wiring
must be routed in a manner that prevents:
- Excessive strain on wire and on terminal connections
- Loosening of terminal; connections
- Damage of conductor insulation
WARNING:Never install this equipment during a lightning storm!
Instruct the end-user to:
- Not attempt to service this product. Opening or removing covers may expose the user
to dangerous voltages or other risks. Any servicing shall be referred to trained service
personnel only.
- Use authorized accessories only with this equipment.
Do not dispose of the battery in fire or water. Disposing of the battery in a fire will cause
rupture and explosion.
Do not dispose of the waste battery as unsorted municipal waste. Consult your local
regulations and /or laws regarding recycling with regard to this lithium battery pack. Doing
so will help protect the environment. Some of the materials that are found within the bat-
tery could become toxic if not disposed of properly and may affect the environment.
firealarmresources.com

1
The GS3060 is a wireless communicator that sends alarm system information to an SG-System III, SG-
System II, or SG-System I receiver through a GSM/GPRS wireless network. This wireless communicator can
be used with UL/ULC Listed compatible control units, as indicated in the manufacturer's installation
instructions.
NOTE: The GS3060 is designed to work with the Contact ID communication format as described in SIA DC-
05 Standard. Before completing the field installation of the alarm monitoring system please ensure com-
munication with the supervising central station is successful by sending several events and getting confir-
mation that they have been received.
Features
• Compatible with 4-digit or 10-digit Contact ID communication format as described in SIA DC-05
Standard. Example of suitable compatible alarm panels: DSC Models PC1864, PC1832, PC1616,
PC4020.
• Simulates landline
• Switches automatically to the GSM network in the event of landline trouble (e.g., line down)
• GSM Signal Indicator
• Four programmable outputs
• Contains one 12V - 1.2 Ah battery
• Case Tamper Output
• Landline overvoltage protection
• Dual-band GSM radio
• Four programmable inputs
• GPRS/Internet communication with Sur-Gard System III / II
• Panel transmission monitoring for up to four phone numbers
Technical Specifications
The input voltage to the GS3060 can be drawn from the UL/ULC Listed control panel or provided by an
external UL/ULC Listed power supply rated for the application (external power-limited source).
NOTE: The power supply must be Class II, Power Limited. For residential applications a suitable power adap-
tor is model DSC ADP1310-NAU (for USA) and model DSC ADP1310-NA (for Canada).
Ratings
Power Supply Ratings - Input Voltage (for long-term operation)
JP3-OFF with internal battery: ...........................13.8VDC required
JP3-ON without internal battery: ....................... 13.8VDC recommended
NOTE: When the input voltage drops below 13.5V DC , the internal battery supplied with the GS3060
will not be charged. In order to maintain a charged level for the internal battery, the power supply
must have a minimum voltage of 13.5V
DC to ensure a sufficient battery charge in all conditions of use.
Current Consumption
JP3-OFF with internal battery: ................................120mA*
JP3-ON without internal battery: ...............................500mA*
* Plus any current drawn from the GS3060 AUX+ terminal
Working Voltage Range ..................................9-14VDC
Battery: ........sealed, rechargeable type, rated 12V/1.2Ah or 12VAh (for 24hr standby time)
Battery charging voltage: ...................................13.5VDC
Battery charging current: .................................... 50mA
NOTE: Battery must be replaced every 3-5 years.
Operating frequency: .................................850/1900MHz
Antenna gain: .........................................2.0dBi
Environmental Specifications
Operating temperature: ............................0°C-49°C (32°F-120°F)
Humidity: ........................... 93%RH Maximum (non-condensing)
Mechanical Specifications
Dimensions (metal enclosure, painted): ........ 138mm x 224mm x 55mm / 5.4” x 8.8” x 2.2”
Weight (without battery): ................................900g / 3.2oz
Internal Event Buffer (communications): .................. 256Events (not viewable)
Simulated Telco Loop specifications (TIP/RING)
On-Hook Voltage: .......................................35V
DC
Loop Current .......................................... 25mA
Loop Resistance ......................................600Ohms
Alternate construction
Dimensions (enclosure GS3060RF): ..........165mm x 257mm x 76mm / 6.3” x 10.1” x 3”
Weight (alternate construction enclosure without battery): ..............1300g / 2.8lbs
Introduction
firealarmresources.com

2
Figure 1 - Parts
Identification of Parts
Table 1: Parts
Parts
1 Metal Casing
2 GSM Antenna
3 GSM Antenna Mounting Hardware
4 Anchor Screw Holes (3mm)
5 GSM Antenna Connector
6 SIM Card
7 Status LEDs (see page 5)
8 JP3 Current Limitation Jumper (refer to Ratings Section)
9 PC-Link Connector
10 Tamper Switch
11 Terminal Blocks
12 Battery Leads
13 Cable Entry
14 Earth Ground Wire
15 12V - 1.2Ah Battery
16 GSM Radio Module
17 SIM Card Holder
1
LE LI
-
O1
M
O2 O3 O4 +OC AS
M
L1 L2 L3 L4 +12V -
LOCK
OPEN
44
5
17
3
2
6
16
9
10
8
11
13
12
15
14
4
12 13
TAMPER
9
PGM3
8
PGM2
19 20
+ DC IN -
11
AUX+
16
Z2 17 Z3
15
Z1
14
COM
10
PGM4
7
PGM1
6
COM
4
T1 5 R1
2
TIP 3 RNG
1 18
Z4
JP3
JP3
tie wrap
OFF ON
All circuits are classified for UL installations as Power Limited/Class II Power Limited except for the bat-
tery leads which are not power limited. Do not route any wiring over circuit boards. Maintain at least 1”
(25.4mm) separation. A minimum 1/4” (6.4mm) of separation must be maintained at all points between
Power Limited wiring and all other non-Power Limited wiring. Route wires as indicated above.
GS3060
NOTE: For UL/ULC installa-
tions, connections between
the alarm control panel out-
puts (telephone interface
Tip/Ring, output relay con-
tacts) and GS3060 inputs
(Tip/Ring, Z1-Z4) shall be
run in a mechanical protec-
tive conduit within 20ft (6m)
of one another and in the
same room.
firealarmresources.com

3
This equipment GS3060 is fixed and shall be installed by Service Persons only (Service Person is
defined as a person having the appropriate technical training and experience necessary to be
aware of hazards to which that person may be exposed in performing a task, and of measures
available to minimize the risks to that person or other persons). It shall be installed and used
within an environment that provides the pollution degree max 2, over voltages category II, in
non-hazardous, indoor locations only. This manual shall be used with the Installation Manual of
the relevant alarm control panel. All instructions specified within that manual must be observed.
Description
This GS3060 manages transmissions to a central station and can simulate the landline in the event of
trouble (e.g., landline down) or even substitute the landline completely in areas where the GSM service
is provided and a landline is not available.
The GS3060 has the capability of communicating alarm signals via the GPRS data network. This
capability ensures a fast, reliable path to central stations equipped with a Sur-Gard System III or System
II receiver. By connecting a GS3060 to a control panel's standard PSTN interface, telephone-based
Contact ID signals are decoded and seamlessly routed through the GPRS network to any of the
compatible receiver options.
The performance of the GS3060 depends greatly on GSM network coverage. Therefore, it should not
be mounted without first performing placement tests to determine the best location for reception
(minimum of one green LED ON). Optional antenna kits – GS15/25/50-ANT (15ft/4.6m, 25ft/7.6m or
50ft/15.2m) – are available.
The GS3060 requires enrollment with CONNECT 24 to operate. Dealer application forms and
additional information on the CONNECT 24 Voice Response Unit (VRU) and web user interface can
be found at www.connect24.com, or at the following telephone numbers:
USA 1-888-251-7458 CANADA 1-888-955-5583
For UL Residential Fire and Burglary installations, the GS3060 is listed as a sole means of communication
or as a back up when used in conjunction with a POTS line (dialer). For UL Residential Fire installations,
when installed in the alternate enclosure model GS3060RF, the GS3060 has provisions for 24-hour
standby power.
For UL Commercial Burglary installations, the GS3060 is listed as a sole means of communication
(supervision window of 200s required at monitoring station) or as a back-up when used in conjunction
with a POTS line (dialer).
The GS3060 shall be powered from any compatible listed control unit or compatible listed power supply that
complies with the ratings specified on page 1. The power supply shall be listed for burglary applications and
provide a minimum of 4 hours standby power capabilities. An example of a suitable listed compatible control
unit is the DSC Model PC1864 with an AUX output rated 11.1 - 12.6VDC. An example of a suitable Listed
power supply is DSC Model PC5204 with an AUX output rated 11.6 - 12.6VDC.
For ULC Commercial Fire Monitoring installations the GS3060 is listed as a passive communication
system when used in conjunction with a POTS line (dialer). Fire alarms shall be sent simultaneously over
both communication methods (GSM network and PSTN).
For ULC Commercial Burglary installations the GS3060 is listed as a passive communication system with
communication line security level P2 when used as a back up in conjunction with a POTS line (dialer).
For ULC Residential Fire and Burglary installations the GS3060 is listed as a sole means communication
or as a back up when used in conjunction with a POTS line (dialer).
ATTENTION: The GS3060 is equipped with a current limiter that limits current demand on the
12VDC power input to 120mA. The current limiter is enabled by default (see Part #8 in 'Identifica-
tion of Parts’ on page 3) with JP3 in the OFF position. The current limiter can be disabled
(bypassed) with JP3 in the ON position. When the GS3060 12VDC power input is supplied by the
Alarm Panel Aux+ output, DSC recommends that the current limiter be active to limit the demand
from the panel. If the alarm panel is intended to supply all of the current demand, you must
ensure that the panel can supply 500mA and that the current limiter is disabled. When the GS3060
is transmitting, the current demand exceeds 120mA (500mA). With the current limiter in place,
the additional current demand is supplied by the GS3060 battery.
NOTE: With the current limiter active, there is a risk of discharging the GS3060 battery when
transmission frequency is high. The back up battery must always be connected to the device when
the current limiter is enabled.
If power to the GS3060 is supplied by an external power supply (recommended 13.8 VDC, 0.7A), the
current limiter must be disabled to allow the full current demand to be supplied. In this configuration
the GS3060 battery is not required.
firealarmresources.com

4
CONNECT 24 Enrolment Information
Only authorized dealers can enrol a GS3060 with CONNECT 24. Dealer application forms and additional
information on the CONNECT 24 Voice Response Unit can be found at the CONNECT 24 website
www.connect24.com. Please contact CONNECT 24 at the number below for assistance:
USA 1-888-251-7458 CANADA 1-888-955-5583
NOTE: Steps 1 and 2 should be completed before turning on the GS3060 unit.
NOTE: Before inserting or removing the SIM card, please ensure the unit is turned off.
STEP 1 - Activate Your SIM Card
Your SIM card must be activated with Connect 24 prior to use. Please call the Voice Response Unit
(VRU) at least 24 hrs prior to installation at 1-866-910-3865.
STEP 2 - Initialize the GS3060 with Connect 24
Call the VRU at the toll-free number. Follow the voice prompts and enter your profile number, installer
ID number, installer PIN number and central station number. Ensure that all information is available and
at hand before calling the VRU. This information can be found in your VRU Enrollment Package.
STEP 3 - Determine the Best Signal Location
1. Unscrew the four screws securing the front panel to the cabinet. Remove the front panel.
2. Fit the GSM antenna [2]. Ensure the GSM antenna mounting hardware is fastened securely [3].
3. Attach the GSM radio module with the GSM antenna connector. Ensure that the connector is secure.
4. Turn on the GS3060 and check the signal strength.
5. Connect the battery to the RED and BLK battery leads.
6. Connect the DC power source to +/- 12V terminals.
7. Allow the unit to power up.
NOTE: The green LEDs will indicate the signal strength. The bottom green LED must be on for the
location to be acceptable. Please refer to the ‘Status LEDs’ section for more information.
8. Power down the GS3060 by removing the DC power source and battery leads.
STEP 4 - Connect the GS3060
1. Using the cabinet, mark the four screw locations. Drill the anchor screw holes.
NOTE: Check for cable conduits and water pipes before drilling.
2. Using anchor screws (not provided), mount the cabinet to the wall.
3. Run the cables through the cable entry [13] or through the cabinet knockouts.
4. Complete the connections on the terminal blocks [11].
NOTE: Ensure that power and Telco circuit connections are made only after the cabinet has been
secured to the building or structure, and has been connected to the protective earth ground.
Descriptions of the terminals can be found in the ‘Connecting the GS3060’ section.
5. Reattach the front cover [1] securely to the cabinet.

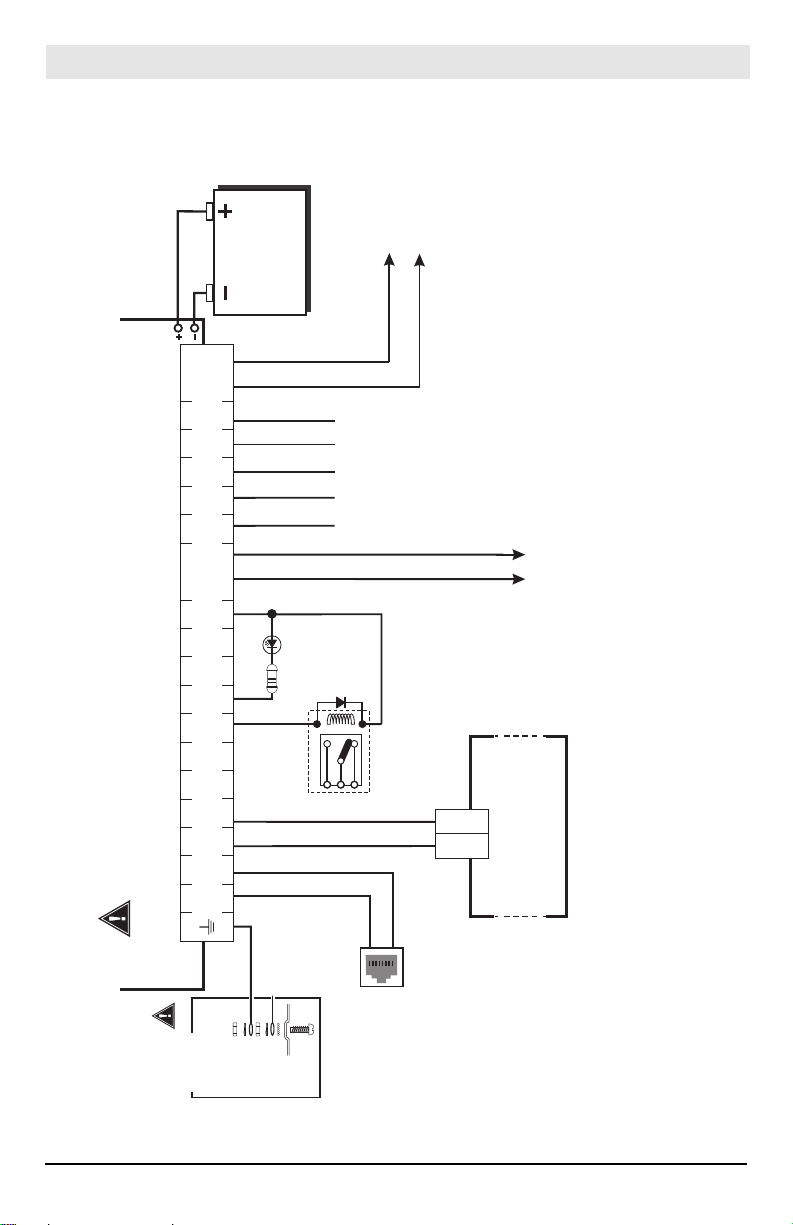

NOTE: Please refer to Figure 2 at the end of this manual for wiring diagram.
(1) Earth Ground - This terminal must be connected to the Mains Earth, in order to comply with the
Telecommunications Network Safety Standards (Overvoltage Protection Requirements).
TIP (2) / RNG (3) External Telephone Line - These terminals must be connected directly to the
incoming telephone line.
T1 (4) / R1 (5) Internal Telephone Line - These terminals must be connected to the TIP and RING of
the control panel.
COM (6,14) Common - This terminal is connected internally to Power Ground.
PGM1 (7), PGM2 (8), PGM3 (9), PGM4 (10) Programmable Open-collector Outputs - These
outputs can be activated by programmed events. Refer to ‘Activating the Outputs’ for details. The
maximum current sink of each output must not exceed 50mA.
AUX+ (11) Auxiliary 12V Output - +12V Output, 200mA PTC Protected.
NOTE: Electrical current drawn from this terminal is drawn directly from the power supply. This
must be added to the GS3060 current when determining the total draw on the host panel or
power supply. Jumper JP3 does not limit the electrical current available on this output.
Installing the GS3060
Connecting the GS3060
firealarmresources.com

5
Tamper (12-13) - These terminals are connected in series to the Tamper switch [10]. They will close
when the cabinet is properly closed, and will open when the front cover is removed.
Z1-Z4 (15-16-17-18) Programmable Inputs - These terminals can be set up to trigger events. Refer
to ‘Inputs’ for details.
12V (19), COM (20) Device Power Supply - hese terminals must be connected to a rated power
supply. Once the connections are completed, connect the battery leads (Red and Black wires, [12] in
Figure 1) to a 12V, 7Ah battery.
Jumper JP3
JP3 ON - Full power, including standby capacity, comes from the host panel or external power
supply. Supply must be capable of up to 700mA. The GS3060 battery must not be connected.
JP3 OFF - Current limiting mode, the host panel or external supply provides standby current. Supply
must be capable of 120mA plus any current drawn from AUX+ terminal. GS3060 battery must be
installed for proper operation.
NOTE: The power supply must have a minimum voltage of 13.5V to ensure a sufficient battery
charge. An example of a suitable power supply is the DSC Model ADP1310-NA with DC output
rated 13.8 VDC, 1Amp. This is to be used in conjunction with a 12V/7Ah rated battery for UL/ULC
listed residential installations.
NOTE: This mode of operation must not be used for ULC Listed Fire Monitoring installations.
NOTE: When disposing of batteries, follow the instructions and precautions printed on the bat-
teries, and contact your municipal offices for information on the disposal of used batteries.
The GS3060 interface has four status LEDs. The following describes the control panel status LEDs.
NOTE: The top two LEDs blink during the Initializing and Programming phases.
RED - This LED is normally Off; but, it will flash in the event of a trouble. This LED will switch on
within three minutes in the event of GSM Module [16] trouble, or when the GSM Network is
unavailable, ‘No Service’. If this LED flashes, the following list indicates the specific trouble based on
the number of flashes, by priority. When turned on, the GS3060 checks for the trouble conditions to
be restored in the order listed below. The GS3060 indicates the status of the highest priority,
unrestored trouble condition with the corresponding number of flashes of the red LED. Once the
highest priority trouble condition has been cleared, the next highest priority trouble condition is
displayed.
1 flash - Battery Trouble (Battery with low voltage output)
2 flashes - Radio/SIM Trouble (Battery absent or SIM Card disconnected)
3 flashes - GSM Network Problem (SIM not active, poor signal strength, antenna not connected)
4 flashes - Insufficient Signal Strength (poor location)
5 flashes - Connect 24 Configuration SMS Trouble (Improper VRU programming. Once the configu-
ration is ready, turn off power for 2-3 seconds to allow the unit to restart and request again)
6 flashes - Receiver not available (Improper VRU programming, receiver absent)
7 flashes - Power Supply Trouble (DC power supply absent)
Off - No Troubles
YELLOW - When this LED is On (solid), a Phone Line Trouble condition exists. This LED switches
on when the interface switches to the GSM Network (due to a Landline trouble condition). This
LED flashes slowly in the event of an incoming or outgoing voice call (regardless of the operating
status of the landline). This LED can also flash quickly once (GPRS TX) or twice (GPRS RX).
GREEN (Top) - When this LED is On, the reception is optimal. This LED switches On only when
the other Green LED is on.
GREEN (Bottom) - If this LED is Off and the Red LED is On, the GSM Network service is
unavailable (NO SERVICE). This LED flashes when the GSM Network reception is poor. If this LED
is on, the GS3060 is able to communicate with the GSM network.
Status LEDs
firealarmresources.com

6
Simulated Landline Mode
The simulated landline provides the alarm control panel (with dialer interface) with a back up line in the
event of PSTN line trouble. If the voltage on the landline terminals (TIP/RNG) drops below 2.8V for a
period of between 10 seconds and 45 seconds - depending on the device connected to the T1/R1
terminals- the GS3060 switches the connected telephone device to the GSM network. After waiting
between 30 and 40 seconds, it checks the landline for one of the following:
• If the landline has been restored, the GS3060 switches the connected device back to the landline,
OR
• If the landline is still down, the GS3060 continues the simulation until the landline is restored. The
GS3060 will not switch during ongoing calls.
NOTE: When the landline is down, the GS3060 provides a dial tone to any device connected to
T1 and R1, including any telephones on the premises. The phones on the premises will not, how-
ever, be able to dial out over the GS3060.
Panel Transmission Monitoring (PTM)
The GS3060 can also monitor the panel’s attempt to communicate with the central station. If it
determines that the panel is having difficulty, it switches the line to the GSM network. This feature is
only active when the GS3060 is configured as a back up communicator. This feature is in addition to the
regular line voltage detection.
The GS3060 monitors the phone line for four consecutive failed attempts within a 12-minute window. A
failed attempt is assumed to have occurred when a line seizure takes place during dialing (either the alarm
panel or the customer telephone), but no 1400Hz tone (or Contact Kiss-off) is sent from the receiver.
Once the conditions for a failed attempt are met, the GS3060 connects the panel to the GSM network
to communicate the events. When the GS3060 switches the line it stays in this mode until the panel
hangs up. On the next event the GS3060 restarts the error detection sequence before switching.
The GS3060 performs this sequence on any phone number that is detected on the line. Specific central
station phone numbers can be programmed into the GS3060 if desired. Up to four, 20-digit numbers
can be added to your installer profile at Connect 24. If programmed, the GS3060 will only look for
Contact ID Kiss-off after these numbers are dialed. A Telephone Line Monitoring trouble (PGM output
activation and/or reporting code if applicable) is also activated and/or transmitted when the PTM is
activated. A restoral is sent at the end of the call.
GPRS Sequence
• When an alarm is triggered, the control panel goes off-hook.
• The GS3060 asserts a dial tone.
• The Control panel dials the number of the central station. Ensure that the alarm panel inserts a
minimum one second pause, or has Dial Tone Search enabled before dialing the number.
• The GS3060 detects the DTMF dialing and stops dial tone.
NOTE: The GS3060 is unable to decode pulse dialing.
• The GS3060 sends the required Contact ID dual-tone handshake to the panel.
• After receiving the handshake, the control panel transmits an alarm message in Contact ID format.
• The GS3060 decodes and transforms the Contact ID digits into an IP packet and sends it to the
central station receiver over the GPRS network.
• The central station receiver acknowledges the alarm and sends a command to the GS3060 to gen-
erate the corresponding 1400Hz Kiss-off signal for a minimum of 800msec.
After the GS3060 generates a Kiss-off signal, it sends the next alarm or, if no further alarms need to be
sent, the control panel goes on-hook.
Inputs
The GS3060 has four inputs that can be used to trigger specific communications. These events will
transmit using Contact ID format with Inputs 1-4 reporting as [991] to [994] respectively.
Default settings are:
INPUT 1- FIRE INPUT 3 - BURGLARY
INPUT 2 - PANIC ALARM INPUT 4 - SYSTEM TROUBLE
These inputs are normally open and will activate when a short condition is detected between the

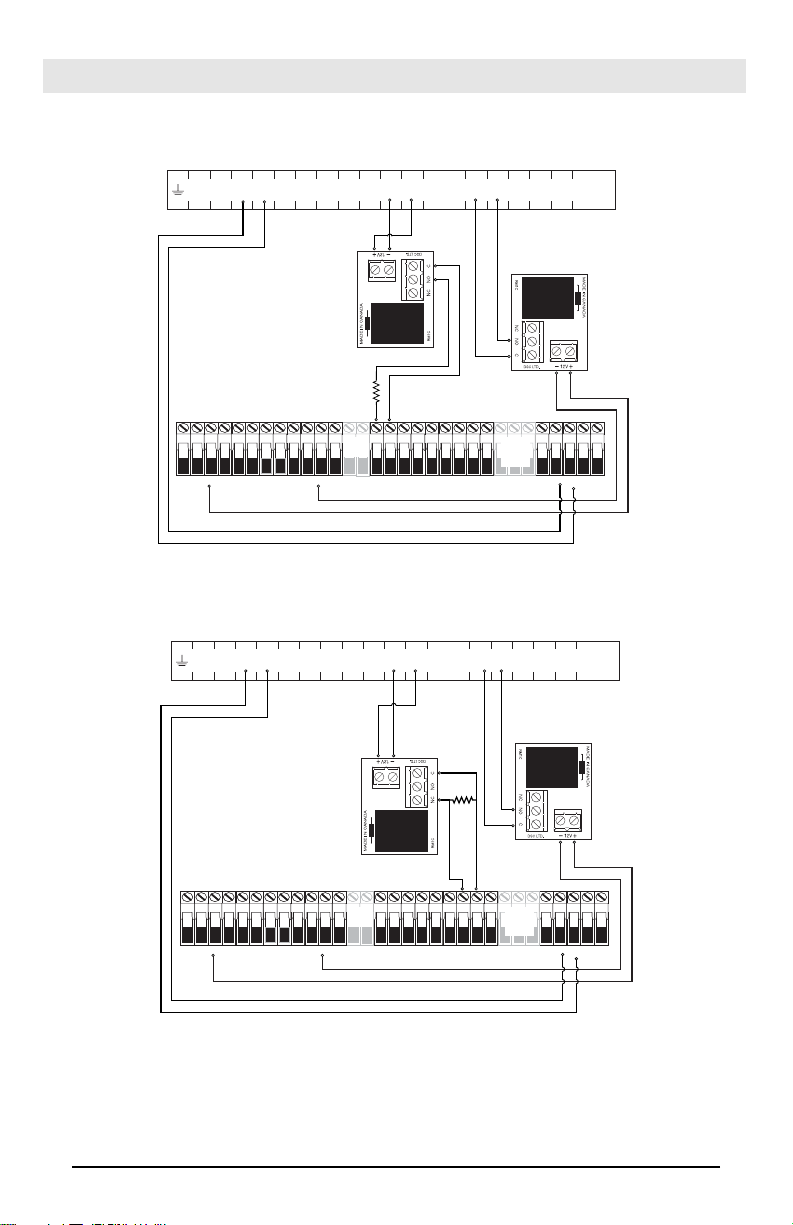

terminal and the COM. Refer to the GS3060 Wiring Diagram (Figure 2) at the back of this manual.
NOTE: These inputs communicate using Contact ID format.
Operating Principles
firealarmresources.com

7
NOTE: For UL/ULC installations, connections between alarm panel outputs and GS3060 inputs must
be run in protective mechanical conduits. To reduce interference with the antenna, it is recom-
mended that the metal conduit is not connected to the knock-outs in the top of the cabinet.
Outputs
The GS3060 has four programmable outputs to activate in response to the associated events. Refer
to the GS3060 Wiring Diagram (Figure 2) at the back of this manual.
Activating the Outputs
The GS3060 has four open collector outputs capable of a maximum of 50mA. Internal events on the
GS3060 can trigger the outputs to turn on an LED or activate an input on the host panel. The default
settings are as follows.
OUTPUT 1 Landline Trouble - Output is normally high and will switch to ground when the
telephone line is down.
OUTPUT 2 GSM Module or Network Trouble - Output is normally high and will switch to ground
when the GS3060 can not communicate with the GSM network.
OUTPUT 3 Power Supply or Battery Trouble - Output is normally high and will switch to ground
when there is a problem with the power source.
OUTPUT 4 General Module Trouble - Output is normally low and will switch to high when a GSM
Trouble, Power Supply/Battery Trouble, and/or a Failure to Communicate (FTC) trouble is detected.
NOTE: PGM4 must be connected to the control panel as shown in Figure 4. Program the control
panel input Zone/Point as 24hr ‘Supervisory’ with keypad-only notification when activated.
Output 4 on the GS3060 must be set as ‘Active High’.
NOTE: Once an output has been activated automatically, it will not restore its state until all the
causes of activation are cleared.
Contact ID
Events Description Event Codes
INPUT 1 ACTIVATION:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E110 FIRE ZONE 001 991
INPUT 1 RESTORAL: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R110 FIRE ZONE 001 991
INPUT 2 ACTIVATION:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E120 PANIC ALARM ZONE 002 992
INPUT 2 RESTORAL: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R120 PANIC ALARM ZONE 002 992
INPUT 3 ACTIVATION:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E130 BURGLARY ZONE 003 993
INPUT 3 RESTORAL: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R130 BURGLARY ZONE 003 993
INPUT 4 ACTIVATION:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E300 SYSTEM TROUBLE ZONE 004 994
INPUT 4 RESTORAL: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R300 SYSTEM TROUBLE ZONE 004 994
PSTN LINE DOWN: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E351 TELCO 1 FAULT 000
PSTN LINE RESTORAL: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R351 TELCO 1 FAULT 000
12V INPUT LOSS: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E337 EXP. MOD. DC LOSS 000
12V INPUT RESTORAL: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R337 EXP. MOD. DC LOSS 000
LOW BATTERY ALERT: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E338 EXP. MOD. LOW BAT 000
LOW BATTERY RESTORAL:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R338 EXP. MOD. LOW BAT 000
PERIODIC REPORT:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E603 PERIODIC RF XMISSION 000
PERIODIC REPORT WITH OFF-NORMAL CONDITION: E608 PERIODIC TEST XMISSION SYSTEM TROUBLE PRESENT 000
GSM UNIT ACTIVATION: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R552 RADIO XMITTER DISABLED 000
GSM INTERNAL BUFFER FULL: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E624 EVENT LOG OVERFLOW 000
FTC RESTORAL: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R354 FAILURE TO COMMUNICATE 000
Swinger Shutdown
Swinger Shutdown is followed by a PSTN line trouble, limiting this event to a maximum of 3 trouble
reports every 24 hours (including the PSTN line trouble sent when PTM is active). The condition will
restore at midnight at which point the counter is reset.
Hardware Default
To perform a hardware default and force the unit to get the latest configuration from Connect 24,
follow these steps:
• Power down the unit.
• Place a short between the PGM1 and Input 1 terminals.
• Power up the unit. This will perform a hardware default and request the configuration from
Connect 24.
• Remove the short between PGM1 and Input 1.
NOTE: A Hardware default must be performed when the SIM card is being swapped.
firealarmresources.com

8
Low Power Radio Shutdown
When the battery voltage reaches the low battery threshold of 10.5V, the unit turns off the radio to
prevent unnecessary network registrations. In this state, the unit does not communicate any events.
Radio shutdown is indicated by the LEDs as follows:
• for 1 second -- red is on, yellow is off, green 1 is off, and green 2 is off.
• for 1 second -- red is off, yellow is on, green 1 is on, and green 2 is on.
This LED sequence will continue to be displayed until the low battery voltage is restored and the radio
enabled again.
The inputs, outputs, and other features can be remotely programmed through Connect 24 (C 24) for
fast and convenient installation using the internet.
NOTE: This programming option has not been investigated by UL.
Powering up the GS3060 – when powering up the GS3060, always connect the battery first before
connecting primary DC power from the control panel or transformer.
Wiring Primary – R-1/T-1 of GS3060 to RING/TIP of control panel, DC power from control panel or DC
transformer to DC input, backup battery if JP3 OFF.
Wiring Backup – Incoming line to RING/TIP on GS3060, R-1/T-1 of GS3060 to RING/TIP of control
panel, R-1/T-1 of control panel to house phones, DC power from control panel or DC transformer to DC
input, backup battery if JP3 OFF.
Testing Communications – when the GS3060 transmits a signal for the control panel, or for an
internal transmission, the YELLOW light will flash one time when the signal is transmitted and two times
when it gets a kiss-off.
SIM – the SIM should be activated at least 24 hours prior to installation. The GS3060 will not show
signal strength until the SIM is active.
Panel Programming – the control panel should be programmed to communicate Contact ID exactly
the same way it would be programmed to communicate Contact ID over the telephone line.
Connect 24 Remote Programming
Troubleshooting Guide
Green Light
Status What it means: Signal Strength Status
Both Green Lights ON Excellent Signal
Strength
• Unit can be installed in the current mounting
location
One Green Light ON Good Signal Strength • Unit can be installed in the current mounting
location
Bottom Green Light
FLASHING
Poor Signal Strength • Ensure the antenna cable is plugged securely
into the radio connector
• If the SIM is active, connect a battery to the
unit and test various locations for good/excel-
lent signal strength
• Connect an antenna extension kit (GS-15ANT,
GS-25ANT or GS-50ANT)
Both Green Lights
OFF
No Signal Strength • If the red light is also FLASHING, refer to the
RED light chart
• Verify SIM card is activated
• Ensure the antenna cable is plugged securely
into the radio connector
• If the SIM is active, connect a battery to the
unit and test various locations for good/excel-
lent signal strength
• Connect an antenna extension kit (GS-15ANT,
GS-25ANT or GS-50ANT)
firealarmresources.com

9
Yellow Light
Status What It Means: GSM Status/Communication Indicator
Yellow Light ON • When used as the primary communicator, the yellow light will always be
ON.
• When used as a backup communicator, the yellow light will be ON when
there is a no phone line connected to the GS3060 TIP and RING, or the line
voltage goes below 2.8VDC.
Yellow Light OFF • Indicates a good phone line is connected to the GS3060. (more than 2.8
VDC detected across the GS3060 TIP and RING terminals).
Yellow Light
FLASHING
• The yellow light will flash one time when the GS3060 transmits a signal
and two times when a kisoff is received.
Red Light
Status
What it means:
Trouble Status Trouble Status - Troubleshooting Steps
One Flash GS3060 Low Battery • Measure the battery under load and verify it is
charged to at least 12.5 VDC. If not, wait at least 1
hour for the battery to charge
• Remove the battery and measure the voltage across
the two battery leads; the voltage should be at least
13.5 VDC
• Verify the input DC supply is rated at 13.8VDC @
120mA minimum
• Ensure the GS3060 jumper J3 is OFF
Two Flashes SIM/Radio Trouble • Ensure the SIM Card is inserted correctly and firmly
• Ensure the antenna cable is plugged securely into the
radio connector
• Ensure the power source connected to the GS3060 is
providing 13.8VDC @ 120mA and that the battery is
fully charged
Three
Flashes
GSM Network Problem • Ensure the SIM card has been activated
• The antenna cable should be plugged securely into
the radio connector
• Ensure there is good signal strength (at least one
green light ON)
• Verify the installation area is not experiencing a net-
work outage
Four Flashes Insufficient Signal
Strength
• Ensure there is good signal strength (at least one
GS3060 green light ON)
• Ensure the antenna cable is plugged securely into the
radio connector
Five Flashes Configuration Trouble • Ensure the SIM card is activated
Six Flashes Receiver Not Available • Contact the monitoring station to verify that the
GS3060 programming is correct (port, IP address,
DNIS)
• Contact your central station to verify they are not
experiencing any receiver issues
Seven
Flashes
DC Supply Trouble • Ensure the power source connected to the GS3060 is
providing 13.8VDC @ 120mA
firealarmresources.com

10
The Red light will flash to indicate various trouble conditions outlined previously. If multiple trouble
conditions are present, the red light will flash according to the highest priority trouble. For example, if
both a GS3060 low battery trouble (one flash) and an insufficient signal strength trouble (four flashes)
are present; the red light will flash one time. Once the GS3060 low battery trouble condition is
corrected, the red light will then begin flashing four times.
General Troubles With Your System
The control panel is displaying a tele-
phone line trouble condition
• Ensure T1 and R1 of the GS3060 are wired to the TIP
and RING terminals of the control panel
• If the GS3060 is being used as the primary communica-
tor, the yellow light will always be ON
• If the GS3060 red light is FLASHING, refer to the Red
Light Status Chart
The control panel displays a commu-
nication trouble condition
• Ensure the panel is programmed for Contact ID
• Ensure the control panel does not indicate a TLM trou-
ble condition
• If the GS3060 red light is FLASHING refer to the Red
Light Status chart in this guide
No signals are received at the central
station but no trouble condition is
displayed
• Ensure the control panel has a central station phone
number programmed
• Ensure the control panel has the correct account num-
ber programmed
• Verify the reporting codes are programmed or the auto
Contact ID option is enabled
• Ensure the control panel communicator is enabled
• Connect a handset to T1 and R1 of the GS3060 in mon-
itor mode to verify the control panel is trying to commu-
nicate
Not receiving internal signals gener-
ated directly from the GS3060
• Ensure the GS3060 was initialized with the correct
account number. This can be checked by logging into
the Connect 24 website
• Ensure that there are no trouble conditions on the
GS3060
The GS3060 Yellow and Red lights
flash constantly
• Ensure there is good signal strength (at least one
GS3060 green light ON)
• Ensure the SIM card is activated. Depending on signal
strength and network activity it can take up to 10 min-
utes for the network to program the unit; wait at least
15 minutes for the programming to be completed
• Cycle power and verify SIM and signal
The phone line is seized when the
GS3060 is connected
• Verify correct phone line wiring
• Ensure the Ringer Equivalency Number (REN) is not
being exceeded on the line
General Information
Removing/Connecting the antenna • To remove the antenna from the GS3060, place your
thumb on the end of the connector at the modem, then
place a screwdriver between the modem and connector.
Gently turn the screwdriver away to ‘pop’ out the con-
nector from the modem
• To install the antenna, firmly push the the connector
into the modem until it ‘snaps’ into place
firealarmresources.com

11
Enrolling a GS3060 • The GS3060 can be enrolled by going through the
GVRU voice prompt, and completing the activation of
the SIM card, and the initialization of the GS3060
• The GS3060 can also be enrolled using the Connect 24
website (www.connect24.com)
SIM card activation period • A SIM card can take up to 24 hours to be activated by
the provider. However, it typically takes less than an
hour for the SIM card to be activated
Checking SIM status • Go to www.connect24.com and login. A search can be
performed for a specific account and its current status
• SIM status can also be checked through the GVRU
New Features for V3.16
Critical Shutdown on GS3060
backup battery
• If the GS3060 backup battery is used and is below
10.5VDC, the unit will go into critical shutdown
• The critical shutdown state will be displayed by the red
light flashing followed by the yellow and two green
lights flashing
• The lights will continue to flash in this sequence until the
battery is charged above 12.4VDC
Swinger Shutdown for Telephone
Line Monitor (TLM) transmissions for
backup units
• If the GS3060 is configured as a backup, it can send a
maximum of 3 TLM troubles and restorals per day
• TLM Swinger Shutdown only affects signal transmis-
sions, not the functionality of the GS3060 lights or PGM
outputs
General Information
firealarmresources.com

12
Figure 2 - Wiring Diagram
GS3060 Wiring Diagrams
5
41 236789
10 11 14 15 16 17 18 19 20
LE
LI O1 O2 O3 O4
+OC
13
12
AS
L1 L2 L3 L4
12V
1K5
This Connection is necessary
T
I
P
T
I
P
R
I
N
G
R
I
N
G
GS3060
12 13
TAMPER
9
PGM3
8
PGM2
19 20
+DC IN -
11
AUX+
16
Z2 17
Z3
15
Z1
14
COM
10
PGM4
7
PGM1
6
COM
4
T1 5
R1
2
TIP 3
RNG
1
18
Z4
RJ-45
BATTERY
Sealed Rechargeable
12V / 1.2Ah
Typical battery charge: 30-50 mA
Recommended Model: 12V/1.2Ah or
12V/7Ah (for order code GS3060-RF only)
Battery not required if JP3 is ON
9-14V
DC
/ *700mA (max)
Tamper
Output
Earth-ground
Ground wire from building electrical installation
Inputs to be connected
to dry contact outputs
from alarm control panel
}
GROUND CONNECTION
Tighten nut to break paint & make good connection to the cabinet.
Nut Nut
Bolt
Lock washer Lock washer
Star washer
Cabinet
Alarm Control Panel with
Dialler Interface
(Supports Contact ID format)
Panel Aux Power or External Power Supply (13.8V
DC
required for normal, long-term operation)
Telephone Line
Connection
Supervision
Relay
RM1-UL Installations RM1C-ULC Installations
WARNING: Incorrect connections may result in PTC failure or improper operation. Inspect wiring and ensure connections are correct before turning on.
Connect relay contacts to
a zone input on the alarm
control panel for GS3060
troubles supervision
(24hr-type zone)
Optional use of PGM output (See Programming)
WARNING!
HIGH VOLTAGE. DISCONNECT AC
POWER & TELEPHONE LINES
PRIOR TO SERVICING
All circuits are classified for UL installations as Power Limited/Class II Power Limited except for the battery leads which are not Power Limited. Do not route any wiring over circuit boards. Maintain at least 1” (25.4mm) separation. A minimum 1/4” (6.4mm) separation must be maintained at all points between Power Limited wiring and all other Non-Power Limited wiring. Route wires as indicated in the diagram. NOTE: For ULC Commercial Fire and Burglary Installation requirements please refer to Figures 5, 6, 7 & 8 and to the ULC Installation Guide P/N 29002157R009.
(Use No. 26 AWG wires for
the connection to PSTN) *Refer to Jumper 3 section
for current rating
For ULC Fire Monitoring installations fire alarm signals shall be sent simultaneously over POTS line (using the dialler) and over the GSM network (using GS3060). Connect alarm output from control panel (PGM) to the input on the GS3060 that is programmed as a Fire Alarm Input.
Examples of Control Units/Subscribers Units or Power Supplies compatible models: DSC PC1864, PC1832, PC1616, PC5204, etc.
DG009553
firealarmresources.com

13
Figure 3 - Telephone Connection
Figure 4 - Power Supply and Supervision Wiring Diagram
The following wiring diagrams (Figures 5 to 8) are examples of ULC Listed Fire Monitoring Installation
connections.
GS3060 Wiring Diagrams
RED (R)
GREEN (T)
GRAY (R)
BROWN (T)
RJ-31X
RING
TIP
CONTROL PANEL
Incoming
Phone line
Handset
RI
TI
TI
RI
TIP
RING
4
321 5
GS3060
TIP T1 R1 RNG
(BLK/WHT) +13.8VDC
(BLK ) GND
Control
Panel
EOL
Resistor
See Note 3
DSC
RM-2
RELAY
NC
C
NO
ZONE
TERMINALS
(See Note 1)
- +
+12VDC
GND
CONTROL PANEL
Aux Power
+ -
DSC
Supervision
Relay
See Note 2
19
18
171614 20 15
12
11
1097 13 86
19
Z4
Z3Z2
COM
20
Z1
12
AUX
+
PGM
3
PGM
1
13
PGM
4
COM
TAMPER
GS3060
PGM
3
DC IN
+ -
KSAD1380100W1US
Power Adaptor
NOTES
1. Program the Zone/Point as “Supervisory” type
with keypad only annunciation when in Alarm. Do
NOT use a point that is normally used for
2-Wire Smoke detectors.
2. The power Supervision relay, RM-2 is only used
when the GS3060 is not powered by the control
panel. When the Radio is powered by the control
panel the relay is not required since a loss of input
power will generate a signal to the CMC.
3. Output 4 on the GS3060 must be set as “Active
High” (default).
4. When powering the GS3060 Radio by an
Auxiliary Power supply that has its own backup
battery, insert JP3 jumper on the radio and remove
the 1.2AH battery that came with the radio.
firealarmresources.com

14
Figure 5 - Fire Alarm Control Unit and GSM Transmitter
Figure 6 - DSC Subscribers’ Unit Fire and GSM Transmitter Mounted in the Same Room
GS3060 Wiring Diagrams
Wiring Diagram for Fire Alarm Control Unit (with dialler) and GSM Transmitter (Passive Communication System)
AUX Power
(12V/700mA)
RM1C ULC
Relay
Fire Alarm
Control Unit
TIP/RING
Zone Input
Outputs
Fire
Trouble
GSM Transmitter
GS3055-I
GS3060
T1/R1
TIP/RING
Zone PGM4
Inputs Output
GS3060 cabinet
GSM Network GPRS (IP Data)
AC Input
NOTES:
- Power for GS3060 shall be provided from Fire
Alarm Control Unit or separately Listed power supply
rated for the application, 12V/700mA (Jumper JP3
shall be set to on for Fire Monitoring).
- All wiring connections must be run in a protective
conduit.
- For local supervision of the GSM transmitter connect
PGM output from GS3060 to one zone input on the
Fire Alarm Control Unit.
- Dry Contact Trouble output from ULC Listed Fire
Alarm Control Unit must be connected to zone input
on the GS3060 for supervision of Tip/Ring connection.
- Fire Alarms must be sent over both communication
channels. Fire output from Fire Alarm Control Unit
must be connected to the Input 1 on the GS3060.
- 24h Test Transmission must be enabled on the dialler
and on the GS3060.
PSTN
Wiring Diagram for DSC Subscribers’ Unit Fire and GSM Transmitter
(Passive Communication System)
Fire Alarm
Control Unit
Outputs
Fire
Supervisory
Trouble
DSC
Subscribers’
Unit Fire
Zone
Inputs
TIP
TIP RING
PGM1
DSC Keypad
LCD4501
PK55XX
GSM
Transmitter
GS3055-I
GS3060
T1/R1
TIP/RING
Zone
Input PGM4
AUX Power
12V/700mA
RM1C ULC
Relay
PC5003C
PC4050CR
cabine
t
GSM Network GPRS (IP Data)
PSTN
AC Input
AC Input
NOTES:
- Power for GS3060 must be provided from Fire
Alarm Control Unit or separately listed power
supply rated for the application (12V/700mA)
(Jumper JP3 shall be on for Fire Monitoring).
- All wiring connections must be run in a protective conduit.
- Phone Line Monitoring (TLM) must be enabled.
- Connect PGM4 output from GS3060 (Trouble
Conditions) to a zone input on the Subscriber Unit
for supervision of the GSM Transmitter.
- 24hr Test Transmission over phone line (PSTN) and
GS3060 must be enabled.
- Fire Alarms must be sent over both communication
channels.
- On the Subscribers’ Unit, program PGM1 for
PC1616/PC1832/PC1864 as System Event (Section
[009] as type 10; Section [501] Fire Event option 2
ON). An alternate option is to program PGM1 as Zone
Follower (Sec [009] = 29) and assign Fire Zone to PGM1
in Section [551]. Ensure Bit 3 is on in [501]. In this case,
a restored fire alarm condition does not require the DSC
control panel to be reset.
For PC4020 program PGM1 as type 49 Steady Fire ([00070049]).
- Dry contact outputs from ULC Listed Fire Alarm
Control Unit must be connected to zone inputs on
the ULC Listed DSC Subscribers’ Unit Fire.
PC4020
PC1864
PC1832
PC1616
RM1C ULC
Relay
GS3060 cabinet
- Phone Line trouble is indicated by Yellow LED on GS3060.
- Refer to detailed diagrams in Figure 7.
firealarmresources.com

15
Figure 7 - DSC Subscribers’ Unit Fire and GSM Transmitter Mounted Remotely
GS3060 Wiring Diagrams
Alternate Wiring Diagram for DSC Subscribers’ Unit Fire and GSM Transmitter
Passive Communication System -Using Phone Line Supervision Relay
PLEASE NOTE THAT EITHER RM1C ULC OR RM2 RELAYS
CAN BE USED FOR ULC INSTALLATIONS
Fire Alarm
Control Unit
Outputs
Fire
Supervisory
Trouble
DSC
Subscribers’
Unit Fire
Zone
Inputs
TIP
RING
PGM1
DSC Keypad
LCD4501
PK55XX
GSM
Transmitter
GS3055-I
GS3060
T1/R1
PGM1
TIP/RING
Zone
Input PGM4
AUX Power
12V/700mA
RM1C ULC
Relay
PC5003C
PC4050CR
cabinet
GSM Network
GPRS
(IP Data)
PSTN
AC Input
AC Input
PC4020
PC1864
PC1832
PC1616
RM1C ULC
Relay
GS30XX cabinet
RM1C ULC
Relay
NOTES:
- Connect PGM output from GS3060 (Phone Line Trouble)
to a zone input on the subscriber unit for supervision of the
phone line voltage.
- When the GS3060 is installed remotely from the DSC
Control Panel, it is required to monitor the Phone Line
Trouble condition at the keypad by using an additional
RM1C Relay.
- Refer to detailed diagrams in Figure 8.
firealarmresources.com

16
Figure 8 -Connection Details for GSM Supervision Relay and Redundant Fire Alarm Transmission
GS3060 Wiring Diagrams
DG009069
5.6 KOhm
GSM
Supervision
Relay
Redundant
Fire Alarm
Initiation
5
41 236789
10 11 14 15 16 17 18 19 20
LE
LI O1O2 O3 O4
+OC
13
12
AS
L1 L2 L3 L4
12V
GS3060
12 13
TAMPER
9
PGM3
8
PGM2
19 20
+DC IN -
11
AUX+
16
Z2 17 Z3
15
Z1
14
COM
10
PGM4
7
PGM1
6
COM
4
T1 5 R1
2
TIP 3 RNG
1 18
Z4
AC AC RED BLK YEL GRN Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8
AUX+ BELL+
AUX- BELL-
PGM1 PGM3 EGND TIP T-1
PGM2 PGM4
RING R-1
PC1864
Only
PC1864
PC1832
Only
AC AC RED BLK YEL GRN Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8
AUX+ BELL+
AUX- BELL-
PGM1 PGM3 EGND TIP T-1
PGM2 PGM4
RING R-1
PC1864
Only
PC1864
PC1832
Only
Connection Details for GSM Supervision Relay & Redundant Fire Alarm Transmission
NOTE: Use EOL resistor in series with N.O. contacts of the relay connected to PGM4
5.6 KOhm
GSM
Supervision
Relay
Redundant
Fire Alarm
Initiation
DG009068
5
41 236789
10 11 14 15 16 17 18 19 20
LE
LI O1O2 O3 O4
+OC
13
12
AS
L1 L2 L3 L4
12V
GS3060
12 13
TAMPER
9
PGM3
8
PGM2
11
AUX+
16
Z2 17 Z3
15
Z1
14
COM
10
PGM4
7
PGM1
6
COM
4
T1 5 R1
2
TIP 3 RNG
118
Z4
AC AC RED BLK YEL GRN Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8
AUX+ BELL+
AUX- BELL-
PGM1 PGM3 EGND TIP T-1
PGM2 PGM4
RING R-1
PC1864
Only
PC1864
PC1832
Only
AC AC RED BLK YEL GRN Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8
AUX+ BELL+
AUX- BELL-
PGM1 PGM3 EGND TIP T-1
PGM2 PGM4
RING R-1
PC1864
Only
PC1864
PC1832
Only
Connection Details for GSM Supervision Relay & Redundant Fire Alarm Transmission
NOTE: Use EOL resistor in parallel with N.C. contacts of the relay connected to PGM4
19 20
+DC IN -
firealarmresources.com
