DSPPA PoE255 User manual

Public Address System
Network Outdoor Waterproof Column Speaker
PoE255
User Manual
Thanks for using DSPPA Public Address System. Please read the manual carefully for better use of the
equipment.
G u a n gz h o u D S P PA A u d i o Co . , L td
http: //www.dsppatech.com

This page is left blank for uses’ notes.

About this User Manual
This User Manual is available and effective upon completion of development of the
PoE255 Network Outdoor Waterproof Column Speaker. The User Manual includes system
description, matters needing attentions in use, instructions on system connection,
instructions on use of product and technical specifications of the terminal. Please read this
User Manual carefully before connection, installation and use and operate in accordance
with corresponding instructions in the Manual.
This symbol on the rear panel indicates matters needing attentions, please use or operate the product
in accordance with corresponding instructions.
Please keep this User Manual in good custody for future use.
PoE—V0.3
Facture 2019-10-17

Matters needing attention
Please read the following before operating the product.
Warning
The following basic requirements must be strictly observed, to avoid potential personal injury and
equipment or property damages to you or any person nearby. The basic requirements include without
limitation to the following:
Power source/power cable
• Please disconnect the device from power source
by pulling the plug other than the power cord.
Pulling the power cord may result in damages.
• Please keep the power cord away from heat source.
Do not over-bend the power cord or place it
anywhere it can be stepped on or may cause to trip.
• This is connected to power source via the plug and
any failure or danger occurs, the user can
disconnect the device from power source by pulling
out the plug out from the socket, therefore, it is
required that the power socket should be located
somewhere with easy access.
• The device is not completely disconnected from
power source when it is switched "OFF". For sake
of safety, please disconnect the device from the
socket if it is not in user.
Positioning
• Please disconnect the device from power source
before relocating the device.
• For avoiding deformation of panels and damages
to internal components, please do NOT place the
device where there is heavy dust or violent
vibration, or where it is extremely cold or hot.
• Please keep this device off water drops or splash
or vase filled with water or any other articles of
similar nature.
Connection
• Please disconnect other equipment from power
source before they are connected to this product.
Please tune volume to its minimum level before the
device is powered ON or OFF.
• All terminals on the device marked with are
live and dangerous, and should be connected by
trained personnel.
When abnormal conditions are realized
• Please disconnect the device from power source
immediately in case the power cord is worn or
damaged or if the sound is suddenly cut off or any
abnormal odor or smoke comes out from the device,
and then have the device inspected and repaired by
professional personnel.
Precautions in Operation
• Please do NOT insert any finger into any gap or
opening of the device.
• Please prevent foreign objects (paper, plastics or
metal etc.) from being inserted or falling into any
gap or opening of the device. In such case, please
cut off power source immediately.
• Please do NOT put the body or any heavy object
on the device and do NOT operate the buttons or
switches or connections with excessive force.
Do NOT Open
• Please do NOT remove the cover of the equipment,
otherwise you may get an electric shock.
• Do NOT attempt to remove any internal
component from the device, or to modify the
equipment in whatever manner. In case of any
abnormal condition, please stop using the device
immediately and have it inspected and repaired by
professional personnel.
Other Precautions
• Our company shall not be responsible for data loss
or damages due to improper use of unauthorized
modification to the device.
• The images and screen display in this Manual
are only for description and may be different
from screen images in actual operation. The
screen display depends on the product.

* * Content
i
Content
I. Product Description................................................................................................................................................... 1
1.1 About PoE255 Network Outdoor Waterproof Column Speaker................................................................. 1
1.2 Features........................................................................................................................................................ 1
II. Appearance Description........................................................................................................................................... 2
2.1 Rear Panel....................................................................................................................................................... 2
III. Connection Diagram............................................................................................................................................... 3
3.1 Connection Diagram of PoE255 Network Outdoor Waterproof Column Speaker in the System.................3
IV. Setting Operation of the Terminal...........................................................................................................................4
4.1 IP Address Setting...........................................................................................................................................4
4.2 Sound Adjustment...........................................................................................................................................5
V. Setting Instructions on the Host............................................................................................................................... 6
VI. Installation.............................................................................................................................................................. 8
Packing List.................................................................................................................................................................12
Specification................................................................................................................................................................12

* * Active Speaker
1
I. Product Description
1.1 About PoE255 Network Outdoor Waterproof Column Speaker
PoE255 Network Outdoor Waterproof Column Speaker is a network play terminal with audio data streaming
based on the TCP/IP transmission protocol, which can be mounted to any place accessible to network. It has
built-in two woofers and a tweeter, with sound adjustment function. The column speaker is powered by PoE
switch with +48V PoE. The product is extensively applied to schools, gymnasiums, squares, parks, parking lots,
railway stations, airports, villas, supermarkets and other places, which is an ideal choice for public address.
1.2 Features
All-weather design and waterproof unit, suitable for outdoors and indoors.
Built-in 2×15W high-fidelity speaker output with low consumption.
Can play the background music, emergency paging and alarm signals from the system host.
A network play terminal with audio data streaming based on the TCP/IP transmission protocol.
Powered by +48V PoE switch, with its power greater than 70W.
Can be mounted at any place accessible to network.
With sound adjustment functions (Treble and bass).
Adopt aluminum alloy case with UV-resistant painting treatment on the surface, high-quality
appearance, professional sound performance to meet the requirements of different places.
Provided with complete interfaces in accordance with IEEE 802.3af/at standard of Ethernet-powered
PoE system.
Adopt the combination of 3ʺ full-range cone-type bass unit with gray polypropylene drum paper and
2ʺ treble unit, with wide frequency response, clear bass level and bright treble.
Equipped with multifunctional mounting brackets, easy to install.

* * Active Speaker
2
II. Appearance Description

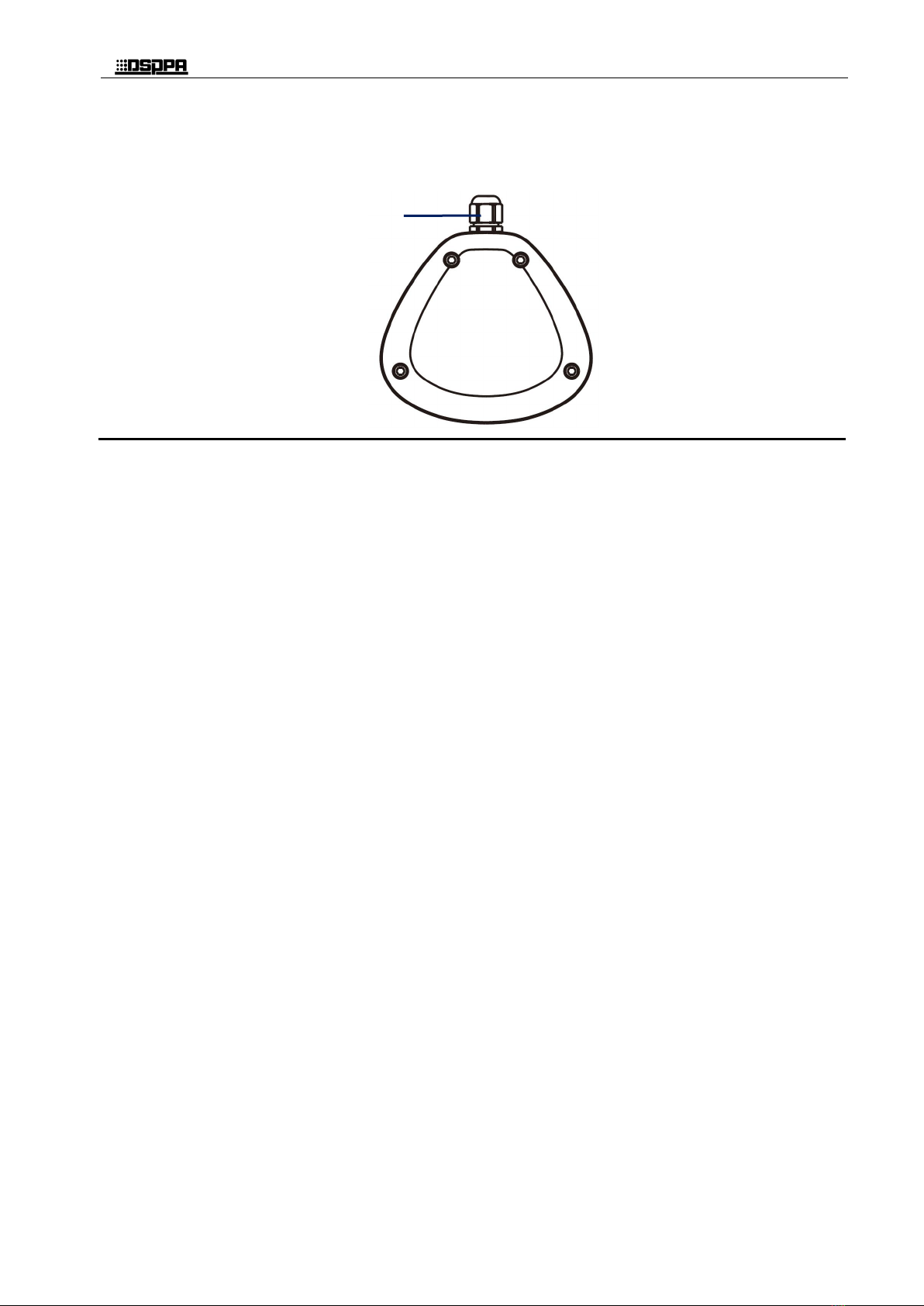

2.1 Rear Panel
1+48V PoE Network interface
Connected to +48V PoE switch.
1

* * Active Speaker
3
III. Connection Diagram
3.1 Connection Diagram of PoE255 Network Outdoor Waterproof
Column Speaker in the System
Note: ①It only displays the connection diagram of the general application of PoE255 network outdoor
waterproof column speaker in the system above. For the connection of the entire system, please refer to the user
manual of the network PA system.
②The connection of PoE255 network outdoor waterproof column speaker in the system must be connected to
the + 48V 100M PoE switch, and set the corresponding address to communicate with the host.
Ethernet
Other devices of the network PA system
Other networks or devices
of the network PA system
Control host of the network PA system
Terminal
Terminal
Terminal
终端
Terminal
POWER
OFF ON
USB
NETWORK PUBLIC ADDRESS CENTRE
EMC MIC
FULL ALARMING
COMPACT DISC DRIVER
100M PoE Switch
100M PoE Switch
100M PoE Switch
100M PoE Switch

* * Active Speaker
4
IV. Setting Operation of the Terminal
4.1 IP Address Setting
The speaker can be customized to modify the network parameters. If you want to modify the IP address, please
read this section carefully for alteration methods:
Method 1:
1. The IP address alteration of the host / computer requires the IP address of the host / computer and that of
the terminal on the same network segment. The IP address of the terminal is attached to its body when it
leaves the factory, so please pay attention to the IP address on its body. For example, the terminal IP
address is 192.168.66.187, while the IP address of the host / computer should be 192.168.66.XX (Note: the
set IP can not appear IP conflict phenomenon);
2. Enter the IP address of the terminal on the IE browser after connecting the host / computer and the terminal,
and then enter the interface as shown in Pic. 1 (The default username:admin, password: 123456), and then
click “OK” button to enter the interface as shown in Pic. 2;
3. Click “Save” button to to display the word “Terminal parameter setting success” at the top of the interface
after altering the terminal IP address or server address under “Network setting”.

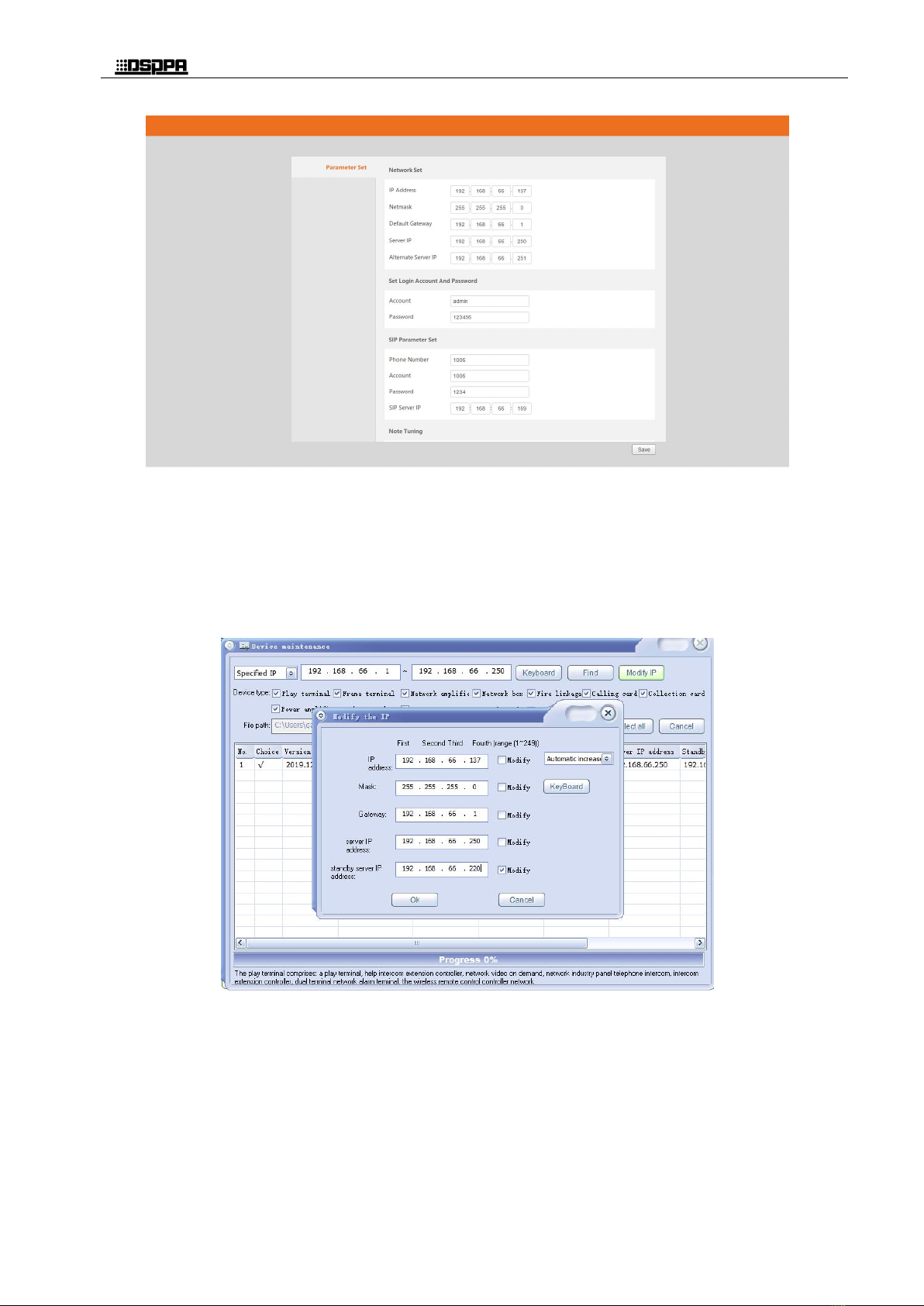

(Pic. 1)

* * Active Speaker
5
(Pic. 2)
Method 2:
1. Enter the network host software “Settings” -> “System Maintenance” -> “Device Maintenance”.
2. Find the IP address of the terminal on the label, select and click “Modify IP”.
3. As shown in Pic. 3, modify the parameters and click OK to display success.
(Pic. 3)
4.2 Sound Adjustment
As the method 1 in the 4.1 above, first ensure that the host / computer and the terminal must be on the same
network segment, and then enter the IP address of the terminal on the IE browser to enter the interface below.
Slide the tone adjustment roller to adjust the high and low volume of the column speaker, and click “Save”

* * Active Speaker
6
button to display the words “Terminal parameters setting success” at the top of the interface.

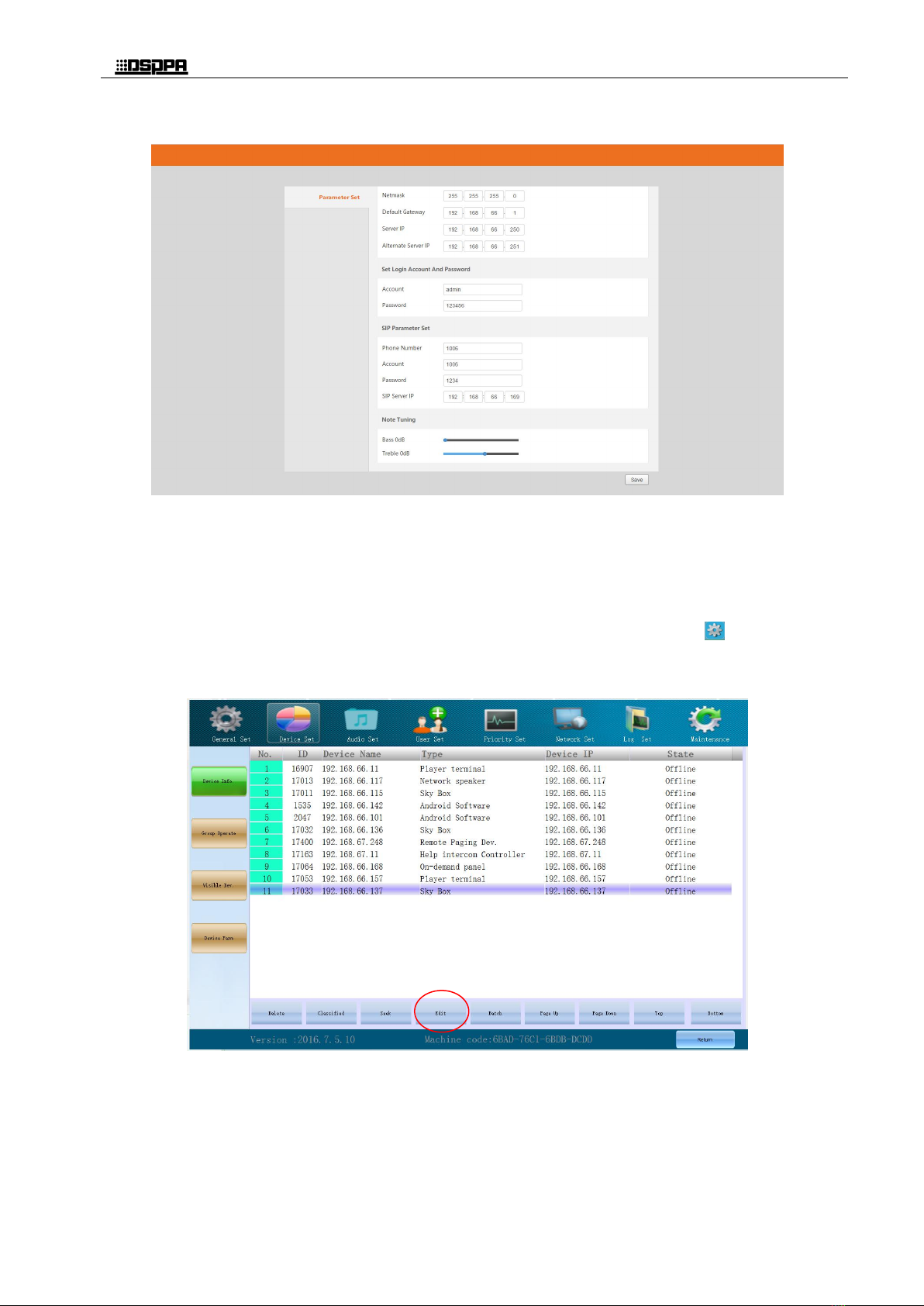

(Pic. 4)
V. Setting Instructions on the Host
After connecting the terminal to the network where the network system host is located, enter the “Settings”
interface on the main interface of the network public address system host (the “Settings” button is in the
lower right corner of the main interface) and click the “Device Management” button to enter the following
interface as shown below.
(Pic. 5)
The host system will automatically search the terminal equipment of the PoE255 network speaker, or you can
manually search for the equipment. Click “Classification Display”, as shown below. Enter the device name,
device number, and device IP for precise filtering.

* * Active Speaker
7

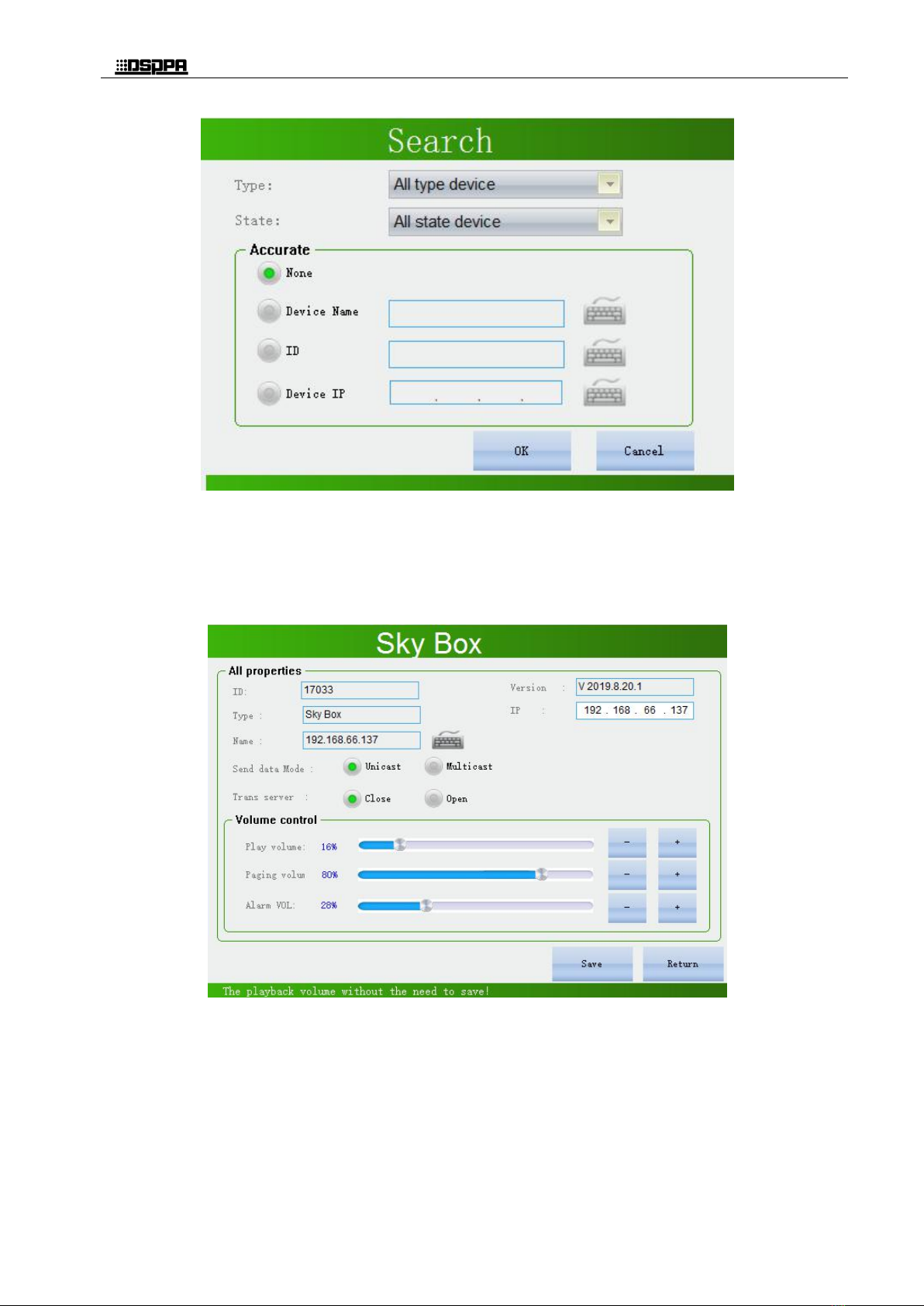

(Pic. 6)
After finding the terminal, select the device in the interface as shown in Pic. 5, and then click the “Edit” button
to enter the interface as shown below. You can view the basic information of the terminal, set the data
transmission mode, the transit server and volume control; and then click the “Save” button.
(Pic. 7)

* * Active Speaker
8
VI. Installation

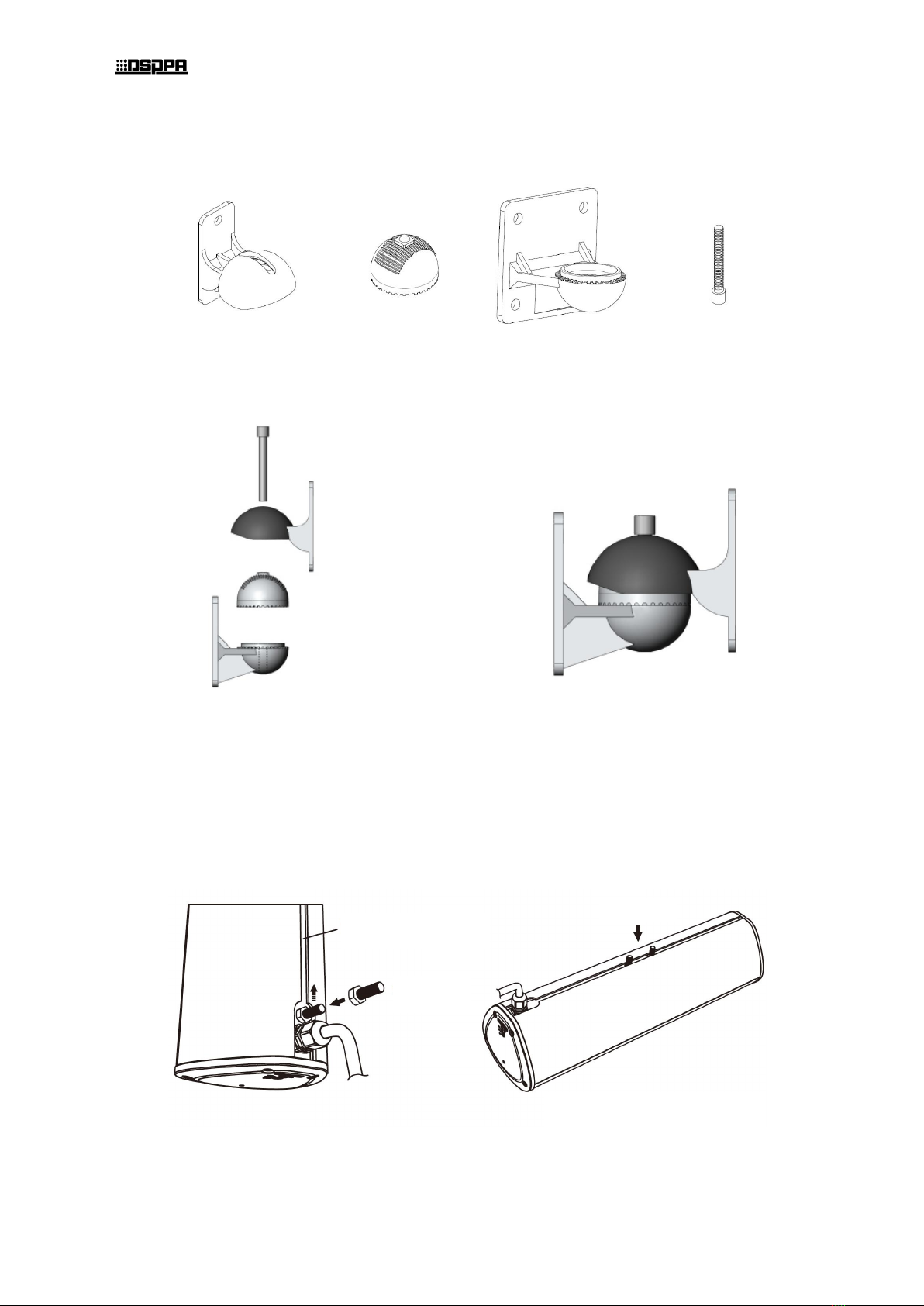

Bracket Accessories
1) Divide the mounting bracket into three parts: 1, 2, and 3. Install two hex screws into the mounting slot on the
rear of the speaker. (Place the column speaker horizontally to facilitate the installation)
Note: When placing the speaker horizontally, please be careful not to touch or press the front mesh of the
speaker with the hard surface, otherwise the front mesh will be deformed.
2 ) Fix the bracket 1 as shown in the figure. After adjusting the proper height according to the installation plan,
tighten the screws.
Bracket 1
Bracket 2
Bracket 3
Screw
The mounting slot on the
rear of the speaker
Hex screw
Hex screw
Approximate position of the screw
after it is placed in the slot

* * Active Speaker
9

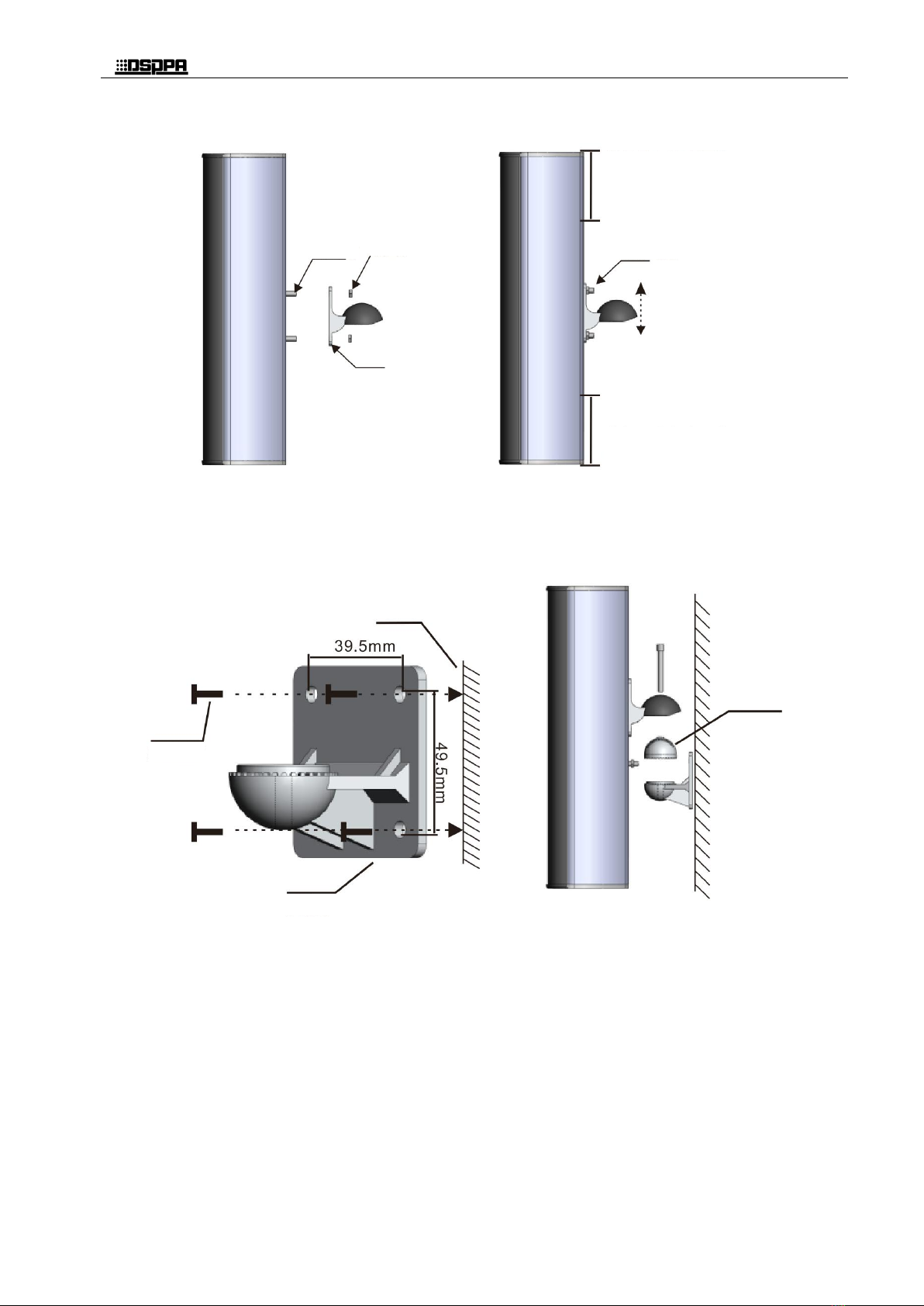

3) After cutting the mounting holes on the wall according to the installation plan, fix the bracket 3 on the
wall. Then assemble the bracket 1, bracket 2, and bracket 3 as shown in the figure. Please ensure that the
bracket is installed securely (The screws to the 3 parts of the bracket are provided by yourself).
4) Please adjust the most suitable angle within the adjustable range according to the installation plan, and
then tighten the screws.
Screw
Nut
Bracket 1
Wall
Screw
Bracket 3
Bracket 2
Max. elevation angle adjustment
Safety distance 140mm
Adjustable
height
Max. depression angle adjustment
Safety distance 160mm

* * Active Speaker
10

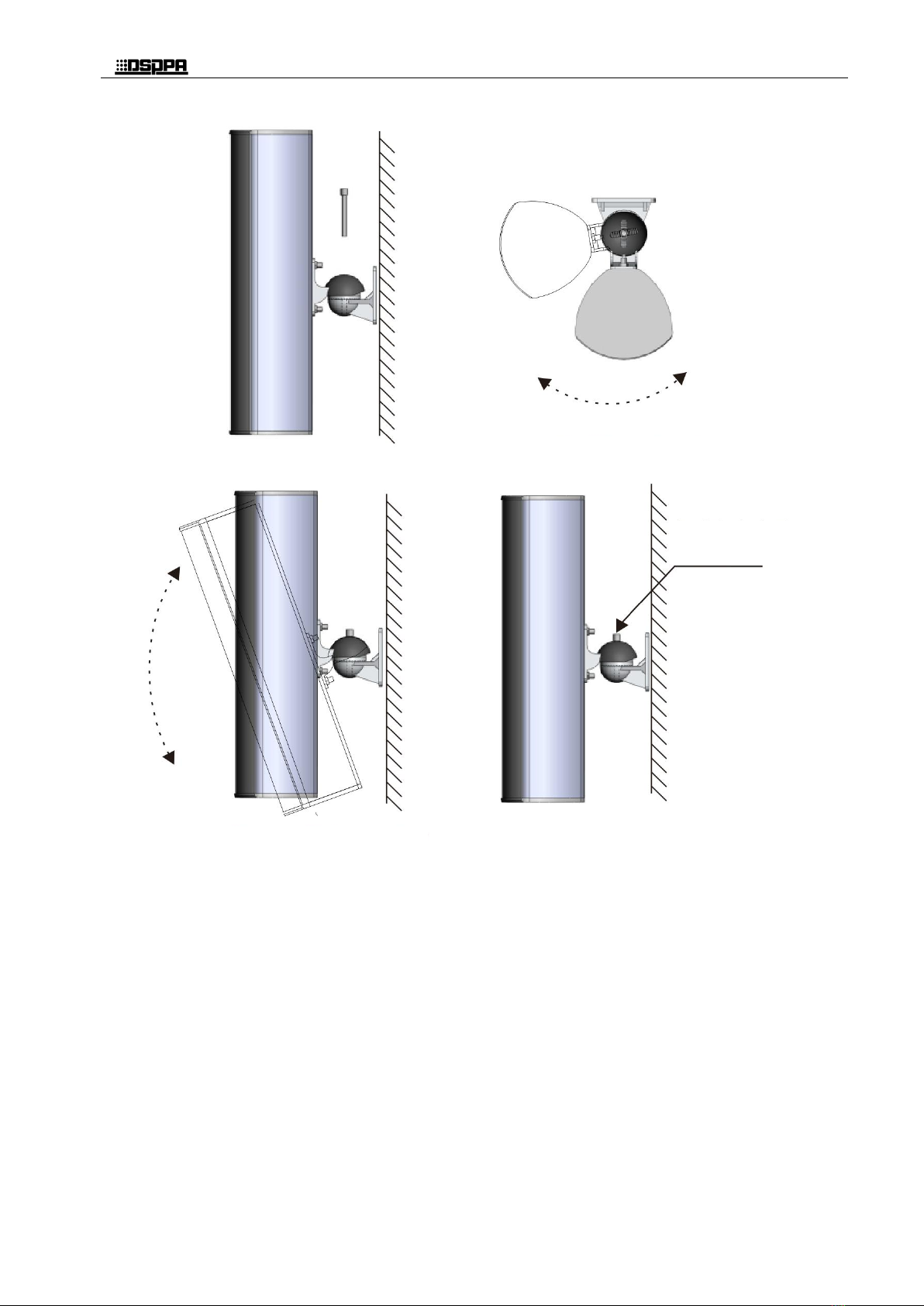

Adjustable 0~20° up or down
Adjustable 0~80° left or right
Tighten the screws after
adjusting the angle

* * Active Speaker
11
Safety Precautions
1．Safety Precautions
Please do NOT connect this device to the power source, before the system is correctly wired.
It is important to ensure that input voltage to the device is the same as required voltage of the device,
otherwise the device may be damaged.
There is dangerous voltage in the device, which may cause personal electric shock. Please do NOT
open the case without permission, to avoid potential risks of electric shock.
The device is not completely disconnected from power source when it is switched to “OFF”. For sake
of safety, please disconnect the device from the socket if it is not in use.
Please do NOT place the device where it is extremely cold or hot.
Good ventilation must be provided in the working environment of the device, to avoid excessive
temperature during its operation, which may cause damages to the device.
Please unplug the device from power socket in raining and wet days or if the device is not in use for a
long time.
Please disconnect the power plug from sockets, to ensure the device has been completely
disconnected from power source, before any component is removed from or re-installed in the device
or before any electric connector of the device is disconnected or reconnected.
In case of any failure of the device, please do NOT open the case and repair without permission from
a professional personnel, to avoid accident or additional damages to the device.
Please do NOT place any corrosive chemicals near or on the device.
2．Matters needing attention
Our company provides a three-year free warranty service (including free replacement parts) over
quality issues as from the date of purchase, provided that the device is installed and used in
accordance with requirements specified in the User Manual.
For warranty, the user must show the Warranty Card and the receipt kept by the user and purchase
invoice of the device as supporting documents.
The following conditions are beyond the scope of warranty:
1．Product damage due to improper installation, use or handling;
2．Product damage due to abnormal conditions (such as excessive power source voltage or ambient
humidity);
3．Product damage due to natural disasters;
4．Product SN is changed, altered or removed;
5．Product has been repaired or modified by any person without duly authorization from our
company;
Please keep the User Manual and Warranty Card in good custody.
For issues and precautions not mentioned in this User Manual, if required, please contact the
distributor or visit our website at http://www.dsppatech.com.
In case of any failure in the warranty period, please contact service personnel (or distributor) of our
company for service. The company shall not be liable for damages due to unauthorized dis-assembly
or maintenance or service by unauthorized personnel.

* * Active Speaker
12
Packing List
No.
List
Quantity
1
User manual
1 copy
2
Certificate
1 copy
3
Warranty card
1 copy
4
PoE255 column speaker
1 piece
5
Whole machine fixing screw M6*50 Black stainless steel 201 material
2 pieces
6
Φ6.5 stainless steel flat gasket
2 pieces
7
M6*16(3.7mm) whole machine fixing screw stainless steel 201 material
4 pieces
8
M6 nut
4 pieces
9
White bracket 1
2 pieces
10
White bracket 2
2 pieces
11
White bracket 3
2 pieces
Specification
Model
PoE255
Rated output power
30W
Distortion-limited output power
≥30W
Sensitivity
-10dB
Effective frequency range of gain
limit
50-18kHz (±3dB)
THD
≤1% (1kHz, under normal condition)
SNR
≥70dB
Sound adjustment
(±14dB) ±2dB
Power supply
+48V PoE
Package dimension (mm)
(L×W×H) 160×280×500mm
Machine dimension (mm)
(L×W×H) 109×102×376mm
Gross weight
5.5kg (2 pieces)
Net weight
1.9kg
The specification is subject to changes without prior notices.

* * Active Speaker
13
Guangzhou DSPPA Audio Co., Ltd.
Caution
●The device is not completely disconnected from power source when it is switched "OFF". For sake of safety,
please disconnect the device from the socket if it is not in use.
●Please keep this device off water drops or splash or vase filled with water or any other articles of similar
nature.
●Please do NOT remove the cover of the equipment, otherwise you may get an electric shock. Where
necessary, repair to the equipment should be conducted by qualified professionals.
●All terminals on the device marked with are live and dangerous, and should be connected by trained
personnel.
●This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the
device from power source by pulling out the plug out from the socket, therefore, it is required that the power
socket should be located somewhere with easy access.
