DTV Exchange DTV-R3000 User manual




QUICK START GUIDE
CONNECTING THE UNIT
a) Connect an RF input to the “RF IN” F connector
b) Connect a BNC cable to the “ASI-OUT” connector
c) Connect the supplied power supply and plug power supply to an AC outlet
d) Tune the RF channel to be demodulated on the front panel, once the tuner lock
led lights the DVB-ASI signal will be routed to the ASI OUT connector.
COMMUNICATING WITH THE DEVICE
a) The DTV-R3000 is shipped with DHCP enabled. When the unit is first powered
up, and if a DHCP server is not found on the network, then the unit will default to
the IP address [192.168.0.1], subnet [255.255.252.0], gateway [X.X.X.X] and
DNS [X.X.X.X]
b) A static IP address can be set using a serial connection.

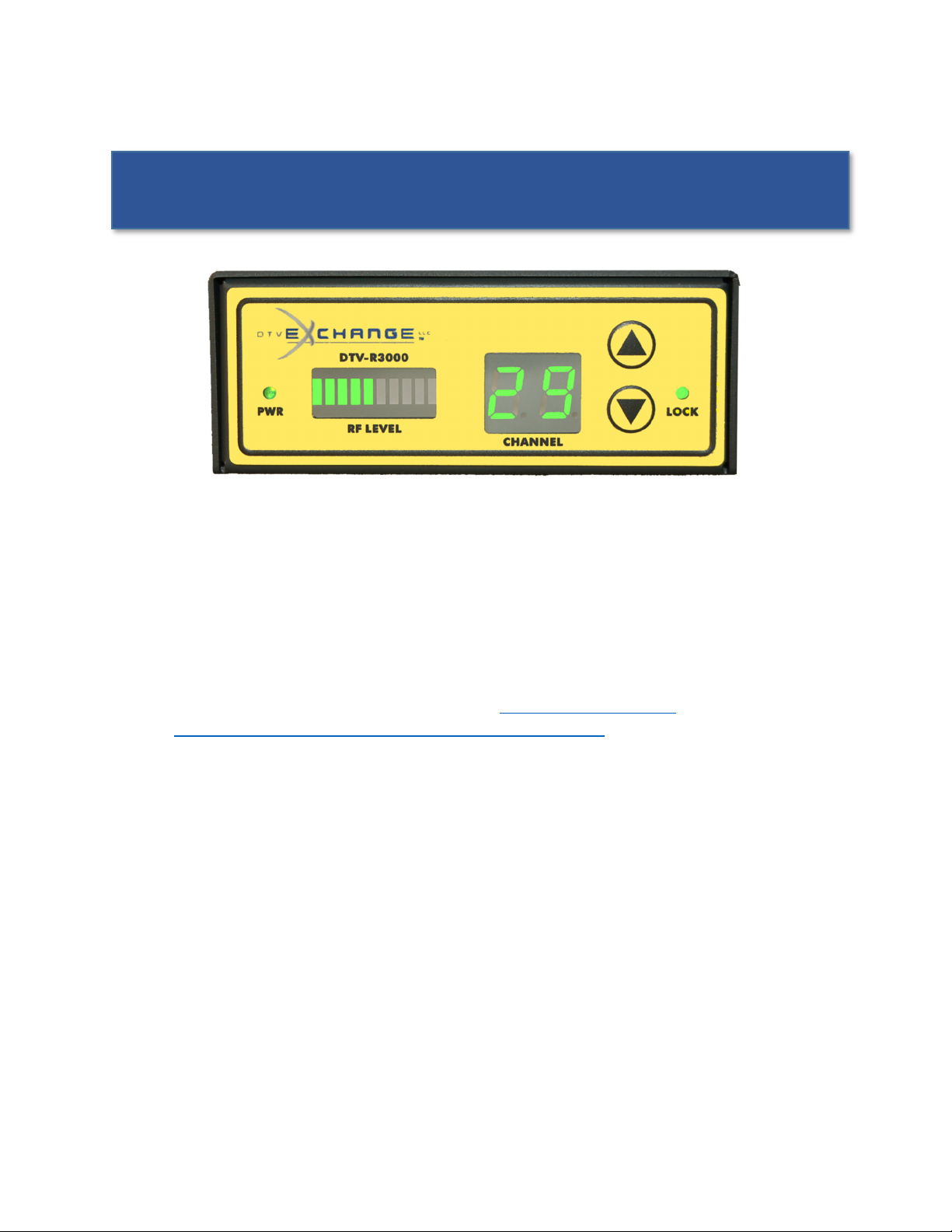

DTV
-
R3000
ATSC DEMODULATOR

SETTINGS:
Serial Port Baud’s Rate 115,200 Number of Bits 8
Parity No Stop Bit 1
Hardware Flow Control None
A terminal program such as Tera Term (https://ttssh2.osdn.jp/) or PuTTY
(https://www.chiark.greenend.org.uk/~sgtatham/putty) can be utilized to
communicate with the DTV-R3000.
a. Connect the serial cable to a computer that is running a terminal program,
hit RETURN to see a DTV_R3000> prompt.
b. Type the command IPSETUP and follow instructions on entering a valid IP
address, subnet mask, gateway and DNS addresses.
c) Power cycle the unit to get the IPSETUP to take effect.
d) The unit is now ready for web interface.
e) Type the IP address into a web browser and hit RETURN or the ENTER key.
f) Username is “admin” password is “Dtvx” (case sensitive).
g) To return to DHCP mode. Enter the IP address of 0.0.0.0 in the IPSETUP
configuration through the serial interface or on the “ABOUT” web page and
power cycle the unit.
h) Attach an Ethernet cable to the unit and power cycle again to obtain a DHCP IP
address. The IP address can be seen on the serial port boot up screen or by
typing “ipconfig” at the DTV_R3000> prompt through the serial connection.
DTV
-
R3000
ATSC DEMODULATOR
