Duali DQ-CUBE User manual

DQ-CUBE
User Manual
Copyright ⓒ2016 DUALi Inc. All rights reserved. You are strictly prohibited to
copy, disclose, distribute, or use this document in part or as a whole for any
purposes other than those for which this document is disclosed. This document is
copyrighted and contains confidential information and other intellectual property
rights of DUALi Inc. Any unauthorized use, copy, disclosure or distribution
constitutes infringement of DUALi’s intellectual property rights.
DUALi Inc.
Document Version: 1.04
Last Revised Date: 09th Mar. 2021
Release Date: 25 November 2009

www.duali.com 2
DQ-CUBE User Manual, Version: 1.04
Revision History
2018.11.19 (Ver. 1.00) : First Release
2019.01.30 (Ver. 1.01) : Wgd Parity, reverse command correct
2019.12.18(Ver 1.02) Remove the communication command part
2019.12.23(Ver 1.03) Change the QR Module
2021.03.08(Ver 1.04) Add connector information

www.duali.com 3
DQ-CUBE User Manual, Version: 1.04
DUALi Inc. reserves the right to make changes to its applications or services or to
discontinue any application or service at any time without notice. DUALi provides customer
assistance in various technical areas, but does not have full access to data concerning the
use and applications of customer's products.
Therefore, DUALi assumes no liability and is not responsible for customer applications or
software design or performance relating to systems or applications incorporating DUALi
products. In addition, DUALi assumes no liability and is not responsible for infringement of
patents and/or any other intellectual or industrial property rights of third parties, which may
result from assistance provided by DUALi.
Composition of the information in this manual has been done to the best of our knowledge.
DUALi does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete
information. Since, despite all our efforts, errors may not be completely avoided, we are
always grateful for your useful tips.
We have our development center in South Korea to provide technical support. For any
technical assistance can contact our technical support team as below;
Tel: [phone]
e-mail : [email protected]
FeliCa™ is registered trademark of SONY Corporation.
Mifare®is registered trademarks of NXP Semiconductors

www.duali.com 4
DQ-CUBE User Manual, Version: 1.04
CONTENTS
01. Introduction.................................................................................................................................................5
02. Specification...............................................................................................................................................5
03. Contents Confirmation..........................................................................................................................7
04. Appearance & Installation....................................................................................................................8
04.1 DQ CUBE Feature & Dimension....................................................................................................8
05. Connection Diagram...............................................................................................................................9
06. Operation & Usage................................................................................................................................ 10
07. Output Format......................................................................................................................................... 11
08. Function configuration (Communication setting)................................................................ 12
09. Certifications............................................................................................................................................ 13
10. Warranty & Service............................................................................................................................... 13

www.duali.com 5
DQ-CUBE User Manual, Version: 1.04
01. Introduction
DQ-CUBE is a wiegand access control reader based on 13.56 Mhz contactless card
communication technology with stylish and rugged design. And it also can read QR code and
1D/2D barcode.It can be installed stably both indoor and outdoor. The ideal combination of NFC
& QR reader could upgrade your application into another level. The reader is designed for wall
mounting type of Access / Time attendance & parking management systems, and etc.
02. Specification
Communication Interface
Wiegand - 32 / 34 /56/ 58/ 64/ 66 bit
RS-232 –115200bps
RS-485 –115200bps
Operating Frequency
13.56MHz
Credential Type
Contactless
> ISO 14443 TYPE A and B
> Mifare™
> FeliCa®
> ISO 15693
> ISO 18092 (NFC)
Contact (SAM)
> ISO7816 Class A (5V)
SAM Card Slot * 1EA
1D/2D QR
Recognizable spec
UPC/EAN, UPC/EAn with Supplementals, Bookland
EAN, ISSN, UCC Coupon Extended Code, Code128,
GS1-128, ISBT 128, Code 39, PDF417,
MicroPDF417, Composite Codes, Data Matrix,
Maxicode, QR Code, micro QR,Aztec
Indicator
Magnetic Buzzer
Power Supply
12VDC (9- 12 VDC also available)
Linear supply recommended, 150 mA @ 12 VDC
Operating Condition
> -4ºto 158ºF (-20ºto 70ºC guaranteed)
> 5% to 90% relative humidity
Storage Condition
> -4ºto 158ºF (-20ºto 80ºC) >
> 5% to 90% relative humidity
Housing Material
PC (polycarbonate)
Dimensions
76.2(mm) x 71.0(mm) x 47.0(mm)
Weight
169.6g
Cable length
1000(mm)

www.duali.com 6
DQ-CUBE User Manual, Version: 1.04
Certifications
KC, CE(EU), IP65 compliant

www.duali.com 7
DQ-CUBE User Manual, Version: 1.04
03. Contents Confirmation
< DQ CUBE >
<Option>
PC Test/FW download zig

www.duali.com 8
DQ-CUBE User Manual, Version: 1.04
04. Appearance & Installation

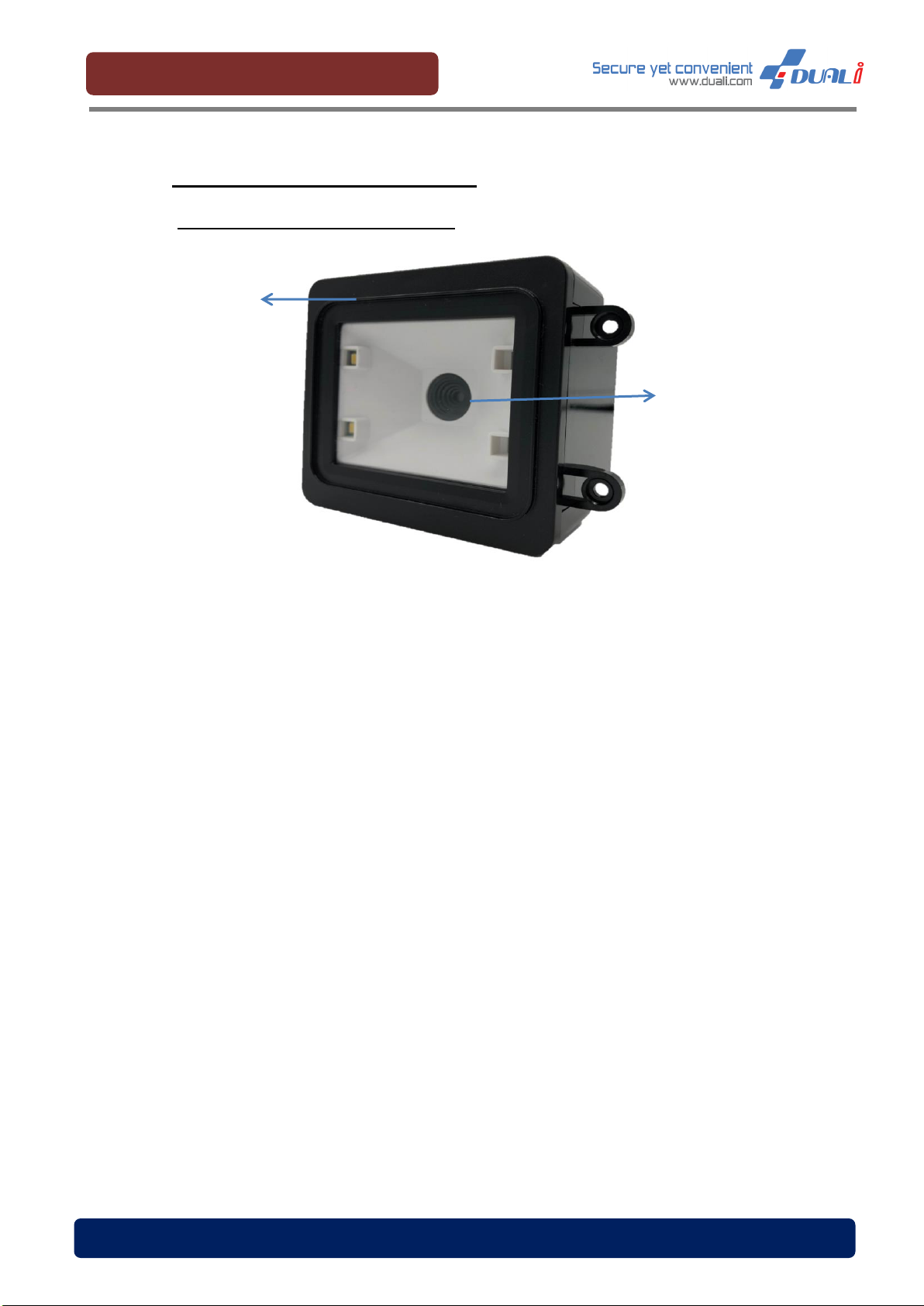

04.1 DQ CUBE Feature & Dimension
※Caution
- Do not push the bracket too hard when fixing it to the wall.
- Screw has to be selected depending on the wall’s material and condition
- Place the reader to flat panel between the wall mount bracket and the wall.
It could cause a problem to assemble the device if the bracket is bent.
- Card reading distance can be short if the wall is made of steel or metal.
RF Field
1/2D barcode
detector

www.duali.com 9
DQ-CUBE User Manual, Version: 1.04

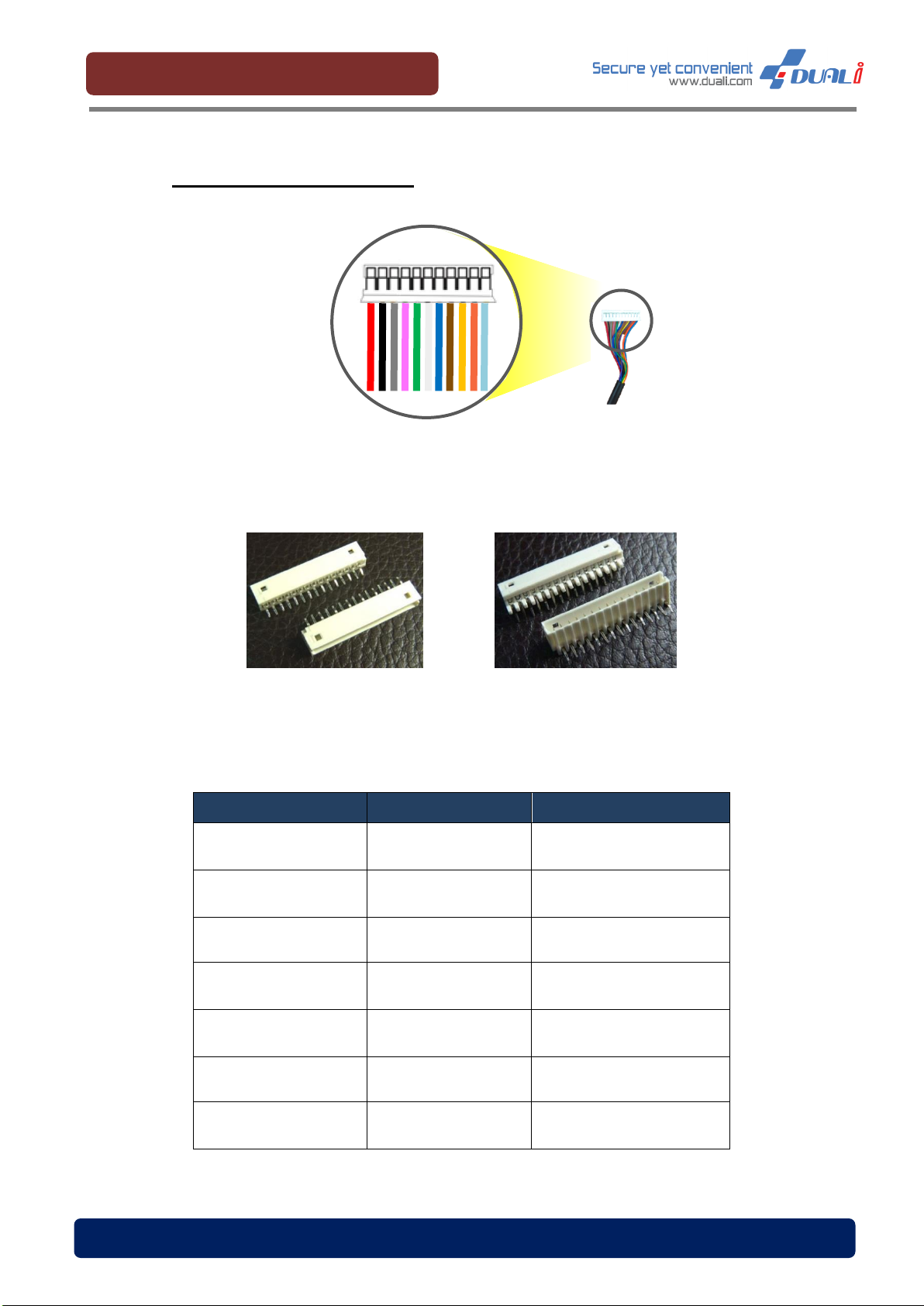

05. Connection Diagram
2.00mm pitch, 12PIN connector (Yeonho-electronic : 20017HS-12)
Opposite connector (Female)
20017WS-12(Straight) 20017WR-12 (Right angle)
PIN NAME
COLOR
PIN NUMBER
PWR_IN
RED
1
PWR_GND
BLACK
2
RS232_RX
GRAY
3
RS232_TX
PINK or JADE
4
WGD_D0
GREEN
5
WGD_D1
WHITE
6
PWR_GND
BLUE
7

www.duali.com 10
DQ-CUBE User Manual, Version: 1.04
06. Operation & Usage
LED Control:
Reader turns on RED LED when LED Signal (BROWN) with 0V. In case of 5V, BLUE
LED will be on.
LED
BROWN
8
BEEP
YELLOW
9
TAMPER
VIOLET
10
RS485+
ORANGE
11
RS485-
SKYBLUE
12

www.duali.com 11
DQ-CUBE User Manual, Version: 1.04
Buzzer Control:
Reader makes beep sound when BEEP Signal (YELLOW) with 0V.
07. Output Format
[Data format]
-Data format can be decided by setting. (Refer to chapter 10)
-
First Bit (Parity) : Even parity of bit 2 ~ bit 17
Data [1-32] : ID number (transmission data)
Last Bit (Parity) : Odd parity of bit 18 ~ bit 33

www.duali.com 12
DQ-CUBE User Manual, Version: 1.04
First Bit (Parity): Even parity of bit 2 ~ bit 33
Data[1-64] : ID number(transmission data)
FeliCa™ card – IDM data(8bytes)
Mifare® card –Card serial number(4bytes)+0x00(4bytes)
Last Bit (Parity) : Odd parity of bit 34 ~ bit 65
<32bit>
Data[1-32] : ID number(transmission data)
<64bit>
Data[1-64] :
FeliCa™ card –IDM data(8bytes)
Mifare® card –Card serial number(4bytes)+0x00(4bytes)
08. Function configuration (Communication setting)
Changing the reader settings is also possible using the SDK (DualCard program) provided by
DUALi. You can easily change the setting of DQ-CUBE by executing the corresponding command
referring to the communication frame below. (For more information on dual cards, please refer to
DUALi SDK Manual.)

www.duali.com 13
DQ-CUBE User Manual, Version: 1.04
※STX, LENH (Length High) and LENL (Length Low) value of each communication frame are
automatically calculated in the dual card program. Just input corresponding value on each CMD/
DATA fields.
09. Certifications
,
10. Warranty & Service
Warranty and Repair service
- DUALi Inc. warrants to the original consumer or other end user that this product, DQ
CUBE,is free from defects in materials and workmanship for a period of 1 year from
the date of purchase.
※Note Warranty/non-warranty repair fees do not include shipping charges.
‣The damages(defaults) prescribed below are NOT to be covered by warranty.
- User’s misuse of part/component against the provided manual.
- Fault by the unqualified user’s own intention of repairs.
- Adding certain functions or extension of system.

www.duali.com 14
DQ-CUBE User Manual, Version: 1.04
PRECAUTIONS
Do not drop the device.
Do not modify, repair, or disassemble.
Do not expose directly to water, alcohol, benzene, etc for cleaning.
Do not expose directly to flammables.
Do not place or keep the device near flammables.
Keep the device away from excessive humidity and dust.
Do not place heavy objects on the device.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
*Please contact our service team for the technical/ sales supports.
DUALi Inc.
Innoplex 1dong 309ho 306, Sinwon-ro,

www.duali.com 15
DQ-CUBE User Manual, Version: 1.04
Yeongtong-gu, Suwon-si, Gyeonggi-do,
Republic of Korea,
16675
Tel : [phone]
Fax : [phone]
E-mail : [email protected]
Web-site : http://www.duali.com
